SIIG Full Motion TV Mount - 23" to 42 User manual

04-0621B
TV size: 23" - 42"
Installation and Operating Instructions
Wall distance: 3.75" / 95mm
Bubble level included
Universal Mounting Pattern
IMPORTANT: If you have difficulty following or understanding these installation instructions,
please consult a qualified installation specialist.
Max load capacity:100 lbs
Tilt angle: 0-12 degrees
Full Motion TV Mount - 23" to 42"
Full-motion/articulating universal LCD/Plasma TV wall-mount
1

AH
(×6) bolt
BI
(×4) M8/M6/M5 rectangular washer
C J-1 (×6) M8 washer
D J-2
EK
(×4) spacer
FL
(x1) wrench
GM
(×4) M5×35 screw
(×6) M8 concrete anchor
(×4) M8×35 screw
(×4) M6×35 screw
The wall structure must be capable of supporting at least the maximum load capacity as indicated. If not, the wall must be
reinforced. Proper installation procedure by yourself or a qualified service technician, as outlined in the installation
instructions, must be adhered to. Failure to do so could result in serious personal injury.
Do not install near heater, fireplace, air conditioning, in direct sunlight, or any other heat producing source. Failure to do so
may result in damage to the display and could increase the risk of fire.
(×4) M6×16 screw
(×4) M8×16 screw
When mounting to a wall that contains wood studs, confirm dead center of the wood stud prior to installation, it is
recommended that the wood studs be a minimum of 16" apart.
(×4) M5 x 16
Caution
Hardware kit:
It is recommended that two people perform the installation. Injury and/or damage can result from dropping or mishandling
the display.
CAUTION: The maximum load capacity is 100 lbs. Use with products exceeding the maximum load capacity may cause
serious injury. See apparatus instructions.
INSTALLATION AND OPERATING INSTRUCTIONS
Do not install on a structure that is prone to vibration, movement or chance of impact. Failure to do so could result in damage
to the display and/or damage to the mounting surface.
Recommended mounting surfaces: wood stud and solid-flat concrete. If the mount is to be installed on any surface other
than wood studs, use suitable hardware (not included but commercially available).
Prior to the installation of this product, the installation and operating instructions should be read and completely understood.
The installation and operating instructions must be read to prevent personal injury and property damage. Keep these
installation and operating instructions in an easily accessible location for future reference.
(x2) cable ties (30cm)
(x1) bubble level
2

1
2
3
4
a) Wood Stud Installation
Figure 1
3
4Figure 2
5
6
7
8
Figure 3
For each location, insert a bolt (H) and washer (J) into the wall.
Attach the bubble level (J-2) to the wall plate and with the help of an
assistant ensure the wall plate is level, position the wall plate against
the wall in the desired mounting location (Figure 2).
Tighten the bolt with an open ended socket wrench by turning clockwise
until tight (Figure 3).
You should mark four positions total. Take down the wall plate.
5/16" Socket and Wrench
Electric drill, 3/16 drill bit for wood stud installation, and 1/2" (12mm) masonry bit for concrete/brick installation
Note: Please ensure that the bubble level (J-2) is properly mounted on the wall plate prior to mounting the wall
plate.
Note: When mounting to wood studs, the two wood studs must be a minimum of 16" apart.
Use a high-quality electronic stud finder (commercially available) to
locate dead center of two studs and mark their locations with a pencil
(Figure 1).
Next, pre-drill a 3/16" hole to a depth of 2" in the wall stud at each
marked location.
2
1
CAUTION: Do not over-tighten bolts - doing so may cause unnecessary damage to the wall. Avoid excessive torque.
CAUTION: Do not release the wall plate until it is properly mounted and secured to the wall.

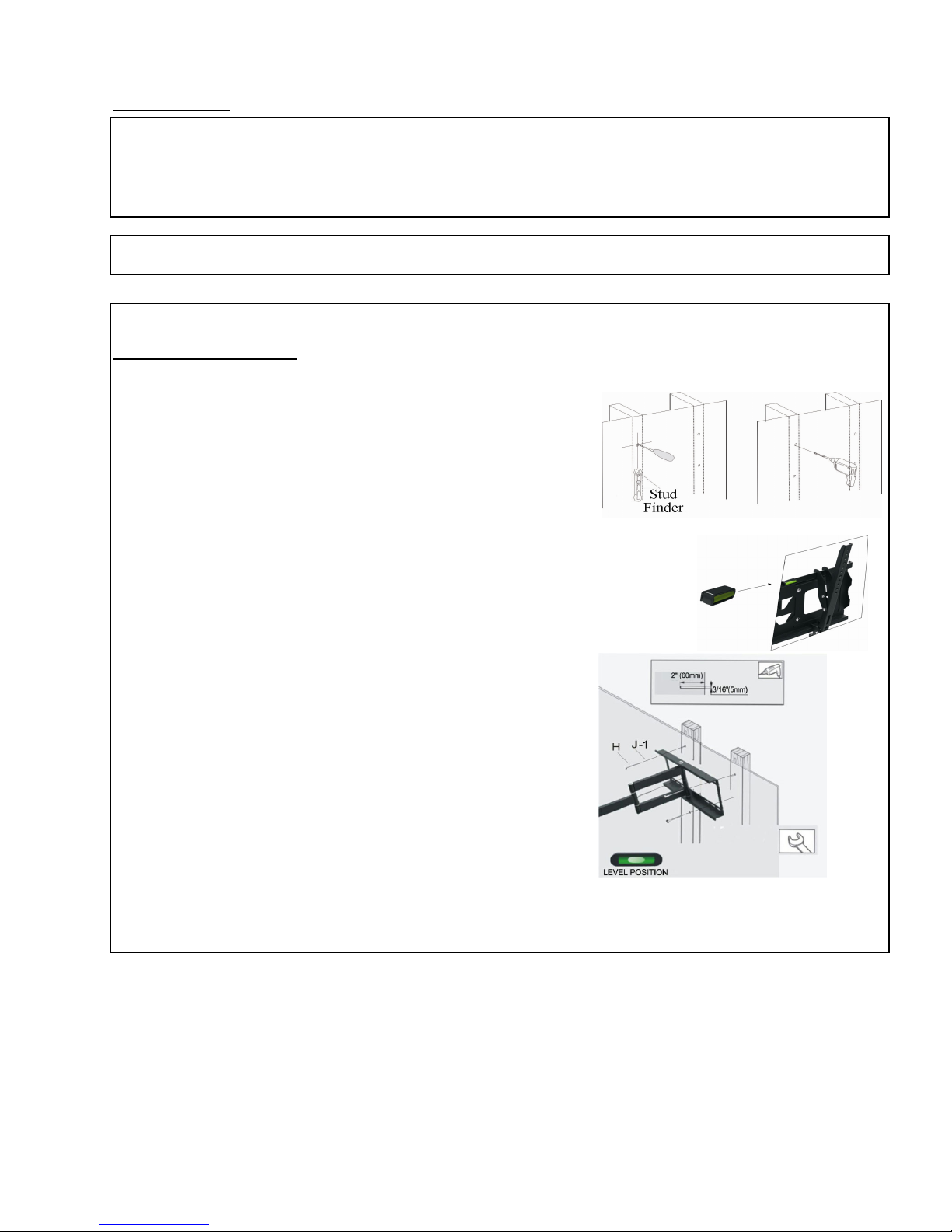

Step1: Wall Plate Installation
Mark the right (upper and lower) and the left (upper and lower) positions
of the small horizontal slots that are in alignment with the studs.
Stud finder for drywall installation
Tools Required:
Phillips head screw driver
Place the wall plate against the wall and line up the mounting slots with
the drilled holes. Check the bubble level to verify that the wall plate is
level.
3

1
2
3
4
5
6
7
Figure 4
1
2
3
4
Figure 5 Figure 6 Figure 6-1
If your display has a curved back or a recessed thread mounting point, a spacer (K) must be used. Then choose
screw (D/E/F) to match. Place the spacer (M) between the mounting bracket and display (Figure 6-1).
Insert a concrete anchor (G) into each hole.
Mark six holes to be used for securing the mount, and place the wall
plate aside. Locate the holes directly into the block or concrete, never
into the mortar between the blocks (Figure 4).
According to the size of display's hole, choose the corresponding screw (A/B/C/D/E/F) and hole on the
rectangular washer (I), then thread them in line (Figure 6 & Figure 6-1).
b) Concrete / Brick Installation
Note: The concrete anchors must be used for concrete and brick installation.
Determine which screw (A/B/C/D/E/F) is of the correct length by carefully inserting a straw or toothpick, and mark
how deep the mounting point is (Figure 6 & 6-1).
Attach the bubble level (J-2) to the wall plate, with the help of an
assistant place the wall plate into position against the wall, using the
bubble level to keep it level.
Step 2 Display Plate Installation
Drill six holes using an electric drill and 1/2" masonry bit to a depth of
2" at the positions you marked.
If necessary, a hammer can be used to lightly tap each concrete anchor
into place so that they are flush with the wall.
Insert bolts (H) and washers (J) into the concrete anchor as shown
(Figure 4) and tighten. Do not fully tighten until all screws are in place.
Note: The installation kit includes screws of various diameters and lengths to ensure optimal installation.
Place your TV screen down on a soft, flat surface, and locate the threaded mounting points that are located on
the back of the display (Figure 5).
Once all of the concrete anchors are in place, move the wall plate back
into position. Check the bubble level to verify that the wall plate is level.
4

1
2
3
4
5
Figure 7
Figure 8
Figure 11
Swivel Adjustment
Figure 12
If the swivel joints are too loose or too tight, they can be adjusted using the wrench
(L) provided in the hardware kit (Figure 10).
Figure 9 Figure 10
Secure the cables from your LCD TV / Monitor using the supplied cable
ties (Figure 11).
Tighten the bottom screw to lock the bracket (Figure 9).
Tilt the display to the desired angle (Figure 8).
Tighten the middle screw to secure the tilt angle (Figure 10).
Check the mounting screws every two months for tightness.
Maintenance
Hang the display plate onto the top of the wall plate and slip onto the
wall plate as shown (Figure 7).

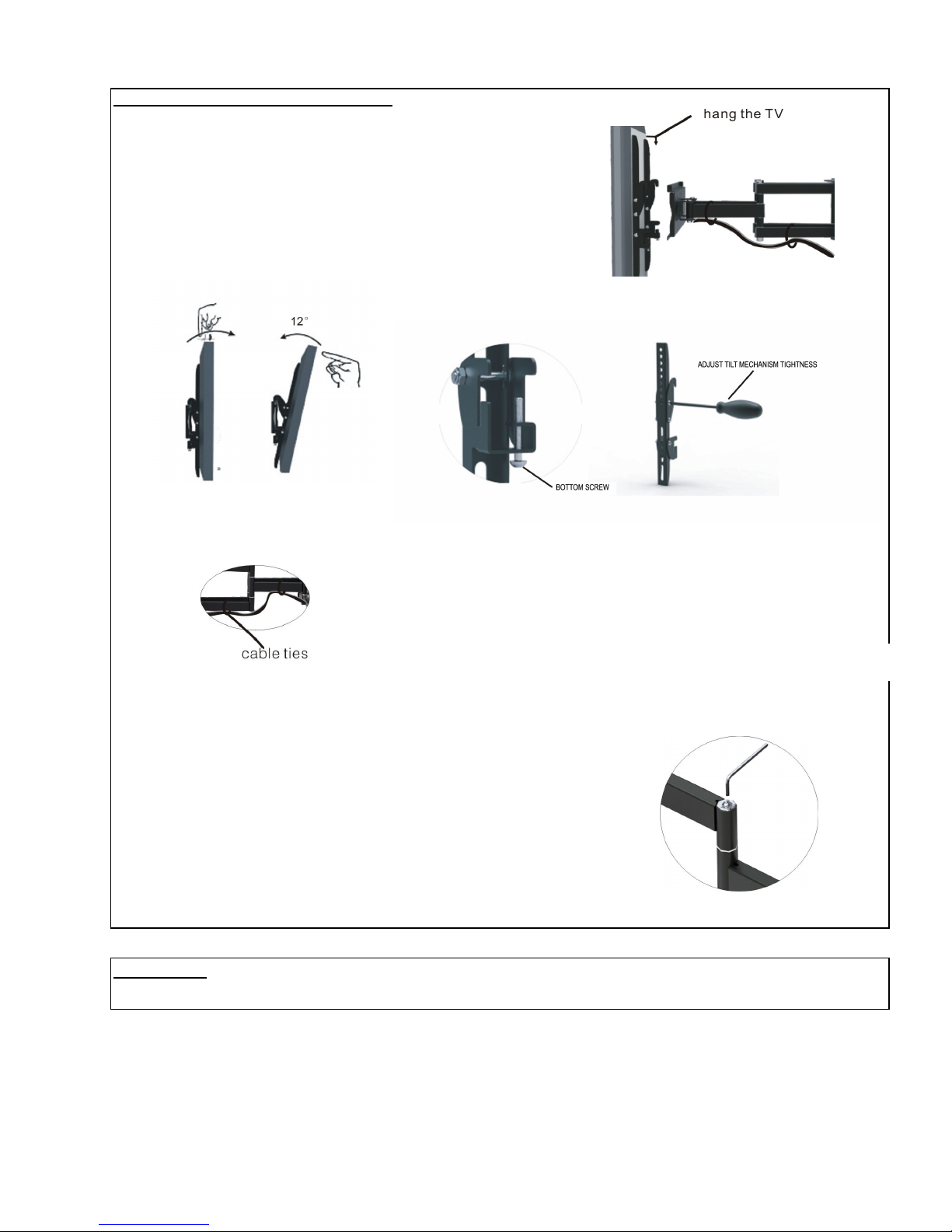

Step 3 Final Installation & Adjustment
5

Blank Page
