Siklu EtherHaul 500 User manual

© ALL RIGHTS RESERVED TO SIKLU COMMUNICATION LTD.
EtherHaul™500/600
Gigabit Ethernet Wireless Solution
Installation Manual
EH600-INST-05, Issue 3
March 2018

EH-500/600 Installation Manual
Page 2
Trademarks
Siklu, the Siklu logo, and EtherHaul are all trademarks of Siklu Communication Ltd.
All other product names and trademarks mentioned in this document are trademarks or
registered trademarks of their respective companies.
Copyrights
Copyright © 2018 Siklu Communication Ltd. All rights reserved.
No part of this publication may be reproduced or distributed in any form or by any
means, or stored in a database or retrieval system, without the prior written consent of
Siklu.
Disclaimers
The information contained in this document is subject to change without notice.
Siklu assumes no responsibility for any errors that may appear. Siklu makes no
warranties, expressed or implied, by operation of law or otherwise, relating to this
document, the products or the computer software programs described herein.
This document was originally written in English. Please refer to the English language
version for a full and accurate description of all products and services described herein.

EH-500/600 Installation Manual
Page 3
About this Document
This document is the Installation Manual for the Small-Form-Factor (SFF) EtherHaul-500
and EtherHaul-600 wireless Link.
It provides product overview and details the installation and initial setup.
For instructions how to use the product’s features, refer to the “EtherHaul Operation,
Administration and Maintenance Manual”.
Note:
Features and functionality described in this document may be available for specific
product models or starting from specific SW version.
Please review the individual product’s release notes to verify if a specific feature is
supported in the product you use.
Applicable Products and Releases
V-Band
oEH-600T/TX, minimum SW release 7.4.0
oEH-500T/TX, minimum SW release 7.4.0
Audience
This document assumes a working knowledge of wireless backhaul platforms and their
operating environments.
This document is intended for use by all persons who are involved in planning, installing,
configuring, and using the EtherHaul system.
Conventions
The following conventions are used in this document in order to make locating, reading,
and using information easier.
Special Attention
Hint:
Informs you of a helpful optional activity that may be performed at the current
operating stage.

EH-500/600 Installation Manual
Page 4
Note:
Provides important and useful information or describes an activity or situation that
may or will interrupt normal operation of the EtherHaul system, one of its
components, or the network.
Caution:
Describes an activity or situation that requires special attention or warning.
Text Conventions
Document References
Italicized text is used to reference sections or chapters
in this document. In many cases, references use
clickable hypertext links that enable immediate access
to referenced objects.
Command Input
Monospace text is used to help delineate command line
user input or text displayed in a command window.

EH-500/600 Installation Manual
Page 5
Safety and Regulatory Notices
The following are mandatory notices for installation and operation of EtherHaul
Wireless Backhaul Link. Indications appearing here are required by the designated
government and regulatory agencies for purposes of safety and compliance.
General
Do not install or operate this System in the presence of flammable gases or fumes.
Operating any electrical instrument in such an environment is a safety hazard.
European Commission
This product has been designed to comply with CE markings in accordance with the
requirements of European Directive 1995/5/EC, 2011/65/EU and RED 2014/53/EU (see

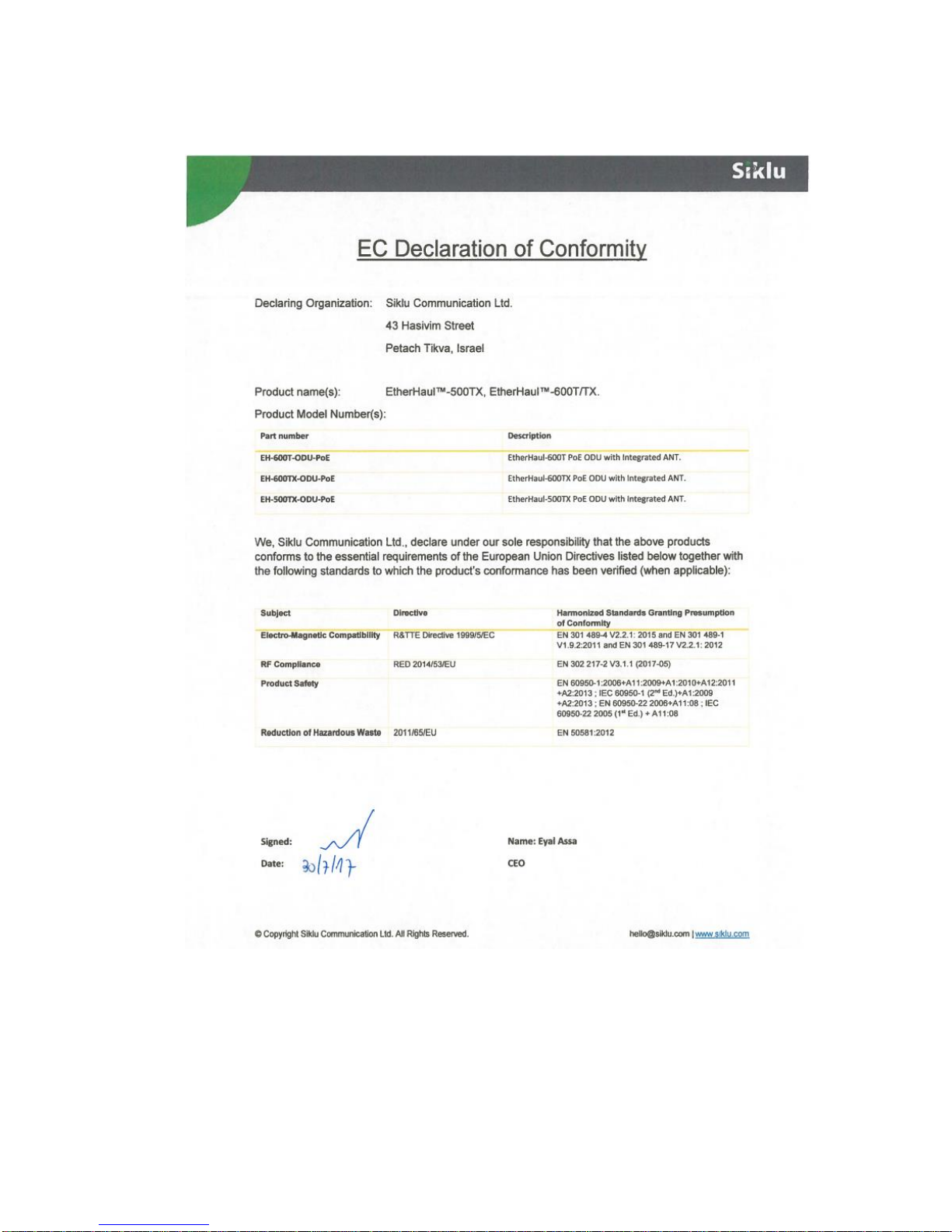

declaration of conformity enclosed).
This product has been designed to comply with the requirements of European
Directives.
This equipment must be permanently earthed for protection and functional purposes.
To make a protective earth connection, use the grounding point located on the System
ODU using a minimum amount of 16AWG grounding cable or according to local
electrical code.
This apparatus is intended to be accessible only to authorized personnel. Failure to
prevent access by unauthorized personnel will invalidate any approval given to this
apparatus.
This product is in full compliance with the following standards:
RF EN 302 217-2 3.1.1
V-Band FCC Part 15.255
EMC EN 301 489-1, 301 489-4, 301 489-17
Safety IEC 60950
Operation EN 300 019-1-4 Class 4.1E
Storage EN 300 019-1-1 Class 1.2
Transportation EN 300 019-1-2 Class 2.2
Reduction of hazardous waste EN 50581

EH-500/600 Installation Manual
Page 6

EH-500/600 Installation Manual
Page 7
FCC/IC Regulatory Statements
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules and IC RSS standards. These limits are
designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Note:
Changes or modifications to this equipment not expressly approved by Siklu LTD or
the party responsible for compliance could void the user's authority to operate the
equipment.
Caution:
Outdoor units and antennas should be installed ONLY by experienced installation
professionals who are familiar with local building and safety codes and, wherever
applicable, are licensed by the appropriate government regulatory authorities.
Failure to do so may void the product warranty and may expose the end user or the
service provider to legal and financial liabilities. Siklu LTD and its resellers or
distributors are not liable for injury, damage or violation of regulations associated
with the installation of outdoor units or antennas.
Prudence: Les unités extérieures et les antennes doivent être installés que par des professionnels
expérimentés d'installation qui sont familiers avec les norms locales et les codes de
sécurité et, si applicable, sont agréées par les autorités gouvernementales de
réglementation compétents. Ne pas le faire peut annuler la garantie du produit et
peuvent exposer l'utilisateur final ou le fournisseur de services d'obligations juridiques et
financiers. Revendeurs ou distributeurs de ces équipements ne sont pas responsables des
blessures, des dommages ou violation des règlements liés à l'installation des unités
extérieures ou des antennes. L'installateur doit configurer le niveau de puissance de
sortie des antennes conformément aux réglementations nationales et le type d'antenne.
Canada Statement

EH-500/600 Installation Manual
Page 8
This device complies with Industry Canada RSS-210. Operation is subject to the following
two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of
the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio RSS-210. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil
ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.

EH-500/600 Installation Manual
Page 9
TABLE OF CONTENTS
1Introduction to the EtherHaul System........................................................12
1.1 Main Features ...........................................................................................................13
1.2 Functional Description..............................................................................................15
1.3 Technical Specifications............................................................................................16
1.4 Licensing..................................................................................................................17
1.5 Management .............................................................................................................18
2Installing the EtherHaul System .................................................................19
2.1 Preparing the Site......................................................................................................20
2.1.1 Physical and Environmental Requirements....................................................20
2.1.2 Cabling Requirements...................................................................................21
2.2 EtherHaul Package Content.......................................................................................22
2.3 Unpacking the EtherHaul..........................................................................................22
2.4 Required Tools..........................................................................................................22
2.5 Preparing for Installation...........................................................................................23
2.6 Mounting the EtherHaul............................................................................................24
2.7 Connecting the Cables...............................................................................................25
2.7.1 Power Options..............................................................................................26
2.8 Grounding the EtherHaul ..........................................................................................27
2.8.1 Preparing the Cables.....................................................................................28
2.9 System LEDs............................................................................................................29
2.10 Aligning the Antenna................................................................................................29
2.10.1 Performing the Alignment ............................................................................31
2.11 Link Up Verification.................................................................................................31
3Performing Basic Setup Using the Web-Based Management..................32
3.1 Connecting to the ODU Using the Web-Based Management .....................................33
3.2 Main Page.................................................................................................................34
3.3 General Configuration Commands ............................................................................35
3.3.1 Apply...........................................................................................................35
3.3.2 Save Configuration.......................................................................................35
3.3.3 Rollback.......................................................................................................36
3.3.4 Reset ............................................................................................................36
3.3.5 Copy To Remote ..........................................................................................36
3.4 Quick Configuration Wizard .....................................................................................37
3.4.1 Quick Configuration: Step 1 –System ..........................................................37
3.4.2 Quick Configuration: Step 2 –Radio ............................................................38

EH-500/600 Installation Manual
Page 10
3.4.3 Quick Configuration: Step 3 –Eth Ports .......................................................39
3.4.4 Quick Configuration: Step 4 –Network........................................................40
3.5 Radio Page................................................................................................................41
3.5.1 Settings ........................................................................................................42
3.5.2 Advanced Settings........................................................................................43
3.5.3 Maintenance.................................................................................................45
3.5.4 Modulation Table .........................................................................................46
3.5.5 Spectrum Analyzer .......................................................................................46
3.5.6 Statistics.......................................................................................................47
3.6 Default Bridge Configuration....................................................................................47
4Commissioning and Acceptance Procedure.............................................48
4.1 Installation Verification and Testing..........................................................................48
4.1.1 Physical Installation Verification ..................................................................48
4.1.2 RF Link Test ................................................................................................48
4.1.3 Link Errors Test............................................................................................48
4.1.4 Ethernet Services Test ..................................................................................49
4.1.5 Management Verification .............................................................................49
4.1.6 Recording ODU Configuration .....................................................................49
4.2 EtherHaul Commissioning and Acceptance Form......................................................49

EH-500/600 Installation Manual
Page 11
TABLE OF FIGURES

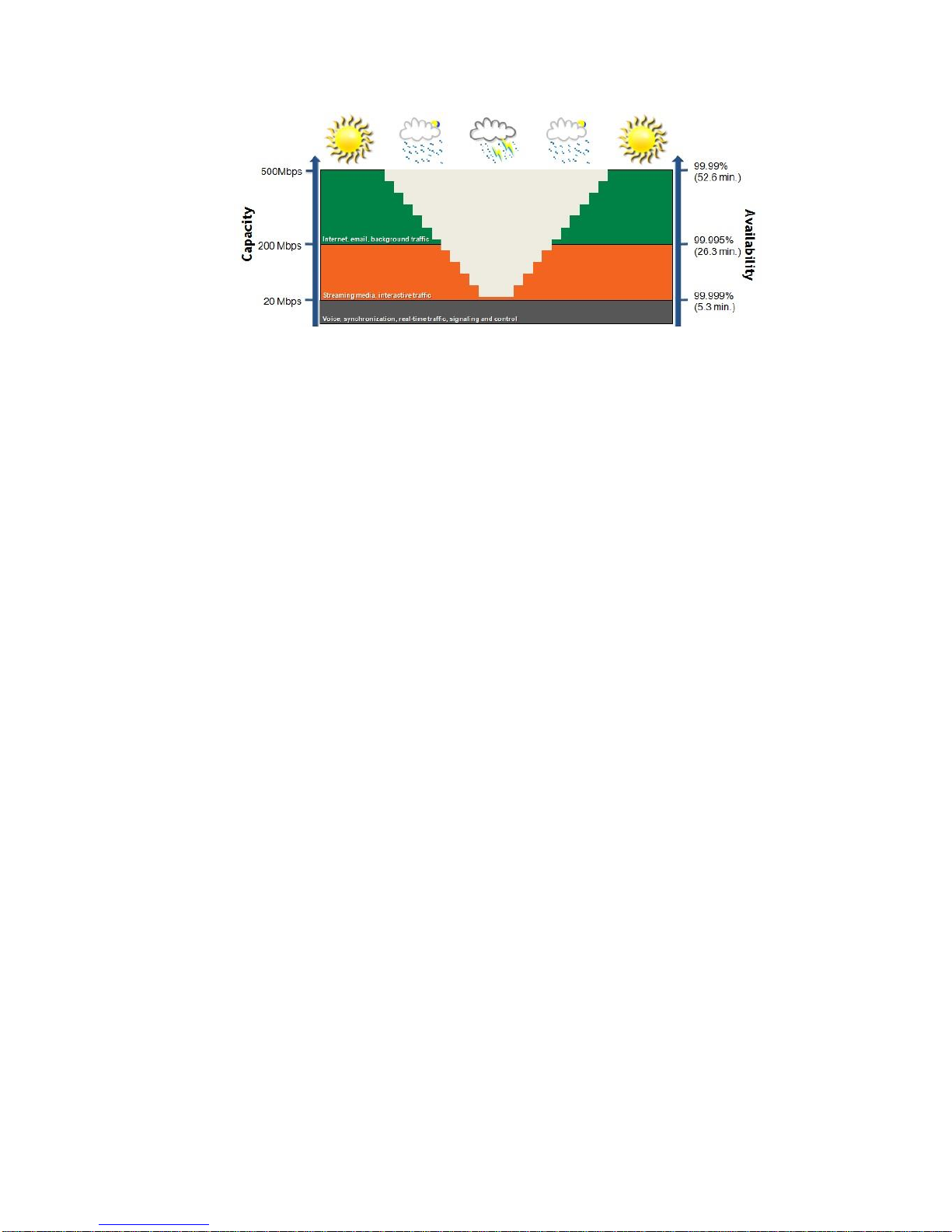

Figure 1-1 Hitless Adaptive Bandwidth, Coding and Modulation ........................................15
Figure 1-2 V-Band Functional Block Diagram ....................................................................16
Figure 2-1 EH-MK-SM Mounting Bracket..........................................................................24
Figure 2-2 Connection Panel Details ...................................................................................25
Figure 2-3 PoE-DC RJ45 Adapter.......................................................................................26
Figure 2-4 Grounding Scheme ............................................................................................27
Figure 2-5 All-Weather Connecting Cable Shell Assembly .................................................28
Figure 2-6 RSSI RJ45 Adapter............................................................................................30
Figure 3-1 Launching the Web-Based Management ............................................................33
Figure 3-2 Entering Username and Password ......................................................................33
Figure 3-3 Web-Based Management Main Page..................................................................33
Figure 3-4 Copy To-Remote icon........................................................................................36
Figure 3-5 Quick Config Page: Step 1 - System...................................................................37
Figure 3-6 Quick Config Page: Step 2 - Radio.....................................................................38
Figure 3-7 Quick Config Page: Step 3 –Eth Ports...............................................................39
Figure 3-8 Quick Config Page: Step 4 –Network................................................................40
Figure 3-9 Radio Page: Settings ..........................................................................................42
Figure 3-10 Radio Page: Advanced Settings........................................................................43
Figure 3-11 Radio Page: Maintenance.................................................................................45
Figure 3-12 Radio Page: Modulation Table.........................................................................46
Figure 3-13 Radio Page: Spectrum Analyzer.......................................................................46

EH-500/600 Installation Manual
Page 12
1 Introduction to the EtherHaul System
This chapter provides a brief overview of the EtherHaul product line.
The EtherHaul radio delivers carrier-grade wireless point-to-point gigabit Ethernet
services utilizing the 57-71GHz unlicensed V-band and the light-licensed 71-76/81-
86GHz E-band spectrum.
The EtherHaul is based on Siklu’s revolutionary integrated-silicon technology, which
results in a highly reliable, zero footprint, and low-cost radio.
The EtherHaul offers Gigabit throughput, MEF-compliant networking, 8 levels of QoS,
enhanced Hitless Adaptive Bandwidth, Coding & Modulation for maximum spectral
efficiency, and services availability. It supports network synchronization, advanced
OAM&PM tools and ring protection optimized for both small cell and mobile backhaul. It
features multiple GbE interfaces, including optical, supporting complex network
topologies, such as daisy chain, ring, and mesh. The multiple ports enable also
colocation installation and leveraging the infrastructure for additional fixed services
delivery. The EtherHaul is fast, simple and inexpensive to deploy.
EtherHaul as the ideal solution for mobile backhaul and business services delivery
features:
Field proven technology
Reduced TCO and fast ROI
All-outdoor invisible footprint
oSmall and light
oQuick and easy to install
Spectral efficient
oWide range of frequencies
oTDD modulation with seamless delay and jitter
oHitless Adaptive Bandwidth Coding and Modulation for high availability
Advanced layer-2 features:
oMEF-compliant services and QoS
oVLAN & Provider Bridge with 16K jumbo frames support
Clear separation between multiple services with QoS
Enables QoS aware MPLS services delivery
oSLA assurance
Advanced AES encryption for secured street level deployments

EH-500/600 Installation Manual
Page 13
Highly-scalable, the EtherHaul products are software-upgradable to support future
Layer 2.5/3 networking and routing capabilities as networks evolve to flat-IP topologies.
The EtherHaul products features advanced adaptive modulation, bandwidth and coding
- allowing operators to maintain, prioritize, and verify QoS in all weather conditions,
while achieving maximum (up to 99.999%) link availability for prioritized services such
as voice signaling and Sync.
Offering easy and low cost all-outdoor installation and a small form factor, the
EtherHaul products are also environmentally-friendly - boasting a small system and
antenna footprint with especially low power consumption.
The EtherHaul systems are High-capacity Gigabit Ethernet backhaul, with advanced
networking capabilities, at the lowest TCO in the industry. EtherHaul enables mobile
operators to profitably and reliably provide data intensive services. Provided by Siklu,
the pioneer in silicon based mm-waves backhaul systems, EtherHaul systems are the
perfect choice for future proof investment.
1.1 Main Features
Siklu’s EtherHaul wireless backhaul radio link operates in the new V-band and E-band
spectrum, which provides clear technological and economic advantages over the
existing lower frequency bands. Taking advantage of the new spectrum, the EtherHaul
enables easy migration to support Gigabit throughput, enabling operators to enhance
bandwidth capacity on a “pay as you grow” basis. Supporting point-to-point, daisy-
chain, ring, and mesh configurations, the EtherHaul system offers carrier class
availability and services.
The following are some of the main features of the EtherHaul (availability of features
depends on platform):
All-Outdoor Packet Radio
Operates in the unlicensed 57-71 GHz V-band
Up to 1 Gbps throughput
Asymmetric capacity configuration
High gain narrow beam-width directional antenna
Low latency
Highest Spectral Efficiency
125 MHz, 250 MHz, 500 MHz channel bandwidth
Advanced hitless/errorless Adaptive Bandwidth, Coding and Modulation (ABCM)
for a large dynamic range
Configurable center frequency across the entire band

EH-500/600 Installation Manual
Page 14
Carrier Ethernet Inside:
Integrated Gigabit Ethernet switch
Advanced bandwidth-aware QoS capabilities
MEF compliant services and QoS
Advanced service management, OAM and SLA assurance support
SyncE, IEEE 1588TC and optimized transport of IEEE 1588
Ring, mesh and daisy chain topologies for carrier grade availability and resiliency
Standard-based for seamless integration into existing networks and multi-
vendor interoperability
Multi-vendor interoperability approved
Carrier Grade:
CLI, SNMP and web-based local and remote management
Extremely high reliability with very high MTBF
Designed for ultra-low MTTR without the need for antenna realignment
Green Design:
Zero footprint, all-outdoor, extremely light weight
low power consumption
IEEE 802.3at+ compliant Power over Ethernet
Quick and Easy Installation
Rapid and flexible deployment
Precise antenna alignment
Minimal site preparation
Security
Advanced AES encryption and security
Narrow and secure beam-width
Adaptive Bandwidth, Coding and Modulation
The EtherHaul family implements hitless/errorless adaptive bandwidth, coding and
modulation adjustment to optimize the over-the-air transmission and prevent weather-
related fading from disrupting traffic on the link. The EtherHaul can gain up to 21 dB in
link budget by dynamically adapting: Modulation, FEC coding rates, and channel
bandwidth maintaining the high priority traffic using quality of service advanced
mechanism and dropping the traffic according to the QoS priority defined by the user.

EH-500/600 Installation Manual
Page 15
Figure 1-1 Hitless Adaptive Bandwidth, Coding and Modulation
1.2 Functional Description
The EtherHaul is an all-outdoor system comprised of the following functional blocks:
RFIC: Siklu’s integrated Silicon Germanium (SiGe) transceiver operating at 57-
71GHz.
Modem/Baseband ASIC: Siklu’s modem/baseband ASIC includes the modem, FEC
engines, and Synchronous Ethernet support.
Network Processor: the networking engine is the heart of the high speed
bridge/router function. The engine receives packets from Ethernet interfaces
the modem and CPU. It is responsible for proper forwarding between these all
interfaces.
Interfaces: The network interface consists of 3 integrated 100/1000 Ethernet
ports.
Host processor (CPU) the host processor controls the system responsible for the
control plane, and the antenna alignment.
Antenna: Siklu’s self-designed 16cm antenna.

EH-500/600 Installation Manual
Page 16
Packet
Forwarding
Ethernet
MAC 3
Control
processor
Memory
controller
Peripherals
Ethernet
MAC 1
Modem & Packet
Proc.
QoS
FLASH SDRAM
AFE
DAC
ADC
Network Processor
Baseband ASIC
PHY1
1
RJ45
CLK1
PHY3
3
RJ45
CLK3
PWR
PoE
DC/DC
RF Controller
SyncE
AUX RSSI
CLK1 CLK4
x3 x4
x3
(RJ45)
x4
Upconverter PA
LNADownconverter
RX/TX
Switch
RFIC
PLL-VCO
Figure 1-2 V-Band Functional Block Diagram
1.3 Technical Specifications
For detailed technical specifications please refer to the datasheet.
For detailed supported features list please refer to the product’s release notes.
V-Band
Technology and frequency
TDD, 57-71GHz
Modulation
QPSK/QAM16/QAM64
Adaptive modulation
Hitless adaptive bandwidth, coding and modulation, boosting system
gain by 25dB
Over-the-air throughput
Up to 1000Mbps aggregated (with asymmetric downlink/uplink rate
support)
Typical link distance
Up to 1000m
Interfaces
3x100/1000 base-T
Antenna
Integrated, 36dBi min. typical 37dBi
Power options
PoE+ (IEEE 802.3at)
2x PSE Outputs –total 53W on Eth2 and Eth3:
2 x 26W or 40W+13W
Ethernet features
VLAN (IEEE 802.1q) and VLAN stacking (Q-in-Q, IEEE 802.1ad Provider
Bridge)
IEEE 802.1d Transparent Bridging
Advanced QoS &Traffic management- 802.1p, DSCP & MPLS EXP
oScheduling, Shaping, Policing
MEF 9,14 and 21 compliant
Ethernet OAM and CFM (IEEE 802.1ag / ITU-T Y.1731 / IEEE 802.3ah)

EH-500/600 Installation Manual
Page 17
Ethernet Ring Protection (ITU-T G.8032)
MAC learning
Link state propagation
Jumbo frames
Synchronization
IEEE 1588 TC
Synchronous Ethernet ITU-T G.8261/8262/8264
Network topologies
Ring, daisy-chain and mesh
Encryption
AES 128-bit and 256-bit
Management
In-band, out-of-band, embedded CLI, web GUI, SNMPv2/3
System modes
Adaptive modulation
Symmetrical uplink/downlink ratio or Asymmetrical
Alignment
Environmental
Operating temperature: -45° ÷ +50°C
Ingress protection rating: IP67
Regulatory
ETSI EN 302 217-3
UK IR 2078 & IR 2000
USA FCC Part 15.255
CE marked, EMC, safety
Dimensions
ODU+ Antenna (H x W x D) - 16 cm x 16 cm x 8 cm
Weight
ODU + antenna: 1.8 kg
1.4 Licensing
The EtherHaul family provides for easy migration to support Gigabit throughput,
enabling operators to enhance bandwidth capacity on a “pay as you grow” basis as well
as adding features and capabilities according to their networks evolutions. You can
order the following EtherHaul software (capacity steps and feature availability depend
on your platform):
Data rates
Layer 2 networking capabilities –OAM and Resiliency
Synchronization –Synchronous Ethernet (ITU-T G.8261) and IEE-1588TC
Encryption
PSE (PoE Out)
ExtendMM –built-in backup using parallel MW or Sub-6GHz link
Vlan configuration and Provider-Bridge settings capabilities are enabled by default and
do not require a license.

EH-500/600 Installation Manual
Page 18
The software licenses are serial number dependent.
1.5 Management
You can manage an EtherHaul system using a Web-Based Element Management System
(Web EMS) or a Command Line Interface (CLI). The CLI is compatible with SNMP.
Advanced network features must be managed using the CLI.
The EtherHaul system features a wide range of built-in indicators and diagnostic tools
for advanced OAM functionality. The system is designed to enable quick evaluation,
identification, and resolution of operating faults.

EH-500/600 Installation Manual
Page 19
2 Installing the EtherHaul System
This chapter describes how to install and perform the basic setup for EtherHaul outdoor
unit (ODU) in an EtherHaul wireless network, including:
Preparing the Site
EtherHaul Package Content
Unpacking the EtherHaul
Required Tools
Preparing for Installation
Mounting the EtherHaul
Connecting the Cables
System LEDs
Aligning the Antenna
Link Up Verification
The installation of the EtherHaul system is followed by initial system setup that will be
described in the next chapter.

EH-500/600 Installation Manual
Page 20
Caution:
Avertissement:
The installation and maintenance of the EtherHaul link should only be done by
service personnel who are properly trained and certified to carry out such
activities.
L'installation et l'entretien de la liaison EtherHaul ne doivent être effectués par
du personnel de service qui sont formés et accrédités pour mener à bien ces
activités.
It is the responsibility of the installer to insure that when using the outdoor
antenna kits in the United States (or where FCC rules apply), only those
antennas certified with the product are used. The use of any antenna other
than those certified with the product is expressly forbidden in accordance to
FCC rules CFR47 part 15.204.
Il est de la responsabilité de l'installateur de s'assurer que lorsque vous utilisez
les kits d'antennes extérieures, seules les antennes certifiés avec le produit sont
utilisés. L'utilisation d'une antenne autre que ceux qui sont certifiés avec le
produit est expressément interdite par la réglementation FCC partie 47 CFR
15.204 et IC normes RSS.
Minimum safe distance from antenna while radiating is 89cm
(according to calculation done based on "Environmental evaluation
and exposure limit according to FCC CFR 47part 1, 1.1307, 1.1310;
RSS-102, Safety Code6).
Distance de sécurité minimum de l'antenne tout en rayonnant est
89cm (selon le calcul fait sur la base de "l'évaluation
environnementale et la limite d'exposition selon FCC CFR 47part 1,
1,1307, 1,1310, RSS-102, CODE6 sécurité).
2.1 Preparing the Site
Carefully select and prepare each EtherHaul ODU site to make device installation and
configuration as simple and trouble-free as possible. During site selection and
preparation, always consider the long-term needs of both your network and your
applications.
2.1.1 Physical and Environmental Requirements
Each EtherHaul ODU site should adhere to the following requirements:
There must be a clear, unobstructed line-of-sight between ODU.
The EtherHaul ODU should be mounted on a fixed, stable, permanent structure.
A reinforced steel mounting pole is required, with a diameter measuring from 2-
4 inches (recommended). Note the radio can be mounted on poles from 1.5-12
inches using the provided steel worm-clamps.
