Silent disco box HD9-RGB User manual

T: 0031-(0)464233236 | E: [e-mail]
Office: Nusterweg 63h 6136KT Sittard (Netherlands)
Warehouse: De Koumen 90 6433KE Hoensbroek (Netherlands)
www.silentdiscobox.com

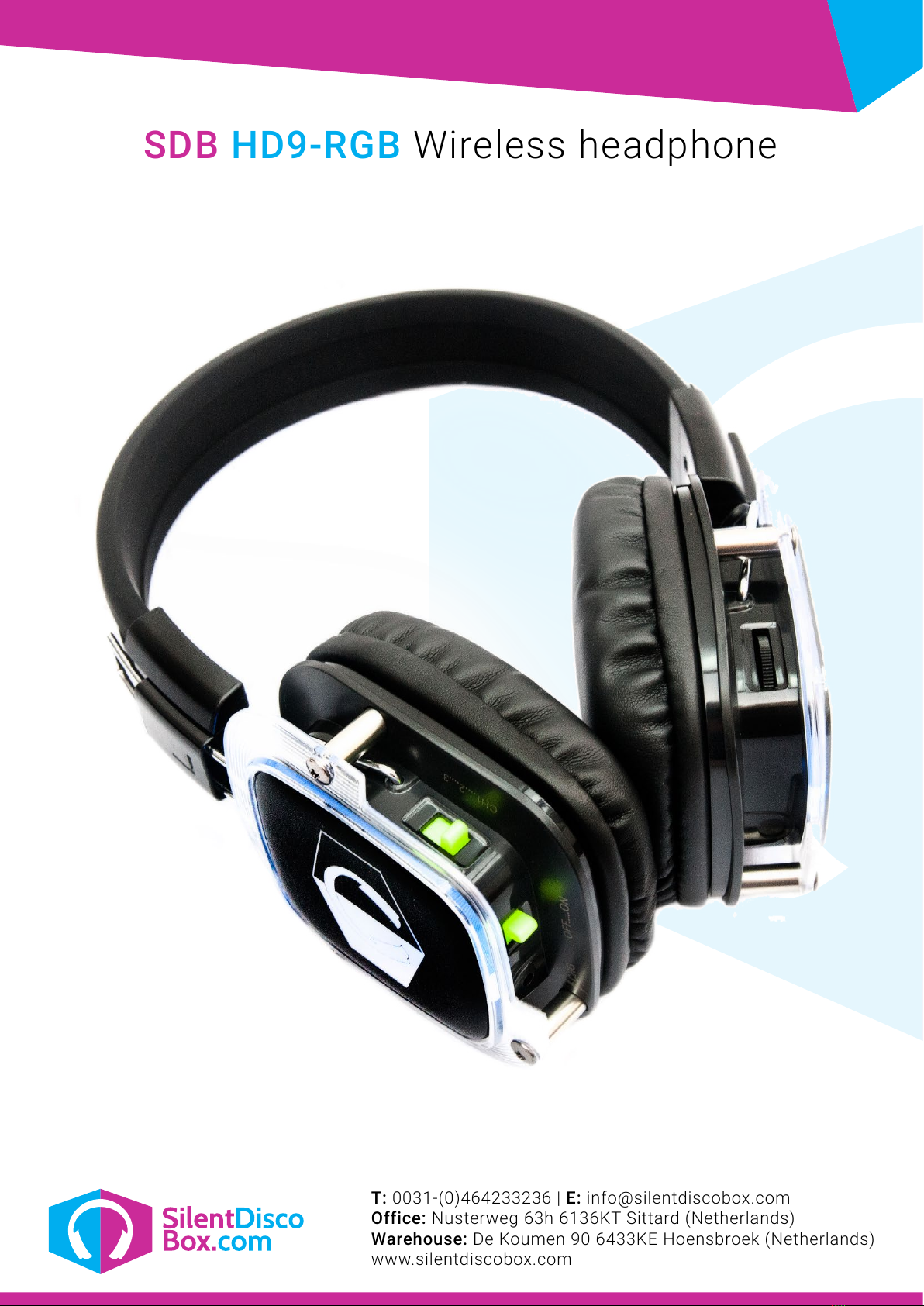

SDB HD9-RGB Wireless headphone

T: 0031-(0)464233236 | E: [e-mail]
Office: Nusterweg 63h 6136KT Sittard (Netherlands)
Warehouse: De Koumen 90 6433KE Hoensbroek (Netherlands)
www.silentdiscobox.com

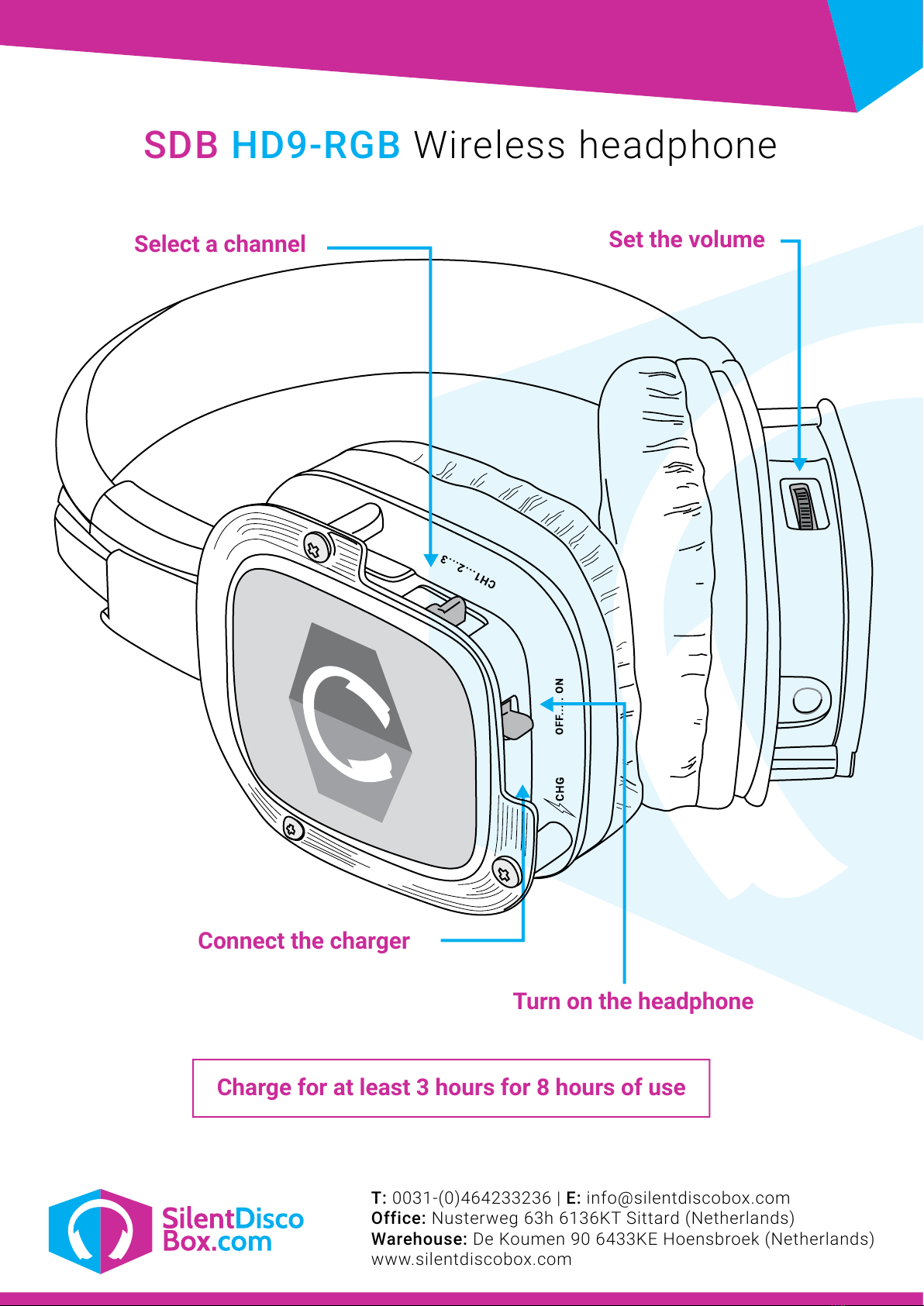

Connect the charger
Charge for at least 3 hours for 8 hours of use
Turn on the headphone
Set the volume
Select a channel
SDB HD9-RGB Wireless headphone
T: 0031-(0)464233236 | E: [e-mail]
Office: Nusterweg 63h 6136KT Sittard (Netherlands)
Warehouse: De Koumen 90 6433KE Hoensbroek (Netherlands)
www.silentdiscobox.com

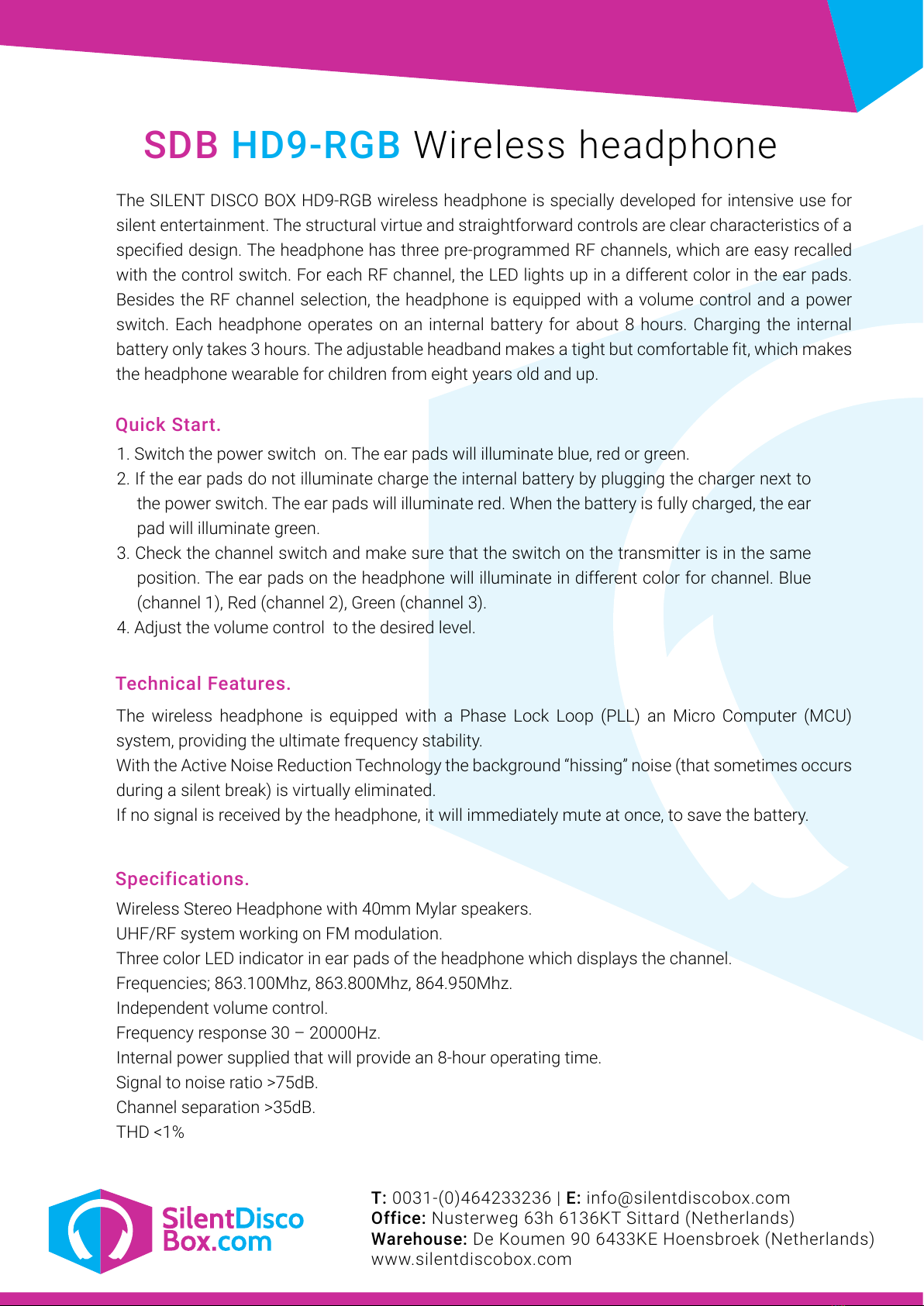

The SILENT DISCO BOX HD9-RGB wireless headphone is specially developed for intensive use for
silent entertainment. The structural virtue and straightforward controls are clear characteristics of a
specified design. The headphone has three pre-programmed RF channels, which are easy recalled
with the control switch. For each RF channel, the LED lights up in a different color in the ear pads.
Besides the RF channel selection, the headphone is equipped with a volume control and a power
switch. Each headphone operates on an internal battery for about 8 hours. Charging the internal
battery only takes 3 hours. The adjustable headband makes a tight but comfortable fit, which makes
the headphone wearable for children from eight years old and up.
SDB HD9-RGB Wireless headphone
1. Switch the power switch on. The ear pads will illuminate blue, red or green.
2. If the ear pads do not illuminate charge the internal battery by plugging the charger next to
the power switch. The ear pads will illuminate red. When the battery is fully charged, the ear
pad will illuminate green.
3. Check the channel switch and make sure that the switch on the transmitter is in the same
position. The ear pads on the headphone will illuminate in different color for channel. Blue
(channel 1), Red (channel 2), Green (channel 3).
4. Adjust the volume control to the desired level.
Quick Start.
The wireless headphone is equipped with a Phase Lock Loop (PLL) an Micro Computer (MCU)
system, providing the ultimate frequency stability.
With the Active Noise Reduction Technology the background “hissing” noise (that sometimes occurs
during a silent break) is virtually eliminated.
If no signal is received by the headphone, it will immediately mute at once, to save the battery.
Technical Features.
Wireless Stereo Headphone with 40mm Mylar speakers.
UHF/RF system working on FM modulation.
Three color LED indicator in ear pads of the headphone which displays the channel.
Frequencies; 863.100Mhz, 863.800Mhz, 864.950Mhz.
Independent volume control.
Frequency response 30 – 20000Hz.
Internal power supplied that will provide an 8-hour operating time.
Signal to noise ratio >75dB.
Channel separation >35dB.
THD <1%
Specifications.

T: 0031-(0)464233236 | E: [e-mail]
Office: Nusterweg 63h 6136KT Sittard (Netherlands)
Warehouse: De Koumen 90 6433KE Hoensbroek (Netherlands)
www.silentdiscobox.com
Connect the charger
Charge for at least 3 hours for 8 hours of use
Turn on the headphone
Set the volume
Select a channel
SDB HD9-RGB Wireless headphone
T: 0031-(0)464233236 | E: [e-mail]
Office: Nusterweg 63h 6136KT Sittard (Netherlands)
Warehouse: De Koumen 90 6433KE Hoensbroek (Netherlands)
www.silentdiscobox.com
The SILENT DISCO BOX HD9-RGB wireless headphone is specially developed for intensive use for
silent entertainment. The structural virtue and straightforward controls are clear characteristics of a
specified design. The headphone has three pre-programmed RF channels, which are easy recalled
with the control switch. For each RF channel, the LED lights up in a different color in the ear pads.
Besides the RF channel selection, the headphone is equipped with a volume control and a power
switch. Each headphone operates on an internal battery for about 8 hours. Charging the internal
battery only takes 3 hours. The adjustable headband makes a tight but comfortable fit, which makes
the headphone wearable for children from eight years old and up.
SDB HD9-RGB Wireless headphone
1. Switch the power switch on. The ear pads will illuminate blue, red or green.
2. If the ear pads do not illuminate charge the internal battery by plugging the charger next to
the power switch. The ear pads will illuminate red. When the battery is fully charged, the ear
pad will illuminate green.
3. Check the channel switch and make sure that the switch on the transmitter is in the same
position. The ear pads on the headphone will illuminate in different color for channel. Blue
(channel 1), Red (channel 2), Green (channel 3).
4. Adjust the volume control to the desired level.
Quick Start.
The wireless headphone is equipped with a Phase Lock Loop (PLL) an Micro Computer (MCU)
system, providing the ultimate frequency stability.
With the Active Noise Reduction Technology the background “hissing” noise (that sometimes occurs
during a silent break) is virtually eliminated.
If no signal is received by the headphone, it will immediately mute at once, to save the battery.
Technical Features.
Wireless Stereo Headphone with 40mm Mylar speakers.
UHF/RF system working on FM modulation.
Three color LED indicator in ear pads of the headphone which displays the channel.
Frequencies; 863.100Mhz, 863.800Mhz, 864.950Mhz.
Independent volume control.
Frequency response 30 – 20000Hz.
Internal power supplied that will provide an 8-hour operating time.
Signal to noise ratio >75dB.
Channel separation >35dB.
THD <1%
Specifications.
