EN

User Manual MEDLEY AIR
3
Table of Contents
Box Contents
Product Introduction (Earphones)
Product Overview
Button Functions
LED Indicators
Product Introduction (Transmitter & Charging Dock)
Product Overview
Button Functions
LED Indicators
Setting Up
Connecting to TV
Option 1 - Optical port (recommended)
Option 2 - AUX 3.5mm port
Option 3 - RCA port
Connecting the Earphones to the Transmitter
Setting Up Your TV (FOR OPTICAL CONNECTIONS ONLY)
Advanced Features
Listening with a Soundbar
Add a 2nd pair of headphones
Charging the Earphones
Specications
FAQ
Contact Us
4
5
5
8
6
7
7
8
8
9
9
9
10
10
11
13
14
14
15
16
17
18
19
EN

User Manual MEDLEY AIR

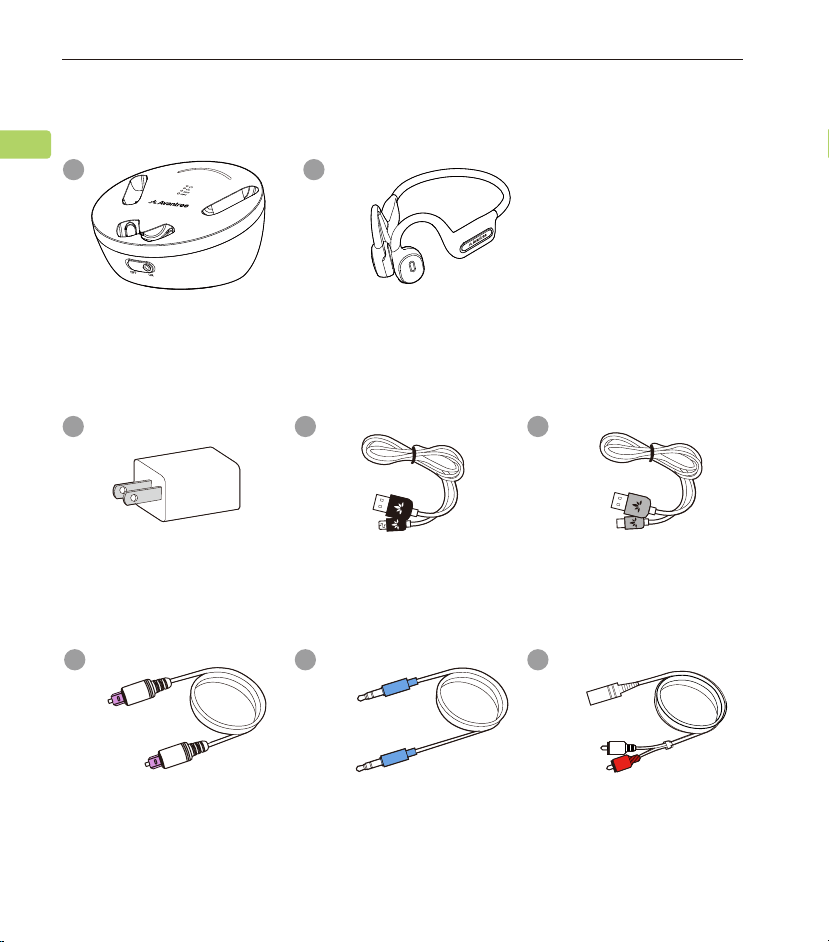

Box Contents
4
A B
F
CD DD E
H
GGH
Wireless Transmitter
& Charging Dock
NB15T Open-Ear
Earphones
USB Wall Adapter Type C Power Cable
for Transmitter
3.5mm AUX to
RCA Adapter
3.5mm AUX CableOptical Audio Cable
Type C Charging Cable
for Earphones
EN

User Manual MEDLEY AIR
5
Product Introduction (Earphones)
Product Overview
LED indicator Multifunctional
button (MFB)
Charging port
1
Volume
adjustment
buttons
2
A
Button Functions
Press & hold for 2 seconds to power on / o
No. Button Functions
From o, press & hold for 5 seconds to enter pairing mode
Tap once to play / pause
Tap once to accept / end call
Press & hold for 2 seconds to reject call
Press & hold both for 5 seconds to clear pairing history
Tap“+ / -”once to increase / decrease volume
Press & hold“+ / -” for 2 seconds to skip / replay track
Double-tap to activate voice assistant (i.e. Siri / Google Assistant)
1
2
EN

User Manual MEDLEY AIR
6
F
A
LED Indicators
No. Indicators & Voice Prompts
Solid blue for 1 second
Solid red for 1 second then o
Solid red, "LOW BATTERY" voice indicator
Solid red
LED o
Solid blue, "CONNECTED" voice indicator
Blue ashes every 5 seconds
Status
Power on
Power o
Low battery
Charging
Fully charged
Connected
Disconnected
Solid pink for 2 seconds then alternate red &
blue ashes Pairing history cleared
EN
Alternate red & blue ashes, "PAIRING"
voice indicator Pairing

User Manual MEDLEY AIR
7
Product Introduction (Transmitter & Charging Dock)

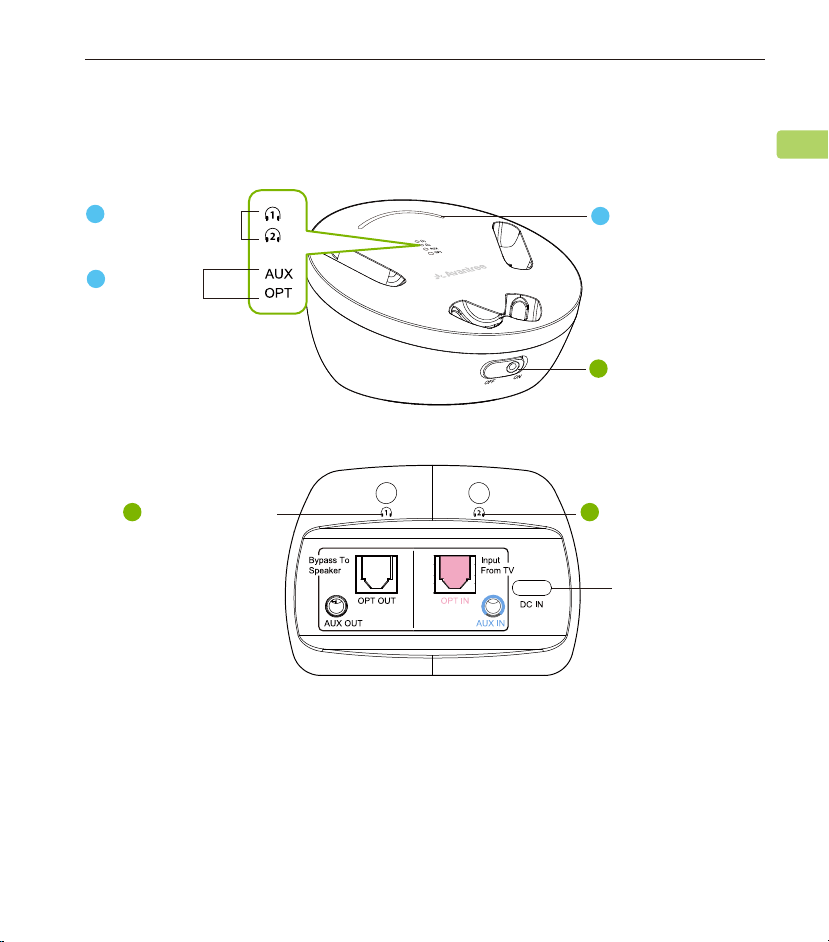

Product Overview
1
2 3
ON / OFF
Power indicator
Device connection
indicators
power port
Pairing button for
NB15T earphones
Pairing button for
second pair of
headphones
B
Audio signal
indicators
C
A
EN

User Manual MEDLEY AIR
8
F
B
C
A
1
2
3
Button Functions
No. Button FunctionsPower on
Switch to "ON / OFF" position to turn the transmitter on / o
Press & hold for 5 seconds to enter pairing mode for the
NB15T earphones.
Press & hold for 5 seconds to pair a second pair
of headphones)
Once connected, press & hold for 8 seconds to lock the
connection with the headphones ( for NB15T earphones,
for a second pair of headphones)
Press & hold both simultaneously for 5 seconds to clear
pairing history
Tap or respectively if either earphones do not
automatically reconnect
OFF ON
LED Indicators
No. Indicators
Solid red
LED o
Blue ashes every second
Solid blue
Red ashes every second
& Solid pink for 5 seconds then
blue ashes every second Pairing history cleared
Status
Charging
Fully charged
Power on
Connected to the NB15T earphones
Valid audio signal
Invalid audio signal
Connected to a second pair
of headphones
Solid blue
Solid blue
EN

User Manual MEDLEY AIR
9
Setting Up
Connecting to Your TV
The transmitter dock must be connected to a power source via the provided power
cable in order to function. Plug the transmitter dock into either:
1. A TV’s USB power port, OR 2. A nearby wall outlet via the USB adapter included
(we recommend this so that it can still provide power to the dock to charge the
NB15T earphones when the TV is not in use)
Once the transmitter dock is connected to its power source, you can connect it to
your TV. You can choose one of 3 dierent ways to do this:
OPTICAL
RGBIN
COMPONENTIN
AUDIO
(RGB/DVI)
RGB(PC)
ANTENNA/
CABLEIN
1
2
RS-232CI
(CONT
ROL&SE
VIDEO
AUDIO
VIDEO
OPTICA
LCOAXIAL
S-VIDEO
DIGI
TALAUDIOOUT
HDMI/DVIIN
3
2
1
REMOTE
CONTROLIN
L/MONO
R
AUDIO
USBIN
HDMIIN 4
F
NOTE: Most TVs support audio output through only one digital output port at a
time, so if your TV’s HDMI ARC port is in use, the optical port may be disabled. You
can either unplug the HDMI ARC, or try connecting the transmitter via RCA / AUX.
OPT OUT
OPTION 1 : Optical port (recommended)
Plug the provided optical audio cable into the TV’s optical OUT or “OPT OUT” port,
then plug the other end into the transmitter’s optical port in the “INPUT FROM TV”
section.
EN

User Manual MEDLEY AIR
10
F
Plug the provided AUX 3.5mm audio cable into the TV’s AUX 3.5mm output port,
then plug the other end into the transmitter’s AUX 3.5mm port in the “INPUT
FROM TV” section.
Connect the provided RCA adapter to the AUX 3.5mm audio cable. Plug the red &
white RCA connectors into the TV’s“AUDIO OUT”ports, then plug the other end
into the transmitter’s AUX 3.5mm port in the “INPUT FROM TV” section.
G
RGBIN
COMPONENTIN
AUDIO
(RGB/DVI)
RGB(PC)
ANTENNA/
CABLEIN
1
2
RS-232CI
(CONT
ROL&SE
VIDEO
AUDIO
VIDEO
OPTICA
LCOAXIAL
S-VIDEO
DIGI
TALAUDIOOUT
HDMI/DVIIN
3
2
1
REMOTE
CONTROLIN
L/MONO
R
AUDIO
USBIN
HDMIIN 4
GH
RGBIN
COMPONENTIN
AUDIO
(RGB/DVI)
RGB(PC)
ANTENNA/
CABLEIN
1
2
RS-232CI
(CONT
ROL&SE
VIDEO
AUDIO
VIDEO
OPTICA
LCOAXIAL
S-VIDEO
DIGI
TALAUDIOOUT
HDMI/DVIIN
3
2
1
REMOTE
CONTROLIN
L/MONO
R
AUDIO
USBIN
HDMIIN 4
OPTION 2 : AUX 3.5mm port
OPTION 3 : RCA port
EN

User Manual MEDLEY AIR
11
Connecting the Earphones to the Transmitter
Now that the transmitter is all set up, you can connect the NB15T earphones to the
transmitter.
STEP 1
Power on the transmitter by sliding the switch to the“ON”position.
STEP 2
Remove the NB15T earphones from the transmitter dock; they will turn on
automatically.
STEP 3
Wait for a few seconds and the NB15T earphones will connect to the transmitter
automatically. Once connected, both the LED indicators on the earphones and the
indicator on the transmitter will turn solid blue.
NOTE 1: For subsequent use, if the NB15T earbuds fail to reconnect with the
transmitter, you can manually initiate reconnection by tapping the
transmitter’s button once and waiting for a few seconds.
EN

User Manual MEDLEY AIR
12
F
NOTE 2: Some smart TVs will automatically scan for and try to pair with any
Bluetooth devices in its vicinity. If your TV prompts you to connect your Bluetooth
headphones or the Medley Air, please "DENY" the request so that your device can
properly pair with the transmitter.
Avantree Medley Air
Your permission is required
to connect your device to TV.
Allow
Deny
Close
EN

User Manual MEDLEY AIR
13
Setting Up Your TV (FOR OPTICAL CONNECTIONS ONLY)
If you connected to your TV via the optical OUT or“OPT OUT” port, you’ll need to
congure your TV settings before you can receive audio.
STEP 1
Using your TV’s remote control, press the SETTINGS button and navigate to the
AUDIO tab within the settings menu. (Please note that there may be dierences in
the setting names depending on your brand of TV).
STEP 2
Proceed to AUDIO OUTPUT and select “OPTICAL OUT / DIGITAL OUT”. Many TVs will
do this automatically; skip this step as needed.
STEP 3
Set the AUDIO OUTPUT format to “PCM / STEREO” ON or “DOLBY ”OFF.
If you’re having trouble nding these settings, you can scan the QR code
corresponding to your TV’s brand OR visit
avantree.com/medley-air/tv-audio-settings for a more detailed guide.
NOTE 1: Smart TVs automatically reset their settings after system updates. Make
sure your audio output / input format is set to “PCM” and NOT “AUTO” or “Dolby.”
NOTE 2: When using Netix or Amazon Prime, you may need to start the movie /
show before changing the audio settings to “PCM.”
Sound
Audio Out Optical Out Digital
Audio
Format
or
PCM/Stereo
Dolby - OFF
LG SONY SAMSUNGNetix /
Amazon Prime
EN

User Manual MEDLEY AIR
14
F
Advanced Features
Listening with a Soundbar

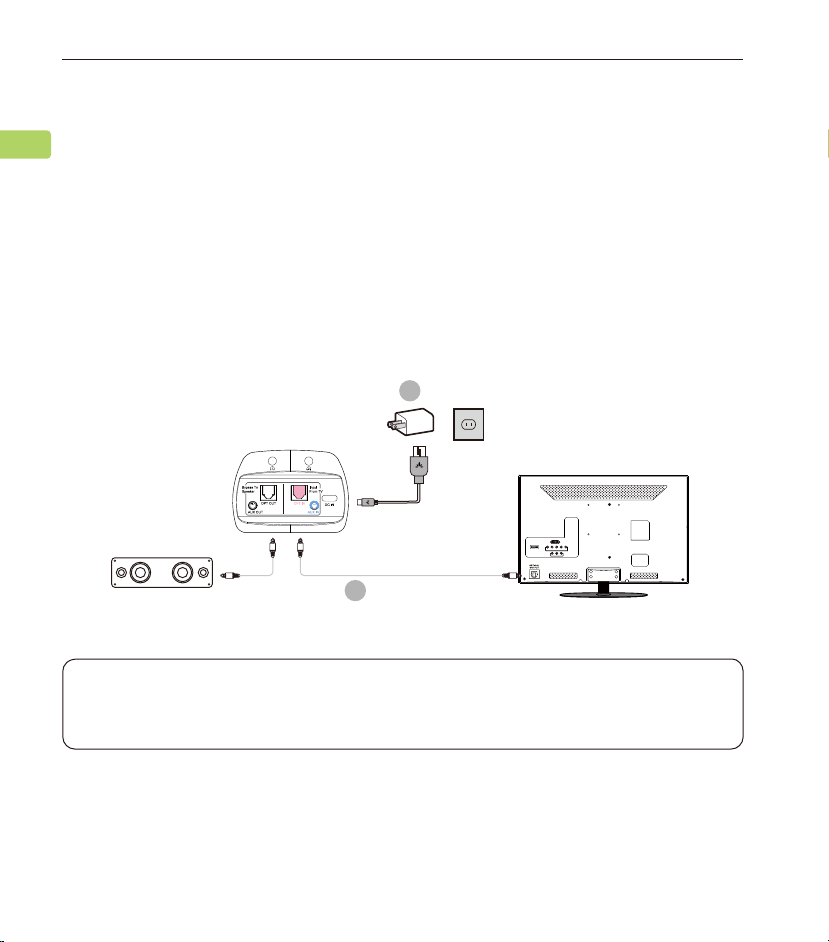

The Medley Air’s pass-through function allows you to listen through both the
headphones and an external soundbar / stereo AVR simultaneously.
STEP 1
Plug an additional optical, 3.5mm AUX, or RCA audio cable into the corresponding
audio port in the transmitter’s “BYPASS TO SPEAKER”section.
STEP 2
Plug the other end into your external sound system, then you’re good to go.
NOTE: Bypass only works with the same type of input / output, i.e.
if you connect to your TV via OPT, you’ll need to connect to your speaker via OPT as
well.
F
C
TV/Audio Source
Sound System
Medley Air
(5V/1A-2A)
EN

User Manual MEDLEY AIR
15
Adding a Second Pair of Headphones
You can connect and simultaneously listen through two pairs of headphones if
desired. Visit avantree.com/medley-air/video if you’d prefer to watch a video guide
on this process.
STEP 1
Connect the NB15T earphones to the transmitter by following the steps in the
“Connecting the Earphones to the Transmitter” section (Page 11).
STEP 2
Once the NB15T earphones are successfully connected, put your transmitter into
PAIRING mode by pressing & holding the button until the LED ashes red &
blue alternately.
STEP 3
Put your second pair of Bluetooth headphones into PAIRING mode. Please refer to
your headphones’ user manual for more details if necessary.
STEP 4
Keep the transmitter & your second device close together and wait for 5-10 seconds
or until they connect. Once connected, the LED will turn a solid blue.
NOTE: To easily reconnect to the second pair of headphones, you can lock the
second pair of headphones’ connection to the transmitter by pressing & holding the
button for 8 seconds. The LED will turn a solid pink for 5 seconds, indicating
that they have been successfully locked.
For subsequent use, make sure your second pair of headphones are not connected
to another device. Then, turn on your headphones, and click the button once.
The Medley Air transmitter will reconnect with your second pair of headphones
automatically.
EN

User Manual MEDLEY AIR
16
F

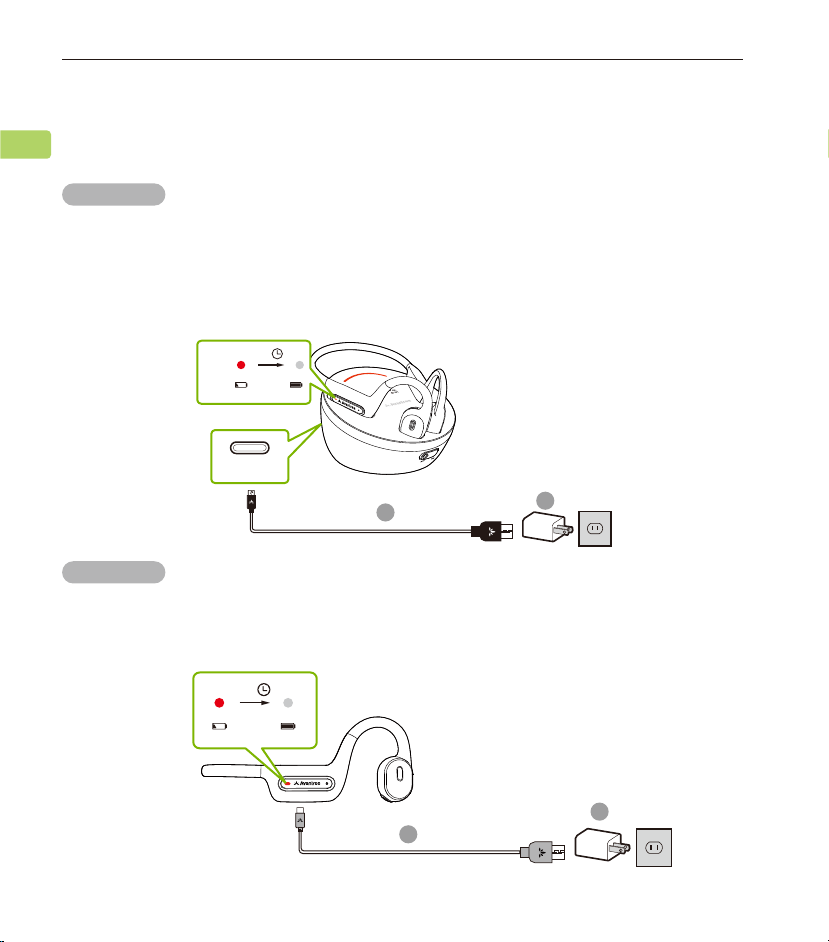

Charging the Earphones
OPTION 1 : Charge on the transmitter dock
OPTION 2 : Charge directly with the cable
Plug the provided type C charging cable into the earphones’charging port, then
plug the other end into a wall outlet via the included USB wall adapter or into a
PC USB port.
(5V/1A-2A)
DC
Charge
Low Full
2H
DC IN
E
C
(5V/1A-2A)
2H
Low Full
Plug the transmitter dock into a wall outlet with the included USB wall adapter,
then place the earphones on the dock to charge. Solid red lights on both the
earphones and the transmitter indicate that charging is in progress; once the
lights turn o, your earphones will be fully charged.
The earphones' LED will turn a solid red to indicate low battery.
You can choose one of 2 dierent ways to charge the earphones:
EN

User Manual MEDLEY AIR
17
Specications
Transmitter
v5.0
aptX-Low Latency, aptX, FastStream,
SBC
A2DP, AVRCP
Up to 100ft / 30m
48KHz, 16bit
PCM / LPCM
Type C
DC5V/500mA~2.0A
206g
Bluetooth version
Supported audio codecs
Supported proles
Operating range
Supported sampling rate in optical
mode
Supported audio format in optical
mode
Power port
Rated input
Earphones
v5.0
FastStream, SBC
A2DP, AVRCP, HFP
Up to 30ft / 10m
Up to 8 hrs
120dB
~1.5hrs
16.2mm
22 Ω
Type C
DC5V/500mA~2.0A
41g
Bluetooth version
Audio codec support
Supported proles
Operating range
Play time
Max volume
Charging time
Drivers
Impedance
Power port
Rated input
Weight
F
EN

User Manual MEDLEY AIR
18
F
FAQ
Below are some of the most common questions people have during setup.
Can I have audio through my TV's speakers and wireless headphones at the
same time?
This completely depends on whether or not your TV supports the ability to output
audio to 2 sources simultaneously. You can try a few dierent methods to test if
your TV is capable of this or not - please refer to avantree.com/medley-air/sound
for more details.
The volume is too low, how can I make it higher?
First, make sure both your TV and earphones are at max volume. If the max volume
is not sucient for you and your Medley Air was connected to your TV via OPT
output, you can try connecting the transmitter to your TV’s AUX audio output port
instead. Normally the volume from AUX outputs is louder than the OPT port.
Please also note that due to the Medley Air’s open-ear design, it will inherently
have slightly lower volumes than in-ear or over-ear headphones.
What should I do if the earphones are too small?
We are working on a larger version with a longer headband. Please contact us at
[email protected] if you’d like a sample!
Why aren't I getting sound from my headphones?
Why aren’t I getting sound when watching Netix / Amazon Prime?
……
For answers to questions like these and for a full FAQ list, you can visit
avantree.com/support/medley-air, or you can contact us directly for additional
assistance.
EN
