Silicon Laboratories Si4827-DEMO User manual

Rev. 0.1 3/13 Copyright © 2016 by Silicon Laboratories Si4827-DEMO
Si4827-DEMO
Si4827 DEMO BOARD USER’SGUIDE
1. Features
ATDD (analog tune and digital display) FM/AM/SW radio
Worldwide FM band support from 64 MHz to 109 MHz with 5 default sub-bands:
FM1 87—108 MHz (Demo Board Default)
FM2 86.5—109 MHz
FM3 87.3—108.25 MHz
FM4 76—90 MHz
FM5 64—87 MHz (Demo Board Default)
Worldwide AM band support from 504 to 1750 kHz with 5 default sub-bands
AM1 520—1710 kHz (Demo Board Default)
AM2 522—1620 kHz (Demo Board Default)
AM3 504—1665 kHz
AM4 520—1730 kHz
AM5 510—1750 kHz
Worldwide SW band support from 2.3 to 28.5 MHz with 16 default sub-bands:
SW1 5.6—6.4 MHz (DEMO Board Default)
SW2 5.95—6.2 MHz
SW3 6.8—7.6 MHz (DEMO Board Default)
SW4 7.1—7.6 MHz
SW5 9.2—10 MHz (DEMO Board Default)
SW6 9.2—9.9 MHz
SW7 11.45—12.25 MHz (DEMO Board Default)
SW8 11.6—12.2 MHz
SW9 13.4—14.2 MHz (DEMO Board Default)
SW10 13.57—13.87 MHz
SW11 15—15.9 MHz (DEMO Board Default)
SW12 15.1—15.8 MHz
SW13 17.1—18 MHz (DEMO Board Default)
SW14 17.48—17.9 MHz
SW15 21.2—22 MHz (DEMO Board Default)
SW16 21.45—21.85 MHz
Support wider FM/SW band range.
Twelve positions slide switch or one push button for selecting different band according to the target
application.
Two AAA battery operations with working voltage down to 2.0 V
Economical potentiometer for frequency tuning replaces more expensive variable capacitor (PVC).
Potentiometer and/or push button volume control
FM 50 µs or 75 µs (default) de-emphasis
9-level Bass/Treble via push button control for FM
7-level Bass/Treble via push button control for AM/ SW
FM/AM/SW band indicator and frequency display in LCD
2×4 matrix keypad
The frequency range of each band, De-emphasis and AM channel space can be re-configured by host
MCU.
Downloaded from Arrow.com.

Si4827-DEMO
2 Rev. 0.1
2. Overview
This manual describes the operation of the Silicon Labs Si4827-DEMO board Rev1.1, January 22, 2013. The
Silicon Laboratories Si4827-DEMO board is designed with the 16-pin SOIC packaged Si4827 chip, the
revolutionary single chip AM/FM/SW receiver that integrates everything from antenna input to audio output and
allows use of common and economical potentiometers to do the frequency tuning. It provides a complete portable
analog tune analog display AM/FM/SW radio design. The LCD displays the tuning information. The Si4827-DEMO
is designed with 1-layer PCB, allowing the lowest cost without sacrificing the RF performance. The DEMO board
works with two AAA batteries and working voltage down to 2.0 V.
3. Description
Figure 1 and Figure 2 shows the physical layout of the board with key components indicated.
Figure 1. Si4827-DEMO Board Top Side in Time Mode
Figure 2. Si4827-DEMO Board Bottom Side
Downloaded from Arrow.com.Downloaded from Arrow.com.

Si4827-DEMO
Rev. 0.1 3
Power:
BAT1: 2 cells AAA battery compartment
Audio Connectors:
J5: Mono audio headphone output
Antenna Selections:
AM antenna: Ferrite stick antenna for AM
J6: SMA connector for AM conductive test
S11: AM antenna selector
J1: BNC connector for FM/ SW conductive test or FM whip
S12: FM antenna selector
Radio Band Selection:
The DEMO board provides two methods for selecting the radio band: one is to use the slide switch S2; the other is
to use the push button, POWER/BAND. S14 determines which method is in use.
S14:
1-2: SMA for AM Conductive Test (J6)
2-3: AM ferrite antenna
3
2
1
1
2
31-2: FMHP ANT (J5)
2-3: FM BNC (J1)
1
2
32-3: Use slide switch to select band
1-2: Use push button to select band
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Si4827-DEMO
4 Rev. 0.1
Main Components:
U1: Silicon Laboratories Si4827 AM/FM/SW ATDD receiver
U2: Audio amplifier
U3: MCU
LCD: The digital display for tuning information
Control Interface:
VR1: Frequency tuning wheel.
VR2: Volume control wheel
S3~S10: The keypad for human interface
S2: Band switch for FM, AM, and SW

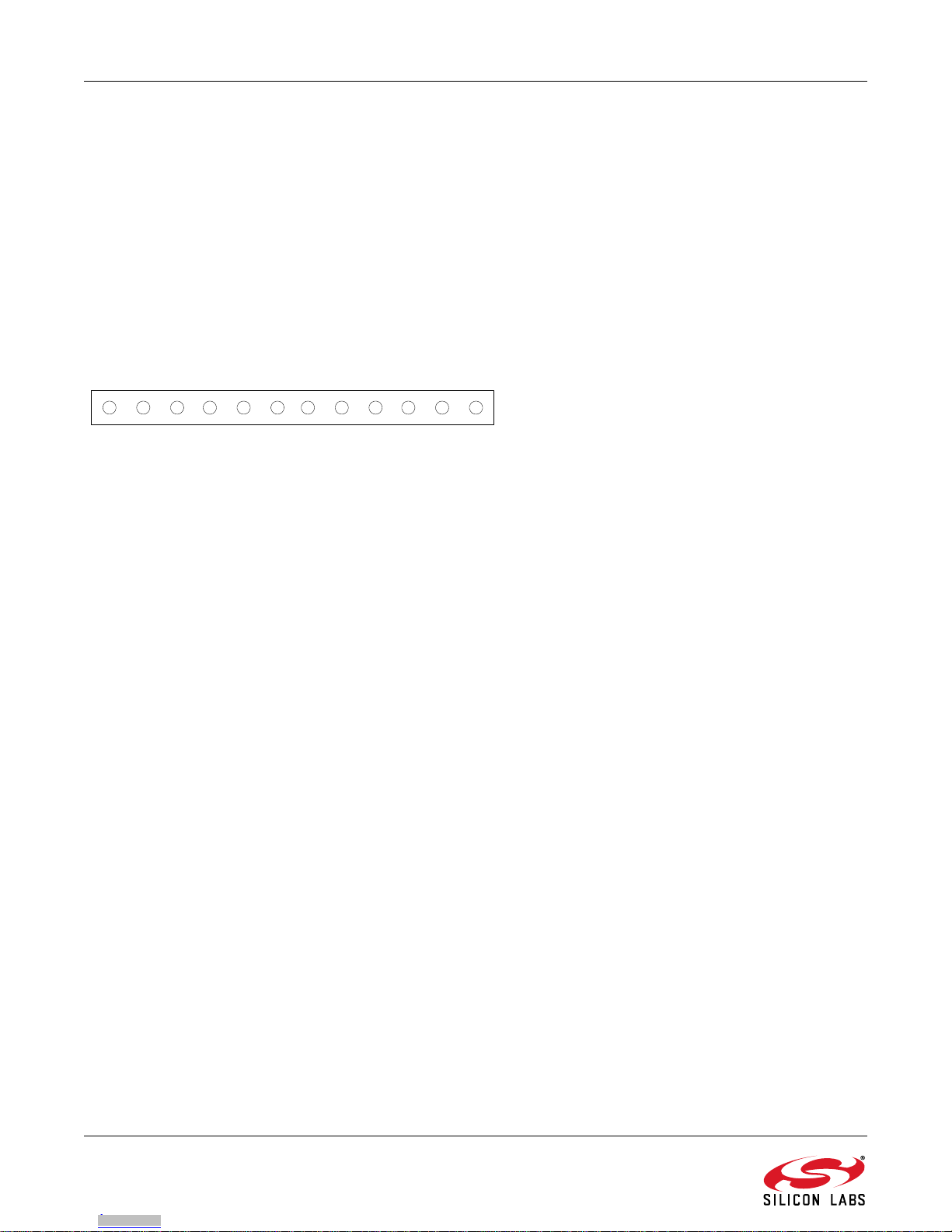

Band definition for the slide switch is as below:
1: FM1 (W 64–108 MHz) (N 87–108 MHz), De-emphasis = 75 µs, ST indication = 6 dB separation@20 dBµV
2: FM5 (W 76–108 MHz) (N 64–87 MHz), De-emphasis = 75 µs, ST indication = 6 dB separation@20 dBµV
3: AM1 (520–1710 kHz), 10 kHz spacing
4: AM2 (522–1620 kHz), 9 kHz spacing
5:SW1 (W 3.2–7.6 MHz) (N 5.6–6.4 MHz)
6:SW3 (W 3.2–10.0 MHz) (N 6.8–7.6 MHz)
7:SW5 (W 5.9–18.0 MHz) (N 9.2–10.0 MHz)
8:SW7 (W 7.0–16.0 MHz) (N 11.45–12.25 MHz)
9:SW9 (W 7.0–23.0 MHz) (N 13.4–14.2 MHz)
10:SW11 (W 9.0–22.0 MHz) (N 15–15.9 MHz)
11:SW13 (W 9.5–18.0 MHz) (N 17.1–18 MHz)
12:SW15 (W 10.0–22.0 MHz) (N 21.2–22 MHz)
Note: N = SW Narrow-band, W = SW Wideband
3
2
1456789 11
10 12
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Si4827-DEMO
Rev. 0.1 5
Human Interface:
There are 8 keys for controlling the DEMO board as shown below.
Each key can have a different function under each operating condition:
Time mode: Radio function is disabled. LCD displays time. Buttons can be used to set time, alarm, etc.
FM/AM/SW radio mode: Tuner IC works in power up mode. Radio function is enabled. LCD displays the
radio station parameters. Buttons are used to adjust radio settings.
The functions of the buttons are summarized in Table 1.
The FM/AM/SW radio parameters which can be configured are listed below in Table 2.
Table 1. Key Function Description
Button/Mode Time Mode FM/AM/SW Radio Mode
Tuner Off Tuner On
POWER/BAND Hold Time:
<1s None Change between FM, AM, and SW
(2 FM band, 2 AM band, and 8 SW bands)
Hold Time:
>1s Enable radio Disable radio function and enter time mode.
(Radio parameters will be saved to MCU)
DE/SPC None FM mode: Change De-emphasis, between
50 µs and 75 µs.
AM mode: Change channel space,
between 9 kHz and 10 kHz.
BASS/TMR Enter or quit time setting menu. Decrease Bass/Treble level by 1 step.
TREBLE/AL Enable or disable the alarm function;
enter or quit alarm setting menu. Increase Bass/Treble level by 1 step.
UP/VOL+ Hold Time:
<1s In setting menu, change the current
time/alarm parameter by one unit per
each press.
In radio setting menu, change the current
parameter by one unit per each press.
In radio working mode, increase volume
1 step per each press.
Hold Time:
>1s In setting menu, change the current
time/alarm parameter automatically. In radio setting menu, change the current parameter automatically.
In radio working mode, increase volume
level automatically until to maximum.
TREBLE/AL BASS/TMR DE/SPC POWER/BAND
SETTING W/N BAND DOWN/VOL- UP/VOL+
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Si4827-DEMO
6 Rev. 0.1
DOWN/VOL- Hold Time:
<1s In setting menu, change the current
time/alarm parameter by one unit per
each press.
In radio setting menu, change the current
parameter by one unit per each press.
In radio working mode, decrease volume
1 step per each press.
Hold Time:
>1s In setting menu, change the current
time/alarm parameter automatically. In radio setting menu, change the current parameter automatically.
In radio working mode, decrease volume
level automatically until to minimum.
W/N BAND None FM/SW mode: changeband rangebetween
wideband and narrow-band.
SETTING Hold Time:
<1s None In radio setting menu, change the current
item by one step per each press
Hold Time:
>1s None Quickly return to FM working mode.
Table 1. Key Function Description
Button/Mode Time Mode FM/AM/SW Radio Mode
Tuner Off Tuner On
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Si4827-DEMO
Rev. 0.1 7
Table 2. Radio Configuration Parameters
FM Parameter AM Parameter SW Parameter
Bass/Treble: 0-8
Default: 4 Bass/Treble: 1-7 Default: 3 Bass/Treble: 1-7 Default: 3
Digital volume: 0-63
Default: 63 Digital volume: 0-63 Default: 63 Digital volume: 0-63 Default: 63
Band top: max 109 MHz
Default: 108/108 MHz for
wide band FM1/FM2
Band top: max 1750 kHz
Default: 1710 kHz Band top: max 28.5 MHz Default: 7.6/10.0/18.0/16.0/23.0/22.0/18.0/
22.0 MHz for wideband SW1 to SW8 respec-
tively.
Band bottom: min 64 MHz
Default: 64/76 MHz for wide
band FM1/FM2
Band bottom: min 504 kHz
Default: 522 kHz Band bottom: min 2.3 MHz Default: 3.2/3.2/5.9/7.0/7.0/9.0/9.5/10.0 MHz for
wideband SW1 to SW8 respectively.
De-emphasis: 50 or 75 µs
Default: 75 µs Channel space: 9 or 10 kHz Default: 9 kHz
Tone/VOL mode: a-d
Default: d
Tuning preference: a-b
Default: a Tuning preference: a-b Default: a
Notes:
1. Tone/VOL mode has four modes:
Bass/treble mode: no digital volume control, fixed volume level at 59
Digital volume mode: no bass/treble effect, volume levels from 0 to 63
Mixed mode 1: bass/treble & digital volume coexist, volume levels from 0 to 63, scale to 0 ~59
Mixed mode 2: bass/treble & digital volume coexist, volume levels from 0 to 63
2. The Tuning preference of FM mode and SW mode has two preferences:
preference1: When tuning to adjacent channels, the volume level decreases by 2 dB.
preference2: When tuning to adjacent channels, the volume level remains unchanged.
3. There is no tuning preference selection for AM mode.
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Si4827-DEMO
8 Rev. 0.1
4. Operation
The S4827-DEMO Board, a complete analog tune and digital display radio, provides two major modes of
operation: Time mode and FM/AM/SW Radio mode.
4.1. Time Mode
Put two AAA batteries into the battery compartment; the board will automatically enter Time Mode and display the
time. The DEMO board display in Time Mode is illustrated in Figure 1.
4.1.1. Time Setting
The time default value is 00:00 and can be set to the correct time manually when needed.
1. In Time Mode, press the BASS/TMR button to enter the setting menu. The default is to set the minute item
first. Press this button again to select the hour item. The selected item flashes.
2. While the selected item is flashing, press the DOWN/VOL- and UP/VOL+ button to set the desired time.
3. When you have finished setting the time, press the BASS/TMR button to quit the setting menu. The MCU
automatically quits the setting menu if there is no operation within 2 seconds.
4.1.2. Alarm Setting
1. In Time Mode, press the TREBLE/AL button to enable or disable the alarm function, and enter the setting
menu automatically when the alarm is enabled. Once you have entered the setting menu, the default is to
set the minute item first. Press this button again to select the hour item. The selected item flashes.
2. While the selected item is flashing, press the DOWN/VOL- and UP/VOL+ button to set the desired time.
3. When you have finished the alarm setting, press the TREBLE/AL button to quit the setting menu. The MCU
automatically quits the setting menu if there is no operation within 2 seconds.
4. If the alarm is enabled and the alarm setting time is matched, the radio will be automatically turned on after
the buzzer sounds for 5 seconds.
5. The radio will be turned off and the DEMO board will go into sleep mode automatically if there is no
operation on the buttons within 15 minutes; if there is any operation on the buttons, the auto-sleep function
will be disabled. The radio keeps working throughout this time.
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Si4827-DEMO
Rev. 0.1 9
4.2. FM/AM/SW Radio Mode
In Time Mode, when a long press (hold time > 1s) on the POWER/BAND button or when the alarm time is reached,
the device will enter FM/AM/SW Mode. The LCD displays the following information: band indicator, band frequency
indicator, and sleep indicator in case radio is automatically turned on by the alarm.
The DEMO board display in FM/AM/SW Mode is illustrated in Figure 3.
Figure 3. LCD display in FM Radio Mode
The DEMO board provides two methods to select the radio band. One is to use the slide switch S2. The other is to
use the POWER/BAND push button. S14 determines which method is in use.
The DEMO board uses the keyboard to configure the band property. Refer to Section "4.2.1. MCU Setting Band
Property” for the operation details for setting the band property using the keypad.
To operate the DEMO board, follow these procedures:
1. According to the desired radio band selection method, set S14 to use slide switch or push button.
2. Hold the POWER/BAND button (hold time > 1s) or when the alarm time is reached, the device will enter
FM/AM/SW Mode.
3. Use slide switch S2 or press the POWER/BAND push button to select the desired band.
4. Refer to Section "4.2.1. MCU Setting Band Property” or section "4.2.2. MCU Setting Radio Working Mode”
to reconfigure the band property or radio working mode if necessary.
5. Rotate the tuning wheel and find the desired radio station with the help of the LCD display and/or tuning
indicator D1.
6. Rotate the volume control wheel VR2 and/or press the DOWN/VOL- or UP/VOL+ button to get a
comfortable volume. Press the BASS/TMR or TREBLE/AL button to get the desired bass/treble level.
Note: For FM listening, the earphone cable must be connected to the board when S12 is set to HP ANT or an external antenna
must be connected to the BNC connector when S12 is set to BNC.
For AM listening, the ferrite antenna must be connected to the board and the S11 is set to Ferrite before turning on the
radio or switching the band to AM.
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Si4827-DEMO
10 Rev. 0.1
4.2.1. MCU Setting Band Property
The DEMO board enables the band property to be set by the MCU. The band property includes:
Band top
Band bottom
De-emphasis (only for FM)
Channel Space (only for AM)
The setting menu is illustrated in Figure 4.
To set the band properties, follow these steps:
1. Press the SETTING button to enter the setting menu and select the item to be set. The selected item
flashes for 1 second, then automatically switches to its current value.
2. While the value is flashing, press the DOWN/VOL- or UP/VOL+ button to set the desired value within 3
seconds.
3. Repeat step 1 and 2 to finish setting the band properties.
4. When the Band properties are set, the MCU automatically quits setting the menu if there is no operation
within 3 seconds.
5. In FM working mode, press the DE/SPC button to set the De-emphasis 50 µs or 75 µs.
6. In AM working mode, press the DE/SPC button to set the Channel Space 9 kHz or 10 kHz.
Figure 4. Setting Menu
4.2.2. MCU Setting Radio Working Mode
The host MCU can set the radio working mode
The working modes include:
Tone/volume mode, item 3 in setting menu
Tuning preference (only for FM and SW), item 4 in setting menu
To set radio working mode, follow these procedures:
1. Press the SETTING button to enter item 3. The LCD displays the item number st3 for 1 second, then
automatically switches to its mode indication.
2. Press the DOWN/VOL- or UP/VOL+ button to select the desired mode within 3 seconds.
3. Repeat steps 1 and 2 to set the tuning preference by setting the item 4.
4. When the radio working mode is set, the MCU automatically quits setting the menu if there is no operation
within 3 seconds.
6(77,1*0(18
%DQG7RS
%DQG%RWWRP
7RQH9RO02'(
7XQLQ SUHIHUHQFH
DSUHIHUHQFH
ESUHIHUHQFH
D%DVV7UHEOH02'(
E'L 9RO02'(
F0,;02'(
G0,;02'(
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Si4827-DEMO
Rev. 0.1 11
5. Bill of Materials
ATDD AM/FM/SW receiver IC Si4827 with external 32.768 kHz crystal oscillator support
LM4910 Audio amplifier IC
TM8723 MCU
See Table 3 for details
Table 3. Si4827-DEMO Board Bill of Materials Rev 1.1
Item Qty Reference Description Value
1 12 C1-2 C6 C19 C24 C37-42 C44 CAP,SM,0603,X7R 0.1 µ
2 2 C5 C36 CAP,SM,0603,X7R 0.47 µ
3 2 C8 C10 CAP,SM,0603,COG 100 p
4 1 C33 CAP,SM,0603,COG 10 p
5 4 C28-29 C32 C35 CAP,SM,0603,COG 22 p
6 1 C11 CAP,SM,0603,COG 150 p
7 2 C30-31 CAP,SM,0603,X7R 33 n
8 1 C34 CAP,SM,0603,COG 33 p
9 1 C15 CAP,SM,0603,X7R 4.7 µ
10 2 C4 C12 CAP,SM,0603,X7R 10.0 µ
11 1 C13 CAP,SM,1210,X7R 47 µ
12 1 C18 CAP,SM,0603,COG 330 p
13 2 C23 C27 CAP,SM,1210,X7R 220 µ
14 2 C14 C25 Electrolytic capacitor 100 µ/4 V
15 1 C3 Electrolytic capacitor 220 µ/4 V
16 1 R25 RES,SM,0603 0 R
17 1 R27 RES,SM,0603 100 R
18 2 R5 R6 RES,SM,0603 2 k
19 1 R32 RES,SM,0603 10 R
20 1 R3 RES,SM,0603 10 k
21 1 R41 RES,SM,0603 120 k
22 1 R22 RES,SM,0603 12 k
23 2 R1-2 RES,SM,0603 1 M
24 2 R4 R31 RES,SM,0603 1 k
25 1 R24 RES,SM,0603 200 R
26 1 R13 RES,SM,0603 22 R
27 1 R16 RES,SM,0603 2.2 k
28 1 R46 RES,SM,0603 4.7 M
29 1 R20 RES,SM,0603 6.8 k
30 2 R21 R23 RES,SM,0603 NP
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Si4827-DEMO
12 Rev. 0.1
31 1 R7 RES,SM,0603,Tolerance ±1% 10 k 1%
32 1 R29 RES,SM,0603,Tolerance ±1% 160 k 1%
33 9 R9-12 R14-15 R28 R33 R35 RES,SM,0603,Tolerance ±1% 20 k 1%
34 1 R43 RES,SM,0603,Tolerance ±1% 30 k 1%
35 1 R36 RES,SM,0603,Tolerance ±1% 33 k 1%
36 1 R8 RES,SM,0603,Tolerance ±1% 40 k 1%
37 1 R44 RES,SM,0603,Tolerance ±1% 47 k 1%
38 1 U1 SI4827-A SOIC16 Si4827-A
39 1 U2 LM4910MA,SO8 LM4910MA
40 1 U3 TM8795 44 PIN TM8795 44 PIN
41 1 Q2 TRANSISTOR NPN SOT23 2N3904
42 1 Q1 TRANSISTOR NPN SOT23 2SC9018
43 1 Q3 TRANSISTOR NPN SOT23 2N3906
44 2 D2 D4 DIODE,SM,ESD,SOT23 BAV99
45 3 B4 B5 B6 FERRITE BEAD,SM,0603 2.5 k/100 M
46 1 B1 FERRITE BEAD,SM,0603 NP
47 1 BZ1 BUZZER BUZZER
48 2 Y1-2 CRYSTAL 32.768 kHz
49 1 D1 LED LED
50 1 D6 1N4148 1N4148
51 1 J5 Stereo earphone jack with switch 3.5 mm
52 1 L1 RES,SM,0603 0R
53 1 L2 IND,SM,0603 270 nH
54 1 L3 IND,SM,0603 120 nH
55 2 TP1 TP3 CONN,TH,1x2,HDR CONN,TH,1x2,HDR
56 1 LCD1 LCD LCD
57 1 J1 BNC VERTICAL BNC for FM testing
58 1 J6 SMA VERTICAL SMA for AM testing
59 1 ANT1 AW ferrite stick antenna 220 µH
60 1 BAT1 BATTERY BOX ,AAA*2 SIZE
61 3 S11 S12 S14 One pole two throw switch
62 1 S2 Single pole twelve throw switch
63 9 S1 S3-10 Push button
64 1 VR1 100 k,±10%,Variable resistor(POT) 100 k
65 1 VR2 10 k,±20%,Variable resistor(POT) 10k
Table 3. Si4827-DEMO Board Bill of Materials Rev 1.1
Item Qty Reference Description Value
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Si4827-DEMO
Rev. 0.1 13
6. Schematics and Gerber
FM1 (W 64MHz - 108MHz ) (N 87MHz - 108MHz) FM5 (W 76MHz - 108MHz) (N 64MHz - 87MHz)
AM1 (520kHz - 1710kHz)
FM/SW
MW
AM2 (522kHz - 1620kHz)
SW1 (W 3.2MHz - 7.6MHz) (N 5.6MHz - 6.4MHz)
SW3 (W 3.2MHz - 10.0MHz) (N 6.8MHz - 7.6MHz) SW5 (W 5.9MHz - 18.0MHz) (N 9.2MHz - 10.0MHz) SW7 (W 7.0MHz - 16.0MHz) (N 11.45MHz - 12.25MHz) SW9 (W 7.0MHz - 23.0MHz) (N 13.4MHz - 14.2MHz)
SW11 (W 9.0MHz - 22.0MHz) (N 15MHz - 15.9MHz) SW13 (W 9.5MHz - 18.0MHz) (N 17.1MHz - 18MHz)
SW15 (W 10.0MHz - 22.0MHz) (N 21.2MHz - 22MHz)
Audio output
S14: Band Selection
2-3 slide switch 2-1 push button
Aout
GND
(Note:W=Wide Band, N=Narrow Band)
Aout
GND
C39
0.1u BAT1
AAA*2
12
3 4 5 6 7 8 9 10 11 12 13
S2
R15
20k 1%
R10
20k 1%
R12
20k 1%
R11
20k 1%
R14
20k 1%
R9
20k 1%
R7
10k 1%
R8
40k 1%
R28
20k 1%
R29
160k 1%
J1
L2
270nH
C19
0.1u
C15
4.7u
VR1
100k 10%
C6
0.1u
D4
BAV 99
C5
0.47u
Q1
2SC9018
R31 1k
R32 10R
C30
33n
C33
10p
R41
200k
C31
33n
B6
2.5k/100M
C36
0.47u
ANT1
MW ferrite antenna
J6
D2
BAV 99
C34
33p
C1
0.1u
R27
100R
R33
20k 1%
R35
20k 1%
R36
33k 1%
C13
47u
R43
30k 1%
R44
47k 1%
C14
100u/4V
L1
0R/120nH
C4
10u C12
10u
VR2-A
1 2 3
J5
C24 0.1u
R20 6k8
R22
12k
B4 2k5/100M
B5 2k5/100M
1IN1 2IN2 3SHUTDOWN 4GND 5
VDD
6
VO3
7
VO2
8
VO1
U2
LM4910MA
C10
100p
C11 150p
R16
2k2
C18
330p
C23
220u
C27
220u
C8
100p
B1
NC
C25
100u/6.3V
Y1
32.768KHz
C28
22p
C29
22p
R46
4.7M
R3
10k
R21
NC
S11
1
2
3
S14
R5
2k
R6 2k
L3
120nH
1
23
S12
1
IRQ
2
TUNE1
3
TUNE2
4
BAN D
5
NC
6
FMI
7
GND
8
AMI
9RSTB
10 SDIO
11 SCLK
12 XTA LO
13 XTA LI
14 VDD
15 GND
16 AOUT
U1
Si4827
R23
NC
TP3
TP1
BAN D [1]
LNA_EN [1,2]
BAN D
[1]
TUNE1
[1]
TUNE1 [1]
RESET [2]
VCC
VCC
VCC
FMI
[1]
IRQ[2]
SCLK [2]
SDIO [2]
VCC
XTA LI
[2]
FMI
[1]
VCC
SHUTDOWN [2]
VCC
LNA_EN [1,2]
Figure 5. Si4827-DEMO Board Rev 1.1 Schematic (1 of 2)
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Si4827-DEMO
14 Rev. 0.1
S
MCU LCD
KEY BUZZER
1 Band Top 2 Band Bottom 3 Tone/Vol MODE
d MIX MODE2
c MIX MODE1 b Dig-Vol MODE
a Bass/Treble MODE
SETTING MENU:
b Preference2 a Preference1
4 Tuning preference
W=Wide, N=Narrow
S5
KEY2_DIP
BASS/TMR
C:WIND95TEMP6200.LIBC:ORCAD7.0CAPTURELIBRARYUSERS3C44B0XS3C44B0X.OLB
S3
KEY2_DIP
POWER/BAND
C:WIND95TEMP6200.LIBC:ORCAD7.0CAPTURELIBRARYUSERS3C44B0XS3C44B0X.OLB
S4
KEY2_DIP
DE/SPC
C:WIND95TEMP6200.LIBC:ORCAD7.0CAPTURELIBRARYUSERS3C44B0XS3C44B0X.OLB
S6
KEY2_DIP TREBLE/AL C:WIND95TEMP6200.LIBC:ORCAD7.0CAPTURELIBRARYUSERS3C44B0XS3C44B0X.OLB
S7
KEY2_DIP
UP/VOL+
C:WIND95TEMP6200.LIBC:ORCAD7.0CAPTURELIBRARYUSERS3C44B0XS3C44B0X.OLB
S8
KEY2_DIP
DOWN/VOL-
C:WIND95TEMP6200.LIBC:ORCAD7.0CAPTURELIBRARYUSERS3C44B0XS3C44B0X.OLB
S10
KEY2_DIP
SETTING
C:WIND95TEMP6200.LIBC:ORCAD7.0CAPTURELIBRARYUSERS3C44B0XS3C44B0X.OLB
BZ1
Q2
2N3904
R4
1k
D6
1N4148
C2
0.1u
C3
220u/4V
R13 22R
MHz
SWMW
FM
SLEEP
KHz MHz
PM
1
COM1
2
COM2
3
COM3
4
SEG0
5
SEG1
6
SEG2
7
SEG3
8
SEG4
9
SEG5
10
SEG6
11
SEG7
12
SEG8
13
SEG9
14
SEG10
15
SEG11
16
SEG12
17
SEG13
LCD1
1BAK 2XIN 3XOUT 4GND 5VDD1 6VDD2 7VDD3 8CUP1 9CUP2
10 COM1
11 COM2
12 COM3
13 COM4
14 COM5
15 SEG1(K1)
16 SEG2(K2)
17 SEG3(K3)
18 SEG4(K4)
19 SEG5(K5)
20 SEG6(K6)
21 SEG7(K7)
22 SEG8(K8)
23
SEG9(K9)
24
SEG10(K10)
25
SEG11(K11)
26
SEG12(K12)
27
SEG21
28
SEG22
29
SEG23
30
SEG24/IOA1
31
SEG25/IOA2
32
SEG26/IOA3
33
SEG27/IOA4
34
SEG28/IOB1/ELC
35
SEG29/IOB2/ELP
36
SEG30/IOB3/BZB
37
SEG31/IOB4/BZ
38
SEG32/IOC1/KI1
39
SEG33/IOC2/KI2
40
SEG34/IOC3/KI3
41
SEG35/IOC4/KI4
42
RESET
43
INT
44
TEST
U3
Y2
32.768KHz
C32 22p C35 22p
C37
0.1u
C38
0.1u
C40 0.1u
Q3 2N3906
R1
1M
R2
1M
C41 0.1u
S1
KEY2_SM
RESET
C:WIND95TEMP6200.LIBC:ORCAD7.0CAPTURELIBRARYUSERS3C44B0XS3C44B0X.OLB
C42 0.1u
C44
0.1u
D1
Tuning indicator R24
200R
R25
0R
S9
KEY2_DIP
W/N BAND
C:WIND95TEMP6200.LIBC:ORCAD7.0CAPTURELIBRARYUSERS3C44B0XS3C44B0X.OLB
KEY_R1 [2]
KEY_C3 [2] KEY_C1 [2] KEY_C0 [2]
KEY_C2 [2]
KEY_R0 [2]
BZ [2]
VCC
LCD_C1
[2]
LCD_C2
[2]
LCD_C3
[2]
LCD_S0
[2]
LCD_S1
[2]
LCD_S2
[2]
LCD_S3
[2]
LCD_S4[2]
LCD_S5
[2]
LCD_S6
[2]
LCD_S7
[2]
LCD_S8[2]
LCD_S9
[2]
LCD_S10
[2]
LCD_S11
[2]
LCD_S12
[2]
LCD_S13
[2]
LCD_C1 [2] LCD_C2 [2]
LCD_C3 [2]
KEY_R0 [2]
KEY_R1 [2]
LCD_S0 [2]
LCD_S1 [2]
LCD_S2 [2]
LCD_S3 [2]
LCD_S4 [2]
LCD_S5 [2]
LCD_S6
[2]
LCD_S7
[2]
LCD_S8
[2]
LCD_S9
[2]
LCD_S10
[2]
LCD_S11
[2]
LCD_S12
[2]
SDIO
[1]
RESET
[1]
SCLK
[1]
LCD_S13
[2]
BZ
[2]
KEY_C0[2]
KEY_C1[2]
KEY_C2[2]
KEY_C3[2]
IRQ [1]
VCC
VCC
VCC
XTA LI [1]
VCC
SHUTDOWN[1]
LNA_EN
[1]
Figure 6. Si4827-DEMO Board Schematic Rev 1.1 (2 of 2)
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Si4827-DEMO
Rev. 0.1 15
Figure 7. Si4827-DEMO Board Gerber Rev 1.1
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Disclaimer
Silicon Laboratories intends to provide customers with the latest, accurate, and in-depth documentation of all peripherals and modules available for system and software implementers
using or intending to use the Silicon Laboratories products. Characterization data, available modules and peripherals, memory sizes and memory addresses refer to each specific
device, and "Typical" parameters provided can and do vary in different applications. Application examples described herein are for illustrative purposes only. Silicon Laboratories
reserves the right to make changes without further notice and limitation to product information, specifications, and descriptions herein, and does not give warranties as to the accuracy
or completeness of the included information. Silicon Laboratories shall have no liability for the consequences of use of the information supplied herein. This document does not imply
or express copyright licenses granted hereunder to design or fabricate any integrated circuits. The products must not be used within any Life Support System without the specific
written consent of Silicon Laboratories.A"Life Support System" is any product or system intended to support or sustain life and/or health, which, if it fails, can be reasonably expected
to result in significant personal injury or death. Silicon Laboratories products are generally not intended for military applications. Silicon Laboratories products shall under no
circumstances be used in weapons of mass destruction including (but not limited to) nuclear, biological or chemical weapons, or missiles capable of delivering such weapons.
Trademark Information
Silicon Laboratories Inc., Silicon Laboratories, Silicon Labs, SiLabs and the Silicon Labs logo, CMEMS®, EFM, EFM32, EFR, Energy Micro, Energy Micro logo and combinations
thereof, "the world’s most energy friendly microcontrollers", Ember®, EZLink®, EZMac®, EZRadio®, EZRadioPRO®, DSPLL®, ISOmodem ®, Precision32®, ProSLIC®, SiPHY®,
USBXpress® and others are trademarks or registered trademarks of Silicon Laboratories Inc. ARM, CORTEX, Cortex-M3 and THUMB are trademarks or registered trademarks of
ARM Holdings. Keil is a registered trademark of ARM Limited. All other products or brand names mentioned herein are trademarks of their respective holders.
http://www.silabs.com
Silicon Laboratories Inc.
400 West Cesar Chavez
Austin, TX 78701
USA
Smart.
Connected.
Energy-Friendly
Products
www.silabs.com/products Quality www.silabs.com/quality Support and Community community.silabs.com
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.
