Silver Eagle SE240 User manual

DO NOT DISCARD – GIVE TO USER
WARNING
Page 1
www.matcotools.com
Product Type:

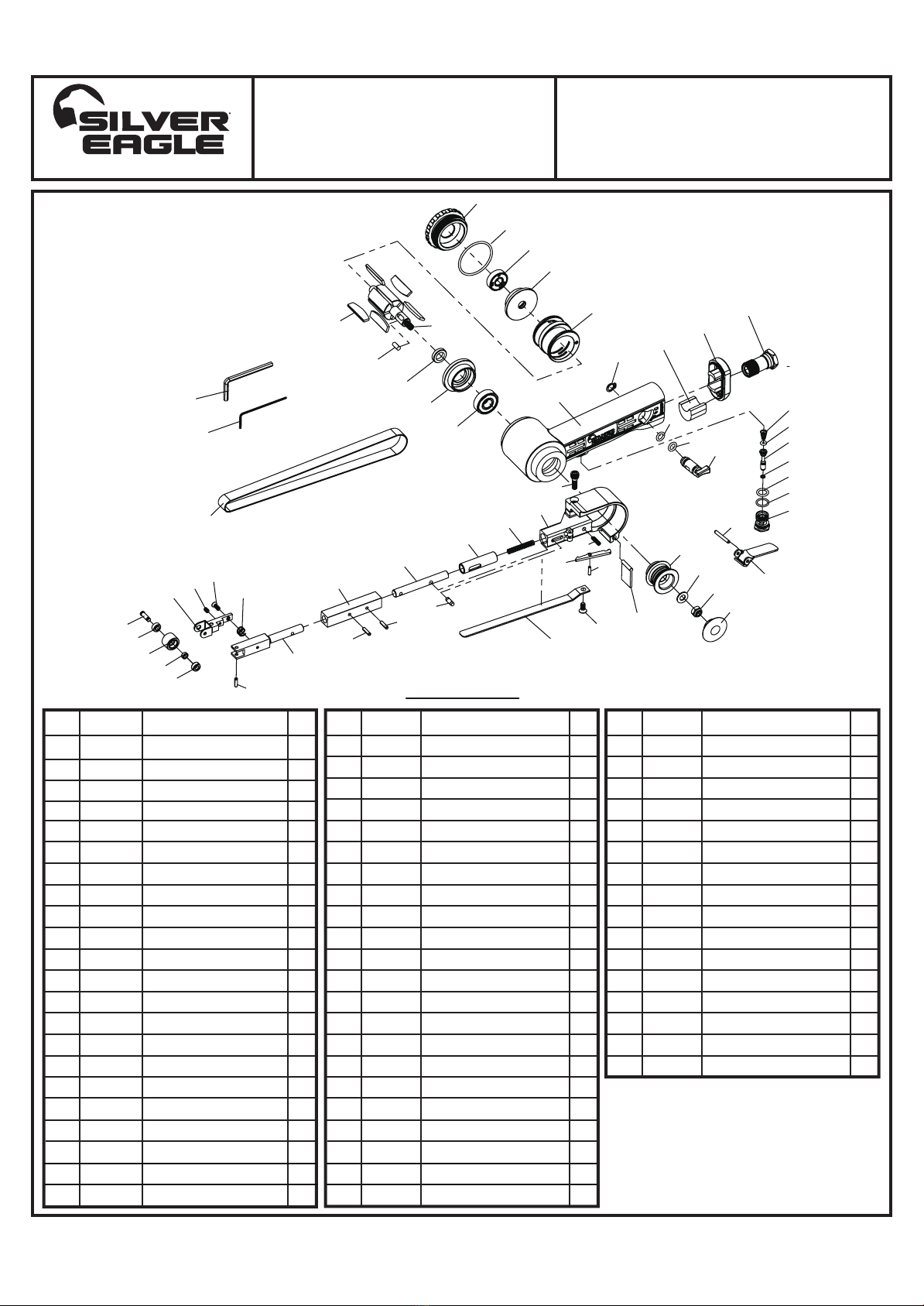

When unpacking, check the parts diagram and part number
listing on page 4 to make sure all parts are included. If any
parts are missing or damaged, please call your distributor.
BEFORE USE
Study, understand and follow all instructions provided with this
product. Read these instructions carefully before installing,
operating, servicing or repairing this tool. Keep these instructions
in a safe accessible place.
INTENDED USE OF THE TOOL
• Use of this product can expose you to chemicals including
ethylene glycol, gasoline vapors and engine exhaust, which
are known to the State of California to cause cancer, birth
defects, or reproductive harm. For more information, visit
www.P65Warnings.ca.gov. Always wear ANSI approved
safety equipment, safety glasses and clothing when using
this product. Study, understand, and follow all instructions
provided with this product. Failure to read and follow all
warnings and operating instructions may result in damages
and serious injury or death.
• Always wear ANSI approved goggles when using this
product. (Users and bystanders).
• Never use this tool for any application other than for
which it was designed.
• Only use accessories designed for this tool.
• Never alter or modify this tool in any way.
•Improper operation and/or maintenance of the tool,
modification of the tool or use of the tool with accessories
not designed for it could result in serious injury or death.
• Always select accessories of the correct size and design for
the job that you are attempting to perform.
• Always work in a clean, safe, well-lit, organized and
adequately equipped area.
•Do not begin repairs without assurance that vehicle is in
secure position and will not move during repair.
WARNING
AIR BELT SANDER
1/2" x 18"
PRODUCT INFORMATION:
SPECIFICATIONS:
MADE IN TAIWAN
Model: SE240 AIR BELT SANDER 1/2" x 18"
This belt sander is designed to rapidly sand down materials and
remove rust, paint and welds in hard to reach areas. Do not use
this tool outside of the designed intent. Never modify the tool for
any other purpose or use.
Free Speed: 17,000RPM
Size of Belt: 1/2" x 18"
Air Consumption: 4.5cfm
Overall Length: 15.15" (385mm)
Net Weight: 1.87 lbs. (0.85kg)
Air Inlet: 1/4"
Air Pressure: 90psi
• Wide rubber coated roller drastically improves
sanding belt life without losing aggressiveness
• Simple belt tension lever
• Variable speed control
• Angle offset handle allows for accessing difficult to reach
spot-welds comfortably.
• Included in the kit:
1 - 36 Grit 1/2" x 18" (SE140-36B)
1 - 40 Grit 1/2" x 18" (SE140-40B)
1 - 60 Grit 1/2" x 18" (SE140-60B)
• Non-wearing steel roller assembly available (3037PAS)
• The manufacturer warrants products to the original owner against defective material
or workmanship for a period of 1 year (except where noted on our price schedule)
from the date of 1st use. The manufacturer reserves the right to determine whether
the product failed because of defective material, workmanship or other causes and to
charge back for missing parts. The manufacturer, at its discretion, will repair products
covered under this warranty free of charge. The distributor should direct the original
owner to return the product (with the exceptions listed below) with the distributor’s
name, address, adequate proof of date of purchase or a copy of warranty card, and a
short note explaining the problem. Failures caused by accident, alteration or
misuse are not covered by this warranty.
• The manufacturer or its authorized service representatives must perform all
warranty repairs. Any repair to the product by unauthorized service representatives
voids this warranty. The rights under this warranty are limited to the original owner
and may not be transferred to subsequent owners.
• This warranty is in lieu of all other warranties, expressed or implied, including
warranties of merchantability and fitness for a particular purpose. Some states do not
allow the exclusion of limitations of incidental or consequential damages so the
above limitations may not apply to you.
1 YEAR LIMITED WARRANTY
1809270-14

Page 2
www.matcotools.com
Model: SE240 Product Type:
AIR BELT SANDER 1/2" x 18"
Sanding Belt Replacement Instructions:
1) Disconnect air supply from sander.
2) Push #65 idle pulley in the direction shown in the photo below
until tension bar automatically locks into place.
3) Remove old belt, install new belt.
4) Push #23 lock lever in to unlock #8 tension bar and the #65
idle pulley will automatically apply tension to the belt.
WARNING
Always keep hands away from pulleys and disconnect air supply before
servicing this tool to prevent serious injury.
Sanding Belt Alignment Instructions:
If the sanding belt is off center of the #1 idle pulley during
operation, an adjustment should be made for safety and to
prevent premature wear of the belt and other tool parts. If the
belt is running off center away from the #20 shoe and #65 pulley
assembly, turn the #6 screw clockwise or counter-clockwise to
adjust the left/right alignment of the belt until it is centered with
the #65 pulley and not rubbing on guards.
1809270-14
1) LUBRICATION:
Before connecting the hose, apply 4 to 5 drops of a
good quality air tool oil at the air inlet. After 3 to 4 hours
of operation, oiling may be necessary again.
3) STORAGE:
Avoid storing the tool in a location subject to high humidity. If
the tool is left unused, the residual moisture inside the tool
can cause rust. Before storing and after operation, oil the tool
at the air inlet with a good quality air tool oil and run it for a
short period.
4) DISPOSAL:
Follow national legislation of waste disposal.
5) ORDERING SERVICE PART:
For further operational and handling information or for
replacement of parts and components, contact the sales
agent from where you purchased the tool or the service
division of our company.
*When ordering parts and components, give each part
number, name and quantities.
2) TIGHTNESS OF PARTS:
Regularly check whether all connection parts are
fastened securely. Follow this procedure daily before
beginning work.
MAINTENANCE INSTRUCTIONS:
1. The tool shall not be used in potentially explosive
atmospheres.
2. Disconnect the air hose before changing or adjusting
any inserted tools.
3. Before using tool, please confirm all couplings and plugs
are fixed securely. An air hose that is under pressure
may lash out when disconnected and could lead to
serious injuries.
4. Prevent loose clothes, long hair or any other personal
accessories from coming close to moving parts to
reduce the risk of being caught, trapped or drawn into
the rotating spindle.
5. Excessive high air pressure that exceeds the maximum
pressure may cause injuries to operator.
6. Exposure to strong vibration for extended time may
cause harm to operator.
7. Be aware of the rotation direction before starting the tool
to reduce hazardous situations due to unexpected
rotation direction.
8. WATCH YOUR STEP! Leaving excess hose unattended
near working area or walk path could result in injury or death.
9. Wearing eye/face protection could reduce the danger to
operator from high speed splinters being emitted from
the tool or work surface.
10. Wearing correct breathing protection will help avoid
inhaling dust or debris from work process that can be
harmful to your health.
11. High sound levels can cause permanent hearing loss.
Use hearing protection while operating tool.
12. Due to the material being processed, there may be a
risk of explosion or fire. Be aware of work surface
dangers prior to beginning work.
13. There is a risk of being cut due to high speed rotation.
Do not touch high speed rotating belt.
14. This power tool is not insulated. If contact is made with
an electric current, injury may occur.
15. Dust created by sanding, sawing, grinding, drilling and
other related activities may expose the user to dust
and/or microscopic particles that may contain chemicals
known to the State of California to cause cancer, birth
defects or other reproductive harm.
WARNING

Page 3
www.matcotools.com
Model: SE240
Product Type:
AIR BELT SANDER 1/2" x 18"
1809270-14
The oil and water extractor should not be mounted on or near the air
compressor.
The temperature of air is greatly increased during compression. As the air
cools down to room temperature in the air line while on its way to the air
power tool, the moisture contained in it condenses. Thus, for maximum
effectiveness, the oil and water extractor should be mounted at some point
in the air supply system where the temperature of the compressed air in the
line is likely to be lowest. Air lines must be properly drained daily. Each low
point in an air line acts as a water trap. Such points should be fitted with an
easily accessible drain. See diagram below. Pitch all air lines back towards
the compressor so that condensed moisture will flow back into the air
receiver where it can be drained off. Drain daily.
SUGGESTED AIR LINE CONNECTION
Pitch pipe back toward air receiver
Compressor unit
Drain
Daily 25 FEET OR MORE
Oil and water extractor should be at least 25 ft. from the compressor. Further if possible.
Drain
Daily
Drain
Daily
Oil and Water
Extractor
Install drain at
each low point
PIPE SIZE, I.D. (Inches)
Air Flow
CFM
Length of Pipe (feet)
10
20
30
40
50
70
50
1/2"
3/4"
3/4"
1"
1"
1"
100
3/4"
3/4"
3/4"
1"
1"
1"
150
3/4"
3/4"
1"
1"
1"
1-1/4"
200
3/4"
1"
1"
1"
1-1/4"
WARNING
1. This tool is intended for polishing and sanding with a rotary
movement using abrasive products of appropriate material
compositions and grits. Any other use is forbidden.
2. Only use the polishing and sanding belts as recommended by
the belt manufacturer.
3. Ensure the maximum operating speed of the belt is higher than
the rated speed of the power tool.
4. Always wear ANSI approved ear protection and safety glasses
when using this tool. Gloves and protective clothing are
recommended.
5. Personal protection and dust collection devices shall be
chosen according to the material being worked upon. Please
consult provider of such devices.
6. Release the start/stop lever in the case of air supply loss.
7. Only use the lubricant recommended by the manufacturer.
CAUTIONS FOR USE:
Users of this tool should review the chemical composition of the work
surface and any products used in conjunction with this tool for any
such chemicals prior to engaging in any activity that creates dust
and/or microscopic particles.
Users should obtain the Material Safety Data Sheets for all identified
chemicals, whether from the manufacturer or their employer, and
proceed to study, understand and follow all instructions and warning
for exposure to such chemicals.
Some examples of these chemicals are: lead from lead-based paints;
crystalline silica from bricks, cement and other masonry products;
and arsenic and chromium from chemically treated lumber. A list of
the chemicals can be obtained at www.oehha.ca.gov under
Proposition 65.
In order to reduce their exposure to such chemicals users should
always:
- Work in well-ventilated areas.
- Wear appropriate safety equipment and clothes that are specifically
designed to filter our microscopic particles.

Parts List
3037-01
3037-02
3037-03
3037-04B
3037-05
3037-06
3037-07
3037-08
3037-09
3037-10
3037-12
3037-13
3037-14
3037-15
3037-16
3037-17
3037-18
3037-19
3037-20
3037-21
3037-22
3037-23
1
2
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
3037-46
3037-47
3037-48
SE240-49
3037-50
3037-51
3037-52
SE240-53
SE240-54
SE140-36B
SE140-40B
SE140-60B
3037-61
3037-62
3037-63
3037-64
46
47
48
49
50
51
52
53
54
56
57
58
61
62
63
64
3037-24
3037-25
3037-26
3037-27
SE240-28
3037-29
3037-30
SE240-31
SE240-32
SE240-33
SE240-34
SE240-35
SE240-36
3037-37
3037-38
SE240-39
SE240-40
3037-41
3037-42
3037-43
3037-44
3037-45
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
1
1
1
1
1
1
1
1
1
1
5
1
1
1
1
1
1
1
1
1
1
1
Index Parts No. Description Qty Index Part No. Description Qty Index Part No. Description Qty
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
2
3
4
5
6
7
8
9
10
12
13
14
15
16
17
18
19
20
21
22
23
Idle Pulley
Ball Bearing (684zz)
Idle Pulley Screw
Bracket 12.5
Set Screw(M3x5)
Hexagon Socket Headless Set Screw
Spring
Tension Bar
Spring Pin ( 3×10)
Spring Pin ( 3×12)
Tension Spindle
Dead Hadle
Stopper Pin
Guard Bushing
Tension Spring
Guard Body
Head Cap Screw (M5×15)
Dust Cover
Shoe 12
Hexagon Socket Headless Set Screw
Stopper Spring
Stopper
Spring Pin ( 2.5×10)
Hexagon Nut (M6)
Washer (M6)
Drive Pulley
Housing
Ball Bearing(6000ZZ)
Front End Plate
Spacer
Rotor
Parallel Key Both Ends Round 4×4×9.5
Rotor Blade
Cylinder
Rear End Plate
Ball Bearing (608zz)
O-Ring(S38)
Cap
Throttle Lever
Spring Pin ( 3×20)
Valve Body
O-Ring (S011.2)
O-Ring(ID8.8x1.9)
O-Ring (ID3x1)
Valve Stem
O-Ring (P3)
Valve Spring
Air Regulator
O-Ring (P7)
Snap Ring
Muffler
Exhaust Diffuser
Inlet Bushing
Belt 12x18"(#36)
Belt 12x18"(#40)
Belt 12x18"(#60)
Washer
Hex. Wrench
Hex. Wrench
Pulley Cover
33
34 32
31
30
39
38
29
37
36
35
18
51
50
53
48
49
47
46
45
44
43
42
41
22 27
26
25
19
24
23
21
17
16
15
14
13
20
12
10
8
9
7
56
10
50
3
54
40
1
4
2
2
52
64
61
56, 57, 58
62
63 28
Page 4 809
www.matcotools.com
Model: Product Type:
SE240
PARTS BREAKDOWN
AIR BELT SANDER
1/2" x 18"
1809270-14
