Silver Spring SC500-V3 User manual

Deluxe Steel Folding Scooter & Wheelchair Carrier
Instructions for Part # SC500-V3
Page 1Rev. 060518 DiscountRamps.com •1-888-651-3431
General Guidelines
• It is the user’s responsibility to read and follow all instructions.
• Keep these instructions with the product at all times and review before each use.
• It is the responsibility of this product’s owner to furnish the instructions to any person that borrows
or purchases the product.
• Inspect the product before use to ensure it is assembled properly and all parts are in safe working
order and free of defects.
• Never modify this product in any way.
• All circumstances cannot be addressed in these instructions. Please use common sense and
practice general safety measures when using this product.
• Parts and/or instructions are subject to change without notice.
Safety
• Follow all warnings and instructions marked on the product.
• Do not occupy the mobility aid while loading the carrier.
• Do not stand on the carrier.
• Never exceed vehicle tongue weight rating.
• The carrying capacity is 500 lbs.
• Hitch adapters may a󰀨ect the weight capacity of the carrier. If using a hitch adapter, always check
its limitations before use.
• Always store the carrier in a safe place.
• Improper use, storage, or installation of the carrier could result in death or serious injury.
• Do not put the product on any kind of trailer.
• NOT recommended for tow-behind trailers including 5th wheel trailers and camping trailers.
• Periodically check nuts and bolts for tightness.
Tools Required
• 17mm wrench
• 13mm or 1/2" wrench
• 19mm or 3/4" wrench
• 7/8" or 22mm wrench
• Phillips screwdriver
• 10mm Allen wrench

Page 2Rev. 060518 DiscountRamps.com •1-888-651-3431
Parts
Part Description Quantity
1 M14x2.0x30 Bolt
(use 7/8" or 22mm wrench) 2
2 M14x2.0 Nut
(use 7/8" or 22mm wrench) 2
3 M8x1.0x20 Carriage Bolt 2
4 M8x1.0 Lock Nut
(use 13mm or 1/2" wrench) 2
5 M10x1.5x30 Bolt
(use 17mm or 11/16" wrench) 2
6 M10x1.5 Nut
(use 17mm or 11/16" wrench) 2
7 M12x1.5x60 Bolt
(use 10mm Allen wrench) 1
8 M12x1.5 Lock Nut
(use 19mm or 3/4" wrench) 1
9 Pinch Bolt Assembly - M12x1.5x99 Bolt
(use 19mm or 3/4" wrench)
1
10 Hitch Pin Set 1
Part Description Quantity
11 Ramp Bracket 1
12 Reector with Mounting Screw 2
13 Double Spring Pull Pin with Handle 1
14 Single Spring Pull Pin with Handle 1
15 Rubber Handle Insert 5
16 12mm Pin with Clip 2
17 Anti-Tilt Locking Device
(use 17mm wrench) 1
18 Carrier Main Tube 1
19 Hitch Receiver Tube 1
20 Carrier Basket 1
21 Carrier Ramp 1
1
2
3
4
5
6
7
8
9 10 11
12
13 14 15 16
19
21
20
17
18

Page 3Rev. 060518 DiscountRamps.com •1-888-651-3431
Assembly

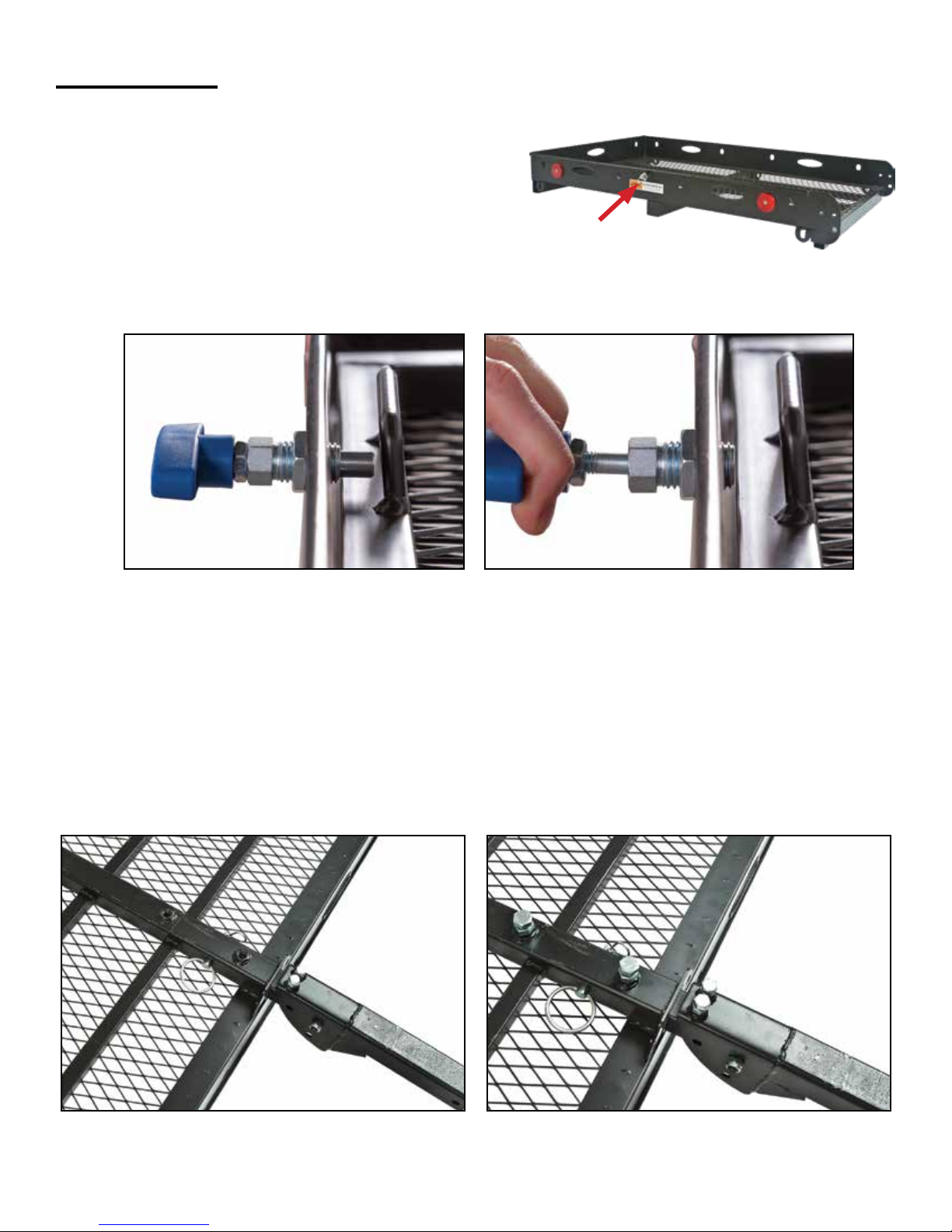

Step 1. Install the spring pull pin (14) into the front of
the carrier basket (20). Allow the spring pull pin (14) to
partially cover the edge of the ramp (21).
Adjust the spring pull pin (14) with enough room that
when pulled back, the ramp (21) can be lifted out of
the carrier basket (20). Securely tighten jam nut.
Step 2. Flip the carrier basket (20) upside down and slide the hitch tube assembly into the center
support tube. Align the holes and insert the pin with clip (16). Install two bolts (1) with nuts (2) and
tighten until seated using a 7/8" wrench. Do not over-tighten.
Note: To properly tighten the bolts (1) with jam nuts (2), rst thread the jam nut counterclockwise up
to the head of the bolt. Fully tighten the bolt into the carrier tube. Then tighten the jam nut clockwise
against the carrier tube to secure the bolt.
Fig. 1a
Fig. 1b Fig. 1c
Fig. 2b
Fig. 2a

Page 4Rev. 060518 DiscountRamps.com •1-888-651-3431

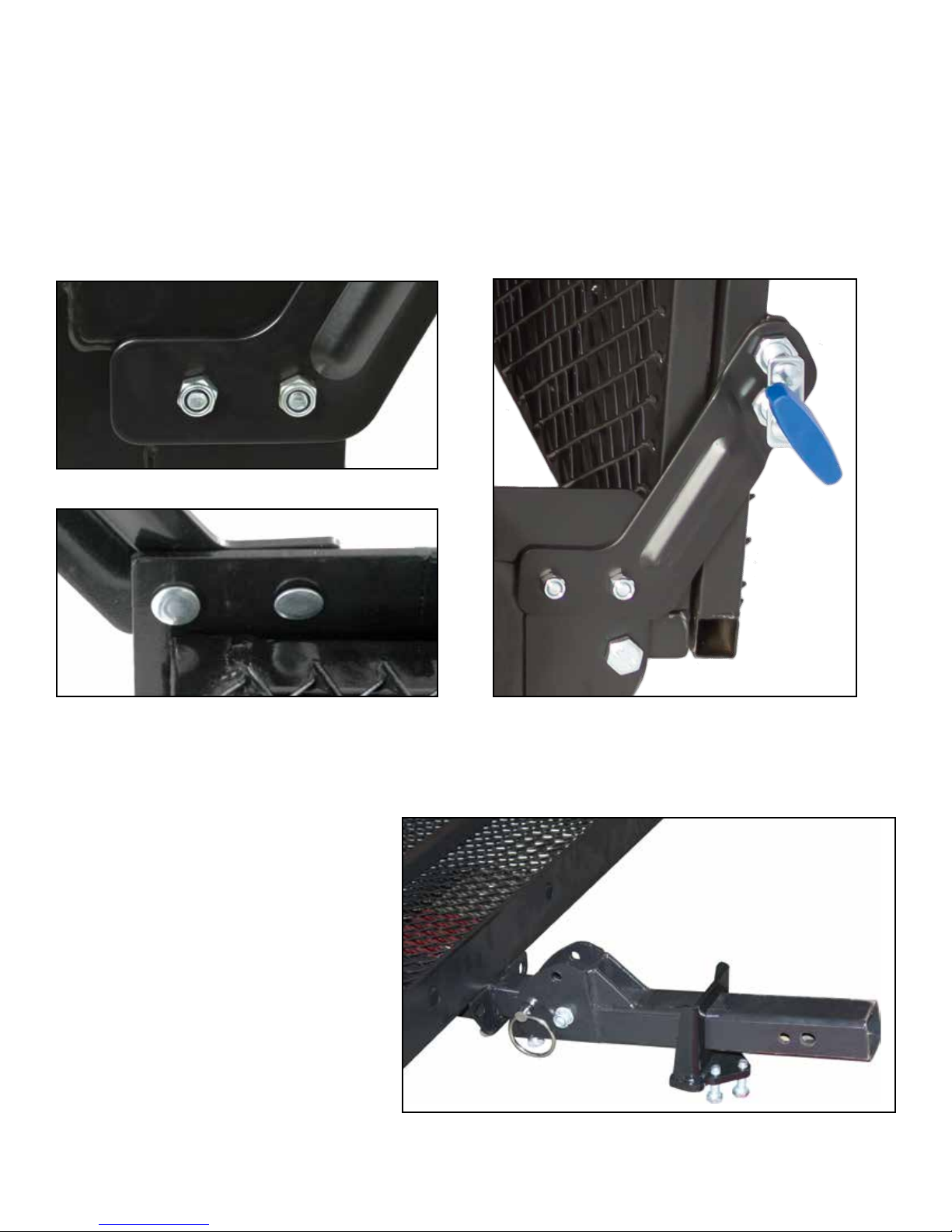

Step 3. Flip the carrier right side up and install the ramp bracket (11) using the carriage bolts (3) and
lock nuts (4) using a 13mm or 1/2" wrench. Be sure the square shoulders on the carriage bolts seat
fully in the square holes on the carrier.
Note: Fully tighten the carriage bolts only after the ramp is in the upright position and the spring pins
are locked into place. This will align the pins with the holes in the ramp as there is some play in the
bracket that could cause misalignment if this procedure is not followed.
Fig. 3a
Fig. 3b
Fig. 3c
Step 4. Slide the anti-tilt locking device
(17) onto the carrier hitch tube with the
3-bolt side facing the hitch.
Fig. 4

Page 5Rev. 060518 DiscountRamps.com •1-888-651-3431

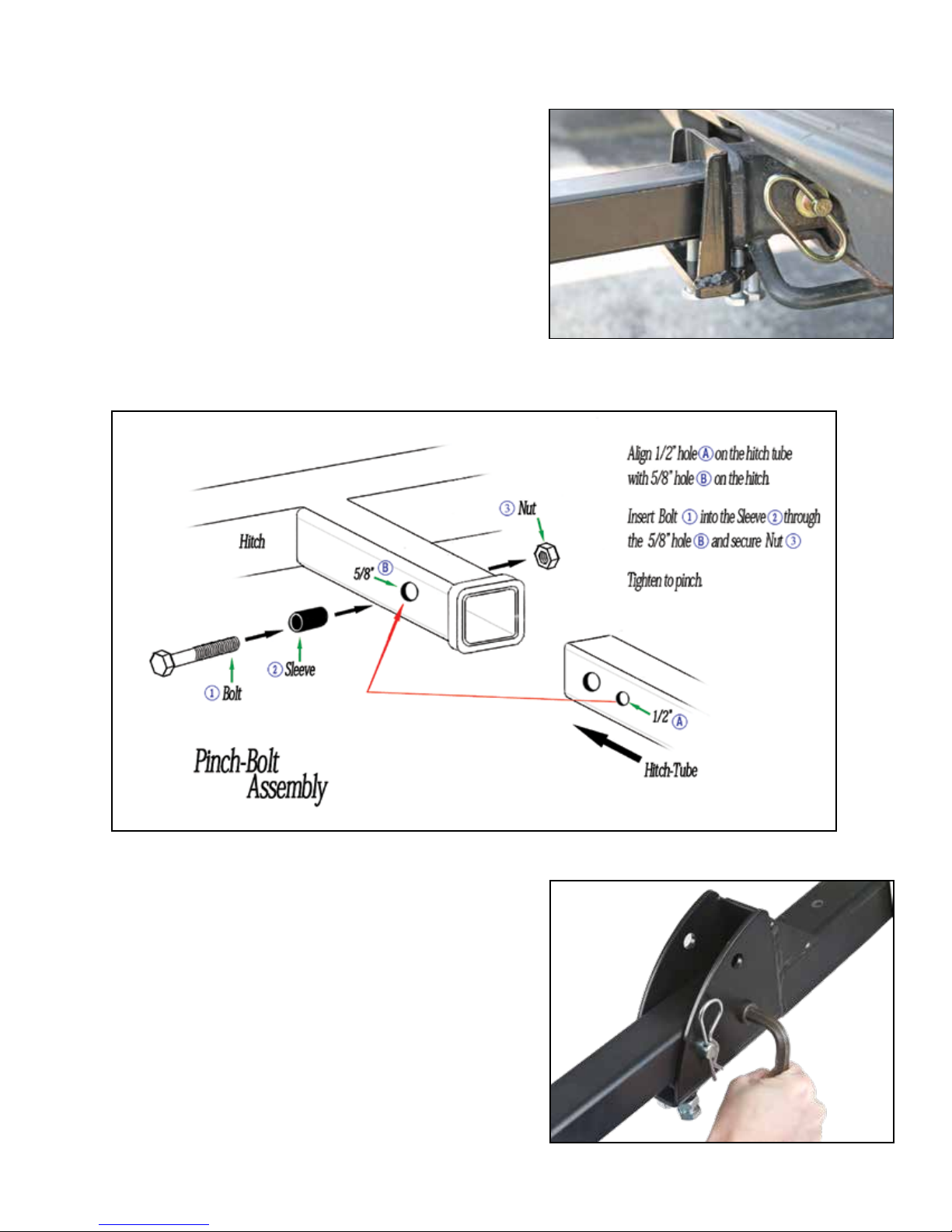

Step 5. (Preferred option) Slide the anti-tilt locking
device (17) tight up against the hitch receiver. Insert
a hitch pin (10) or pinch bolt (9) and tighten the
bolts using a 17mm wrench.
Step 6. (2nd option) Insert the carrier into the hitch and install the pinch bolt assembly.
Step 7. Tighten the hex head pivot bolt (7) with a 10mm
Allen wrench to eliminate side-to-side wobble of the hitch
carrier. DO NOT over-tighten. If the bolt is over-tightened,
the carrier will not be able to pivot or swing up.
It is required to install either the included anti-tilt locking device (Step 5) or pinch bolt (Step 6).
Fig. 5
Fig. 6
Fig. 7

Page 6Rev. 060518 DiscountRamps.com •1-888-651-3431
Step 8. Adjust the leveler bolt to align the pin holes. The pin with clip (16) should be able to be re-
moved/installed without binding if properly adjusted. Tighten the jam nuts when properly aligned using
a 17mm or 11/16" wrench.
Remove the pin with clip (16) to fold the carrier vertically. Replace the pin (16) in the top pin hole to
secure the carrier in the vertical position.
Fig. 8c Fig. 8d
Fig. 8e Fig. 8f
Fig. 8a Fig. 8b

Page 7Rev. 060518 DiscountRamps.com •1-888-651-3431
Step 9. To unfold the loading ramp, pull the spring pull pin (14) on the carrier basket and lift the ramp
up. Next, pull the ramp bracket spring pull pin (13) to allow the ramp to pass. Finally, lay the loading
ramp at on the ground and load wheeled cargo. After the cargo has been loaded, store the ramp in
the vertical position. To store in the vertical position, lift the ramp back up and secure using the ramp
bracket spring pull pins. Safely secure all cargo with high quality tie downs.
14
13
Fig. 9a
Fig. 9c
Fig. 9b
Fig. 9d

Page 8Rev. 060518 DiscountRamps.com •1-888-651-3431
