Silver Viscount 9500e User manual

SYMBOL INSTRUCTIONS
Raise needle Raise presser foot Lower presser foot

IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic safety should always be followed, including the
following:
Read all instructions before using this sewing machine.
-To reduce the risk of electric shock:
. An appliance should never be left unattended when plugged in.
2. Always unplug this appliance from the electric outlet immediately after using and before
cleaning.
3. Always unplug before checking and re-lamping. Contact the manufacturer or its service agent
for repair in the event of failure if the machine is with 240mW LED lamp, which is not user-
replaceable. Replace bulb with same type rated 5 watts if the machine is with 5W lamp.
-To reduce the risk of burns, fire, electric shock, or injury to persons:
. Do not allow to be used as a toy. Close attention is necessary when this appliance is used by or
near children.
2. Use this appliance only for its intended use as described in this manual. Use only the attachments
recommended by the manufacturer as contained in this manual.
3. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has
been dropped or damaged, or dropped into water. Return the appliance to the nearest authorized
dealer or service center for examination, repair, electrical or mechanical adjustment.
4. Never operate the appliance with any air openings block. Keep ventilation openings of the sewing
machine and foot controller free from accumulation of lint, dust, and loose cloth.
5. Keep fingers away from all moving parts. Special care is required around the sewing machine
needle.
6. Always use the proper needle plate, a wrong needle plate can cause the needle to break.
7. Do not use bent needles.
8. Do not pull or push fabric while stitching. It may deflect the needle causing it to break.
9.
0.Always unplug sewing machine from the electrical outlet when removing covers, lubricating, or
when making any other user servicing adjustments mentioned in the instruction manual.
.Never drop or insert any object into any opening.
2.Do not use outdoors.
3.Do not operate where aerosol spray products are being used or where oxygen is being administered.
4.To disconnect, turn all controls to the off ("O") position, then remove plug from outlet.
5.Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
DANGER
WARNING
SAVE THESE INSTRUCTIONS
Please turn off the machine or unplug when the machine is not operating properly.
18.Never place anything on the foot controller.
19.If the supply cord that is fixed with foot controller is damaged, it must be replaced by the
manufacturer or its service agent or a similar qualified person in order to avoid a hazard.
20.This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
21.Children should be supervised to ensure that they do not play with the appliance.
This sewing m chine is intended for household use only.
Switch the sewing machine off ("O") when making any adjustments in the needle area, such as
threading needle, changing needle, threading bobbin, or changing presser foot, and the light.
16.The sound pressure level under normal operating conditions is 75dB(A).
17.

CONTENTS
PRINCIPAL PARTS OF THE MACHINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
BUTTONS OF THE MACHINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
LCD SCREEN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

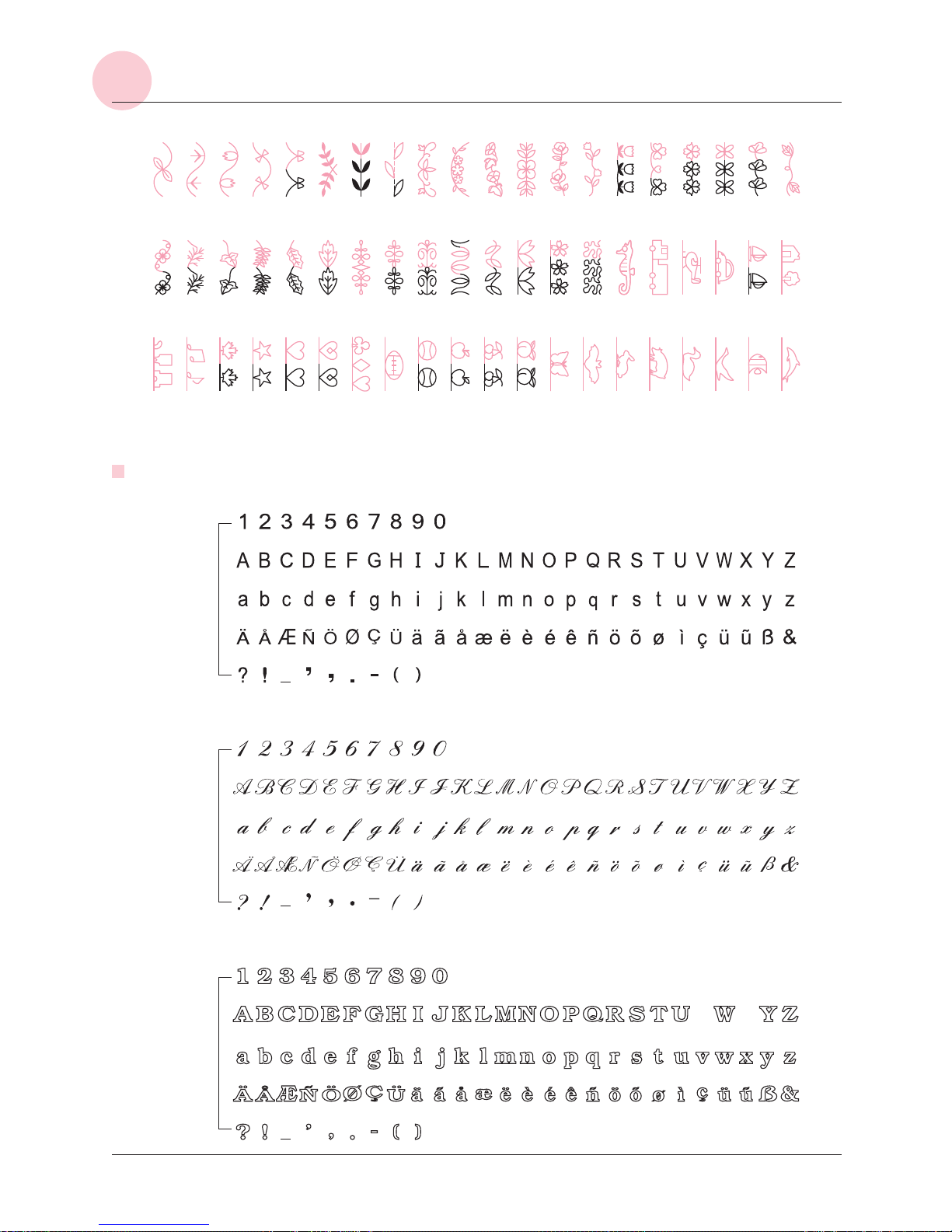

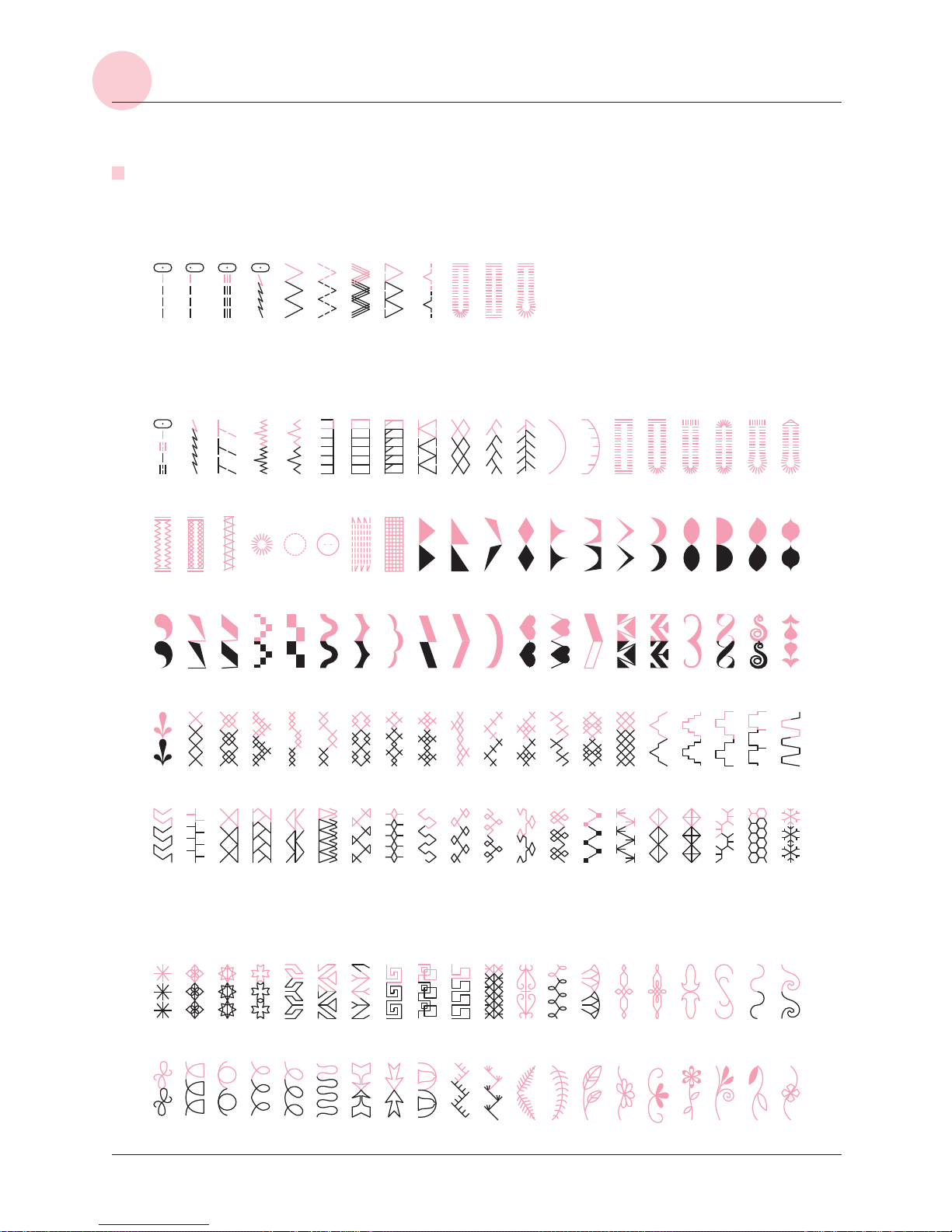

PATTERN CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

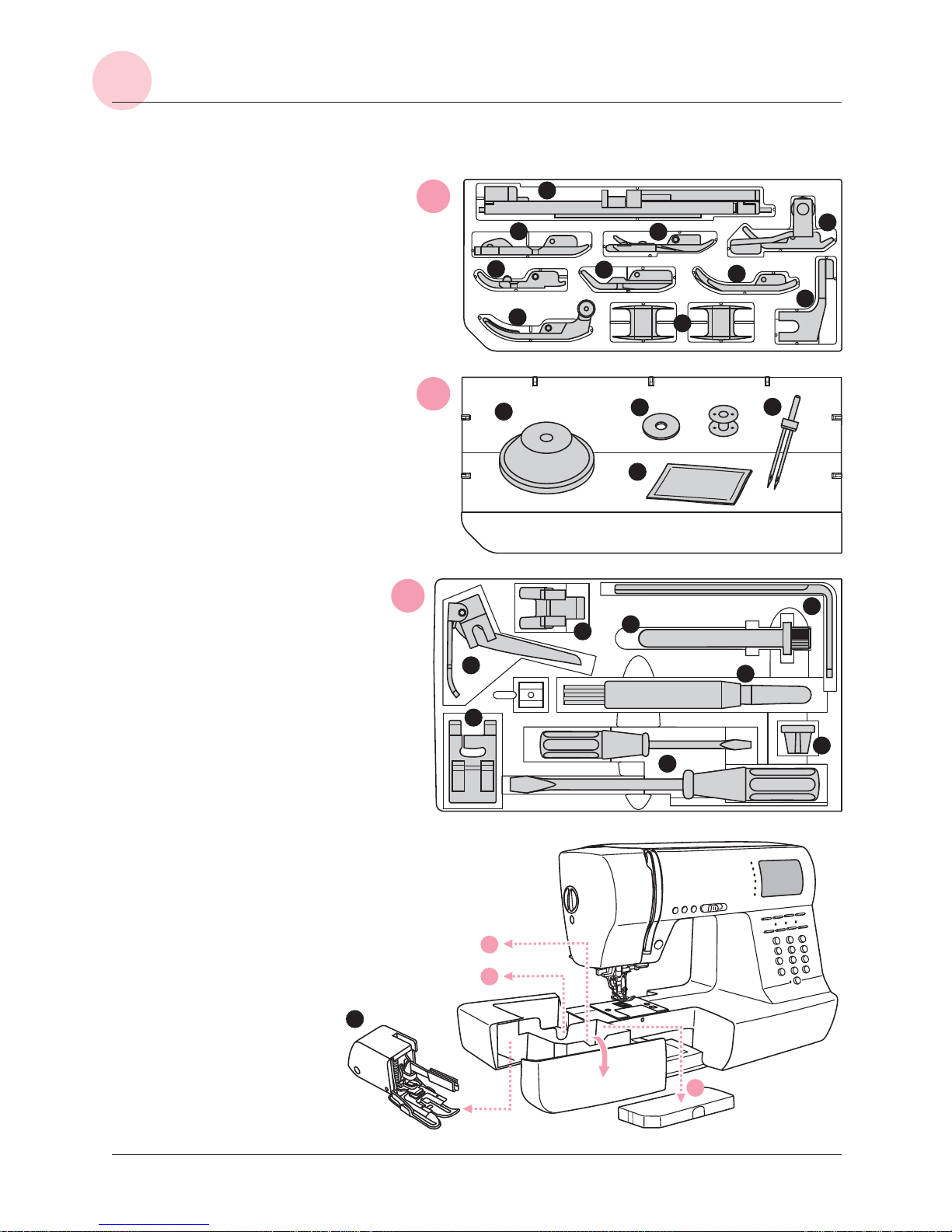

ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

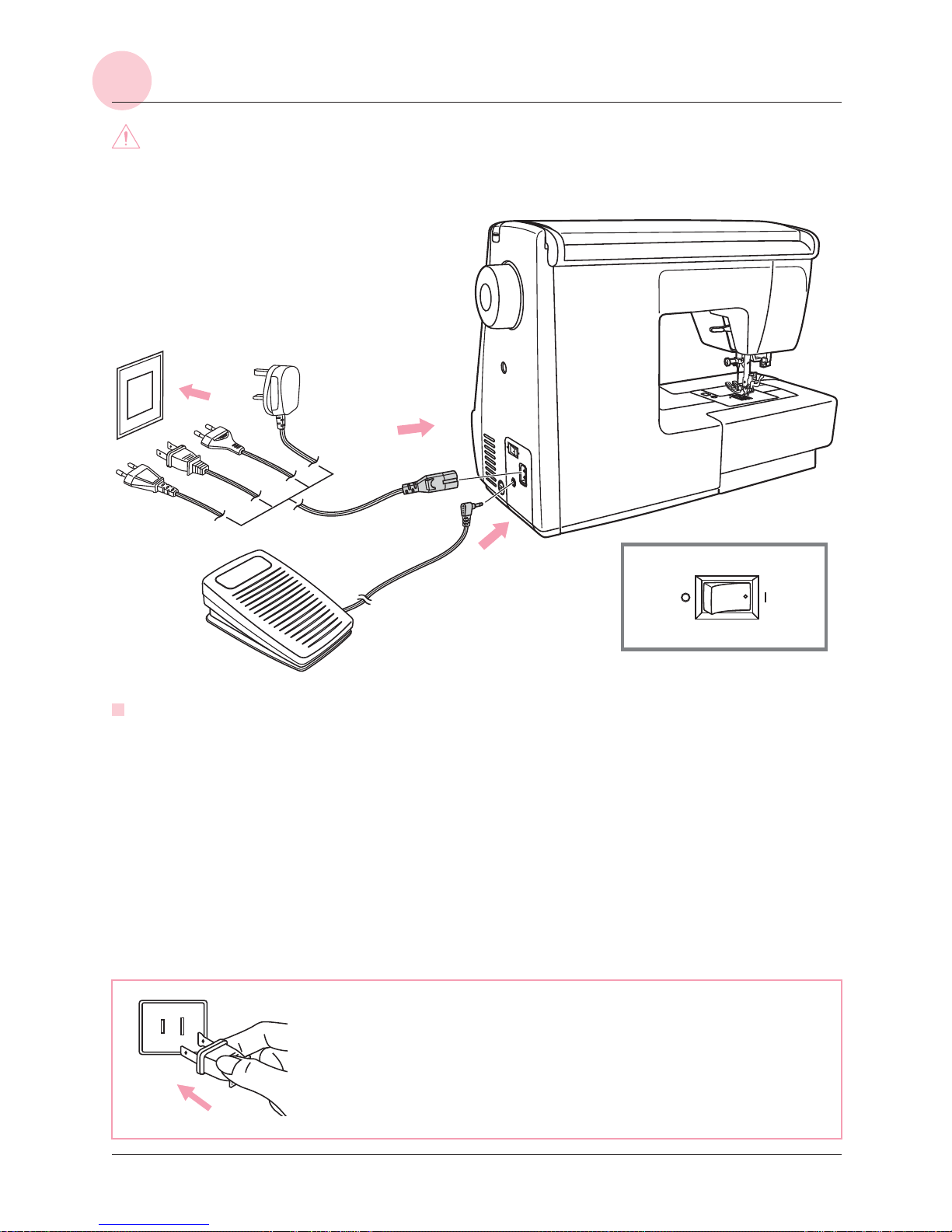

CONNECTING THE MACHINE TO THE POWER SOURCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
STARTING SEWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

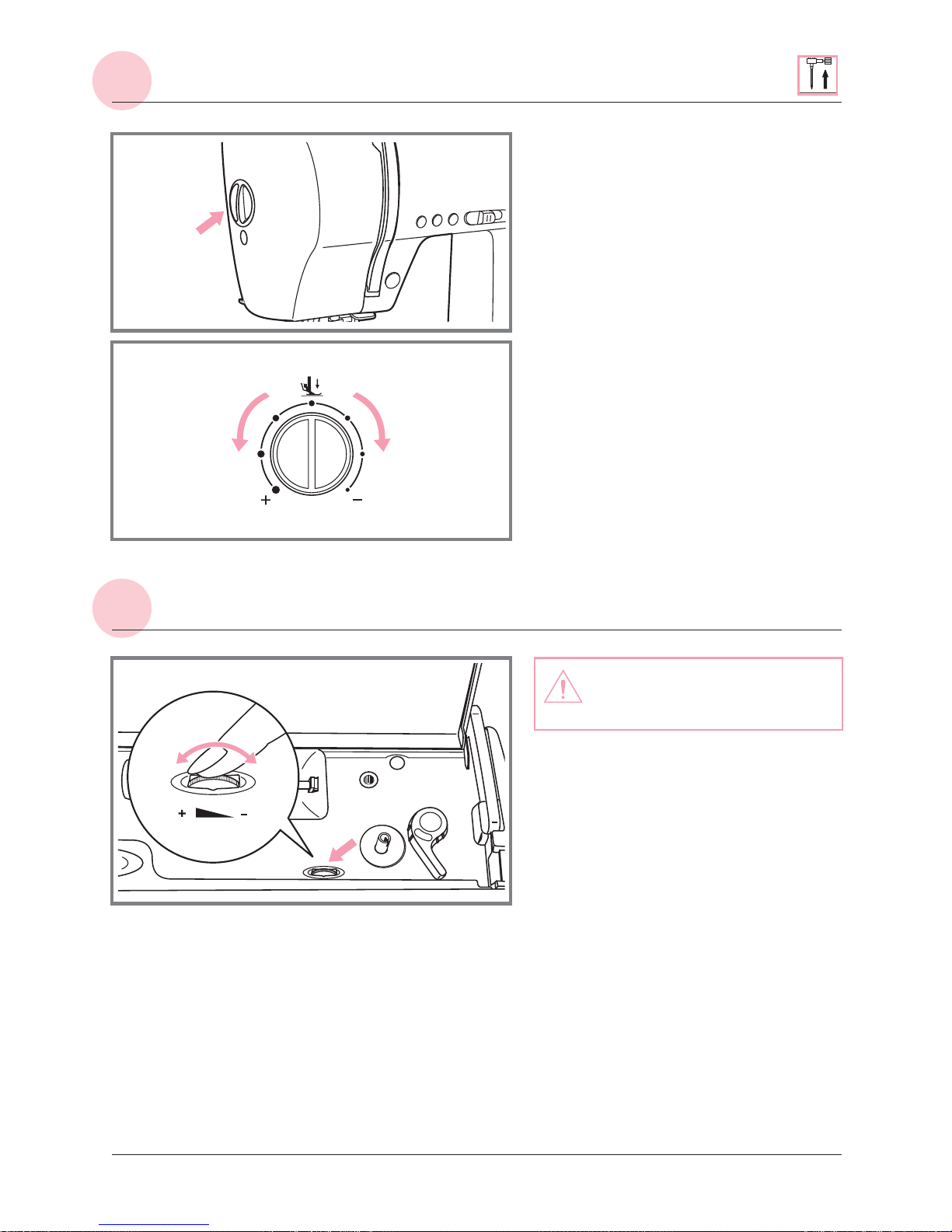

ADJUSTING THE PRESSER FOOT PRESSURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
LCD BRIGHTNESS CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

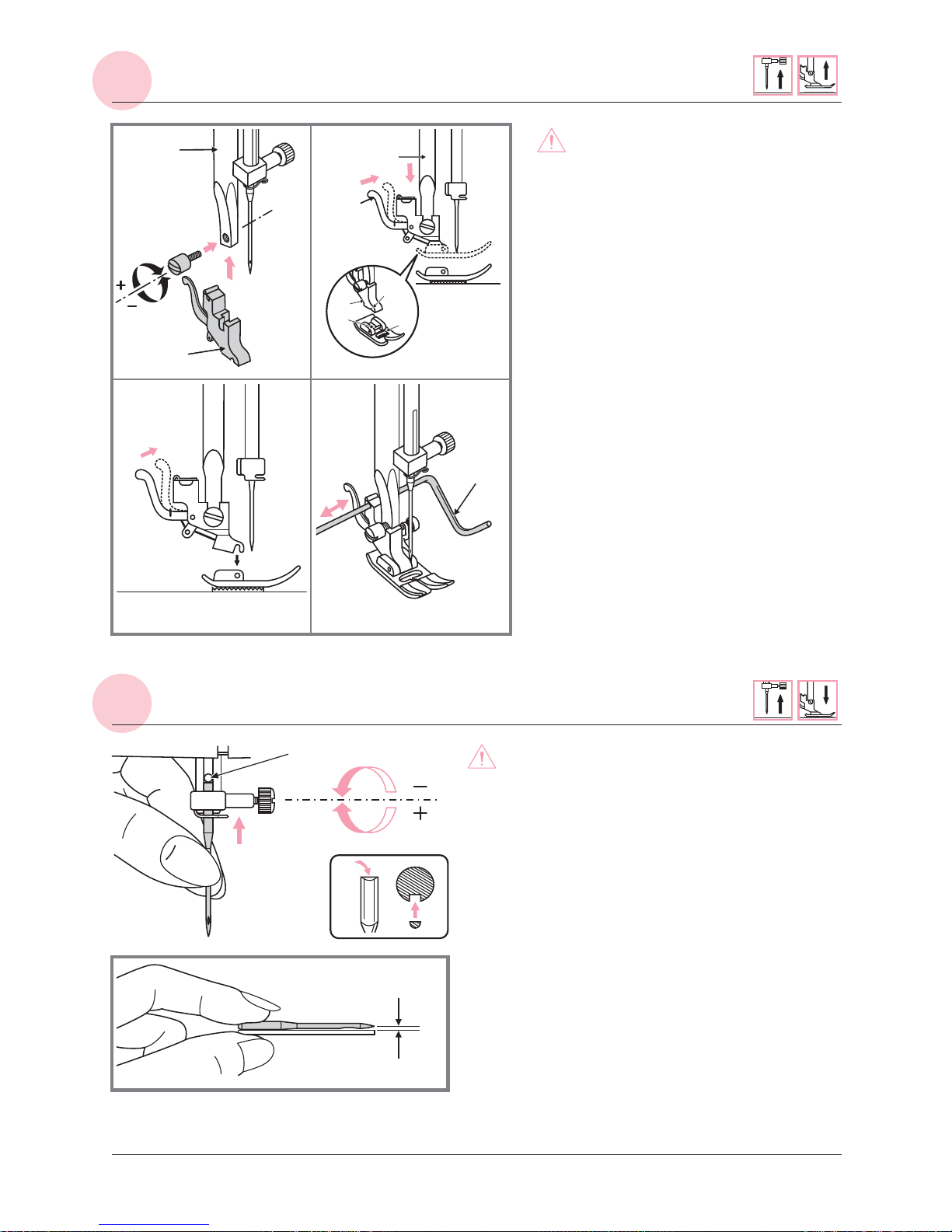

CHANGING THE PRESSER FOOT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
REPLACING THE NEEDLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
MATCHING NEEDLE/ FABRIC/ THREAD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

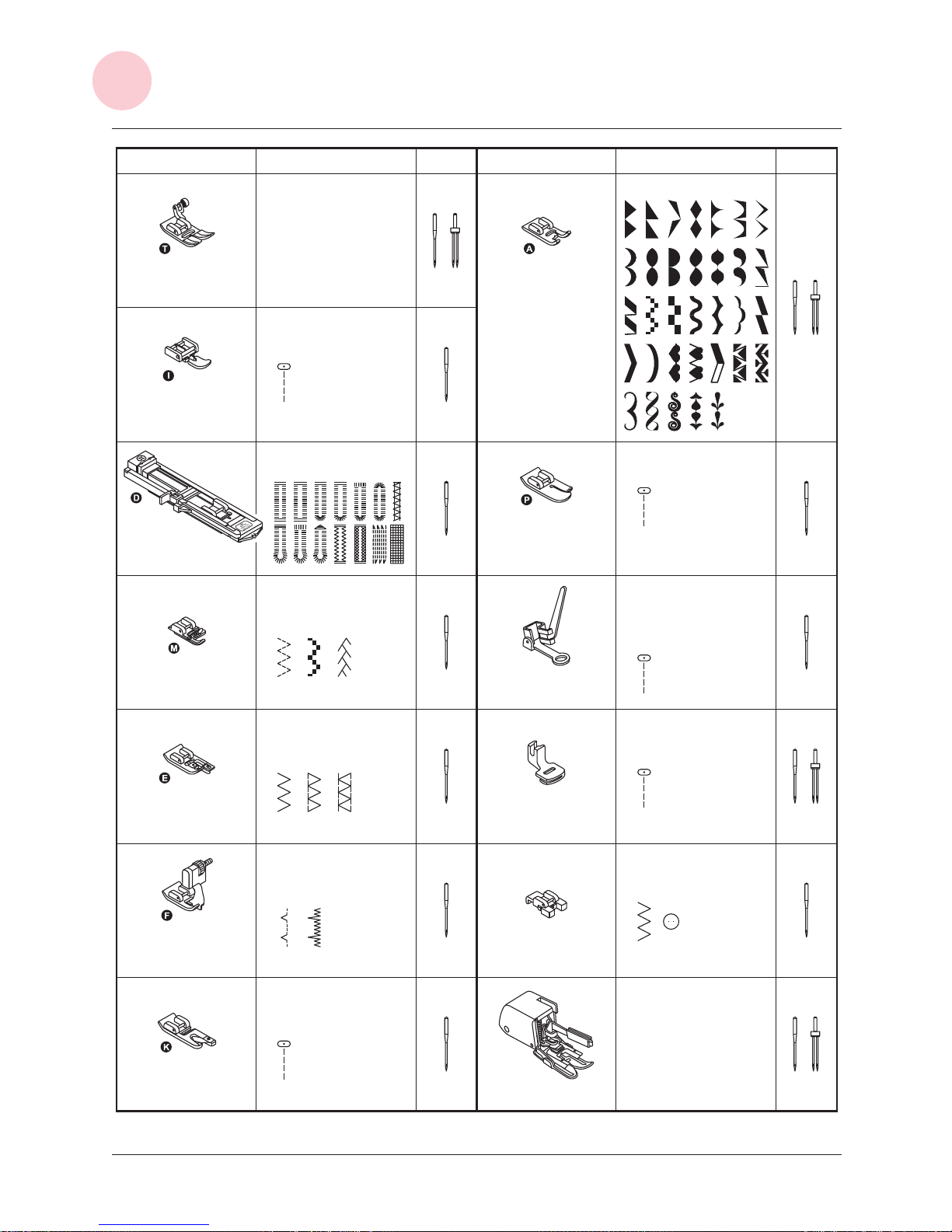

TYPE OF PRESSER FOOT CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

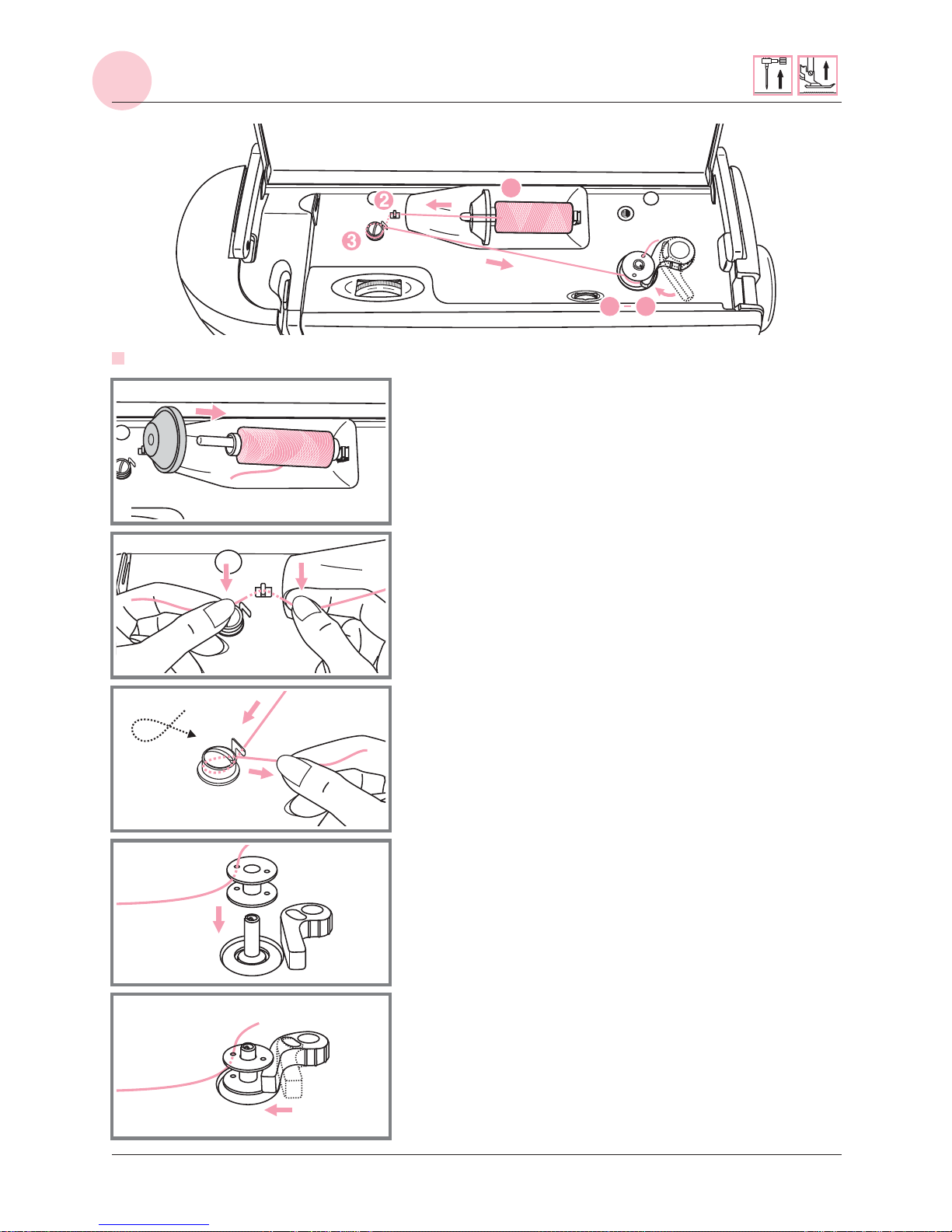

WINDING THE BOBBIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-15
INSERTING THE BOBBIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
THREADING THE UPPER THREAD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-18
USING THE NEEDLE THREADER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
THREAD TENSION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
RAISING UP THE LOWER THREAD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
CUTTING THE THREAD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
TWO-STEP PRESSER FOOT LIFTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
TO RAISE OR DROP THE FEED DOGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
OPERATION BUTTONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23-24
FUNCTION BUTTONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-27
SELECTION BUTTONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28-29
USEFUL SKILLS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30-31
STRAIGHT STITCHES AND NEEDLE POSITION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
ZIGZAG STITCHES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
STRETCH STITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Operation buttons (see page 23/24) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Function buttons (see page 25/26/27) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Selection buttons (see page 28/29) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Connecting the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Start/stop button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Foot control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Bobbin winding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4- 5
Start/stop button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Reverse button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Auto-lock button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Needle up/ down position button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Stitch width adjustment button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Stitch length adjustment button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
MODE selection button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Elongation button (see page 59). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Mirror button (see page 60) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Twin needle button (see page 6 ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Direct pattern selection and number buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Clear button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Edit button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Memory button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Sewing corners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Reverse. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Free arm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Sewing on the heavy fabric. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

CONTENTS
OVERCASTING STITCHES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
BLIND HEM/ LINGERIE STITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
BUTTON SEWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
BUTTONHOLE STITCHING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37-40
BAR TACK STITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
ADJUSTING PATTERN BALANCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
EYELET STITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
DARNING STITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44-45
ZIPPER INSERTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46-47
NARROW HEMMING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
CORDING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
SATIN STITCH SEWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
QUILTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
GATHERING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
SMOCKING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
FREE MOTION DARNING, EMBROIDERY AND MONOGRAMMING . . . . . . . . . . . . . . . . . . . . . . . . . 54-55
WALKING FOOT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
FAGOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
PATCHWORK STITCHING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
SCALLOP STITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
ELONGATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
MIRROR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
USING THE TWIN NEEDLE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
MEMORY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62-65
WARNING FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66-67
BUZZER SOUND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
REPLACING THE LIGHT BULB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70-71
TROUBLE SHOOTING GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72-73
QUICK ADJUSTMENT REFERENCE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74-79
Using the overcasting foot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Using the all purpose foot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Making a buttonhole on stretch fabrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Inserting a centered zipper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Inserting a side zipper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Single cording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Triple cording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Darning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Embroidery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Monogramming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Scallop hem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Scallop edging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Combining patterns or letters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62-63
Adding patterns or letters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Editing patterns. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Clearing patterns or letters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Recalling and sewing the memorized pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Warning animation message display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Warning beeping sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Cleaning the screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Cleaning the sewing machine surface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Cleaning the hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70-7
Instruction animation message display

3
5
4

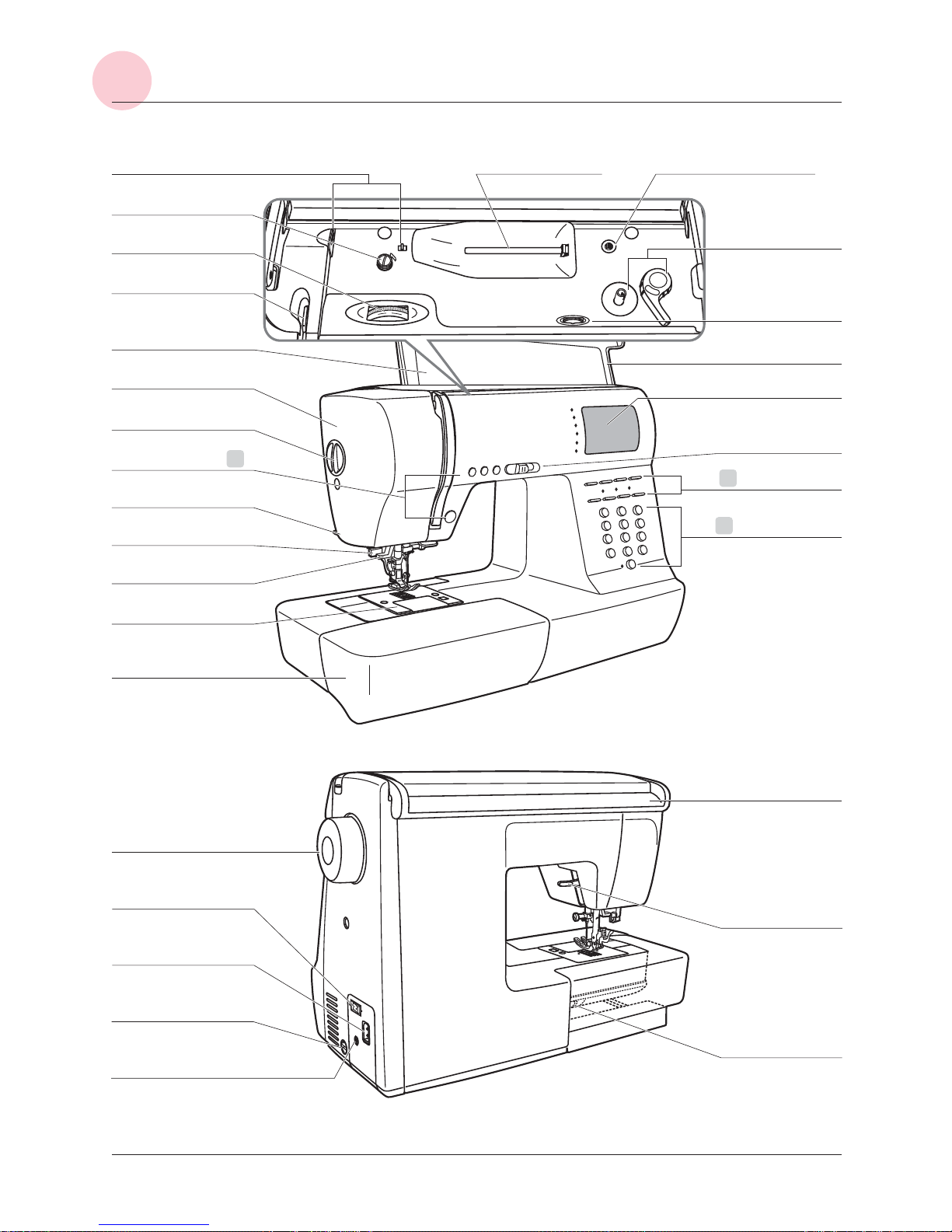

PRINCIPAL PARTS OF THE MACHINE
1
PRINCIPAL PARTS OF THE MACHINE
Bobbin thread guide
Tension dial
Thread take-up lever
Horizontal spool pin Hole for second spool pin
Bobbin winder
with on/off switch
Face plate
Presser foot pressure
Buttonhole lever
Auto needle threader
Needle plate
Sewing table and
accessory box
LCD screen
Handwheel
Foot controller connector
Power cord
Handle
Presser foot lifter
Drop feed lever
Thread cutter
Operation buttons
Selection buttons
Upper thread guide
Speed limiting
adjustment lever
Flip-top sewing
instruction panel
Feed balancing dial
Main power switch
Top cover
A
Function buttons
B
C
LCD screen
brightness control
* The LCD display control adjustment is only suitable for the voltage 120 /60Hz system.

2
BUTTONS OF THE MACHINE
BUTTONS OF THE MACHINE
1. St rt/stop button
2. Reverse button
3. Auto-lock button
4. Needle up/down position button
Press this button to start or stop the machine.
Press this button to sew either backwards or a reinforcement stitch at a low speed.
Press this button to sew locking stitches immediately or at the end of the current patterns and
automatically stop.
Press this button to move the needle either up or down.
A. Oper tion buttons (see page 23/24)
5. Stitch width djustment buttons
6. Stitch length djustment buttons
Press these buttons to adjust the width of the zigzag stitch.
Press these buttons to adjust the length of the stitch.
B. Function buttons (see page 25/26/27)
A
C
B
23
4
7
5
8
6
9
0
1
2
4
56
9
10
11
12
13
8
7
14
3

7. Mode selection button
8. Elong tion button
9. Mirror button
10.Twin needle button
Press this button to select direct mode, utility and decorative pattern mode, block letter mode,
script letter mode and outline letter mode.
A Group Patterns 28 to 5 can be elongated up to five times its normal length by pressing this
button.
Press this button to sew a reflection pattern.
Press this button to limit the maximum width when using the twin needle.
BUTTONS OF THE MACHINE
BUTTONS OF THE MACHINE
C. Selection buttons (see page 28/29)
Direct access to utility stitches by pressing the button beside the selected stitch or press the
numbers of the selected pattern.
Direct access to utility stitches by pressing the button beside the selected stitch.
If an incorrect pattern is selected or memorized, pressing this button will clear it.
Press this button to set an added pattern when sewing combinations of decorative stitches.
Direct access to utility stitches by pressing the button beside the selected stitch.
Press this button to enter or store the created patterns combination in the memory.
11.Direct p ttern selection nd numbered buttons
12.Direct p ttern selection nd cle r button
13.Edit button
14.Direct p ttern selection nd memory button
3

LCD SCREEN
LCD SCREEN
4
Number of current unit
Total number of unit
Memory group
Pattern to edit
Stitch width
Stitch length
Sound on/off
Auto-lock
Needle up/down position
Mirror
Stitch width
Auto-stop
Sound on/off
Needle up/down position
Auto-lock
Reverse
Pattern
number
Pattern
Tension
Needle position Stitch length
Suggested presser foot and identification letter
P ttern
Alph bet
Memory
Sound on/off
Needle up/down position
Alphabet number
Pattern
Tension
Stitch length
Suggested presser foot and identification letter
Stitch width
Mirror

The portion marked in purple on the chart shows the one unit of each pattern.below
5
PATTERN CHART
PATTERN CHART
P tterns
Direct P tterns-12
28
29
222 23 24 25 26 27
20 30 3 32 33 34 36 3735 38 39
6 8
7 900 02 04 05 06 09 0 5 2
0 03 07 08 4
3
72 73 74 75 76 77 78 79 6 62 63 64 66 67 68 69 70 7
60 65
50 5
48
47
44
40 43
4 42 49
45 55 56 57
52 53 54 58 59
46
93 94 95 96 97 98 999280 8 82 83 84 85 86 88 89 987 90
A Group P tterns-100
B Group P tterns-100
28
29
222 23 24 25 26 27
20 30 3 32 33 34 36 3735 38 39
6 8
7 900 02 04 05 06 09 0 5 2
0 03 07 08 4
3
23456789 C0 M

6
PATTERN CHART
PATTERN CHART
72 73 74 75 76 77 78 79 6 62 63 64 66 67 68 69 70 7
60 65
50 5
48
47
44
40 43
4 42 49
45 55 56 57
52 53 54 58 59
46
93 94 95 96 97 98 999280 8 82 83 84 85 86 88 89 987 90
Alph bets
Script style
0 02 03 04 05 06 07 08 09 0
2 3 4 5 6 7 8 9202 22 23 24 25 26 27 28 29 30 3 32 33 34 35 36
37 38 39 40 4 42 43 44 45 46 47 48 49 50 5 52 53 54 55 56 57 58 59 60 6 62
63 64 65 66 67 68 69 70 7 72 73 74 75 76 77 78 79 80 8 82 83 84 85 86 87 88
89 90 9 92 93 94 95 96 97
Outline style
V
X
0 02 03 04 05 06 07 08 09 0
2 3 4 5 6 7 8 9202 22 23 24 25 26 27 28 29 30 3 32 33 34 35 36
37 38 39 40 4 42 43 44 45 46 47 48 49 50 5 52 53 54 55 56 57 58 59 60 6 62
63 64 65 66 67 68 69 70 7 72 73 74 75 76 77 78 79 80 8 82 83 84 85 86 87 88
89 90 9 92 93 94 95 96 97
Block style
0 02 03 04 05 06 07 08 09 0
2 3 4 5 6 7 8 9202 22 23 24 25 26 27 28 29 30 3 32 33 34 35 36
37 38 39 40 4 42 43 44 45 46 47 48 49 50 5 52 53 54 55 56 57 58 59 60 6 62
63 64 65 66 67 68 69 70 7 72 73 74 75 76 77 78 79 80 8 82 83 84 85 86 87 88
89 90 9 92 93 94 95 96 97

7
ACCESSORIES
ACCESSORIES
. All purpose foot (T)-
2. Zipper foot (I)-
3. Buttonhole foot (D) -
4. Cording foot (M) -
5. Overcasting foot (E) -
6. Blind hem foot (F) -
7. Hemmer foot (K) -
8. Satin stitch foot (A) -
9. Quilting foot (P) -
0.Darning/ Embroidery foot -
.Gathering foot -
2.Button sewing foot -
3.Brush/ Seam ripper -
4.Spool holder (Large) -
5.Spool holder (Small) -
6.Seam guide -
7.Bobbin(3x) -
8.Screwdriver (L & S) -
9.Pack of needle -
20.Spool pin felt -
2 .Second spool pin -
22.Twin needle -
23.Walking foot -
St nd rd ccessories
006186008
006905008
006102008
006813008
006907008
006904008
006900008
006172008
006916008
006016008
006917008
006914008
006099008
R12373210
TA10943209
006008001
006084009
006012008
006014148
006015009
R60033210
006020008
006185008
b
c
1
2
3
4
56
7
9
11
17
22
14
23
20
19
10
12
13
13
15
16
18
21
8
c
b
Following the directions of the arrows, you can see the three accessory storage spaces (a), (b), (c).

8
CONNECTING THE MACHINE TO THE POWER SOURCE
CONNECTING THE MACHINE TO THE POWER SOURCE
Connecting the m chine
Before connecting the power supply, make sure that the voltage and the frequency shown on the
machine is conforming with your electrical power.
Place the machine on a stable table.
. Connect the power line cord to the machine by inserting the 2-hole plug into the terminal box.
2. Connect the power line plug to the electric outlet.
3. Turn on the power switch.
4. The sewing lamp will light up when the switch is turned on.
To disconnect, turn the power switch to the off position, then remove the plug from outlet.
Pol rized plug inform tion
This appliance has a polarized plug (one blade wider than the other),
to reduce the risk of electrical shock; this plug will fit in a polarized
outlet only one way. If the plug does not fit fully in the outlet, reverse
the plug. If it still does not fit, contact a qualified electrician. Do not
modify the plug in any way.
Caution: Always make sure that the machine is unplugged from the power source and the
main switch is on "O". when the machine is not in use and before inserting or removing parts.
ONOFF

9
STARTING SEWING
STARTING SEWING
St rt/stop button
Attention: Consult a qualified electrician if in doubt as how to connect the machine to
the power source. Unplug the power cord when the machine is not in use.
The appliance must be used with the foot controller C-9000 manufactured by CHIEN
HUNG TAIWAN., LTD.
With the sewing machine turned off,
insert the foot control plug into its
connector on the sewing machine.
Turn on the sewing machine, and then
slowly depress the foot control to start
sewing.
Release the foot control to stop the
sewing machine.
Foot control
The machine will start running when
Start/stop button is pressed and will stop
when pressed the second time.
The machine will rotate slowly at the
beginning of the sewing.
The speed limiting adjustment lever can
control the sewing speed. To increases
the speed, slide the lever to the right , To
decrease the sewing speed, slide the
lever to the left.
Please Note: The setting of the speed limiting adjustment lever will limit the maximum
speed of the machine.

ADJUSTING THE PRESSER FOOT PRESSURE
The presser foot pressure dial is on the
left of the face plate.
The presser foot pressure of the
machine has been pre-set and requires
no particular readjustment according to
the type of fabric.
For sewing with very thin fabric, reduce the
pressure by turning the knob clockwise,
and for heavy fabric, increase the pressure
by turning it counterclockwise.
ADJUSTING THE PRESSER FOOT PRESSURE
10
LCD SCREEN BRIGHTNESS CONTROL
LCD SCREEN BRIGHTNESS CONTROL
The LCD screen brightness control dial in
the upper inner cover. Use this to adjust
the sharpness of the LCD .
If no indication is shown on the screen
after switching on the power. adjust the
LCD screen brightness with the dial.
LCD screen brightness : Turn the dial to
the left direction.
screen
LCD screen darkness : Turn the dial to
the right direction.
Attention: The LCD display control
adjustment is only suitable for the
voltage 120 /60Hz system.

11
Attention: Turn power switch to off. (
when carrying out any of the above
operations!
"O")
Change the needle regularly, especially if it is
showing signs of wear and causing problems.
Insert the needle following the illustrated
instructions.
A. Loosen the needle clamp screw and tighten
again after inserting the new needle.
The flat side of the shaft should be towards the
back.
B. Insert the needle as far up as it will go.
Needles must be in perfect condition.
Problems can occur with:
- Bent needles
- Blunt needles
- Damaged points
A
B
REPLACING THE NEEDLE
REPLACING THE NEEDLE
CHANGING THE PRESSER FOOT
CHANGING THE PRESSER FOOT
( )
Raise the presser foot bar (a). Attach the
presser foot holder (b) as illustrated.
(2)
Lower the presser foot holder (b) until
the cut-out (c) is directly above the pin (d).
Raise the lever (e).
Lower the presser foot holder (b) and the
presser foot (f) will engage automatically.
(3)
Raise the presser foot.
Raise the lever (e) and the foot will
disengages.
(4)
Attach the seam guide (g) in the slot as
illustrated. Adjust according to need for
hems, pleats, etc.
Attention: Turn power switch to off
( ) when carrying out any of the
above operations!
"O"
Att ching the presser foot holder
Att ching the presser foot
Removing the presser foot
Att ching the se m guide
e
b
d
c
f
e
12
3
g
4
b

MATCHING NEEDLE/ FABRIC/ THREAD
MATCHING NEEDLE/ FABRIC/ THREAD
12
Heavy duty thread, carpet thread.
6 ( 00)
NEEDLE, FA RIC, THREAD SELECTION GUIDE
- 4 (80-90) Medium weight fabrics-cotton,
satin, kettleclote, sailcloth, double
knits, lightweight woollens.
Medium weight fabrics-cotton
duck, woolen, heavier knits,
terrycloth, denims.
Heavyweight fabrics-canvas,
woolens, outdoor tent and quilted
fabrics, denims, upholstery
material (light to medium).
Heavy woollens, overcoat fabrics,
upholstery fabrics, some leathers
and vinyls.
4 (90)
8 ( 0)
NEEDLE SIZE FABRICS THREAD
9- (70-80) Lightweight fabrics-thin cottons,
voile, serge, silk, muslin, Qiana,
interlocks, cotton knits, tricot,
jerseys, crepes, woven polyester,
shirt & blouse fabrics.
Light-duty thread in cotton, nylon,
polyester or cotton wrapped
polyester.
Most threads sold are medium
size and suitable for these fabrics
and needle sizes. Use polyester
threads on synthetic materials
and cotton on natural woven
fabrics for best results. Always
use the same thread on top and
bottom.
Please Note:
- In general, fine threads and needles are used for sewing fine fabrics, and thicker threads
are used for sewing heavy fabrics.
- Always test thread and needle size on a small piece of fabric which will be used for actual
sewing.
- Use the same thread for needle and bobbin.

All purpose foot (T)
Zipper foot (I)
Buttonhole foot
(D)
Cording foot (M)
Overcasting foot
(E)
Blind hem foot (F)
Hemmer foot (K)
Darning/
Embroidery foot
Gathering foot
Button sewing foot
Walking foot
APPLICATION
PRESSER FOOT
General sewing,
Patchwork stitches,
Decorative
stitching,
Smocking,
Fagoting, etc.
PRESSER FOOT APPLICATION
Inserting zippers
Buttonhole
Cording
Overcasting
Blind hem
Narrow hemming
Satin stitch
Quilting foot (P)
Quilting
Darning
Free embroidery
Monogramming
Gathering
Button sewing
This foot helps to
prevent uneven
feeding of very
difficult fabrics
Satin stitch foot (A)
NEEDLE NEEDLE
TYPE OF PRESSER FOOT CHART
TYPE OF PRESSER FOOT CHART
(Double needle is being suggested for cert in stitches for more cre tivity)
13

WINDING THE BOBBIN
WINDING THE BOBBIN
4
. Place the thread and spool holder onto the spool pin.
For smaller spools of thread, place the spool holder
with the small side next to the spool or use the small
spool holder.
2. Snap the thread into the thread guide (Located
beneath the thread guide cover).
3. Wind the thread clockwise around the bobbin winder
tension discs.
4. Place the thread end through one of the inner holes in
the bobbin as illustrated and place the empty bobbin
on the spindle.
5. Press the bobbin winder stopper against the bobbin.
14
4
5
Bobbin winding
3
5
4
1
4
11
3
1
2

WINDING THE BOBBIN
WINDING THE BOBBIN
15
6. When the bobbin winder switch is pushed to the left,
the LCD screen will display the animation of the
bobbin winding. Push the engaging lever to the right,
and the animation will disappear. The LCD screen will
display the structure of ordinary operation.
7. Hold the thread tail securely in one hand.
8. Press the Start/stop button or the foot control.
9. After the bobbin has wound a few turns stop the
machine and cut the thread near the hole of the
bobbin. Set the speed to maximum. Continue filling
the bobbin until it is full. The motor stops automatically
when the bobbin is full.
6
7
9
0.Stop the machine, cut the thread and then remove the
bobbin.
10
Please Note: When the bobbin winder switch is placed on the left, "bobbin winding
position", the machine will not sew and the handwheel will not turn. To start sewing, push
the bobbin winder switch to the right "sewing position".
8
