Silvercrest SAB 160 A1 User manual

IAN 90468
BLUETOOTH CAR RADIO SAB 160 A1
BLUETOOTH-AUTORADIO
Bedienungsanleitung
BLUETOOTH AUTORADIO
Gebruiksaanwijzing
AUTORADIO BLUETOOTH
Mode d’emploi
BLUETOOTH CAR RADIO
Operating instructions
BLUETOOTH-BILRADIO
Betjeningsvejledning

GB / IE Operating instructions Page 1
DK Betjeningsvejledning Side 41
FR / BE Mode d’emploi Page 81
NL / BE Gebruiksaanwijzing Pagina 121
DE / AT / CH Bedienungsanleitung Seite 161
Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the
device.
Før du læser, vend begge sidene med billeder frem og bliv bekendt med alle apparatets funktioner.
Avant de lire le mode d‘emploi, ouvrez les deux pages contenant les illustrations et familiarisez-vous
ensuite avec toutes les fonctions de l‘appareil.
Vouw vóór het lezen de beide pagina‘s met de afbeeldingen open en maak u vertrouwd met alle functies
van het apparaat.
Klappen Sie vor dem Lesen die beiden Seiten mit den Abbildungen aus und machen Sie sich anschließend
mit allen Funktionen des Gerätes vertraut.

B30 31
32 32
29
33
A45 76 8
9
101112
27
28
23
131415161718192021
22
23
24
25
26
34
35
36
37
38
394041
C

D
45
44
43
42
46
48 49
47
50
51

1
SAB 160 A1
GB
IE
Index
Introduction . . . . . . . . . . . . . .2
Preface . . . . . . . . . . . . . . . . . . . . . . .2
Copyright . . . . . . . . . . . . . . . . . . . . .2
Limited liability . . . . . . . . . . . . . . . . . 2
Warnings . . . . . . . . . . . . . . . . . . . . . 3
Proper use. . . . . . . . . . . . . . . . . . . . .3
Safety. . . . . . . . . . . . . . . . . . . . . . . . 4
Basic Safety Instructions . . . . . . . . . . 4
Package contents and transport
inspection . . . . . . . . . . . . . . . . . . . . . 6
Disposal of the packaging . . . . . . . . 6
Operating components . . . . .7
Installation . . . . . . . . . . . . . . .9
Connection. . . . . . . . . . . . . . . . . . . . 9
Installation . . . . . . . . . . . . . . . . . . .11
Uninstalling the device . . . . . . . . . .13
Initial use. . . . . . . . . . . . . . . .14
Face plate. . . . . . . . . . . . . . . . . . . .14
Handling and operation . . .15
Switching On and Off . . . . . . . . . .15
Settings. . . . . . . . . . . . . . . . . . . . . .15
Radio reset (RESET) . . . . . . . . . . . .19
Radio functions. . . . . . . . . . . . . . . .19
General CD functions. . . . . . . . . . .23
MP3 CDs functions. . . . . . . . . . . . .25
USB port. . . . . . . . . . . . . . . . . . . . .26
Card reader (SD/MMC) . . . . . . . .27
Record function. . . . . . . . . . . . . . . .27
Connecting an external audio
device to the device . . . . . . . . . . . .29
Bluetooth operation . . . . . . . . . . . .29
Cleaning . . . . . . . . . . . . . . . .33
Safety instructions. . . . . . . . . . . . . .33
Display cleaning. . . . . . . . . . . . . . .33
Disposal. . . . . . . . . . . . . . . . .33
Disposal of the device . . . . . . . . . .33
Troubleshooting . . . . . . . . . .34
Safety instructions. . . . . . . . . . . . . .34
Malfunction causes and remedies .34
Appendix . . . . . . . . . . . . . . .36
Technical data . . . . . . . . . . . . . . . .36
Warranty . . . . . . . . . . . . . . . . . . . .37
Importer . . . . . . . . . . . . . . . . . . . . .37
EC-Declaration of conformity . . . . .38
IB_90468_SAB160A1_LB3.indb 1IB_90468_SAB160A1_LB3.indb 1 28.06.13 13:3628.06.13 13:36

2
Introduction
SAB 160 A1
GB
IE
Introduction
Preface
Congratulations on the purchase of your new appliance.
You have clearly decided in favour of a high quality product. These operating
instructions are a component of the Bluetooth car radio SAB 160 A1 (hereafter
referred to as the device) and supplies you with important information regarding
proper use, safety, installation and connection as well as how to operate the device.
The operating instructions must be constantly kept available close to the device.
They are to be read and used by anyone assigned to install, service and repair
faults in the device.
Keep these operating instructions and hand them over with the device to any future
owners.
Copyright
This documentation is copyright protected.
All rights including those of photographic reproduction, duplication and distribution
by means of particular methods (for example data processing, data carriers and
data networks), wholly or partially as well as substantive and technical changes
are reserved.
Limited liability
All technical information, data and information for installation, connection and
operation contained in these operating instructions correspond to the latest at
time of printing and, to the best of our knowledge, take into account our previous
experience and know-how.
No claims can be derived from the details, illustrations and descriptions in these
instructions.
The manufacturer assumes no responsibility for damage caused by failure to
observe the instructions, improper use, inappropriate repairs, making unauthorized
changes or for using unapproved replacement parts.
IB_90468_SAB160A1_LB3.indb 2IB_90468_SAB160A1_LB3.indb 2 28.06.13 13:3628.06.13 13:36

3
Introduction
SAB 160 A1
GB
IE
Warnings
In the current operating instructions the following warnings are used:
WARNING
A warning of this danger level signifies a possible dangerous
situation.
If the dangerous situation is not avoided it can lead to injuries.
► The directives in this warning are there to avoid personal injuries.
IMPORTANT
A warning of this danger level signifies possible property
damage.
If the situation is not avoided it can lead to property damage.
► The directives in this warning are there to avoid property damage.
NOTICE
► A notice signifies additional information that assists in the handling of the
device.
Proper use
This device is intended only for reception of FM/AM radio stations as well as
for the playback of audio and MP3 CDs, MP3 files from USB data carriers and
SD/MMC memory cards as well as audio signals of external audio devices. In
addition you can couple the device with a Bluetooth mobile phone and with the
microphone unit use the device as a hands free facility. The device is intended for
installation into a vehicle. This device is not intended for any other use or for uses
beyond those mentioned.
WARNING
Danger from unintended use!
Danger can come from the device if used for unintended purposes and/or
other types of use.
► Use the device exclusively for intended purposes.
► Observe the procedures described in these operating instructions.
Claims of any kind for damage resulting from unintended use will not be excepted.
The operator alone bears liability.
IB_90468_SAB160A1_LB3.indb 3IB_90468_SAB160A1_LB3.indb 3 28.06.13 13:3628.06.13 13:36

4
Introduction
SAB 160 A1
GB
IE
Safety
In this chapter you receive important safety information regarding handling of the
device.
This device complies with the statutory safety regulations. Incorrect usage can,
however, lead to personal injury and property damage.
Basic Safety Instructions
For safe handling of the device observe the following safety information:
■ Before use check the device for visible external damage. Do not put into
operation a device that is damaged or has been dropped.
■ Damaged cables or connections should be replaced by authorized qualified
persons or by the customer service department.
■ Persons who, due to their physical, intellectual or motor abilities, are incapable
of operating the device safely may only use the device under supervision or
direction from a responsible person.
■ Only permit children to use the device under supervision.
■ Repairs should only be carried out by authorized specialist companies or by
the customer service department. Incorrect repairs can result in significant
dangers for the user. In addition warranty claims become void.
■ A repair to the device during the warranty period may only be carried out
by a customer service department authorized by the manufacturer otherwise
no additional warranty claims can be considered for subsequent damages.
■ Defective components may only be replaced with original replacement parts.
Only by using original replacement parts can you guarantee that the safety
requirements are complied with.
■ Protect the device from moisture and liquid penetration.
IB_90468_SAB160A1_LB3.indb 4IB_90468_SAB160A1_LB3.indb 4 28.06.13 13:3628.06.13 13:36

5
Introduction
SAB 160 A1
GB
IE
Danger from laser radiation
WARNING
The device is equipped with a class 1 laser.
Laser radiation is dangerous to the eyesight!
Observe the following safety instructions to avoid exposure
of yourself or others to laser radiation:
► Never open the device.
► Have the device repaired only by a specialist.
► Do not make any modifications to the device.
Traffic safety
WARNING
Safety in traffic has the highest priority!
Observe the following safety instructions so that you do not put yourself or
others in danger:
► Before travel commencement familiarize yourself with the operation of the
device.
► Only operate the device when the traffic situation allows. Stop in a suitable
place to carry out comprehensive operations.
► Only remove or insert the face plate when the vehicle is parked.
► Set the volume to a moderate level so that acoustical signals from police
vehicles, fire trucks and other emergency services can be perceived in
good time.
IB_90468_SAB160A1_LB3.indb 5IB_90468_SAB160A1_LB3.indb 5 28.06.13 13:3628.06.13 13:36

6
Introduction
SAB 160 A1
GB
IE
Package contents and transport inspection
WARNING
Risk of suffocation!
► Packaging material should not be used as a play thing.
There is a risk of suffocation!

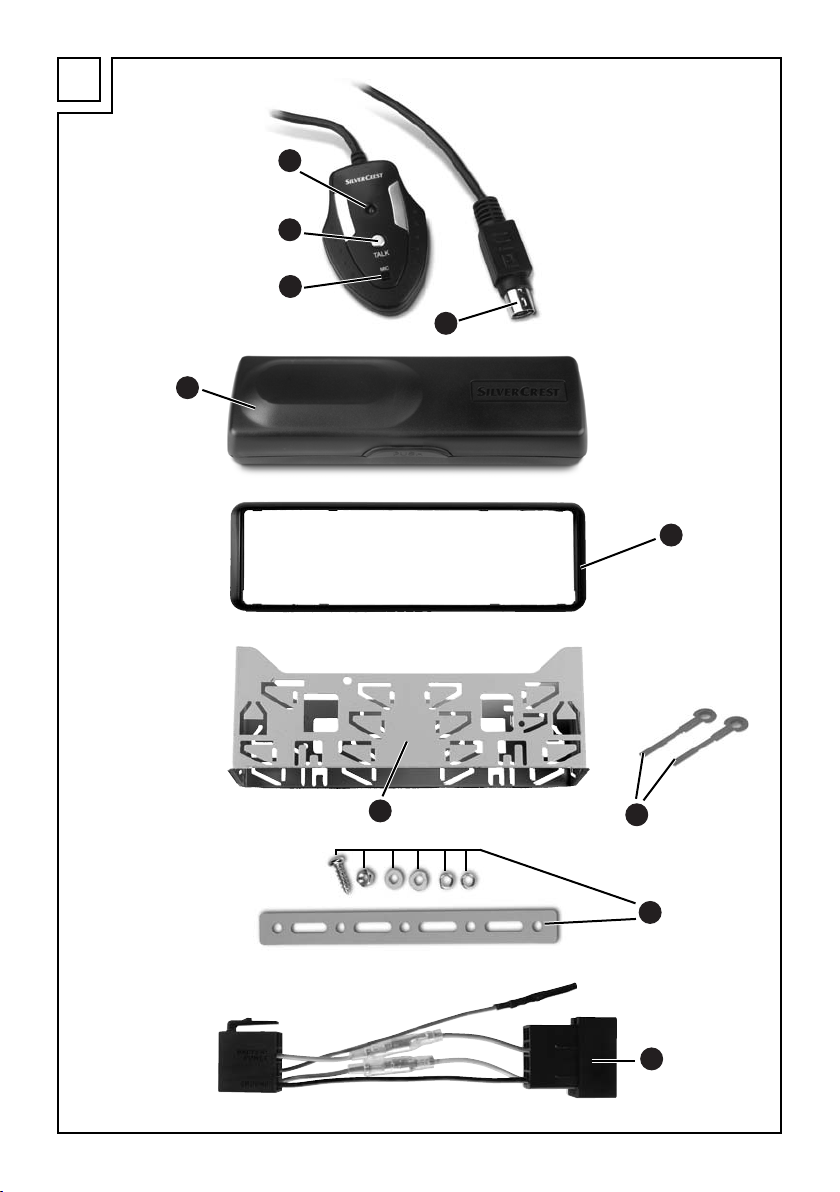

The device is delivered with the following components as standard:
▯ Car radio (incl. face plate)
▯ Installation bracket (Attached)
▯ Bezel frame (Attached)
▯ Fixture plate (incl. securing material)
▯ Keys for installation frame (2x)
▯ Case for face plate
▯ Microphone unit with adhesive strip
▯ Adapter cable for ISO-Block A
▯ Operating instructions
NOTICE
► Check the contents to make sure everything is there and for visible damage.
► If the contents are not complete or are damaged due to defective packaging
or through transportation contact the service hotline (see warranty card).
Disposal of the packaging
The packaging protects the device from transport damage. The packaging materials
are selected from the point of view of their environmental friendliness and disposal
technology and are therefore recyclable.
The recirculation of packaging into the material circuit saves on raw material
and reduces generated waste. Dispose of packaging material that is no longer
needed according to the regionally established regulations.
NOTICE
► If possible preserve the device's original packaging during the warranty
period so that in the case of a warranty claim you can package the device
properly for return.
IB_90468_SAB160A1_LB3.indb 6IB_90468_SAB160A1_LB3.indb 6 28.06.13 13:3628.06.13 13:36

7
Operating components
SAB 160 A1
GB
IE
Operating components

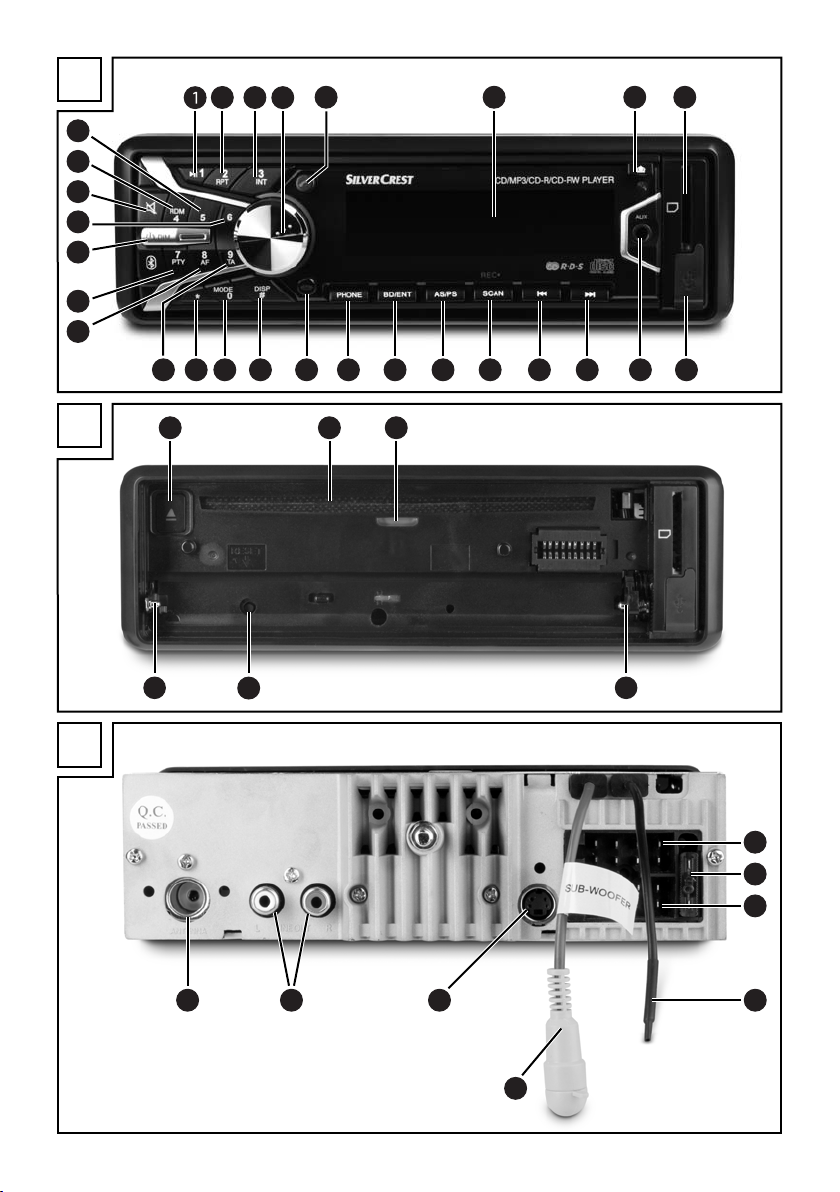

Car radio (see front fold out flap)
Figure A:
▸II/1: Play, Pause / number button 1
2RPT/2: Repeat function in the CD/MP3 operation mode, number button 2
3INT/3: Intro function in the CD/MP3 operation mode, number button 3
4Multi controller: Turn to set value/volume
5button: Accept call
6Display
7Unlocking the face plate
8Card slot for SD/MMC cards
9USB port
10 AUX : 3.5 mm stereo input socket for the connection of an external audio device
11 ▸▸I: Title / Station search forwards
12 I◂◂: Title / Station search backwards
13 SCAN/REC: Automatic station search/Record to a data carrier at the USB port
or the SD/MMC card slot
14 AS/PS: Automatic station saving
15 BD/ENT: Select band range/confirm selection
16 PHONE: Access telephone function
17 button: End call
18 DISP/#: Show display information, # button
19 MODE/0: Set operational mode, number button 0
20 *: Button*
21 TA/9: Activate traffic radio station, number button 9
22 AF/8: Alternative Frequency search/regional programme activation, number
button 8
23 PTY/7: Station search by PTY group, number button 7
24 /DIM: Switch device on and off/dim display illumination
25 6: Number button 6
26 button: Switching off the sound
27 RDM/4: Random playback in the CD/MP3 operation mode, number button 4
28 5: Number button 5
IB_90468_SAB160A1_LB3.indb 7IB_90468_SAB160A1_LB3.indb 7 28.06.13 13:3628.06.13 13:36

8
Operating components
SAB 160 A1
GB
IE
Figure B:
29 button: Eject disc
30 CD compartment
31 Theft protection LED/ CD compartment position LED
32 Holder for the face plate
33 RESET: Resetting the device
Figure C:
34 ISO-Block connection B
35 Automotive blade type fuse 10 A
36 ISO block connection A
37 Bluetooth antenna
38 SUBWOOFER: Connection cable with cinch connector for subwoofer
39 Socket for microphone unit
40 LINE OUT: Audio cinch output L/R for amplifier
41 Antenna connection for DIN antenna plug
Accessories (see rear fold out flap)
Figure D:
42 Microphone unit plug
43 Microphone
44 TALK button
45 green LED for connection status
46 Case for face plate
47 Bezel frame
48 Installation bracket
49 Key for installation bracket
50 Fixture plate (incl. securing material)
51 Adapter cable for ISO-Block A
IB_90468_SAB160A1_LB3.indb 8IB_90468_SAB160A1_LB3.indb 8 28.06.13 13:3628.06.13 13:36

9
Installation
SAB 160 A1
GB
IE
Installation
WARNING
With the installation of the device damage can occur!
► If possible have the device installed by a qualified technician.
► If you want to install the device yourself, for safe and flawless operation of
the device follow the instructions for connection and installation.
Connection
IMPORTANT
The use of incorrect connections can lead to damage to the
device.
► For installation use the device's ISO connections. The vehicle specific ISO
adapter that you may possibly require can be obtained from a specialist
establishment, from a local dealer or from the store's technical department.
When using other connection types the warranty becomes void!

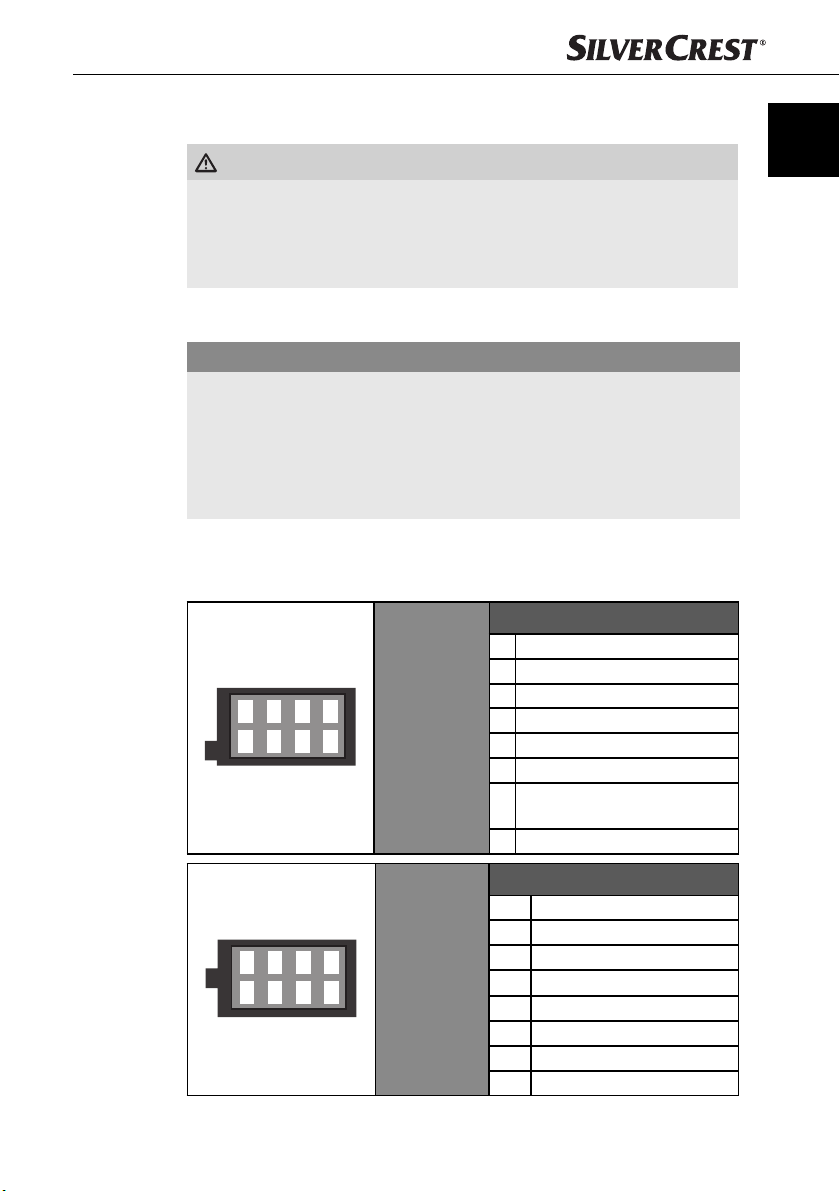

Configuration of the ISO connections
The view of the plug connector is from behind.
1357
2468
ISO A (power
supply confi-
guration)
Configuration
1 unconfigured
2 unconfigured
3 unconfigured
4 Permanent positive 12 V (Tc. 30)
5 Antenna power
6 unconfigured
7Ignition circuit positive 12 V
(Tc. 15)
8 Negtative (-) chassis (Tc. 31)
1357
2468
ISO B (spea-
ker connection
configuration)
Configuration
1 Rear right +
2 Rear right -
3 Front right +
4 Front right -
5 Front left +
6 Front left -
7 Rear left +
8 Rear left -
IB_90468_SAB160A1_LB3.indb 9IB_90468_SAB160A1_LB3.indb 9 28.06.13 13:3628.06.13 13:36

10
Installation
SAB 160 A1
GB
IE
To connect the device to two speakers use only the cables for the front speakers.
NOTICE
► Make sure that a permanent positive connection is applied to the station
memory of connection 4 in the ISO block A.
► In some automobile models the standard configuration of the connections
[4] and [7] in ISO block A are interchanged at the factory. If this is the
case the station memory can be lost. To correct this, the connections 7
(Ignition positive) and 4 (Permanent positive) in the ISO Block A must be
swapped. For this, insert the supplied adapter cable 51 between the ISO-
Block A 36 of the radio and the vehicle wiring harness. On the adapter
cable 51 , connect the red wire of the ISO connector with the yellow wire of
the ISO socket and the yellow wire of the ISO connector with the red wire
of the ISO socket (see also the rear fold-out side).
► You can connect an external amplifier to the audio cinch output. For this
follow the operating instructions for the external amplifier.
IMPORTANT
► When using the adapter cable for the ISO-Block A 51 , both connections
(red and yellow wires) must be connected with each other. If they are not,
there is the risk of a short circuit!
Antenna power connection
IMPORTANT
Possible damage to the device!
► Never burden the connector for the antenna current with the motor power
cable of the antenna or with other consumers.
The connection for the antenna power is available for a relay controlled antenna.
The relay then automatically extends the antenna when the device is switched
on. When switched off the antenna retracts. This connection can also be used to
control an external amplifier. For exact connection information please consult the
amplifier’s operating instructions.
Connection of an external amplifier
For the connection of an external amplifier use the audio cinch output LINE OUT 40 .
For this follow the operating instructions for the external amplifier.
Connection of an external subwoofer
For the connection of an external subwoofer use the yellow cinch connector
SUBWOOFER 38 . For this follow the operating instructions for the external
subwoofer.
IB_90468_SAB160A1_LB3.indb 10IB_90468_SAB160A1_LB3.indb 10 28.06.13 13:3628.06.13 13:36

11
Installation
SAB 160 A1
GB
IE
Connecting the microphone unit
For connection of the microphone unit use the microphone unit socket 39.
Connection schematic
1234
5678
1234
5678
ISO
A
ISO B
Installation
The device can be installed into any standard ISO mounting duct. In the event that
your vehicle does not have an ISO mounting duct contact your local specialist
establishment, local dealer or the technical department of the store.
NOTICE
► Before installation remove, without fail, the two transport securing screws
on the top of the housing (marked with a red sticker)!
► Connect the cable before finally installing the device. Make sure that it is
plugged in properly and that the system functions correctly.
Installation instructions
■ Install the device in the duct provided for it or select the installation location so
that all buttons can be comfortably reached and the driver is not impeded.
■ Only connect the device to a properly installed 12 V automotive battery.
■ Only connect the device in the vehicle via an ISO plug.
■ Install the device in such a way as to avoid the development of heat accumu-
lation and so that the device is sufficiently ventilated.
Antenna
External amplifier
Microphone unit
Bluetooth antenna
Subwoofer
IB_90468_SAB160A1_LB3.indb 11IB_90468_SAB160A1_LB3.indb 11 28.06.13 13:3628.06.13 13:36

12
Installation
SAB 160 A1
GB
IE
■ To avoid function disturbances the installation angle should be less than 30°.
■ Do not install the device in a location where it will be subjected to high
temperatures (i. e. direct sunlight or heating vents), heavy contamination and
strong vibrations.
■ In the event that changes to the vehicle are necessary contact your vehicle
dealer/qualified radio installation facility.

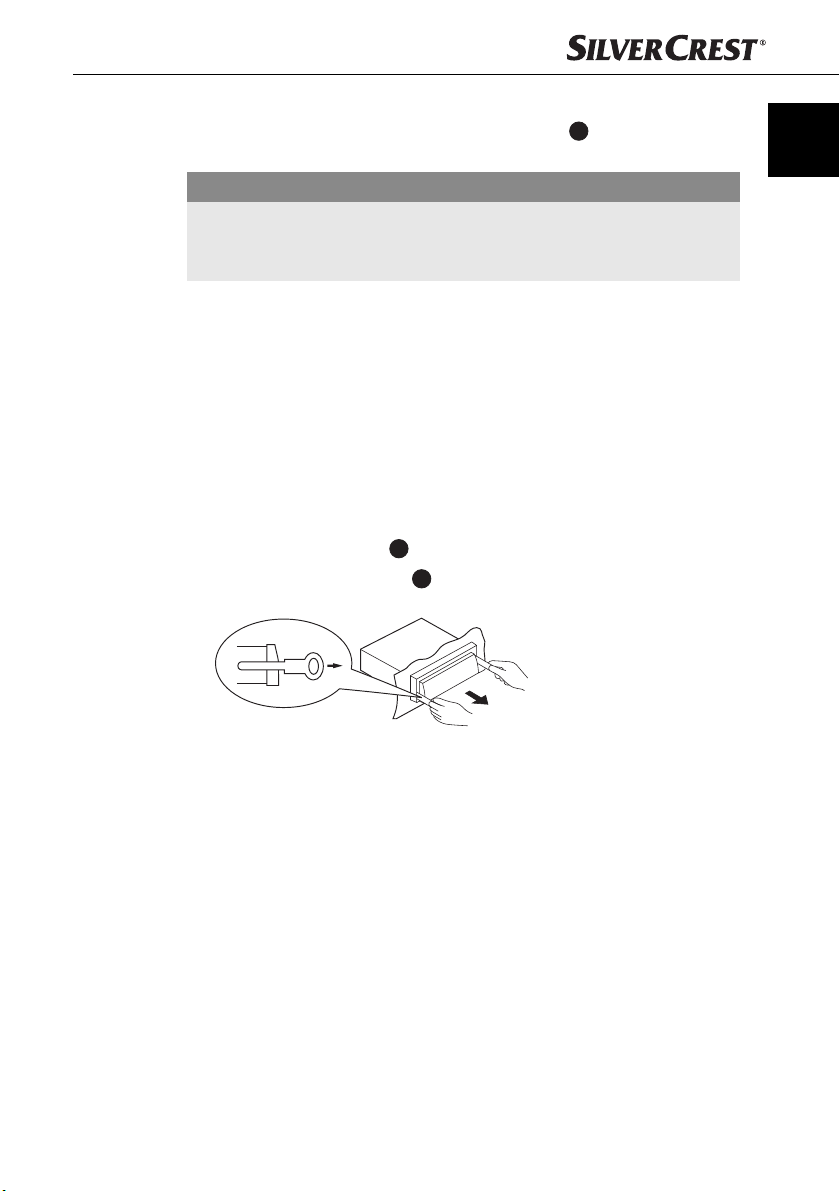

Installing the device into the ISO duct
♦ Pull the installation bracket 48 and the bezel frame 47 from the device’s
housing.
♦ Place the installation bracket into the ISO mounting duct.
♦ Bend the tabs on the installation bracket with a screw driver so that the
bracket is fixed firmly into the mounting duct (see diagram).
♦ Check to make sure that the bracket is securely fixed.
♦ Connect the ISO socket block of the device with the two ISO plugs on your
vehicle.
♦ Connect the antenna cable from the vehicle antenna to the antenna socket
on the device. The vehicle-specific DIN ISO adapter, which under circum-
stances you may need, is available from specialist workshops, specialist
shops or in the specialist sections of department stores.
♦ Feed the microphone unit cable into the aperture and connect it to the
microphone unit socket. Run the cable in such a way that the microphone
unit can be secured in the vehicle interior later, see also the section “Using
the microphone”.
♦ Contingently connect the audio cinch cable of an external amplifier to the
LINE OUT socket 40 on the device.
♦ Contingently connect the audio cinch cable of an external subwoofer to the
yellow cinch socket SUBWOOFER 38 on the device.
IB_90468_SAB160A1_LB3.indb 12IB_90468_SAB160A1_LB3.indb 12 28.06.13 13:3628.06.13 13:36

13
Installation
SAB 160 A1
GB
IE
♦ If necessary secure your device against theft with additional measures.
Attach the securing screw with the anchoring plate 50 and the securing
material to the engine firewall of the vehicle.
IMPORTANT
Possible damage to the cable!
► Observe the position of the cable when sliding the device into the duct so
as to avoid damaging it.
♦ Carefully push the device into the mounting duct until it locks into place.
♦ After all connections have been made activate the RESET button with a ball
point pen or other pointed object.
♦ Attach the face plate as described under “Installing the face plate”.
♦ Finally put on the bezel frame.
Uninstalling the device
To remove the installed device proceed as follows:
♦ Remove the bezel frame 47 .
♦ Insert the right and left keys 49 into their respective slots on the sides of the
device. (The tabs are now bent back.)
♦ Pull the device out.
IB_90468_SAB160A1_LB3.indb 13IB_90468_SAB160A1_LB3.indb 13 28.06.13 13:3628.06.13 13:36

14
Initial use
SAB 160 A1
GB
IE
Initial use
Face plate
To protect against theft you can remove the face plate from your device. Do not
store the removed face plate in your vehicle.
NOTICE
► When the face plate is not inserted into the frame the theft protection
LED 31 on the device blinks.
► To safeguard the face plate always keep it stored in its case.
Installing the face plate
♦ Place the face plate with the left side in the
frame first.
♦ Then firmly press the right side until it locks into
place.
♦ Subsequently flip the face plate upwards until it
locks into place.
Check to make sure that the face plate is firmly and
correctly installed in the frame. If the face plate
is incorrectly installed it can result in malfunctions
when operating the device.
Removing the face plate
♦ Press the button to unlock the face plate.
The face plate tilts automatically forward.
♦ Slide the face plate to the left and then pull first
the right and then the left side away.
IB_90468_SAB160A1_LB3.indb 14IB_90468_SAB160A1_LB3.indb 14 28.06.13 13:3628.06.13 13:36

15
Handling and operation
SAB 160 A1
GB
IE
Handling and operation
In this chapter you receive important information for the handling and operation
of the device.
NOTICE
► If no setting is made and/or no button pushed within approx. 5 seconds the
device returns to its previous operating mode. Changed settings are saved.
Switching On and Off
♦ Press briefly the /DIM button to switch the device on. In the display the
notice WELCOME appears.
♦ Briefly tap the /DIM button. In the display appears MAN DIM H.
♦ Briefly tap the /DIM button again. In the display appears AUTO DIM.
AUTO DIM: The display illumination will, depending on the lighting conditions,
set automatically (Default setting).
MAN DIM: The display illumination can be set in two stages (H = High and
L = Low) by turning the multi controller.
♦ To switch off hold down the /DIM button longer.
Settings
WARNING
Hearing damage as a result of too high a volume!
If the volume is set too high it can lead to permanent hearing damage.
► Set the volume to moderate levels only.
Volume
♦ Turn the multi controller to set the volume.
Switching mute on and off
♦ Press the button to switch the sound off. “MUTE” blinks in the display.
♦ To switch the sound on again press the button once more. The mute
switching is rescinded when receiving a PTY or TA station.
IB_90468_SAB160A1_LB3.indb 15IB_90468_SAB160A1_LB3.indb 15 28.06.13 13:3628.06.13 13:36

16
Handling and operation
SAB 160 A1
GB
IE
Bass/Treble/Balance/Fader
♦ Press the multi controller on the device. The current volume level is shown.
Each additional press of the multi controller accesses the next setting point.
The following settings are possible:
VOL - Volume (from 0 to 50),
BAS - Bass (from -10 to 10),
TRB - Treble (from -10 to 10)
BAL - Balance (sound distribution between the right and left speakers)
(from 10L to 10R)
FAD - Fader (sound distribution between the rear and front speakers)
(from 10F to 10R)
♦ Turn the multi controller to change the settings of the displayed menu items.
further settings via the multi controller
♦ Hold down the multi controller for approx. 2 seconds and then press the
multi controller repeatedly until the desired function appears in the display.
INVOL - switch on volume
♦ Turn the multi controller to set the volume level, with which the device is to
be set when turned on.
REC - Recording format
♦ Turn the multi controller to set the record format for recording on SD/MMC
and/or USB data carriers, MP3 (MP3 data) or WMA (Windows Media
Audio).
SUBW - Subwoofer
You can connect an active external subwoofer to produce a more powerful bass
effect.
♦ Turn the multi controller to turn the bass effect on (SUBW ON) or off
(SUBW OFF).
ADJ - Time of day
NOTICE
► The device is equipped with an RDS controlled clock. The clock sets itself
automatically when the EON function is switched on and also continues to
run when the radio is switched off. If you do not receive any RDS signal you
can also set the time of day manually.
♦ Turn the multi controller to the right to set the hours and to the left to set the
minutes.
IB_90468_SAB160A1_LB3.indb 16IB_90468_SAB160A1_LB3.indb 16 28.06.13 13:3628.06.13 13:36
