Introduction
Preface
Congratulations on the purchase of your new device.
You have selected a high-quality product. These operating instructions are a con-
stituent part of your SAB 160 B2 Bluetooth®car stereo (henceforth designated
as the device) and provide important information on the intended use, safety,
installation and connection as well as operation of the device.
The operating instructions must be kept near to the device at all times. They are to
be read and their content is to be applied by all those working on the installation,
servicing and repair of the device.
Keep these operating instructions in a safe place and pass them on to any future
owner together with the device.
Copyright
This documentation is protected by copyright.
All rights, including those of photographic reproduction, duplication and distribu-
tion by means of particular methods (such as data processing, data media and
data networks), in whole or in part, as well as substantive and technical changes,
are reserved.
Limitation of liability
All technical information, data and information in these operating instructions
pertaining to the installation, connection and operation correspond to the latest
available to us at the time of printing and take into account our previous experi-
ence and know-how.
No claims can be derived from the details, illustrations and descriptions in these
instructions.
The manufacturer assumes no responsibility for damage caused by failure to
observe these instructions, improper use, incompetent repairs, unauthorised
modifications or for the use of non-approved replacement parts.
Notes on trademarks
- USB®is a registered trademark of USB Implementers Forum, Inc.
- The Bluetooth®logotype and logos are registered trademarks of Bluetooth
SIG, Inc.
All other names and products may be trademarks or registered trademarks of
their respective owners.
IB_101293_SAB160B2_LB3.indb 2 07.07.14 16:08

3
SAB 160 B2
GB
IE
Warnings
The following warnings are used in these operating instructions:
WARNING
A warning at this hazard level indicates a potentially hazardous
situation.
Failure to avoid this hazardous situation could result in physical injury.
► Follow the instructions in this warning to prevent physical injury.
CAUTION
A warning at this hazard level indicates potential material
damage.
Failure to avoid this situation could result in material damage.
► Follow the instructions in this warning to prevent material damage.
NOTE
► A note provides additional information that will assist you in using the
device.
Intended use
This device is intended only for reception of FM/AM radio stations as well as
for the playback of audio and MP3 CDs, MP3 files from USB data media and
SD/MMC memory cards as well as audio signals from external audio devices.
In addition, you can pair the device with a Bluetooth mobile phone and use the
device as a hands-free set with the microphone unit The device is intended for
installation into a vehicle. It is not intended for any other use or use beyond that
specified.
WARNING
Danger if not used for correct purpose
Failure to use the device for its intended purpose and/or other type of use can
be hazardous.
► Use the device only for its intended purpose.
► Observe the procedures described in these operating instructions.
Claims of any kind for damage arising as a result of incorrect use will not be
accepted. The risk shall be borne solely by the user.
IB_101293_SAB160B2_LB3.indb 3 07.07.14 16:08

4SAB 160 B2
GB
IE
Safety
In this section, you will find important safety instructions for using the device.
The device complies with the statutory safety regulations. However, incorrect use
can result in injury and material damage.
Basic safety guidelines
To ensure safe operation of the device, follow the safety guidelines set out below
■ Prior to use, check the device for visible external damage. Do not operate a
device that has been damaged or dropped.
■ If the cables or connections are damaged, have them replaced by an author-
ised specialist or the Customer Service department.
■ People who are incapable of using the device safely due to their physical,
intellectual or motor abilities may only use it whilst under the supervision or
direction of a responsible person
■ Do not allow children to use the device unless they are being supervised.
■ All repairs must be carried out by authorised specialist companies or by the
Customer Service department. Improper repairs can pose significant risks to
the user. It will also invalidate any warranty claim.
■ Repairs to the device during the warranty period may only be carried out by
a customer service department authorised by the manufacturer. Otherwise
no additional warranty claims can be considered for subsequent damage.
■ Defective components must always be replaced with original replacement
parts. Compliance with safety requirements can only be guaranteed if original
replacement parts are used.
■ Protect the device from penetration by moisture and liquids.
Danger from laser radiation
WARNING
The device is equipped with a class 1 laser.
Laser radiation is dangerous to the eyesight!
Observe the following safety instructions to avoid exposing
yourself or others to laser radiation:
► Never open the device.
► Have the device repaired only by a specialist.
► Do not make any modifications to the device.
IB_101293_SAB160B2_LB3.indb 4 07.07.14 16:08

5
SAB 160 B2
GB
IE
Traffic safety
WARNING
Road traffic safety has the highest priority!
Follow the following safety instructions to avoid endangering yourself or others:
► Before starting your journey, familiarise yourself with the device and its
operation.
► Only use the device when the traffic situation allows it! Stop in a suitable
location if you wish to perform complicated operations.
► Only remove or attach the control panel when the vehicle is stationary.
► Set the volume to a moderate level so that the sirens of police vehicles, fire
trucks and other emergency service vehicles can be heard in good time.

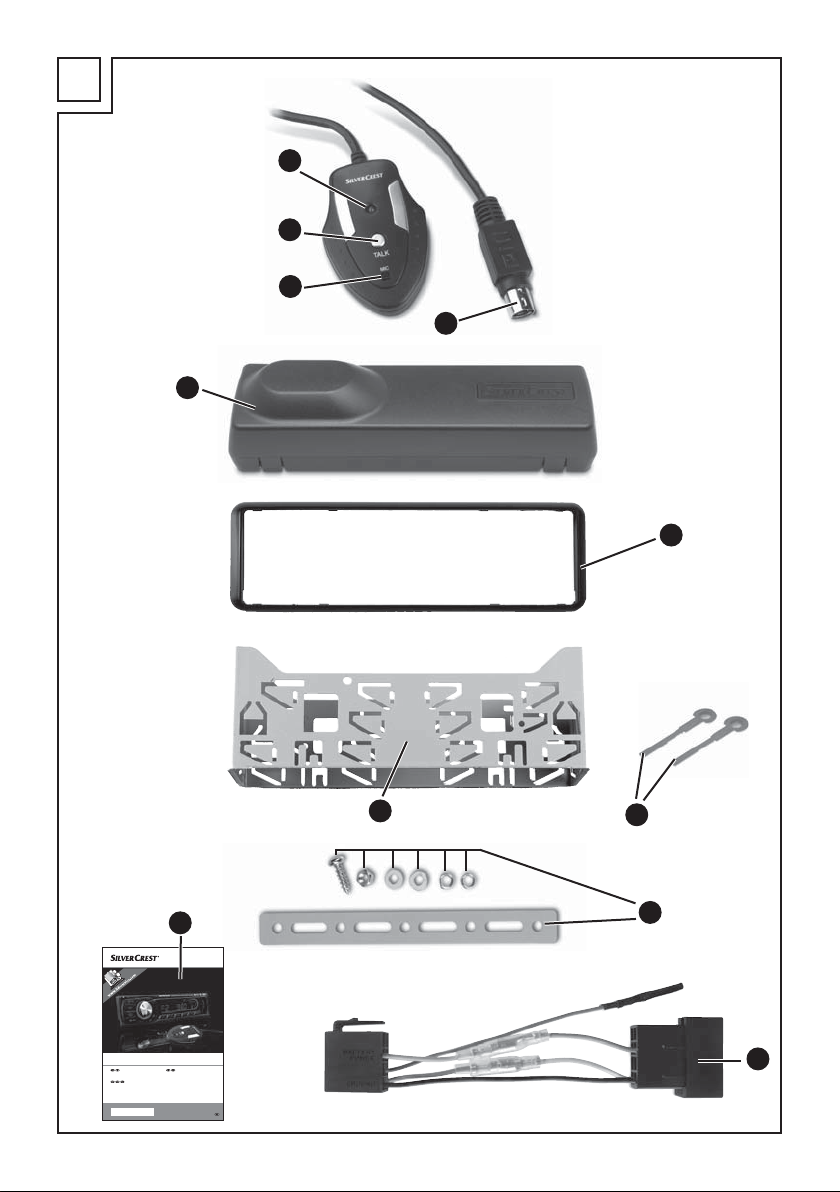

Package contents
(For illustrations see fold-out pages)
WARNING
► Packaging material must not be used as a plaything.
Risk of suffocation!
The following components are included in delivery:
▯ Car stereo (including control panel)
▯ Case for control panel 37
▯ Bezel frame (attached) 38
▯ Installation bracket (attached) 39
▯ Keys for installation frame (2x) 40
▯ Anchoring plate (including securing material) 41
▯ Adapter cable for ISO Block A 42
▯ Microphone unit with adhesive strip
▯ These operating instructions 43
NOTE
► Check the package for completeness and for signs of visible damage.
► If the contents are not complete or are damaged due to defective packaging
or transportation, contact the service hotline (see warranty card).
IB_101293_SAB160B2_LB3.indb 5 07.07.14 16:08

6SAB 160 B2
GB
IE
Controls
Car radio (see front fold out flap)
Figure A:
button: release for the control panel
2/▸▸I button: accept telephone call, track/station search forwards
3Multi-controller: turn to set values/volume
4A/PS button: automatic station saving
5MD/LD button: set operating mode, switch loudness function on/off
6Display
7USB port
8AUX: 3.5 mm stereo socket for connecting an external audio device
96/FL+ button: station memory 6/directory forwards during MP3/WMA playback
10 5/FL- button: station memory 5/directory backwards during MP3/WMA playback
11 4/RDM button: station memory 4/random play during MP3/WMA playback
12 3/INT button: station memory 3/intro function during MP3/WMA playback
13 2/RPT button: station memory 2/repeat function during MP3/WMA playback
14 1/PAU button: station memory 1/pause playback
15 BD/ENT: select waveband range/confirm selection
16 SEL button: call up Settings menu
17 /I◂◂ button: end telephone call, track/station search backwards
18 SCAN/REC: automatic station search/record onto a data medium connected
to the USB port or the SD/MMC card slot
19 / button: switch the device on and off/turn the sound off (MUTE)
Figure B:
20 CD compartment
21 Theft protection LED/CD compartment position LED
22 button: eject disc
23 RESET: reset the device
24 Card slot for SD/MMC cards
IB_101293_SAB160B2_LB3.indb 6 07.07.14 16:08
