Silvercrest SEMK 105 B2 Product information sheet

V 1.3
English ................................................................................................................ 2
Ελληνικά .......................................................................................................... 19
Deutsch............................................................................................................. 37

SilverCrest SEMK 105 B2
2 - English
Table of Contents
1. Intended use................................................................................................... 3
2. Package contents............................................................................................ 3
3. Technical specifications ................................................................................... 4
4. Safety instructions .......................................................................................... 5
5. Copyright...................................................................................................... 10
6. Before you start............................................................................................ 10
7. Getting started ............................................................................................. 10
7.1 Topping up with drinking water ................................................................................................. 11
7.2 Starting to make ice cubes ......................................................................................................... 11
7.2.1 Making large ice cubes....................................................................................................... 11
7.2.2 Making small ice cubes....................................................................................................... 12
7.3 Stop making ice cubes................................................................................................................ 12
8. Maintenance/cleaning.................................................................................. 13
9. Storage when not in use ............................................................................... 14
10. Troubleshooting.......................................................................................... 14
10.1 The ice cube maker does not work.......................................................................................... 14
10.2 The “ADD WATER” LED (4) is on............................................................................................ 14
10.3 The “ICE FULL” LED (5) is on ................................................................................................... 14
10.4 Both “ADD WATER” (4) and “ICE FULL” (5) LEDs are on .................................................... 14
10.5 No ice cubes made or ice cubes too small............................................................................. 14
11. Environmental regulations and disposal information.................................. 15
12. Conformity notes ........................................................................................ 16
13. Warranty information ................................................................................ 17

SilverCrest SEMK 105 B2
English - 3
Congratulations!
By purchasing the SilverCrest SEMK 105 B2 ice cube maker, hereinafter referred to as the ice cube
maker, you have opted for a quality product.
Before first using it, familiarise yourself with the way the ice cube maker works and read these
operating instructions through carefully. Be careful to follow the safety instructions and only use the
ice cube maker as described in the operating instructions and for the applications given.
Keep these operating instructions in a safe place. If you pass the ice cube maker on to someone
else, make sure to give them all the relevant documents with it.
1. Intended use
This ice cube maker is a household device and used exclusively to make ice cubesfrom drinking
water. It may not be used outdoors. The ice cube maker has not been designed for corporate or
commercial applications. Use the ice cube maker in domestic environments for private applications
only. Any other use does not correspond to the intended use. This ice cube maker fulfils all relevant
standards and directives relating to CE Conformity. Any modifications to the ice cube maker other
than changes recommended by the manufacturer may result in these standards no longer being
met. The manufacturer shall not be liable for any damage or malfunctions resulting from such
modifications. Only use accessories supplied with the device by the manufacturer.
Observe the regulations and laws in the country of use.
2. Package contents
Remove the ice cube maker and all accessories from the packaging. Remove the packaging
material and check that all components are complete and undamaged. If you find anything missing
or damaged, please contact the manufacturer.
•Ice cube maker
•Ice cube basket
•Ice cube scoop
•These operating instructions
•Quick start guide

SilverCrest SEMK 105 B2
4 - English

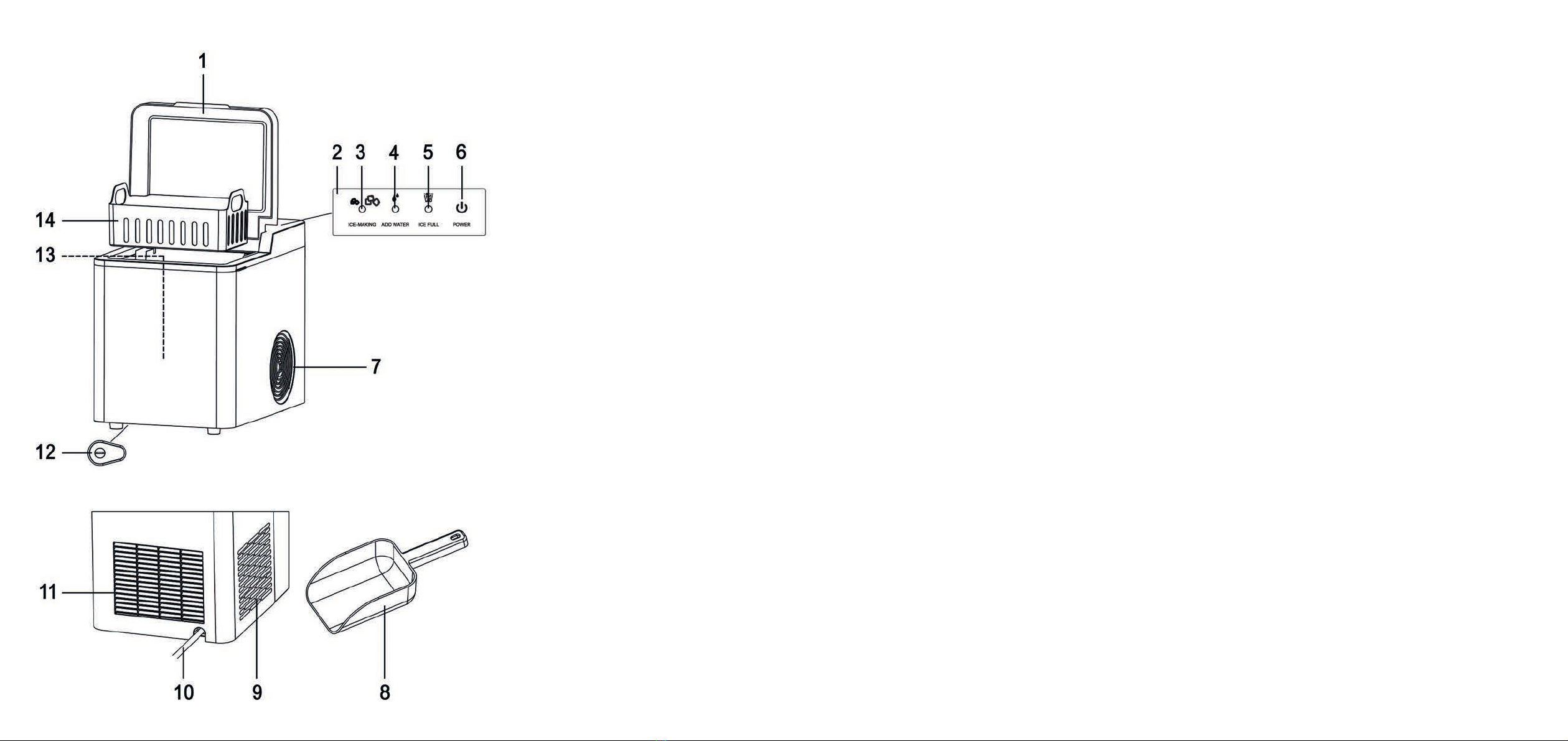

These operating instructions have a fold-out cover. On the inside of the cover is a diagram of the
SilverCrest SEMK 105 B2 ice cube maker with all its control elements numbered. You can keep this
page folded out whilst reading the different chapters of these operating instructions. This allows you
to refer to the relevant controls at any time. The meanings of the numbers are as follows:
1 Lid
2 Control panel
3 “ICE MAKING” LED >> / small/large ice cubes
4 “ADD WATER” LED
5 “ICE FULL” LED
6 “POWER“ button
7 Fan outlet
8 Ice cube scoop
9 Ventilation grilles
10 Power cable
11 Ventilation grilles
12 Drain opening (with stopper)
13 Water reservoir
14 Ice cube basket
3. Technical specifications
Manufacturer TARGA GmbH
Description SilverCrest SEMK 105 B2
Power supply 220-240 V~(AC), 50 Hz
Power consumption 105 W
Current consumption 0,8 A
Production/24 hours approx. 11-12 kg
Capacity of Water reservoir (13): 2.1 litres
Ice cube basket (14): 800 g
Climatic class ST, SN, N, T
Refrigerant, quantity R600a, 28 g
Insulation material Cyclopentane
Dimensions approx. 37,5 x 25,2 x 31,2 cm
Weight approx. 8800 g including all accessories
The technical data and design may be changed without prior notice.

SilverCrest SEMK 105 B2
English - 5
4. Safety instructions
Before you use the ice cube maker for the first time, please read
the following notes in this manual and heed all warnings, even
if you are familiar with handling electronic and household
devices. Keep these operating instructions in a safe place for
future reference. If you sell the ice cube maker or give it away,
pass on the operating instructions at the same time. They are an
integral part of the ice cube maker.
Explanation of symbols used
DANGER! This signal word indicates a danger with a
high risk, which will lead to death or major injuries if not
avoided.
WARNING! This signal word indicates a danger with
a moderate risk, which can lead to death or major
injuries if not avoided.
CAUTION! This signal word indicates important
instructions to protect against damage to property.
DANGER! This symbol denotes danger for human
health and risk of death and/or risk of damage to
property due to electric shock.
Risk of fire!
This symbol designates products whose physical and
chemical composition has been tested and found to be
non-hazardous to health when used in contact with food
in accordance with the requirements of Regulation EU
1935/2004.

SilverCrest SEMK 105 B2
6 - English
This symbol denotes further information on the topic.
AC voltage
WARNING! Predictable misuse
•Use the ice cube maker in accordance with the instructions.
Improper use of the device can cause injuries.
•The ice cube maker may not be used with an external timer
or a separate remote control system.
DANGER! Personal safety
•This ice cube maker may be used by children older than 8
years as well as by persons with reduced physical, sensory
or mental capacities or those persons who have lack of
knowledge or experience, as long as they are supervised or
they have received instructions regarding the proper use of
the ice cube maker and they understand the associated risks.
•Do not allow children to play with the ice cube maker.
•The product must not be cleaned or maintained by
unsupervised children.
•Children under the age of 8 must be kept away from the ice
cube maker and the power cable (10).
DANGER! Packaging material is not a toy. Do not
allow children to play with plastic bags. There is a risk
of suffocation.
Keep the ice cube maker out of the reach of children.

SilverCrest SEMK 105 B2
English - 7
General safety instructions
DANGER: Risk of electric shock
•The ice cube maker should only be used in dry, indoor areas.
•The power cable (10) must not be damaged. Never replace
a damaged power cable (10), instead contact our hotline.
There is a risk of electric shock in the case of a damaged
power cable (10).
•If the power cable of this device is damaged, it must be
replaced by the manufacturer, its customer service or a
similarly qualified person, in order to avoid any possible
danger.
•Never open the housing of the ice cube maker as there are
no components inside which require maintenance. Opening
the housing can expose you to the risk of electric shock.
•If you notice any smoke, unusual noises or strange smells,
switch the ice cube maker off immediately and disconnect the
mains plug from the socket. If this occurs, the ice cube maker
should not be used before it has been inspected by
authorised service personnel. Never inhale smoke from a
possible device fire. If you do inadvertently inhale smoke,
seek medical attention. Smoke inhalation can be damaging
to your health.
•Make sure that the power cable (10) cannot be damaged by
sharp edges or hot spots.
•Make sure that the power cable (10) cannot become
crushed or squashed.
•The ice cube maker must always be disconnected from the
mains when left unsupervised and before assembly,
disassembly or cleaning.

SilverCrest SEMK 105 B2
8 - English
•When disconnecting the power cable from the mains socket,
always pull on the mains plug and never on the power cable
(10) itself.
•If you notice visible damage to the ice cube maker or the
power cable (10), switch the ice cube maker off immediately,
disconnect the mains plug from the mains socket and contact
our hotline.
•In order to completely disconnect the device from the mains,
the power plug must be pulled out from the mains socket.
Therefore, only connect the ice cube maker to a properly
installed mains socket which is easy to access and for which
the mains voltage corresponds to that stated on the rating
plate. After connecting the device, the mains socket must still
be easily accessible so that you can remove the mains plug
quickly in the event of an emergency.
•Do not immerse the ice cube maker in water or any other
liquids. If liquids have entered the ice cube maker, disconnect
the mains plug from the mains socket immediately and
contact customer service.
DANGER: Risk of fire
•This product contains a small amount of isobutane (R600a)
as a refrigerant, this is a natural, environmentally-friendly gas
which is flammable. In the event of a leak, disconnect the
mains plug and avoid naked flames and ignition sources.
Ventilate the room the ice cube maker is in and contact our
hotline.
•Do not store explosive materials such as aerosol containers
with flammable propellants in the device.

SilverCrest SEMK 105 B2
English - 9
•Make sure there is nothing obstructing the ventilation grilles
(9, 11) in the device housing. Set the ice maker up so that
there is nothing blocking the ventilation grills (9, 11) or the
fan outlet (7). The device needs clearance of around 20 cm
all round.
•Do not use an extension cable to operate the ice cube maker.
•The device does not require constant supervision when in
use, but do check on it regularly.
WARNING! Risk of injury
•There is a risk of choking when enjoying drinks with ice
cubes. Risk of suffocation!
•Only use drinking water in the ice cube machine, never use
other liquids.
•To prevent mould forming, never leave water in the water
reservoir (13) for longer than 24 hours. Drain old water and
top up again.
•Do not store food in the ice cube maker.
•Do not fill the water reservoir (13) with hot water.
•Only use the accessories supplied.
•Never turn the ice cube maker upside down when in
transport.
•After transporting the ice cube maker, leave it at least 2 hours
to settle before use.
CAUTION! Risk of damage to property
•Never attempt to speed up the defrosting process by using
agents not recommended by the manufacturer.

SilverCrest SEMK 105 B2
10 - English
•The refrigerant circuit on the ice cube maker must not be
damaged.
5. Copyright
All the contents of this user manual are protected by copyright and provided to the reader for
information only. Copying data and information without the prior explicit written consent of the
author is strictly forbidden. This also applies to any commercial use of the contents and information.
All texts and diagrams are up-to-date as of the date of printing. Subject to change without notice.
6. Before you start
Remove the SEMK 105 B2 ice cube maker and all accessories from the packaging and check that
the package contents are complete. Remove any protective films.
Keep the packaging material away from children and dispose of appropriately.
7. Getting started
Before making ice cubes to use for the first time, clean all parts of the ice cube maker to remove
any production residues. Proceed as described in the section on “Maintenance/cleaning”.
CAUTION! Risk of damage to property
After transporting the ice cube maker, leave it at least 2 hours to settle before use.
The ambient temperature should be around 10°C to 32°C when in use.
Then plug the mains plug into a mains socket which meets the requirements. The “ICE MAKING”
LED (3) flashes green.
The ice cube maker is now in standby mode and is ready to use.

SilverCrest SEMK 105 B2
English - 11
7.1 Topping up with drinking water
Always use fresh drinking water! Never reuse water from defrosted ice cubes!
The temperature of the drinking water should not exceed 25°C.
Make sure that the drain opening (12) on the water reservoir (13) is sealed with
the stopper.
•Open the lid (1) and remove
the ice cube basket (14).
•Fill the water reservoir (13) with
fresh drinking water. Do not fill
beyond the MAX mark.
•Replace the ice cube basket
(14) and close the lid (1).
Please note that, contrary to what is shown in the diagram above, the MAX marking is
merely embossed into the material of the device and cannot be shown in black for food
safety reasons.
7.2 Starting to make ice cubes
The first time you make ice cubes, it may take a little longer than set out
below as the device is not already cold.
Because of the temperature of the water and the ambient temperature, it takes
three ice-making cycles to produce the largest ice cubes.
The production time is a direct function of the water temperature and the ambient
temperature.
7.2.1 Making large ice cubes
The default setting is to produce large ice cubes.
After each production cycle, there is the option to change the ice cube size by pressing
and holding the “POWER” button (6) for approx. 3 seconds. The mode selected is
displayed on the control panel (2) as follows:
The “ICE MAKING” LED (3) lights green: The device produces large ice cubes.
The “ICE MAKING” LED (3) lights yellow: The device produces small ice cubes.
•Press the “POWER” button (6) briefly to start making large ice cubes. The “ICE MAKING”
LED (3) flashes green.

SilverCrest SEMK 105 B2
12 - English
•Depending on the ambient temperature, ice cubes are dropped into the ice cube basket (14)
after 7 to 15 minutes.
•You can remove the ice cubes at any time. Open the lid (1), remove the ice cubes you want
using the ice cube scoop (8) and close the lid (1) again.
•When the “ICE FULL” LED (5) lights red, the ice cube basket (14) is full. Ice cube making is
paused. Once you have removed sufficient ice cubes, the device resumes production.
Occasionally, the ice cubes can stack up, block the light barrier and give an erroneous
signal that the ice cube basket (14) is full. If this happens, use the ice cube scoop (8) to
distribute the ice cubes evenly around the ice cube basket (14). Ice-making resumes
automatically once the light barrier is clear.
•If the “ADD WATER” LED (4) lights red, there is too little water in the water reservoir (13). Ice
cube making is stopped.
•Open the lid (1), remove the ice cube basket (14) and top the water reservoir (13) up with
fresh drinking water if you wish to continue making ice cubes.
•Replace the ice cube basket (14), close the lid (1) and press the “POWER” button (6) briefly
to resume.
7.2.2 Making small ice cubes
•If you press and hold the “POWER ” button (6) for approx. 3 seconds while making large ice
cubes, the “ICE MAKING” LED (3) lights up in yellow. On its next cycle, the machine makes
small ice cubes.
7.3 Stop making ice cubes
Replace the water in the water reservoir (13) after 24 hours at the latest to prevent
mould forming.
•Press the “POWER” button (6) briefly to stop making ice. The “ICE MAKING” LED (3)
flashes green.
•Remove the ice cubes from the ice cube basket (14) and disconnect the plug from the mains
socket.
•Allow the ice cube maker to defrost.
•Then check whether there is water in the back part of the machine. If so, tip the machine
forwards slightly so the water can flow into the water reservoir (13).
•Now drain the water out of the water reservoir (13). Pull the device forward over the edge of
the work surface so that the drain opening (12) is easy to reach but the device is still stable.
•Hold a suitably sized container under the drain opening (12) and remove the stopper.
•Once all the water has drained out, close the drain opening (12) again with the stopper.

SilverCrest SEMK 105 B2
English - 13
8. Maintenance/cleaning
DANGER: Risk of electric shock
Always remove the power plug from the mains socket before cleaning. This could
result in an electric shock.
Do not pour or spray any liquids onto the ice cube maker and do not immerse it in
water or other liquids. This could cause short circuits which could result in electric
shocks or fires.
WARNING
Empty the water reservoir (13) after a maximum of 24 hours to prevent mould forming.
WARNING about property damage
Do not use abrasive or astringent detergents or tools which could scratch the surface
(e.g. metal sponges). Otherwise, the ice cube maker could get damaged.
Do not use boiling water for cleaning.
Do not clean the metal rods at the back of the machine with a cloth or similar.
Scratches would have a detrimental effect on the production results.
Do not attempt to clean the ice cube maker and its accessories in the dishwasher, this
would cause irreparable damage!
Activating the machine’s self-cleaning function:
•if the machine is still in use, follow the instructions in the section on “Stopping making ice
cubes”.
•Insert the mains plug into a mains socket.
•Fill the machine with fresh water to the MAX mark, as described in the section on “Topping up
with drinking water”.
•Press and hold the “POWER” button (6) for approx. 10 seconds. The machine starts the self-
cleaning process, during which the “ICE MAKING” (3), “ADD WATER” (4) and “ICE FULL” (5)
LEDs light up red or green in sequence. After approx. 15 minutes, the machine switches into
standby mode and the “ICE MAKING” LED (3) flashes green.
•Remove the mains plug from the mains socket and drain the water out of the drain opening
(12).
•Remove the ice cube basket (14) and clean the inside of the machine with a damp cloth. Do
not clean the metal rods at the back of the machine with a cloth. This could damage them,
which would have a detrimental effect on ice production.
•Put a little vinegar on the cloth to remove stubborn dirt and deposits. Then rinse the water
reservoir (13) with clean water and allow it to run out through the drain opening (12). Then
wipe out with a damp cloth.
•The ice cube basket (14) and the ice cube scoop (8) can be cleaned in warm water with mild
detergent.

SilverCrest SEMK 105 B2
14 - English
•Wipe the housing and the power cable (10) with a damp cloth. Put a little mild detergent on
the cloth to remove stubborn dirt. Then wipe out with a damp cloth to remove any detergent
residues. Make sure that the machine and power cable (10) are completely dry on the outside
before using again.
9. Storage when not in use
If the ice cube maker is not to be used for an extended period, store it in a safe, clean and dry
place.
•Empty the water reservoir (13) and clean thoroughly as described in the section on
“Maintenance/cleaning”.
•Leave the lid (1) open and allow everything to dry thoroughly before closing the lid (1) and
storing the ice cube maker in a safe place away from dust.
10. Troubleshooting
If your ice cube maker does not work as normal, follow the instructions below to try to solve the
problem. If working through the tips below does not fix the fault, please contact our hotline.
10.1 The ice cube maker does not work
•The mains plug is not plugged in. Insert the mains plug into a mains socket.
•The mains socket is defective. Test the ice cube maker in a different mains socket that you are
certain is working.
10.2 The “ADD WATER” LED (4) is on
•There is too little water in the water reservoir (13). Top up the water.
•The water filter at the bottom of the water reservoir (13) is blocked. Remove any
objects/deposits blocking the water filter. If necessary, you can pull the water filter straight
upwards to clean it. Make sure you replace it before using the machine again. Follow the
instructions on removing stubborn dirt and deposits in the section on “Maintenance/cleaning”.
10.3 The “ICE FULL” LED (5) is on
•The ice cube basket (14) is full. Remove the ice cubes. Production resumes automatically.
•The infrared sensors above the ice cube basket (14) are dirty and indicating that the ice cube
basket (14) is full. Clean the infrared sensors with a soft cloth.
10.4 Both “ADD WATER” (4) and “ICE FULL” (5) LEDs are on
•The ice cube bowl at the back of the machine is blocked. Check whether the blockage has
been caused by an ice cube and, if so, remove it carefully. Restart the machine by
disconnecting the mains plug from the mains socket and plugging it back in again.
10.5 No ice cubes made or ice cubes too small
•The ambient temperature is too high, it should not exceed 43°C.
•The water temperature is too high, it should be between 8°C and 25°C.

SilverCrest SEMK 105 B2
English - 15
11. Environmental regulations and disposal information
Devices marked with this symbol are subject to the European Directive
2012/19/EU. All electrical and electronic devices must be disposed of
separately from household waste at official disposal centres. Avoid damage to the
environment and risks to your personal health by disposing of the device properly.
For further information about proper disposal, contact your local government,
disposal bodies or the shop where you bought the device.
The refrigerant used in this machine requires special disposal
measures.
For more information, check with your local disposal agent.
Dispose of all packaging in an environmentally friendly manner. Cardboard
packaging can be taken to paper recycling centres or public collection points for
recycling. Any film or plastic contained in the packaging should be taken to your
public collection points for disposal.
ES/PT
Only relevant for France:
The product is recyclable, but is subject to more restrictive manufacturer
responsibility terms and must be collected separately.
Please note the markings on the packaging material when disposing of it, it is
labelled with abbreviations (a) and numbers (b), the meanings of which are as
follows:
1–7: plastic / 20–22: paper and cardboard / 80-98: composite materials.
Symbol Material Contained in the following packaging
elements for this product
Polyethylene
terephthalate ---
High density
polyethylene ---
Polyvinyl chloride ---
Low density
polyethylene
Inner plastic bag, shaped material to fix the ice cube
maker into the sales packaging

SilverCrest SEMK 105 B2
16 - English
Polypropylene ---
Polystyrene ---
Other plastics ---
Corrugated cardboard Sales packaging
Other cardboard ---
Paper ---
Paper/cardboard/
plastic ---
Paper/cardboard/
plastic/aluminium ---
12. Conformity notes
The product complies with the requirements of the applicable European and
national directives. Evidence of conformity has been provided. The manufacturer
has the relevant declarations and documentation.
The product complies with the requirements of the applicable national directives for
Great Britain.
The complete EU Declaration of Conformity is available for download from this link:
https://www.targa.gmbh/downloads/conformity/384919_2107.pdf

SilverCrest SEMK 105 B2
English - 17
13. Warranty information
Warranty of TARGA GmbH
Dear Customer,
This device is sold with three years warranty from the date of purchase. In the event of product
defects, you have legal rights towards the seller. These statutory rights are not restricted by our
warranty as described below.
Warranty conditions
The warranty period commences upon the date of purchase. Please keep the original receipt in a
safe place as it is required as proof of purchase. If any material or manufacturing faults occur within
three years of purchase of this product, we will repair or replace the product free of charge as we
deem appropriate.
Warranty period and legal warranty rights
The warranty period is not extended in the event of a warranty claim. This also applies to replaced
and repaired parts. Any damage or defects discovered upon purchase must be reported
immediately when the product has been unpacked. Any repairs required after the warranty period
will be subject to charge.
Scope of warranty
The device was carefully manufactured in compliance with stringent quality guidelines and
subjected to thorough testing before it left the works. The warranty applies to material and
manufacturing faults. This warranty does not cover product components which are subject to normal
wear and which can therefore be regarded as wearing parts, or damage to fragile components
such as switches, rechargeable batteries or components made of glass. This warranty is void if the
product is damaged, incorrectly used or serviced. To ensure correct use of the product, always
comply fully with all instructions contained in the user manual. The warnings and recommendations
in the user manual regarding correct and incorrect use and handling of the product must always be
observed and complied with. The product is solely designed for private use and is not suitable for
commercial applications. The warranty is rendered void in the event of incorrect handling and
misuse, if it is subjected to force, and also if any person other than our authorised service
technicians interfere with the device. No new warranty period commences if the product is repaired
or replaced.
Submitting warranty claims
To ensure speedy handling of your complaint, please note the following:
-Before using your product for the first time, please read the enclosed documentation
carefully. Should any problems arise which cannot be solved in this way, please call our
hotline.

SilverCrest SEMK 105 B2
18 - English
-Always have your receipt, the product article number as well as the serial number (if
available) to hand as proof of purchase.
-If it is not possible to solve the problem on the phone, our hotline support staff will initiate
further servicing procedures depending on the fault.
Service
Phone: [phone]
E-Mail: [email protected]
Phone: [phone]
E-Mail: [email protected]
Phone: [phone]
E-Mail: [email protected]
Phone: [phone]
E-Mail: [email protected]
IAN: 384919_2107
Manufacturer
Please note that the following address is not a service address. First contact the service point stated
above.
TARGA GmbH
Coesterweg 45
59494 Soest
GERMANY
