Silvercrest 387993 2104 User manual

STEAM GENERATOR IRON / DAMPFBÜGELSTATION /
CENTRALE VAPEUR SDBS 2400 A1
IAN 387993_2104
CENTRALE VAPEUR
Mode d’emploi
STEAM GENERATOR IRON
Operating instructions
STOOMSTRIJKIJZER STATION
Gebruiksaanwijzing
NAPAŘOVACÍ ŽEHLIČKA
S PARNÍ STANICÍ
Návod k obsluze
STRYGEJERN MED DAMPSTATION
Betjeningsvejledning
PARNÁ ŽEHLIACA STANICA
Návod na obsluhu
DAMPFBÜGELSTATION
Bedienungsanleitung
ŻELAZKO ZE STACJĄ PAROWĄ
Instrukcja obsługi
CENTRO DE PLANCHADO DE VAPOR
Instrucciones de uso

GB/ IE Operating instructions Page 1
DE/AT/CH Bedienungsanleitung Seite 23
FR/BE Mode d’emploi Page 45
NL/BE Gebruiksaanwijzing Pagina 69
CZ Návod k obsluze Strana 91
PL Instrukcja obsługi Strona 113
SK Návod na obsluhu Strana 135
ES Instrucciones de uso Página 157
DK Betjeningsvejledning Side 179
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the
device.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen Sie sich anschließend mit
allen Funktionen des Gerätes vertraut.
Avant de lire le mode d‘emploi, ouvrez la page contenant les illustrations et familiarisez-vous ensuite avec
toutes les fonctions de l‘appareil.
Vouw vóór het lezen de pagina met de afbeeldingen open en maak u vertrouwd met alle functies van het
apparaat.
Před čtením si otevřete stranu s obrázky a potom se seznamte se všemi funkcemi přístroje.
Przed przeczytaniem proszę rozłożyć stronę z ilustracjami, a następnie proszę zapoznać się z wszystkimi
funkcjami urządzenia.
Pred čítaním si odklopte stranu s obrázkami a potom sa oboznámte so všetkými funkciami prístroja.
Antes de empezar a leer abra la página que contiene las imágenes y, en seguida, familiarícese con todas
las funciones del dispositivo.
Før du læser, vend siden med billeder frem og bliv bekendt med alle apparatets funktioner.

A
BC

SDBS 2400 A1 GB│IE │ 1 ■
Contents
Introduction ..............................................2
Information about these operating instructions..............................2
Copyright ..........................................................2
Proper use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Warnings ..........................................................2
Safety ...................................................3
Basic safety instructions ...............................................3
Technical details ...........................................7
Operating elements ........................................8
Setting up and connecting ...................................9
Package contents and transport inspection ................................9
Unpacking .........................................................9
Set-up location requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Electrical connection..................................................9
Handling and use .........................................10
Beforefirstuse.....................................................10
Filling the water tank. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Ironing without steam ................................................11
Steam ironing ......................................................12
Vertical steam ironing................................................13
Refilling with water ..................................................13
Cleaning and maintenance .................................14
Replacing the limescale filter ..........................................14
Cleaning the appliance ..............................................15
Troubleshooting ..........................................16
Storage/disposal .........................................17
Storage...........................................................17
Disposal of the appliance.............................................18
Disposal of the packaging ............................................18
Kompernass Handels GmbH warranty .......................19
Service ...........................................................20
Importer..........................................................20
Ordering replacement parts ................................21

SDBS 2400 A1
■ 2 │ GB│IE
Introduction
Information about these operating instructions
Congratulations on the purchase of your new appliance.
You have selected a high-quality product. The operating instructions are part
of this product. They contain important information about safety, usage and
disposal. Before using the product, please familiarise yourself with all operating
and safety instructions. Use the product only as described and for the range of
applications specified. Please also pass these operating instructions on to any
future owner.
Copyright
This documentation is protected by copyright.
Any copying or reproduction, including in the form of extracts, or any reproduction
of images (even in a modified state), is permitted only with the written authorisation
of the manufacturer.
Proper use
This appliance is only intended for the dry ironing or steam ironing of all types of
clothing, curtains and fabrics (including hanging). The appliance is not intended
for any other purpose, nor for use beyond the scope described. The appliance is
not intended for use in commercial or industrial environments.
The manufacturer accepts no responsibility for damage caused by failure to
observe these instructions, improper use or repairs, unauthorised modifications
or the use of unapproved replacement parts. The operator bears sole liability.
Warnings
The following types of warning are used in these operating instructions:
DANGER
A warning notice at this hazard level indicates an imminently
hazardous situation.
If the hazardous situation is not avoided, it could result in death or serious
physical injury.
► Follow the instructions in this warning notice to avoid the risk of death or
serious injury.

SDBS 2400 A1 GB│IE │ 3 ■
WARNING
A warning at this hazard level indicates a potentially hazardous
situation.
Failure to avoid this hazardous situation could result in injury.
► Follow the instructions in this warning notice to prevent injury.
CAUTION
A warning notice at this hazard level indicates a risk of material
damage.
Failure to avoid this situation could result in material damage.
► Follow the instructions in this warning notice to prevent material damage.
NOTE
► A note provides additional information, which will assist you in using the
appliance.
Safety
This section contains important safety instructions for using the appliance.
This appliance complies with statutory safety regulations. Improper use may
result in personal injury and property damage.
Basic safety instructions
To ensure safe operation of the appliance, follow the
safety guidelines set out below:
■ The appliance may not be used if it has fallen down, if it
shows visible damage or is leaking.
■ To prevent accidents, have defective plugs and/or power
cables replaced immediately by an authorised specialist
technician or our Customer Service department.

SDBS 2400 A1
■ 4 │ GB│IE
■ This appliance may be used by children aged 8 years or
more and by persons with reduced physical, sensory or
mental capabilities or lack of experience and/or knowledge
if they are supervised, or have been instructed in the safe
use of the appliance and have understood the potential
risks. Do not allow children to play with the appliance.
Cleaning and user maintenance may not be carried out by
children unless they are supervised.
■ Do not allow children to play with the appliance.
■ All repairs must be carried out by authorised specialist
companies or by the Customer Service department. Improper
repairs may put the user at risk. It will also invalidate any
warranty claims.
■ Repairs to the appliance during the warranty period may
only be carried out by a customer service department
authorised by the manufacturer. Otherwise, no warranty
claims will be held for any subsequent damages.
■ Defective components must always be replaced with original
replacement parts. Compliance with safety requirements can
only be guaranteed if original replacement parts are used.
■ Do not place any objects on the appliance, especially not
on the connecting hose between the base station and the iron.
■ Do not operate or place the appliance close to an open
flame (e.g. candles).

SDBS 2400 A1 GB│IE │ 5 ■
RISK OF ELECTRICAL SHOCK!
► The appliance should only be connected to correctly installed
and earthed mains power sockets. Ensure that the rating for
your local power supply corresponds with the details on the
rating plate of the appliance.
► Arrange for customer service to repair or replace connecting
cables and/or appliances that are not functioning properly
or have been damaged.
► Stop using the appliance if the anti-kink protection on the
power cable is damaged!
► The steam iron and its connecting hose must be kept out
of reach of children younger than eight years old while
switched on or cooling down.
► Never immerse the appliance in water. Wipe it only with a
slightly damp cloth.
► Do not expose the appliance to rain, and never use it in a
humid or wet environment.
► Always hold the plug when handling the power cable and
never pull on the cable itself.
► Never touch the power cable or the plug with wet hands.
► Do not place the appliance itself or furniture etc. on the
power cable and ensure that it is not jammed.
► Ensure that the power cable never becomes wet or moist during
operation.
► Do not open the appliance housing or attempt to repair or
modify the appliance. If the housing is opened or improper
modifications are made, you run the risk of receiving a
potentially fatal electric shock and the warranty will be void.

SDBS 2400 A1
■ 6 │ GB│IE
RISK OF ELECTRICAL SHOCK!
► Protect the appliance from drips or splashes of water. Do not
place any vessels containing liquid (e.g. flower vases) on or
near the appliance.
► Always pull the plug out of the power socket after completing
ironing and before cleaning the appliance.
► You must always pull the plug out of the power socket before
filling the water tank with water.
WARNING! RISK OF INJURY!
► Always place the iron on the base station placement area.
Pull the plug out of the power socket if you take a break
during ironing.
RISK OF SCALDING OR BURNING!
Caution, hot surfaces!
► The iron remains very hot while switched on and also a few
minutes after being switched off. Never touch the iron sole of
the iron!
► When the steam iron is hot, hold it only by the handle.
► Children should be supervised to ensure that they do not
play with the appliance.
► Never aim the hot steam at persons or animals.
► Never iron or steam clothing or other fabrics which are
being held by other people or are being worn.

SDBS 2400 A1 GB│IE │ 7 ■
CAUTION PROPERTY DAMAGE
► Never leave the steam iron unattended while it is connected
to the mains power supply.
► Never use water containing carbon dioxide in the appliance.
► Do not operate the appliance without water, otherwise the
pump could burn out.
► Ensure that neither the power cable or the connection hose
come into contact with the hot sole of the iron.
► Do not scratch the sole of the iron. Avoid contact between
the sole of the iron and metal parts such as buttons or zips.
► Operate the steam iron and the base station only on a stable,
flat and level surface.
NOTE
► No user action is required to switch the product between
50 and 60 Hz. The product adapts automatically to either
50 or 60 Hz.
Technical details
Ironing station
Voltage supply 220–240V~(alternating current)/
50/60Hz
Power consumption 2000 –2400 W
Max. water tank filling capacity 2 l
Steam production (max.) approx. 90g/min. +/− 10%
Heating time (steam ironing) approx. 2 minutes
Boiler pressure 3 bar

SDBS 2400 A1
■ 8 │ GB│IE
Operating elements
(See fold-out page for illustrations)
Figure A:
1Steam button
2Temperature control
3Heat-up indicator lamp
4Connecting hose
5Placement area
6Sole of the iron
Figure B:
7Shaft cover
8Limescale filter
9Water tank filler cap
0Water tank
Figure C:
q"eco" steam indicator lamp
w"max" steam indicator lamp
eindicator lamp
r"reset" button
tOn/Off Button
zSteam strength button

SDBS 2400 A1 GB│IE │ 9 ■
Setting up and connecting
Package contents and transport inspection
The appliance is supplied with the following components as a standard:
● Steam Generator Iron
● Velcro tape for fastening the mains cable
● Operating instructions
NOTE
► Check the package for completeness and signs of visible damage.
► If the delivery is incomplete or damage has occurred as a result of defec-
tive packaging or during transport, contact the Service hotline (see section
Service).
Unpacking
♦ Remove all parts of the appliance and the operating instructions from the box.
♦ Remove all packaging material and protective film.
WARNING
Do not allow children to play with packaging materials. There is risk of suffoca-
tion.
Set-up location requirements
The work service on which you place the base station must be stable, flat and
heat-resistant.
Electrical connection
♦ Insert the power cable plug into a properly connected and earthed mains
power socket which supplies the voltage stated in the “Technical data”
section.

SDBS 2400 A1
■ 10 │ GB│IE
Handling and use
This section provides you with important information on handling and using the
appliance.
Before first use
♦ Clean the sole of the iron 6using a slightly moist cloth.
♦ To remove any leftover production residues, iron an old, clean cloth a few times.
Filling the water tank
NOTE
Use only tap water or distilled water.
If the mains water in your location is rated as hard, it is recommended that you
mix the mains water with some distilled water. Otherwise limescale deposits
can adversely affect the appliance functions.
Mix the tap water with distilled water in accordance with the following table:
Water hardness Ratio of distilled water to
tap water
very soft/soft -
medium 1:1
hard 2:1
very hard 3:1
The water hardness level can be queried at your local water works.
Do not add water with any additives (such as starch, perfume, softeners or
other chemicals) to the water tank 0. The appliance could be damaged,
since residues can form in the steam chamber. These residues can soil the
goods being ironed if they are deposited through the steam openings.
1) Disconnect the plug from the mains socket.
2) Open the water tank filler cap 9.
This is marked with the symbol: .
3) Fill the water tank 0. Do not fill above the MAX marking in the water tank 0.
4) Close the water tank filler cap 9.
NOTE
► Do not tip or swivel the steam station when the water tank 0 is full. If you
do, water may be discharged from the filler opening.
5) Insert the plug into a mains power socket.

SDBS 2400 A1 GB│IE │ 11 ■
Ironing without steam
CAUTION! PROPERTY DAMAGE!
► Check the care instructions on the labels in garments to see if they are suit-
able for being ironed, and at which temperature setting.
► If the clothing care instructions forbid ironing ( ), the garment must not
be ironed. Ignoring this warning could lead to permanent damage to the
clothing item.
NOTE
Always set the temperature control 2to the lowest level (min) before switching
the appliance on. The symbols on the temperature control 2correspond to
the following settings:
Symbol Material Temperature
(approx.)
min - Synthetics 70 - 120 °C
Silk 70 - 120 °C
Wool 100 - 160 °C
( - max) Cotton/linen 140 - 210 °C
1) Press the On/Off button tto turn the appliance on. The indicator lamp
integrated in the On/Off button tlights up and the “max” steam indicator
lamp wflashes.
2) Rotate the temperature control 2to set the required ironing temperature.
3) The heat-up indicator lamp 3lights up during heating. As soon as the heat-
up indicator lamp 3goes out, the set temperature has been reached and
you can start ironing.
4) Put the iron down on the base station placement area 5after ironing. Set
the temperature control 2to “min”.
5) Press the On/Off button tto turn the appliance off. The indicator lamp
integrated in the On/Off button tand the “max” steam indicator lamp w
go out.
6) Pull out the plug from the mains socket.

SDBS 2400 A1
■ 12 │ GB│IE
Steam ironing
1) Press the On/Off button tto turn the appliance on. The indicator lamp
integrated in the On/Off button tlights up and the “max” steam indicator
lamp wflashes.
2) Turn the temperature control 2to set the required ironing temperature. The
temperature control 2must be set to a minimum of to produce steam.
3) The heat-up indicator lamp 3lights up during heating. As soon as the heat-
up indicator lamp 3goes out, the set temperature has been reached.
4) Press the steam strength z button to set the required steam strength:
–If the “max” steam indicator lamp wis lit up, a lot of steam will be
produced.
–If the “eco” indicator lamp qis lit up, less steam will be produced.
As soon as the “eco” qor “max” windicator lamps light up continuously
(depending on the setting) you can start steam ironing.
5) While you are ironing, you can now press and hold the steam button 1to
continuously spray steam onto the goods to be ironed from the sole of the
iron 6. Release the steam button 1to stop producing steam.
NOTE
► When you press the steam button 1, it can take a few seconds until steam
is issued from the sole of the iron 6.
6) Put the iron down on the base station placement area 5after ironing.
Set the temperature control 2to “min”.
7) Press the On/Off button tto turn the appliance off. The indicator lamp
integrated in the On/Off button tand the “eco” qor “max” wsteam
indicator lamps (depending on setting) will go out.
8) Disconnect the plug from the mains socket.

SDBS 2400 A1 GB│IE │ 13 ■
Vertical steam ironing
1) Hang the fabric to be ironed on a clothes hanger which is hung against
a heat-resistant surface.
2) Rotate the temperature control 2to set the required ironing temperature.
The temperature control 2must be set to a minimum of to produce
steam.
3) Wait until the heat-up indicator lamp 3goes out.
4) Press the steam strength button z to set the required steam strength:
–If the “max” steam indicator lamp wis lit up, a lot of steam will be
produced.
–If the “eco” indicator lamp qis lit up, less steam will be produced.
As soon as the “eco” qor “max” windicator lamps light up continuously
(depending on the setting) you can start steam ironing.
5) Hold the steam iron in a vertical position and press the steam button 1.
6) Touch the fabric lightly with the sole of the iron 6 and steam it to remove
creases.
7) Release the steam button 1to stop producing steam.
Refilling with water
1) Put the iron down on the base station placement area 5.
2) Refill the water tank as described in the section “Filling the water tank”.

SDBS 2400 A1
■ 14 │ GB│IE
Cleaning and maintenance
WARNING!
► Before cleaning the appliance, always pull the plug out of the mains power
socket.
► Allow the appliance to cool down completely if necessary.
► Never immerse the appliance in water to clean it.
CAUTION
► To avoid irreparable damage to the appliance, ensure that no moisture
penetrates it during cleaning.
► Do not use abrasive or chemical cleaners, wire brushes or other abrasive
objects to clean the appliance's surfaces.
Replacing the limescale filter
NOTES
Note the following information when handling the limescale filter 8:
Not suitable for consumption/drinking!
Keep the limescale filter 8out of the reach of children.
Store the spare limescale filter in a cool, dry location.
After pressing the steam button 1for a total of around 11 hours, it is time to
replace the limescale filter 8.
The appliance will notify you when the limescale filter 8needs replacing:
As soon as the indicator lamp elights up, the limescale filter 8must be
replaced.
The service life of the limescale filter 8can vary considerably depending on the
water hardness.
NOTE
If the appliance is used regularly, it is advisable to always have a replace-
ment limescale filter available. This means that you can replace the limescale
filter 8immediately as soon as the indicator lamp e lights up (see
section Ordering replacement parts).

SDBS 2400 A1 GB│IE │ 15 ■
1) Switch the appliance off using the On/Off button tand allow it to cool
down.
2) Remove the power plug from the mains power socket.
3) Remove the iron from the base station and put it to one side.
4) Open the shaft cover 7.
CAUTION
Damage to the appliance!
Never pour water into the limescale filter shaft!
5) Pull the limescale filter 8upwards out of the limescale filter shaft.
6) Place the new limescale filter 8in the limescale filter shaft and press it down
until it is firmly seated.
7) Close the shaft cover 7.
8) Insert the plug into a mains power socket and switch on the appliance using
the On/Off switch t.
9) Press the “reset” button rfor about 3 seconds. The indicator lamp e
goes out.
You have now completed replacement of the limescale filter 8.
Cleaning the appliance
♦ Clean the iron surfaces and the base station using only a soft, slightly moist
cloth.
♦ Clean the sole of the iron 6 with a soft moist cloth. Ensure that the sole of
the iron 6is not scratched.
♦ Pour the residual water in the water tank 0into a basin. To do this, put the
iron down to one side and open the water tank filler cap 9.
♦ The appliance must be completely dry before further use.

SDBS 2400 A1
■ 16 │ GB│IE
Troubleshooting
Fault Possible cause Remedy
The appliance is
not working.
Voltage supply error. Ensure that the plug is firmly
inserted into the power socket.
The appliance is not switched on. Switch the appliance on using
the On/Off button t.
The appliance
does not produce
any/produces too
little steam.
There is not enough water in the
water tank 0.
Fill the water tank with water 0.
The appliance has not heated up
sufficiently.
Wait until the temperature indica-
tor lamp 3 goes out.
The temperature control 2has
been set in the –
range.
Set a temperature suitable for
steam ironing (setting range ).
The steam unit has not been used
for a long time or is being used
for the first time.
Press and hold down the steam
button 1. The steam takes a little
time until it discharges from the
sole of the iron 6.
Water drips out
of the sole of the
iron 6.
If steam ironing is paused briefly,
the cooling steam condenses
in the connecting hose 4. This
leads to drip formation.
This is normal. Hold the iron over
a collecting cloth or container
and press the steam button 1.
Steam will discharge from the
sole of the iron 6instead of
water after a few seconds. You
can now continue ironing.
The temperature you have set is
too low for steam ironing.
Set a temperature suitable for
steam ironing (setting range ).
Wet areas occur
on the goods be-
ing ironed.
Such areas can be caused by
steam condensing on the ironing
board.
First, wipe any wet areas off
the ironing board and then iron
the wet areas on the fabric dry
without steam.
NOTE
► If you are unable to resolve the problem by taking any of the aforemen-
tioned steps, please contact the service department (see section Service).

SDBS 2400 A1 GB│IE │ 17 ■
Storage/disposal
Storage
■ Clean the appliance as described above.

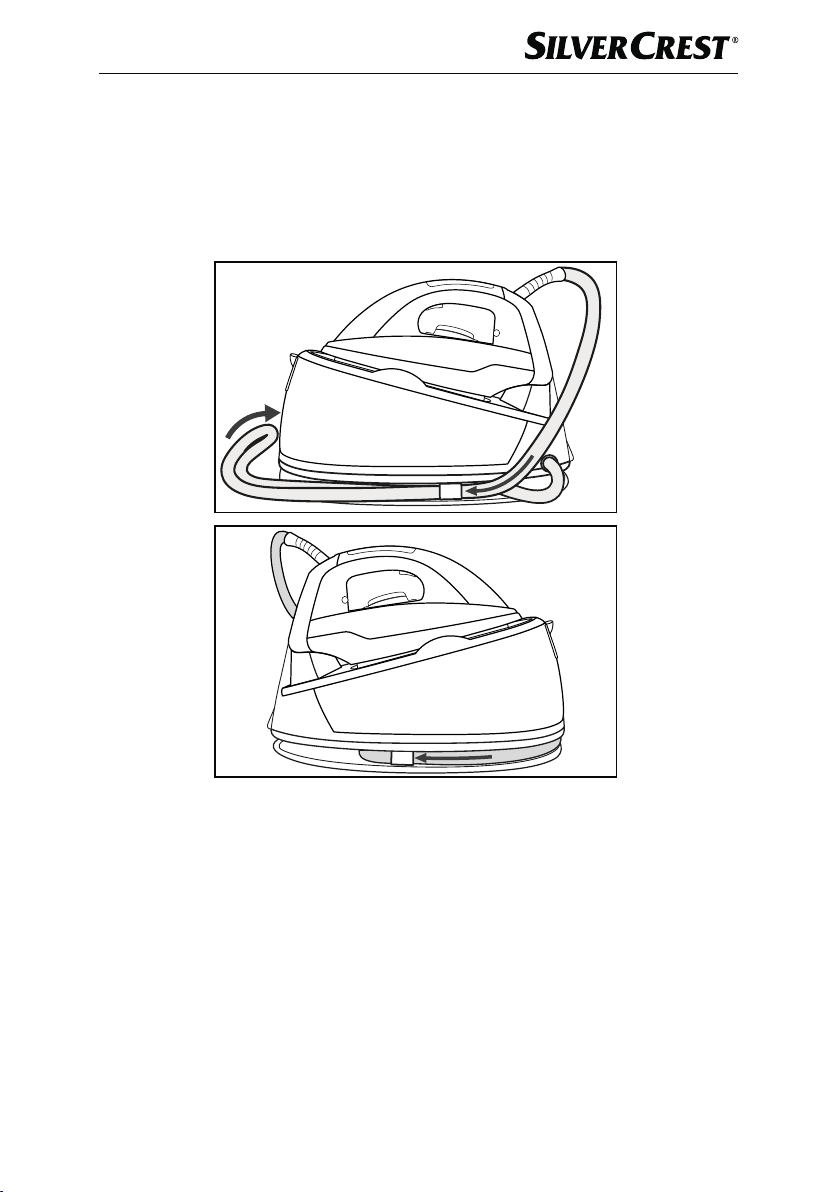

■ Fold the connecting hose 4in middle and push it into the recess in the
appliance:
■ Wind the mains cable up and fasten it with the Velcro tape supplied.
■ Store the appliance in a dry and clean location.
