GB│IE│ 1 ■
SHBR 560 B1
Contents
Introduction...................................................2
Information about these operating instructions .................................. 2
Copyright............................................................... 2
Proper use .............................................................. 2
Safety information .............................................3
Description of the appliance .....................................6
Package contents and transport inspection .........................7
Use..........................................................7
Assembling the appliance .................................................. 7
Filling the fresh water tank .................................................. 9
Handling and operation........................................11
Continuous spray function .................................................11
Cleaning hard floors .....................................................11
Cleaning carpets ........................................................ 13
Cleaning and maintenance .....................................14
Cleaning the waste water tank ............................................. 15
Self-cleaning function.....................................................18
Manual cleaning ........................................................18
Replacing the dirt filter....................................................21
Ordering replacement parts ....................................21
Storage .....................................................21
Troubleshooting ..............................................23
Disposal.....................................................25
Disposal of the appliance ................................................. 25
Disposal of packaging.................................................... 25
Technical data ................................................26
Kompernass Handels GmbH warranty............................26
Service................................................................28
Importer ............................................................... 28

■ 2 │ GB│IE SHBR 560 B1
Introduction
Information about these operating instructions
Congratulations on the purchase of your new appliance.
You have selected a high-quality product.
The operating instructions are part of this product. They contain impor-
tant information about safety, usage and disposal.
Before using the product, please familiarise yourself with all operating and safety
instructions. Use the product only as described and for the range of applications
specified. Please also pass these operating instructions on to any future owner.
Copyright
This documentation is protected by copyright.
Any copying or reproduction, including in the form of extracts, or any reproduc-
tion of images (even in a modified state), is permitted only with the written
authorisation of the manufacturer.
Proper use
This appliance is designed exclusively for cleaning indoor floors and carpets.
It is not intended for any other purpose nor for use beyond the scope described.
The appliance is not intended for use in commercial or industrial environments.
The manufacturer accepts no responsibility for damage caused by failure to
observe these instructions, improper use or repairs, unauthorised modifications
or the use of unapproved replacement parts. The operator bears sole liability.

GB│IE│ 3 ■
SHBR 560 B1
Safety information
RISK OF ELECTRICAL SHOCK!
► Connect the appliance only to a properly installed mains
power socket supplying a mains power voltage of
220–240 V ∼, 50–60 Hz.
► Always pull on the plug to disconnect the appliance from
the mains. Do not pull on the cable itself.
► Do not kink or crush the power cable, and route the cable
so that it cannot be stepped on or tripped over.
► To avoid risks, arrange for defective plugs and/or power
cables to be replaced at once by qualified technicians or
our Customer Service Department.
► Ensure that the power cable does not become wet or damp
during use. Route the cable in such a way that it cannot be
crushed or damaged.
► Do not drive the appliance over the power cable.
► In case of a malfunction, remove the plug from the socket.
► Remove the mains plug from the mains socket before filling
the appliance with water, changing accessories or cleaning it.
► To prevent risks, stop using the appliance immediately if it
is damaged.
► Operate the appliance only with dry hands and never with-
out shoes (i.e. not barefoot). This will help reduce the effect
of an electric shock in the event of a malfunction.
Use the appliance only in indoor areas, not out-
doors.

■ 4 │ GB│IE SHBR 560 B1
RISK OF ELECTRICAL SHOCK!
► Never immerse the appliance in water or other liquids.
► Never aim the appliance at moisture-sensitive objects, floors
or surfaces.
► This appliance may be used by children aged 8 years and
above and by persons with limited physical, sensory or men-
tal capabilities or lack of experience and knowledge, pro-
vided that they are under supervision or have been told how
to use the appliance safely and are aware of the potential
risks.
Do not allow children to use the appliance as a toy.
► Cleaning and user maintenance tasks may not be carried
out by children unless they are supervised.
WARNING! RISK OF INJURY!
► Use only the original accessory parts recommended by the
manufacturer for this appliance.
► Only use the appliance when it is properly and completely
assembled.
► The appliance may not be used if it has been dropped, if
there are any obvious signs of physical damage or if it is
leaking.
► Always pull the plug out of the power socket during each
break in use, as well as after use and before any cleaning.
► Be particularly careful while using the appliance on steps or
stairs.
► Do not use the appliance to vacuum up chemicals, poison-
ous materials or inflammable liquids.

GB│IE│ 5 ■
SHBR 560 B1
ATTENTION! PROPERTY DAMAGE!
► Always comply with the cleaning instructions of the carpet
manufacturer. Before cleaning, check also whether the
carpet is suitable for cleaning with the appliance.
► Do not leave the appliance standing on wooden floors for
any length of time when it is switched on. The wood could
swell.
► Do not operate the appliance with an empty water tank.
Otherwise, the pump could run empty and overheat.
► Do not insert any objects into the openings of the appliance.
► Do not use the appliance if the openings are blocked. Keep
the openings free of dirt, fluff, hairs or anything that could
impede the air circulation.
► Make sure that you do not vacuum up hard, pointed or
sharp objects (e.g. glass, nails, screws, coins, etc.) with the
appliance.
► Ensure that the appliance, the power cable and the plug do
not come into contact with heat sources such as hotplates or
naked flames.
► Use only the type and quantity of liquids listed in these
operating instructions when operating the appliance.
► Never leave the appliance unattended during operation.

■ 6 │ GB│IE SHBR 560 B1
Description of the appliance
(See fold-out page for illustrations)

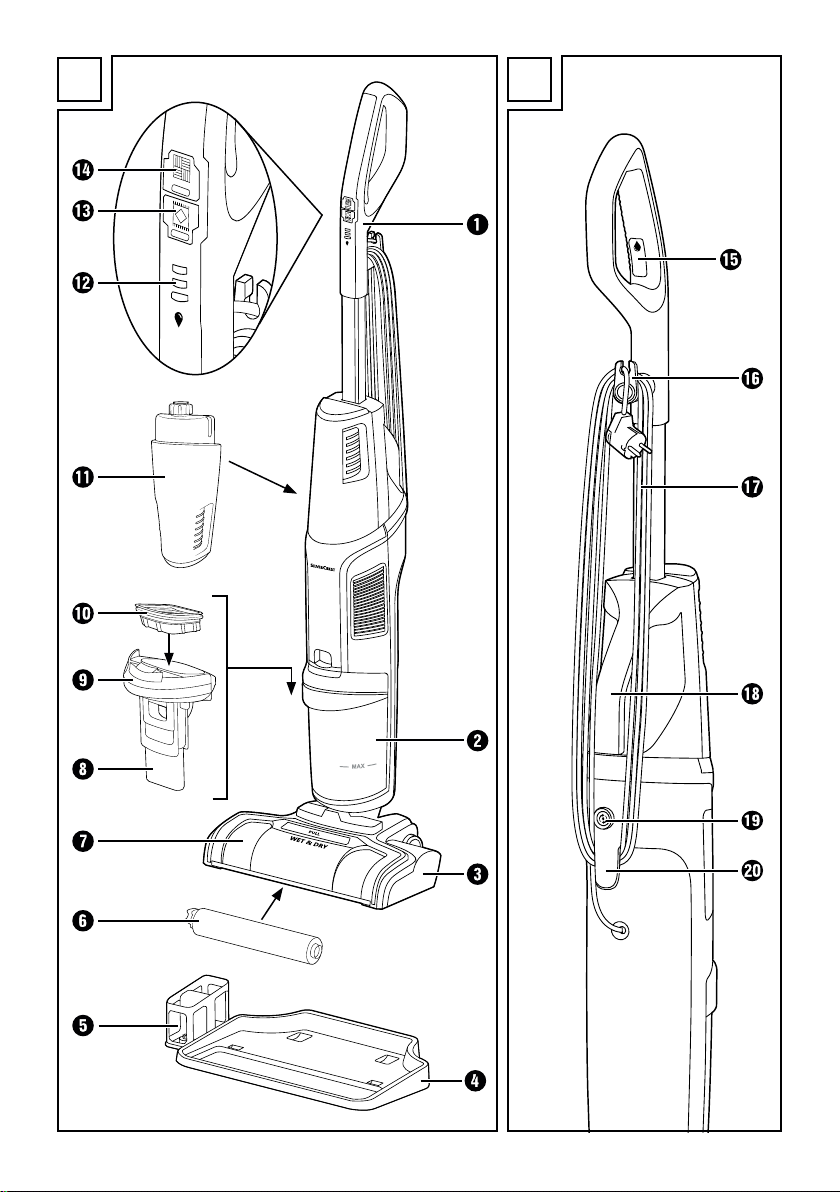

Figure A:
1Hand element with handle
2Waste water tank
3Foot section with brush chamber
4Storage tray
5Rotary brush holder
6Rotary brush
7Splash guard
8Float
9Lid of the waste water tank
0Dirt filter
qFresh water tank
wCleaning solution display
eCarpet switch (with LED)
rHard floor switch (with LED)
Figure B:
tCleaning solution switch
zUpper cable retainer
uPower cable with mains plug
iCarrying handle
oSelf-cleaning switch
pLower cable retainer

GB│IE│ 7 ■
SHBR 560 B1
Package contents and transport inspection
ƇRemove all parts of the appliance and the operating instructions from the
carton.
ƇRemove all packaging materials and any films and labels.
Check the contents of the package. The package contents include the following
components (see fold-out page for illustrations):
 Floor cleaner
 Hand element
 Storage tray
 Rotary brush holder
 Operating instructions
NOTE
► Check the package for completeness and signs of visible damage.
► If the delivery is incomplete or damage has occurred as a result of defec-
tive packaging or during transport, contact the Service hotline (see section
Service).
Use
Assembling the appliance

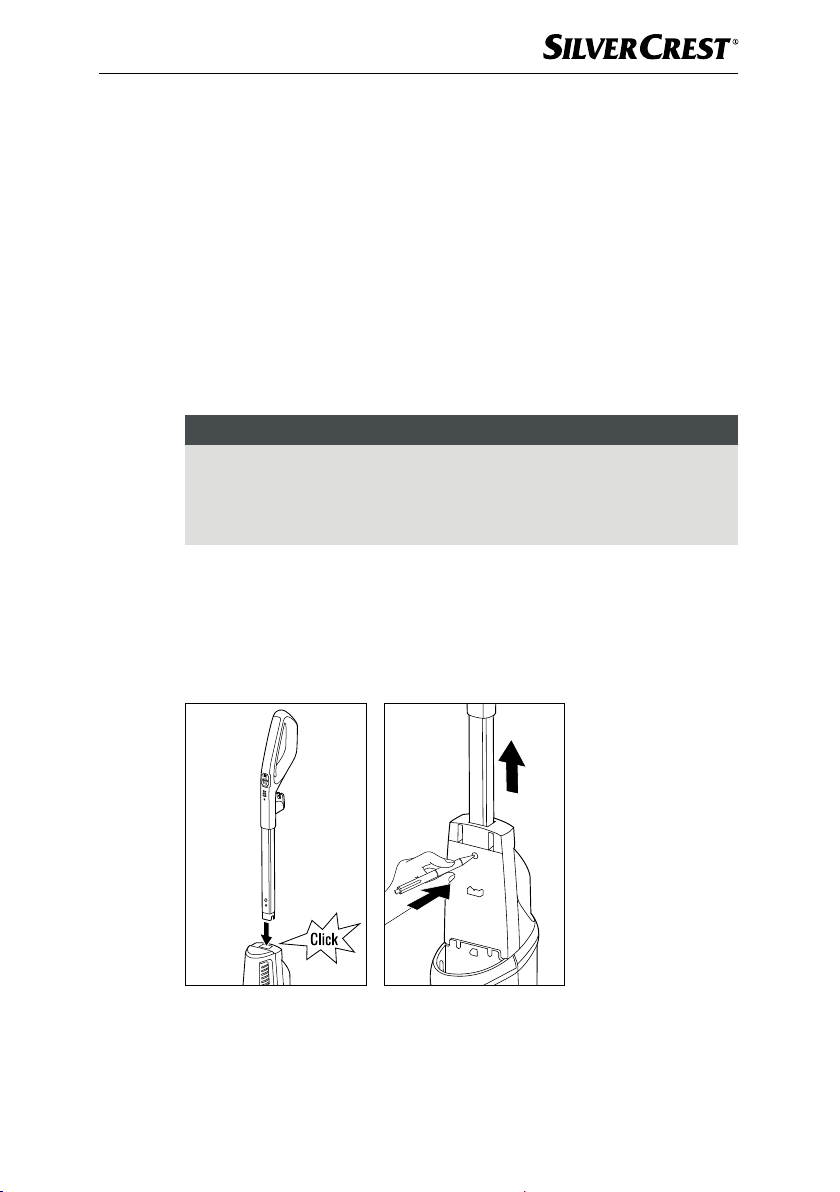

ƇSlide the hand element 1into the opening on the top of the appliance until the
hand element 1clicks into the opening (see fig. 1).
Fig. 1 Fig. 2

■ 8 │ GB│IE SHBR 560 B1
NOTE
► If you want to remove the hand element 1from the appliance, you must
first remove the fresh water tank qfrom the appliance to reach the catch
of the hand element 1 (see section Filling the fresh water tank). Once
you have removed the fresh water tank q, press the catch on the hand
element 1out of the catch opening with a pointed object. You can then
pull the hand element 1back out of the appliance (see fig. 2).
ƇWind the power cable u completely around the upper and lower cable
retainers z/p(see fig. 3).
Fig. 3
ƇThe parking and cleaning station consists of a storage tray 4and a rotary
brush holder 5(see fig. 4). To assemble the parking and cleaning station, slide
the rotary brush holder 5sideways into the opening on the storage tray 4.
Slide the rotary brush holder 5downwards into the opening until it sits firmly in
place on the side of the storage tray 4(see fig. 5).
+
Fig. 4 Fig. 5

GB│IE│ 9 ■
SHBR 560 B1
Filling the fresh water tank
ATTENTION! PROPERTY DAMAGE!

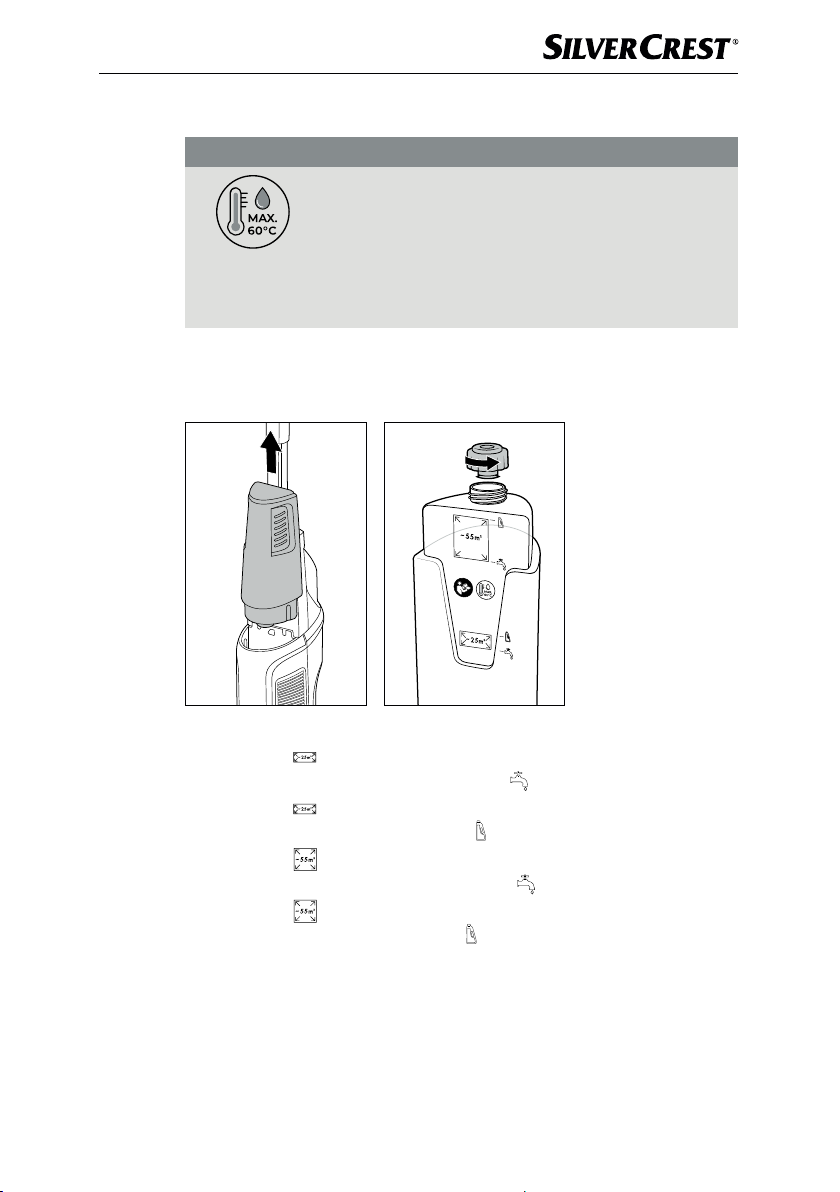

► Fill the fresh water tank qonly with cold to warm tap water
(up to max. 60°C) or distilled water.
Do not use boiling water.
► Never operate the appliance without water in the fresh water tank q.
► Use only standard commercial, non-foaming floor cleaners as cleaning
agents.

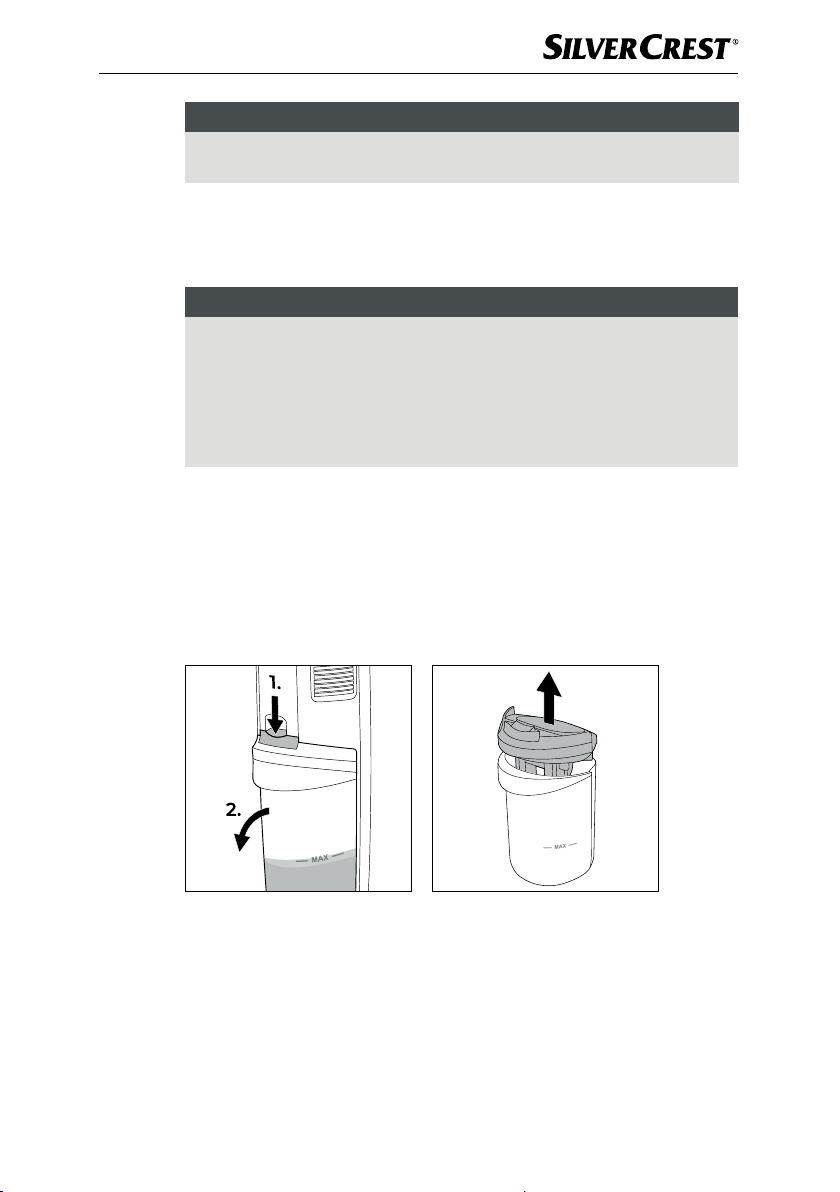

ƇGrasp the fresh water tank qby the gripping grooves on the side and pull it
upwards out of the appliance (see fig. 6).
ƇFlip the fresh water tank qover and unscrew the lid. (see fig. 7).
Fig. 6 Fig. 7
ƇFor small areas (up to 25 m), fill the fresh water tank qwith tap water
or distilled water up to the first fill level marking (see fig. 8).
ƇFor small areas (up to 25 m), fill the fresh water tank qwith cleaning
solution up to the second fill level marking (see fig. 8).
ƇFor large areas (up to 55 m), fill the fresh water tank qwith tap water
or distilled water up to the third fill level marking (see fig. 9).
ƇFor large areas (up to 55 m), fill the fresh water tank qwith cleaning
solution up to the fourth fill level marking (see fig. 9).

■ 10 │ GB│IE SHBR 560 B1

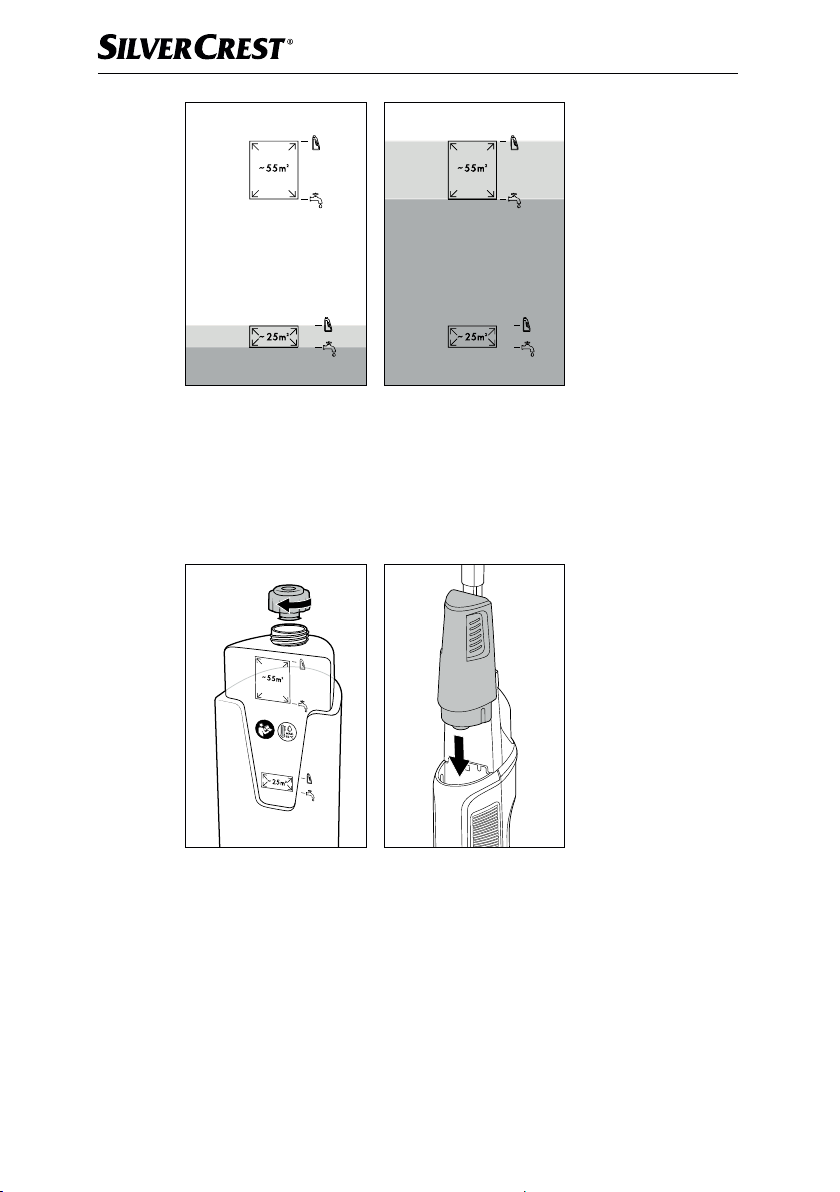

Fig. 8 Fig. 9
ƇClose the lid of the fresh water tank q(see fig. 10).
ƇFlip the fresh water tank qover and slide it back into the opening at the top on
the front of the appliance (see fig. 11).
ƇPush the fresh water tank qdown along the grooves in the opening until the
fresh water tank qaudibly snaps into place and sits firmly in the appliance.
Fig. 10 Fig. 11

GB│IE│ 11 ■
SHBR 560 B1
Handling and operation
ATTENTION! PROPERTY DAMAGE!
► While working with the appliance, make sure that the rotary brush 6does
not get blocked by loose objects lying around on the floor or by carpet
edges. These can damage the rotary brush 6and stop it from working
properly.
NOTE
► Before finishing the cleaning process, use the appliance approx. 15
seconds without adding cleaning solution. This prevents larger amounts of
water residue being left behind and gives you a better cleaning result.
► A small amount of water may remain on the floor after cleaning for func-
tional reasons. In this case, remove the remaining water from the floor with
a cloth.
Continuous spray function
The appliance has a continuous spray function that allows you to continuously
apply cleaning solution to the rotary brush 6without having to hold down the
cleaning solution switch t:
ƇPress the cleaning solution switch t twice briefly to activate the continuous
spray function.
ƇPress the cleaning solution switch t twice briefly again to deactivate the
continuous spray function.
Cleaning hard floors
Once the appliance is assembled and the fresh water tank qis filled with water
and cleaning solution:

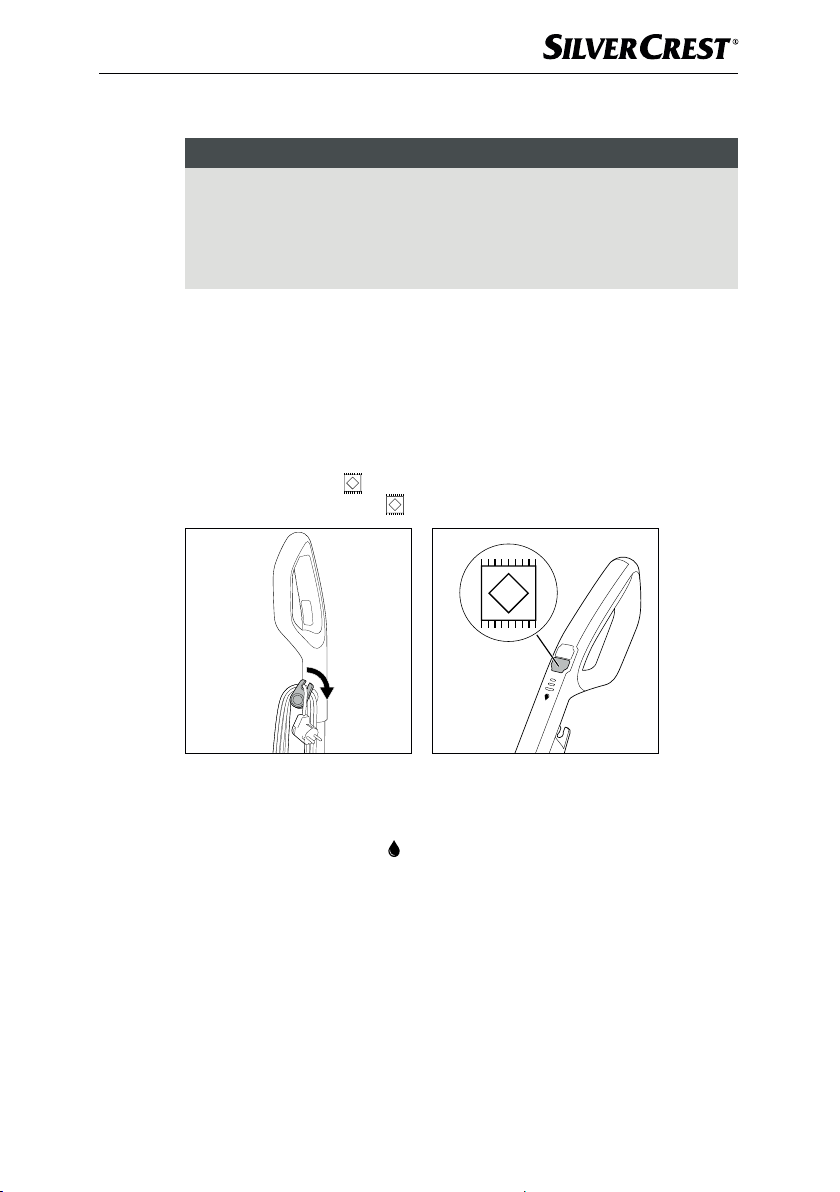

ƇUnwind the power cable u completely from the upper and lower cable retainers
z/p. To unwind the power cable uquickly from the cable retainers z/p,
pull the upper cable retainer z out a little way and turn it downwards (see
fig. 12).
ƇInsert the plug into the mains power socket.

■ 12 │ GB│IE SHBR 560 B1
ƇPress the hard floor switch r to switch the appliance on (see fig. 13).
The LED on the hard floor switch rlights up blue.
Fig. 12 Fig. 13

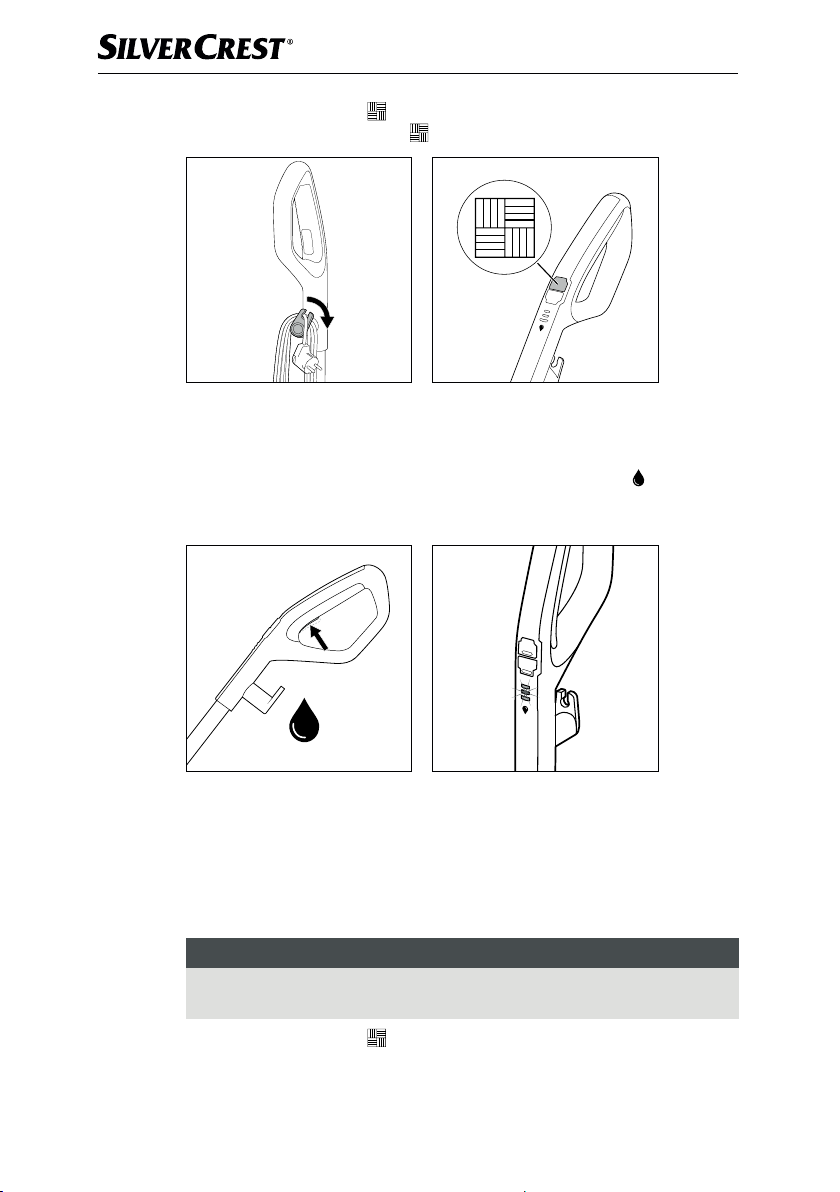

ƇBefore each use, press the cleaning solution switch ttwice briefly to activate the
continuous spray function and add cleaning solution to the rotary brush 6so that
it is ready for operation (see fig. 14). The cleaning solution display w flashes
alternately blue when the continuous spray function is activated or the cleaning
solution switch t is being held down (see fig. 15).
2 x
Fig. 14 Fig. 15
ƇActivate the continuous spray function during cleaning with both forward and
backward movements with the appliance. This way, the cleaning solution is
evenly applied to the hard floor via the rotary brush 6.
ƇPress the cleaning solution switch ttwice briefly again to deactivate the
continuous spray function.
NOTE
► For stubborn soiling, move the appliance over the soiled areas several times
and activate the continuous spray function.
ƇPress the hard floor switch ragain to switch the appliance off (see fig. 13).

GB│IE│ 13 ■
SHBR 560 B1
Cleaning carpets
NOTE
► Before using the appliance to clean a carpet, test the appliance on an
inconspicuous area of the carpet.
► Before cleaning, check the carpet manufacturer's label for special care
instructions. The appliance is not suitable for sensitive carpets (e.g. silk,
leather, flokati etc.).
Once the appliance is assembled and the fresh water tank qis filled with water
and cleaning solution:
ƇUnwind the power cable u completely from the upper and lower cable retainers
z/p. To unwind the power cable uquickly from the cable retainers z/p,
pull the upper cable retainer z out a little way and turn it downwards (see
fig. 16).
ƇInsert the plug into the mains power socket.
ƇPress the carpet switch eto switch the appliance on (see fig. 17).
The LED on the carpet switch elights up blue.
Fig. 16 Fig. 17
ƇBefore each use, press the cleaning solution switch ttwice briefly to add clean-
ing solution to the rotary brush 6so that it is ready for use (see fig. 18).
The cleaning solution display w flashes alternately blue when continuous spray
function is activated or the cleaning solution switch t is being held down
(see fig. 19).

■ 14 │ GB│IE SHBR 560 B1
2 x
Fig. 18 Fig. 19
ƇActivate the continuous spray function during cleaning with both forward and
backward movements with the appliance. This way, the cleaning solution is
evenly applied to the hard floor via the rotary brush 6.
ƇPress the cleaning solution switch ttwice briefly again to deactivate the
continuous spray function.
NOTE
► When cleaning carpets, if you activate the cleaning solution switch t,
twice as much cleaning solution is applied to the rotary brush 6as during
hard floor cleaning.
► To allow carpets to dry more quickly after cleaning, move the appliance
several times over the carpet. Do not activate the continuous spray function
while doing so and do not hold down the cleaning solution switch t.
ƇPress the carpet switch eagain to switch the appliance off (see fig. 17).
Cleaning and maintenance
RISK OF ELECTRICAL SHOCK!
► Switch the appliance off and pull out the mains plug before cleaning the
appliance!
ATTENTION! PROPERTY DAMAGE!
► Do not use caustic, abrasive or solvent-based cleaning materials. These can
damage the surfaces of the appliance.
NOTE
► Empty the waste water tank 2after every use.
► Clean the dirt filter 0after each use and let it dry completely before
putting it back into the waste water tank 2.

GB│IE│ 15 ■
SHBR 560 B1
NOTE
► After every use, carry out a self-cleaning of the appliance (see section
Self-cleaning function).
ƇClean the appliance with a moist cloth or rag. For stubborn soiling use a mild
detergent on the cloth.
Cleaning the waste water tank
NOTE
► Empty the waste water tank 2after every use and as soon as the dirty
water has reached the MAX marking.
► When emptying the waste water tank 2make sure that the drain (e.g. the
wash basin) is not blocked by hair or coarse dirt.
► Once the waste water tank 2is full, the float 8causes the suction motor
to switch off automatically.
ƇProceed as follows to empty the waste water tank 2:
1. Press the knob at the top of the waste water tank 2downwards (see fig. 20).
Hold the handle of the waste water tank 2while pressing the knob down-
wards.
2. Pull the waste water tank 2forwards out of the appliance (see fig. 20).
ƇPull the lid of the waste water tank 9upwards out of the waste water tank 2
(see fig. 21).
Fig. 20 Fig. 21
ƇTip out the dirty water and dirt (see fig. 22).
ƇRinse the waste water tank 2in hot running water (see fig. 23).

■ 16 │ GB│IE SHBR 560 B1
Fig. 22 Fig. 23
ƇRemove the dirt filter 0from the waste water tank 2by pulling on the side
of the seal on the dirt filter 0with your fingers. Pull the dirt filter 0upwards out
of the lid of the waste water tank 9(see Fig. 24).
ƇClean the dirt filter 0, the float 8 and the lid of the waste water tank 9 in hot
running water (see fig. 25). If necessary, use a mild detergent.
Fig. 24 Fig. 25
ƇIf necessary, clean the opening in which the waste water tank 2is located on
the appliance with a damp cloth or rag (see fig. 26).
Fig. 26

GB│IE│ 17 ■
SHBR 560 B1
ƇAllow the dirt filter 0, the waste water tank 2 and the lid of the waste water
tank 9 to dry completely (see fig. 27).
ƇOnce the parts are fully dry, replace the dirt filter 0back in the lid of the waste
water tank 9(see fig. 28).
Fig. 27 Fig. 28
ƇPlace the lid of the waste water tank 9back onto the waste water tank 2
(see fig. 29).
ƇFit the waste water tank 2back onto the appliance by inserting the bottom
of the waste water tank 2first. Then push the waste water tank 2 into the
appliance until the waste water tank 2 audibly clicks into place (see fig. 30).
Fig. 29 Fig. 30
