Silverline 4207 User manual

1
4207
4207
Read the instructions before starting any work!

2
4207
1 TECHNICAL DRAWING 3
2 WARNINGS AND SAFETY MEASURES 4
2.1 Risk of Death - Risk of Poisoning 6
3 USAGE WITH OR WITHOUT CARBON FILTER 8

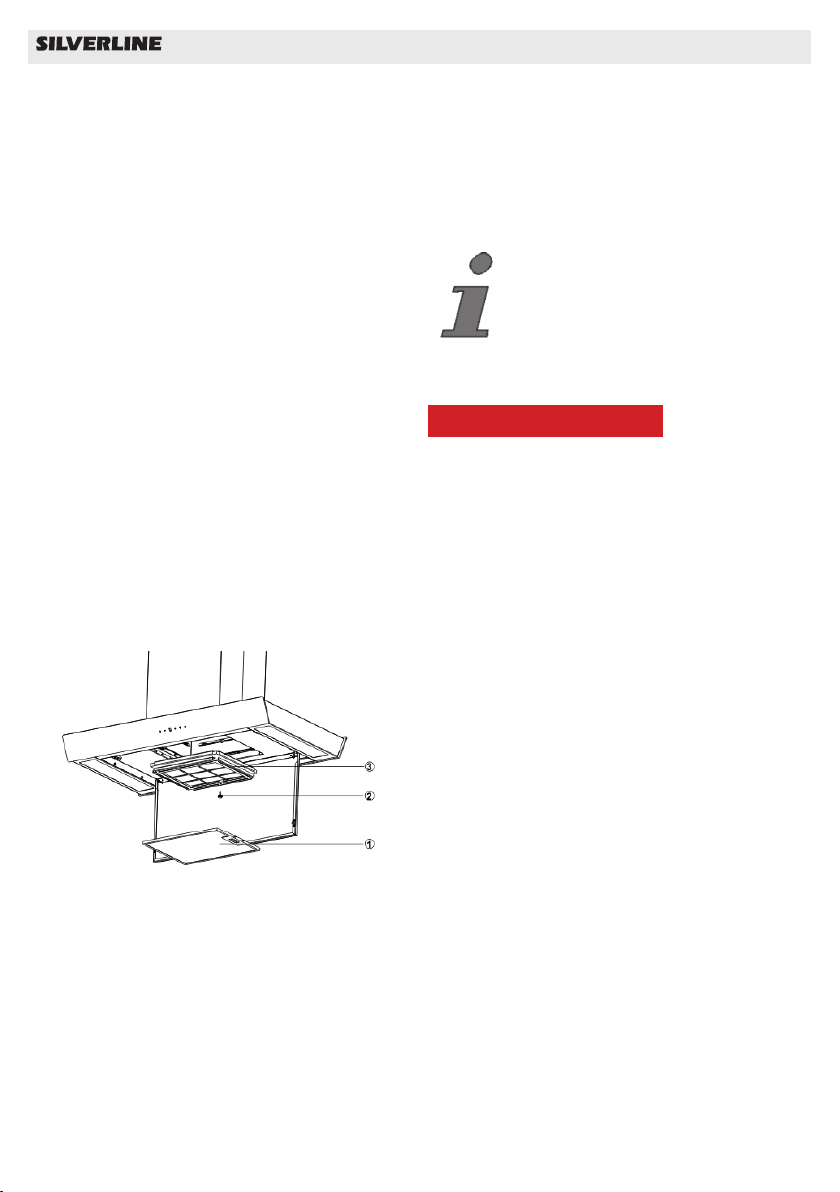

3.1 Carbon Filter Replacement 8
3.2 AF 90 Carbon Filter Replacement 8
4 CLEANING AND PREVENTIVE MAINTENANCE 9
4.1 Washing in the Dishwasher 9
4.1 Hand Washing 9
5 INSTALLATION OF THE DEVICE 10
5.2 Installation and Unpacking 10
5.3 Installation and Unpacking 10
6 PACKAGE CONTENT 11
7 OVERVIEW OF THE HOOD 12
8 INSTALLATION OF THE PRODUCT 13

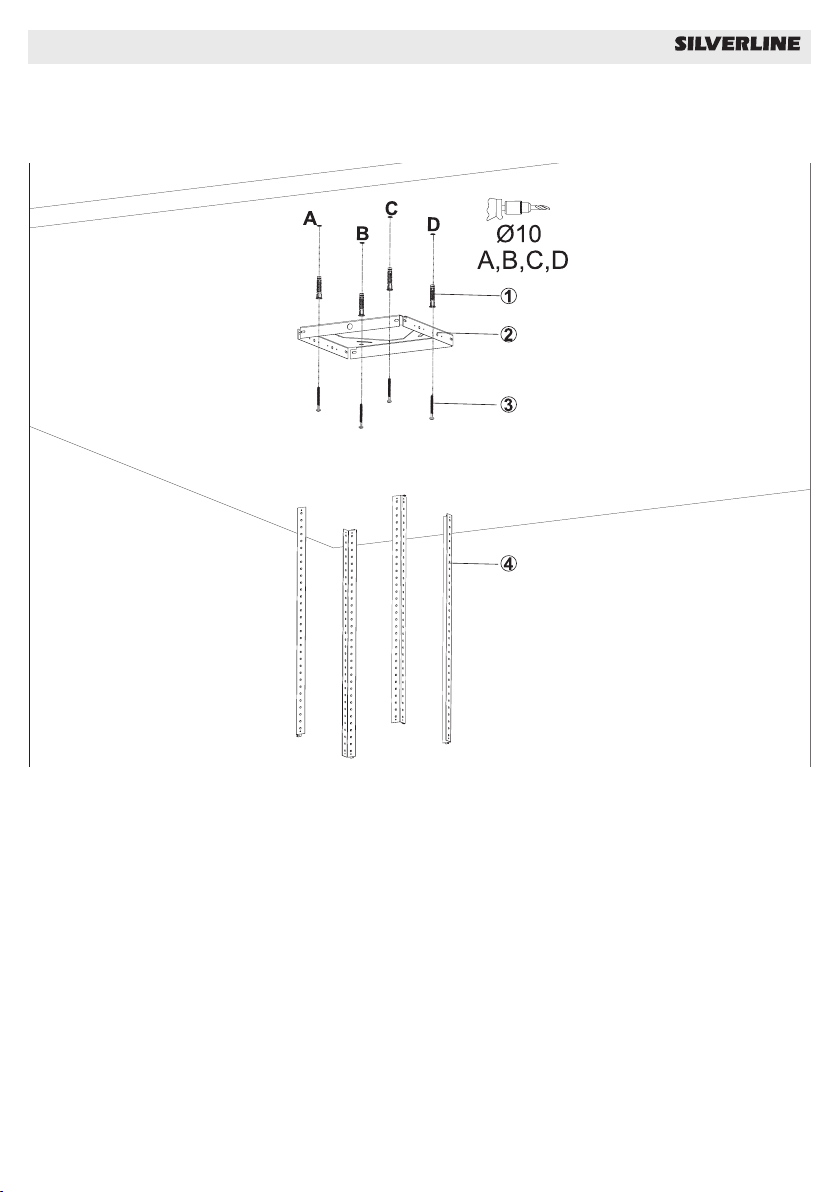

8.1 Installation Scheme and Parts Section 1 13

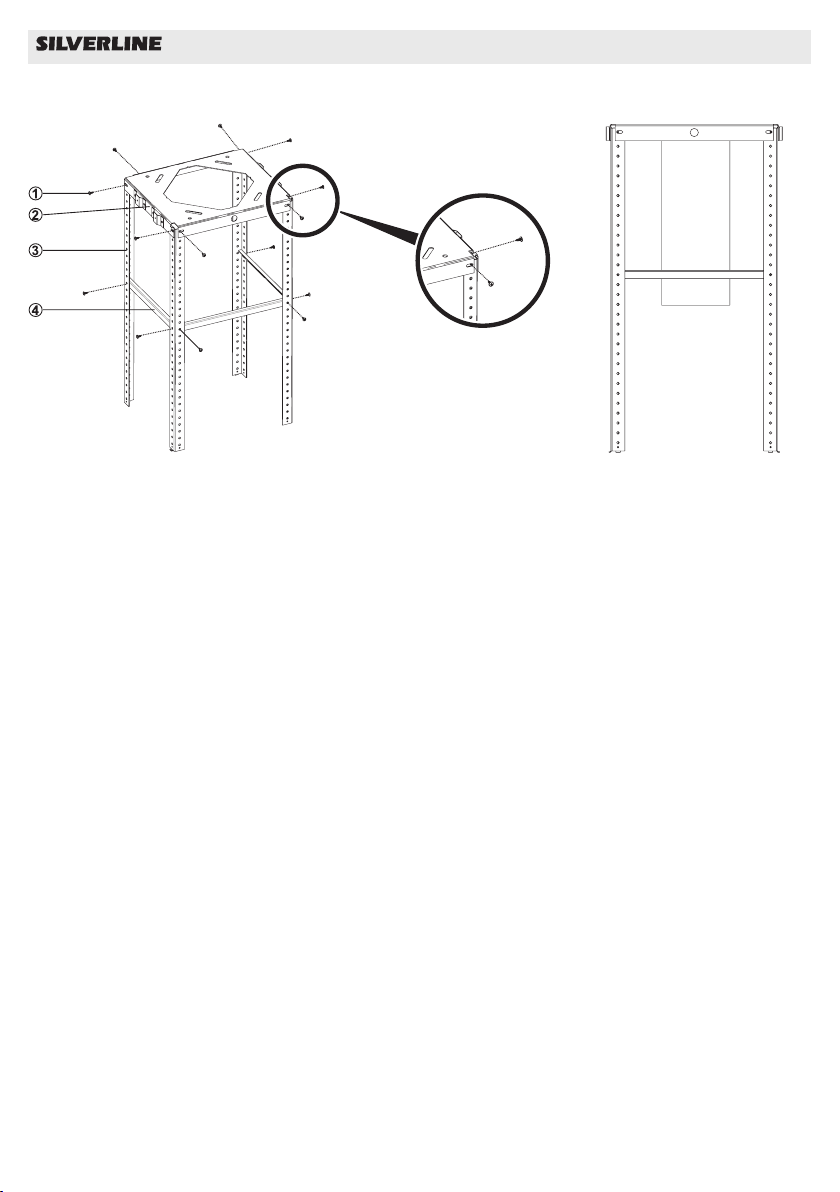

8.2 Installation Scheme and Parts Section 2 14
8.3 Installation Scheme and Parts Section 3 15
8.3 Installation Scheme and Parts Section 4 16

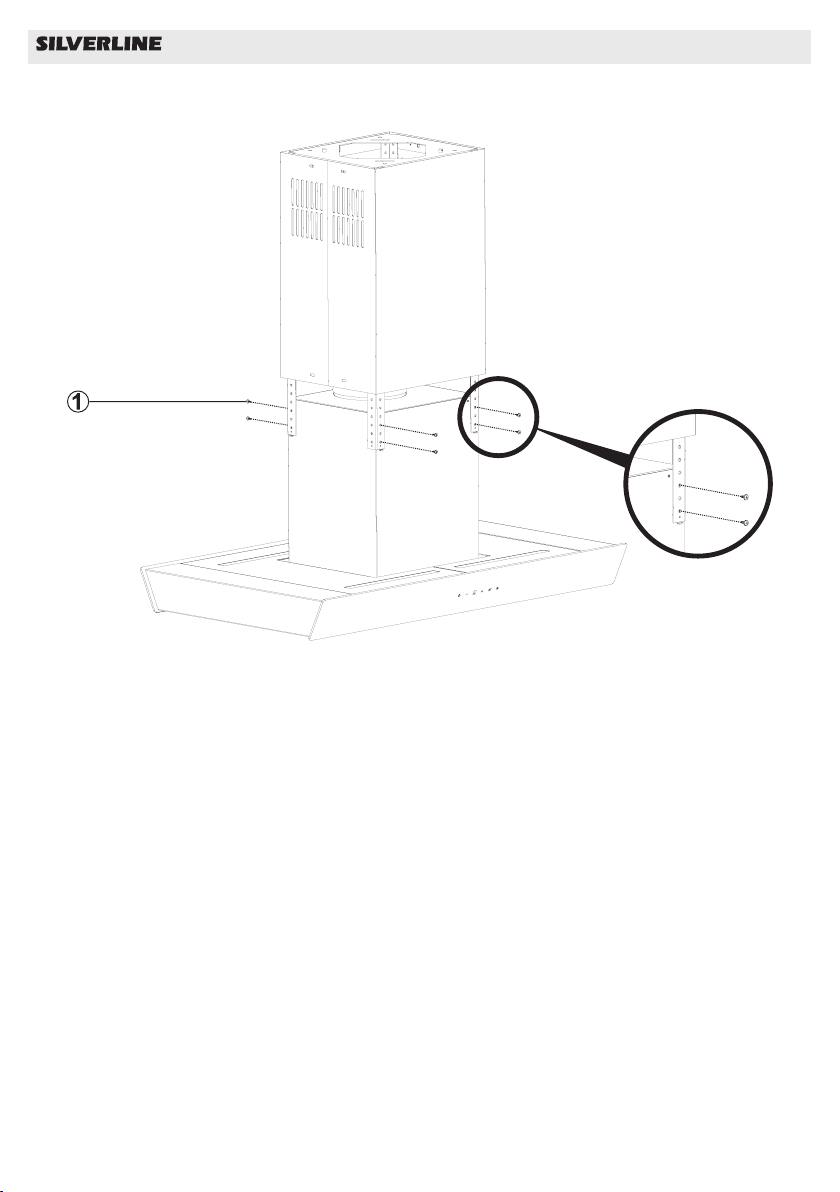

8.4 Installation Scheme and Parts Section 5 17
9 HOW TO USE THE PRODUCT 18
9.1 HOW TO USE 5 SPD Touch Control Product 18
11 LAMP REPLACEMENT 19
11.1 LED Lamp Replacement 19
12 AUTHORIZED SERVICE 20
12.1 Installation Scheme and Parts 21
12.2 Technical Chart 21

3
4207
1 TECHNICAL DRAWING
896, 1196
450
475
283
327
475
20
121
50
Min. 570, Max. 985
25
91
538
80
Figure 1: 4207 TECHNICAL DRAWING

4
4207
2 WARNINGS AND SAFETY MEASURES
WARNINGS AND SAFETY MEASURES
This appliance can only be used by children
over the age of 8 and individuals with no phy-
sical, sensory or mental insufciencies or no
experience and knowledge insufciencies when
supervision or instruction on safe use is given to
them and they understand the dangers.
This product is intended for domestic use.
Usage voltage of your appliance is 220-240
Volt~50 Hz.
The mains cable of your appliance is equipped
with an earth plug. This cable must be plugged
into an earth plug.
All electricity connections must be made by a
qualied technician.
Unauthorized installation can cause low perfor-
mance, damage to the appliance and accidents.
Appliance cable must not be jammed or crus-
hed during installation. Power cable must not be
fed near cookers. This can cause melting and
re.
Do not plug the appliance before the installa-
tion is over.
Make sure that the plug is easily accessible in
order to disconnect the appliance in case of an
emergency.
Do not touch the appliance lamps when they
have been in operation for a long time. Lamps
may cause burns in your hands as they will be
hot.
Kitchen hoods are designed for domestic use
for conventional cooking. It might fail and the
warranty will be void if it is used for other pur-
poses.
Follow regulations and rules of authorities
about the exhaust air discharge. (This is not va-
lid for use without ues).
Food that catch re while cooking must not be
cooked under this appliance.
Start your appliance after placing pans, pots,
etc. on the cooker. Otherwise, high heat may ca-
use deformation in some parts of your appliance.
Turn off your appliance before removing pans,
pots, etc. on the cooker.
Do not leave hot oil on the cooker. Pans with
hot oil may cause self-ignition and re.
Oil may catch re while frying, etc. Be careful
with curtains and quilts.
Ensure that the lters are replaced on time.
Filters that are not replaced in time pose a re
risk due to accumulated oil inside them.
Do not use non-re-resistant ltering material
instead of lters.
Do not operate your product without a lter.
Do not remove lters while the product is being
used.
In case of a re, disconnect the hood and coo-
ker. (Unplug the appliance or switch off the main
circuit breaker).
Your appliance may pose re risk if not cleaned
regularly.
Disconnect your device before maintenance
work. (Unplug the appliance or switch off the
main circuit breaker).
Negative pressure in the room while hoods and
devices operating on sources other than electri-
city are being used at the same time must not
exceed 4 Pa ( 4 X 10 bar ).
If there are devices that are used with fuel
or gas such as room heaters in the area where
your appliance is used, the exhaust from these
devices must be completely isolated or the devi-
ce must be air tight.
Use pipes with a 150 or 120mm diameter when
connecting your appliance’s ues. The connecti-
on must be as short as possible with the fewest
possible elbows.
Children must not play with the appliance.
Use a ”MAX 6 A” fuse in your appliance for

5
4207
WARNINGS AND SAFETY MEASURES
your safety.
Keep packaging material away from children
as they may be dangerous.
If the supply cable is damaged, it must be rep-
laced by the manufacturer or its service agency
or any personnel of equivalent qualications to
avoid any dangerous situation.
In case of a re, disconnect the hood and co-
oker and cover the ames. Never use water to
extinguish.
Accessible parts can be hot when cookers are
in operation.
This appliance is not intended to be used by
individuals with limited physical, sensory and
mental abilities (including children) or individu-
als with limited knowledge or experience unless
supervision and administration are provided by a
person responsible for appliance safety.

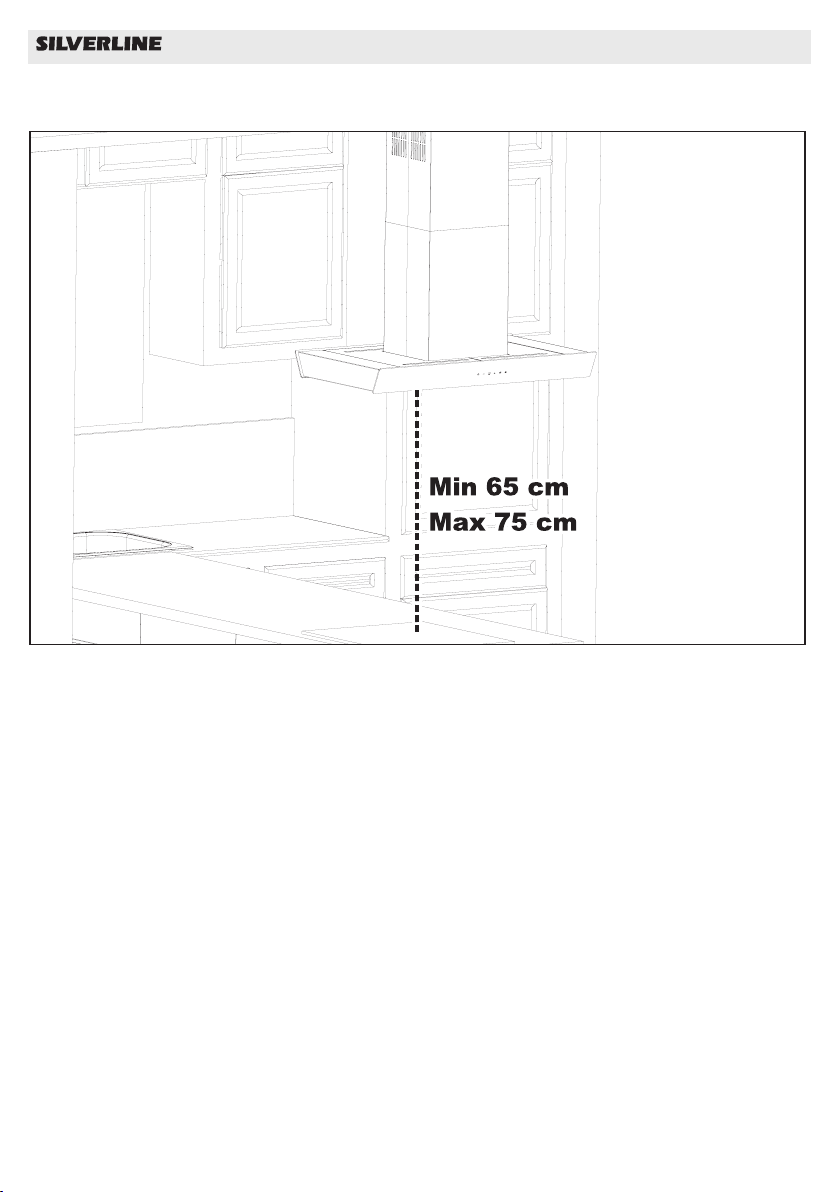

When the hood is installed, there must be at le-
ast 65cm clearance with the product and electri-
city cookers and 75cm with cookers operating
on gas or other fuels.
The hood outlet must not be connected to air
channels that include other smoke.
Care must be taken when the appliance is used
with devices that use air and fuel (e.g. heaters,
water heaters that operate on gas, diesel fuel,
coal or wood). This is because it may decrease
combustion as the hood discharges air into the
room atmosphere.
This is not valid for use without ues.
The room must have sufcient ventilation
when cooker, hood and devices that operate
on gas and other fuels are used at the same
time (this may not be applied to devices that
circulates air in the room).
