Silverline 3129 User manual

HOOD USER GUIDE
inside drop control
3129 INSIDE 3 P WOC Read this manual prior to performing any task!

1, en_US
MANUFACTURER
Merzifon OSB AMASYA, Silverline
IMPORTER
Via Carlo Porta 4 20813 Bovisio Masciago (MB) - Italy
13.01.2022HOOD USER GUIDE2

Table of contents
1 INPUT................................................................................... 4
2 Technical Drawing.............................................................. 5
3 WARNING AND SAFETY PRECAUTIONS......................... 8
3.1 LETHAL RISK, DANGER OF POISONING................ 10
4 USAGE WITH AND WITHOUT CARBON FILTER............ 14
5 CARBON FILTER REPLACEMENT.................................. 15
5.1 Carbon Filter Replacement......................................... 15
6 CLEANING AND PREVENTIVE MAINTENANCE............. 16
6.1 ALUMINIUM FILTER CLEANING............................... 17
6.2 Washing in Dishwasher.............................................. 17
6.3 Hand Wash................................................................. 17
7 APPLIANCE POSITION..................................................... 18
7.1 Installation and Unpacking of the Appliance............... 18
7.2 Recommendations for Energy Saving........................ 19
8 CONTENT OF PACKAGE.................................................. 20
8.1 OVERVIEW OF hood.................................................. 20
9 ASSEMBLY OF PRODUCT............................................... 21
10 USE OF PRODUCT............................................................ 24
11 REPLACING THE LAMPS................................................. 26
12 AUTHORIZED SERVICE.................................................... 27
13 TECHNICAL TABLE.......................................................... 29
Table of contents
13.01.2022 HOOD USER GUIDE 3

1 INPUT
This guideline and the safety data includes all necessary informa-
tion for a safe mounting as well as a safe use without defects.
nPlease read all of this guideline and safety data before using
the device.
nKeep the guideline in an appropriate place.
nIf you pass the device onto others, make sure you also give
this guideline and safety data.
nDisregarding this guideline may result in severe injuries and
defects in the device.
nPlease keep in mind that we won't be responsible for the
defects arising from not taking this guideline into account.
The figures in this guideline aim to visually describe the actions. In
these figures only one model of the device is illustrated. However,
all instructions or figures also represent other models.
INPUT
13.01.2022HOOD USER GUIDE4

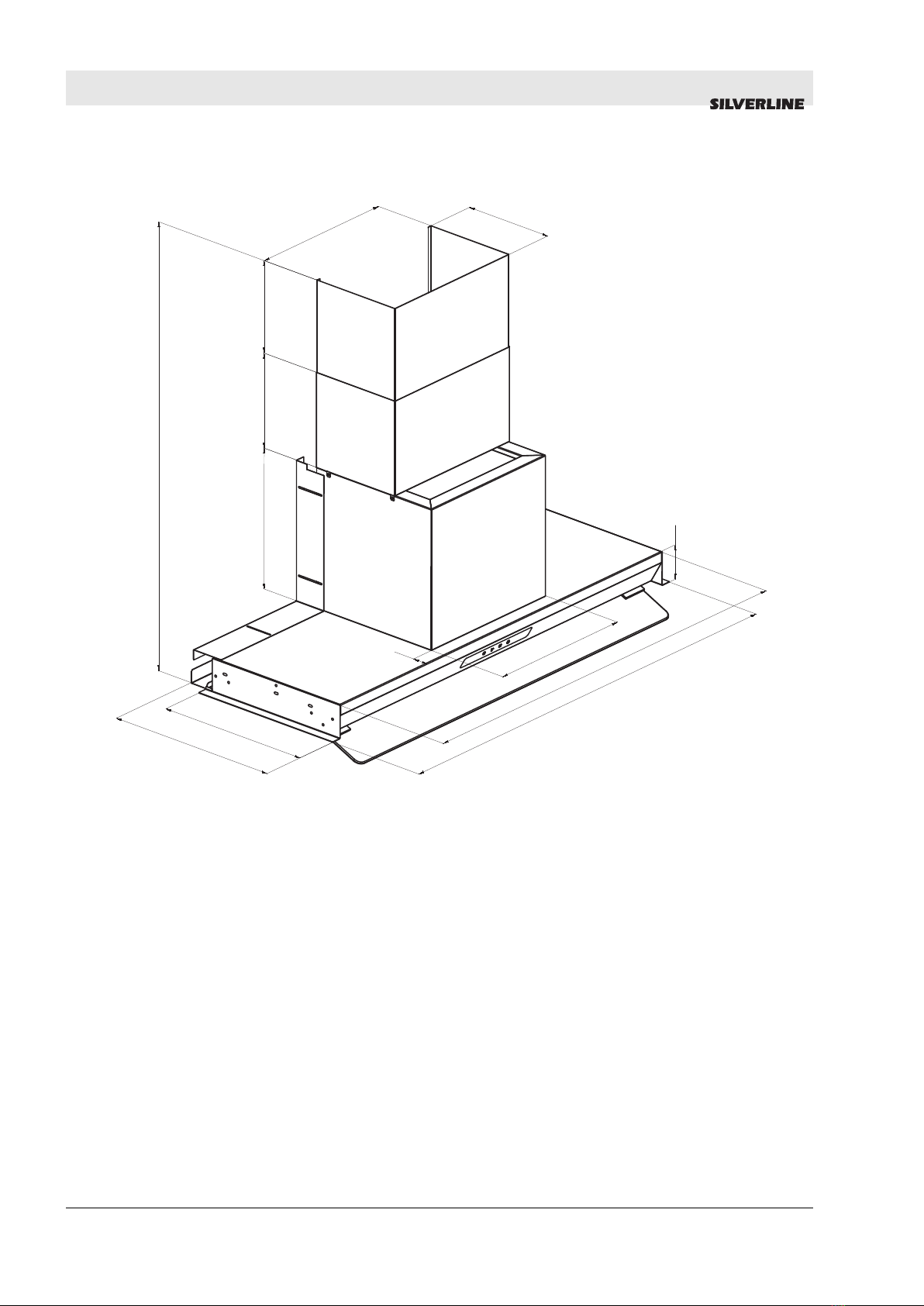

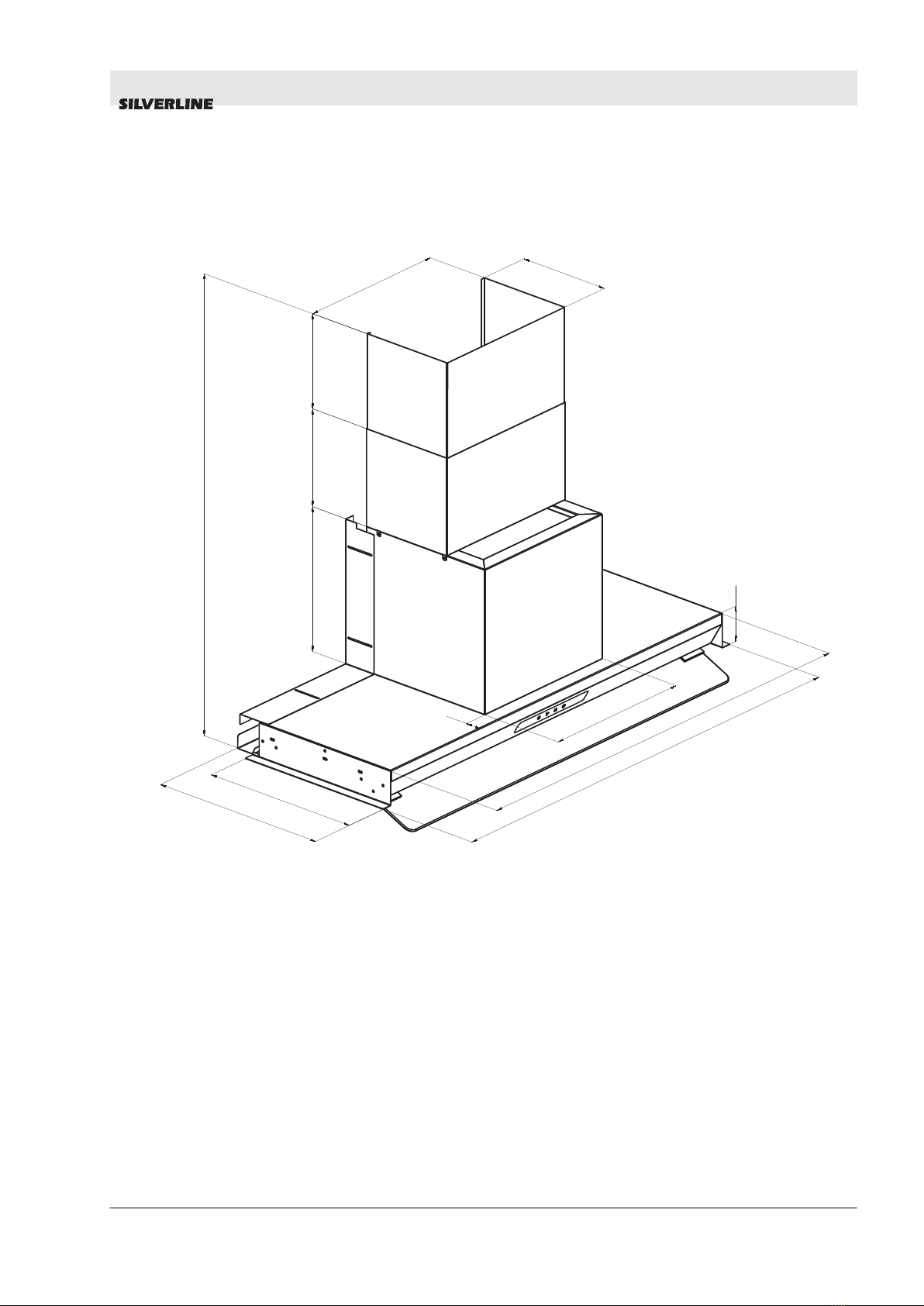

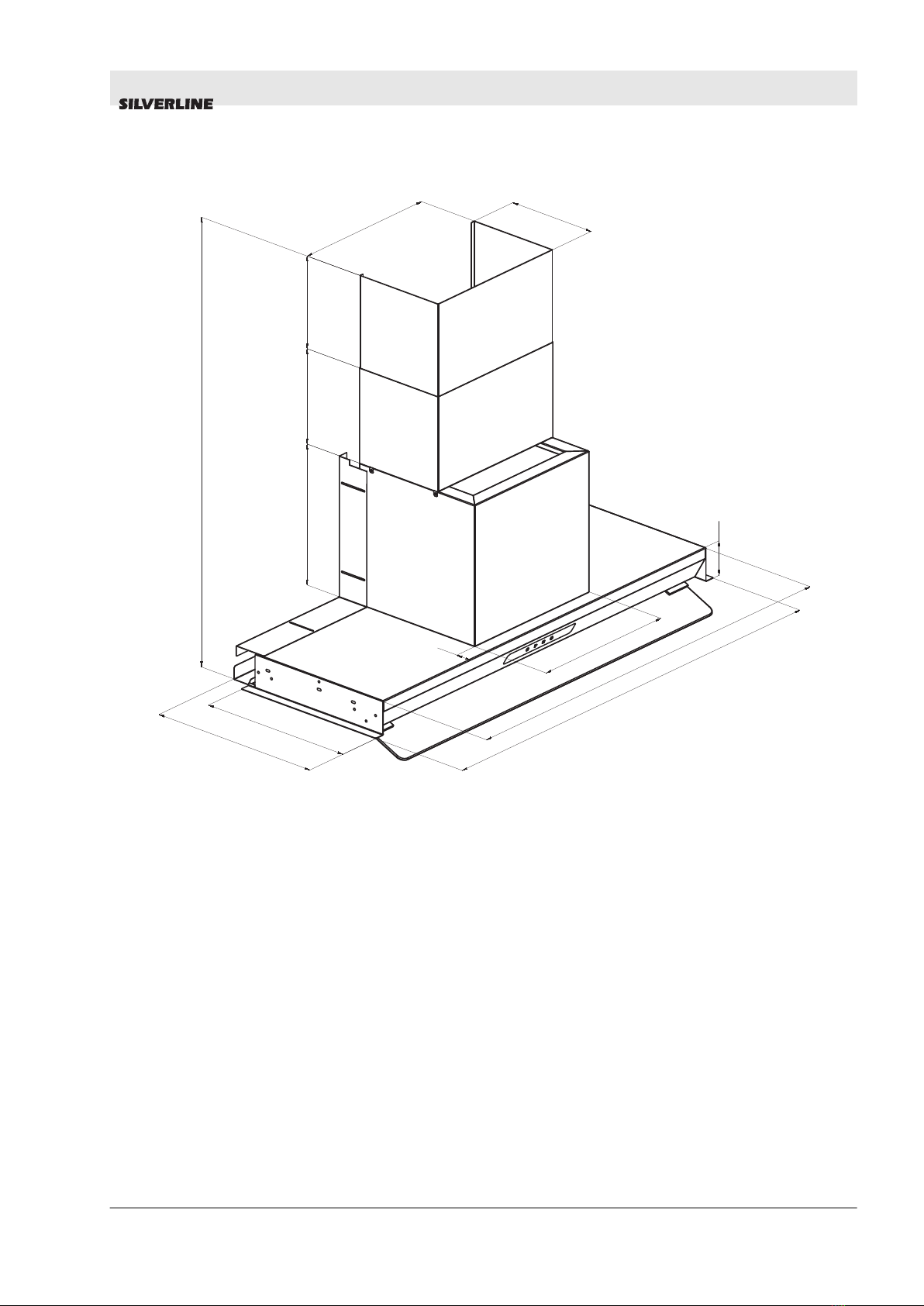

2 Technical Drawing
598
314
66
274 184 184
306,5
185
Mn 314 - Max 351
M n 524 Max 708
560
305
29
Technical Drawing
13.01.2022 HOOD USER GUIDE 5

898
314
66
274 184 184
306,5
185
M n 314 - Max 351
M n 524 Max 708
860
305
29
Technical Drawing
13.01.2022HOOD USER GUIDE6

1198
314
66
274 184 184
306,5
185
Mn 314 - Max 351
807 xaM 425 nM
1160
305
29
Technical Drawing
13.01.2022 HOOD USER GUIDE 7

3 WARNING AND SAFETY PRECAUTIONS
nThis appliance can be used by children of 8 years and older,
people with physical, sensory or mental capability deficiency or
people with lack of experience or knowledge; as long as they
are provided supervision or instructions for the safe use of the
appliance and they comprehend the dangers.
nChildren should not tamper with the appliance. Cleaning and
user maintenance operations must not be performed by chil-
dren unless supervised.
nThis product is designed for home use.
nUsage voltage of your product is 220-240 Volt~50-60 Hz.
nPower cord of your product is fitted with a grounded plug. This
cord must be plugged into a grounded outlet.
nThe whole electrical wiring must be installed by a qualified
electrician.
nInstallation by unauthorized persons could lead to poor opera-
tion performance, damage to the product, and accidents.
nFeeder cable of the appliance mustn't be exposed to jamming
or crashing during assembly. Feeder cable mustn't be placed
near the cooker. In such cases, it might melt down and lead to
fire.
nDo not plug in the appliance before the installation.
nMake sure that the installation place allows the user to easily
unplug the power cable in case of any danger.
nDo not touch your product's lamps when they work for a long
time. The lamps may burn your hand as they will be hot.
nKitchen hoods are manufactured for household use in normal
home cooking. There is a risk of malfunction in other types of
use, and the product guarantee will be void.
nComply with the rules and instructions regarding discharge of
outgoing air, stipulated by the relevant authorities. (This
warning does not apply to uses without flue.)
nFlammable foods must not be cooked under the appliance.
nStart your product after you place pot, pan etc. on the stoves.
Otherwise, high temperature may cause same parts of your
products to deform.
nTurn off the cooker's burner before taking the saucepan, pan,
etc. off the cooker.
nDo not leave boiling oil on the stove. Pots that contain boiling
oil may catch fire by itself.
nSince oils could catch fire when you cook fried foods in partic-
ular, be careful about your curtains and tablecloths.
nEnsure timely replacement of the filters. Filters not replaced in
a timely manner pose risk of fire due to accumulated grease
deposits on them.
nDo not use non-fire-resistant filtering materials instead of the
filter.
nDo not operate your product without filter, and do not remove
the filters when the product is in operation.
nIn case of any fire, de-energize the hood and any other cooking
devices. (Plug off the appliance or turn off the main switch.)
WARNING AND SAFETY PRECAU-
TIONS
WARNING AND SAFETY PRECAUTIONS
13.01.2022HOOD USER GUIDE8

nIf your product's periodic cleaning is not made in a timely
manner, it could pose risk of fire.
nDe-energize the appliance before any maintenance operations.
(Plug off the appliance or turn off the main switch.)
nWhen electric cooker hood and devices fed with energies other
than electricity operate simultaneously, the negative pressure
in the room must not exceed 4 Pa ( 4 X 10 bar ).
nGas or fuel oil burning appliances, such as room heaters,
which share the same environment with your product, must be
fully insulated from the exhaust of this product or they must be
hermetical.
nWhen you make a flue connection for your product, use pipes
with a diameter of 150mm or 120 mm. The length of the duct
connection as well as the number of elbows must be as min-
imum as possible.
nChildren must not play with the appliance.
nFor your safety, use ”MAX 6 A” fuse in the hood system.
nSince the packing materials could be dangerous, keep them
away from children.
nIf the feeder cable is damaged, it must be replaced by its man-
ufacturer or its authorized technical service or any other per-
sonnel qualified at the same level, in order to avoid any dan-
gerous situation.
nIn case of any deflagration, de-energize the cooker hood and
cooking appliances, and cover the flame. Never use water to
extinguish the fire.
nWhen cooking appliances are in operation, their accessible
parts could be hot.
nThis appliance is not intended to be used by people with phys-
ical, sensory and mental disabilities (including children) or
those who do not have adequate experience and knowledge
regarding its use, unless they are under the supervision of a
person responsible for the safety of the appliance.
nAfter the installation of the hood, the minimum distance must
be 65 cm between the product and any electric cooker; and 75
cm between it and any gas ranges or cookers burning other
fuels.
nOutput of the hood must not be connected to air ducts, where
smoke from other sources could exist.
nYou must be careful when using the appliance spontaneously
with other appliances (e.g. gas, diesel fuels, coal, wood, etc.
burning heaters, shower heaters), which use the same air in
the same environment. Attention must be paid when using
them simultaneously. It is because the hood could adversely
affect the combustion, by discharging the ambient air.
nThis warning does not apply to uses without flue.
nWhen electric cooker hood is used simultaneously with devices
that use gas or other fuels, there must be sufficient ventilation
in the room (might not apply to devices that discharges the air
back into the room).
WARNING AND SAFETY PRECAUTIONS
13.01.2022 HOOD USER GUIDE 9

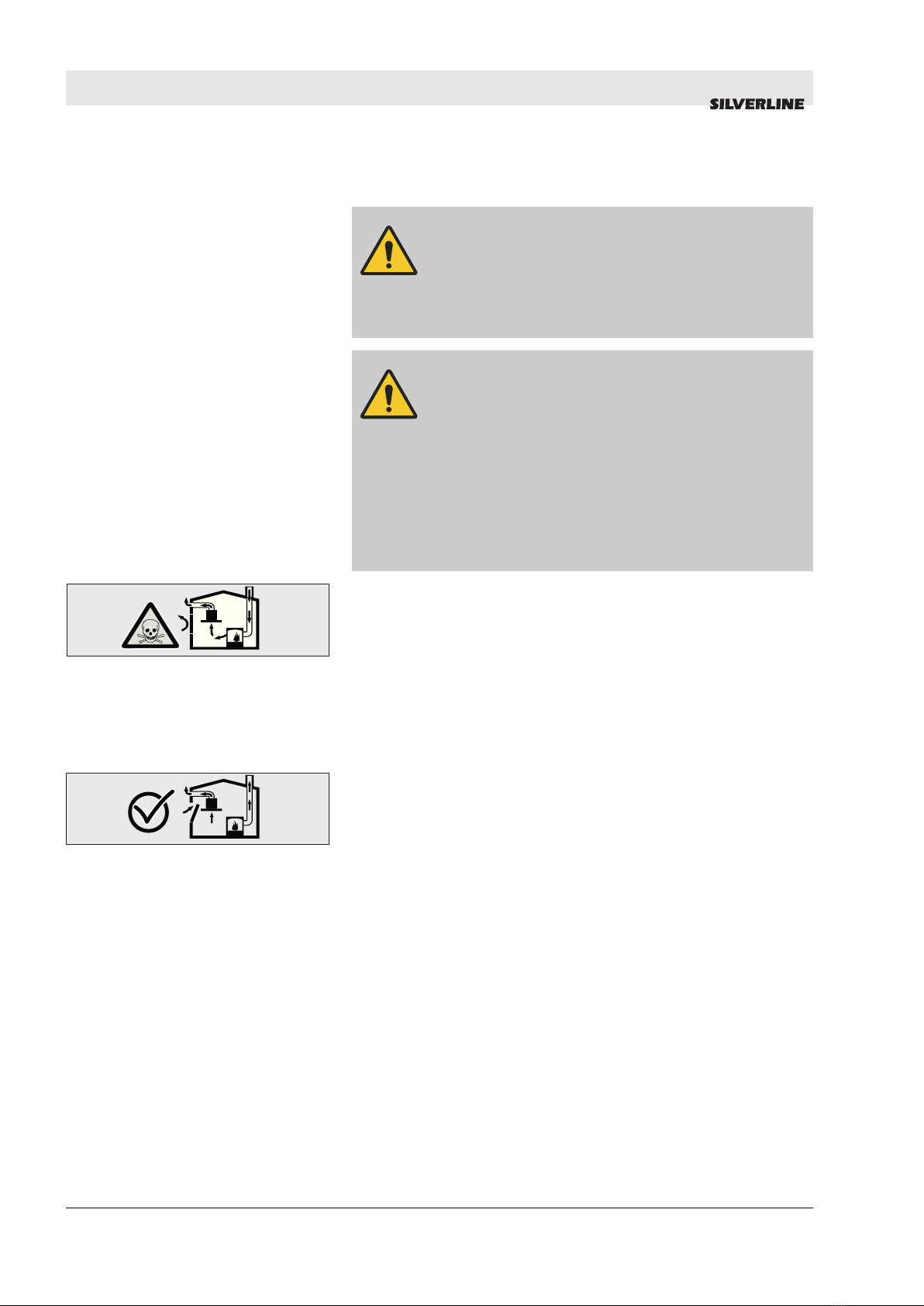

3.1 LETHAL RISK, DANGER OF POISONING
DANGER!
Warning - Choking Hazard
The packaging materials are dangerous for chil-
dren. Never allow children to play with packaging
materials.
DANGER!
Warning - Death Hazard
There are life-threatening danger and poisoning
danger due to reabsorbed combustion gases.
During the air discharge outlet use, unless suffi-
cient air supply is provided, do not use the appli-
ance simultaneously with devices that discharge
toxic gases through flue such as ventilated, gas,
oil, wood or coal burning heaters, shower heaters,
water heaters, etc.Fig. 1
Ventilated goods (e.g. gas, oil, wood or coal burning heaters,
shower heaters, water heaters) take combustion air from the instal-
lation location, and discharge the waste gas through a waste gas
system (e.g. flue). When the cooker hood is active, it absorbs air
from the kitchen and neighbouring rooms. If adequate air entry is
not provided, vacuum emerges. In such a case, the toxic gases are
absorbed from the flue and waste gas channel, and are taken into
the door again. Fig. 1
nTherefore, adequate fresh air ingress must always be
ensured.Fig. 2
Fig. 1: Poisoning Danger
Fig. 2
WARNING AND SAFETY PRECAUTIONS
LETHAL RISK, DANGER OF POISONING
13.01.2022HOOD USER GUIDE10

WARNING!
Fire danger!
– The oil residue in the grease filter may catch
fire.Clean the grease filter at least once
every 3 months.Never operate the device
without the grease filter .
– The oil residue in the grease filter may catch
fire. Never work with open flame (ex. flambe)
near the device. The apparatus is allowed to
be installed near a solid fuel (e.g. wood or coal)
heater only if it has a non-removable cover. No
sparks should be scattered.
– Hot oils and fats catch fire easily. Hot oils and
fats should never be left unattended. Never try
to put out fire with water. Turn off the cooker.
Kill the flames carefully using a cover, fire
blanket or a similar material.
– Gas operated cookers that do not have a
cooking pot on create high heat during opera-
tion. A ventilation device placed over the
cookers can be damaged or burned for this
reason. Operate gas cookers only when there
is a cooking pot on them.
– Operating multiple gas cookers simultaneously
creates high heat. A ventilation device placed
over the cookers can be damaged or burned
for this reason. Never operate two gas cookers
longer than 15 minutes on high flame setting. A
large burner over 5kW (Wok) has the power of
two gas burners.
WARNING!
Electrocution hazard!
– A malfunctioning device may cause electric
shock. Never turn on a malfunctioning device.
Pull the power plug and switch off the circuit
breaker. Call customer service.
– Unsuitable repairs pose hazards. Repairs and
replacement of damaged power cords must be
performed only by a customer services techni-
cian trained by us. If the device is malfunc-
tioning pull the power plug and switch off the
circuit breaker. Call customer service.
– Water leaking into the device may cause elec-
tric shock. High pressure or steam cleaners
must not be used.
WARNING AND SAFETY PRECAUTIONS
LETHAL RISK, DANGER OF POISONING
13.01.2022 HOOD USER GUIDE 11

DANGER!
Danger of physical injury!
– During the installation, there is a danger of
physical injury due to the sharp edges. Use
protective gloves throughout the installation
process of the appliance.
– Due to risk of dropping the appliance,
assembly of all safety bolts and covers must be
performed as specified in the user manual.
– Objects placed on the appliance may fall over.
Do not place any objects on the device.
– LED lights are very bright and may damage
eyes (Risk group 1). You must not look directly
at running LED lights for longer than 100 sec-
onds.
WARNING!
Risk of burn, risk of electric shock!
– Allow the appliance to cool before cleaning or
maintenance process. Switch off the fuse or
pull out the mains plug from the socket.
– There is risk of damage due to ingress of mois-
ture in the electronics. Do not clean the control
components with a wet cloth.
– The surface could be damaged due to a wrong
cleaning process. Clean stainless steel sur-
faces only in their brushing direction. Do not
use a stainless steel cleaner for the control ele-
ments.
– The surface could be damaged due to aggres-
sive and abrasive cleaning agents. Never use
aggressive and abrasive cleaning agents.
WARNING!
Dangers of fire and physical injury!
In case of repairing that is not performed according
to the rules or as required, turn off the fuse or
unplug the feeder cable of your appliance.
Repairing must be performed only by the author-
ized technical service or authorized experts.
NOTICE!
If the appliance is faulty or damaged, turn off the
fuse or unplug the feeder cable of your appliance
and call the authorized service.
WARNING AND SAFETY PRECAUTIONS
LETHAL RISK, DANGER OF POISONING
13.01.2022HOOD USER GUIDE12

NOTICE!
If the feeder cable is damaged, it must be replaced
by its manufacturer or its authorized technical
service or any other personnel qualified at the
same level, in order to avoid any dangerous situa-
tion.
NOTICE!
When the bulbs of the device malfunction, switch
off the circuit breaker and unplug the device's
power plug from the socket. Replace the defective
bulbs immediately (leave bulbs to cool down first),
in order to protect the remaining bulbs against
overloading.
CAUTION!
Accessible components might be heated when
used with cooking devices.
DANGER!
Air outlet pipe of this appliance mustn't be con-
nected in the flue used to discharge the fume gen-
erated by devices that use gas or other fuels.
Damage reasons
CAUTION!
Damage hazard due to corrosion. Always run the
appliance to prevent condensate formation while
cooking. Condensates may cause corrosion
damage. Replace the malfunctioning lamp right
away to prevent overloading of other lamps. Mois-
ture intrusion in electronic parts poses a risk of
damage. Never clean the control elements with a
wet cloth. The surface could be damaged due to a
wrong cleaning process. Clean stainless steel sur-
faces only in their brushing direction. Do not use a
stainless steel cleaner for the control elements.
The surface could be damaged due to aggressive
and abrasive cleaning agents. Never use aggres-
sive and abrasive cleaning agents. There is a risk
of damage due to condensate liquid backflow.
Install the air exit canal with a small downward
inclination (1° inclination) from the appliance.
WARNING AND SAFETY PRECAUTIONS
LETHAL RISK, DANGER OF POISONING
13.01.2022 HOOD USER GUIDE 13

4 USAGE WITH AND WITHOUT CARBON FILTER
You can use this appliance in exhaust air mode
and ventilated air mode.
Exhaust air mode
The absorbed air is cleaned by the grease filters, and is discharged
through a piping system.Fig. 3
NOTICE!
Exhaust air must not be transferred to an active
smoke or waste gas flue; or a flue used for ventila-
tion of the places, where heat sources are
installed.
nIf you want to transfer exhaust air to an inactive smoke or
waste gas flue, you need to obtain permission from an author-
ized chimney sweep.
nIf exhaust air is discharged through the external wall, a tele-
scopic wall safe must be used.
Ventilated air mode
Absorbed air is cleaned by the grease filters and
an active carbon filter, and then it is transferred
back to the kitchen.Fig. 4
You need to install an active carbon filter, in order
to catch the substances, which cause stink in the
circulating air. Consult your authorized dealer to
know the different opportunities available for ena-
bling the appliance to function in circulating air
mode. You can buy the accessories required for
this process from the relevant outlets, authorized
technical service or online sales center.
Fig. 3: Air Outlet without Carbon Filter
Fig. 4: Air Circulation with Carbon
Filter
USAGE WITH AND WITHOUT CARBON FILTER
13.01.2022HOOD USER GUIDE14

5 CARBON FILTER REPLACEMENT
Under circumstances without a flue, an active carbon filter should
be used to resend the inside air by re-filtering. An active carbon
filter should be obtained from the service or your dealer. Discon-
nect the device prior to replacing the carbon filter. Since the carbon
filter is used in kitchens without a flue outlet, it should be replaced
with a new one every 3 to 5 months subject to usage. The carbon
filter should never be washed. In any case the oil filters should be
attached to the product regardless of using a carbon filter or not.
Do not use the product without an oil filter.
5.1 Carbon Filter Replacement
The appliance you have purchased is appropriate for use with
carbon filters.

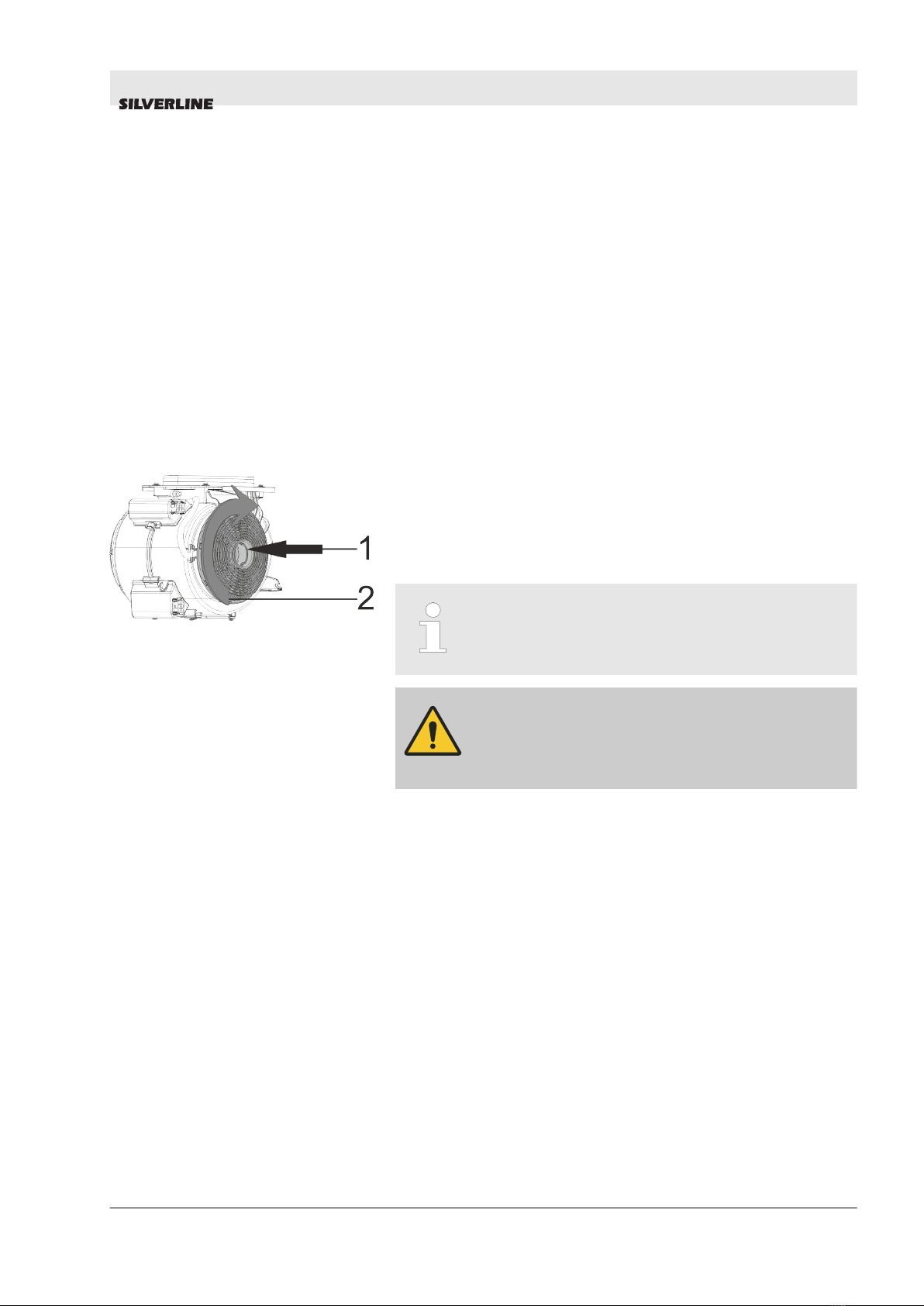

n1-Place the carbon filter in its housing (Fig. 5).
n2-Rotating the carbon filter clockwise, ensure that it is com-
pletely fit (Fig. 5).
If carbon filter does not fit in completely, it might
drop and damage your product.
DANGER!
Never wash the carbon filters.
Keep carbon filters away from children.
CARBON FILTER
Fig. 5: CARBON FILTER
CARBON FILTER REPLACEMENT
Carbon Filter Replacement
13.01.2022 HOOD USER GUIDE 15

6 CLEANING AND PREVENTIVE MAINTENANCE
CAUTION!
Cleaning and user maintenance of the appliance
shall not be performed by unattended children.
nThe surface could be damaged due to aggressive and abrasive
cleaning agents. Never use aggressive and abrasive cleaning
agents. Procure your cleaning and protective substances that
are appropriate for your appliance from the authorized tech-
nical service. Surface of appliance and control units are sensi-
tive to scratching.
nClean the surfaces with a soft and damp cloth, dish-washing
liquid or mild glass cleaning agent. Soften the dry, sticky dirt
with a damp cloth. Do not scrape!
nIt is not appropriate to use dry cloths, sponges that may
scratch, materials that require rubbing, and other aggressive
cleaning agents containing sand, soda, acid or chlorine.
nClean the stainless steel surfaces in their brushing direction
only.
nDo not use stainless steel cleaning agents and wet clothes for
control units. Cleaning of metal grease filters Used metal
grease filters retain the greasy particles in the moisture and
vapour generated in the kitchen. Clean the metal grease filters
about every three months, under normal use conditions (1 to 2
hours a day).
nDo not use excessively effective, acidic or alkaline cleaning
agents.
nFor cleaning the metal grease filters, clean the holder parts of
the metal grease filters in the appliance, with a damp cloth as
well.
nYou can clean the metal grease filters in the dishwasher or by
hand.
nDo not apply spray cleaning supplies directly to the product.
nDo not keep flammable and/or heavy decorative items on the
product.
CLEANING AND PREVENTIVE MAINTENANCE
13.01.2022HOOD USER GUIDE16

6.1 ALUMINIUM FILTER CLEANING
1 Aluminium Filter Tab
Clean the aluminium grease filters periodically
every 3 months.
nPress the aluminium filter tab (1) and pull the aluminium filter to
the direction of the arrow (Fig. 6).
nAs you remove the aluminium filter, hold it with your other hand
to prevent it from dropping.
nAs you remove the aluminium filter, in order to prevent the
accumulated oil to drip, keep the filter surface parallel to the
floor.
6.2 Washing in Dishwasher
In case of washing in dishwasher, a slight change might occur in
colour. This has no effect on the function of the metal grease filter.
nDo not clean too dirty metal grease filters together with utensils
in the dishwasher.
nPlace the metal grease filters loosely and freely in the dish-
washer. Metal grease filters must be placed in the dishwasher
without jamming.
6.3 Hand Wash
For stubborn dirts, you can use a special grease
solvent. You can buy such an agent from the
authorized sales centre.
–Soften the metal grease filters in a hot water
with dish-washing liquid.
–Use a brush for cleaning and wait for the liquid
in metal grease filters to flow off completely.
–Rinse the filters thoroughly after cleaning.
1
Fig. 6
CLEANING AND PREVENTIVE MAINTENANCE
Hand Wash
13.01.2022 HOOD USER GUIDE 17

7 APPLIANCE POSITION
M n 65 cm
Max 75 cm
Fig. 7
After completing the installation of hood, the minimum distance
must be 65 cm between the product and any electric cooker; and
75 cm between it and any gas ranges or cookers burning other
fuels (Fig. 7).
7.1 Installation and Unpacking of the Appliance
nCheck that your appliance is not deformed.
nReport any transport issues immediately to transport operator.
nAny faults encountered shall be reported to the dealer, too.
nDo not allow children to play with the packaging materials!
APPLIANCE POSITION
Installation and Unpacking of the Appliance
13.01.2022HOOD USER GUIDE18

7.2 Recommendations for Energy Saving
nReplace the carbon filters on a regular basis.
nRegularly clean your aluminium filters. Since dirty filters would
block the air passage, you might have to use the appliance at a
higher speed.
nUse your product according to its normal speeds.
nUse at higher speed would cause an increase in the energy
consumption.
APPLIANCE POSITION
Recommendations for Energy Saving
13.01.2022 HOOD USER GUIDE 19

8 CONTENT OF PACKAGE
Fig. 8
1- Cooker Hood
2- Inner Flue
3- Outer Flue
4- User Manual
5- Flue-Plate Connection Screw
6- 4x Product Mount Screw
8.1 OVERVIEW OF hood
1- Inner Flue
2- Outer Flue
3- Motor Cabin
4- Cooker Lighting
5- Metal oil filter
6- Glass
Fig. 9
CONTENT OF PACKAGE
OVERVIEW OF hood
13.01.2022HOOD USER GUIDE20
