5 PROJECTOR DESCRIPTION

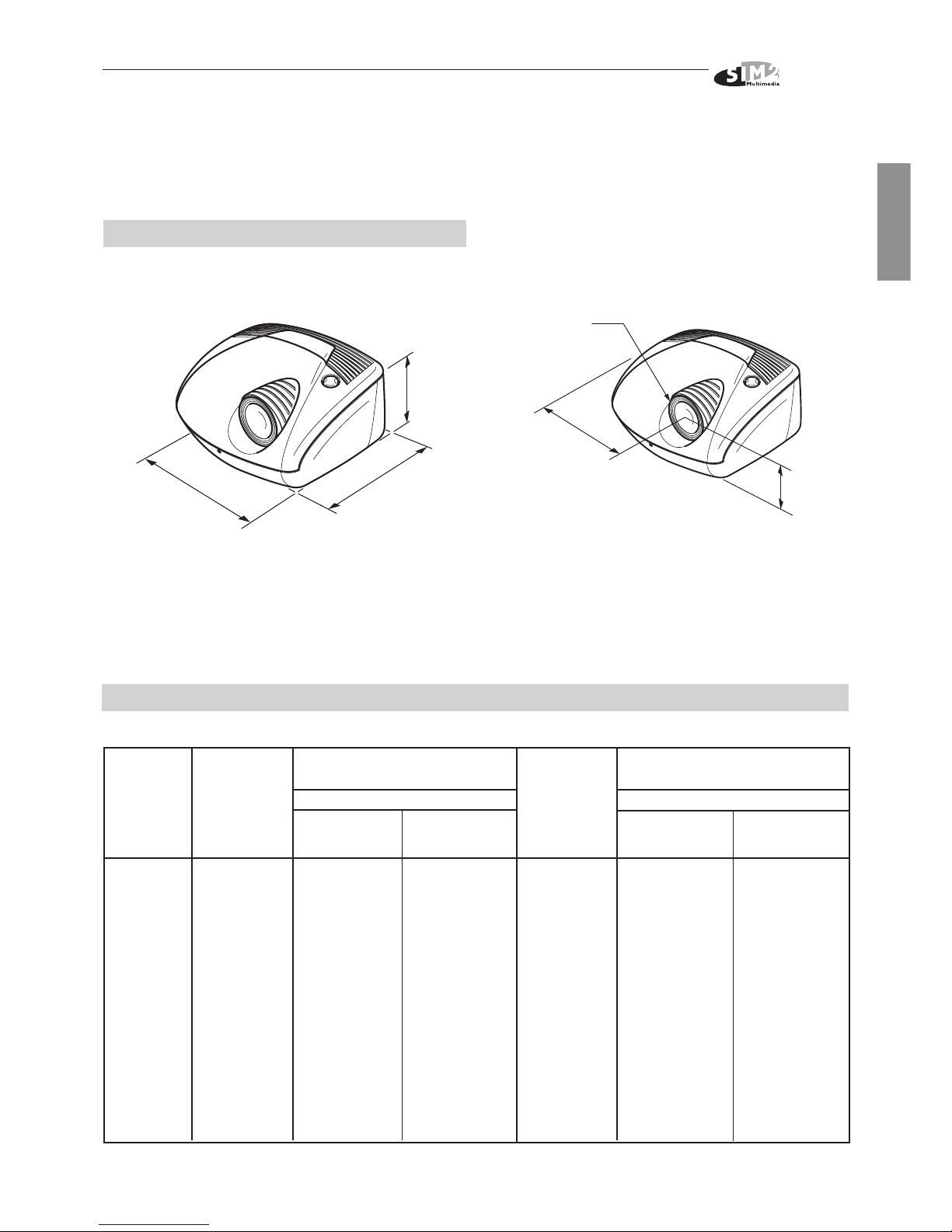

Dimensions (mm) (Fig. 18a):
350
185
318
Fig. 18a
N.B. The height includes the bottom feet .
Distances from the center of lens (mm) (Fig. 18b):
249
118
ø67
Fig. 18b
7 PROJECTION DISTANCES HT 300
Screen Screen Screen
size width width
(diagonal) min max min max
in. m in. m ft. in. m ft. in. m in. m ft. in. m ft. in.
50" 1,0 40" 2,4 8' 0" 3,4 11' 0" 1,1 44" 2,0 6' 6" 2,7 9' 0"
60" 1,2 48" 2,9 9' 7" 4,0 13' 2" 1,3 52" 2,4 7' 10" 3,3 10' 9"
70" 1,4 56" 3,4 11' 2" 4,7 15' 7" 1,6 61" 2,8 9' 1" 3,8 12' 7"
80" 1,6 64" 3,9 12' 6" 5,4 17' 7" 1,8 70" 3,2 10' 5" 4,4 14' 4"
90" 1,8 72" 4,4 14' 4" 6,0 19' 9" 2,0 78" 3,6 11' 9" 4,9 16' 2"
100" 2,0 80" 4,9 16' 0" 6,7 22' 0" 2,2 87" 4,0 13' 1" 5,5 17' 11"
120" 2,4 96" 5,8 19' 2" 8,0 26' 5" 2,7 105" 4,8 15' 8" 6,6 21' 7"
150" 3,1 120" 7,3 23' 11" 10,1 33' 0" 3,3 131" 6,0 19' 7" 8,2 26' 11"
180" 3,7 144" 8,8 28' 9" 12,1 39' 7" 4,0 157" 7,2 23' 6" 9,9 32' 4"
200" 4,1 160" 9,7 31' 11" 13,4 44' 0" 4,4 174" 8,0 26' 1" 11,0 35' 11"
220" 4,5 176'” 10,7 35' 1" - - - 4,9 192" 8,8 28' 9" 12,0 39' 6"
250" 5,1 200" 12,2 39' 11" - - - 5,5 218" 9,9 32' 7" 13,7 44' 11"
Projection distance Projection distance
4/3 16/9

HT 300
2
13 MENU DESCRIPTION

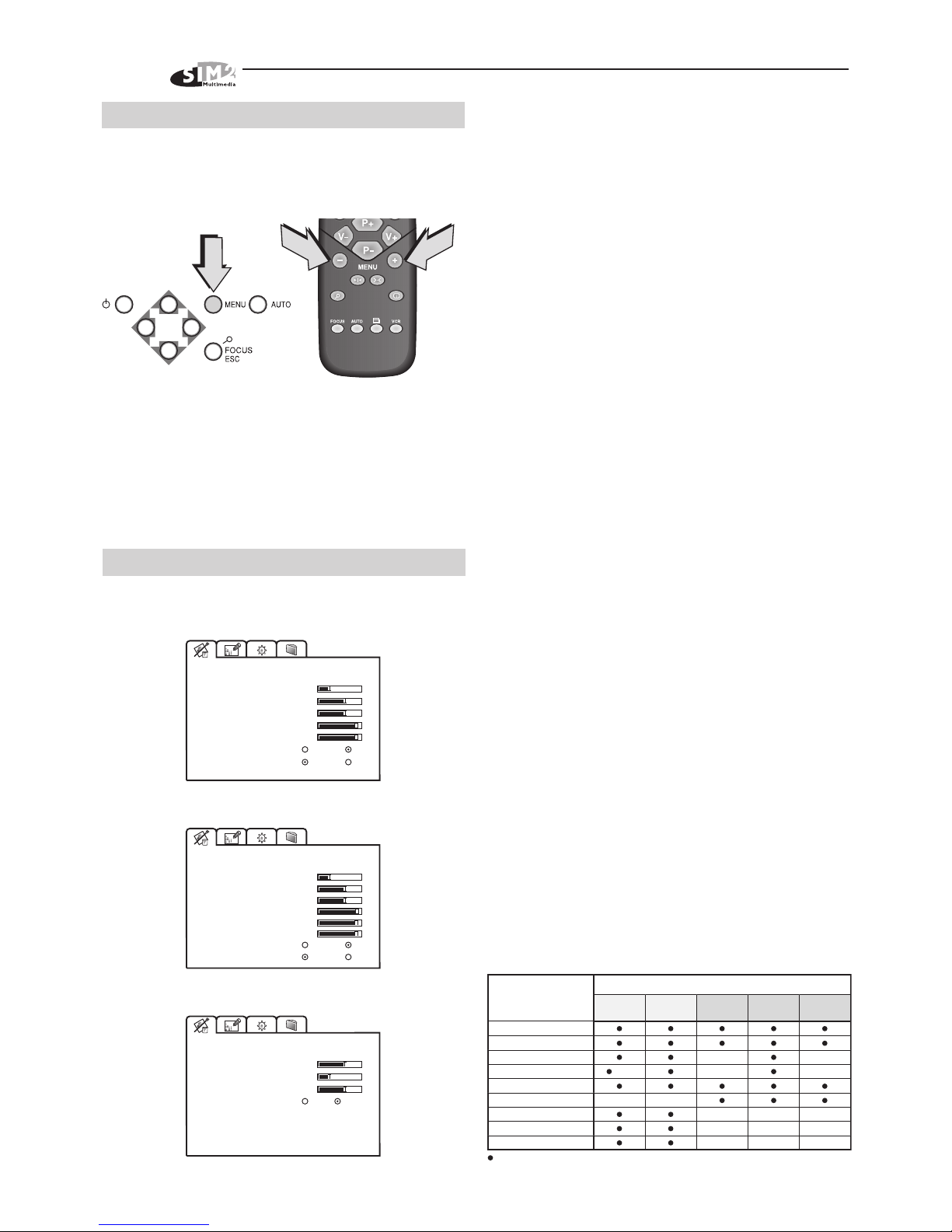

To access the main On Screen Display menu, press the
Menu key on the keyboard or the key Menu + or Menu -
on the remote control (Fig. 46) .
Fig. 46
The main menu is divided into four sections to cover va-
rious adjustments in a practical and logical manner.
The on-screen menu layout is dependant upon the cho-
sen input signal so various options may not be applica-
ble, i.e. some typical adjustments to the video signal are
not applicable to the graphic RGB signals from PC and
viceversa.
13.1 PICTURE
This menu features adjustments relating to the projected
image quality.
BRIGHTNESS
CONTRAST
COLOR
SHARPNESS
FILTER
20
50
50
7
6
CINEMA MODE
Off
Auto
VIDEO TYPE Normal VCR
VIDEO
BRIGHTNESS
CONTRAST
COLOR
20
50
50
TINT 85
SHARPNESS
FILTER
7
6
CINEMA MODE
Off Auto
VIDEO TYPE Normal VCR
VIDEO-NTSC
BRIGHTNESS
CONTRAST
50
20
SHARPNESS 5
SHARPNESS MODE
Video Graphics
RGB
13.1.1 BRIGHTNESS
Use this control to adjust the image’s black level.
13.1.2 CONTRAST
Use this control to adjust the image’s white level, be ca-
reful not to over saturate the white level.
13.1.3 COLOR
Use this control to adjust the colour level.
13.1.4 TINT
Controls the purity of the colours, to NTSC coded signal
standards. Tint is only applicable to video input with NTSC
standard, to RGB 15kHz and YCrCb 15kHz inputs and
YCrCb 32kHz (no RI2).
13.1.5 SHARPNESS
Use this adjustment to increase and decrease the level of
picture detail.
13.1.6 SHARPNESS MODE
It allows to select the type of processing that determines
the detail. In progressive or de-interlaced video signals
the video option is suggested, with graphic signals from
a PC the Graphic option is suggested.
13.1.7 FILTER
For video signals it improves the image’s horizontal/vertical
definition and sharpness.
13.1.8 CINEMA MODE
In Auto the de-interlaced recognizes if the video signal is
originated from a cinematographic film (resulting from
Teleciné with 3:2 or 2:2 Pull Down) and applies an
interpolation algorithm optimized for this type of signal.
Instead if the video signal does not originate from a
cinematographic film, or Off is chosen, the de-interlacer
applies a “Motion Compensated” algorithm optimized for
signals coming from a videocamera.
13.1.9 VIDEO TYPE
Inserts a filter that improves stability of images from vi-
deo-recorders. To toggle between Normal and VCR mode,
press the VCR key on the remote control.
QUICK MENU
It's possible to access to adjustment herewith showed,
using the P+ and P- keys on remote control, without
recalling the main menu.
INPUT SIGNALS AND ADJUSTABLE/SETTING ITEMS
BRIGHTNESS
CONTRAST
Video
S Video
RGBS
32 kHz
YCrCb
32 kHz
RGB
Graphics
RGBS 15kHz
YCrCb 15kHz
FEATURES
ADJUSTMENTS
INPUT
COLOR - -
-
--
-
-
-
-
-
-
-
-
-
-
-
TINT
(NTSC)
(*)
(*)
(*)
SHARPNESS
SHARPNESS MODE
FILTER
adjustable/can be set
not adjustable/can not be set
not adjustable in the RI2
CINEMA MODE
VIDEO TYPE

HT 300
3
ENGLISH

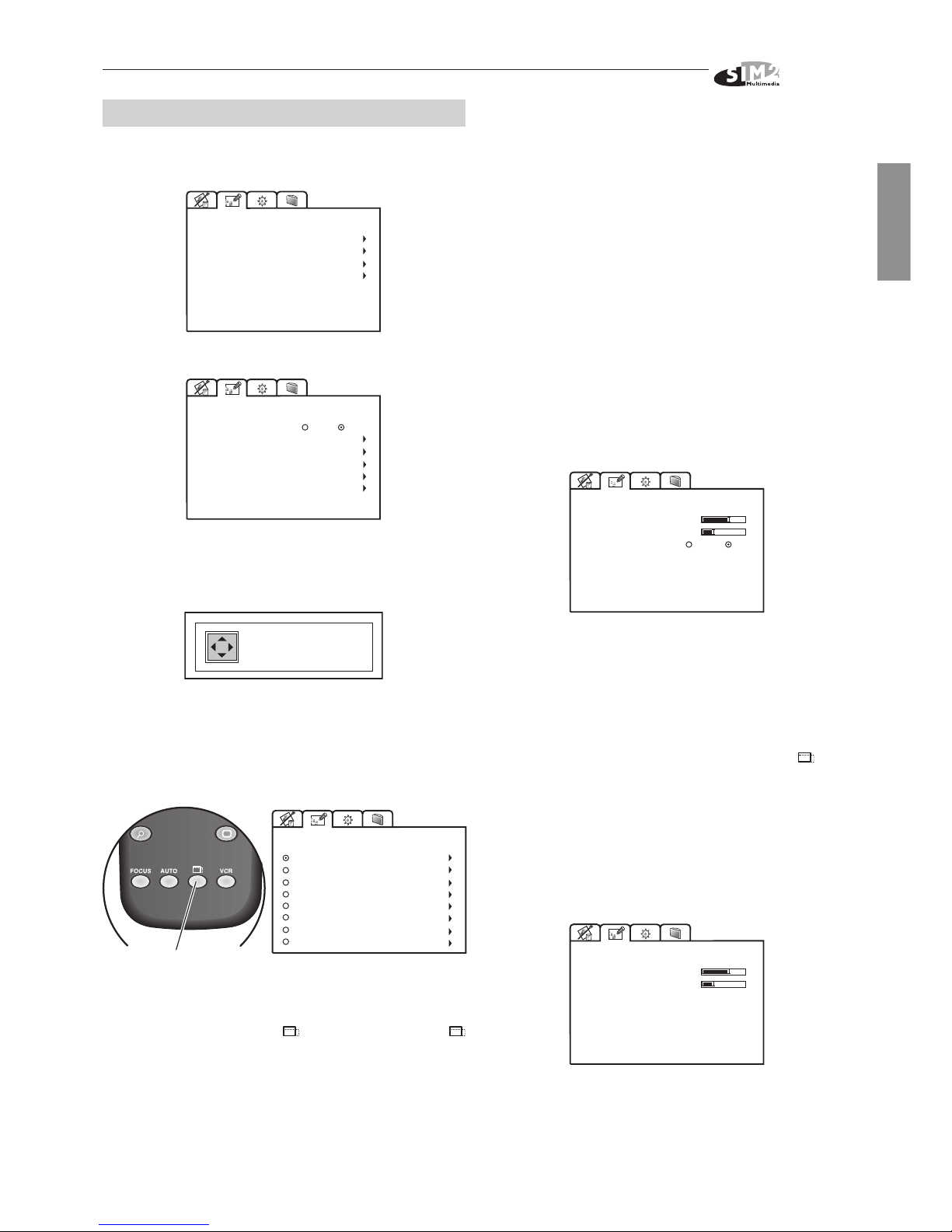

13.2 IMAGE ADJUSTMENTS
This menu features adjustments relating to position,
aspect ratio and magnification etc.
POSITION
ASPECT
ADVANCED SETTINGS
MAGNIFICATION
IMAGE ADJUSTMENTS
VIDEO
ASPECT
FREQUENCY/PHASE
ADVANCED SETTINGS
MAGNIFICATION
POSITION
IMAGE ADJUSTMENTS
MODE
4:3 16:9
RGB
13.2.1 POSITION
Use this adjustment to position the image vertically and
horizontally.
HORIZONTAL: 9
VERTICAL: 6
13.2.2 ASPECT
Determines the aspect ratio of the projected image.
From this menu it is possible to select the aspect ratio by
using the numeric keys 1...8 of the remote control.
Image aspect ratio
selection
5 PIXEL TO PIXEL
7 USER 2
8 USER 3
6 USER 1
1 NORMAL
2 ANAMORPHIC
3 LETTERBOX
4 PANORAMIC
ASPECT
By repeatedly pressing the key or by pressing the
and one of the numeric keys 1...8 of the remote control, it
is possible to select the aspect ratio.
13.2.2.1 Normal
This aspect projects the image occuping the full vertical
dimension of the screen and maintaining the correct
aspect (4:3 or 16:9).
13.2.2.2 Anamorpchic
This aspect allows to properly visualize an image 16:9
13.2.2.3 Letterbox
This aspect allows to project a 4:3 letterbox image fil-ling
the 16:9 screen and maintaining the correct aspect ratio.
13.2.2.4 Panoramic
This aspect stretches the 4:3 image slightly cutting the
upper and lower parts. It's ideal to project a 4:3 image in
a screen of 16:9 aspect ratio.
13.2.2.5 Pixel to Pixel
This aspect projects the signal as it is input without scaling
up or down.
Image is projected in the center of screen.
13.2.2.4 User 1, 2, 3
Should you wish to use a format different to those preset,
go to User menus.
ASPECT / USER 1
HORIZONTAL
VERTICAL
SCREEN CONTROL
0
-10
On Off
By using the Horizontal and Vertical adjustments it is
possible to select the screen shape of your choice. It is
important to keep the relation between height and width
so that the correct aspect ratio can be maintained.
Screen Control. If an appropriate screen-masking
interface is connected to the 12V output socket “ ” it is
possible to re-frame the screen to a variety of aspect ratios
and screen sizes (please refer to the screen
manufacturer’s manual).
13.2.3 FREQUENCY / PHASE
In the case of RGB graphic signals this adjustment is used
for synchronization of the RGB image to the number of
pixels on the DLP.
FREQUENCY / PHASE
FREQUENCY
PHASE
1312
-12
RGB
13.2.3.1 Frequency
The correct frequency adjustment eliminates vertical
band interference.

HT 300
4
13.2.3.2 Phase
The phase adjustment determines the stability and
sharpness of the vertical lines in the projected image.
13.2.5 ADVANCED SETTINGS
Advanced colour settings are accessible via this menu.
2
GAMMA CORRECTION
GAMMA CORRECTION
Y/C DELAY
ADVANCED SETTINGS
VIDEO
COLOR TEMPERATURE
GAMMA CORRECTION
ADVANCED SETTINGS
RGB
We recommend the use of these settings only to the
experienced user, as their adjustment can seriously affect
final image quality. However it is possibile to return to
optimal manufacturers settings, by selecting Reset.
13.2.5.1 Colour temperature
Select the colour temperature of the projected image.
HIGH
MEDIUM
LOW
USER
COLOR TEMPERATURE
zione
There are three fixed colour temperature settings, which
are: High (9000÷9500 degrees K), Medium (circa 6500
degrees K), Low (circa 5000 degrees K).
The User option will allow you to select the colour tempe-
rature of your choice.
BLU 28
0
-16
COLOR TEMP. /USER
RED
GREEN
13.2.5.2 Gamma correction
Selects the Gamma’s correction curve. It determines the
projector’s response to the grey scale, emphasizing - more
or less - the different grades of brightness (blacks, dark,
medium, light greys, whites) in the projected image.
VIDEO
FILM
GRAPHICS
GAMMA CORRECTION
13.2.5.3 Y / C Delay
Use this adjustment in the event of horizontal colour
misalignment within the projected image. It is recom-mended
that a colour bar test pattern be used for this adjustment.
13.2.6 MAGNIFICATION
Use this adjustment to magnify the projected image
(please note the higher the magnification the poorer the
quality of the image projected).
Select Zoom (the magnifying lens icon will appear at
the centre of the image) to adjust the level of enlargement,
using the Left and Right Arrows.
Select Pan (zoom button on the remote control) to choose
the area of image to enlarge, using all four arrow keys.
Via remote control, it is possible to alternate between
modes, by pressing the key on the keyboard pad. Al-
ternatively pressing the -Focus-Esc button allows you
to select between Zoom and Pan.

HT 300
5
ENGLISH
13.3 SETUP
The installation menu gives access to features that will
allow for correct installation of the projector.
ORIENTATION
KEYSTONE
PROJECTION LENS
TEST PATTERNS
FACTORY DAFAULTS
SETUP
13.3.1 ORIENTATION
Select the option that best describes the installation i.e.
desktop front, ceiling frontdesktop rear, and ceiling rear.
FLOOR
CEILING
FLOOR-REAR
CEILING-REAR
ORIENTATION
13.3.2 HORIZONTAL / VERTICAL KEYSTONE
If the projector is at an angle in relation to the screen,
keystone distortion will occur. Use the keystone adju-
stment to restore the projected image to the correct shape.
The angle of projection is limited to + or - 8 degrees. If the
projector is level then use the lens shift feature to correctly
position the image on screen (Fig. 47) .
Installazione
HORIZONTAL 0
VERTICAL -10
KEYSTONE
To obtain maximum quality of the projected image, we
recommend the installation of the projector on a level
platform parallel and central to the screen. In the event
that the picture is not correctly positioned use the lensshift
feature. Should it not be possible to centralize the image
by adjusting the lens height, tilt the projector, but this will
create keystone error.
C-SYNC
DVI
Fig. 47
13.3.3 PROJECTION LENS
To adjust Focus and Size of the projected image, use the
lens settings.
FOCUS
ZOOM
PROJECTION LENS
FOCUS
FOCUS
FOCUS
FOCUS
C-SYNC
DVI
ZOOM
ZOOM
ZOOM
ZOOM
ZOOM
C-SYNC
DVI

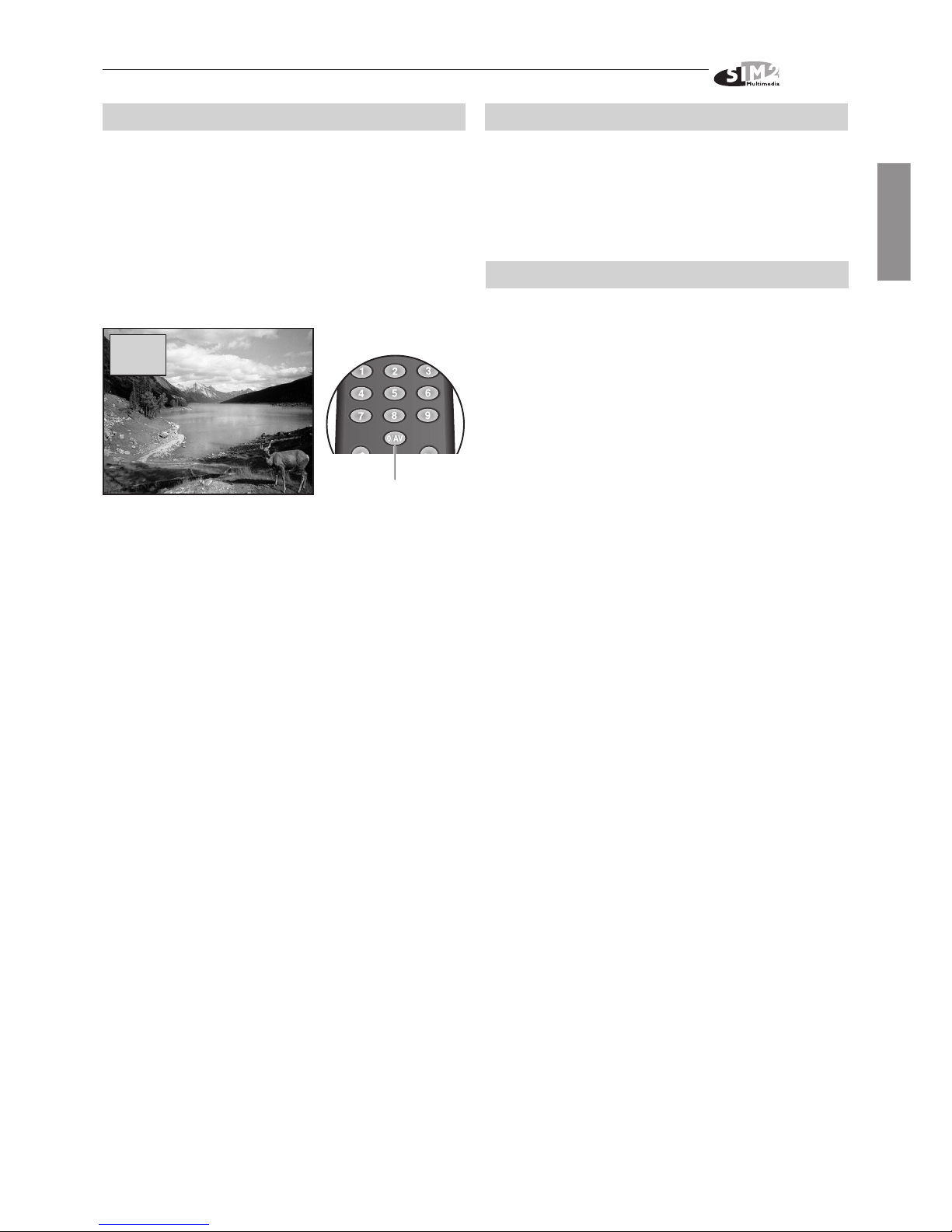

Alternatively, press keys Focus and Zoom on your re-
mote control. Or by pressing three times the key Focus-
Esc on keyboard pad.
13.3.4 TEST PATTERNS
Displays a series of five test patterns, useful for the
installation of the projector.
Press Up and Down Arrow key to browse pattern.

HT 300
6
VIDEO
RGB

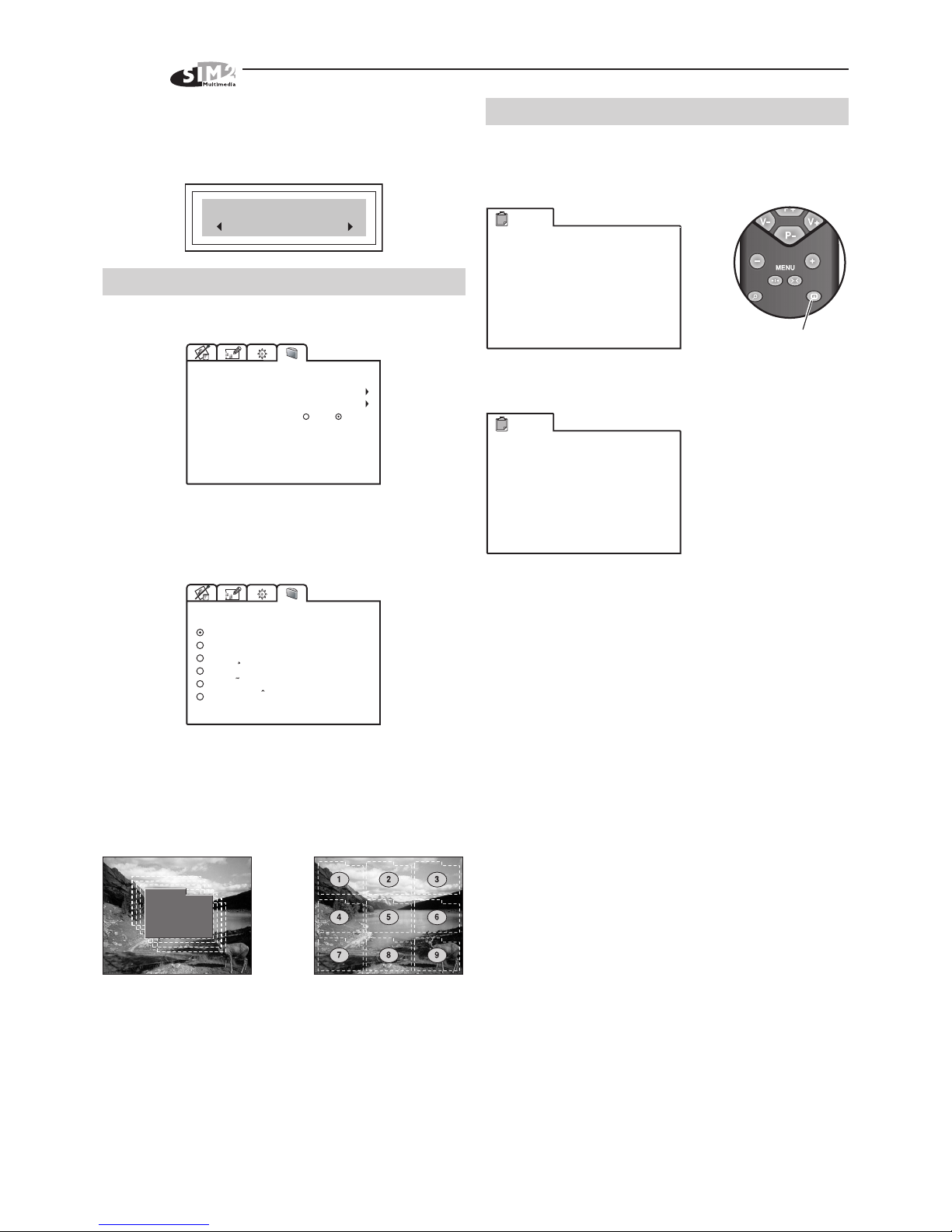

13.3.5 FACTORY DEFAULTS
Reconfigures the projector to original factory settings:
except Position, Orientation, Y/C Delay, Zoom and Fo-
cus.
No
Confirm?
Yes
13.4 MENU
This menu covers the On Screen Display adjustments.
LANGUAGE
OSD POSITION
OSD BACKGROUND
15 sec
MENU
OSD TIMEOUT
Clear Solid
13.4.1 LANGUAGE
Lists the languages options available for the On Screen
Display menus.
ENGLISH
ITALIANO
FRANCAIS
LANGUAGE
DEUTSCH
ESPANOL
PORTOGUES
13.4.2 OSD POSITION
To position the On Screen Display within the picture area,
by using the arrow keys (fig 48a) .
Pressing the 1,2, ..,9 keys on the remote control it is
possible to move the OSD in one of the 9 preset position
(Fig.48b) .
Fig.48a Fig.48b
13.4.3 OSD BACKGROUND
Gives a choice of backgrounds for the On Screen Display.
13.4.4 OSD TIMEOUT
Use this adjustment to set the display time after which
the On Screen Display will disappear. Left and Right
Arrow keys set the timing (within a 5-60 second
timeframe).
14 INFO
This function displays the current status of the projector,
input type, input frequency, etc.
Info
Source
Standard Video
Horiz Frequency
Aspect
Color Temperature
Lamp Hour Meter
Software Version
Video
NTSC 60Hz/4.43MHz
15.7kHz
Video Type Normal
Panoramic
Low
362
2.00H P (034)
Displays the selected input's
information and the projector status
Info
Source
Horiz Frequency
Vertical Frequency
Aspect
Color Temperature
Lamp Hour Meter
Software Version
RGB Graphic
56.5kHz
70Hz
Resolution 1024x768 Mode:77
Normal
Low
362
2.00H P (034)

HT 300
7
ENGLISH
15 INPUT SELECTION
The Input Selection menu is recalled by pressing the
key: O/AV of the remote control. During normal display,
press Up Arrow key and Down Arrow key of the keyboard
pad. The input selected will be highlighted in yellow.
When change the input a dialog box will appear on the
screen for a few seconds with the following indications:
selected input, standard video (for video signals)
resolution (for graphic signals) and aspect (Fig.49).
Video
NTSC/60Hz
Normal
Input Selection Menu
Fig.49 Fig.50
The video standard is automatically determinated by the
system and there is not necessary to change it from the
menu.
15.1 PROJECTOR INPUTS
This menu allows access to the available inputs, at the
rear of the projector. Use Up and Down Arrow keys to
browse inputs. Right Arrow to select input.Left Arrow
key to auto select the appropriate input.
Alternatively, use the remote control to directly select the
required input (1 to 7).
15.2 REMOTE INPUT INTERFACE (RI2)
This menu lists the available inputs on the Remote Input
Interface (RI2).
The Remote Control and the keyboard pad on the projector
can select the inputs available on the Remote Input
Interface. The 0/AV key allows switching between the list
of projector’s inputs and the list of Remote Input Interface.

HT 300
8
21 TECHNICAL SPECIFICATIONS
OPTICAL CHARACTERISTICS
Projection system: optical engine based on 1 DMD chip, sealed housing, dusty proof
DMD panel: resolution 1280 x 720 pixel
Brightness uniformity: > 90%
Contrast ratio: > 1000:1 “full on / full off”
Projection lens: zoom, 12 elements AR multilayer coating, motorized focus and zoom, manual elevation
Aperture f#: 2.7 (zoom min) - 3.3 (zoom max)
Picture size: 50-250 inches (diagonal measure)
Aspect ratio: 4/3 and 16/9 (native)
Throw ratio: 1,8:1 - 2,5:1 (throw distance:picture width)
Focus range: 2.2 - 13 m (7’ 3” - 42’ 8”)
Throw Distance: 60” : 2,4 m min - 3,3 m max (7’ 11” min - 10’ 10” max)
80” : 3,2 m min - 4,4 m max (10’ 6” min - 14’ 5” max)
100” : 4 m min - 5,5 m max (13’ 2” min - 18’ 1” max)
Keystone adjustement: up to 26° (optical: +/-8°, digital: +/-18°)
Lamp: 120 W UHP
Lamp life time: 6000 hours (average value measured in the laboratory under optimal conditions; it
can be sensibly reduced by the unit misusing)
ELECTRICAL CHARACTERISTICS
Input Signals: CVBS on RCA/Phono type connector
S-VHS on Mini-DIN connector
RGBHV on DB15HD connector
RGBS / YCrCb on RCA/Phono type connector
75 ohm Impedance
Horizontal frequency: from 15 to 80 kHz (up to to UXGA format @ 60 Hz)
Vertical frequency: 40-100 Hz
Standard video: automatically selected (PAL B,G,H,I,M,N,60, SECAM, NTSC 3.58, 4.43)
High definition video: ATSC HDTV (480p, 720p, 1080i)
Standard graphics: VGA, SVGA, XGA, SXGA, UXGA
Deinterlacer: motion compensation and three different interpolation algorhythms (9 points median
filter/field repetition, line/field insertion). Faroudja chip set, DCDi , 3:2 pull down
sequence convertion
Colour temperature: adjustable from 5000 to 9300 degrees K
TM
TM

HT 300
9
ENGLISH
Video processor: DTI, CTI, comb filter, noise reduction.
Sharpness, Y/C delay and NTSC tint adjustments
Remote control: via infrared remote control and via computer through RS232 serial interface
Remote inputs: via Remote Inputs Interface (optional) and cable with EVC connector
Low Voltage Power Output: two 12 Vdc output, 100 mA max on jack connectors
GENERAL
Supply: from 100 to 240 Vac, - 10% + 6% tolerance
Frequency: from 48 to 62 Hz
Consumption: 200 W max
Fuse: T 3.15A H, 5 x 20 mm
Dimensions of projector: 350 mm x 185 mm x 318 mm (L x H x D)
1’ 2” x 7” x 1’ 1” (L x H x D)
Weight of projector: 5.5 kg (11lbs)
Regarding transportability: desktop equipment
Packaging and gross weight: 400 mm x 275 mm x 405 mm (LxHxD)
1’ 4” x 11”x 1’ 4” (LxHxD)
double reinforced carton, expandable anti-shock packaging
gross weight, including accessories: 8 kg (17,7 lbs)
recyclable packaging material
TEMPERATURE AND HUMIDITY RANGES
Operation temperature: 0 to 35°C (32° to 95°F)
Transportation: -10 to 55°C (14° to 131°F)
Storage: -10 to 55°C (14° to 131°F)
Humidity: 10% to 90% relative humidity non-condensing
CERTIFICATIONS
Free fall: IEC 68-2-31, IEC 68-2-32 compliant
Safety: EN 60950, UL 1950
Electromagnetic emissions: EN 55022
