Sime Metropolis DGT 25 BF User manual

ENSURE THAT THESE INSTRUCTIONS ARE LEFT
FOR THE USER AFTER COMPLETION OF THE
BENCHMARK SECTION
Metropolis DGT
25 BF
User instructions
ENG
IT
ES
PT
FR
NL
Please read the Important Notice within
this guide regarding your boiler warranty
199838

All descriptions and illustrations provided in this manual have been carefully prepared but we reserve the right to make changes
and improvements in our products that may affect the accuracy of the information contained in this manual.
IMPORTANT NOTICE
For the first year all of our appliances are protected by our manufacturer’s guarantee which covers both parts and
labour.
As you would expect from Sime Ltd, it is our aim to provide our valued customers with the best in after sales and
service.
To take advantage of any extended warranty offered, all you have to do is to adhere to these 3 simple conditions:
• The installation must be carried out to Manufacturers/Benchmark Standards by a Gas Safe Registered
Engineer, and recorded in the installation manual.
• The appliance must be registered with both Sime Ltd and Gas Safe within 30 days of installation.
• The appliance must be serviced annually, by either Sime Ltd or a Gas Safe registered engineer- ensuring that the
Benchmark service record in the installation manual is completed.
Failure to comply with the above will result in only the 12 month warranty being offered.
In the absence of any proof of purchase, the 12 month warranty period will commence from the date of manufacture
of the boiler as shown on the appliance data plate.

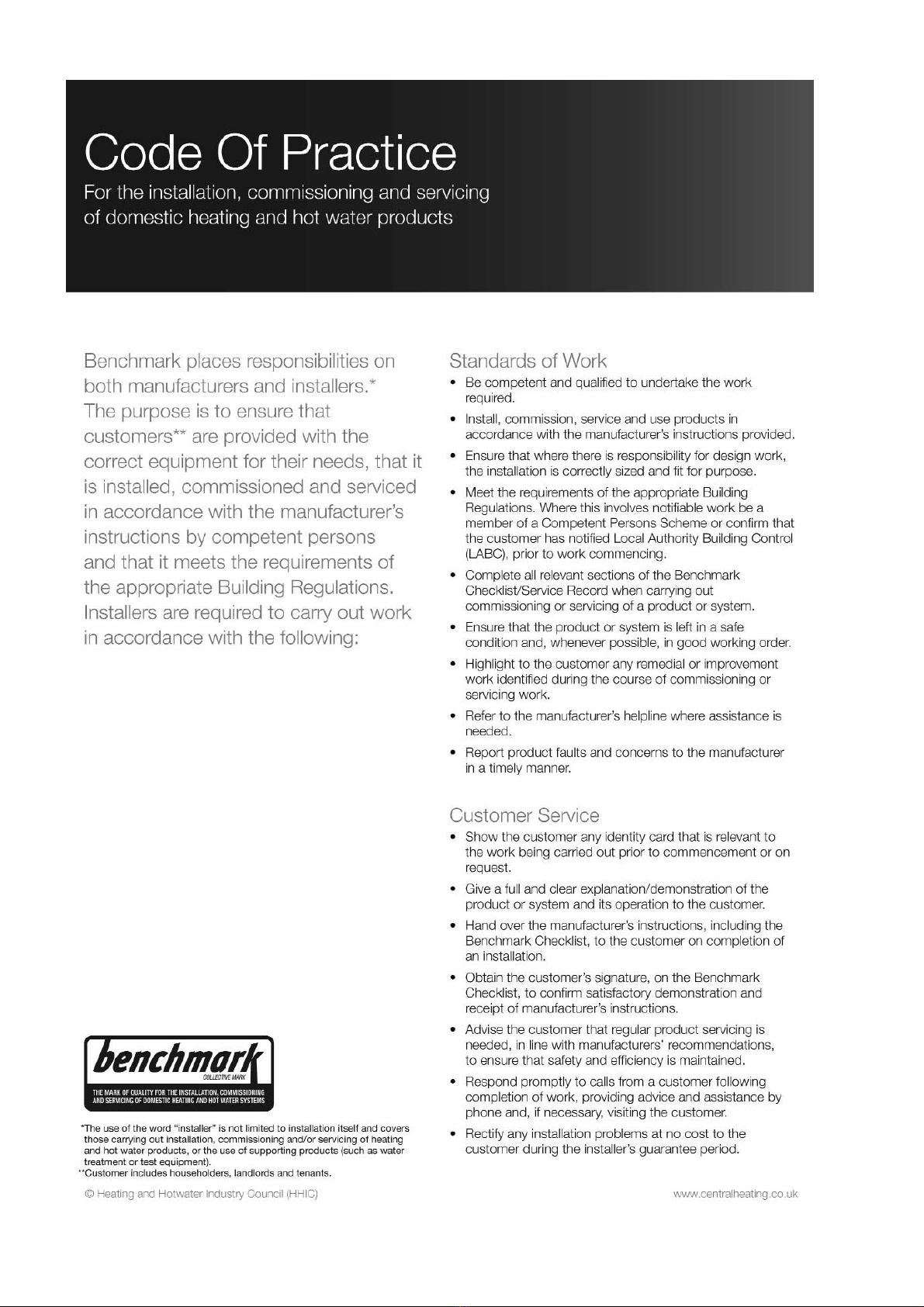

The Benchmark Scheme
Sime Ltd is a licensed member of the Benchmark Scheme which aims to improve the standards of installation and
commissioning of domestic heating and hot water systems in the UK and to encourage regular servicing to optimi-
se safety, efficiency and performance.
Benchmark is managed and promoted by the Heating and Hotwater Industry Council.
For more information visit www.centralheating.co.uk
Please ensure that the installer has fully completed the Benchmark Checklist on the inside back pages of the
installation instructions supplied with the product and that you have signed it to say that you have received a full
and clear explanation of its operation.
The installer is legally required to complete a commissioning checklist as a means of complyng with the appropria-
te Building Regulations (England and Wales).
All installations must be notified to Local Area Building Control either directly or through a Competent Persons
Scheme.
A Building Regulations Compliance Certificate will then be issued to the customer who should, on receipt, write the
Notification Number on the Benchmark Checklist.
This product should be serviced regularly to optimise its safety, efficiency and performance.
The service engineer should complete the relevant Service Record on the Benchmark Checklist after each service.
The Benchmark Checklist may be required in the event of any warranty work and as supporting documentation
relating to home improvements in the optional documents section of the Home Information Pack.

CONTENTS
VERY IMPORTANT!
PLEASE MAKE SURE YOUR BENCHMARK CHECKLIST IN THE
INSTALLATION GUIDE, IS FILLED IN CORRECTLY.
ALL GAS SAFE REGISTER INSTALLERS CARRY A ID CARD.
THE REGISTRATION NUMBER SHOULD BE
RECORDED ON THE CHECK LIST.
YOU CAN CHECK YOUR INSTALLER IS GAS SAFE
REGISTERED BY CALLING ON 0800 408 5577
OPERATING INSTRUCTIONS FOR THE USER
1.1 INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.2 APPLIANCE OPERATION
1.3 LIGHTING AND OPERATION
1.4 ERRORS AND SOLUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.5 MINIMUM CLEARANCES
1.6 ROUTINE SERVICING
1.7 ELECTRICAL SUPPLY
1.8 VENTILATION
1.9 SAFETY
2.0 INSTRUCTIONS FOR PROGRAMMING MECHANICAL CLOCK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Metropolis DGT 25 BF:
Gas Council number 47-283-22
This appliance complies with the S.E.D.B.U.K. scheme, band “D”

6
GB
IT
ES
PT
FR
NL
OPERATING INSTRUCTIONS FOR THE USER
THE GAS SAFETY (INSTALLATION AND
USE) REGULATIONS 1996. It is the law
that all gas appliances are installed by
a registered person, in accordance
with the above regulations. Failure to
install appliances correctly could lead
to prosecution. It is in your own inter-
est, and that of safety, to ensure that
the law is complied with.
It is essential that the appliance is
correctly earthed. An electricity sup-
ply of 240 V - 50 Hz fused at 3 A is
required.
Read these instructions carefully
before attempting to operate the appli-
ance.
1.1 INTRODUCTION
The Sime “METROPOLIS DGT 25 BF”
is a fully automatic, wall mounted,
room sealed, fan assisted range of
combination boilers. When operating
in winter mode, the appliance provides
central heating as required and pro-
duces instantaneous hot water upon
demand.
When operating in summer mode, the
central heating is not operational how-
ever the appliance continues to supply
hot water whenever it is required.
1.2 APPLIANCE OPERATION
A demand of hot water will be sensed
by the appliance detecting water flow
(providing that the flow rate is above 2
l/m - 0.5 gal/min).
The fan will start
and the burner will light at full output.
If the draw off rate is near the maxi-
mum design flow rate the appliance
will run continuously at full output
until a tap is either turned off or the
flow rate is reduced in which case
the heat output will reduce accord-
ingly to maintain a steady tempera-
ture.
Hot water is made available almost
immediately at the appliance outlet,
but the final temperature and time
taken for the hot water to reach a tap
depends upon the potentiometer set-
ting, the rate at which water is drawn
off, and the length of the pipe between
the boiler and the tap.
When the tap is turned off, the appli-
ance will revert to C.H. mode (if set on
winter position) otherwise the burner
will be extinguished pending the next
demand for hot water.
1.3 LIGHTING AND OPERATION

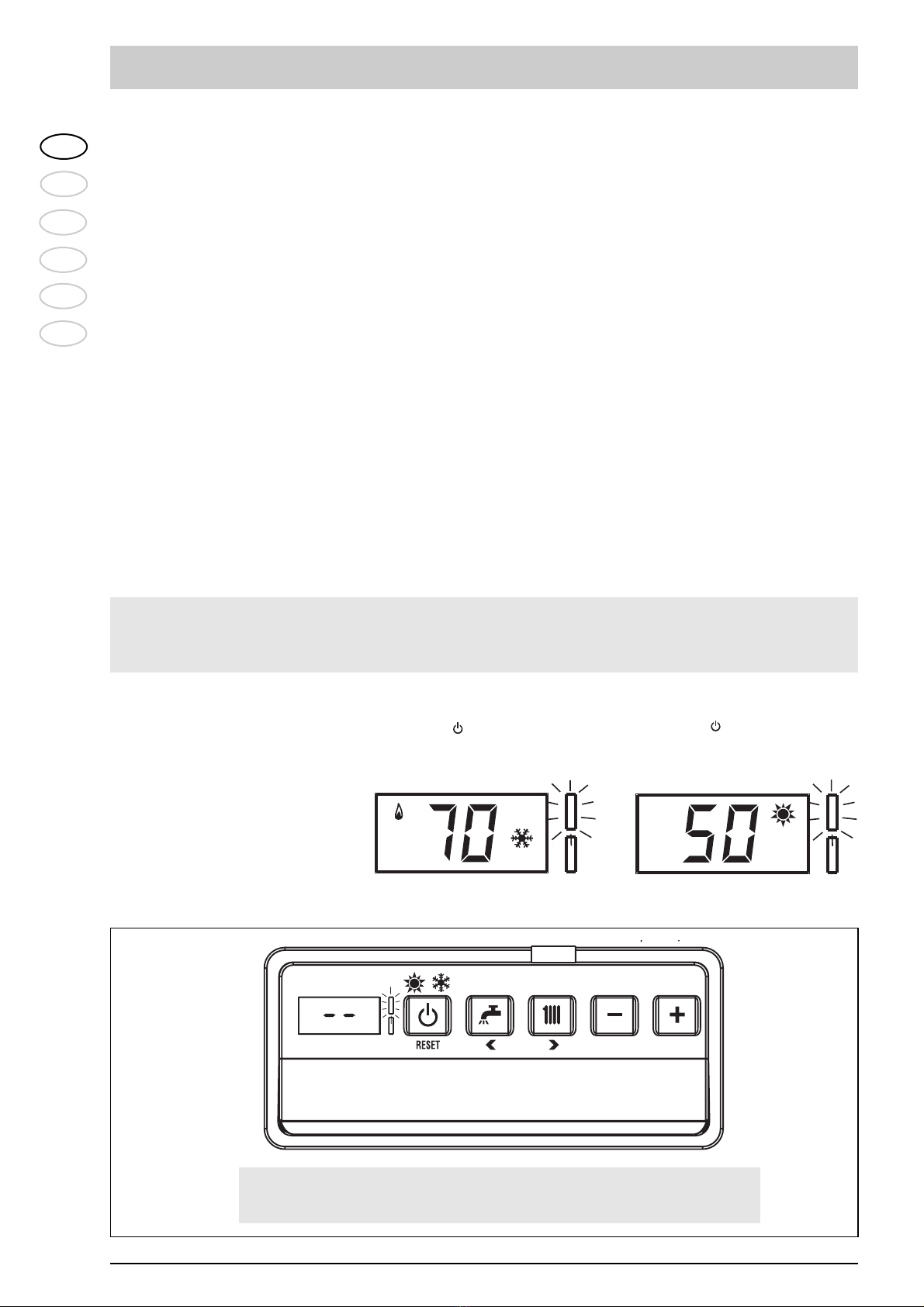

1.3.1 BOILER IGNITION (fig. 25)
The first ignition of the boiler must be car-
ried out by qualified technical personnel.
When it is necessary to restart the boiler
follow this procedure.
Ensure the gas supply is turned on.
Turn on the electrical supply, a green LED
illuminate.
After a delay of 30 seconds the boiler
should resume operation.
Winter
Press the key of the controls to activa-
te the winter mode functioning (heating and
D.H.W.). The display will be as shown below.
Summer
Press the key of the controls to activate
the summer mode functioning (only the produc-
tion D.H.W.). The display will be as shown below.
Fig. 25
ATTENTION: Use the keys to alter the value of any function, a beep indicates
that a change was accepted. The display will remain lit for 15 minutes(PAR 5
default).
KEYS LOCK: if the device is not used, the keys will be locked 15 minutes after the last setting was made (PAR 5 by
default) and the display light switches off.
To set one of the operating modes, press any of the keys for more than two seconds (the display will indicate one to
four segments progressively before unlocking the controls).

1.3.2 REGULATION OF THE WATER
TEMPERATURE FOR HEATING
(fig. 26)
To set the temperature of the central hea-
ting, press the key of the controls .
The display will be as shown in the figure.
Change the values with the key ( and
). Standard display will return by pres-
sing the key again, or after 10 seconds
if no key is pressed.
Regulation of the external sensor
If an external sensor is installed, the value
of the output temperature is automatically
chosen by the system, which quickly adjusts
the of flow temperature on the basis of the
external temperature.
If you wish to change the value of the tem-
perature, increasing or decreasing that cal-
culated automatically by the electronic
card, proceed as indicated in the preceding
paragraph.
The level of various correction of a value of
temperature proportional calculated. The
display will be as shown in fig. 26/a.
1.3.3 REGULATION OF THE D.H.W.
TEMPERATURE (fig. 27)
To set the desired temperature D.H.W.,
press the key of the controls.
The display will be as shown in the figure.
Change the values with the key ( and ).
The display will return by pressing the key
again, or after 10 seconds if no key is
pressed.
1.3.4 TO SWITCH OFF THE BOILER
(fig. 28)
In the case of a short absence, press more
than two seconds the standby key . The
display will be as shown in figure (boiler in
stand-by). In this way, leaving the electricity
and the gas supply connected, the boiler is
protected from frost and from the pump
becoming jammed.
If the boiler is not used for a prolonged
period, it is advisable to disconnect the
electricity supply, by switching off the main
switch of the system, and to close the gas
tap and, if low temperatures are expected,
to completely drain the hydraulic circuits to
avoid frost damage.
NOTE:
On mobile and park homes the heating cir-
cuit may be filled with a antifreeze solution.
It will not be necessary to drain the heating
circuit provided that the solution is of the
correct concentration.
7
GB
IT
ES
PT
FR
NL

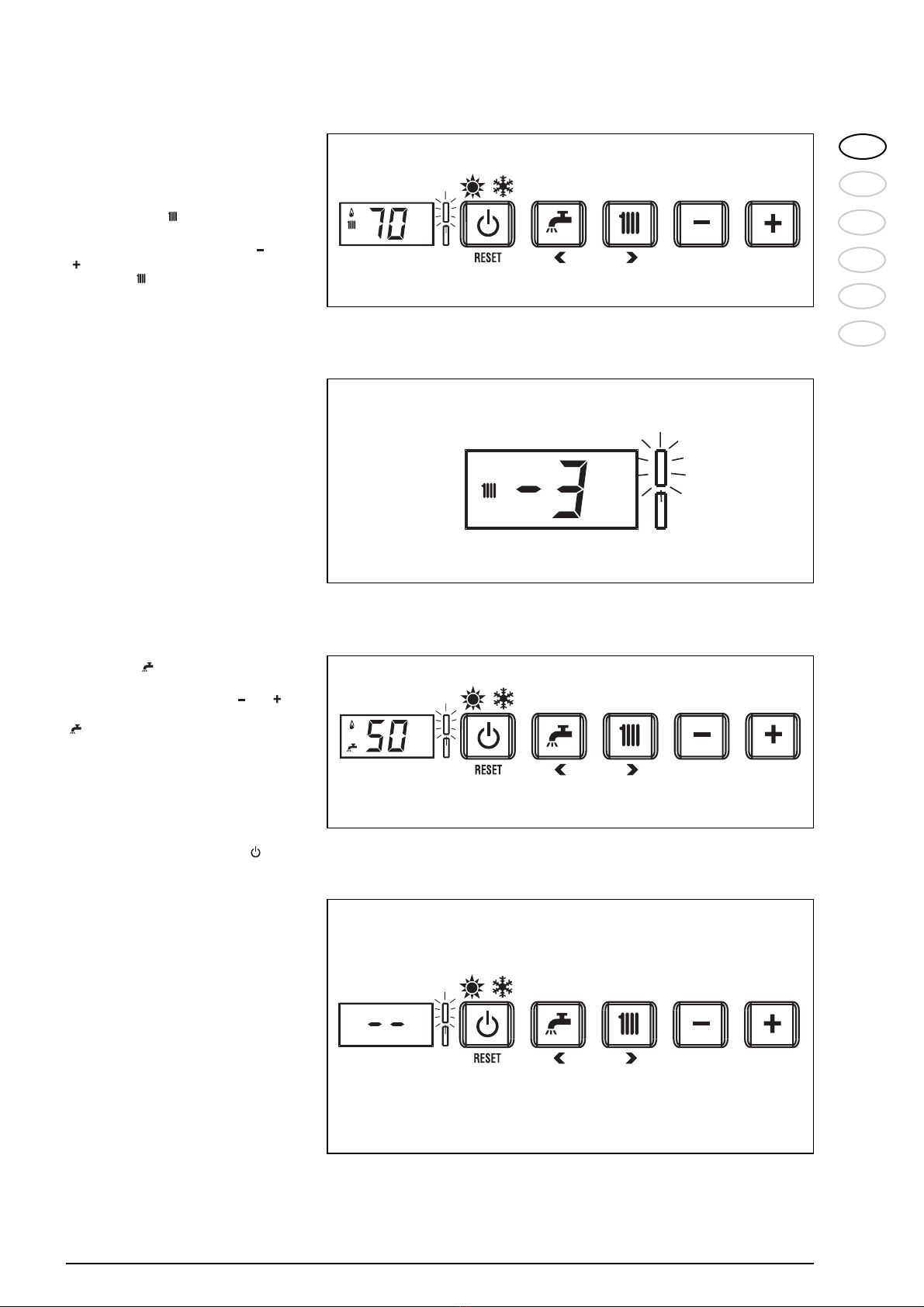

Fig. 26
Fig. 26/a
Fig. 28
Fig. 27

8
GB
IT
ES
PT
FR
NL
1.4 ERRORS AND SOLUTIONS
When there is a functioning error, the
display controls shows and red led.
Descriptions of the anomalies with the rela-
tive alarms and solutions are given below:
–AL 01 (fig. 29)
Press the key of the controls to re-
start the boiler.
If the error persists, request the atten-
tion of qualified technical personnel.
–AL 02
If the water pressure detected is lower
than 0.5 bar, the boiler will stop and the
display will show “AL 02”.
Using the external filling loop, re-pressu-
rise the boiler to between 1and 1.2 bar.
Constantly having to re-pressurise the
system would indicate a leak on the
system. This should be investigated and
corrected as soon as possible, and if
required the antifreeze solution checked.
–AL 04
Request assistance from qualified
technical personnel.
–AL 05
Request assistance from qualified
technical personnel.
–AL 06 (fig. 29/b)
Press the key of the controls to re-
start the boiler.
If the error persists, request assistance
from qualified technical personnel.
–AL 07 (fig. 29/c)
Press the key of the controls to re-
start the boiler.
If the error persists, request assistan-
ce from qualified technical personnel.
–AL 08
Request assistance from qualified
technical personnel.
–AL 10
Request assistance from qualified
technical personnel.
–AL 11
Request assistance from qualified
technical personnel.
–AL 12
Request assistance from qualified
technical personnel.
–AL 16 (fig. 29/d)
Press the key of the controls to re-
start the boiler.
If the error persists, request assistan-
ce from qualified technical personnel.
–AL 17
Request assistance from qualified
technical personnel.
1.5 MINIMUM CLEARANCES
The following MINIMUM CLEARANCES
must be available for servicing the
appliance:
1.6 ROUTINE SERVICING
To ensure continued efficient opera-
tion of the appliance, it is recommend-
ed that it is checked and serviced at
regular intervals.
The frequency of servicing will depend
upon the particular installation condi-
tions and usage but in general once a
year should be adequate. It is the law
that any service work must be carried
out by a Gas Safe Register registered
engineer (the appliance must be ser-
viced annually as a condition of its war-
ranty).
1.7 ELECTRICAL SUPPLY
THIS APPLIANCE MUST BE EARTHED.
The mains supply must be fused at 3
amp.
1.8 VENTILATION
If the appliance is installed in a cabinet,
it MUST NOT be used for storage pur-
poses. Any ventilation provided for the
appliance during installation MUST
NOT be blocked and a periodic check
must be made to ensure that the
vents are free from obstructions.
1.8.1 Cleaning
Use only a damp cloth and mild deter-
gent to clean the appliance outer cas-
ing. DO NOT use abrasive cleaners.
1.9 SAFETY
It is essential that the instructions in
this booklet are strictly followed for
the safe and economical operation of
this appliance.
The appliance functions as a fan
assisted balanced flue unit.
The flue terminal MUST NOT BE
OBSTRUCTED under any circum-
stances.
Fig. 29
Fig. 29/b
Fig. 29/c
Fig. 29/d
For ventilation For servicing
ABOVE THE
APPLIANCE CASING 200 mm 300 mm
AT THE R.H.S. 15 m m 15 m m
AT THE L.H.S. 15 m m 15 m m
BELOW THE
APPLIANCE CASING 200 mm 200 mm
IN FRONT OF THE
APPLIANCE 350 mm 500 mm

9
GB
IT
ES
PT
FR
If damaged, turn off the appliance and
consult the installer, service engineer,
or gas supplier.
If it is known or suspected that a fault
exists on the appliance it MUST NOT
be used until the fault has been recti-
fied by a competent person.
WARNING:
IF A GAS LEAK IS SUSPECTED OR
EXISTS, TURN OFF THE GAS SUPPLY
AT THE METER OR IN THE CASE OF
LPG AT THE CYLINDERS.
DO NOT OPERATE ANY ELECTRICAL
SWITCHES.
DO NOT OPERATE ANY ELECTRICAL
APPLIANCE.
OPEN ALL WINDOWS AND DOORS.
DO NOT SMOKE. EXTINGUISH ALL
NAKED LIGHTS. CONTACT THE
NATIONAL GAS EMERGENCY SER-
VICE IMMEDIATLEY ON
0800111999.

10
GB
IT
ES
PT
FR
NL
GB
IT
ES
PT
FR
2.0 INSTRUCTIONS FOR
PROGRAMMING
MECHANICAL TIME CLOCK
(Fig. 30)
Setting the time
The time of day can be set by grasping the
outer edge of the grey dial and turning it in
a clockwise direction until the correct time
is in line with the white pointer.
Setting the “switching time”
The “ON” periods are set by sliding the grey
tappets, adjacent to the time periods
required, to the outer edge of the dial.
The tappets that remain at the centre of
the dial will be the “OFF” periods.
N.B.: The smallest switching time (ON or
OFF) is 15 minutes. The Winter (heating)
mode must be selected..
Fig. 30
D
r
F
(O)
I
O
Slide blue tappets
OUT for ONperiod
Slide blue tappets IN for OFF period
Mode selector switch
Slide grey tap-
pets OUT
= ON period
Slide grey tappets IN = OFF period
Heating OFF (O)
Heating
PROGRAMMIED
Heating ON (I)
