SIMOLIO SM-561 User manual

SM-561 Manual
User Manual
SM-561
Sales & Support Email: [e-mail] ( NA/AU )
[e-mail] ( UK)
Two-channel
A B OFF
Sales & Support Email: [e-mail] ( NA/AU )
[e-mail] ( UK)
IR Wireless Headphones
(1) Power Supply: 2XAAA alkaline batteries (2) Working Current: 30mA ± 5mA
(3) Receiving Frequency: A channel: L/2.3MHz, R/2.8MHz (Universal standard)
B channel: L/3.2MHz, R/3.8MHz (Universal standard)
(4) Receiving Distance: ≥ 6m (5) Frequency Response: 20Hz~20KHz
(6) Power Output: ≥ 8mW (7) S/N Ratio: ≥ 60dB
6. Technical Parameters

1. Features
(1). Compatible with any universal-frequency car DVD systems (Universal IR
frequencies: Channel A: L/2.3MHZ,R/2.8MHZ; Channel B: L/3.2MHZ,R/3.8MHZ).
(2). Dual channel for your option.
(3). The automatic power-off function allows the headphones to be switched off after
apprximately 10 minutes when there is no audio signal to save power.
(4). Designed with a 3.5mm AUX sharing jack allows another earbuds/ headphones
to plug in to share the movies/ music.
(5). It can be used as a wired headphones by the included detachable AUX cable, or
equipped with an IR transmitter for watching TV at home, SIMOLIO IR
transmitters SM-261A or SM-264D are suggested for better performance.
SM-561 IR wireless headphones are compatible with universal vehicle IR
entertainment systems, allowing kids to enjoy excellent sound clarity from
movies, videos and music without disturbing other passengers and drivers.
Keep your kids happy and leave you peace on the go.
For any questions , please contact:
[e-mail] ( NA/AU )
[e-mail] ( UK)
01
SM-561 Manual SM-561 Manual

02 03

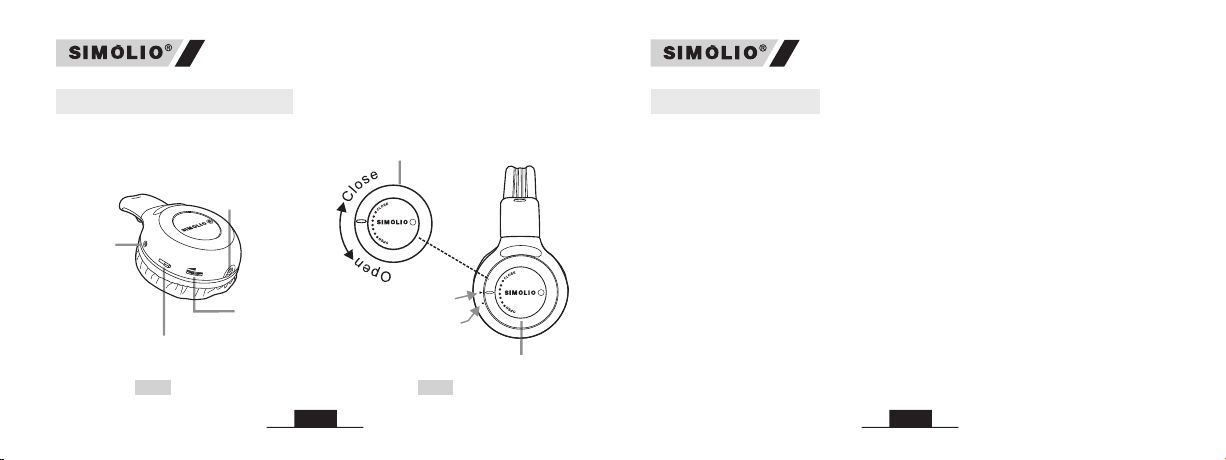

2. Parts Introduction
Battery cover
Volume
control
Audio-in
jack
A/B channel &
Power off
Power
indicator
Battery
cover
A B OFF
VOL
L
Closed position
Open position
L
3. User Guide
(1). Install the batteries properly
Please use 2×AAA premium alkaline batteries and make sure they are inserted
properly (not suggest to use rechargeable NI-MH battery).
Note:
* Revolving clasp battery compartment structure, install the battery cover in the
correct position, then rotate it clockwise until you hear a “click”, or it won't stay
latched ( Ref. Fig 2).
(2). Power on the headphones
Select to Channel A or Channel B, make sure the headphones’ channel is same
as the relative transmitter’s/ DVD’s, otherwise will cause intermittent sound
issues.
Note:
* If it's the first time to use SIMOLIO universal IR headphones and experience no
sound, audio cuts, only hear sound by one side, most are caused by car DVD's
frequencies deviation (non-universal), then you will need to return these
headphones and purchase the original ones.
Fig 1 Fig 2
SM-561 Manual SM-561 Manual

04 05
SM-561 Manual SM-561 Manual
* For two kids in the same row and are watching different movies on two DVD
players, please set each DVD on a different channel (channel A & channel B),
then set the headphones to the channel of the DVD they would like to listen to.
Please ask your kids to face to the DVD and don’t sit too close to each other to
avoid the interference. (Ref. Fig 4)
channel A
channel B
DVD 1
DVD 2
6 ft range
35
35
L
Fig 4
Fig 3
* If the headphones have been powered off automatically, please turn off it
first, then switch to A or B to turn on the headphones.
4. How to Adjust the Headband to Fit Better
The headband incorporates memory elastic stainless steel strips inside, you
can remould the headband shape to fit you better, or adjust the wearing angle
to make the headphones fit snug on your ears.( Ref. Fig 5)
* Please pay attention to the IR transmitting
angel & distance, the best audio signal will
be obtained if you sit directly in front of the
monitor within 6 feet. If you sit on either
side of the monitor you can expect the
same great reception within 35 degrees to
the left or the right of the monitor. Sound
will be cracking if sit too far away, or not in
sight of IR transmitter, which is limitation of
the IR system type, not the product itself.
(Ref. Fig 3)
* Please turn off the headphones and take out the batteries before storage.

07
06
SM-561 Manual SM-561 Manual
DurableFlexible
Adjust the Headband
2
SHAPE1
A B OFF
1
SHAPE2
A B OFF
3
5. Trouble Shooting
Problem Causes Solutions
The headphones/ transmitter
is not powered on.
Power on the headphones/
transmitter.
.
The volume of headphones/
audio source is zero or too low.
Turn up the volume at a sufficient
level.
Beyond the working range. Move the headphones in the
working range of the transmitter.
Part 1
The IR sensor of DVD
player is not universal.
Return SIMOLIO headphones
and buy the original headphones,
or turn off the IR sensor of DVD
player, buy SIMOLIO IR
transmitter as an alternative.
No
voice Batteries have been run out. Use new 2×AAA premium
alkaline batteries and insert
properly.
Fig 5

08 09
SM-561 Manual SM-561 Manual
Problem Causes Solutions
Part 2
The IR sensor of DVD
player is not universal.
Make sure the headphones’ channel is
same as the relative transmitter’s.
Headphones’ channel
is not same as the
relative transmitter’s.
Blocked by obstacles.
Interference from other
transmission sources
The batteries are in low power.
Problem Causes Solutions
Part 3
Turn up the volume of the audio
device at a sufficient level.
The volume of audio source
is too low.
Poor IR transmitting modules.
The quantity of infrared-ray
emission tubes are not enough.
Poor mounting angle of
infrared-ray emission tubes.
Leave far away from the interfering
source.
Change another new 2×AAA
premium alkaline batteries
and insert properly.
If the IR sensor in the DVD
player can be turned off,
please turn off it and buy
SIMOLIO IR transmitter
as an alternative.
Return SIMOLIO headphones and buy
the original headphones, or turn off the
IR sensor of DVD player, buy SIMOLIO
IR transmitter as an alternative.
Make sure there is no obstacles
between the transmitter and the
headphones (esp., please don’t cover
your hands on the IR sensors of the
headphones), and pay attention to the
IR transmitting angle and distance.
Noise/
Cuts in
and out
Noise/
Cuts in
and out
