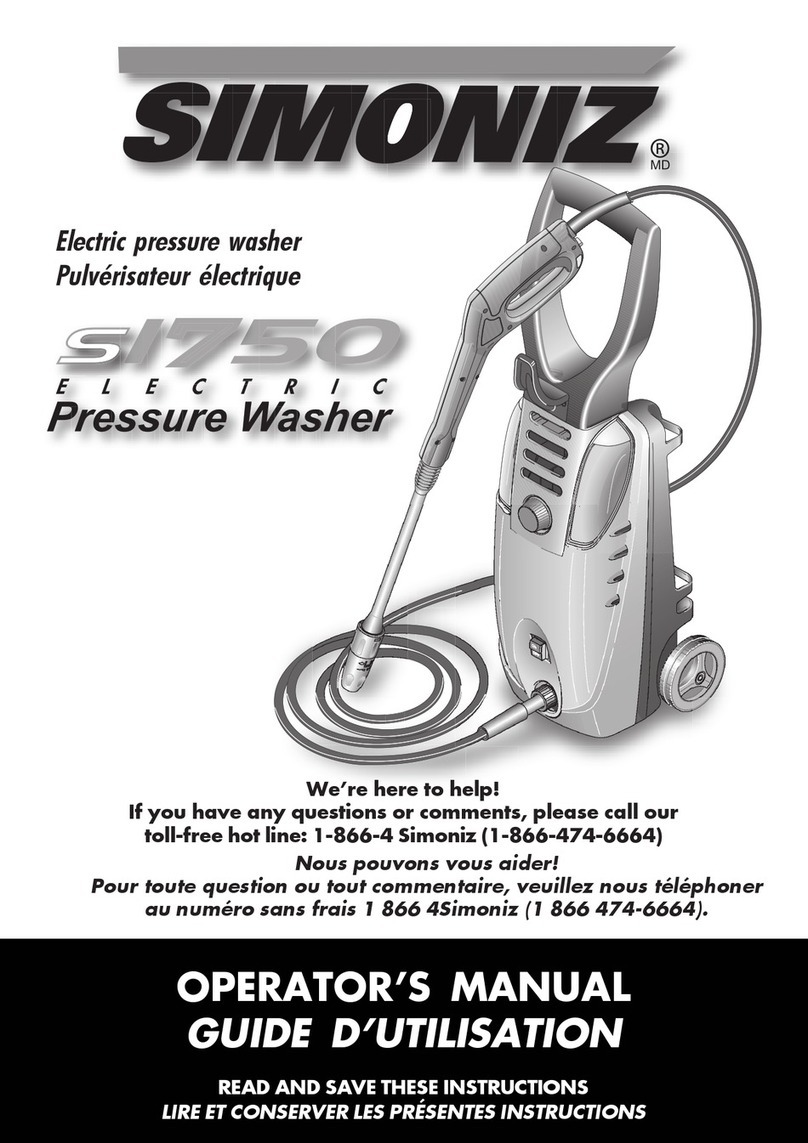

Simoniz S1700 User manual

PLEASE KEEP THE ORIGINAL BOX, PACKAGING AND RECEIPT.
BEFORE OPERATING THIS UNIT, PLEASE READ THIS MANUAL THOROUGHLY AND RETAIN
IT FOR FUTURE REFERENCE.
IF YOU MUST STORE YOUR PRESSURE WASHER IN A PLACE WHERE TEMPERATURE IS
BELOW 5ºC. YOU MUST APPLY WINTERIZING PROCEDURE TO PROTECT IT. FAILURE TO
WINTERIZE THE UNIT MAY PERMANENTLY DAMAGE PUMP AND VOID THE WARRANTY.
If you have any questions or comments,
visit our website at www.simoniz.ca or call our toll free hotline
1-866-4SIMONIZ (1-866-474-6664)
PRESSURE WASHER
Instruction Manual
39-8673-0 (j)

1
EASY ASSEMBLY
1
2
3
Attach high-pressure hose (using the end with the O-ring) into
the high-pressure outlet, and hand-tighten the threaded nut.
FIRST TIME USE ONLY
Remove and discard the covers. Separate quick-connect coupling assembly.
Attach adaptor to inlet and attach quick-connect coupling onto garden hose.
Fill the detergent container with detergent and push lid firmly onto
container. Attach detergent suction tube onto detergent lid and attach
container to the pressure washer container storage area as shown.

EASY ASSEMBLY – continued
4
Insert the desired wand with nozzle into spray gun,
and twist 1/4 turn until rectangular tab appears.
5
Attach garden hose to water supply and turn water on.
6
Plug the unit into a properly grounded outlet.
2

3
Never point nozzle at people or animals.
Never drink alcohol or use drugs while operating this equipment.
Never operate while standing in water.
Never touch plug with wet hands.
Never let electrical connections rest in water.
Never operate pressure washer without the water turned on.
Never use hot water.
EASY ASSEMBLY – continued
NEVER!
SEE PAGE 16 FOR WINTERIZING PROCEDURE.
READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE STARTING UP THE WASHER FOR
THE FIRST TIME. QUESTIONS? CALL 1-866-4SIMONIZ (1-866-474-6664)
7
8
Purge air by
squeezing trigger
on the gun until
there is a steady
stream of water.
9
Squeeze trigger and
press ON (I) Button.
OFF (O)
ON (|)
Release safety
trigger, if locked.

4
Easy Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Features and Electrical Power Information . . . . . . . . . . . . . . . . . . . . . .
Parts Diagram and List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Assembly and Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Working with Detergents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Shut Down and Clean-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Taking a Break . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Winterizing and Long-term Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintaining Your Pressure Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tips On Cleaning with your Pressure Washer . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TABLE OF CONTENTS
WARRANTY
1
4
5
6
7
8
11
13
15
15
16
17
18
20
21
Product Warranty
Always keep your receipt as proof of purchase.
We’re here to help! If you have any questions or
comments, call our toll free hotline 1-866-
4SIMONIZ (1-866-474-6664). Have your serial
number ready. The serial number can be found on
the back plate, located on the rear of the unit.
This pressure washer has a Parts Replacement,
Product Exchange and/or Repair Warranty only.
NO REFUNDS will be provided. Please see store
for Product Exchange details.
2-year Warranty - Motor
This product is warranted to be free from defects in
material and workmanship for two years from the
date of its original purchase. If such a defect
appears during the warranty period, upon present-
ation of proof of purchase, Trileaf Distribution will
repair or replace (at its option). Shipping charges
may apply.
3-month Warranty - Accessories
Trigger gun, hose, spray wands and other accesor-
ies are warranted for 3 months from the date of
purchase. You may purchase accessories directly
through place of purchase, or by calling.
This warranty does not cover accidental damage,
unreasonable use, normal wear and tear, use of
improper detergents, freezing, neglect, or non-
compliance with Operation Instructions. Warranty
does not cover loss of use, or other consequen-
tial damages arising from any of the above, nor
does it cover repairs made or attempted by
unauthorized persons.
Warranty is void if the equipment is used for
commercial, rental or industrial purposes.
If you have more questions, visit our website at
www.simoniz.ca or call 1-866-4simoniz (1-866-474-
6667).

5
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
IMPORTANT PRECAUTIONS – READ FIRST!
Safety Warnings
When using this product, basic precautions should
always be followed:
Read all the instructions before using the
product.
High-pressure jets can be dangerous if subject
to misuse. The jet must not be directed at
persons or animals.
Water spray must never be directed towards any
electric wiring, devices or directly towards the
pressure washer machine itself or fatal electric
shock may occur.
To reduce the risk of injury, do not operate the
machine near children.
Learn how to stop the machine and release
pressure quickly. Be thoroughly familiar with the
controls.
Stay alert—watch what you are doing.
Wear safety goggles.
For use with cold water supply only. Do not
draw other liquids.
Do not use acids, solvents, or any other
flammable material in this product. These
products can cause physical injuries to the
operator and irreversible damage to the
machine.
To reduce the risk of electrocution, keep all
connections dry and off the ground. Do not
touch plug with wet hands.
The pressure washer should not be used in
areas where gas vapours may be present. An
electric spark could cause an explosion or fire.
To minimize the amount of water getting into the
pressure washer, the unit should be placed as
far as possible from the cleaning site during
operation.
Avoid accidental starts. Shut power “OFF”
before connecting or disconnecting cord to
electrical outlets.
Do not operate the product when fatigued or
under the influence of alcohol or drugs.
Do not stand on unstable surfaces. Stand with
both feet balanced at all times.
Prior to starting the pressure washer in cold
weather, be sure ice has not formed in any part
of the equipment.
Never carry your pressure washer by the cord.
Do not pull on the cord to disconnect from the
outlet.
To allow free air circulation, the pressure washer
should not be covered during operation.
The Trigger Gun Safety Lock prevents the
trigger from accidentally being engaged. This
safety feature does not lock trigger in the “ON”
position.
Warnings
Do not use with flammable liquids and toxic
chemicals.
Injection Hazard: Equipment can cause
serious injury if the spray penetrates the skin.
Do not point the gun at anyone or any part of
the body. In case of penetration seek medical
aid immediately.
This system is capable of producing 1700PSI.
To avoid rupture and injury, do not operate
this pump with components rated less than
1700PSI working pressure (including but not
limited to spray guns, hose and hose connec-
tions).
Before servicing, cleaning or removal of any
parts, shut “OFF” power and relieve
pressure.
Do not spray electrical apparatus and wiring.
If connection is made to a portable water
system, the system shall be protected against
backflow.

6
SAFETY FEATURES AND ELECTRICAL POWER INFORMATION
•
•
•
•
•
•
•
Warning
Warning
Caution
•
•
Motor Overload
The electric motor in this pressure washer is
equipped with an overload protection device
which will automatically shut “OFF” the motor in the
event the motor draws excessive current or
overheats. The device will automatically reset
itself and resume normal operation after a short
period of time.
Grounding Instructions
This product must be grounded. If it should malfunc-
tion or breakdown, grounding provides a path of
least resistance for electric current to reduce the
risk of electric shock. This product is equipped with
a cord having an equipment grounding conductor
and a grounding plug. The plug must be plugged
into an appropriate outlet that is properly installed
and grounded in accordance with all local codes
and ordinances.
Danger
Improper connection of the equipment-grounding
conductor can result in a risk of electrocution.
Check with a qualified electrician or service person-
nel if you are in doubt as to whether the outlet is
properly grounded. Do not modify the plug
provided with the product—If it will not fit the
outlet, have a proper outlet installed by a
qualified electrician. Do not use any type of
adaptor with this product.
The pressure washer is equipped with a stop
device that will sense when the trigger on the gun
is released. It will open the power circuit to the
motor and cause the pressure washer motor to
stop. Motor will resume again when trigger is
pulled.
Extension Cords
If possible, do not use extension cords with this
product. However, if you must use one, observe all
the warnings and instructions listed below:
Use a sufficient gauge:
Maximum cable length: 50’ = 14 AWG
Use only 3-wire extension cords that have 3-prong
grounding-type plugs and 3-pole cord connectors
that accept the plug from the product.
Use only extension cords that are intended for
outdoor use. These extension cords are identified
by a marking “Acceptable for use with outdoor
appliances; store indoors while not in use.”
Use only extension cords having an electrical
rating not less than the rating of the product.
Do not use damaged extension cords. Examine
extension cord before using and replace if
damaged. Do not abuse extension cord and do
not yank on any cord to disconnect.
Keep cord away from heat and sharp edges.
Always disconnect the extension cord from the
receptacle before disconnecting the product from
the extension cord.
To reduce the risk of electrocution, keep all
connections dry and off the ground. Do not touch
plug with wet hands.
The pressure washer is also equipped with
a main power “ON/OFF” switch located on
the unit. It should always be moved to the
“OFF” position when the pressure washer
is not being used to prevent possible
injury or damage.
Extension cords are not recommended
unless they are plugged into a groundfault
circuit-interrupter found in circuit boxes or
protected receptacles.
Follow the maintenance instructions
specified in the manual.
This machine has been designed for use
with cleaning detergent supplied or
recommended by the Manufacturer.
The use of other cleaning detergents
may affect the operation of the machine
and void the warranty.

7
Parts List
Item no. Quantity Part Name Parts No.
1 1 Up-handle assembly JH02-002-0000
2 1 Gun holder JH02-000-0004
3 3 Screw JH02-000-0006
4 1 Wheels JH02-000-0005
5 1 Detergent lid JH02-051-0000
6 1 Inner detergent tube JH02-050-0001
7 1 Detergent bottle JH02-050-0003
8 1 Gun holster JH02-000-0019
9 1 Quick-connect coupling JH02-020-0027
Item no. Quantity Part Name Parts No.
10 1 Inlet adaptor JH02-020-0026
11 1 Inlet cover
12 1 Water filter JH02-020-0009
13 1 Outlet cover
14 3 Nuts JH02-000-0009
15 1 Turbo wand JH02-000-0008
16 1 Adjustable wand JH02-000-0007
17 1 Pressure hose JH02-000-0003
18 1 Gun assembly JH02-061-0000
PARTS DIAGRAM AND LIST
9
11
12
13
4
5
6
7
8
3
2
10
14
1
15
16
18
17

8
•
•
•
•
•
ASSEMBLY AND OPERATING INSTRUCTIONS
Step 1 Step 2
Assemble the gun supporter.
Step 3 (First time use only)
Caution
•
•
•
Step 4
Fig.1 Fig.2
Fig.4Fig.3
Never use the pressure washer to draw in
water contaminated with solvents (e.g.
paint thinners, gasoline, oil, etc.).
Dirt in the feed water will damage the unit.
To avoid this risk, we recommend checking
the water filter (located inside the water
inlet; to clean it out see Maintenance
section).
Always prevent debris from being drawn
into the unit by using a clean water source
and an accessory water filter if required.
Water Supply (Cold Water Only)
Do not draw non-water liquids through the unit.
For use with cold water supply only.
Water hose must be at least a 1/2” in diameter.
Flow rate of water supply must not fall below 2
GPM (gallons per minute).
Flow rate can be determined by running the water
for one minute into an empty 5-gallon container.
The water supply temperature must not exceed
40°C (104°F).
Insert handle frame into pressure washer and align
holes. Insert three nuts into the front, and screws
from behind as shown in Fig.1. Tighten screws.
Remove and discard the covers. Separate quick-
connect coupler assembly. Attach quick-connector to
inlet and attach coupler onto garden hose.
Attach high-pressure hose (using the end with the
O-ring) into the high-pressure outlet, and hand-
tighten the threaded nut.

9
ASSEMBLY AND OPERATING INSTRUCTIONS – continued
Step 6
Step 8
Step 7
Step 9
Release safety trigger, if locked.
Step 5 (When using detergent)
Fig.5
Fig.6
Fig.8 Fig.9
Fill the detergent container with detergent and push lid firmly onto container. Attach detergent suction tube onto
detergent lid and attach container to the pressure washer container storage area as shown.
Insert the desired wand with nozzle into spray
gun, and twist 1/4 turn until rectangular tab appears.
Attach garden hose to water supply and turn
water on.
Make sure the main switch is in “OFF” position.
Plug the unit into a properly grounded outlet.
Fig.7

10
ASSEMBLY AND OPERATING INSTRUCTIONS – continued
Step 11
Press ON ( | ) Button.
Step 10
Purge air by squeezing trigger on the gun until there is a steady stream of water.
Surface Preparation
OFF (O)
ON (|)
Fig.10
Fig.11
Before starting any cleaning task it is important to inspect the area for objects which could create a hazard.
Remove objects from the work area which could be tripped over, such as toys or outdoor furniture. Ensure that
all doors and windows are closed tight.

11
USING THE ACCESSORIES
Adjustable Wand
The adjustable wand controls high-pressure/
low-pressure and adjusts the spray.
High-pressure/Low-pressure
Fig.12
Fig.13
Caution
Do not adjust the nozzle while the trigger
is squeezed.
For low-pressure, grasp the collar and slide it
away from the gun as shown in Fig.13. To apply
detergent, the adjustable nozzle must be on the
low-pressure setting.
The high-pressure nozzle position is intended for
cleaning. To get the high-pressure setting, grasp
collar and slide the collar nozzle towards the gun as
shown in Fig.12. Make sure the collar is pulled
completely back to lock the nozzle into the
high-pressure position.

Turbo Power Wand
12
USING THE ACCESSORIES – continued
Adjusting The Spray
Fig.14
Fig.15
Caution
Jet spray adjustment is very aggressive.
Do not adjust while spraying. We recom-
mend that for most cleaning applications
a 20º spray angle should be used to avoid
damage to the surface being sprayed.
Caution
Do not try to adjust the turbo nozzle.
The adjustable spray nozzle can adjust from fan to jet
in the high-pressure position only. The spray is
adjusted from jet spray to fan spray by turning the
nozzle as shown in Fig.14.
Note: The pressure of the spray on the surface you
are cleaning increases as you move the wand
closer to the surface.
The high-pressure turbo nozzle (Fig.15) is
intended for maximum cleaning effect. Keep the
spray wand 6–8” away from the cleaning surface at all
times.

13
WORKING WITH DETERGENTS
Step 1 Step 2
Fig.16 Fig.17
Caution
Only use cleaning detergents
recommended for this pressure washer.
Working with detergent ensures a quick soaking of
the dirt, and allows the high-pressure water to
penetrate and remove the dirt more effectively.
Always spray detergent on a dry surface, do not
pre-soak area. Wetting the surface first dilutes the
detergent and reduces its cleaning ability.
To apply detergents you must be operating at
low-pressure. This provides a gentle application of
detergent, with the pressure equivalent to a low-
set garden hose. The high-pressure setting is used
for cleaning; you cannot apply detergents when
working at high-pressure. Always test detergent
in an inconspicuous area before use.
Install the adjustable wand. Set the adjustable
nozzle to the low-pressure setting by sliding
the nozzle collar out. The nozzle must be set in
the low-pressure position to apply detergents.
Attach detergent suction tube onto detergent
lid. Fill the detergent bottle with detergent. Screw
the lid onto the detergent bottle and attach bottle to
the pressure washer (Fig.17). Note: You can
adjust amount of detergent by moving the detergent
lid tab between – and +.

14
Step 3 Step 4
Step 5 Step 6 (End of detergent application)
WORKING WITH DETERGENTS – continued
Caution
Damage may occur to painted surface
if chemical is allowed to dry on surface.
Wash and rinse a small section at a time.
Avoid working on hot surfaces or in
direct sunlight.
Caution
Failure to clean properly will cause the
injection system to become clogged and
inoperable.
Caution
Never use:
• Bleach, chlorine products and other corrosive chemicals
• Liquids containing solvents (i.e., paint thinners, gasoline, oils)
• Tri-sodium phosphate products
• Ammonia products
• Acid-based products
These chemicals will harm the unit and will damage the surface being cleaned.
Turn on the pressure washer. Pull trigger to operate
unit. The liquid detergent will automatically mix
with water and be discharged through nozle. Apply
detergent to a DRY work surface, from bottom to top.
Allow detergent to remain on the surface for a
short time before rinsing. Do not allow detergent to
dry on surface.
Rinse with clean water under high-pressure. On a
vertical surface, rinse from the bottom up, then rinse
from the top down to avoid streaking. Hold nozzle
6–8” from the work surface at a 45° angle.
When you have finished using the detergent
injection system, remove detergent suction tube
from bottle and insert into 1 gallon (5 L) of fresh
water. Siphon water at low-pressure for one
minute so that all detergent is flushed through
system. Remove detergent bottle and rinse it
until it is thoroughly cleaned.

15
SHUTTING DOWN AND CLEANING UP
If taking a break of five minutes or more:
Step 1
Engage gun safety lock.
Step 2
Turn pressure washer to “OFF” (O) position.
Step 3
Unplug the power cord from the outlet.
TAKING A BREAK
Warning
Turn off water supply and squeeze trigger
to depressurize the unit. Failure to do so
could result in personal injury due to dis-
charge of high-pressure water.
Step 1
End of detergent application. (If you are not
using detergent, go directly to Step 2.)
When you have finished using the detergent
injection system, remove detergent suction tube
from bottle and insert into 1 gallon (5 L) of fresh
water. Siphon water at low-pressure for one
minute so that all detergent is flushed through
system. Remove detergent bottle and rinse it
until it is thoroughly cleaned.
Step 2
Turn the switch to “OFF” (0) position and unplug
cord from outlet.
Step 3
Unplug the power cord from the outlet.
Step 4
Press trigger to release water pressure.
Step 5
Disconnect the garden hose from the water inlet on
the unit.
Step 6
Disconnect the high-pressure hose from the high-
pressure outlet and engage the gun safety lock.
Step 7
Wind high-pressure hose and electrical cord
around the handle as shown.

16
1. Connect the antifreeze hose onto the adaptor
and quick-connect coupling.
2. Depress button on top of antifreeze container.
3. Continue until fluid exits the pump outlet.
4. Remove the hose from pump inlet.
Use Simoniz®Pressure Washer
Antifreeze (39-8602-0).
1. Disconnect all water connections.
2.
3.
4.
WINTERIZING AND LONG-TERM STORAGE
Fig.18
Optimum Winterizing Procedure
Winterizing your pressure washer will help protect
and prolong its life. We strongly recommend you
follow the below steps using antifreeze. Prepare
the pressure washer for storage by running a 50/50
mix of water and antifreeze into the unit. This will
keep the internal parts lubricated, protected from
rust, and prevents the pump from freezing.
Quick Winterizing Procedure
If you cannot do the Optimum Winterizing pro-
cedure, you can still protect your pressure washer
from winter-damage by doing below:
Turn on the machine for a few seconds, until the
remaining water in the pump exits. Turn off
immediately.
Do not allow high-pressure hose to become
kinked.
Store the machine and accessories in a room that
does not reach freezing temperatures. Do not
store near furnance or other sources of heat as it
may dry out the pump seals.

17
USER MAINTENANCE
1.
2.
3.
Fig.19 Fig.20
Connections
Connections on pressure washer hoses; gun and spray wand should be cleaned regularly and lubricated with
non-water soluable grease.
Adjustable Nozzle Only
Clogging of the nozzle causes the pump pressure
o be too high and cleaning is immediately required.
You can clean the nozzle by carefully inserting a
thin, sharp instrument (i.e. paperclip) into the tip to
rid it of deposits (see Fig.19).
For the adjustable nozzle, you can also lubricate the
nozzle collar (high-pressure/low-pressure) by
using non-water soluble grease regularly.
Water FIlter Screen
The pressure washer is equipped with a water
inlet screen to protect the pump. If the screen is not
kept clean, the flow of water to the pressure
washer will be restricted and the pump may be
damaged.
To clean inner water screen, remove quick-
connector and remove the filter screen from the
pump inlet (Fig.20).
Rinse screen until it is free of debris and
blockage.
Replace screen and quick-connector immediately
to prevent any foreign matter from entering the
pump.
Air Vents
The air vents located on the sides of the pres-
sure washer must be kept clean and free of any
obstructions to ensure proper air-cooling of the
motor during operation.

18
Recommendations
•
•
•
•
Deck Cleaning
House Siding
TIPS ON CLEANING WITH YOUR PRESSURE WASHER
Before cleaning any surface, an inconspicuous
area should be cleaned to test spray pattern and
distance for maximum cleaning results.
Take care when using high-pressure setting as it
can potentially damage the finish or paint.
If painted surfaces are peeling or chipping, use
extreme caution as pressure washer may remove
the loose paint from the surface.
The best angle for spraying high-pressure water
against a cleaning surface is 45°. Spraying dir-
ectly head-on tends to cause dirt particles to
embed in the surface.
With Detergent: Fill detergent bottle with
Deck/Fence Cleaner (39-4577-4). Place detergent
suction tube directly into cleaning solution and
apply to surface at low-pressure. For best results,
limit your work area to smaller sections of approxi-
mately 25 sq.ft. Allow Deck Wash to remain on
surface 1 to 3 minutes. Do not allow detergent to
dry on surface. Rinse at high-pressure in a long
sweeping motion keeping the spray nozzle
approximately 6” from the cleaning surface. Always
clean from top to bottom and from left to right.
When moving on to a new section of the cleaning
surface, be sure to overlap the previous section to
eliminate stop marks and ensure a more even
cleaning result.
Without Detergent: Pre-rinse cleaning surface
with fresh water and wash with water on
high-pressure using same directions as above.
With Detergent: Fill detergent bottle with
House/Siding Cleaner (39-4576-6). Place deter-
gent suction tube directly into cleaning solution and
apply to surface at low pressure (for best results,
limit your work area to sections of approxi-
mately 6’ and always apply detergent from
bottom to top). Allow detergent to remain on
surface 1–3 minutes. Do not allow detergent to dry
on surface, if surface appears to be drying, simply
wet down surface with fresh water. Rinse at high-
pressure from bottom to top, then top to bottom in an
even sweeping motion keeping the spray nozzle
approximately 6” from the cleaning surface.
Without Detergent: Pre-rinse cleaning surface
with fresh water and wash with water on
high-pressure using same directions as above.
Cement Patios, Brick & Stone
With Detergent: Fill detergent bottle with
Heavy-duty Degreaser (39-4578-2). Place deter-
gent suction tube directly into cleaning solution and
apply to surface at low-pressure. For best results,
limit your work area to smaller sections of approxi-
mately 25 sq.ft. Allow degreaser to remain on
surface 1–3 minutes. Do not allow detergent to
dry on surface. Rinse at high-pressure in a sweep-
ing motion keeping the spray nozzle approxi-
mately 3–6” from the cleaning surface. Always
clean from top to bottom and from left to right.
Without detergent: Pre-rinse cleaning surface
with fresh water and wash with water on
high-pressure using same directions as above.

19
TIPS ON CLEANING WITH YOUR PRESSURE WASHER – continued
Cars, Boats & Motorcycles
Take care when using high-pressure setting as
high-pressure can potentially damage the finish
or paint.
With Detergent: Fill detergent bottle with
Car/Boat Wash (39-4579-0). Place detergent
suction tube directly into cleaning solution and
apply to surface at low-pressure. For best
results, clean one side of vehicle at a time and
always apply detergent from bottom to top, do not
allow detergent to dry on surface. Rinse at high-
pressure in a sweeping motion keeping the spray
nozzle approximately 6–8” from the cleaning
surface (distance should increase when rinsing
pin-striping or other sensitive surfaces). Always
clean from top to bottom and from left to right. For
best results, wipe surface dry with a chamois or
soft dry cloth.
Barbecue Grills, Outdoor Power
Equipment & Gardening Tools
With Detergent: Fill detergent bottle with
Heavy-duty Degreaser (39-4578-2). Place deter-
gent suction tube directly into cleaning solution and
apply detergent at low-pressure. Allow
degreaser to remain on surface 1–3 minutes. Do
not allow detergent to dry on surface. Rinse at
high-pressure keeping the spray nozzle approx-
imately 3–6” from the cleaning surface. For
removing extremely stubborn dirt, it may be nec-
essary to move the spray nozzle even closer to the
surface for greater dirt cutting action.
Without Detergent: Pre-rinse cleaning surface
with fresh water and wash with water on
high-pressure using same directions as above.
Wood Patio & Lawn Furniture
With detergent: Remove all fabrics (i.e. cush-
ions). Fill detergent bottle with Deck/Fence
Cleaner (39-4577-4). Place detergent suction
tube directly into cleaning solution and apply to
surface at low pressure. Allow Pressure Wash to
remain on surface 1–3 minutes. Do not allow
detergent to dry on surface. Rinse at high pressure
in a sweeping motion keeping the spray nozzle
approximately 3–6” from the cleaning surface
(distance should increase when spraying sensi-
tive surfaces). For best results, clean from top to
bottom and from left to right.
Without detergent: Pre-rinse furniture with
fresh water and wash with water on high-pressure
using same directions as above.
