SimPal-T40/T20 GSM Power Socket
Thank you for purchasing the SimPal-T40/T20.
SimPal-T40 GSM power socket is a remote-controlled socket consisting of a GSM module.
The power supply output can be turned on or off remotely by the SMS command or voice
calling. It can works as router for slave socket SimPal-T20 and wireless accessories. Each
SimPal-T40 can connect 4pcs SimPal-T20 slave socket, 6pcs wireless sensor.
Both T20 and T40 socket support temperature monitor, thermostat control, schedule
control and delay control by sending SMS from your mobile phone.
All services and functions need to be supported by the GSM network and a SIM card.
This brochure suits for SimPal-T40-V2 and SimPal-T20-V2 model.
Details of the functioning and advanced operation of this socket are described in this
instruction manual.

SimPal-T40-V2/T20-V2 USER MANUAL
www.simpal.fi [e-mail]
2
For your safety..................................................................................... 7
Exception clause .................................................................................. 9
1.1 Package contents.......................................................................... 10
1.2 Sockets instructions ................................................................11
1.3 Light indicator ............................................................................. 13
2.1 User authorization level............................................................... 14

SimPal-T40-V2/T20-V2 USER MANUAL
www.simpal.fi [e-mail]
3
2.2 About the SMS Command............................................................. 15
3.1 Start to use ................................................................................... 15
3.2 Download “SimPal-T40” APP .................................................... 17
3.3 Register Master-number............................................................... 18
3.4 Pairing slave socket ..................................................................... 20
3.5 Turn on/off power......................................................................... 22
3.6 Delay control................................................................................ 22

SimPal-T40-V2/T20-V2 USER MANUAL
www.simpal.fi [e-mail]
4
3.7 Schedule control........................................................................... 24
3.8 Temperature control ..................................................................... 27
3.9 Temperature alarm ....................................................................... 29
3.10 Wireless sensor alarm ................................................................ 31
3.11 SMS when on/off button pressed................................................. 33
3.12 Power failure alarm ................................................................... 34
3.13 Calling control ........................................................................... 35

SimPal-T40-V2/T20-V2 USER MANUAL
www.simpal.fi [e-mail]
5
3.14 SMS notification to User ............................................................ 35
3.15 Check status ............................................................................... 36
3.16 Weak GSM signal alarm............................................................. 38
4. Reset factory setting ....................................................................... 39
5. Main Technical Parameters ........................................................... 40
Appendix: SMS commands list ........................................................... 42

SimPal-T40-V2/T20-V2 USER MANUAL
www.simpal.fi [e-mail]
6
1. Purchase a GSM SIM card (mobile phone card) from GSM network
service provider and install it in the socket. This SIM card number
is referred as SimPal-T40 number on this brochure.
2. The user needs to activate the Caller ID Presentation function of
SIM card, and deactivate PIN code of the SIM. Contact with GSM
network service provider for support.

SimPal-T40-V2/T20-V2 USER MANUAL
www.simpal.fi [e-mail]
7
For your safety
▪This socket was designed for home or office use. Do not use it on the electrical appliance
which is for industry or business operation, for example, iatrical appliances, large heaters
and refrigerates.
▪Before using this socket, make sure that the mobile phones can be used well in the area,
otherwise, do not put this socket into operation.
▪The power consumption of the appliances connected with the socket cannot exceed 3500W
and the current cannot exceed 16A.
▪The electrical appliance which power consumption is higher than 1500W must be grounded.
▪Do not make two plugs of socket short circuit.
▪Do not touch the socket jack by any metal objects or hand.
▪This socket was designed for indoor use. Don’t use it in wet, chemically aggressive or dusty
environment. Device working temperature range is -10℃~+35℃, stop to use this product
when environment temperature out of working range.
▪Do not plug this socket in a row, only allow connect other electricity device on the socket.
(nicht hintereinander stecken, nur andere Stromgeräte an der Steckdose anschließen

SimPal-T40-V2/T20-V2 USER MANUAL
www.simpal.fi [e-mail]
8
lassen).
▪Do not open the case unless maintenance needed by professionals.
▪Do not keep shaking or fall down this socket, otherwise it can be damaged.
▪This socket is a wireless signal transmission socket. Keep it away from electronic equipment
likely to interfere with the wireless signals, in order to avoid signals interference.
▪Switch off this socket and mobile phone when entering areas marked "Explosive", "Might
explode", "Closed wireless transceiver sockets" etc.
▪Do not cast this socket in a fire, as this may cause explosion.
▪This socket should only be operated from power approved by the socket manufacturer. The
use of any other types of power may damage the socket.
▪Keep the socket and its accessories out of the children reach.

SimPal-T40-V2/T20-V2 USER MANUAL
www.simpal.fi [e-mail]
9
Exception clause
1. We operate on a policy of continuous development. We reserve the right to make changes
and improvements to any of the sockets described in this document without prior notice.
2. For the latest socket information, please visit: http://www.simpal.cn. We don’t guarantee for
the document veracity, reliability or any content except regulate in proper laws. Including no
guarantee for socket suitable market or suitable area promise.
3. We hold no responsibility for the illegal use of this socket.
4. We hold no responsibility for any loss of income or any special, incidental, consequential or
indirect damages howsoever caused.
5. The contents of this document are provided “as is”. Except as required by applicable law, no
warranties of any kind, either expressed or implied, including, but not limited to the accuracy,
reliability or contents of this document. We reserve the right to revise this document or
cancel some functions at any time without prior notice

SimPal-T40-V2/T20-V2 USER MANUAL
www.simpal.fi [e-mail]
10
1.1 Package contents

SimPal-T40-V2/T20-V2 USER MANUAL
www.simpal.fi [e-mail]
11

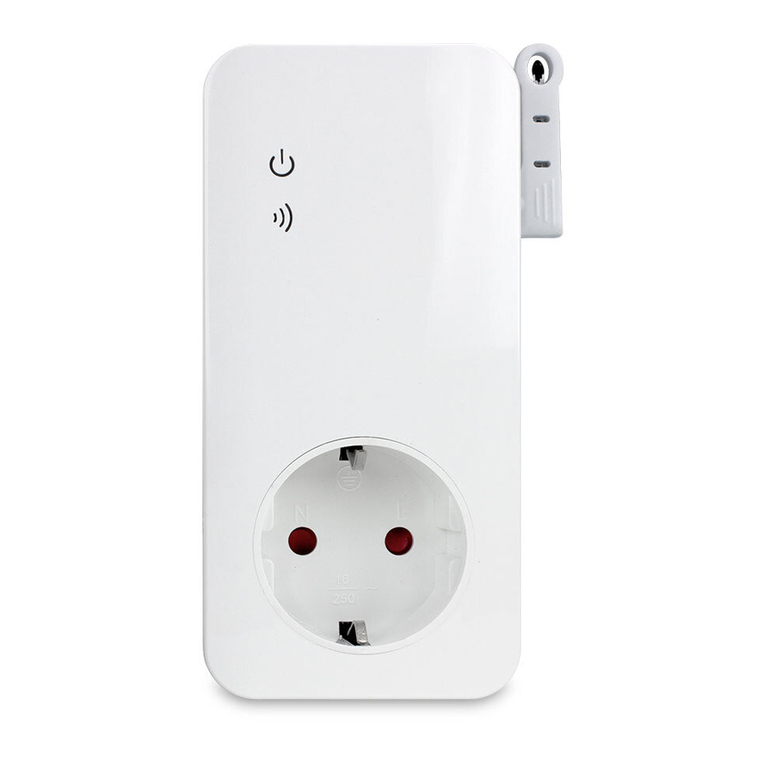

1.2 Sockets instructions
Note: Slave socket T20 without SIM card slot

SimPal-T40-V2/T20-V2 USER MANUAL
www.simpal.fi [e-mail]
12
Figure 2: Temperature sensor Instruction

SimPal-T40-V2/T20-V2 USER MANUAL
www.simpal.fi [e-mail]
13
1.3 Light indicator
Model
Indicator
Action
Status
SimPal-T40
and SimPal-20
Power Socket
Power LED
Turning off
Socket power output OFF
Constant light
Socket power output ON
Wireless signal
LED
Flash slowly
Searching network (SimPal-T40)
Lost connection with Main unit (SimPal-T20)
Slowly breath
Working in standby mode.
Two fast and
one slow Flash
Pairing slave socket or pairing wireless
sensor status.
Continues light
in 3 seconds
Rest to factory setting
Flash fast
Process SMS command

SimPal-T40-V2/T20-V2 USER MANUAL
www.simpal.fi [e-mail]
14
2.1 User authorization level
Socket settings can be set or adjusted via a SMS command.
There are two mobile phone user controlling levels:
Master-user (“Master”):
Only one Master has authorization to use all features of SimPal-T40.
In order to enable all the functions on the socket, the Master must store his/ her mobile
number in the socket’s memory. Only one Master’s mobile number is allowed for a socket.
Family users (“Family”):
There are four families have authorization to control the device, Family number can receive
SMS notification or change device setting.
The other mobile phone users have no authorization to control the socket.

SimPal-T40-V2/T20-V2 USER MANUAL
www.simpal.fi [e-mail]
15
2.2 About the SMS Command
•SMS command format: #code#content#.
•The maximum digits that are allows for the phone number is sixteen.
•SimPal-T40 will reply to the user after it receives the SMS command.
Note
•The “#” symbol must not be ignored when typing an SMS command.
•No allow any space within the commands.
3.1 Start to use
▪Installed SIM card to SimPal-T40 GSM power socket; you will see a SIM card slot at the
side, make the SIM card metal contact upside and hardly push the SIM card until SIM card
fixed.

SimPal-T40-V2/T20-V2 USER MANUAL
www.simpal.fi [e-mail]
16
▪Insert the temperature sensor into the I/O port until it is seized.
Power on:
1. Plug the SimPal-T40 in an AC power socket.
The GSM LED will be flashing slowly for about 15 seconds, and turn to slowly breathe status
and beep ring, breathe LED means the socket already register GSM network, its ready to
working.
The socket default power output is OFF.
2. Insert the plug of electronic appliance in the SimPal-T40 electrical outlet.
3. M button (See 5 on Figure1) can be pressed for about one second to switch on or off the
socket output.
After adding user numbers to the socket, users can send SMS command or make calling to
control the power supply output.

SimPal-T40-V2/T20-V2 USER MANUAL
www.simpal.fi [e-mail]
17
Note:
1.If the GSM indicator light is flash slowly all the time, which imply the SIM card
working abnormally, all functions of this socket are invalid.
2.Check GSM network signal of the using place:
•GSM network’s signal strength may affect the socket feature. Therefore, before
using, the user should ensure that SimPal-T40 is used in an area with a strong
GSM network signal (CSQ higher than 12).
•For the first time use, the user should perform a test-run by sending SMS to the
socket. This allows the user to check the GSM network connection of the socket.
3.2 Download “GSM Socket V3” APP
We offer free APP to work with SimPal-T40, search “GSM Socket V3” on Google Play or Apple
APP Store, download and install the APP, then it can use APP to control SimPal-T40.
First time register device on APP, input device name and SIM card number which installed on

SimPal-T40-V2/T20-V2 USER MANUAL
www.simpal.fi [e-mail]
18
SimPal-T40 device. The APP will create SMS content, send the SMS to device, it will operate
according APP function description.
Even without APP, user can send SMS manually according following instruction.
3.3 Register Master-number.
Sending following SMS to socket SIM card number from your mobile phone (the phone number
will be the Master number):
Register Master-number: #00# (1)
3.3.1 Change Master number
Master sends following SMS message in order to:
Change master-number: #14#NewMasterNumber (2)
•NewMasterNumber should be the new Master mobile phone number.

SimPal-T40-V2/T20-V2 USER MANUAL
www.simpal.fi [e-mail]
19
3.3.2 Register Family-number
Up to 4 Family-number can be stored on GSM socket.
Family-number have the authority to send SMS command to switch on or cut off the SimPal-
T40 or SimPal-T20 power output.
Method
Master sends following SMS message in order to:
Register a Family: #06#Family-Number# (3)
•Family-Number should be the User’s mobile phone number. It request to fill country
code for Family number. For example: [phone]
Check Family number:
Master sending SMS to check Family number: #06# (4)
