Simplex 2120 User manual

B5implex
2120 Multiplex
Communicating Device
Transponder
Installation ant
Checkout Procedure:
\
?I 1990 Simplex Time Recorder Co., Gardner. Mass 01441-0001 U.S.A.
d
MUX2-21-104 (575280)
All specifications and other inlormatlon shown were current as of publication. and are subject 10 change Who”? noWe.
Ed 10 90
firealarmresources.com

firealarmresources.com

TABLE OF CONTENTS
HOW TO USE THIS PUBLICATIO-N .......__......................__...............____..._._......_......................................................... 2
CDT: AN OVERVIEW ......_........__.._.............._.................__........................................................................................... 2
INSTALLATION GUIDE ................._......_.........___..............___....._.._............................................................................... 4
CDT CHECKOUT PROCEDURES.. .......................................................................................................................... 6
CDT PRELIMINARY CHECKOUT.. ....................................................................................................................... 6

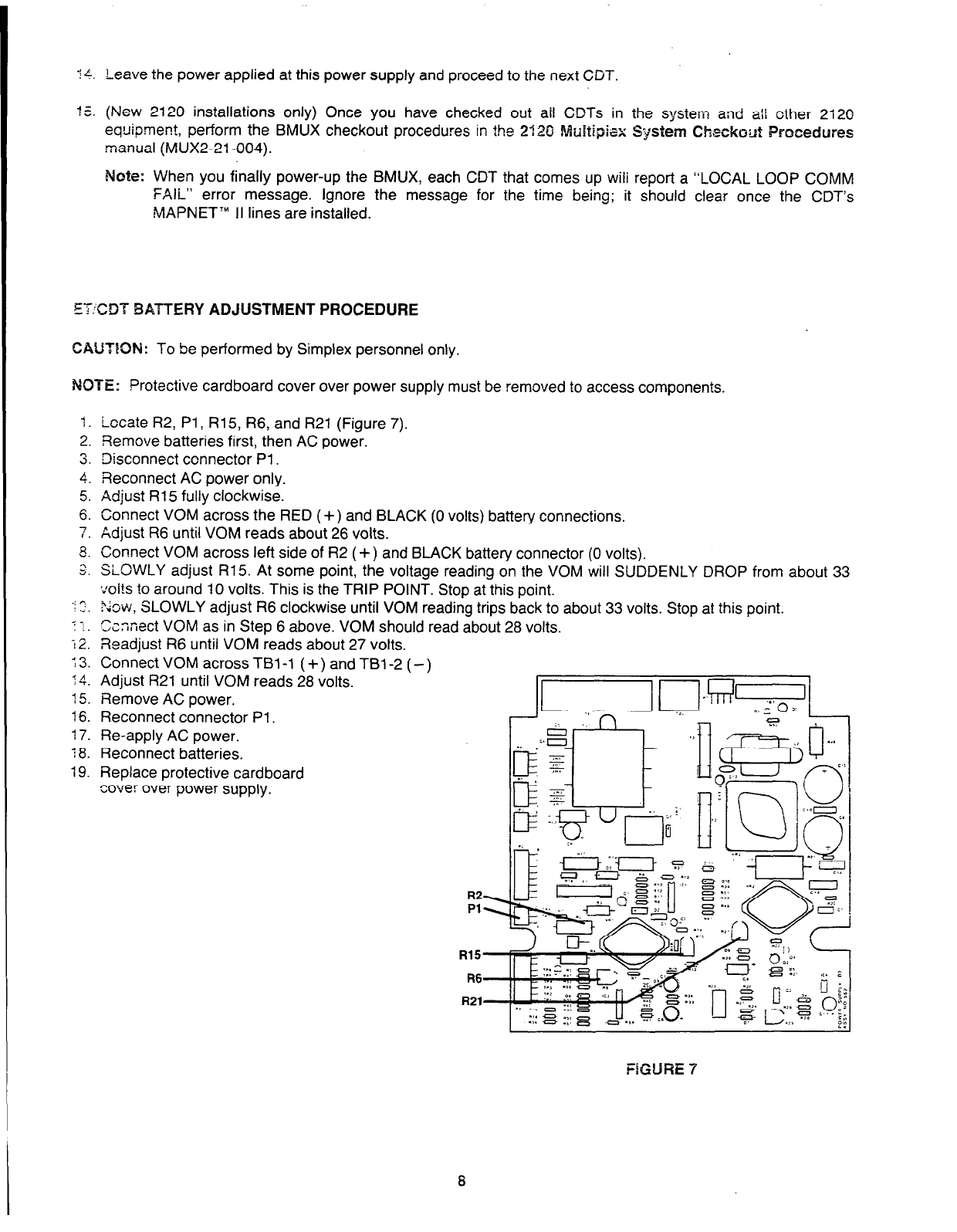

ET/CDT BATTERY ADJUSTMENT PROCEDURE ............................................................................................... 8
CDT FINAL CHECKOUT.. ..................................................................................................................................... 9
APPENDIX A
CDT PANEL JUMPER PLACEMENT AND SWITCH SETTINGS ....................................................................... 10
APPENDIX B
CDT PERIPHERAL SWITCH SETTINGS ........_.................................................................................................. 19
CAUTION
ELECTRICAL HAZARD
Disconnect electrical power when making any internal
adjustments or repairs. Installation and servicing
should be performed by qualified Simplex Representa-
tives.
CAUTION
POWERING REQUiREMENT
When removing power from this system, disconnect
batteries FIRST and AC power last. When connecting
power to this system, connect AC power FIRST and
batteries last.
WARNING
This equipment generates, uses, and can radiate radio
frequency energy and if not installed and used in
accordance with the instructions manual, may cause
interference to radio communications. It has been
tested and found to comply with the limits for a Class A
computing device pursuant to Subpart J of Part 15 of
FCC Rules, which are designed to provide reasonable
protection against such interference when operated in
a commercial environment. Operation of this
equipment in a residential area is likely to cause
interference In which case the user at his own expense
will be required to take whatever measures may be
required to correct the interference.
firealarmresources.com

HOW TO USE THIS PUBLlCATlON
This publication provides a guide to the installation and checkout of the 2120 communicating device transponder
(CDT).
Be sure that you understand the information in the 2120 Multiplex System Installation manual before reading
!his guide.
DOCUMENTS YOU WILL NEED DURING THE INSTALLATION AND CHECKOUT
‘!eu will need the system-supplied documents listed below to install and check out a CDT. The 2120 Multiplex
System Installation manual (MUX2-21-003) describes the method of interpreting equipment drawings.
8) System interconnect drawings for the communications channeis, any audio and telephone risers, and all
powering.
e CDT equipment cabinet drawings showing component locations and external (contractor) connections.
8 M-2120-CDT wiring diagrams.
Consult your Simplex Representative if you do not receive the proper system documentation.
CDT: AN OVERVIEW
The communicating device transponder (CDT) is a 2120 system component that is connected to the BMUX via
a 2120 communications channel (see Figure 1).
FOR CLARITY)
SHIELDED PAIR
MONITOR
I----- POINTS
CONTROL
POINTS
MONITOR
POINTS
I
JUNCTION 1ZOVAC
I
120 VAC
TO OTHER 2120
TRANSPONDERS
CDT
MAPNET’” TO/FROM
ADDRESSABLE DEVICES
( rTEll20 VAC
A 2120 System with CDT
FIGURE 1
MAPNETTM is protected by U.S. Patent No. 4.796.025.
2
firealarmresources.com

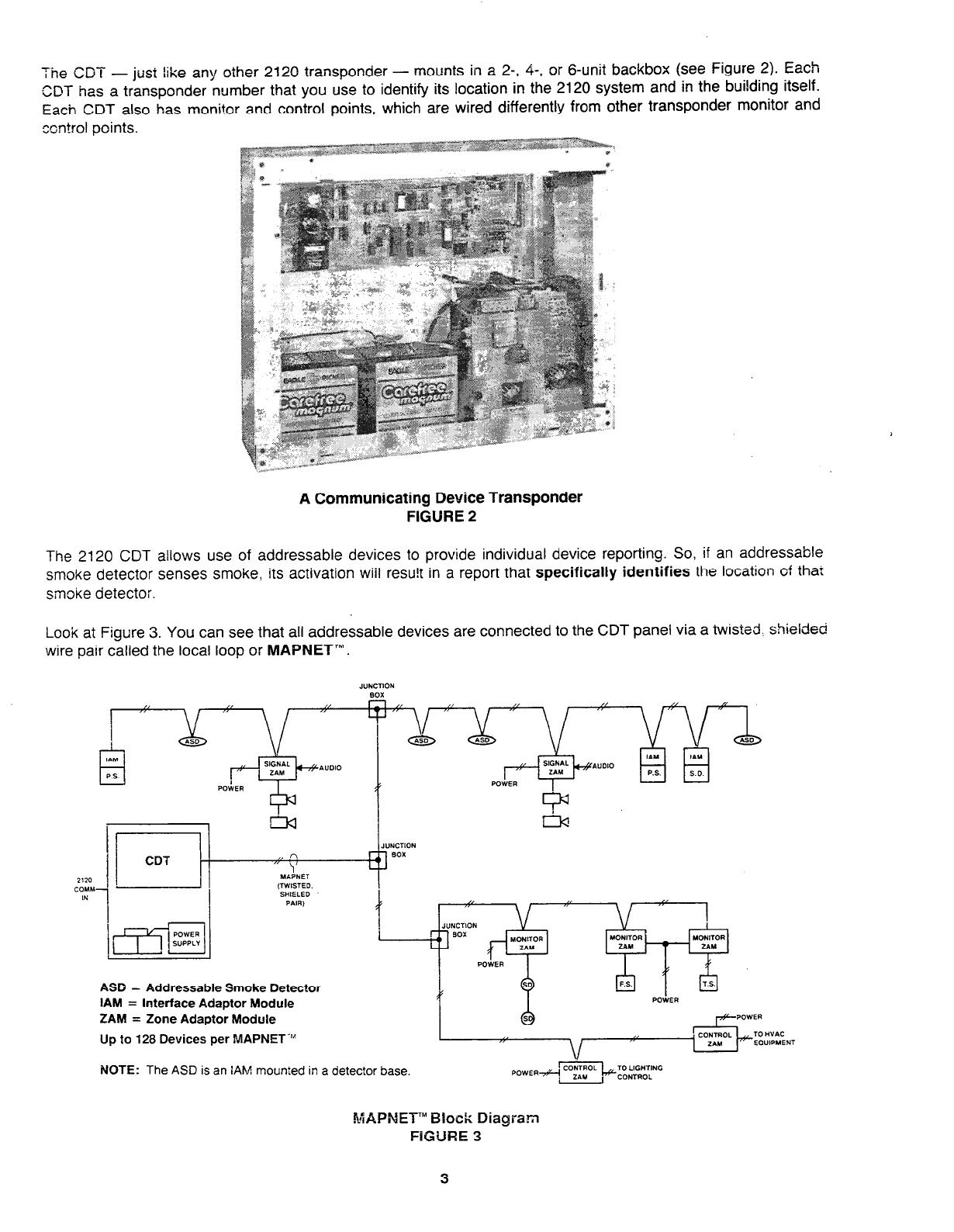

The CDT - just like any other 2120 transponder - mounts in a 2-, 4, or 6-unit backbox (see Figure 2). Each
CDT has a transponder number that you use to identify its location in the 2120 system and in the building itself.
Each CDT also has monitor and control points, which are wired differently from other transponder monitor and
ccn!
trol points.
A Communicating Device Transponder
FIGURE 2
The 2120 CDT allows use of addressable devices to provide individual device reporting. So, if an addressable
smoke detector senses smoke, its activation wiil resu!t in a report that specifically identifies the location of that
smoke detecto:.
Look at Figure 3. You can see that all addressable devices are connected to the CDT panel via a twisted, shielded
wire pair called the local loop or MAPMET’“.
ASD = Addressable Smoke Detector
IAM = interface Adaptor Module
ZAM = Zone Adaptor Module
Up to 128 Devices per MAPNET-”
NOTE: The ASD is an IAM mounted in a detector base.
MAPNET’” Block Diagram
FIGURE 3
3
firealarmresources.com

As Figure 3 shows, there are three basic types of addressable devices:
@ Addressable smoke detectors (ASDs), requiring only the MAPNET’” II wire pair for both data and power.
0 Interface adaptor modules (IAMs), requiring only the MAPNET‘” II wire pair for both data and power. IAMs
interface a single conventional device (i.e., a pull station or heat detector) to a CDT.
l Zone adaptor modules (ZAMs), requiring the MAPNET’” II wire pair for data, a pair- for power, and a pair
to connect the external zone wiring. A monitor ZAM interfaces a zone of conventional alarm-initiating
devices to the CDT. A control ZAM interfaces a single controlled device to the CDT. A signal ZAM
interfaces a zone of signal devices to the CDT (signal ZAMs may require a fourth wire pair for audio or
phone riser input).
Since addressable devices have unique locations, it is critical that each device’s address be properly set. The
address for each device on a MAPNET’” II must be set when you install the device. MAPNET’” II lines and
devices may be installed at any time during the 2120 installation; installation instructions are provided with each
device in the device’s shipping carton.
INSTALLATION GUIDE
The installation of any CDT will occur at the same time that you are installing other 2120 equipment. After studying
the information provided in this manual and in the 2120 Multiplex System Installation manual, you should be
able to accurately interpret all CDT cabinet drawings and the M-2120-CDT wiring diagrams.
Note: Just as transponder cabinet drawings refer you to M-2120 or M-2120-ET wiring diagrams for external
device connections, CDT cabinet drawings refer you to M-2120-CDT wiring diagrams. These wiring
diagrams:
l Tell you how the MAPNET’” II and power line (if required) are connected to addressable devices.
AND
l Tell you how conventional devices are connected to ZAMs.
We now need to spend some time discussing the actual installation of a CDT itself.
INSTALLATION PRECAUTIONS
A. Use twisted, shielded pair for all MAPNET’” II lines.
B. Each CDT equipment cabinet should be connected to building ground via a single, unbroken conductor
(12AWG wire, typical).
C. Ensure that cable shields do not ground when closing the cabinet. Use shrink tubing or high grade electrical
tape to cover bare shield.
D. MAKE NO CONNECTIONS TO CDTs WITH POWER APPLIED. This includes MAPNET’” II wiring.
E. Before applying power to CDT equipment:
s Verify that power connections have been terminated at the proper terminals.
l Verify that all wiring is free of grounds.
F. Apply power to equipment ONLY in the presence of a qualified Simplex Technical Representative (TR) and
in the following sequence:
0 Apply AC power first.
l Apply battery power last.
Reverse this sequence when you power down equipment.
G. NEVER APPLY OR DISCONNECT CDT EQUIPMENT POWER BY.USlNG AN INTERCONNECT PLUG.
4
firealarmresources.com

iNSTAkLAT!ON SUMMARY
The following is a set of recommended procedures to follow during CDT installation. Before you begin wiring:
Q Ensure that all system interconnection and wiring diagrams required for your system are provided.
Q AlI backboxes (cabinets) and the associated equipment should be properly installed and grounded via a
single, unbroken conductor (12AWG, typical). Conduit ground is not sufficient.
!. Install the CDT’s backbox using the information in the section entitled “Backboxes” in the 2120 Multiplex
System Installation manual. Use the transponder number on the CDT equipment shipping carton to help you
find the cabinet’s proper location.
2. Install the CDT (and other equipment, if applicable) into the backbox.
Data and Power Connections
3. Connect the 2120 communications channel to the CDT. Use the system data interconnect drawing and the
appropriate CDT cabinet drawing to determine proper connections.
4. (lf required) Connect power line to the CDT. Use the system power interconnect drawing and the appropriate
CDT cabinet drawing to determine required connections. DO NOT APPLY POWER.
Preliminary Checkout by Simplex TR
5. Leave the MAPNET’” II disconnected from the CDT panel.
6. Enough system connections have now been made for a TR to check out the basic.operation of your 2129
system. It is recommended that you contact your local TR and have him verify that all data, audio/telephone,
and power line connections have been properly made. Then the TR will have you apply power to the system
so that he can verify the operation of the system’s basic components. When the TR has completed his
preliminary checkout, power-down all equipment.
MAPNET’” I! and Addressable Device Installation
7. If the addressable devices on the MAPNET’” II have not yet been installed, do so now using the instructions
provided with each device. (Refer to Appendix 6, if necessary.)
8. Connect the MAPNET’” II iines to the CDT panei using the appropriate CDT cabinet drawing and f&2120-
CDT wiring diagrams.
Final Checkoui by Simpiex TR
9. The entire 2120 system should now be installed. You should again contact your local TR, who will completeiy
check out your system. Once he has completed his checkout he will either notify you of any wiring problems
he encountered, or will let you know that the system is operating properly.
Correction of Wiring Errors Found During Checkout
10. Correct any wiring defects the TR found. If no defects were found, then the instailation phase of your job is
complete. !f there were winng defects, contact the TR after you have corrected the problem(s) and have Km
verify that your system is now operating properly.
5
firealarmresources.com

CDT CHECKOUT PROCEDURES
CAUTION: These procedures must be performed in the presence of (or by) a Simplex Technical Representative.
Do not apply power to equipment unless the representative is present.
Since the checkout of a 2120 system consists of two phases - preliminary and final checkout - we’ll break the
CDT checkout up into the same two phases. Perform CDT checkout at the same time as 2120 system checkout.
CDT PRELIMINARY CHECKOUT
CAUTION: ENSURE THAT ALL POWER TO EACH CDT IS OFF BEFORE PROCEEDING.
Note 1: To simplify preliminary COT checkout, group COTS according to the power supply that powers them.
Check out all CDTs associated with the same supply and then proceed to the next group of CDTs.
If a BT or FABT is powered by a CDT supply, check out the CDT supply first and then refer to the
2120 Multiplex System Checkout Procedures (MUX2-21-004) manual for transponder checkout.
Note 2: Perform Steps 1 through 7 for CDT cabinets containing a CDT power supply board (P/N 562-464).
1. Verify that 120VAC is properly terminated at TB2 on the power supply as shown in Figure 4.
Note: If any contractor wiring is connected to TBl of the power supply, proceed to Step 2. If no contractor
wiring is connected to TBI , proceed to Step 4.
FACTORY
WIRED TO
NEARBY
TRANSPONDER
-5 R B R B R B b?
III IIll I I I I I GRo”rD,e
NZEUT
POWER AVAILABLE
FOR ADDITIONAL UNITS
-
12 11 10 9 8 7 6 5 4 3 2 1 3 2 1 I BACKPLATE
-+-+-+-+-+-+
uuuuuu
FOR BAl7ERY 28VDC 28VDC 28VOC 28VDC 28VDC 28VDC CDT POWER SUPPLY
562-464; 562-482
THROUGH 562-488
CONNECTED
TO CDT FOR
TROUBLE
REPORTS
u
. P4
,“:
._-.I
g:
8;
88’
CDT Power Supply Terminal Connections
FIGURE 4
(GROUND
SCREW)
NOTES:
R = RED
B = BLACK
2. Disconnect the ground wire connected to TB2-3 of the supply. Then, use your VOM to check for shorts to
ground on any contractor wiring connected at TBl.
Requirement: VOM indicates no shorts between each wire and ground. If this requirement is not met for all
contractor wiring connected at TBl , then troubleshoot and repair the wiring at fault.
3. Check for shorts between each ” +‘I (red) and “-I’ (black) contractor-installed wire connected at TBl on the
power supply.
Requirement: VOM indicates no “ +” to “ -” shorts. If this requirement is not met for each contractor-
installed “ + ” and “ - ” wire connected at TBl, then check the outgoing wiring for “ +” to “-” shorts. Repair
the wiring as necessary.
6
firealarmresources.com

4. Perform Steps 5 through 7 only if the CDT power supply is provided with the 12 volt power option (power
supply board P/Ns to be supplied).
Note: If any contractor wiring is connected to TB3 of the power supply, proceed to Step 5. If no contractor
wiring is connected to TB3, proceed to Step 7.
5. Use your VOM to check for shorts to ground on
any contractor wiring connected at TB3 as shown
in Figure 5.
Requirement: VOM indicates no shorts between
each wire and ground. If this requirement is not
met for all contractor wiring connected at TB3,
then troubleshoot and repair the wiring at fault.
6. Check for shorts between each ” + ” (red) and
‘I- ” (black) contractor-installed wire connected at
TB3 of the power supply.
Requirement: VOM indicates no “ +” to “ -”
shorts. If this requirement is not met for each
contractor-installed “ + ” and “ - ” wire connected
at TB3, then check the outgoing wiring for “ +” to
“ - ” shorts. Repair the wiring as necessary.
7. Reconnect the ground wire removed in Step 2.
8. Locate the CDT board (P/N 562562).
9. Verify that the incoming and outgoing 2120
communications lines are connected to the CDT
at TBl as shown in Figure 6.
Note: Once you have checked out all of the
equipment powered by the CDT power
supply, proceed to Step 10.
10. Check each CDT panel’s switch settings and
jumper placement while referencing Appendix A.
11. Apply power to the CDT power supply by:
l Applying AC power first.
l Connecting the batteries last.
Note: The CDT’s LOCAL MODE LED will be on
when power is applied -the BMUX hasn’t
yet been powered-up, and so there is no
data on the communications lines. It is
NORMAL for the CDT to take up to 10
seconds to come on-line when you first
power it up.
POWER AVAILABLE
FOR ADDITIONAL UNITS
I ,
87654321
G&do
12VDC 12VDC 12VDC 12VDC
CDT Power Supply Terminal Connections
For 12 Volt Power Option
FIGURE 5
INCOMING 2120
COMMUNICATION
LINE
OUTGOING 2120
COMMUNICATION
LINE
CDT Board to 2120 Communications Line Connections
FIGURE 6
12. Set your VOM to the GODCV scale. Connect it across the RED ( + ) and BLACK (0 volts) battery connectors.
13. If VOM displays 27 volts, go to Step 14. Otherwise, perform the ET/CDT Battery Adjustment Procedure.
7
firealarmresources.com

: 4. Leave the power applied at this power supply and proceed to the next CDT.
75. (New 2120 installations only) Once you have checked out all CDTs in the system and ait other 2120
equipment, perform the BMUX checkout procedures in the 2120 Multipiex System Cfxxko~t Procedures
manual (MUX2-21-004).
Note: When you finally power-up the BMUX, each CDT that comes up wili report a “LOCAL LOOP COMM
FAIL” error message. Ignore the message for the time being; it should clear once the CDT’s
NIAPNET’” II lines are installed.
ETlCDT BATTERY ADJUSTMENT PROCEDURE
CAUTBON: To be performed by Simplex personnel only.
NOTE: Protective cardboard cover over power supply must be removed to access components.
1. Locate R2, Pl, R15, R6, and R21 (Figure 7).
2. Remove batteries first, then AC power.
3. Disconnect connector Pl.
4. Reconnect AC power only.
5. Adjust R15 fully clockwise.
6. Connect VOM across the RED (+) and BLACK (0 volts) battery connections.
7. Adjust R6 until VOM reads about 26 volts.
8. Connect VOM across left side of R2 (+) and BLACK battery connector (0 volts).
3. SLOWLY adjust R15. At some point, the voltage reading on the VOM will SUDDENLY DROP from about 33
volts to around 10 volts. This is the TRIP POINT. Stop at this point.
-:c
!,. Mow, SLOWLY adjust R6 clockwise until VOM reading trips back to about 33 volts. Stop at this point.
1-i. Ssnnect VOM as in Step 6 above. VOM should read about 28 volts.
i 2. Readjust R6 until VOM reads about 27 volts.
: 3. Connect VOM across TBl-1 (+) and TBl-2 (-)
?4. Adjust R21 until VOM reads 28 volts.
?5. Remove AC power.
16. Reconnect connector Pl
17. Re-apply AC power.
i 8. Reconnect batteries.
19. Replace protective cardboard
cover over power supply.
R2
Pl
R15
R6
R21
FIGURE 7
8
firealarmresources.com

CDT FINAL CHECKOUT
CAUTION: Notify building personnel and appropriate authorities (i.e., fire and police departments. etc.) before
proceeding.
A. Identification of Contractor Wiring Errors
1. Before the contractor applies power to any CDTs, verify that the MAPNET’” II communication lines are
properly terminated on each CDT using Figure A or B as appropriate from the M-2120-CDT Wiring
Diagrams.
2. The contractor should now appiy power to each system component by:
o Applying AC power first.
l Connecting batteries last.
3. Allow two minutes for the BMUX to initialize.
Note 1: You will need each CDT’s set of MONITOR and CONTROL MODULE SPECIFICATION SHEETS
to locate devices reported in Step 4.
Note 2: Each CDT uses two transponder addresses, so addressable devices are reported on either of the
CDT’s addresses.
4. Identify all CDT monitor and control device troubles using the local (or remote) printer output, or by using
the front panel display and appropriate pushbuttons.
Remember: The BMUX reports CDT device troubles per addressable device, so the CDT trouble reports
you will get will refer directly to a specific MAPNET’” II device. Use the first three digits of the device’s point
number to determine the location of the associated CDT panel.
Note: If you get either a “LOCALiOOP COMM FAIL” or “LOCAL LOOP MCCULLOH” trouble report from
a CDT, then the MAPNET’” II lines associated with the reporting CDT are completely disconnected
from the CDT panel.
5. Group troubled devices by reporting CDT. If there is a string of devices on the same MAPNET’” II that have
troubles, look for:
o Open wiring a?a branch circuit junction box.
l Open wiring in the branch circuit itself.
l Reversed MAPNET’” II wire pairs at a branch circuit junction box.
6. Locate other troubled devices and:
l Check device wiring.
o Check device addressing using the appropriate CDT MONITOR or CONTROL MODULE
SPECIFICATION SHEETS.
If the wiring and address check out properly, replace the troubled device.
B. CDT Functional Checkout
CDT functional checkout occurs at the same time as the 2120 system functional checkout. Refer to the information
on system functional checkout in the 2120 Multiplex System Checkout Procedures manual (MUX2-21-004).
firealarmresources.com

APPENDIX A
CDT PANEL JUMPER PLACEMENT AND
SWITCH SEITINGS
The CDT panel (Figure A-l) contains three switch packages (SW1 through SW3), a pushbutton switch (SW4) that
resets the CDT’s microprocessor when pressed, and six jumpers (JWl through JW6).
/
/
.
\
\ .
\\
.
SW1SW1 SW3
LOCAL MODELOCAL MODE
IC3IC3 IC4IC4 JUMPERS IC6
JUMPERS IC6 IC18IC18 SW4SW4 JUMPERSJUMPERS
\\ \\ \\ // II II nn
CDT Panel Jumper and Switch Locations
FIGURE A-l
SW1 is used to set the CDT’s transponder address and communications baud rate. Set switches SWl-1 and
SW1 -2 as follows:
BAUD RATE SWl-1 SWl-2
9600 OFF OFF
4800 ON ON
2400 OFF ON
1200 ON OFF
Switches SW1 -3 through SW1 -8 specify the transponder address (one less than the transponder number).
10
firealarmresources.com

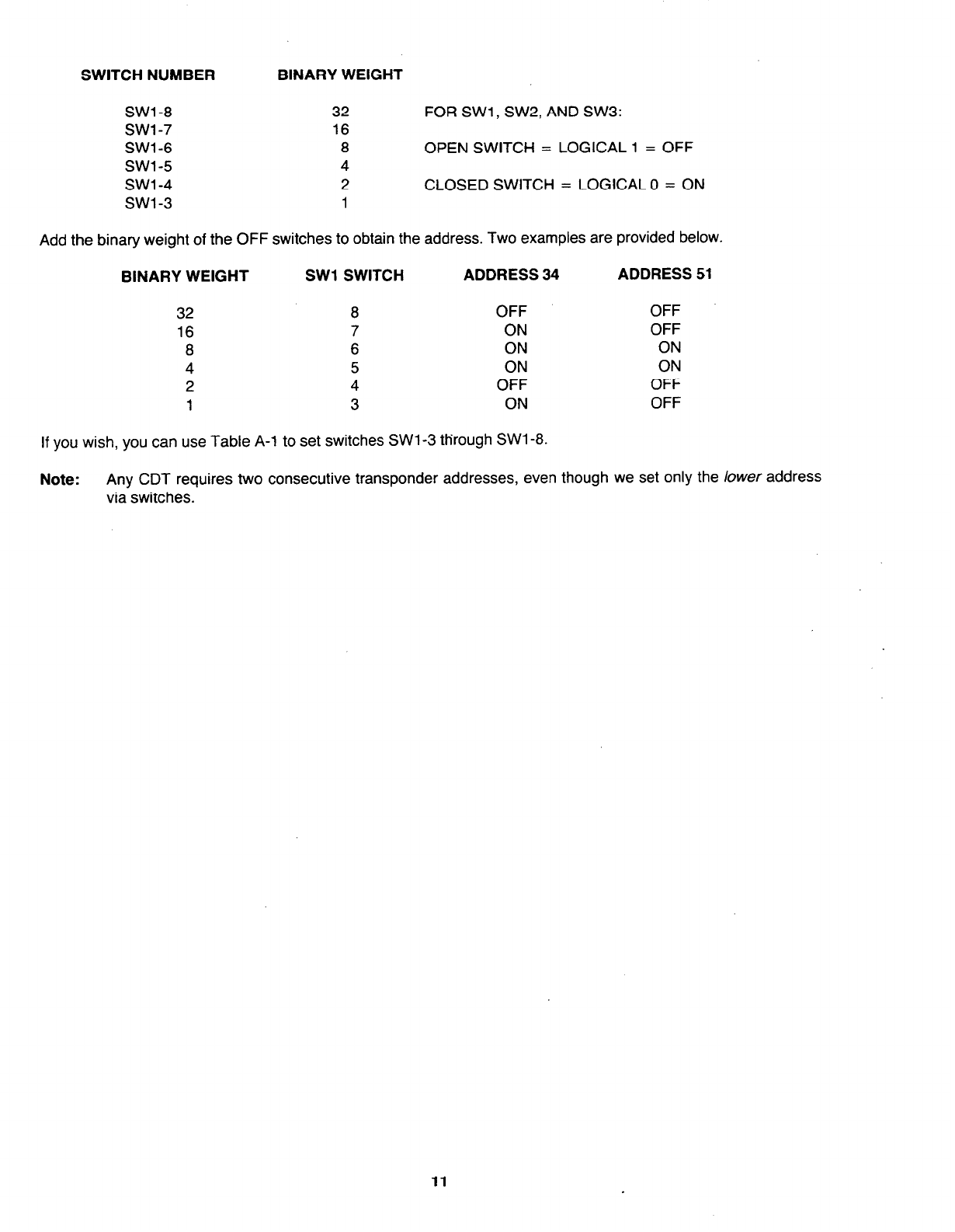

SWITCH NUMBER BINARY WEIGHT
SW1 -8 32 FOR SWl, SW2, AND SW3:
SW1 -7 16
SWl-6 8 OPEN SWITCH = LOGICAL 1 = OFF
SWl-5 4
SWl-4 2 CLOSED SWITCH = LOGICAL0 = ON
SW1 -3 1
Add the binary weight of the OFF switches to obtain the address. Two examples are provided below.
BINARY WEIGHT SW1 SWITCH ADDRESS 34 ADDRESS 51
32 8 OFF OFF
16 7 ON OFF
8 6 ON ON
4 5 ON ON
2 4 OFF OFF
1 3 ON OFF
If you wish, you can use Table A-l to set switches SW1 -3 through SW1 -8.
Note: Any CDT requires two consecutive transponder addresses, even though we set only the lower address
via switches.
11
firealarmresources.com

TABLE A-l
SW1 Switch Settings
(CDT Address)
TRANSPONDER NUMBER SWl-3 swi-4 SW14 SWl-6 SW1 -7 SW1 -8
‘2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
3T
38
39
40
41
42
43
44
45
46
47
48
ON ON
OFF ON
ON OFF
OFF OFF
ON ON
OFF ON
ON OFF
OFF OFF
ON ON
OFF ON
ON OFF
OFF OFF
ON ON
OFF ON
ON OFF
OFF OFF
ON ON
OFF ON
ON OFF
OFF OFF
ON ON
OFF ON
ON OFF
OFF OFF
ON ON
OFF ON
ON OFF
OFF OFF
ON ON
OFF ON
ON OFF
OFF OFF
ON ON
OFF ON
ON OFF
OFF OFF
ON ON
OFF ON
ON OFF
OFF OFF
ON ON
OFF ON
ON OFF
OFF OFF
ON ON
OFF ON
ON OFF
OFF OFF
ON ON ON ON
ON ON ON ON
ON ON ON ON
ON ON ON ON
OFF ON ON ON
OFF ON ON ON
OFF ON ON ON
OFF ON ON ON
ON OFF ON ON
ON OFF ON ON
ON OFF ON ON
ON OFF ON ON
OFF OFF ON ON
OFF OFF ON ON
OFF OFF ON ON
OFF OFF ON ON
ON ON OFF ON
ON ON OFF ON
ON ON OFF ON
ON ON OFF ON
OFF ON OFF ON
OFF ON OFF ON
OFF ON OFF ON
OFF ON OFF ON
ON OFF OFF ON
ON OFF OFF ON
ON OFF OFF ON
ON OFF OFF ON
OFF OFF OFF ON
OFF OFF OFF ON
OFF OFF OFF ON
OFF OFF OFF ON
ON ON ON OFF
ON ON ON OFF
ON ON ON OFF
ON ON ON OFF
OFF ON ON OFF
OFF ON ON OFF
OFF ON ON OFF
OFF ON ON OFF
ON OFF ON OFF
ON OFF ON OFF
ON OFF ON OFF
ON OFF ON OFF
OFF OFF ON OFF
OFF OFF ON OFF
OFF OFF ON OFF
OFF OFF ON OFF
12
firealarmresources.com

TABLE A-l
(continued)
TRANSPONDER NUMBER SWI-3 SWl-4 SW1 -5 SW1 -6 SW1 -7 SW1 -8
49 ON
50 OFF
51 ON
52 OFF
53 ON
54 OFF
55 ON
56 OFF
57 ON
58 OFF
59 ON
60 OFF
6: ON
62 OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
SW2 is used to teli the CDT how many monitor points are present (from zero to 128 possible monitor devices). Set
the switches on SW2 as indicated in Table A-2.
Switches SW3-1 through SW3-7 are used to tell the CDT how many control points are present (from zero to 6:
possible control devices). Set the switches as indicated in Table A-3.
Switch SW3-8 is used to indicate whether the MAPNET’” II is single line or McCulloh loop. Set SW3-8 ON tc
indicate McCulloh loop; set SW3-8 OFF to indicate single line.
CAUTION: At least one monitor must be ON or the CDT panel will not operate.
Jumpers JWl through JW6 are set as indicated below.
JWI and JWZ are IN, and are not normally field-alterable.
JW3 is IN for local mode operation.
JW4 is OUT, and is not normally field-alterable.
JW5 is IN when 2120 communications occur via RS232C interface, and OUT for normal communications.
JW6 is OUT when 2120 communications occur via RS232C interface and IN for normal communications.
13
firealarmresources.com

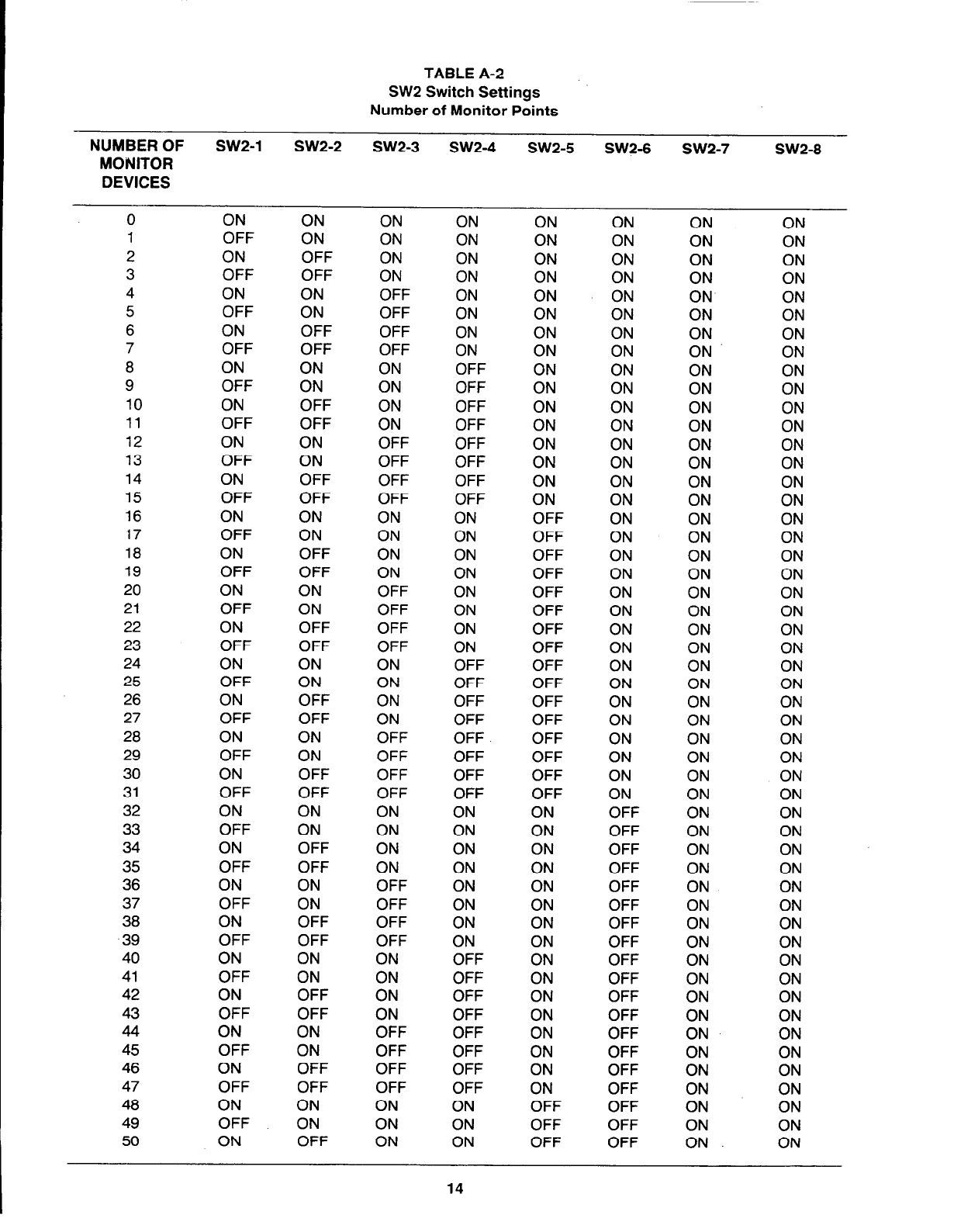

TABLE A-2
SW2 Switch Settings
Number of Monitor Points
NUMBER OF sw2-1 sw2-2 SW2-3 SW2-4 sw2-5 SW2-6 SW2-7 SW2-8
MONITOR
DEVICES
0 ON
1 OFF
2 ON
3 OFF
4 ON
5 OFF
6 ON
7 OFF
8 ON
9 OFF
10 ON
11 OFF
12 ON
13 OFF
14 ON
15 OFF
16 ON
17 OFF
18 ON
19 OFF
20 ON
21 OFF
22 ON
23 OFF
24 ON
25 OFF
26 ON
27 OFF
28 ON
29 OFF
30 ON
31 OFF
32 ON
33 OFF
34 ON
35 OFF
36 ON
37 OFF
38 ON
39 OFF
40 ON
41 OFF
42 ON
43 OFF
44 ON
45 OFF
46 ON
47 OFF
48 ON
49 OFF
50 ON
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
14
firealarmresources.com

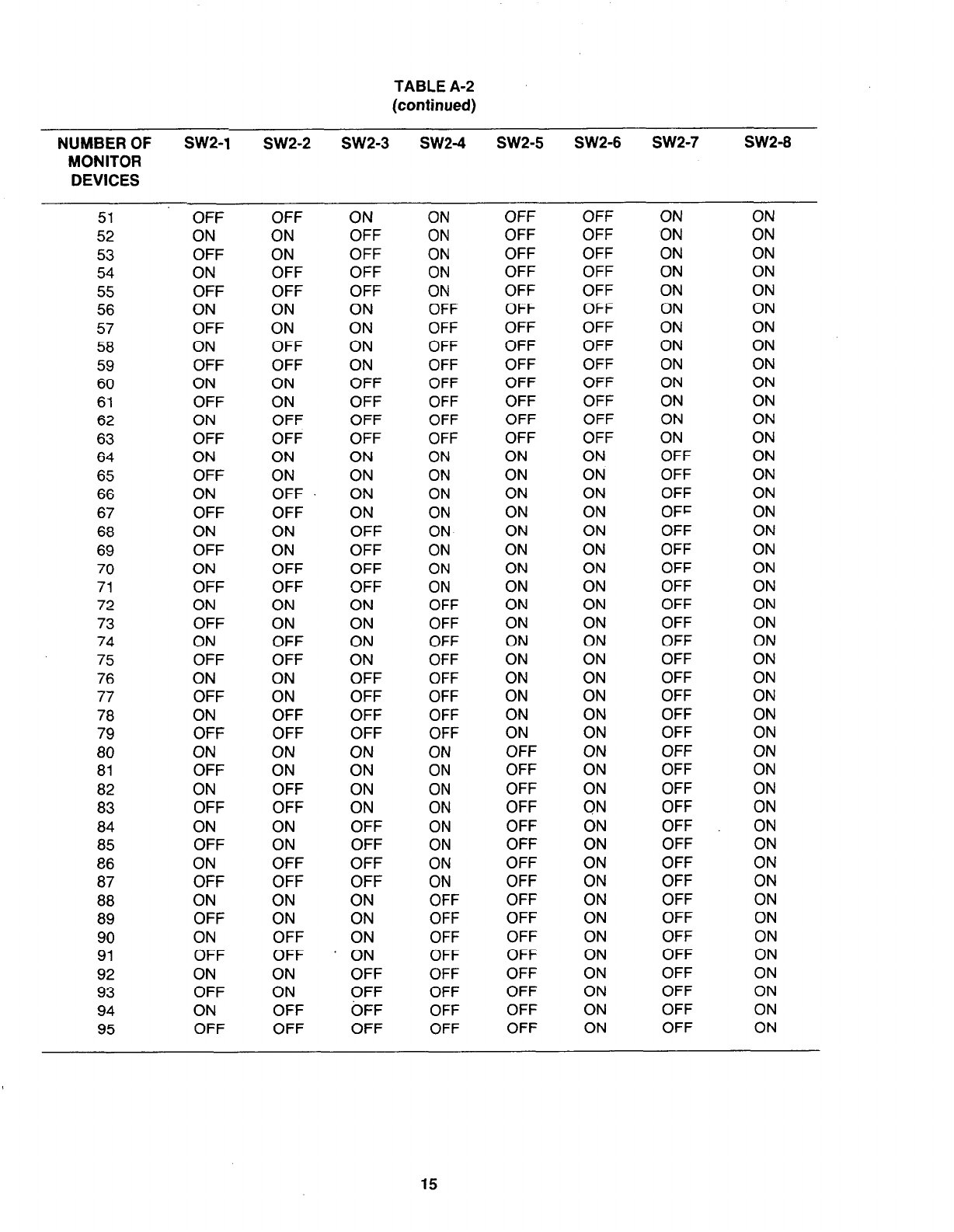

TABLE A-2
(continued)
NUMBER OF sw2-1 sw2-2 SW2-3 sw2-4 SW2-5 SW2-6 SW2-7 SW2-8
MONITOR
DEVICES
51 OFF
52 ON
53 OFF
54 ON
55 OFF
56 ON
57 OFF
58 ON
59 OFF
60 ON
61 OFF
62 ON
63 OFF
64 ON
65 OFF
66 ON
67 OFF
68 ON
69 OFF
70 ON
71 OFF
72 ON
73 OFF
74 ON
75 OFF
76 ON
77 OFF
78 ON
79 OFF
80 ON
81 OFF
82 ON
83 OFF
84 ON
85 OFF
86 ON
87 OFF
88 ON
89 OFF
90 ON
91 OFF
92 ON
93 OFF
94 ON
95 OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
QN
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OF’=
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
15
firealarmresources.com

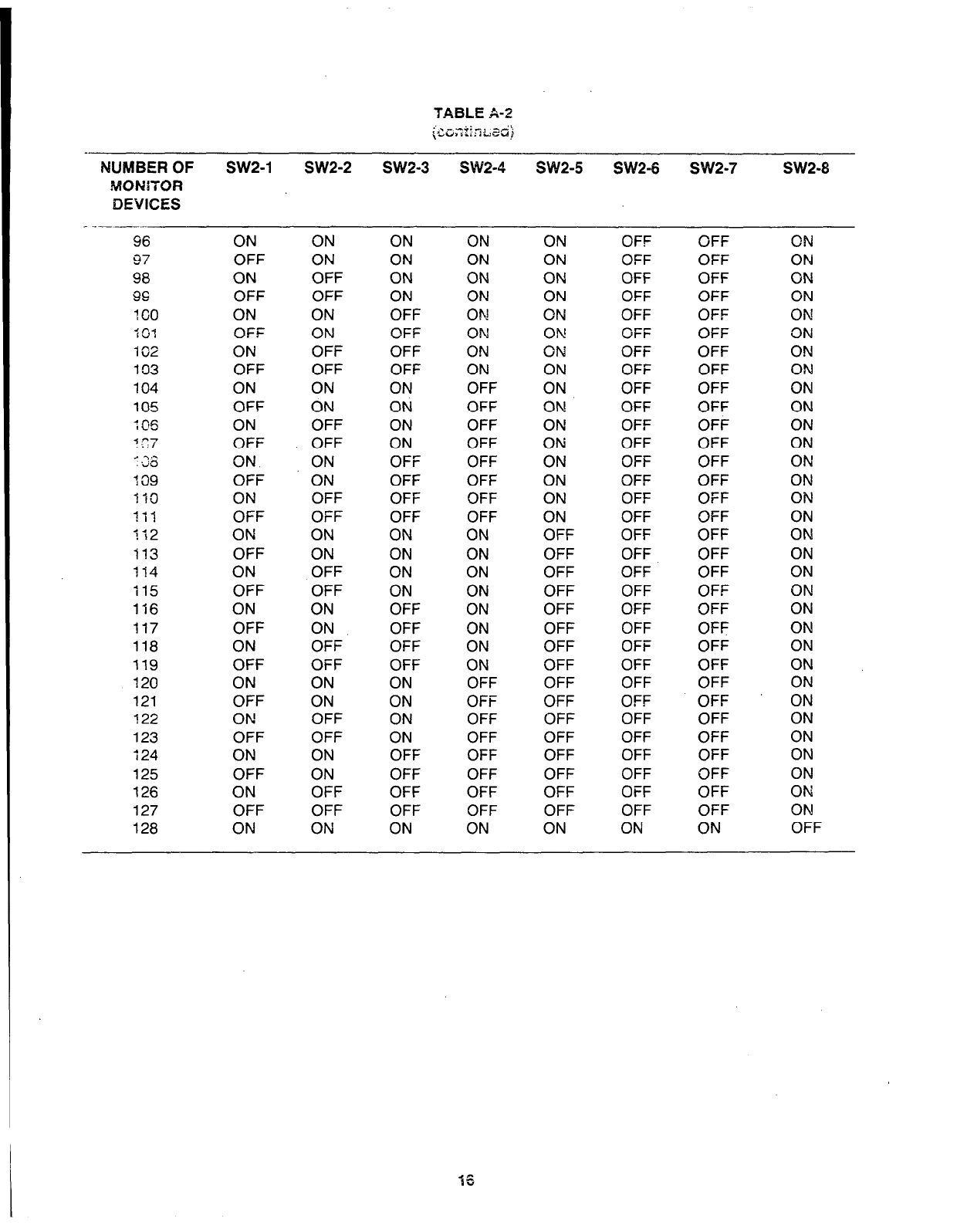

NUMBER OF sw2-1 sw2-2 SW2-3 SW2-4 SW2-5 SW2-6 SW2-7 sw2-6
MONiTOR
DEVICES
96
97
98
99
IGO
101
102
103
104
105
705
5.r.’
.:I
; .;g
709
110
!?I
li2
113
114
il5
116
117
118
119
120
121
122
123
;24
125
126
127
128
ON ON ON ON ON OFF OFF ON
OFF ON ON ON ON OFF OFF ON
ON OFF ON ON ON OFF OFF ON
OFF OFF ON ON ON OFF OFF ON
ON ON OFF ON ON OFF OFF ON
OFF ON OFF ON ON OFF OFF ON
ON OFF OFF ON ON OFF OFF ON
OFF OFF OFF ON ON OFF OFF ON
ON ON ON OFF ON OFF OFF ON
OFF ON ON OFF ON OFF OFF ON
ON OFF ON OFF ON OFF OFF ON
OFF OFF ON OFF ON OFF OFF ON
ON ON OFF OFF ON OFF OFF ON
OFF ON OFF OFF ON OFF OFF ON
ON OFF OFF OFF ON OFF OFF ON
OFF OFF OFF OFF ON OFF OFF ON
ON ON ON ON OFF OFF OFF ON
OFF ON ON ON OFF OFF OFF ON
ON OFF ON ON OFF OFF OFF ON
OFF OFF ON ON OFF OFF OFF ON
ON ON OFF ON OFF OFF OFF ON
OFF ON OFF ON OFF OFF OFF ON
ON OFF OFF ON OFF OFF OFF ON
OFF OFF OFF ON OFF OFF OFF ON
ON ON ON OFF OFF OFF OFF ON
OFF ON ON OFF OFF OFF OFF ON
ON OFF ON OFF OFF OFF OFF ON
OFF OFF ON OFF OFF OFF OFF ON
ON ON OFF OFF OFF OFF OFF ON
OFF ON OFF OFF OFF OFF OFF ON
ON OFF OFF OFF OFF OFF OFF ON
OFF OFF OFF OFF OFF OFF OFF ON
ON ON ON ON ON ON ON OFF
16
firealarmresources.com

TABLE A-3
SW3 Switch Settings
Number of Control Points
NUMBER OF sw3-1 SW3-2 sw3-3 sw3-4 sw3-5 SW3-6 sw3-7
CONTROL DEVICES
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON ON ON
ON ON ON
OFF ON ON
OFF ON ON
ON OFF ON
ON OFF ON
OFF OFF ON
OFF OFF ON
ON ON OFF
ON ON OFF
OFF ON OFF
OFF ON OFF
ON OFF OFF
ON OFF OFF
OFF OFF OFF
OFF OFF OFF
ON ON ON
ON ON ON
OFF ON ON
OFF ON ON
ON OFF ON
ON OFF ON
OFF OFF ON
OFF OFF ON
ON ON OFF
ON ON OFF
OFF ON OFF
OFF ON OFF
ON OFF OFF
ON OFF OFF
OFF OFF OFF
OFF OFF OFF
ON ON ON
ON ON ON
OFF ON ON
OFF ON ON
ON OFF ON
ON OFF ON
OFF OFF ON
OFF OFF ON
ON ON OFF
ON ON OFF
OFF ON OFF
OFF ON OFF
ON OFF OFF
ON OFF OFF
OFF OFF OFF
OFF OFF OFF
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON il
ON ON
ON ON
ON ON
ON ON
ON ON
ON ON
ON ON
ON ON
ON ON
ON ON
ON ON
ON ON
ON ON
ON ON
ON ON
ON ON
ON ON
ON ON
ON ON
ON ON
ON ON
ON ON
ON ON
ON ON
ON ON
ON ON
ON ON
ON ON
ON ON
ON ON
ON ON
ON ON
OFF ON
OFF ON
OFF ON
OFF ON
OFF ON
OFF ON
OFF ON
OFF ON
OFF ON
OFF ON
ON OFF ON
ON OFF ON
ON OFF ON
ON OFF ON
ON OFF ON
ON OFF ON
17
firealarmresources.com

TABLE A-3
(continued)
NUMBER OF sw3-1 SW3-2 sw3-3 sw3-4 sw3-5 SW3-6 sw3-7
CONTROL DEVICES
48 ON
49 OFF
50 ON
51 OFF
52 ON
53 OFF
54 ON
55 OFF
56 ON
57 OFF
58 ON
59 OFF
60 ON
61 OFF
62 ON
63 OFF
64 ON
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
OFF
18
firealarmresources.com
