Simplicity 1691525 User manual

OPERATOR’S
MANUAL
Table of Contents
,.MOWER DRIVEN
VACUUM COLLECTOR
36” BLOWER ASSEMBLY
MFG. NO. 1691356
42” & 48” BLOWER ASSEMBLY
MFG. NO. 1691260
CART COLLECTOR
MFG. NO. 1691525
DECALS
SAFETY RULES -p. 2
INSTALLATION -BLOWER ASSEMBLY, 36” MOWER -p. 3
INSTALLATION -BLOWER ASSEMBLY, 42” &48” MOWERS -p. 5
INSTALLATION AND OPERATION -CART COLLECTOR -p. 8
OPERATING WITHOUT COLLECTION SYSTEM -42” &48” MOWERS -p. 12
OPERATING WITHOUT COLLECTION SYSTEM -36” MOWER - p. 13
DECALS
A DANGER
1 ROTATING BLADES
SHUT OFF MOWER
AN0 TR.ACTOR
BEFORE SERVICING
OR CLEANING BLOWER
AND MOWER.
Part No. 1700259. Located on Blower
Part No. 1700346. Located on Bracket on Some
Models (Installed During Setup).
Part No. 1676923. Located on Collection System,
FORM 1701929-03
PRINTED IN U.S.A.
886

Safety Rules
Read these safety rules and the safety rules in your Operator’s
Manual and follow them closely. Failure to obey these rules
could result in loss of control of vehicle, severe personal injury
to yourself, or damage to property or equipment. The triangle A in thetext
signifies important cautions or warnings which must be followed.
AWARNING
Do not operate the tractor unless the entire
grass catcher system or mower discharge
deflector is orooerlv installed.
AWARNING
Do not remove any parts of the grass
catcher while the enoine is runnino.
AWARNING
Read and obey all safety warnings in your
tractdr Ooerator’s Manual.
Under normal use, the bag is subject to
( withanide~~~~’ 1
wear. Inspect the bag penodlcally for wear
or weak spots, and if necessary, replace
Before raising cover. disengage mower,
1 while rnow~~~~~ 1
turn off engme and remove the key. Do not
remove catcher tube from adapter or bag
r
When operatmg on slopes, use front
counterweight. Never operate on slopes
2

INSTALLATION - BLOWER ASSEMBLY, 36” MOWER
I. Remove the mower deflector by rerpoving two
carriage bolts, lockwashers and nuts. Save this
hardware for use when blower is removed for side
discharge.
2. Install strap (A, figure I) as follows:
a. Drill a 9132” hole for large spacer (B). Use the
supplied template on the last page. Align template
with deflector mounting holes
(C).
b. Install strap (A, figure 1) to deck with hardware
shown in figure 2.
c. Check the installation. The strap should be
secured to deck with locknut (D, figure 1). The
small spacer (E) should be above the strap. The
large spacer (B) should be between strap and
mower deck.
3. The belt stop (A, figure 3) and hardware must be
relocated to hole (C) shown. Install self-tapping
screw
(B). which was removed. in place of belt stop.
Figure 3.
A. Belt Stop
g. Self-Tapping Screw
C. New Belt Stop Location
Figure 1.
E. Small Spacer
A. Strap F. Pulley
6. Large spacer G. Wing Nut
C. Holes, Deflector Mounting H. Cup
D. Nut, Center Lock, 5,,S I. Locknut, 5/16
Center Lock
Mower Deck
Figure 2.
3
NOTE
To ease installation, engage PTO lever, so that
brake is away from pulley.
4. Remove the existing right-hand arbor pulley and
install the new double-groove pulley (F, figure I)
with existing capscrew, lockwasher and washer.
Torque to 55 to 70 ft.
Ibs. Do not reinstall deck-drive
belt at this time.
5. Install the baffle (B, figure 4) as shown. Installretainer
nut (E) in baffle, then screw the I/4” whizlock screw
(A) into retainer nut. Insert 1/4”caniage bolt (C) from
inside deck and install lockwasher and nut (D).
A. Screw. Whizlock.
l/4-20 x l/2
6. Baffle.
C. Bolt, Carriage, l/4-20 x 5/S
D. Lockwasher and Nut, l/4
E. Retainer Nut

6. Install wing nut (G, figure I) assembly as follows.
Insert 5/ 16-18 x2-1/2&p&w and 5/ i6flat washer
from inside the deck. Place the cup (H) onto the
capscrew and install S/ 16 lockwasher and 5/ 16 nut.
(Figure 12 shows correct position ofcup.)Thread the
wingnut (A, figure 6) onto capscrew and install the
5/ 16 locknut (D) flush with end of screen.
7. The belt retainer (A, figure 5) must be positioned
correctly. Loosen the nut(B) and position the leg(C)
so it is against the side of the idler arm (D). Then,
tighten the nut (B).
Figure 6.
A. Wing Nut
E. Belt Retainer
c. Pulley
D. Locknut, S/,6
Figure 5.
A. Belt Retainer
6. Nut
c. Leg
D. Idler Arm
E. Notch
F. Spacer
G. Small Spacer
H. Stral, Notch
8. Install the blower assembly (figure 5) onto mower
deck as follows. Note that the notch(E) will be placed
onto small spacer(G) on top of the strap. The blower
assembly spacer(F) will tit into the strap notch(H).
a. Slide the
blowerintopositionasshowninfigure6.
and tighten the wing nut (A).
b. Push the belt retainer(B, figure 6) to provide slack
and install belt onto lower groove in pulley (C).
(Rotate pulley while placing belt on.)
9. Place the deck drive belt in the upper groove of the
pulley (C, figure 6).
10. This completes installation of the blower assembly.
Install the tube and collection system by following
directions provided in this manual. To remove the
blower assembly, see “Operating Without Collection
System.”
4

INSTALLATION - BLOWER ASSEMBLY, 42” & 48” MOWER
1. Remove the right-hand arbor cover (A,
figure 7) by 4. Before installing arbor bracket (9, figure X), remove
removing bolts, washers and nuts in front that hold washer from underneath blade brake bracket (rear
cover to deck. Also, remove nut (9) and washers that capscrew). Arbor bracket is same thickness as washer
secure rear tab to arbor. and will replace washer.
2. Slip mower belt off the right hand pulley. Remove
the pulley from the arbor by removing capscrew and
washers. Save washers for re-installation. Use wood
block to prevent blade from turning
Figure 7.
A. Arbor Cover 6. Nut Cover
3. Remove brake spring or spring anchor (if equipped)
and two self-tapping screws from arbor. Install two
5/ 16-18 x l-l/2 capscrews (A, figure 8).
Figure 8.
A. Capscrews
B. Arbor Bracket
C. Notch
D. Arbor Pulley
E. Belt Stop. Front
Figure 9A: Arbor Bracket and Belt Stop
A. Arbor Bracket
B. Belt stop E. Large Washer
c. Capscraw F. Lockwasher
cl. spacer G. Nut
5. Install, the arbor bracket (A, figure 9A) and rear belt
stop (B)asshown. Note thedifferent holesforthe42”
and 48” mowers. Tighten nut(G) snug only-belt stop
will be adjusted in step 8.
6.
lnstallthefront beltstop(A,figure9B)(o”to5/16-I8
x l-l/2 capscrew installed in step 3) as shown. If
removed, reinstall brake spring or spring anchor (F)
before flange nut(G). Tighten nut(E) snug only-belt
stop will be adjusted in step 8.
GMower Decks
*With Blade
Brake
) Mower; ------
Figure 9B. Front Belt Stop
A. Belt Stop
B. Capscrew E. Nut
C. Large Washer F. Spring
or Spring Anchor
D. Lockwasher G. Flan@ Locknut
5

7. Install new arbor pulley(D, figure 8) with hubdown.
Use new 7/ 16-14 x 2-l/4 capscrew and washers
removed in step 2. Torque to 55 to 60 ft.
Ibs. Use
wood block to prevent blade from turning. It may be
necessary to add washer(s) (two provided) under-
neath the new pulley to properly align brake pad and
bottom groove. Refer to figure 9C.
8. Slip the mower drive belt onto the lower groove of
the new pulley (D. figure 8). With the belt engaged.
adjust the belt stops
l/S” from belt. Tighten the
hardware.
9. If mower is equipped with blade brake, adjust the
brake after installing new double groove pulley as
follows:
a. Engage the PTO lever. Be sure that mower drive
belt tension is correctly adjusted (see Operator’s
Manual).
b. Inspect the brake pad (A, figure 9C) to V-pulley
(B)
clearance.~ With PTO engaged, clearance
should be l/ I6 inch as shown in tigure 9C.
’
C. If adjustment is required. turn adjusting nuts (A,
figure 9D) until proper clearance is reached.
Figure 9C.
6. Bottom Groove Double Pulley
A. Brake Pad C. Washers (If Required)
igure 9D.
A. Blade Brake Adjustment Nuts
IO. The baffle (E, figure 10) is installed in the blower
housing for use with 42” mower. For use with 48”
mower, remove the baffle and install in hole marked
48”.
Figure 10.
A. Blower Drive Belt ,
B. Idler Pull& E. Baffle
c. Spacer F. Driven Pulley
D. Belt Guide G. Notch
NOTE
On 42” and 48” mowers, the capscrew installed in
next step is used in the hole occupied by a screw
held in place by a retaining nut. (This screw secured
the right-front corner of the arbor cover.) Remove
this screw from mower deck by tapping out with a
hammer or prying off the retaining nut.
II. Install the belt

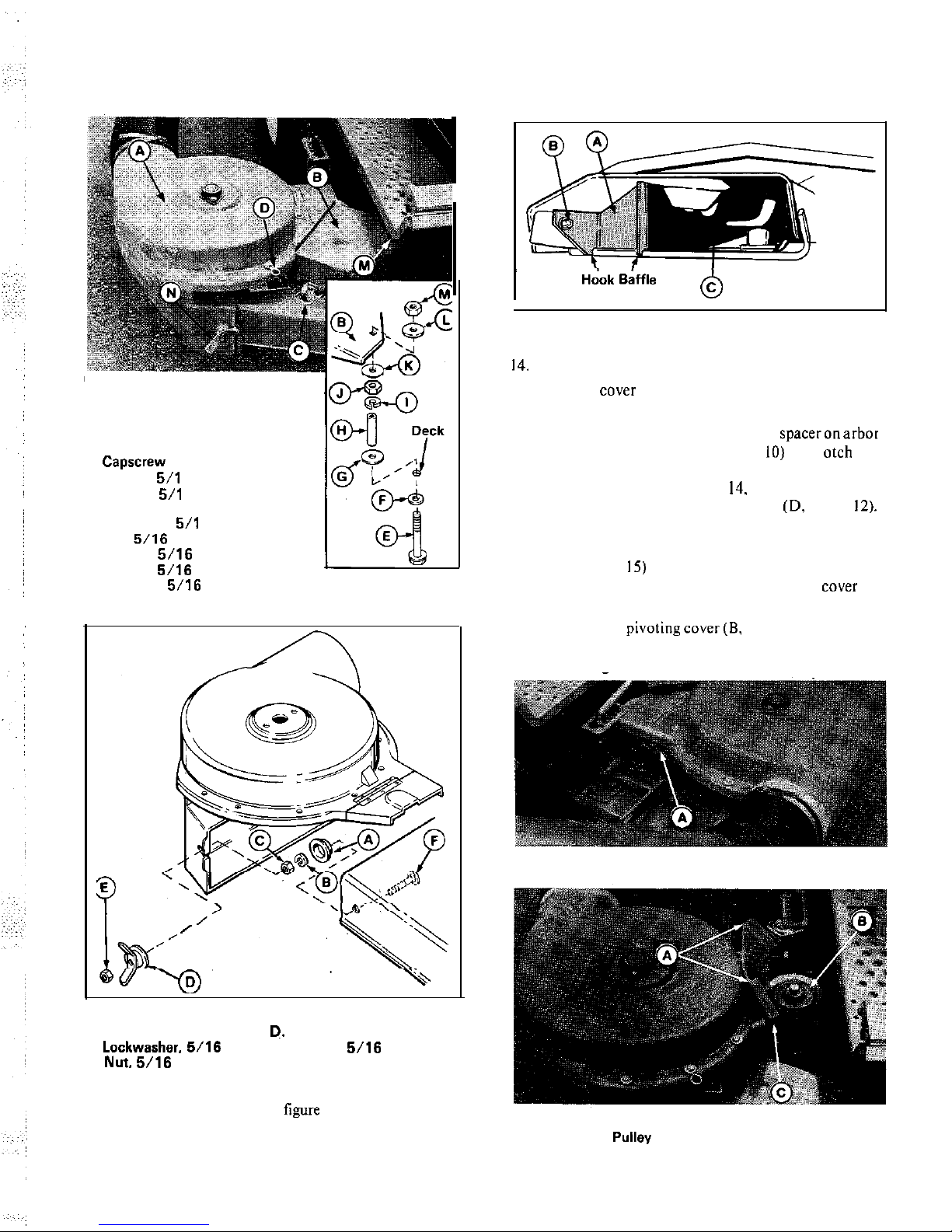

ccwer (B, figure II) with hardware
shown. Items E through M. (Figure I I shows blower
housing but it is not installed at this point of the
procedure.)
12. Install wing nut (N, figure II) as follows:
a. Remove existing hardware from front end of
stone guard.
b. From inside deck. install new 5/ 16-18 x 2-l/4
carriage bolt (F. figure 12). Then install the cup
(A, figure 12), 5/ 16 lockwasher (B), and 5/ 16 nut
(C). Tighten the nut.
c. Thread the wing nut (D) far enough onto the
screw so that the 5/ 16 locknut(E) can be threaded
on flush with the end of screw.

Figure 11.
A. Blower Housing
B. Arbor Cover
C. Hook
D. Clip
E. Capscrew
F. Washer, 5/l 6
G. Washer. 5/l 6
H. Spacer
I. Lockwasher, 5/l 6
J. Nut. 5/16
K. Washer, 5/16
L. Washer, 5/16
M. Locknut, 5/16
N. Wing Nut
E
I
/
/
Figure 12.
A. Cup
B. Lockwasher, 5/16
C. Nut. 5/16
0. Wing Nut
E. Locknut, 5/16
F. Carriage Bolt
13. Install the new baffle (A, figure 13) in deck on stone
guard using existing hardware. Hardware may be
installed with nut to inside or nut to outside.
7
I
Hdok Baffle
Over Stone Guard
Figure 13.
A. Baffle B. Carriage Bolt C. Mower Discharge Opening
14. Install the blower assembly as follows.
a. Pivot cover (B, figure II) away to expose the
arbor.
b. Align the notch (G, figure IO) with spaceronarbor
bracket. Align spacer (C, figure IO) with etch (C.
figure 8) on arbor bracket. Slide the assembly into
place as shown in Figure
14, while aligning front
notch between cup and wing nut (D, figure 12).
Tighten wing nut.
c. Place mower in low cut position. Raise the flap
(A, figure 15) and install the blower drive belt(D)
in the top groove of the pulley(B). (Pivot cover B.
figure I I. away to expose flap.)
d. Rotate the pivotingcover(B. figure I I) into place
and attach the hook (C) to the clip (D) on the
housing.
Figure 14.
A. Arbor Bracket
Figure 15.
A. Flap B. Pulley C. Belt,

INSTALLATION AND OPERATION - CART COLLECTOR
ASSEMBLY
1. Remove all parts from inside the cart’s box. Open the
bag of parts and sort the fasteners into groups for
easier assembly of the cart (figure 16).
2. Turn cart box’on one side.
a. Bolt U-bracket to bottom of box with two 5/ 16 x
3/4 long round head bolts. Secure with two 5/ 16
lockwashers and nuts.
b. Bolt latch handle to front side of box. Place one
5/16 x I long hex bolt with 5/16 flat washer
through the inside of the box. Next place a 5/ 16
flat washer, latch handle, 5/ 16 flat washer, spring
washer (side with grooves on outside), and
locknut. Tighten the locknut until the latch handle
rnOWS slowly.
3. Bolt swivel wheel to the H-frame.
a. Place the head of the swivel (end with four slotted
holes) inSide the H-frame (side with the ends bent
upward).
b. Align the holes and place four 3/8
x 1 long hex
bolts with 3/8 flat washers throughthe head ofthe
swivel and frame.
c. Secure with four lockwashers and nuts.
4. Turn cart’s box upside down and install H-frame to
U-bracket.
a. Align the two ends of the H-frame (end with the
swivel wheel attached) to the U-bracket and
secure with two 1/2x
I-1/4longhex boltsand l/2
locknuts.
b. DO NOT over tighten the locknuts. The box
pivots at this point for dumping.
5. Turn latch handle to lock the H-frame to the cart’s
box and turn cart’upright.
LATCH HANDLE
; : 2::: ;,i;E:hHee:sBo’t
2 - 5116 Spring Washers .
2 5/16 Nuts
2 Each 5/16x 3/4 Round Head Bolt,
5,,6 Lockwasher, 5/16 Nut
\
H-FRAME
SWIVEL WHEEL
4 Each - 3/B x1 Hex Bolt, 3/B Flat Washer,
3/B Lockwasher, 3/B Nut
2 Each - l/2 x l-1 /4 Hex Bolt, l/2 Locknul

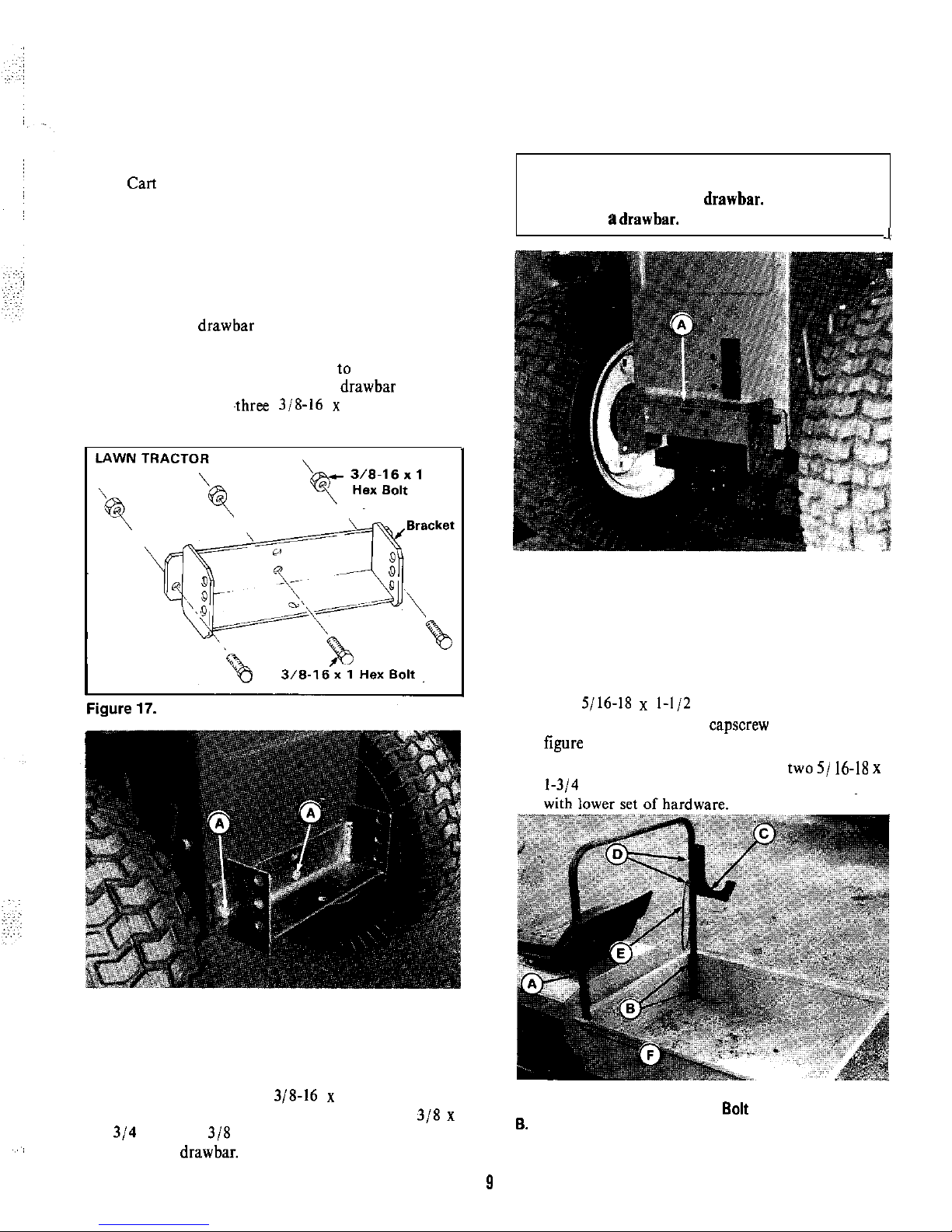

BRACKET INSTALLATION
The Cart Collector attaches to a mounting bracket,
which is bolted to the tractor’s back plate. The same
bracket is used on the riding mowers and the lawn
tractors. Once bolted in place, the bracket never needs to
be removed. For lawn tractors, see Section A. For
tractors with 3 forward speeds, see Section B.
Section A: Bracket Installation on Lawn Tractor
1. Remove the drawbar plate from the back plate of the
lawn tractor.
2. Install the bracket (figure 17) to the back plate
through the same holes where the drawbar plate was
bolted. Use the ~three 31X-16 x I hex bolts and
locknuts (A, figure 18).
Figure 18.
A. Hardware
Section B: Bracket Installation on Tractor with 3
Forward Speeds and 23” Diameter Rear Tires
1. Install the bracket to the back plate as shown in
figure 19, using three 3/8-16
x I hex bolts and
locknuts. In the top, center hole (A) install a 3/8 x
3/4 bolt and 3/8 locknut to prevent bracket being
used as a drawbar.
9
ACAUTION
Do not remove the existing drawbar. Do not use the
bracket as a drawbar.
1
Figure 19.
A. Top. Center Hole
2. Install the decal, part number 1700346 (see first page)
to top of bracket beside hole (A, figure 19).
ASSEMBLY OF FRAME AND COVER
1. Install the frame (A, figure 20) at four locations (B)
with 5/16-18 x I-112 capscrew, washer and nut.
Install spacers (F) at top capscrew on each side (see
figure 8).
2. Attach the bracket (C, figure 20) with two 5/ 16-18 x
l-3/4 bolts (B), washers and nuts. Attach strap(E)
Figure 20.
A. Frame
6. Fastener Locations
C. Bracket
D. son
E. Strap
F. Spacer

3. The support rod and frame rod must be inserted into
the cover (A, figure 21) as follows.
a. The frame rod (C, figure 21) must be inserted
through the bottom sleeve of the cover so that the
two bent endsextend out openings, which
are next
to the cord loops (D). The frame rod position is
indicated by dotted line (B, figure 22).
Figure 21.
A. Cover
6. Support Rod
C. Frame Rod
D. Cord Loops
E. Elbow
A.
SUPPOR Rod Location E. Clip
~6. Frame Rod Location F. Decal. Warning
C. Cord Loop
G. Tube
D. strap H. Elbow
b. The support rod (B, figure
21), which has eyebolt
ends, must be threaded through the sleeve inside
the cover. The position is indicated by dotted line
(A, figure 22).
NOTE AWARNING
When you pick up cover to place over the frame, be
sure support rod (B, figure 21) is inside frame rod
w
It is important for the operator’s safety, that the
warning decal he installed.
4. Insert the elbow(E, figure21) into thecoveropening.
“.
5. Pick up the cover and place down onto theframe(A,
figure 20) inserting the elbow (A, figure 23) into the
bracket (B) (shown without cover for clarity). Pull
the rubber strap (C) over the elbow and hook into
bracket as shown.
Figure 23. (Shown without ccwer for clariw.)
A. Elbow
B. Bracket
c. strap
6. On each side, place the eyebolt end of the support rod
(B, figure 21) onto the frame rod, then insert frame
rod (A, figure 24) through the frame (B). Insert clip
(C) through frame rod to secure.
7. Insert an“S” hook toeachend ofthestrap(D,figure
22). Hook one end through washer (E, figure 22) and
pinch closed with a pliers.
8. Pull the cover down so it appears as in figure 22. To
secure the front, pull the cord loops (C) onto the
spacers. To secure the rear, hook the strap(D) onto
back of cart as shown.
9. Install warning decal (F, figure 22) so it is visible
from right-hand side. Make sure surface is clean.
Remove backing paper and tack edge of decal in
position. Then apply with heal of hand, smoothing
out bubbles. The edge of a ruler can also be used

Figure 24.
A. Frame Rod
8. Frame
Maintenance
~C. Clip
D. Support Rod
AWARNING
The cart cover is subject to wear and deterioration.
Check the cover frequently. Use a” approved
replacement cover.
The
cover can be rinsed with a hose when dirty. A dirty
cover will inhibit the fast flow of grass clippings into the
cover. Do not leave grass or leaves in the cart for a long
period of time.
Operation’
A
WARNING
For safety reasons grass and debris are to he
removed only after engine is shut off, key removed,
and all moving parts ,stopped.
Ii
Before ralsmg cover, shut off engme, remove key,
BEFORE OPERATION
Clear the lawn of all sticks, stones, wire and,other debris
which may be caught or thrown by the mower blades.
Clean the tube with mild detergent (other products may
damage tube). The flow of grass can be seen through the
tube while moving.
Check grass condition. If wet, wait until later in the day.
If grass is wet plugging may occur.
For efficient bagging, air circulation under the mower
deck, through the chute and into the bag is very
important. For this reason, you should remove grass and
debris from underside of mower deck, discharge chute
and cover.
The tube and elbow can be removed as an assembly for
cleaning.
INSTALLATION OF TRACTORS GRASS CHUTE
TO CART COLLECTOR
IAttach the hose to the blower housing withclamp(A,
figure 25) and tighten with a screwdriver or wrench.
2. Insert the elbow (H, figure 22) onto the tube.
Figure 25.
A. Clamp
6. Hose C. Wing Nut
OPERATION - WITH CART COLLECTOR
A
WARNING
Shut the tractor’s engine off before attaching,
adjusting, or disconnecting the cart collector. Be
sure the complete cart collector is in place before
operating the tractor’s mower.
A
WARNING
Do not tow the cart collector on slopes greater than
15 degrees. Mow up and down the face of slopes;
never across the face of any slope.
11

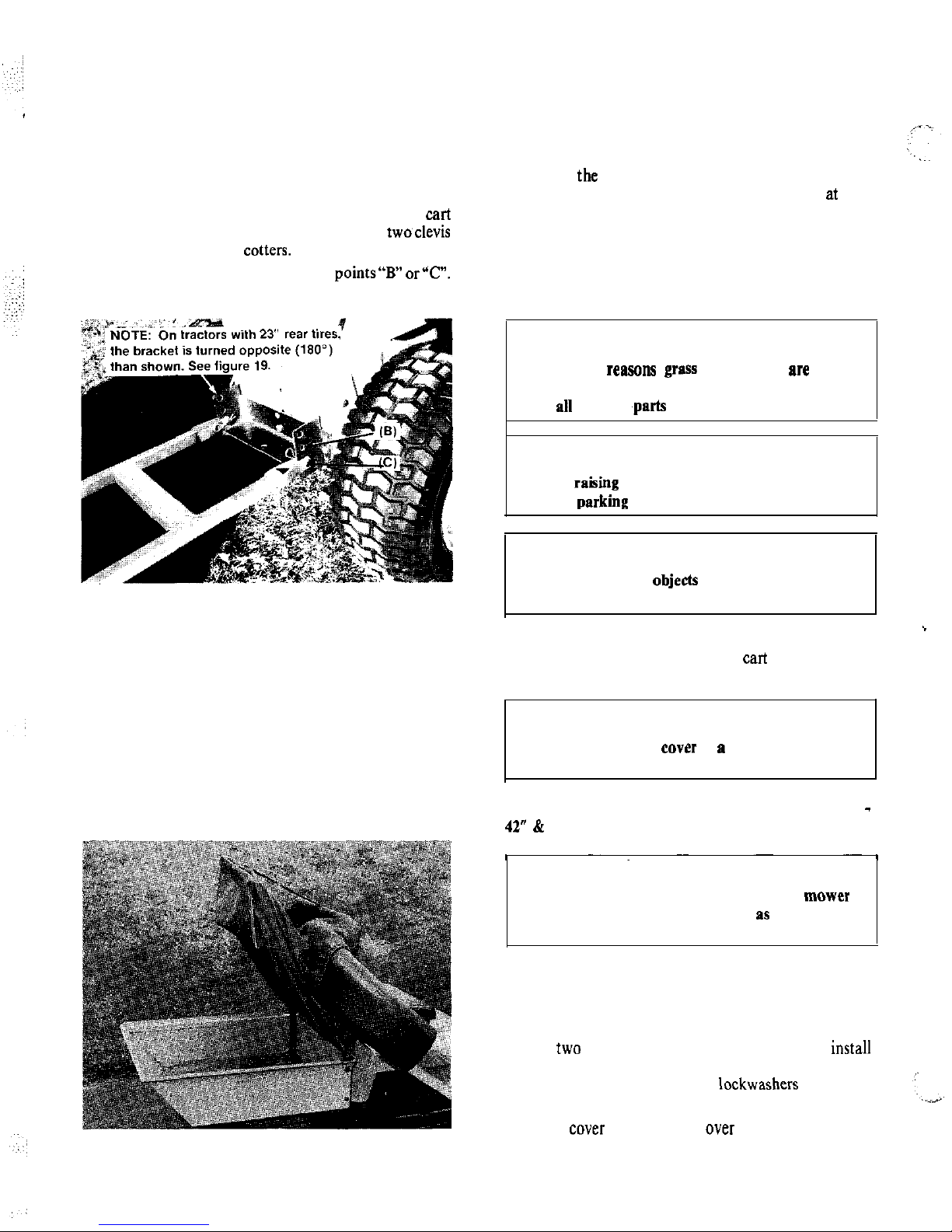

1. Attaching:
a. Attach the cart to the tractor by aligning the two
ends of the H-frame to the holes in the bracket
(figure 26). Use the holes that will make the cart
level, Secure the cart to the bracket with twoclevis
pins and hairpin totters.
b. Attach the cart to the bracket at points‘%” or“C”.
3. Move the latch handle to the unlock position and
dump the cart’s box. The connecting tube will slide
off the elbow and the cart’s box will dump at a 90
degree angle for quick unloading.
4. If bagging the grass clippings is desired, the grass can
be pulled from the cart at the curve side into a plastic
lawn bag. Also, the grass can be dumped onto a tarp
for throwing into a trailer.
Figure 26.
DUMPING GRASS AND LEAVES
1. Back the tractor to the desired place for unloading.
Shut the tractor’s engine off before getting off the
tractor’s seat.
2. Unhook the strap from the door lock and raise the
cover assembly to the open position. Lock the cover
in place by hooking the strap to the locking tab
(figure 27).
Figure 27.
AWARNING
For safety reasans gross and debris are to be
removed only after engine is shut off, key removed,
and all moving ,parts stopped.
AWARNING
Before raking cover, shut off engine, remove key,
and set
parking brake.
ACAUTION
Do not haul sharp objects that may puncture the
cover.
5. The cover can be removed entirely from the cart.
Once the cover is removed, the cart can be used for
hauling bulky loads.
ACAUTION
Be sure to store the
cover in P safe place where it
cannot he torn.
.
OPERATING WITHOUT COLLECTION SYSTEM -
42” & 48” MOWERS
AWARNING
When blower assembly is removed from mwver
deck, the deflector must be installed
as described in
this section.
To operate without the grass collection system, remove
the blower assembly by removing the front wing nut (C,
figure 25) and slipping belt off of the pulley. Re-install the
mower deflector (figure 28) and the original hardware.
Install
two carriage bolts from bottom and install
washers and nuts (A). Install the front washers (B) and
nut (C). Be sure flat washers and lockwashers are used at
all three locations.
Pivot the cover (A, figure 29) over the arbor pulley and
hook into position.
12

I
Figure 28.
A. Nut
B. Washer
C. Nut
Figure 29.
A. Cover
6. Hook
OPERATING WITHOUT COLLECTION SYSTEM -
36” MOWERS
To remove the blower assembly, first loosen the front
wing nut. To provide belt slack, push the belt retainer(B,
figure 6). Slip the belt off the pulley. The blower can be
removed from deck.
Install the mower deflector (A, figure 30) with two
carriage bolts, lockwashers and nuts.
Figure 30.
A. Deflector
13

.,,.,,

EDGE OF DECK
I
- Align with deflector mounting holes. -
I
TEMPLATE FOR DRILLING MOUNTING HOLE
FOR 36” TURBO VAC.
LDrill g/32” Dia. Hole

:‘~
,‘,“:
