Simply Automated UPB URD User manual

Controlled Receptacle Model URD
Simply Automated, Incorporated
5825 Avenida Encinas, Suite 101, Carlsbad, CA 92008 USA
Technical Support: www.simply-automated.com or 800-630-9234
452-0014-0101 Rev. A Revised: January 5, 2006
FUNCTION

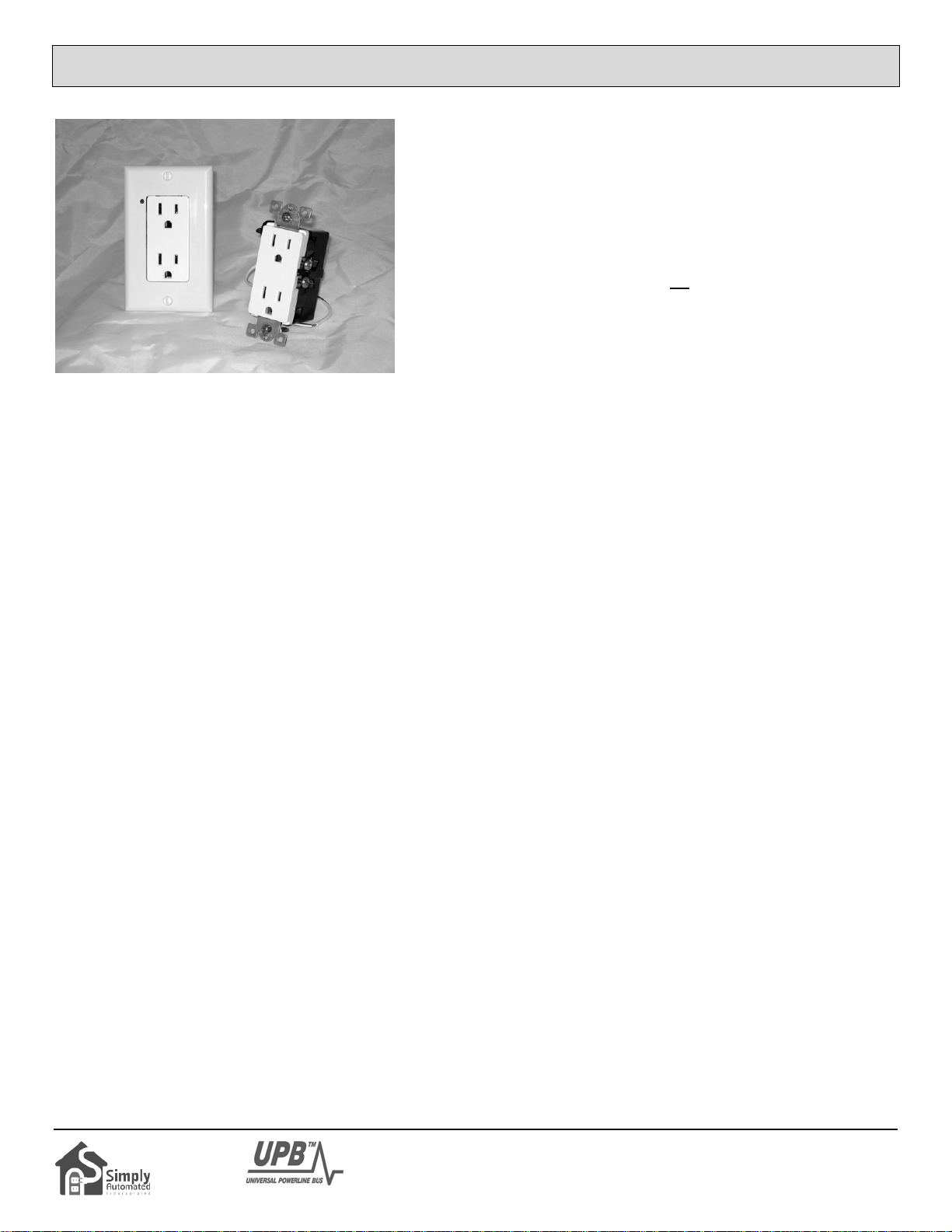

The Controlled Receptacle, model URD, turns 120VAC
appliances ON and OFF based on digital commands received
over the power wiring from a remote UPB (Universal Powerline
Bus) controller. UPB controllers and modules can be freely
located anywhere in the home. No additional wiring is required
and no radio frequency signals are used for communication.
IMPORTANT SAFETY INSTRUCTIONS
When using electrical products, basic safety precautions should
always be followed, including the following:
1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
2. Installation should be performed by a qualified technician.
3. Keep away from water. If product comes into contact with
water or other liquid, unplug immediately.
4. Never use products that have been dropped or damaged.
5. Do not use this product outdoors.
6. Do not use this product for other than its intended use.
7. Do not connect multiple lamps or appliances that, when
combined, exceed the maximum load ratings of the product.
8. To avoid risk of fire, burns, personal injury and electric shock,
install this product out of reach of small children.
9. Do not cover the product with any material when in use.
10. This product uses polarized plugs and sockets (one blade is
wider than the other) to reduce the risk of electric shock.
These plugs and sockets fit only one way. If they do not fit,
consult a technician. Do not alter plugs.
11. SAVE THESE INSTRUCTIONS.
INSTALLATION
The URD is designed for indoor installation in a junction box that
is wired to a readily accessible overcurrent protection device in
the building, per NEC and CEC electrical standards. To install
the URD module:
1. Disconnect power at the circuit breaker.
2. Remove any existing wallplate and receptacle from the outlet
box. Disconnect the wiring to the existing receptacle.
3. Connect the black (Line) wire to the bottom brass-colored
screw on the controlled receptacle.
4. Connect the white (Neutral) wire to the bottom silver-
colored screw on the controlled receptacle.
5. If available, connect the green (Ground) wire to the green-
colored screw on the controlled receptacle.
6. If the application requires a remote wall switch to
activate/deactivate the controlled receptacle, connect the
brown/white wire from the receptacle to the traveler wire that
extends to a model USR Dedicated Remote Switch. Refer to
the wiring diagram for details.
7. If a remote wall switch is not used, cap off the unused
brown/white wire at the receptacle to prevent shorting.
8. Fit the receptacle into the outlet box and secure with
mounting screws. Install the wallplate provided with the
receptacle.
NOTE: In order to use a standard wallplate, a hole must be
drilled in the wallplate to accommodate the Indicator/Switch.
9. Restore power at the circuit breaker.
10. Plug the appliance to be controlled into the top outlet of the
receptacle. Turn the appliance power switch ON.
11. If desired, another device can be plugged into the bottom
outlet, which is always powered.
CONFIGURATION
1. To configure the URD and assign it to one or more
controllers, please refer to instructions for the controller.
2. When configuring a UPB system, it may be necessary to
place the URD in SETUP mode. To do this, press the
illuminated Program Switch (next to the top outlet) five times
rapidly. The indicator will continuously blink GREEN when
the unit is in SETUP mode. To exit SETUP mode, press the
Program Switch once or wait five minutes.
OPERATION
The Controlled Receptacle operates according to commands sent
by the controller. Only the top outlet on the receptacle is
controlled. The bottom outlet will be ON continuously. The
indicator on the receptacle will glow RED when the controlled
outlet is OFF and GREEN when the outlet is ON.
UPB FACTORY DEFAULT SETTINGS
To restore the following default settings, place the URD in SETUP
mode and then press the Program Switch ten times. Press the
switch once again to exit this mode.
Network Name “Network 1”
Room Name “New Room Name”
Device Name “New URD”
Unit ID 2
Network ID 255
Network Password 1234

Controlled Receptacle (continued) Model URD
Simply Automated, Incorporated
5825 Avenida Encinas, Suite 101, Carlsbad, CA 92008 USA
Technical Support: www.simply-automated.com or 800-630-9234
452-0014-0101 Rev. A Revised: January 5, 2006
INSTALLATION FOR USE WITH TRANSMITTER LINK OPTION (NO DIRECT SWITCH CONNECTION)
INSTALLATION WITH OPTIONAL USR REMOTE SWITCH
INSTALLATION WITH OPTIONAL USR-40 REMOTE SWITCH
NOTES:
* CAP UNUSED BRN/WHT AND/OR RED/WHT WIRES TO PREVENT SHOCK OR SHORTING.
** CONNECT THE BLACK WIRE (BROWN ON USR) OF THE USR AS SHOWN TO ENABLE OPERATION OF THE LED INDICATOR. THIS WIRE
IS NOT REQUIRED FOR SWITCH OPERATION AND CAN BE OMITTED IF A THIRD WIRE IS NOT AVAILABLE.
CAP BROWN WIRE IF NOT USED.
