Haier H2SM-18R04 User manual

SPLIT TYPE ROOM AIR CONDITIONER
OPERATION MANUAL
Please read this operation manual before using the air conditioner.

Before disposing an old air conditioner that
goes out of use, please make sure it's
inoperative and safe. Unplug the air conditioner
in order to avoid the risk of child entrapment.
It must be noticed that air conditioner system
contains refrigerants, which require speciali-
zed waste disposal. The valuable materials
contained in an air conditioner can be recycled.
Contact your local waste disposal center for
proper disposal of an old air conditioner and
contact your local authority or your dealer if
you have any question. Please ensure that
the pipework of your air conditioner does not
get damagedprior to being picked up by the
relevant waste disposal center, and contribute
to environmental awareness by insisting on an
appropriate, anti-pollution method of disposal.
Disposal of the old air conditioner
All these valuable materials may be taken to
a waste collecting center and used again after
adequate recycling.
Consult your local authorities for the name
and address of the waste materials collecting
centers and waste paper disposal services
nearest to your house.
Disposal of the packaging of your
new air conditioner
Safety Instructions and Warnings
1
Cautions
All the packaging materials employed in the
package of your new air conditioner may be
disposed without any danger to the
environment.
The cardboard box may be broken or cut into
smaller pieces and given to a waste paper
disposal service. The wrapping bag made of
polyethylene and the polyethylene foam pads
contain no fluorochloric hydrocarbon.
Before starting the air conditioner, read the
information given in the User's Guide caref-
ully. The User's Guide contains very impor-
tant observations relating to the assembly,
operation and maintenance of the air
conditioner.
The manufacturer does not accept respon-
sibility for any damages that may arise due
to non-observation of the following
instruction.
Damaged air conditioners are not to be
put into operation. In case of doubt, consult
your supplier.
Use of the air conditioner is to be carried
out in strict compliance with the relative
instructions set forth in the User's Guide.
Installation shall be done by professional
people, don't install unit by yourself.

For the purpose of the safety,the air con-
ditioner must be properly grounded in acco-
rdance with specifications.
Always remember to unplug the air
conditioner before openning inlet grill. Never
unplug your air conditioner by pulling on
the power cord. Always grip plug firmly and
pull straight out from the outlet.
All electrical repairs must be carried out
by qualified electricians. Inadequate repairs
may result in a major source of danger for
the user of the air conditioner.
Do not damage any parts of the air
conditioner that carry refrigerant by piercing
or perforating the air conditioner's tubes
with sharp or pointed items, crushing or
twisting any tubes, or scraping the coatings
off the surfaces. If the refrigerant spurts
out and gets into eyes, it may result in
serious eye injuries.
Cautions
Do not obstruct or cover the ventilation
grille of the air conditoner.Do not put fingers
or any other things into the inlet/outlet and
swing louver.
Do not allow children to play with the air
conditioner.In no case should children be
allowed to sit on the outdoor unit.
The refrigerating circuit is leak-proof.
Remark per EMC Directive 89/336/EEC.
To prevent flicker impression during the
start of the compressor(Technical Process)
and the adversely influence caused by
the 2nd harmonies of compressor following
installation conditions do apply:
1.The power connection for air conditioner
has to be done at the main power
distribution.This distribution has to be of a
Iow impedance. Normally the required
impedance is reached at a 32A fusing point.
2.No other equipment has to be connected:
to this power line.
3.For the details installation acceptance
please refer to your contract with the power
supplier, if restrictions do apply for products:
like washing machines,air conditioners or
electrical ovens.
4.For the details of the power of air,
conditioner, please refer to the rating plate
of the product.
5.For any question contact your local dealer.
Specifications
2

3
Inletgrille
Airfilter
Verticalflap
Useremotecontrollerto adjustupanddownairflow. (Don'tadjustitmanually.)
Powerindicator
Lightsupwhenunitstarts.
Timermodeindicator
LightsupwhenTimeroperation is selected.
Operationmodeindicator
Remotesignalreceiver
Emergencyswitch(manual)
Testrunningswitch(manual)
Lightsupduringcompressor running.
Abeepingsoundisgeneratedwhen asignalfromremotecontrolleris received.
Usedwhenremotecontrollerislostor defective.Unitwillruntemporarily.
Usedonlyfortestrunningincooling whenroomtemp.isbelow16oC. Don'tuseitinnormaloperation.
HSU-09R04/R2 HSU-12R04/R2 H2SM-18R04/R2For models:
For multi-split type, the power plug is on the outdoor unit.
HSU-18R04/R2For models:
Testrunningswitch(manual)
Usedonlyfortestrunningincooling whenroomtemp.isbelow16oC. Don'tuseitinnormaloperation.
Useremotecontrollerto adjustupanddownairflow. (Don'tadjustitmanually.)
Inletgrille
Vertical louver
Horizontal louver(inside)
(adjust left and right air flow)
Powerindicator
Lightsupwhenunitstarts.
Timermodeindicator
LightsupwhenTimeroperation is selected.
Operationmodeindicator
Lightsupduringcompressor running.
Remotesignalreceiver
Abeepingsoundisgeneratedwhen asignalfromremotecontrolleris received.
Emergencyswitch(manual)
Usedwhenremotecontrollerislostor defective.Unitwillruntemporarily.
Inlet
Inletgrille
Airfilter(inside)
Verticalflap
Useremotecontrollerto
adjustupanddownairflow. (Don'tadjustitmanually.)
Remotesignalreceiver
Abeepingsoundisgeneratedwhen
asignalfromremotecontrolleris
received.
Operationmodeindicator
Lightsupduringcompressorrunning.
Timermodeindicator
LightsupwhenTimeroperationis selected.
Powerindicator
Lightsupwhenunitstarts.
HSU-24R04/R2For models:
AirPurifyingFilter(inside)

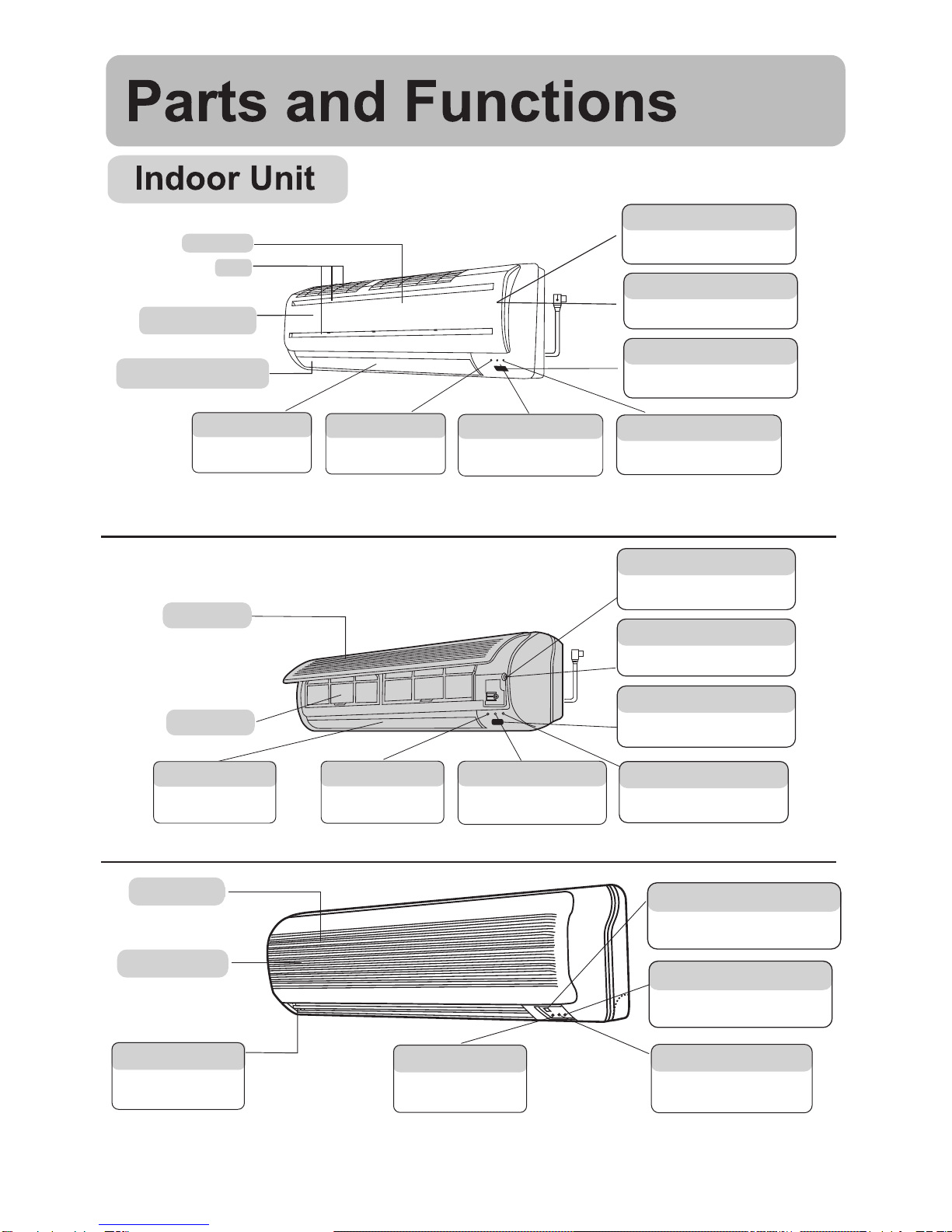

Parts and Functions
4

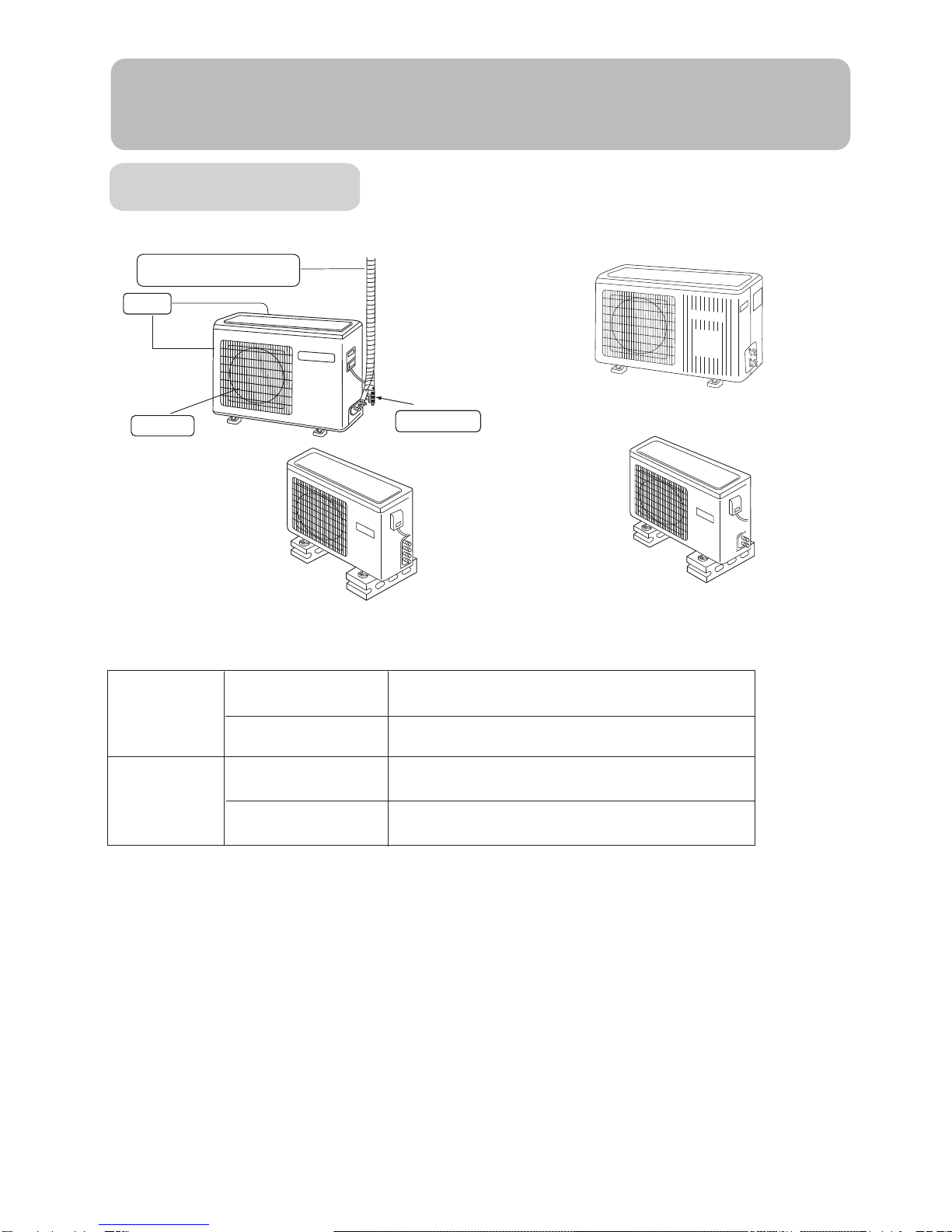

Outdoor Unit
Cooling Indoor Maximum:D.B/W.B 32oC/23oC
24oC/18oC
-7oC/-8oC
43oC/26oC
18oC
27oC
15oC
18oC/14oC
Maximum:D.B/W.B
Minimum:D.B
Maximum:D.B
Minimum:D.B
Minimum:D.B/W.B
Maximum:D.B/W.B
Minimum:D.B/W.B
Outdoor
Indoor
Outdoor
Heating
2. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent
or a similar qualified person. The type of connecting wire is H05RN-F or H07RN-F.
3. If the fuse on PC board is broken please change it with the type of T.3.15A/250V.
4. The distance between the indoor unit and the floor should be more than 2m.
5. The wiring method should be in line with the local wiring standard.
6. After installation, the power plug should be easily reached.
7. The waste battery should be disposed properly.
8. The appliance is not intended to use by young children or infirm persons without supervision
9.Young children should be supervised ensure that they do not play with the appliance.
10.The appliance must be installed on strong enough supporter.
11 .The wiring diagram is attached inside the machine.
The machine is adaptive in following situation
1. Applicable ambient temperature range:
HSU-12R04/R2Formodels: HSU-18R04/R2
HSU-09R04/R2
H2SM-18R04/R2 HSU-24R04/R2
CONNECTING PIPING AND
ELECTRICAL WIRING
OUTLET
DRAIN HOSE
INLET
12.For model HSU-24R04/R2 and H2SM-18R04/R2,the breaker of the air conditioner should be
an air gap contact. Such means for disconnection must be incorporation in the fixed
wiring according to the wiring rules.

6
Hints

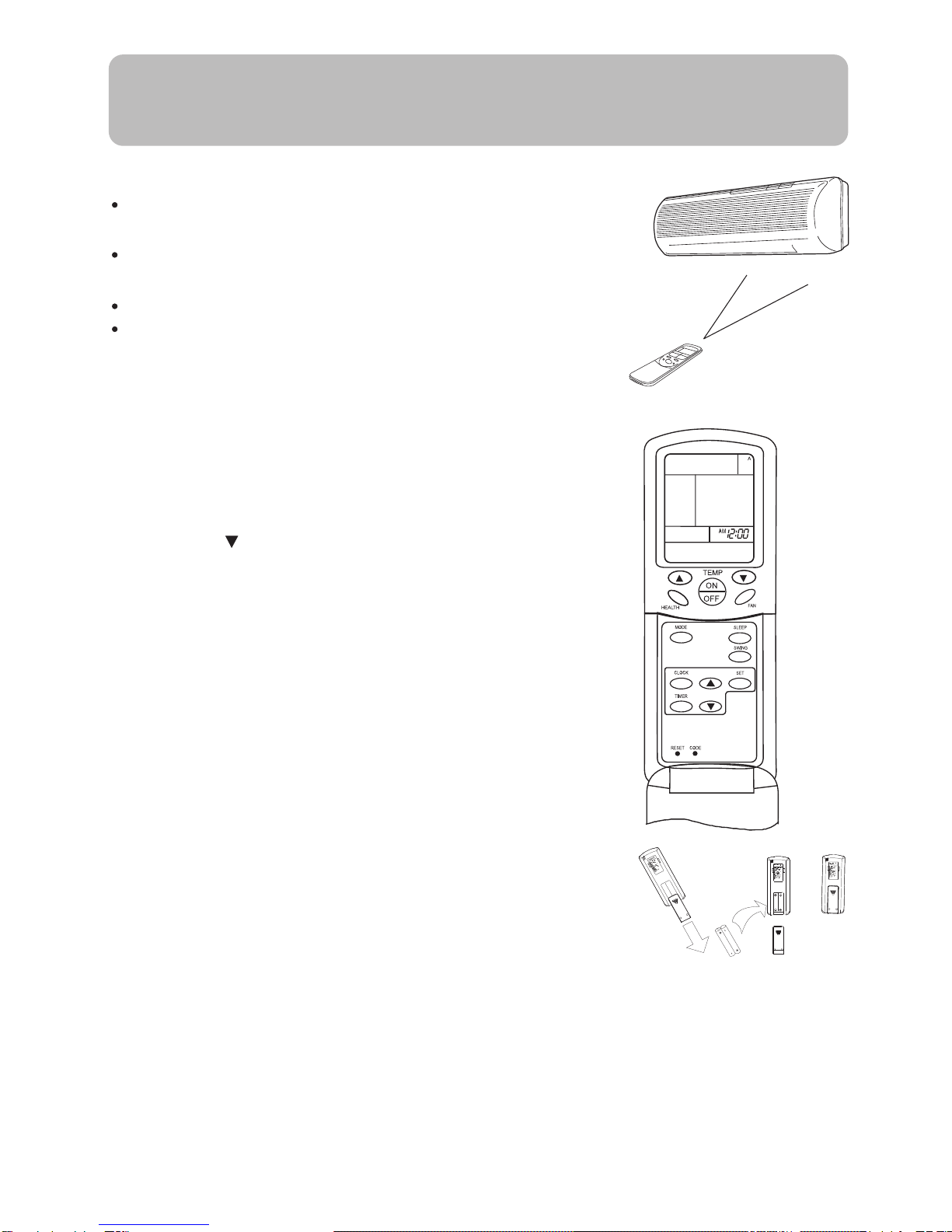

Afterreplacingwithnewbatteries,remotecontrollerwillconductself-check,displaying
all information on LCD. Then, it will become normal.

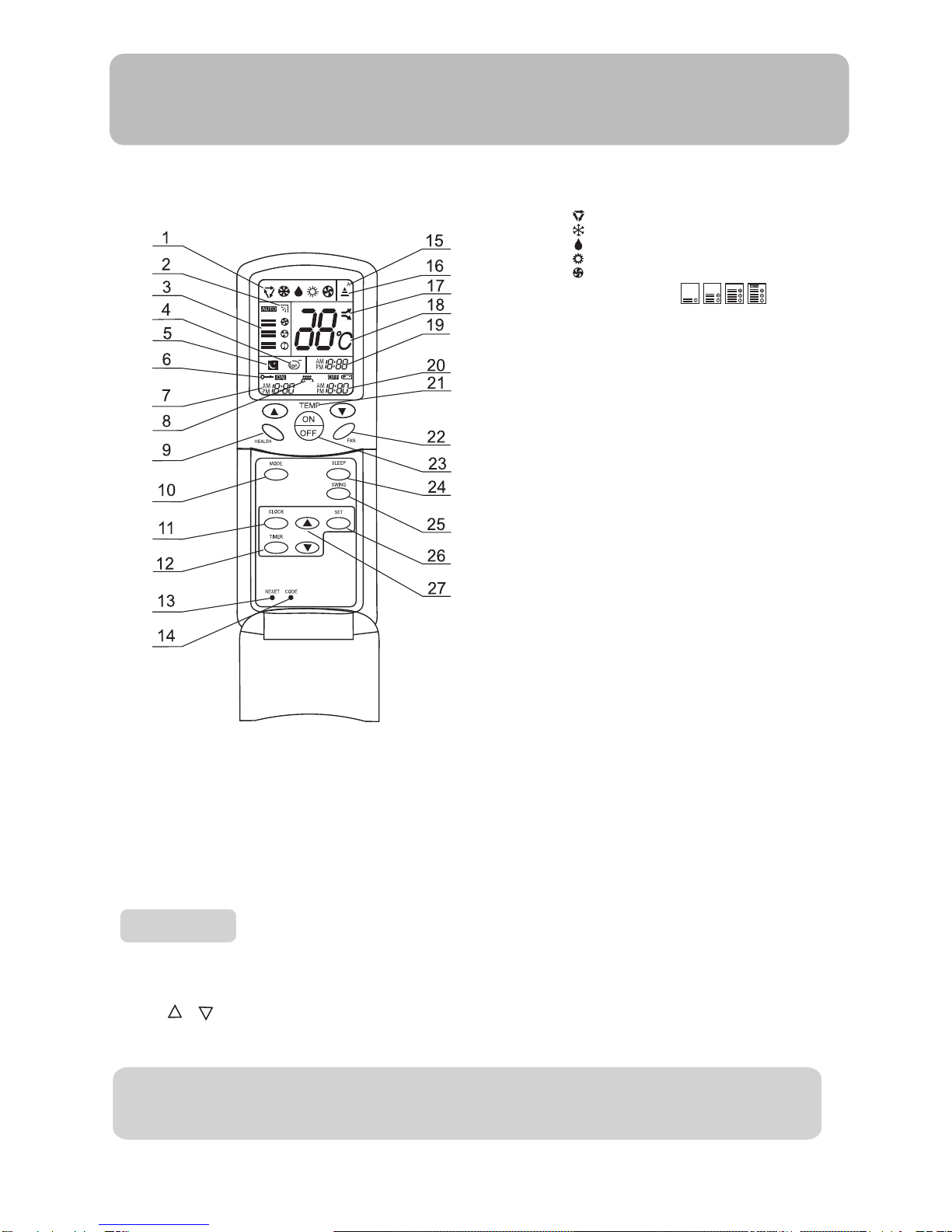

Buttons and display of the remote controller.
Parts and Functions
1.Mode display
AUTO
COOL
DRY
HEAT
FAN
2. SWING display
3. FAN SPEED display
4. HEALTH display
5. SLEEP display
6. LOCK display
7. TIMER ON display
8. AUXILIARY HEAT display
9. HEALTH
10. MODE
Used to select AUTO,COOL
and FAN
11. CLOCK
Used to set correct time
12. TIMER
Usedto select TIMER ON,TIMEROFF
13. RESET
Usedtoresetthecontrollerbackto
normal condition.
14. CODE
UsedtoselectcodeAorBwithapress,A
orBwillbedisplayedonLCD.please
selectAwithoutspecialexplanation
15. CODE display
16. SIGNAL SENDING display
17. POWER/SOFT display
18. TEMP. display
19. CLOCK display
20. TIMER OFF display
21. TEMP
Usedtoselectyourdesiredtemperature
22. FAN
Used to select fan speed
23. POWER ON/OFF
Used for unit start or stop
24. SLEEP
Used to select sleep mode
LOW MED HI AUTO
25. SWING
26. SET
Usedtoconfirmtimerandclocksettings
27. HOUR
Usedtosetclockandtimersettings
NOTE:(1)Thefollowingfunctionsandrelateddisplaysarenotavailable:AUXILIARYHEATdisplay,POWER/SOFTdisplay,LOCKdisplay.
(2)IftheAirconditionerdon'thavethefunctionofthecode,presscodeBcancauseitnotavailable.
(3)Cooling only unit do not have functions and displays related with heating.

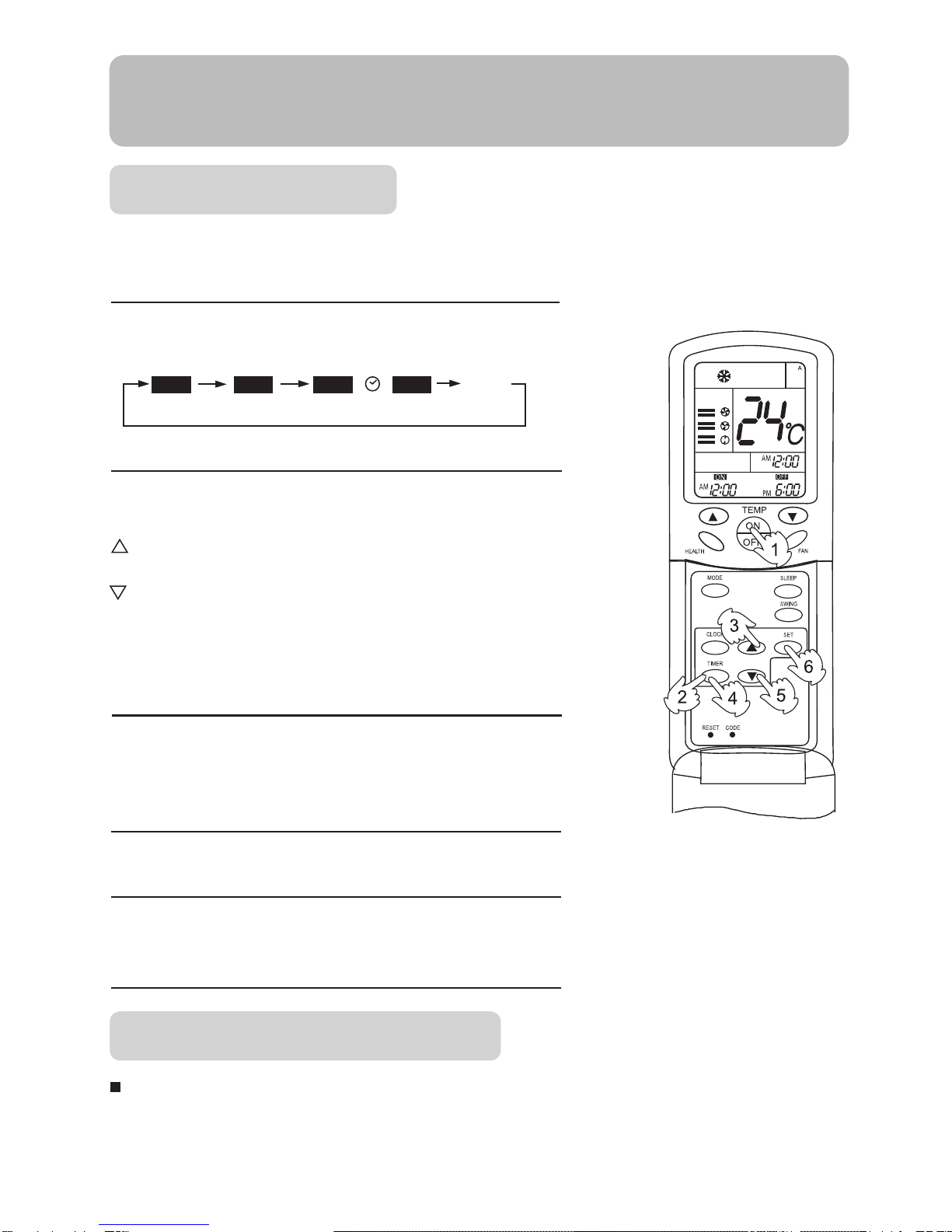

Clock set
Whenunitisstartedforthefirsttimeandafterreplacingbatteriesinremotecontroller,clockshould
be adjusted as follows:
Press CLOCK button, "AM" or "PM" flashes.
Press or tosetcorrecttime.Eachpresswillincreaseordecrease1min.Ifthebuttoniskept
depressed, time will change quickly.
Aftertimesettingisconfirmed,pressSET,"AM"and"PM"stopflashing,whileclockstartsworking.

7
Hints
Afterreplacingwithnewbatteries,remotecontrollerwillconductself-check,displaying
all information on LCD. Then, it will become normal.
Clock set
Whenunitisstartedforthefirsttimeandafterreplacingbatteriesinremotecontroller,clockshould
be adjusted as follows:
Press CLOCK button, "AM" or "PM" flashes.
Press or tosetcorrecttime.Eachpresswillincreaseordecrease1min.Ifthebuttoniskept
depressed, time will change quickly.
Aftertimesettingisconfirmed,pressSET,"AM"and"PM"stopflashing,whileclockstartsworking.
NOTE:(1)Thefollowingfunctionsandrelateddisplaysarenotavailable:AUXILIARYHEATdisplay,POWER/SOFTdisplay,HEALTHdisplay.
(2)IftheAirconditionerdon'thavethefunctionofthecode,presscodeBcancauseitnotavailable.
(3)Cooling only unit do not have functions and displays related with heating.
Buttons and display of the remote controller.
Parts and Functions
If the unit which you purchased has not health function, remote controller should
like the following figure: 1.Mode display
AUTO
COOL
DRY
HEAT
FAN
2. SWING display
3. FAN SPEED display
4. HEALTH display
5. SLEEP display
6. LOCK display
7. TIMER ON display
8. AUXILIARY HEAT display
9. SWING
10. MODE
Used to select AUTO,COOL
and FAN
11. CLOCK
Used to set correct time
12. TIMER
Usedto select TIMER ON,TIMEROFF
13. RESET
Usedtoresetthecontrollerbackto
normal condition.
14. CODE
UsedtoselectcodeAorBwithapress,A
orBwillbedisplayedonLCD.please
selectAwithoutspecialexplanation
15. CODE display
16. SIGNAL SENDING display
17. POWER/SOFT display
18. TEMP. display
19. CLOCK display
20. TIMER OFF display
21. TEMP
Usedtoselectyourdesiredtemperature
22. FAN
Used to select fan speed
23. POWER ON/OFF
Used for unit start or stop
24. SLEEP
Used to select sleep mode
LOW MED HI AUTO
25. SET
Usedtoconfirmtimerandclocksettings
26. HOUR
Usedtosetclockandtimersettings
27.LOCK
UsedtolockbuttonsandLCDdisplay.

8
Operation
When in use, put the signal transmission head directly to the
receiver hole on the indoor unit.
The distance between the signal transmission head and the
receiver hole should be within 7 m without any obstacle as well.
Don't throw the controller, prevent it from being damaged.
When electronic-started type fluorescent lamp or change-over
type fluorescent lamp or wireless telephone is installed in the
room, the receiver is apt to be disturbed in receivering the signals
so the distance to the indoor unit should be shorter.
Loading of the battery
Load the batteries as illustrated. 2 R-03 batteries,
resetting key (cylinder)
Remove the battery cover:
Slightly press " " and push down the cover.
Load the battery:
Be sure that the loading is in line with the" + "/"-"
pole request as illustrated.
Put on the cover again
Confirmation indicator:
In disorderation, reload the batteries or load the new batteries
after 6 mins.
Note:
Use two new same-typed batteries when loading.
If the remote controller can't run normally or doesn't work at all,
use a sharp pointed item to press the reset key.
Hint:
Remove the batteries in case unit won't be in usage for a long period.
If there are any display after taking-out just need to press reset key.
Power failure resume(please set and apply as necessary)
If sudden power failure occurs, the unit will resume original operation when power is
supplied again.
Note: When sudden power failure happens during unit operation in power failure resume mode, if
the air conditioner is not desired for use in a long period, please shut off the power supply
in case that the unit automatically resume operation when power is re-supplied, or press
ON/OFF to turn off the unit when power resumes.
Remote controller's operation

9
Operation
(4) Unit stop
(1) Unit start
mode changes as follows:
Press ON/OFF button, unit starts.
Previous operation status appears on display.
(Not Timer setting)
Power indicator on indoor unit lights up.
(2) Select operation mode
Press MODE button. For each press, operation
AUTO COOL DRY HEAT FAN
Unit will run in selected mode.
Stop display at " " AUTO or " "FAN.
(3) FAN
Press FAN button. For each press, fan speed changes
asfollows:
Unit will run at selected fan speed.
Note:AUTO is not available in FAN mode.
Press ON/OFF button.
Only time remains on LCD.
All indicators on indoor unit go out.
Vertical flap closed automatically.
Hints
Remote controller can memorize settings in each operation mode. To run it next time just
select the operation mode and it will start with the previous setting.
No reselecting is needed.(TIMER ON/OFF needs reselecting)
Cautions: Note:
On cooling only unit, heating mode is not available, The above information is the
After replacing batteries, press ON/OFF, and display explanation of the displayed
becomes as follows: information therefore varies
Operation mode: AUTO, Temp. No with those displayed in actual
Timer mode: No, Fan speed :AUTO operation.
Auto run, Fan operation Enjoy yourself by just a gentle press.
LO MED HI AUTO

Operation
Press MODE button. For each press, operation
Recommendations:
10
COOL,HEAT and DRY operation
Use COOL in summer. Use HEAT in winter
Use DRY in spring, autumn and in damp climate.
(1) Unit start
mode changes as follows:
Press ON/OFF button, unit starts.
Previous operation status appears on display. (Not Timer setting)
Power indicator on indoor unit lights up.
(2) Select operation mode
AUTO COOL DRY HEAT FAN
Unit will run in operation mode displayed on LCD.
Stop display at your desired mode.
(3) Select temp. setting
Press TEMR button.
Every time the button is pressed, temp. setting increases 1oC
Every time the button is pressed, temp. setting decreases 1oC
Unit will start running to reach the temp. setting on LCD.
Press FAN button. For each press, fan speed changes
(4) Fan speed selection
asfollows:
just press ON/OFF button and unit will run in previous status.
Unit runs at the speed displayed on LCD.
Hints
On cooling only unit, heating mode is not available.
Remote controller can memorize each operation status. When starting it next time,
COOLoperationstartswhenroom
temp.ishigherthantemp.setting. Ultra-lowairflow
Temp.setting+2oC
Temp.setting
Onreachingtemp.setting,unit willruninmildDRYmode.
LO MED HI AUTO
In HEAT mode,warm air will blow out after a short period
of time due to cold-draft prevention function.
In DRY mode, when room temp. becomes 2oC higher than
temp. setting, unit will run intermittently at LO speed
regardless of FAN setting.

11

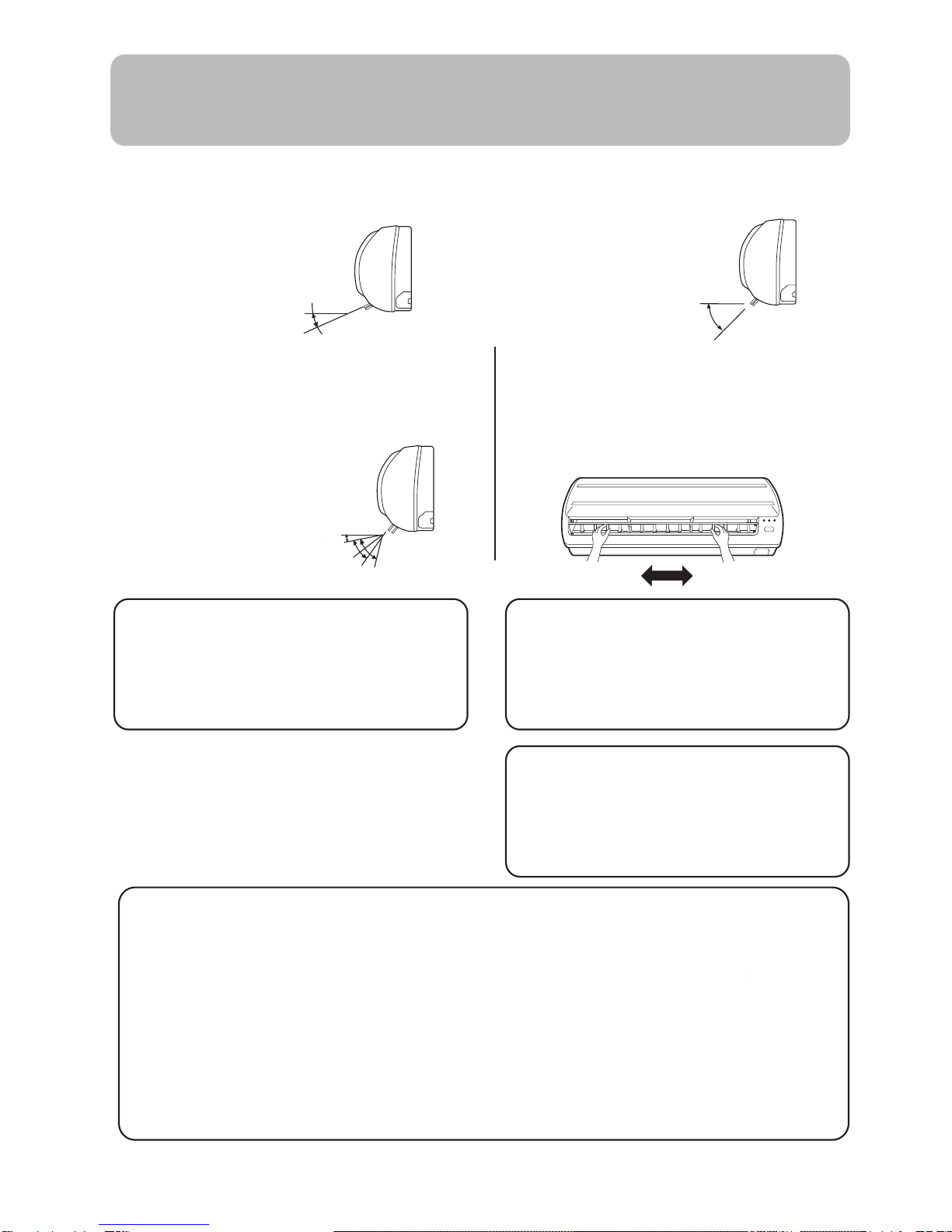

(5) Air flow direction adjustment
After operation mode is selected, vertical flap will open automatically according to the mode.
Referring to the Fig.
COOL
HEAT
COOL HEAT
About 10oAbout 60o
About 10o
About 45o
About 60o
bettersetatemp.differenceof3-5Cbetweenindoorandoutdoortemp.inCOOLmode.
Hints
Ascoldairflows downwardinCOOLmode,adjustingairflowhorizontallywillbemuch more
helpfulforabetteraircirculation.
As warm air flows upward in HEAT mode, adjusting air flow downward will be much more
helpfulforabetteraircirculation.
Becarefulnotto catchacoldwhencoldairblowsdownward.
Itisharmfultoyourhealthinsummertogofrequentlyinandoutofplaceswheretemp.
differenceisabove7oC.Temp.differenceof3-5oCwillremoveyourfatigue.
Morethanthis,unit'sloadcanbereducedandpowerconsumptioncutdownaswell.So,you'd
(6) Unit stop
Press ON/OFF button.
Only time remains on LCD.
All indicators on indoor unit go out.
Vertical flap closes automatically.
Cautions:
Unit won't restart until 3 minutes have
elapsed, due to system protection.
HEAT mode is not available on
coolingonly unit.
It is advisable not to keep vertical flap at
downward position for a long time in COOL
or DRY mode, otherwise, condensate
water might occur.
Cautions: Cautions:
When humidity is high, condensate water
might occur at air outlet if all horizontal
louvers are adjusted to left or right.
Move the horizontal blade by a knob on air
conditioner to adjust left and right direction
referring to Fig.
Left and right air flow adjustment
(manual)
Press SWING button, vertical flap will move within
the range shown in the Fig. Press SWING button
stop it at a fixed position.
Up and down (Use remote controller)
Operation

12
Operation
TIMER Operation
You can let unit start or stop automatically at following times: Before you wake up in the
morning, or get back from outside or after you fall asleep at night.
Set Clock correctly before starting Timer operation
TIMER ON/OFF
Power indicator on indoor unit lights up.
(1)After unit start, select your desired operation mode.
Operation mode will be displayed on LCD.
(2)TIMET mode selection
Press TIMER button to change TIMER mode.
Every time the button is pressed, display changes as follows:
ON OFF ON OFF
TIMER ON TIMER OFF TIMER ON-OFF
blank
Select your desired TIMER mode (TIMER ON or TIMER
OFF) ON or OFF will flash.
(3)Timer setting
Every time the button is pressed, time increases 10 min.
If button is kept depressed, time will change quickly.
Every time the button is pressed, time decreases 10 min.
If button is kept depressed, time will change quickly. Time
will be shown on LCD. It can be adjusted within 24 hours.
Timer mode indicator on indoor unit lights up.
(4)Confirming your setting
After setting correct time, press SET button to confirm, "ON"
or "OFF" stops flashing
Time displayed: Unit starts or stops at x hour x min. (TIMER
ON or TIMER OFF).
To cancel TIMER mode
Just press TIMER button several times until TIMER mode disappears.
Hints
After replacing batteries or a power failure happens, Time setting should be reset.
Remote controller possesses memory function, when use TIMER mode next time, just
press SET button after mode selecting if timer setting is the same as previous one.

13
TIMER ON-OFF
TIMER ON-OFF
To cancel TIMER mode
Power indicator on indoor unit lights up.
(1)After unit start, select your desired operation mode.
Operation mode will be displayed on LCD.
ON OFF ON OFF
TIMER ONTIMER OFF TIMER ON-OFF blank
Every time the button is pressed, display changes as follows:
(2) Press TIMER button to change TIMER mode.
Select TIMER ON-OFF. "ON" will flash.
(3)Time setting for TIMER ON
If button is kept depressed, time will change quickly.
Every time the button is pressed, time decreases 10 min.
If button is kept depressed, time will change quickly.
Every time the button is pressed, time increases 10 min.
It can be adjusted within 24 hours.
Time will be shown on LCD.
AM refers to morning and PM to afternoon
Press HOUR button.
(4) Time confirming for TIMER ON
After time setting, press TIMER button to confirm.
"ON" stops blinking, While "OFF" starts blinking.
Time displayed: Unit starts at x hour x min.
(5)Time setting for TIMER OFF
Follow the same procedures in "Time setting for TIMER ON".
(6) Time confirming for TIMER OFF
After time setting, press SET button to confirm, "OFF" stops flashing
Time displayed: Unit stops at X hour X min.
Just press TIMER button several times until TIMER mode disappears.
Operation

14
Operation

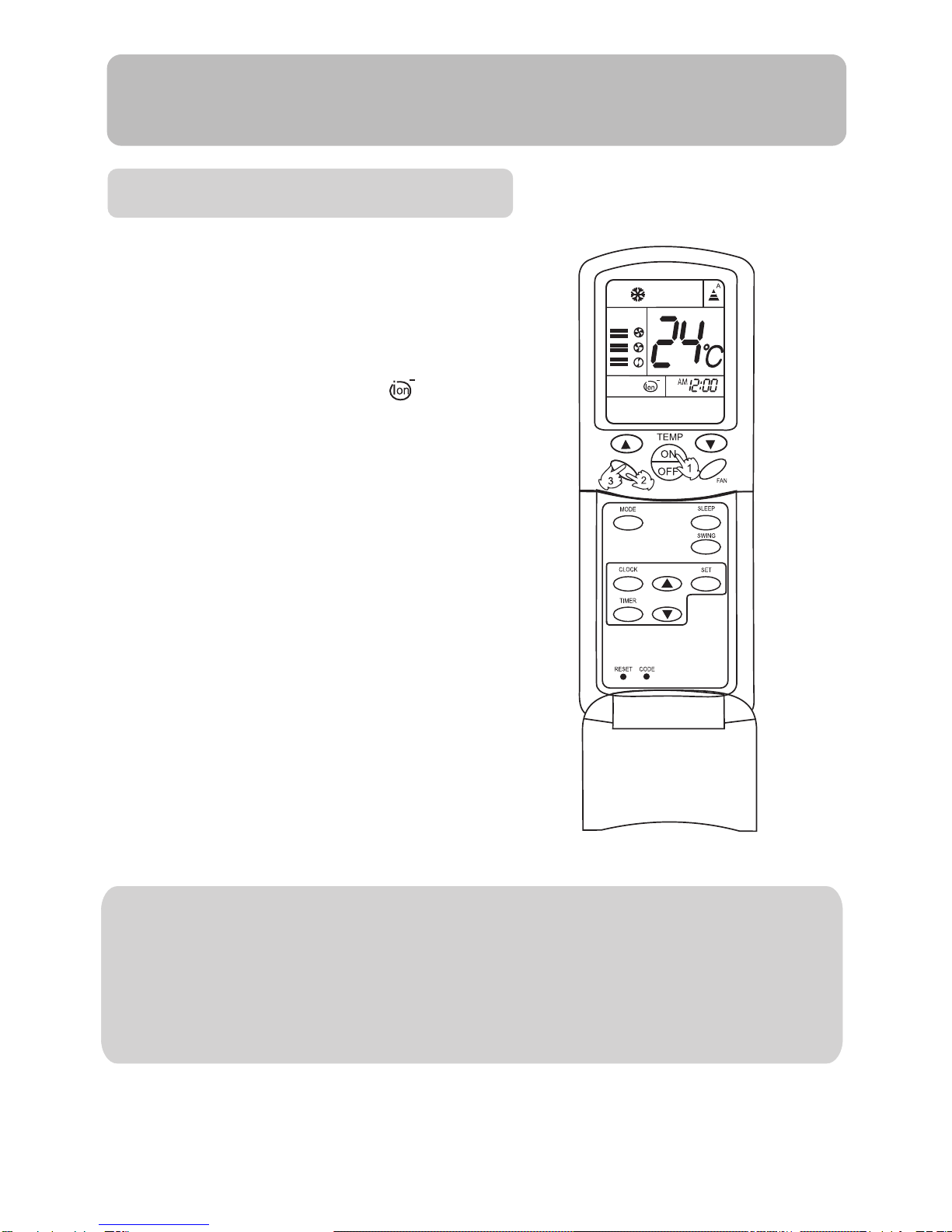

HEALTH Mode operation
(1) Press the ON/OFF switch.
(3) Press the "HEALTH"again,then
the health function stops.
The anion generator in the air conditioner can generate a lot of anion to
effectively balance the quantity of position and anion in the air and also to kill
bacteria and speed up the dust sediment in the room and finally clean the air
in the room.
BRIEF INTRODUCTION TO HEALTH OPERATION

Pi
15
Emergency and Test Operation
Use this operation only when the remote controller is defective or lost.
When the emergency operation switch is pressed,the" Pi "sound is heard once, which
means the start of this operation.
In this operation, it is possible to change the
settings of temperature and air flow speed, it is
also impossible to do an operation by the timer.
Operation
Emergency operation:
Follow the requirements below.
Room
temperature Designated
temperature Timer
mode Airflow
speed Operation mode
Morethan23oC
Lessthan23oC23oC
26oCCONTINUOUS
CONTINUOUS
AUTO
AUTO
COOL
HEAT
If an air conditioner is a model for both cooling and heating.
Cooling when the room temperature at the start of operation is above 23oC.
temperature is less 16oC, do not use it in the normal
Use this switch in the test operation when the room
operation.
operation starts with the air flow speed setting "Hi".
Continue to press the test operation switch for more
than 5 seconds. After you hear the "Pi" sound twice,
release your finger from the switch, the cooling
Removal of the restriction of emergency or test operation:
Press once more the emergency operation switch, or manipulate through the remote
controller, a "Pi" sound causes the restriction of emergency or test operation to be
removed.
When the remote controller is manipulated for the removal, then the selected operation
by the remote controller.
Heating when the room temperature at the start of operation is below 23oC
Test operation:

16

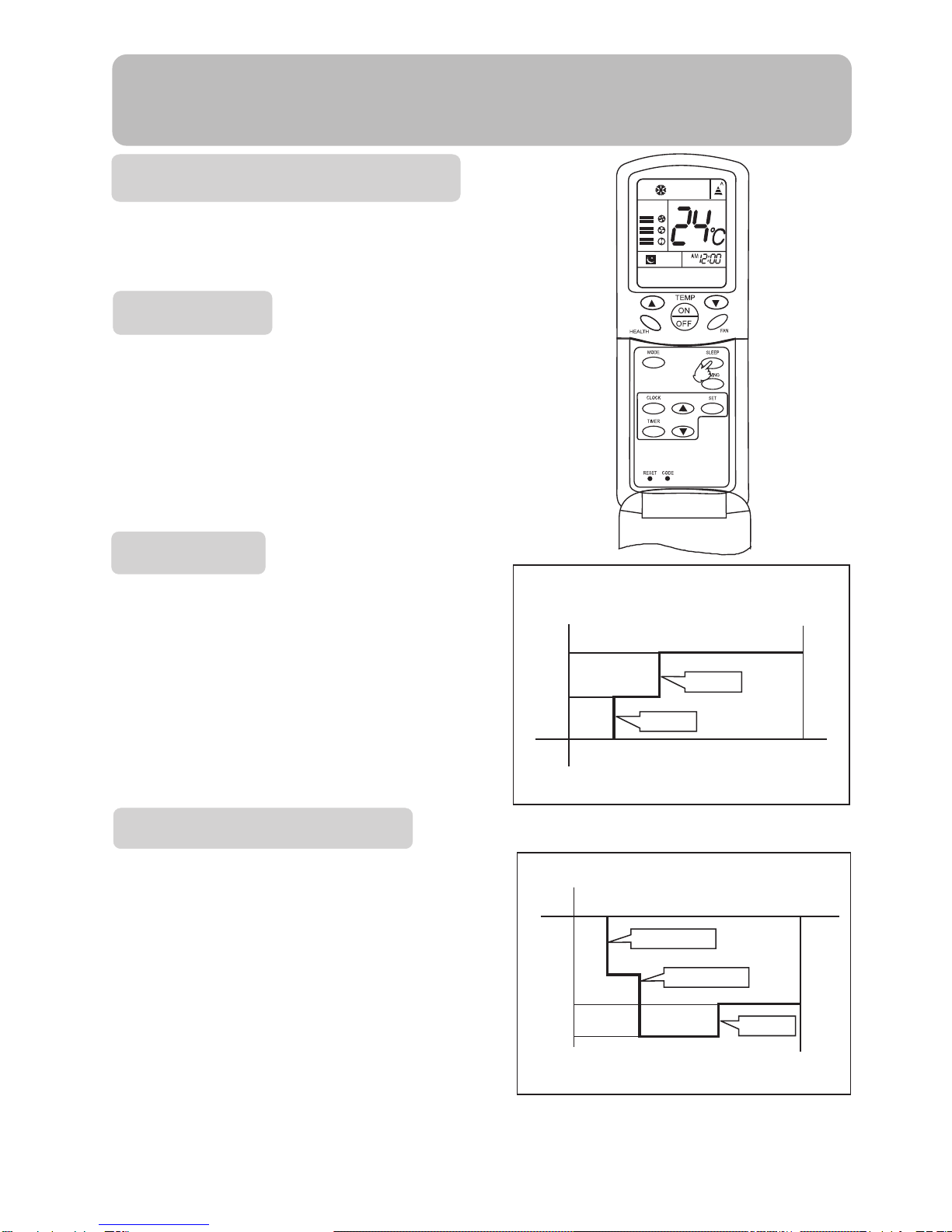

Comfortable SLEEP
Operation
In COOL mode
sleep in selected mode.
Before going to bed at night, you can simply press
the SLEEP button and unit will bring you a sound
One hour after SLEEP mode starts, temp. will
become 1oC higher than temp. setting. After
running for another 1 hour, temp. rises by 1oC
further. Unit will run for 6 hours then stops
automatically. Temp. is higher than temp.
setting so that room temp. won't be too Iow
for your sleep.(As shown in Fig.l)
In HEAT mode
(As shown in Fig .2)
One hour after SLEEP mode starts, temp. will
become 2oC lower than temp. setting. After
running for another 1 hour, temp. decreases
by 2oC further. Unit will run for 3 hours at this
temp. then increases another 1oC and stops
automatically 3 hours later. Temp. is lower
than temp. setting so that room temp. won't
be too high for your sleep.
Power Failure Resume Function
withthe indicator lighting up.
Iftheunitisstartedforthefirsttime,the
compressor will not start running unless 3
minutes have elapsed. When the power
resumes after power failure, the unit will run
automatically, the power indicator lights up, and
3 minutes later the compressor starts running
Note:
In AUTO mode, unit will run in SLEEP
function according to operation mode.
In FAN mode, comfortable sleep is not
available.
SLEEPoperationstarts SLEEPoperationstops
Approx.6hrs
1hr
1hr
Rises1oC
Rises1oC
Temp.setting Unitstop
Temp.setting Unitstop
decreases2oC
decreases2oCApprox.3hrs
1hr
1hr
Rises1oC
3hrs
SLEEPmodestarts SLEEPmodestops
Fig.1
Fig.2

17
Different models have different appearance

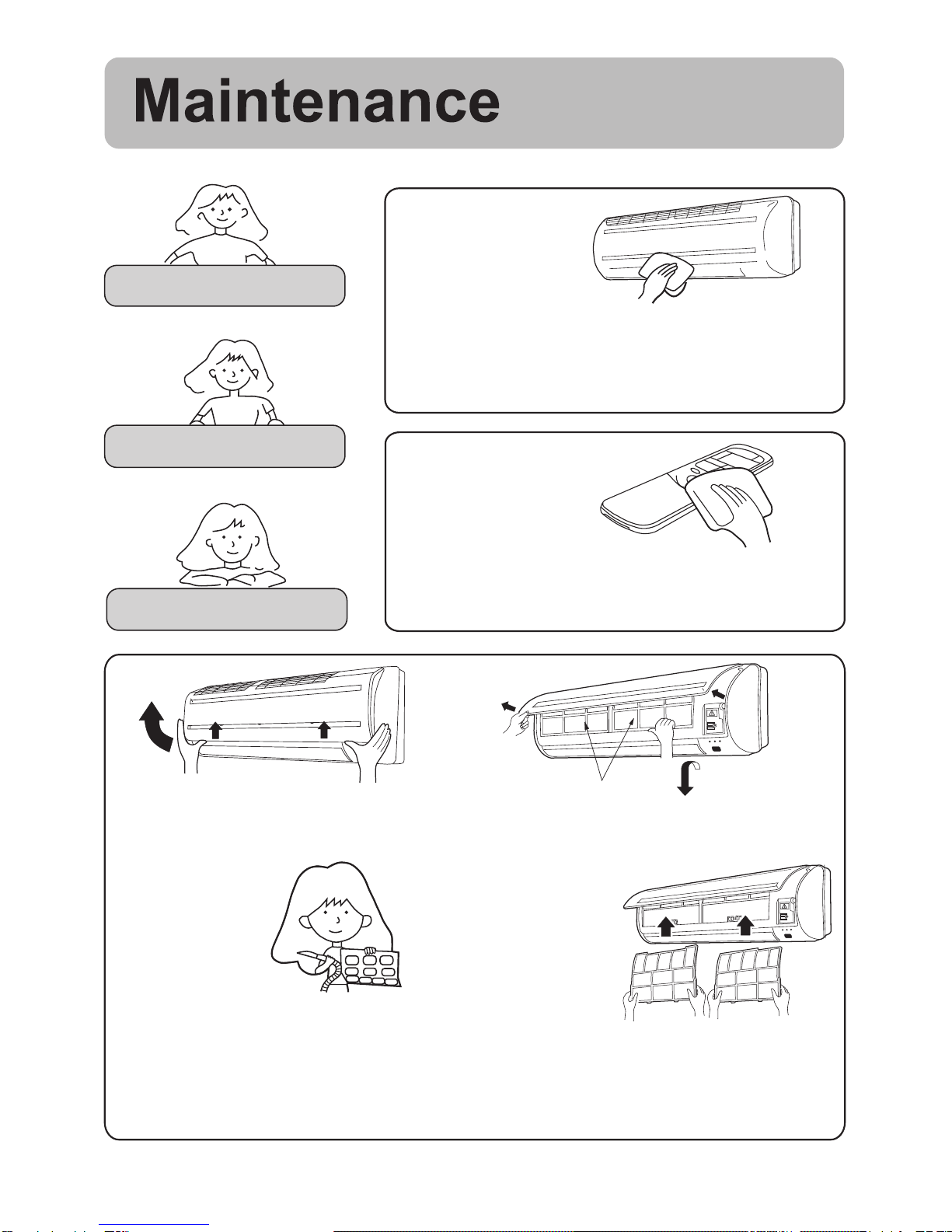

Cleaning of unit casing
Cleaning of remote controller
Cleaningofairfilter
Cut off power supply
before cleaning unit casing with soft cloth.
In case of heavy stain, clean it with neutral detergent.
squeeze water in the cloth, wipe off the detergent on unit
casing completely.
Don't use water to wash unit casing, please use dry cloth.
Don't use glass cleaner or cloth soaked with chemicals.
1.Open inlet grille by pulling it upward. AirFilter 2.Remove air filter
Push up the filter's center tab
slightlyuntilitiscaesuraof
the stopper. Remove it by
pulling down.
3.Cleanthefilter
Use a vacuum
cleaner to remove
dust,or wash the
filterwithwater.
After washing,
drythefilter
completely in the shade.
5.Closetheinletgrille.
4.Attachthefilter
Attach filter behind the stopper so that
the "Front" indication is facing to the front. Make sure
that it is completely behind the stopper, otherwise
problems might occur.

18
The air purifying filter of the bacteria-killing medium and the multi-lights
touching intermediary purifying filter accessories with machine will be used
based on real situation.
The green aspect of the bacteria-killing medium air purifying filter will face outside,
the white aspect will face to the machine.
The bacteria-killing medium air purifying filter is available for a long time and
need not to be changed. But it must be noticed to use the vacuum cleaner
frequently to adsorb the dusts covering the purifying filter lest the covering dusts
effect the function of the bacteria-killing medium air purifying filter. (It is strictly
prohibited for the bacteria-killing medium air purifying filter to be washed).
The air purifying filter of multi-lights touching intermediary will be solarized in fixed
time. In normal family , it will be solarized every 6 months.The solarization time will
last no less than 8 hours under the state of abundant sun.

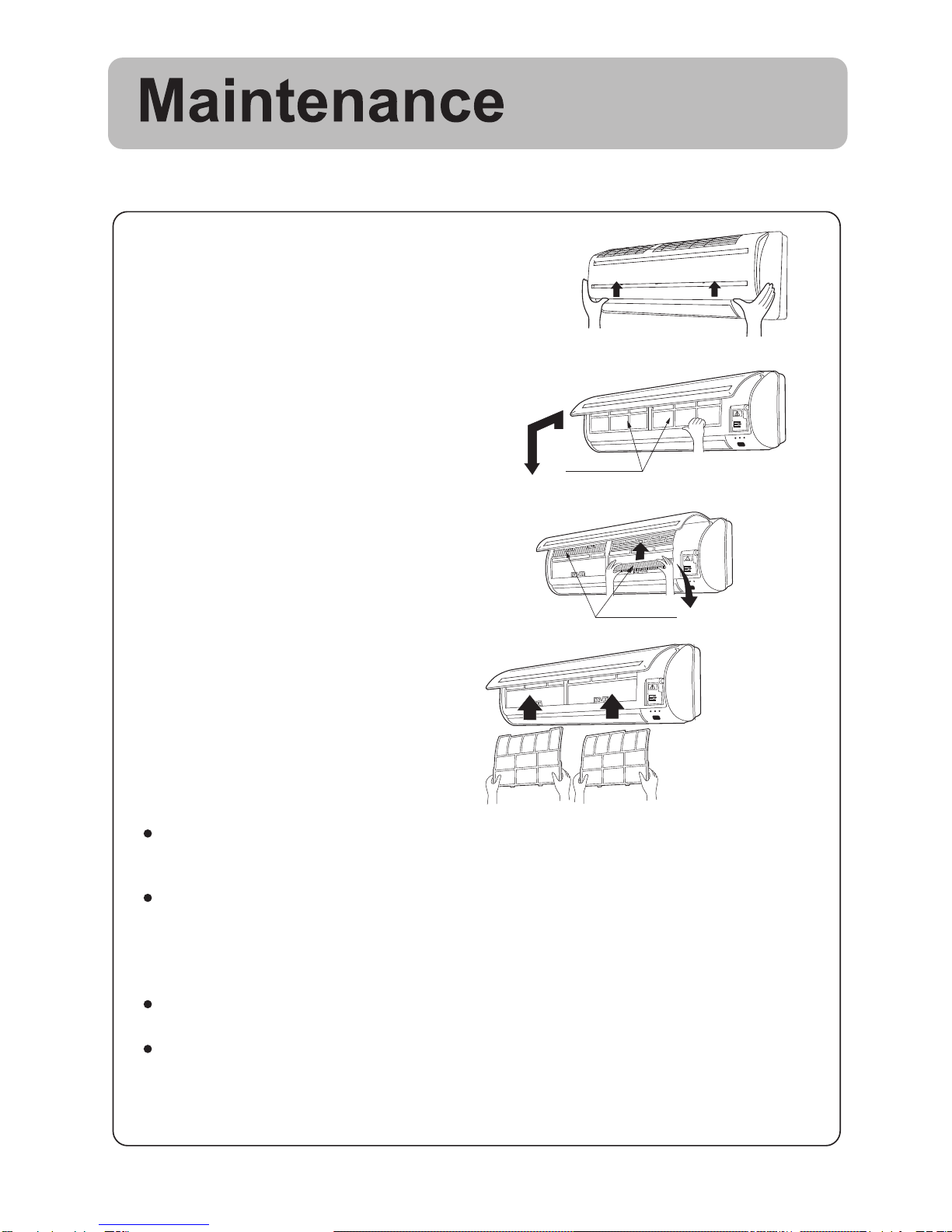

Replacement of Air Purifying Filter
1.Open the lnlet Grille
2.Detach the standard air filter
3.Detach old Air Purifying Filter
4.Attach old Air Purifying Filter
5.Attach the standard air filter
(Necessary installation)
6.Close the Inlet Grille
Close the Grille surely
Open the inlet grille by pushing each ends of
the inlet grille upward.(use thumbs to push
up)
Slide the knob slightly upward to release the
filter, then withdraw it.
Put air purifying filter appliances into the
right and left filter frames .
Air Purifying Filter
Air Filter
NOTE:

19
Maintenance
Better use of air conditioner
Proper room temperature. Cleaning of the air filter.
Effective use of the timer.
Closing of doors and windows
during operation
Never fail to observe the followings
Do not sprinkle water over
the unit. Do not block the inlet or outlet.
Do not pull power plug. Do not use for other purposes.
Such as food preservation
plant cultivation or animal
breeding.
Avoidtime-wasteful
operation
Curtainsorblinds
forwindows
Proper
temperature
Onceevery
twoweeks

20

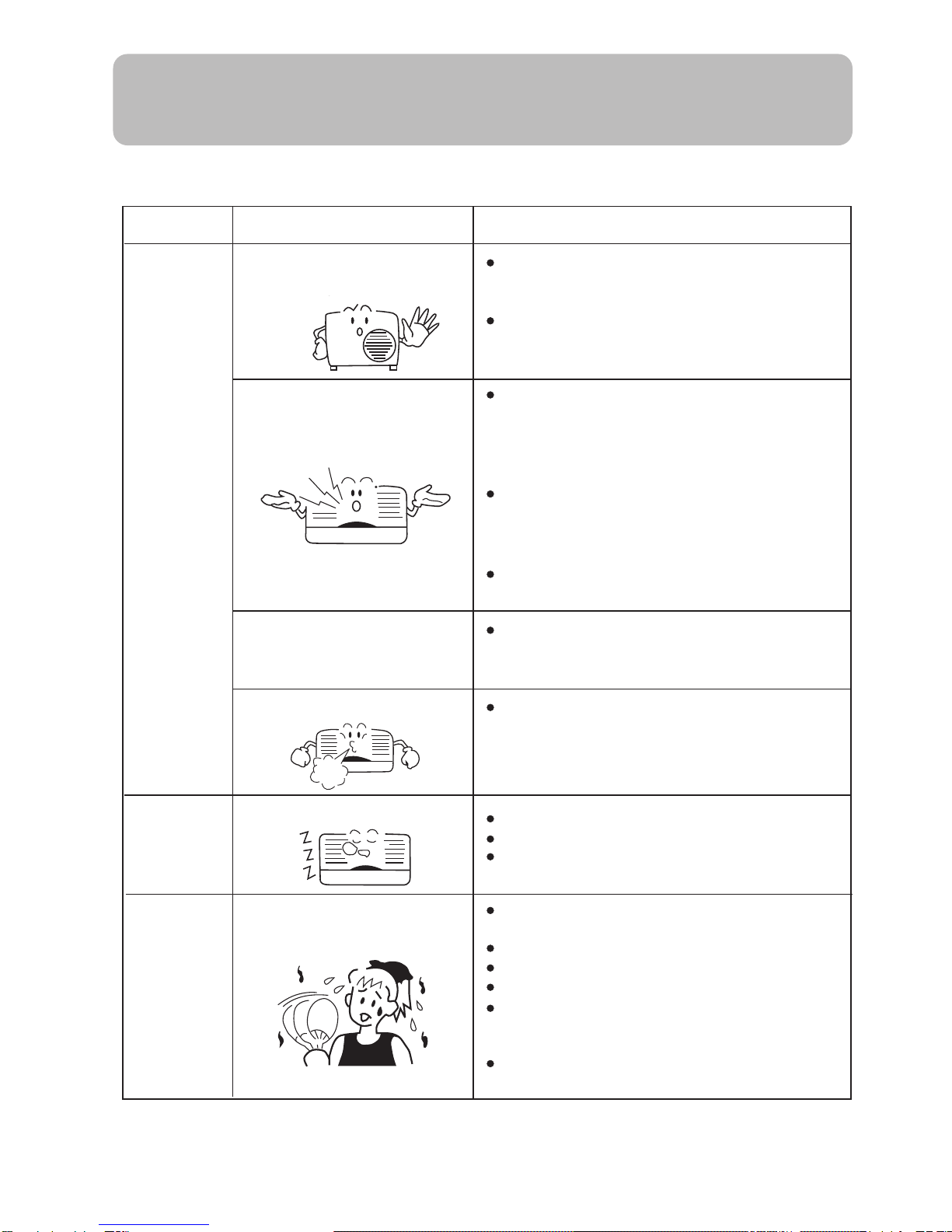

Trouble shooting
Before asking for service, check the following first.
Normal
Performance
inspection
Noise is heard
Phenomenon Cause or check points
The system does not restart
immediately.
Smells are generated.
Mist or steam are blown out.
Multiple
check
Does not work at all.
Poor cooling
Application temp. range of air conditioner -7oC~43oC.
When unit is stopped, it won't restart
immediately until 3 minutes have elapsed
to protect the system.
When the electric plug is pulled out and
reinserted,the protection circuitwill work
for 3 minutes to protect the air conditioner.
During unit operation or at stop, a swishing
or gurgling noise may be heard. At first 2-3
minutes after unit start, this noise is more
noticeable. (This noise is generated by
refrigerant flowing in the system.)
During unit operation, a cracking noise may
be heard. This noise is generated by the
casing expanding or shrinking because of
temperature changes
Should there be a big noise from air flow in
unitoperation,airfilter may be too dirty.
This is because the system circulates smells
from the interior air such as the smell of
furniture,cigarettes.
During COOL or DRY operation, indoor unit
may blow out mist. This is due to the sudden
coolingof indoor air.
Is power plug inserted?
Is there a power failure?
Is fuse blown out?
Istheairfilterdirty?Normallyitshouldbe
cleaned every 15 days.
Arethere any obstacles before inlet and outlet?
Istemperatureset correctly?
Are there some doors or windows left open?
Isthereanydirectsunlightthroughthe
curtain)
window during the cooling operation?(Use
Are there too much heat sources or too many
people in the room during cooling operation?
