Sintrones Sbox-2320 User manual

User’s manual

EMBEDDED COMPUTING

SBOX-2320 Manual

SINTRONES® Technology Corp.

User Manual

No part of this publication may be reproduced, transcribed, stored in a retrieval system,

translated into any language, or transmitted in any form or by any means such as

electronic, mechanical, magnetic, optical, chemical, photocopy, manual, or otherwise,

without prior written permission from SINTRONES® Technology Corp.

Other brands and product names used herein are for identification purposes only and

may be trademarks of their respective owners.

Disclaimer

SINTRONES® Technology Corp. shall not be liable for any incidental or consequential

damages resulting from the performance or use of this product.

SINTRONES® Technology Corp. makes no representation or warranty regarding the

content of this manual. Information in this manual had been carefully checked for

accuracy; however, no guarantee is given as to the correctness of the contents. For

continuing product improvement, SINTRONES® Technology Corp. reserves the right to

revise the manual or make changes to the specifications of this product at any time

without notice and obligation to any person or entity regarding such change. The

information contained in this manual is provided for general use by customers.

This device complies to Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

1. This device may not cause harmful interference.

2. This device must withstand any background interference including those that may

cause undesired operation.

SBOX-2320 Manual

Safety Information

Read the following precautions before setting up a SINTRONES Product.

Electrical safety

To prevent electrical shock hazard, disconnect the power cable from the electrical

outlet before relocating the system.

When adding or removing devices to or from the system, ensure that the power

cables for the devices are unplugged before the signal cables are connected. If

possible, disconnect all power cables from the existing system before you add a

device.

Before connecting or removing signal cables from the motherboard, ensure that

all power cables are unplugged.

Seek professional assistance before using an adapter or extension cord. These

devices could interrupt the grounding circuit.

Make sure that your power supply is set to the correct voltage in your area. If you

are not sure about the voltage of the electrical outlet you are using, contact your

local power company.

If the power supply is broken, do not try to fix it by yourself. Contact a qualified

service technician or your retailer.

Operation safety

Before installing the motherboard and adding devices on it, carefully read all the

manuals that came with the package.

Before using the product, make sure all cables are correctly connected and the

power cables are not damaged. If you detect any damage, contact your dealer

immediately.

To avoid short circuits, keep paper clips, screws, and staples away from

connectors, slots, sockets and circuitry.

Avoid dust, humidity, and temperature extremes. Do not place the product in any

area where it may become wet.

Place the product on a stable surface.

If you encounter technical problems with the product, contact a qualified service

technician or your retailer.

SBOX-2320 Manual

CAUTION

Incorrectly replacing the battery may damage this computer. Replace only with the

same or its equivalent as recommended by SINTRONES® Technology Corp. Dispose

used battery according to the manufacturer's instructions.

Technical Support

Please do not hesitate to call or e-mail our customer service when you still cannot fix

the problems.

Tel : +886-2-82280101

Fax : +886-2-82280100

E-mail : sales@sintrones.com

Website : www.sintrones.com

SBOX-2320 Manual

Content

1. Introduction ................................................................................................................................6

Specification..............................................................................................................................6

2. Illustration (MB/System) ..............................................................................................................8

Mainboard.................................................................................................................................8

System......................................................................................................................................9

3. Architecture..............................................................................................................................10

4. Principal component Specification...............................................................................................10

CPU .......................................................................................................................................10

5. boot up the system ..................................................................................................................... 11

6. Internal Connector .....................................................................................................................12

VGA Connector .......................................................................................................................12

USB Connector........................................................................................................................12

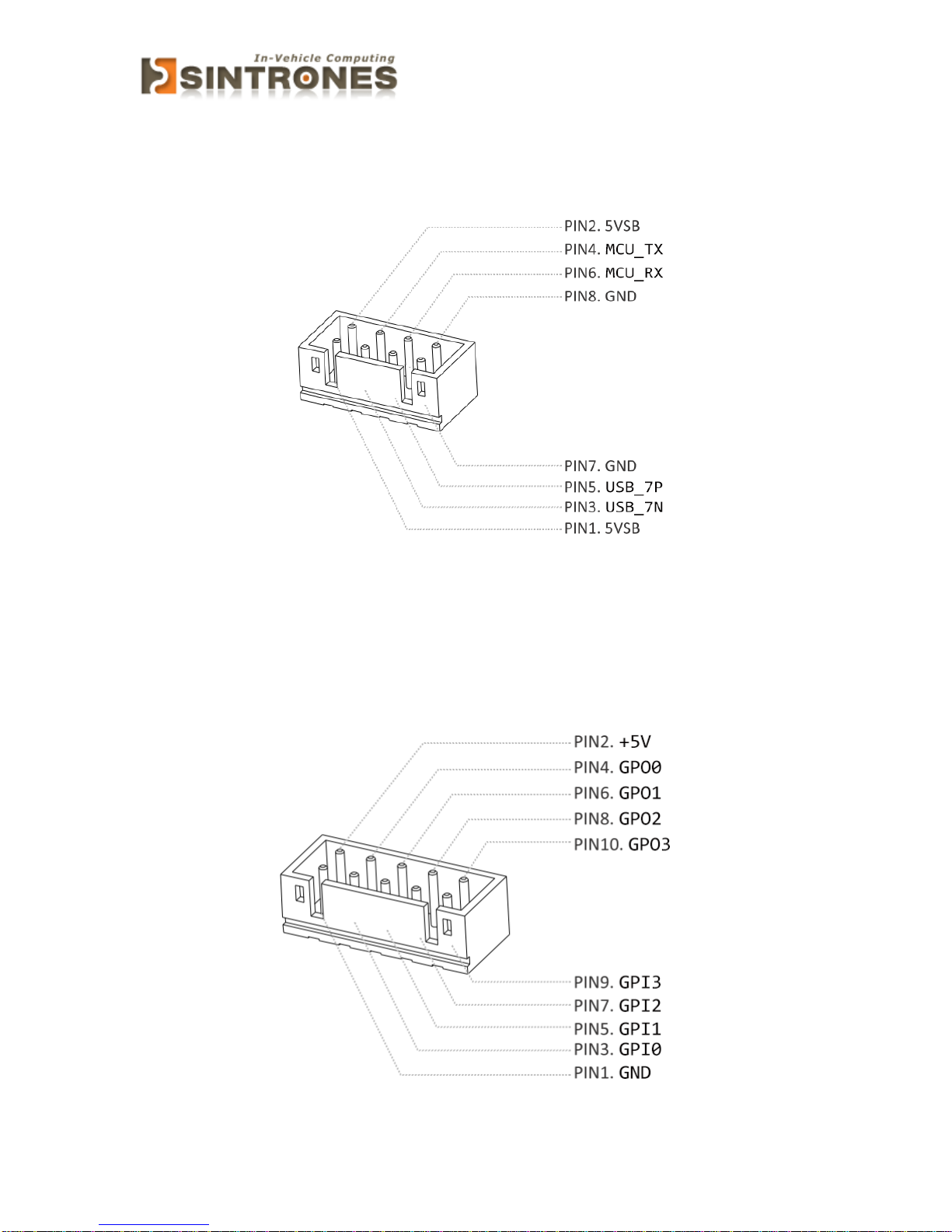

GPIO Connector ......................................................................................................................13

UART and GPIO Connector ......................................................................................................14

LED Connector........................................................................................................................14

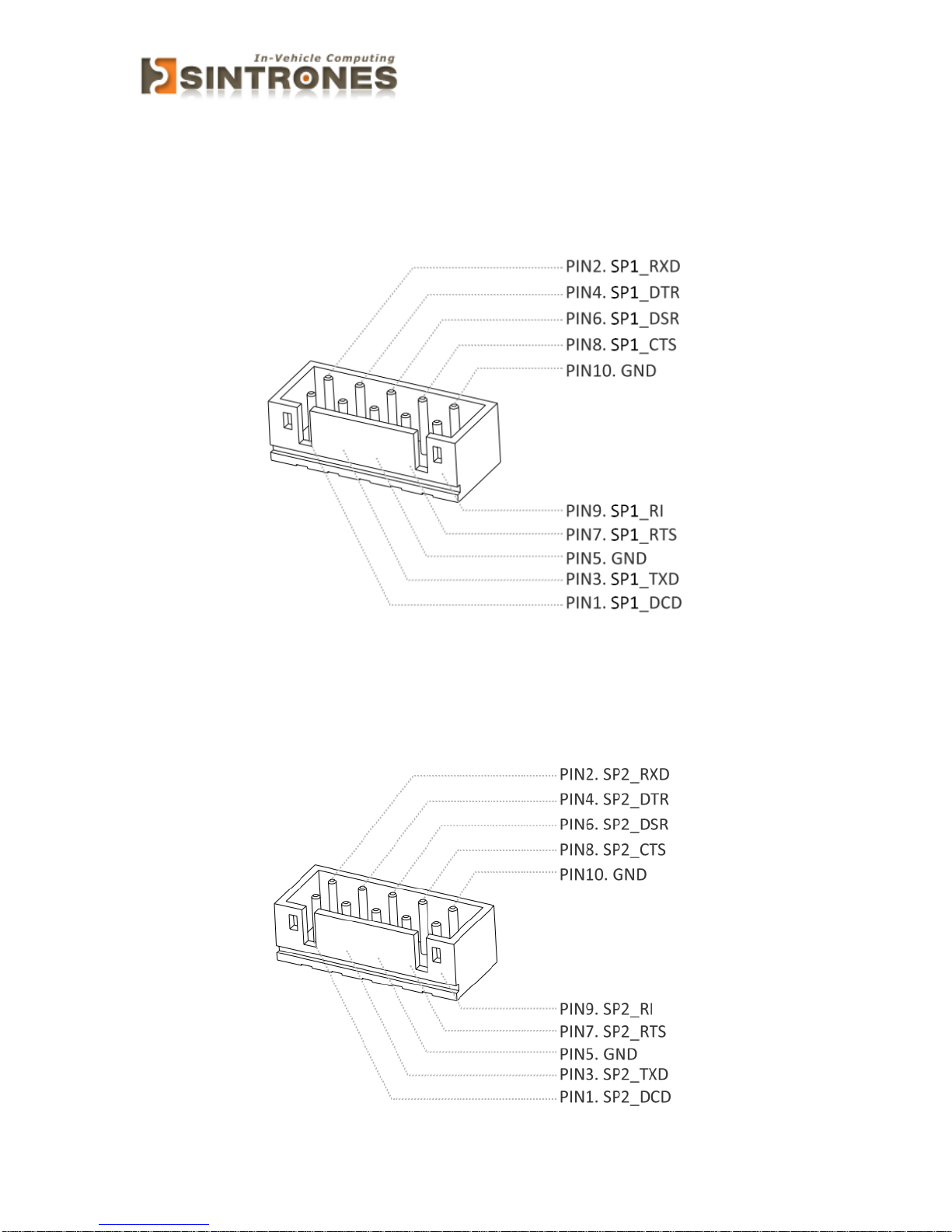

COM Port Connector................................................................................................................15

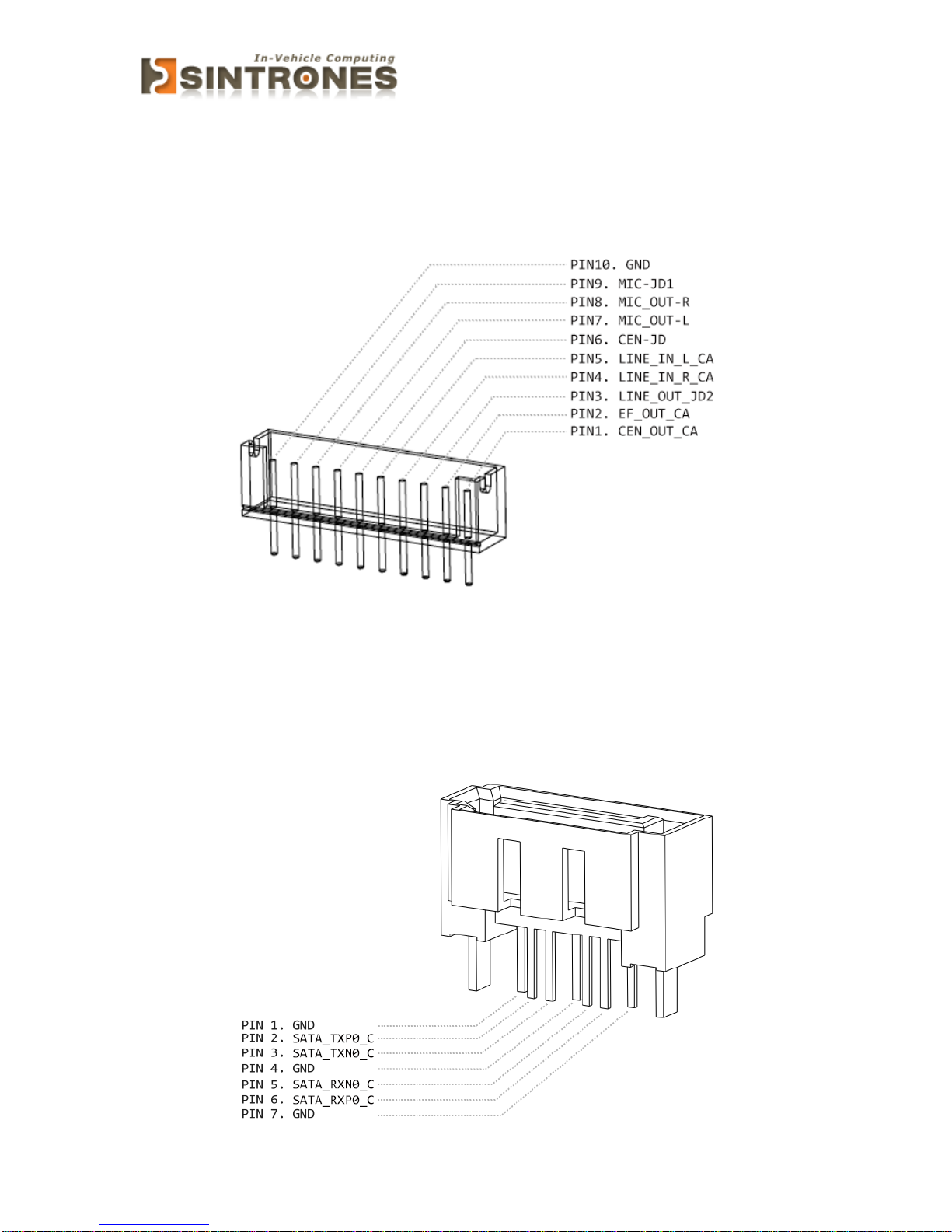

AUDIO Connector ...................................................................................................................17

SATA Connector ......................................................................................................................17

Mini PCI-E connector...............................................................................................................18

Power Input Connector .............................................................................................................19

SATA Power Connector ............................................................................................................20

7. External connector specification ..................................................................................................21

USB Connector........................................................................................................................21

LAN connector ........................................................................................................................21

DVI-I connector.......................................................................................................................22

HDMI connector ......................................................................................................................23

SBOX-2320 Manual

AUDIO connector ....................................................................................................................23

8. System Introduction...................................................................................................................24

I/O Panel.................................................................................................................................24

Opening Chassis ......................................................................................................................25

Installing Memory....................................................................................................................27

Installing MINI PCIe Expansion Card (MINICARD1)..................................................................28

Installing MINI PCIe Expansion Card (MINICARD2)..................................................................29

Installing Internal Antenna Cable ...............................................................................................30

Installing SIM Card ..................................................................................................................31

9. System Resource .......................................................................................................................32

10. BIOS........................................................................................................................................36

Enter The BIOS .......................................................................................................................36

Main.......................................................................................................................................38

Advanced ...............................................................................................................................39

Chipset...................................................................................................................................46

Boot .......................................................................................................................................50

Security..................................................................................................................................52

Exit ........................................................................................................................................53

11. Packing List..............................................................................................................................54

System....................................................................................................................................54

Accessory ...............................................................................................................................54

SBOX-2320 Manual

INTRODUCTION

Specification

System

CPU

Intel N3710 Quad Core CPU up to 2.56HGz

Intel N3160 Quad Core CPU up to 2.24HGz

Intel N3060 Dual Core CPU up to 2.48HGz

Memory

1 x DDR3L-1600 SO-DIMM up to 8GB

Graphics

ATA

Intel HD Graphics

2 x Serial ATA ports with 6GB/s HDD Transfer Rate

LAN Chipset

2 x Intel i210-AT Gigabit Ethernet

Watchdog

1 ~ 255 Level Reset

I/O

Serial Port

2 x RS-232 Ports (2 x RS-232/422/485), Optional Max. 4 x RS-232

USB Port

2 x USB 2.0 and 2 x USB 3.0 Ports

LAN

2 x RJ45 ports for GbE

Video Port

HDMI/ DVI/ VGA (Though DVI-I), Max. 3 Display Outputs

DIO Port

4 In and 4 Out GPIO Ports (5V Level)

Audio

Line-out

Expansion Bus

3 x Mini-card Slots (1 with SIM for LTE/3G Only)

Storage

Type

1 x 2.5” Drive Bay for SATA Type Hard Disk Drive / SSD

1 x SATA DOM

Software

Operating system

Windows 7, WES 7, Windows 10, Ubuntu 14.04 above

SBOX-2320 Manual

Qualification

Certifications

CE, FCC Class A

Environment

Operating Temp.

-30 ~ 60ºC (SSD), ambient w/ air

Storage Temp.

-40 ~ 85ºC

Relative Humidity

10 ~ 95% @ 40ºC (non-condensing)

Vibration (random)

DC 9-36V Input with Reverse Polarity OCP and OVP Protection

Mechanical

Construction

Aluminum Alloy

Mounting

Wall-mount, VESA-mount, Din Rail Mounting Kit

Weight

1200g (Barebone)

Dimensions

182 x 167.6 x 54 mm

SBOX-2320 Manual

ILLUSTRATION (MB/SYSTEM)

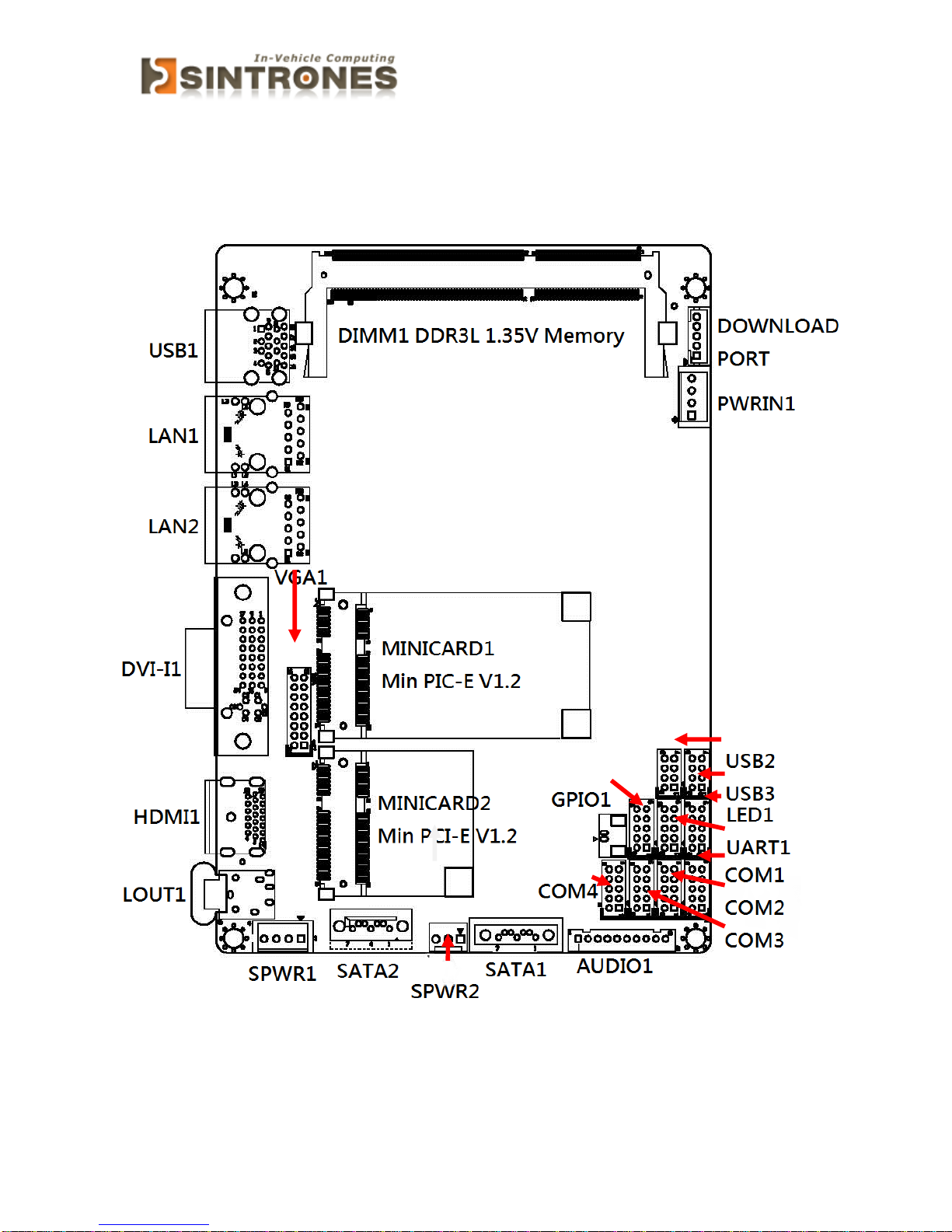

Mainboard

SBOX-2320 Manual

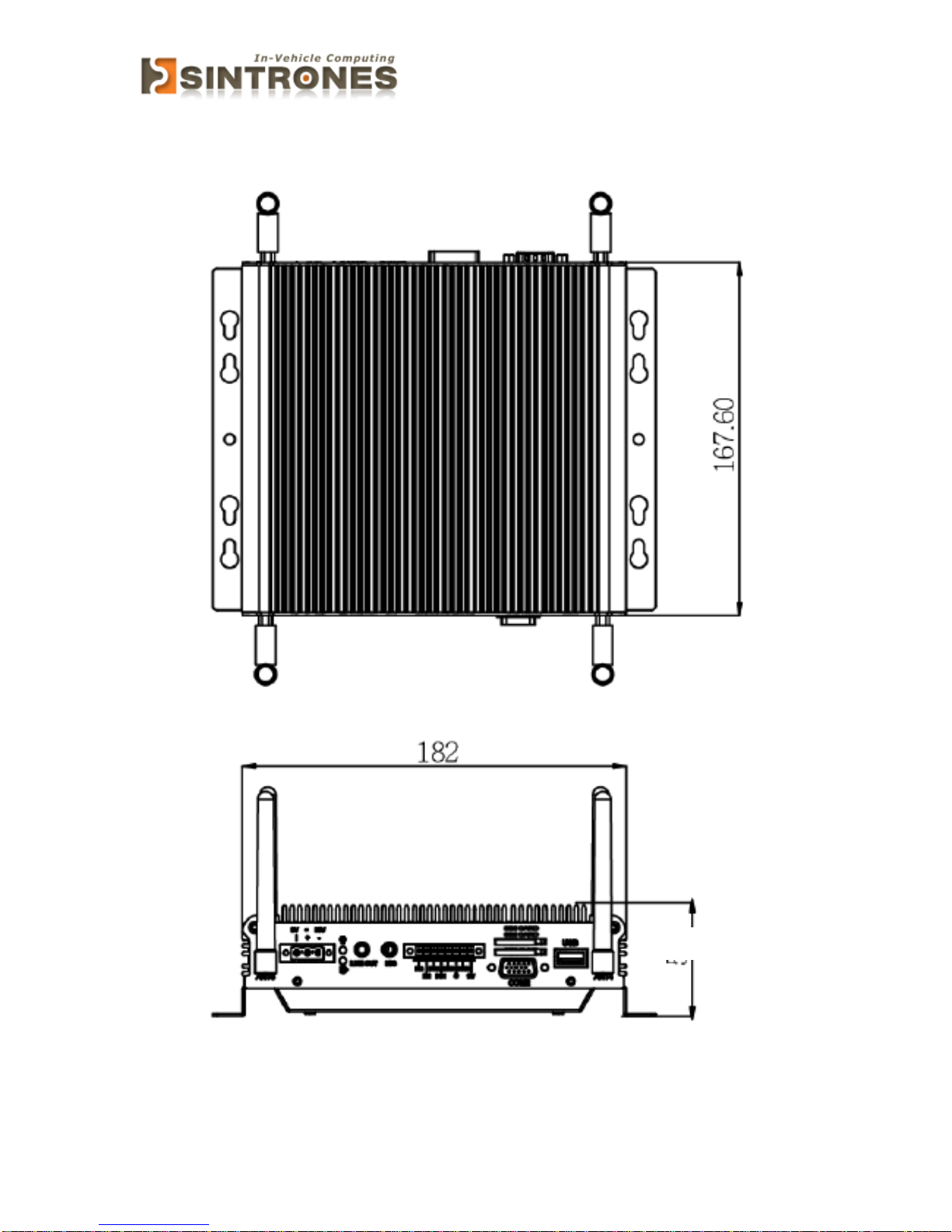

System

SBOX-2320 Manual

ARCHITECTURE

PRINCIPAL COMPONENT SPECIFICATION

CPU

Chip

Description

Intel

1. Power consumption:

Symbol

Processor

Number

Core

Frequency/

GHz

Thermal

Design Power

Unit

CPU Core

Cache

SOC

N3710

Up to

2.56GHz

4 Core

N3160

Up to

2.24GHz

4 Core

N3060

Up to

2.48GHz

2 Core

SBOX-2320 Manual

BOOT UP THE SYSTEM

1. Connect the Two Pin Terminal Block to BOX PC (Positive and Negative)

2. Press the POWER button to boot up.

Power adapter and DC Jack cable are the options

SBOX-2320 Manual

INTERNAL CONNECTOR

VGA Connector

Connector location: VGA1

Connector size: 2 X 8 = 16 Pin
