Sioux Chief StreamLine User manual

www.siouxchief.com
Supply Drainage Support
INSTALLATION GUIDE
StreamLine Linear Drain
TM
With Full Mortar Bed Adapter Kit

1 www.siouxchief.com
Bracket Screw
#8 1/2" Phillips Pan Head
Screws
Strainer Height
Adjustment Screw
#10 2-1/2" Phillips Flat
Head Screws. Note:
Replaces Strainer Height
Adjustment Screws from
FreeStyle Linear Drain
Brackets Foam Block
Shower Pan Liner
Square footage amount
ordered separately based
on shower size. Must comply
with state and local codes
Note: Replaces NobleSeal
Flashing from FreeStyle
Linear Drain
Strainer to Base Screw
#6 2-1/4" Phillips Pan
Head Screws. Note:
Replaces Strainer to Base
Screws from FreeStyle
Linear Drain
Outside Corner
Select outside corner
material to match Shower
Pan Liner material, PVC or
CPE. Outside Corners
ordered separately.
Mortar Guard
Bracket Screw
#8 1/2" Phillips Pan Head
Screws
Strainer Height
Adjustment Screw
#10 2-1/2" Phillips Flat
Head Screws. Note:
Replaces Strainer Height
Adjustment Screws from
FreeStyle Linear Drain
Brackets Foam Block
Shower Pan Liner
Square footage amount
ordered separately based
on shower size. Must comply
with state and local codes
Note: Replaces NobleSeal
Flashing from FreeStyle
Linear Drain
Strainer to Base Screw
#6 2-1/4" Phillips Pan
Head Screws. Note:
Replaces Strainer to Base
Screws from FreeStyle
Linear Drain
Outside Corner
Select outside corner
material to match Shower
Pan Liner material, PVC or
CPE. Outside Corners
ordered separately.
Mortar Guard
Brackets
Bracket Screw
#8 1/2" Phillips Pan Head
Screws
Strainer Height
Adjustment Screw
#10 2-1/2" Phillips Flat
Head Screws. Note:
Replaces Strainer Height
Adjustment Screws from
FreeStyle Linear Drain
Brackets Foam Block
Shower Pan Liner
Square footage amount
ordered separately based
on shower size. Must comply
with state and local codes
Note: Replaces NobleSeal
Flashing from FreeStyle
Linear Drain
Strainer to Base Screw
#6 2-1/4" Phillips Pan
Head Screws. Note:
Replaces Strainer to Base
Screws from FreeStyle
Linear Drain
Outside Corner
Select outside corner
material to match Shower
Pan Liner material, PVC or
CPE. Outside Corners
ordered separately.
Mortar Guard
Foam Block
Mortar Guard
Bracket Screw
#8 1/2" Phillips Pan Head
Screws
Strainer Height
Adjustment Screw
#10 2-1/2" Phillips Flat
Head Screws. Note:
Replaces Strainer Height
Adjustment Screws from
FreeStyle Linear Drain
Brackets Foam Block
Shower Pan Liner
Square footage amount
ordered separately based
on shower size. Must comply
with state and local codes
Note: Replaces NobleSeal
Flashing from FreeStyle
Linear Drain
Strainer to Base Screw
#6 2-1/4" Phillips Pan
Head Screws. Note:
Replaces Strainer to Base
Screws from FreeStyle
Linear Drain
Outside Corner
Select outside corner
material to match Shower
Pan Liner material, PVC or
CPE. Outside Corners
ordered separately.
Mortar Guard
Bracket Screw
#8 1/2" Phillips Pan Head
Screws
Strainer Height
Adjustment Screw
#10 2-1/2" Phillips Flat
Head Screws. Note:
Replaces Strainer Height
Adjustment Screws from
FreeStyle Linear Drain
Brackets Foam Block
Shower Pan Liner
Square footage amount
ordered separately based
on shower size. Must comply
with state and local codes
Note: Replaces NobleSeal
Flashing from FreeStyle
Linear Drain
Strainer to Base Screw
#6 2-1/4" Phillips Pan
Head Screws. Note:
Replaces Strainer to Base
Screws from FreeStyle
Linear Drain
Outside Corner
Select outside corner
material to match Shower
Pan Liner material, PVC or
CPE. Outside Corners
ordered separately.
Mortar Guard
Bracket Screw
#8 1/2" Phillips Pan Head
Screws
Strainer Height
Adjustment Screw
#10 2-1/2" Phillips Flat
Head Screws. Note:
Replaces Strainer Height
Adjustment Screws from
FreeStyle Linear Drain
Brackets Foam Block
Shower Pan Liner
Square footage amount
ordered separately based
on shower size. Must comply
with state and local codes
Note: Replaces NobleSeal
Flashing from FreeStyle
Linear Drain
Strainer to Base Screw
#6 2-1/4" Phillips Pan
Head Screws. Note:
Replaces Strainer to Base
Screws from FreeStyle
Linear Drain
Outside Corner
Select outside corner
material to match Shower
Pan Liner material, PVC or
CPE. Outside Corners
ordered separately.
Mortar Guard
Bracket Screw
#8 1/2" Phillips Pan
Head Screws
Strainer Height
Adjustment Screw
#10 2-1/2" Phillips
Flat Head Screws.
Note: Replaces
Strainer Height
Adjustment Screws
from StreamLine
Linear Drain
Strainer to Base Screw
#6 2-1/4" Phillips Pan
Head Screws.
Note: Replaces Strainer to
Base Screws from StreamLine
Linear Drain
Shower Pan Liner1
Square footage amount ordered
separately based on shower size.
Must comply with state and local
codes.
Outside Corner
Select outside corner material to
match Shower Pan Liner material,
PVC or CPE.
Bracket Screw
#8 1/2" Phillips Pan Head
Screws
Strainer Height
Adjustment Screw
#10 2-1/2" Phillips Flat
Head Screws. Note:
Replaces Strainer Height
Adjustment Screws from
FreeStyle Linear Drain
Brackets Foam Block
Shower Pan Liner
Square footage amount
ordered separately based
on shower size. Must comply
with state and local codes
Note: Replaces NobleSeal
Flashing from FreeStyle
Linear Drain
Strainer to Base Screw
#6 2-1/4" Phillips Pan
Head Screws. Note:
Replaces Strainer to Base
Screws from FreeStyle
Linear Drain
Outside Corner
Select outside corner
material to match Shower
Pan Liner material, PVC or
CPE. Outside Corners
ordered separately.
Mortar Guard
Bracket Screw
#8 1/2" Phillips Pan Head
Screws
Strainer Height
Adjustment Screw
#10 2-1/2" Phillips Flat
Head Screws. Note:
Replaces Strainer Height
Adjustment Screws from
FreeStyle Linear Drain
Brackets Foam Block
Shower Pan Liner
Square footage amount
ordered separately based
on shower size. Must comply
with state and local codes
Note: Replaces NobleSeal
Flashing from FreeStyle
Linear Drain
Strainer to Base Screw
#6 2-1/4" Phillips Pan
Head Screws. Note:
Replaces Strainer to Base
Screws from FreeStyle
Linear Drain
Outside Corner
Select outside corner
material to match Shower
Pan Liner material, PVC or
CPE. Outside Corners
ordered separately.
Mortar Guard
1 Shower pan liner (not included) will be used to waterproof shower.
The NobleSeal ashing included with the drain will not be needed.
*StreamLine Linear Drain is purchased separately from the Full Mortar Bed Adapter Kit.
Shower pan liner and preformed corners ordered/purchased separately
NobleSealant 150
Strainer Height
Adjustment Tool
Pre-Strainer Screw
#8 1/2" Phillips Pan Head
Screws
Clamping Collar Screw
#6 5/8" Phillips Flat
Head Screws
Strainer to Base Screw
#6 1" Phillips Pan Head
Screws. Note: Will not be
used with Full Mortar
Bed Kit.
Strainer Height
Adjustment Screw
#10 1-1/4" Phillips Flat
Head Screws. Note: Will
not be used with Full
Mortar Bed Kit.
Base to Sub-Floor Screw
#8 2-1/2" Phillips Course
Deck Screws
Base to Sub-Floor,
Concrete Anchor
1" Long 1/4" Hole
Strainer Height
Adjustment Tool
NobleSeal¨
Flashing
Tube NobleSealant 150
Pre-Strainer Screw
#8 1/2" Phillips Pan Head
Screws
Clamping Collar Screw
#6 5/8" Phillips Flat
Head Screws
Strainer to Base Screw
#6 1" Phillips Pan Head
Screws. Note: Will not be
used with Full Mortar
Bed Kit.
Strainer Height
Adjustment Screw
#10 1-1/4" Phillips Flat
Head Screws. Note: Will
not be used with Full
Mortar Bed Kit.
Base to Sub-Floor Screw
#8 2-1/2" Phillips Course
Deck Screws
Base to Sub-Floor,
Concrete Anchor
1" Long 1/4" Hole
Strainer Height
Adjustment Tool
NobleSeal¨
Flashing
Tube NobleSealant 150
NobleSeal® Flashing1
Pre-Strainer Screw
#8 1/2" Phillips Pan Head
Screws
Clamping Collar Screw
#6 5/8" Phillips Flat
Head Screws
Strainer to Base Screw
#6 1" Phillips Pan Head
Screws. Note: Will not be
used with Full Mortar
Bed Kit.
Strainer Height
Adjustment Screw
#10 1-1/4" Phillips Flat
Head Screws. Note: Will
not be used with Full
Mortar Bed Kit.
Base to Sub-Floor Screw
#8 2-1/2" Phillips Course
Deck Screws
Base to Sub-Floor,
Concrete Anchor
1" Long 1/4" Hole
Strainer Height
Adjustment Tool
NobleSeal¨
Flashing
Tube NobleSealant 150
Pre-Strainer Screw
#8 1/2" Phillips Pan Head
Screws
Clamping Collar Screw
#6 5/8" Phillips Flat
Head Screws
Strainer to Base Screw
#6 1" Phillips Pan Head
Screws. Note: Will not be
used with Full Mortar
Bed Kit.
Strainer Height
Adjustment Screw
#10 1-1/4" Phillips Flat
Head Screws. Note: Will
not be used with Full
Mortar Bed Kit.
Base to Sub-Floor Screw
#8 2-1/2" Phillips Course
Deck Screws
Base to Sub-Floor,
Concrete Anchor
1" Long 1/4" Hole
Strainer Height
Adjustment Tool
NobleSeal¨
Flashing
Tube NobleSealant 150
Pre-Strainer Screw
#8 1/2" Phillips Pan
Head Screws
Strainer to Base
Screw
#6 1" Phillips Pan
Head Screws.
Note: Will not be used
with Full Mortar Bed Kit.
Pre-Strainer Screw
#8 1/2" Phillips Pan Head
Screws
Clamping Collar Screw
#6 5/8" Phillips Flat
Head Screws
Strainer to Base Screw
#6 1" Phillips Pan Head
Screws. Note: Will not be
used with Full Mortar
Bed Kit.
Strainer Height
Adjustment Screw
#10 1-1/4" Phillips Flat
Head Screws. Note: Will
not be used with Full
Mortar Bed Kit.
Base to Sub-Floor Screw
#8 2-1/2" Phillips Course
Deck Screws
Base to Sub-Floor,
Concrete Anchor
1" Long 1/4" Hole
Strainer Height
Adjustment Tool
NobleSeal¨
Flashing
Tube NobleSealant 150
Base to Sub-Floor
Screw
#8 2-1/2" Phillips
Course Deck Screws.
Pre-Strainer Screw
#8 1/2" Phillips Pan Head
Screws
Clamping Collar Screw
#6 5/8" Phillips Flat
Head Screws
Strainer to Base Screw
#6 1" Phillips Pan Head
Screws. Note: Will not be
used with Full Mortar
Bed Kit.
Strainer Height
Adjustment Screw
#10 1-1/4" Phillips Flat
Head Screws. Note: Will
not be used with Full
Mortar Bed Kit.
Base to Sub-Floor Screw
#8 2-1/2" Phillips Course
Deck Screws
Base to Sub-Floor,
Concrete Anchor
1" Long 1/4" Hole
Strainer Height
Adjustment Tool
NobleSeal¨
Flashing
Tube NobleSealant 150
Clamping Collar Screw
#6 5/8" Phillips Flat
Head Screws
Pre-Strainer Screw
#8 1/2" Phillips Pan Head
Screws
Clamping Collar Screw
#6 5/8" Phillips Flat
Head Screws
Strainer to Base Screw
#6 1" Phillips Pan Head
Screws. Note: Will not be
used with Full Mortar
Bed Kit.
Strainer Height
Adjustment Screw
#10 1-1/4" Phillips Flat
Head Screws. Note: Will
not be used with Full
Mortar Bed Kit.
Base to Sub-Floor Screw
#8 2-1/2" Phillips Course
Deck Screws
Base to Sub-Floor,
Concrete Anchor
1" Long 1/4" Hole
Strainer Height
Adjustment Tool
NobleSeal¨
Flashing
Tube NobleSealant 150
Strainer Height
Adjustment Screw
#10 1-1/4" Phillips Flat
Head Screws.
Note: Will not be used with
Full Mortar Bed Kit.
Pre-Strainer Screw
#8 1/2" Phillips Pan Head
Screws
Clamping Collar Screw
#6 5/8" Phillips Flat
Head Screws
Strainer to Base Screw
#6 1" Phillips Pan Head
Screws. Note: Will not be
used with Full Mortar
Bed Kit.
Strainer Height
Adjustment Screw
#10 1-1/4" Phillips Flat
Head Screws. Note: Will
not be used with Full
Mortar Bed Kit.
Base to Sub-Floor Screw
#8 2-1/2" Phillips Course
Deck Screws
Base to Sub-Floor,
Concrete Anchor
1" Long 1/4" Hole
Strainer Height
Adjustment Tool
NobleSeal¨
Flashing
Tube NobleSealant 150
Base to Sub-Floor,
Concrete Anchor
1" Long, 1/4" Hole
Pre-Strainer Screw
#8 1/2" Phillips Pan Head
Screws
Clamping Collar Screw
#6 5/8" Phillips Flat
Head Screws
Strainer to Base Screw
#6 1" Phillips Pan Head
Screws. Note: Will not be
used with Full Mortar
Bed Kit.
Strainer Height
Adjustment Screw
#10 1-1/4" Phillips Flat
Head Screws. Note: Will
not be used with Full
Mortar Bed Kit.
Base to Sub-Floor Screw
#8 2-1/2" Phillips Course
Deck Screws
Base to Sub-Floor,
Concrete Anchor
1" Long 1/4" Hole
Strainer Height
Adjustment Tool
NobleSeal¨
Flashing
Tube NobleSealant 150
Fill
823-FK24, 823-FK32, 823-FK40, 823-FK60
Full Mortar Bed Adapter Kit
Hardware and Materials included:
823 SERIES
StreamLine Linear Drain includes*:
When using Full Mortar Bed Adapter Kit, discard
installation instructions included with StreamLine
drain and refer to these instructions. Carefully review all
installation options and instructions before proceeding.
StreamLine Linear Drain
TM
With Full Mortar Bed Adapter Kit
Drain Base
Pre-Strainers
Strainer
Clamping Collar

Drain Sizes
Conrm Drain Size, Waste Pipe
Type and Waste Pipe Location
Drain hole is off-set to accomodate oor joist
location. Size of shower determines size of drain
to be used, which determines location of waste
pipe through sub-oor. Match 2" I.D Schedule 40
pipetype (PVC or ABS) to drain base type.
Pre-Planning
Be certain to gather all required tools and materials
required prior to installation.
Sub Floor Caution: Sub oor must meet local code
requirements and Tile Council of North America (TCNA)
guidelines. Clean sub oor to be sure it is smooth and level.
Pre-Sloped and Full Mortar Bed Requirements
Follow manufacturers instructions. Use products
recommended for the type of sloped bed being installed.
StreamLine Linear Drain assembly is intended to install tight
to toe plate and studs within shower PRIOR to installation of
mortar bed, backer board, waterproong and tile.
Typical Drain Locations
Drain at
Back Wall
Flush to back
wall. Layout 1
Slope
Drain at Full
Curb Entry
Flush to curb.
Layout 2
Drain at
Curb-less
Entry
Flush to both
side walls.
Layout 4
Drain at
Partial Width
Curb
Flush to curb.
Layout 3
Drain On
Center
Flush to both
side walls.
Layout 5
If StreamLine Linear Drain assembly is installed inside toe
plates within shower, add a properly sloped mortar bed to
ll the space between the toe plates and the drain base.
Waste Pipe
Location
1 5 - 3/4"
24"
1-1/4"
2-1/4"
1-3/8"
1-7/16 "
1-5/8"
19 -1/2"
32"
2 3 - 3/4"
40"
3 3 - 3/4"
60"
www.siouxchief.com 2
Waste Pipe
Location Fill
Fill
Installation Guide

1. Wall Preparation
Blocking
Blocking between studs may be needed for Shower Pan
Liner attachment prior to drain installation.
2. Sub-Floor Preparation
Caution: Conrm that sub-oor meets all local code requirements and
the Tile Council of North America’s (TCNA) guidelines.
Check for Level. Clean
Sub-oor must be smooth and level. Clean sub-oor.
3. Waste Pipe
Option A: Waste Pipe Not Installed. Place,
Mark and Cut
Place drain base in desired location on sub oor. Mark
waste pipe location on sub-oor. Cut opening in sub-oor
to access plumbing below.
Install Waste Pipe
Follow local plumbing codes to properly install and
secure 2" I.D. waste pipe 3/4" above sub-oor.
Note: Waste pipe may be installed after fastening drain base if
accessible from be low.
Place
Mark Cut Hole
BlockingSub-Floor
Level
2" I.D. Pipe
3/4"
3 www.siouxchief.com
Installation Guide

4. Preparation for Pre-Sloped Bed
Mark Bed Slope
1/4" per foot slope to drain is required.
Option B: Waste Pipe Pre-Installed
Dry t drain base over location of existing waste pipe. If
location does not allow drain base to t ush against at
least 2 shower walls, move location of plumbing to allow
for proper installation. May also require moving existing
studs and toe plate.
Dry Fit
Alternate Drain Mounting Methods
Recessed mount in concrete substrate
Recessed mount in wood sub-oor
Note: Any modication of substrate must comply with local building codes.
Must Fit Flush to Sub-Floor
Waste Pipe
Front Edge of Drain Base
1/4" Per Foot Slope
MarkStuds
www.siouxchief.com 4
Installation Guide

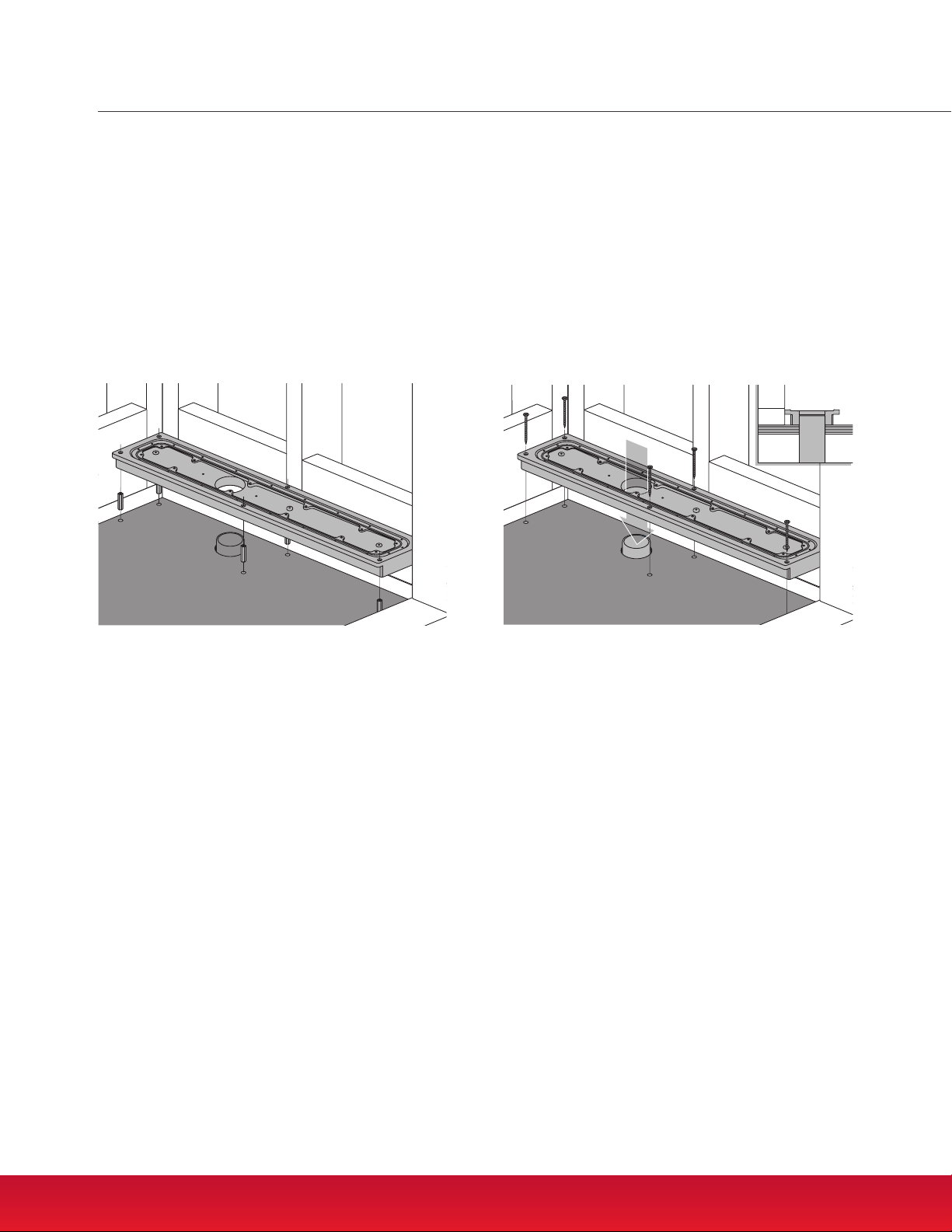

5. Fasten Drain Base to Sub-Floor
For Concrete Sub-Floor A & B
For Wood Sub-Floor B only
A. Mark for Anchors
Dry t drain base over waste pipe. Mark all holes in
outside ange of drain base on concrete oor. Remove
drain base. Drill 1/4" holes, 1-1/2" deep where marked.
Drive plastic anchors ush in all holes.
B. Install Drain Base to Waste Pipe and Sub-Floor
Caution: Conrm proper plastic pipe primer and cement for drain base
type (PVC or ABS). Check drain base label to conrm.
Apply appropriate plastic pipe primer and cement to
drain and waste pipe following local plumbing codes
and manufacturers instructions. Fit and fully seat drain
base onto waste pipe. Fasten drain base to sub-oor
by screwing 2-1/2" deck screws through all holes in
outside ange of drain base into plastic anchors or
directly into wood sub-oor. DO NOT OVER-TIGHTEN.
5 www.siouxchief.com
Installation Guide

6. Sloped Mortar Bed Installation
Protect Drain Base.
Apply tape over entire top surface of drain base.
Install Sloped Bed.
Follow industry standards to complete sloped mortar
bed installation. Be certain mortar completely lls void
below drain base ange. Allow to dry before proceeding.
Mortar Bed
Tape
www.siouxchief.com 6
7. Prepare Shower Pan Liner
Option 1:
For Drain at Back Wall
Shower Pan Liner must turn up the walls a minimum
of 3" above nished shower curb and 6" above oor in
showers without curbs.
Measure width of shower oor across drain base. Lay
Shower Pan Liner at. Measure and mark Shower Pan
Liner. Fold and crease for upturns and create corners.
Note: Do not secure Shower Pan Liner at this time.
Tuck or FoldFold
See "Making Corners" on pg 8
for more information
Installation Guide

Option 2:
For Drain at Full Curb Entry
Shower Pan Liner must turn up the walls a minimum
of 3" above nished shower curb and 6" above oor in
showers without curbs.
Prior to installing Shower Pan Liner, install pre-formed
outside corners (available separately) following
manufacturer’s instructions. Two corners per side.
Measure width of shower oor across drain base.
Measure up and over curb. Lay Shower Pan Liner at.
Measure and mark Shower Pan Liner.
Cut, fold and crease to proper size and t.
Note: Do not secure Shower Pan Liner at this time.
Note: Preformed curbs may also be used. See manufacturer’s instructions.
Inside Shower
Outside Corners
Under Liner
6" min.
Outside Shower
Outside Corners
Under Liner
3" min.
7 www.siouxchief.com
Installation Guide

Option 3:
For Drain at Partial Width Curb
Shower Pan Liner must turn up the walls a minimum
of 3" above nished shower curb and 6" above oor in
showers without curbs.
Prior to installing Shower Pan Liner, install pre-formed
outside corners (available separately) following
manufacturer’s instructions. 2 per side.
Measure width of shower oor across drain base.
Measure up and over curb. Lay Shower Pan Liner at.
Measure and mark Shower Pan Liner.
Cut, fold and crease to proper size and t.
Note: Do not secure Shower Pan Liner at this time.
Note: Preformed curbs may also be used.
See manufacturer’s instructions.
Inside Shower
7. Prepare Shower Pan Liner (cont.)
Tuck or Fold
6" min. Outside Corners
Under Liner
Outside Shower
3" min.
Outside Corners
Under Liner
www.siouxchief.com 8
Making Corners

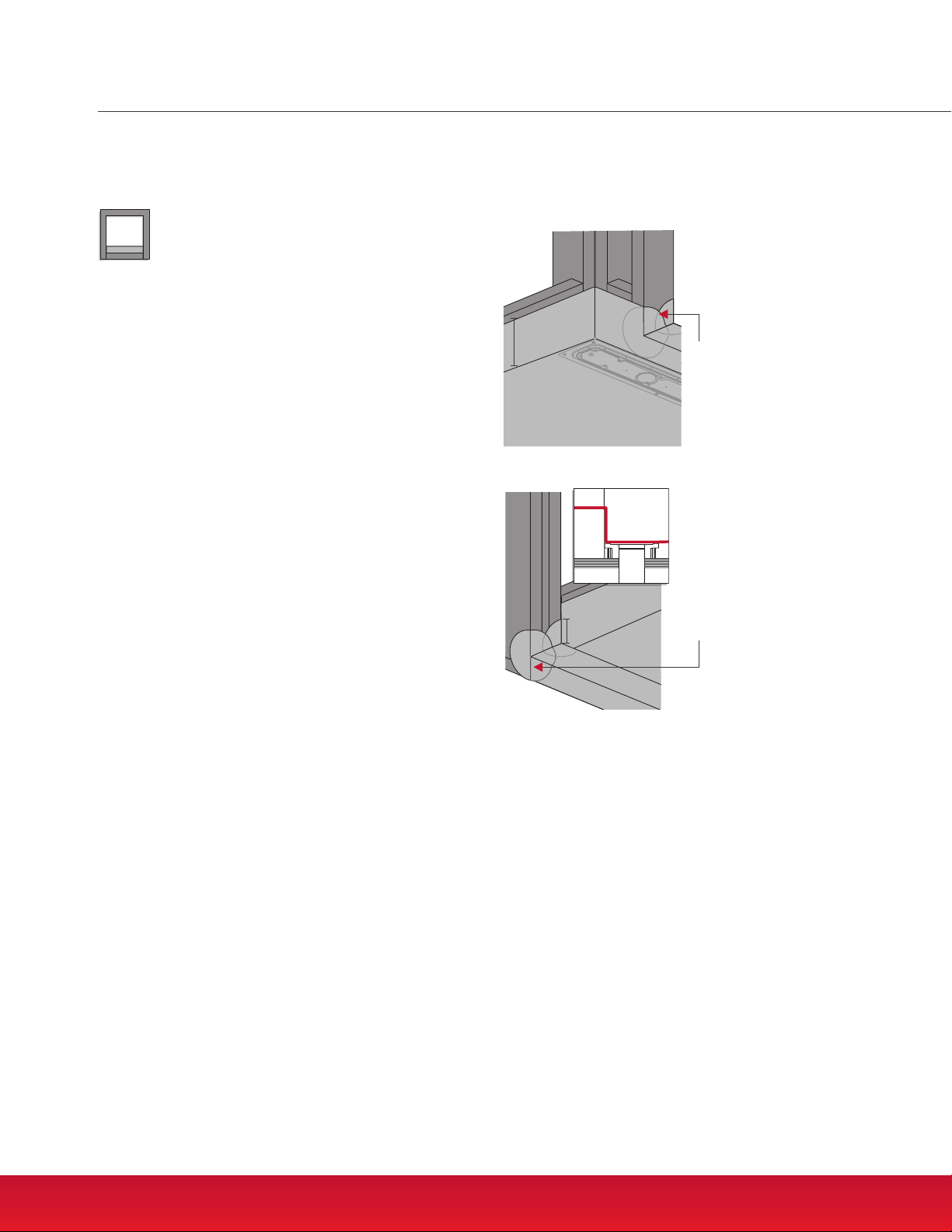

Tucked Corner (when space is available between studs)
Fold and crease to size. Tuck Shower Pan Liner into
space between studs.
Folded Corner
Fold and crease to size. Fold corners behind
shower pan liner.
6"
Tuck between Studs
6"
Fold Corners Behind
Installation Guide

8. Secure Shower Pan Liner

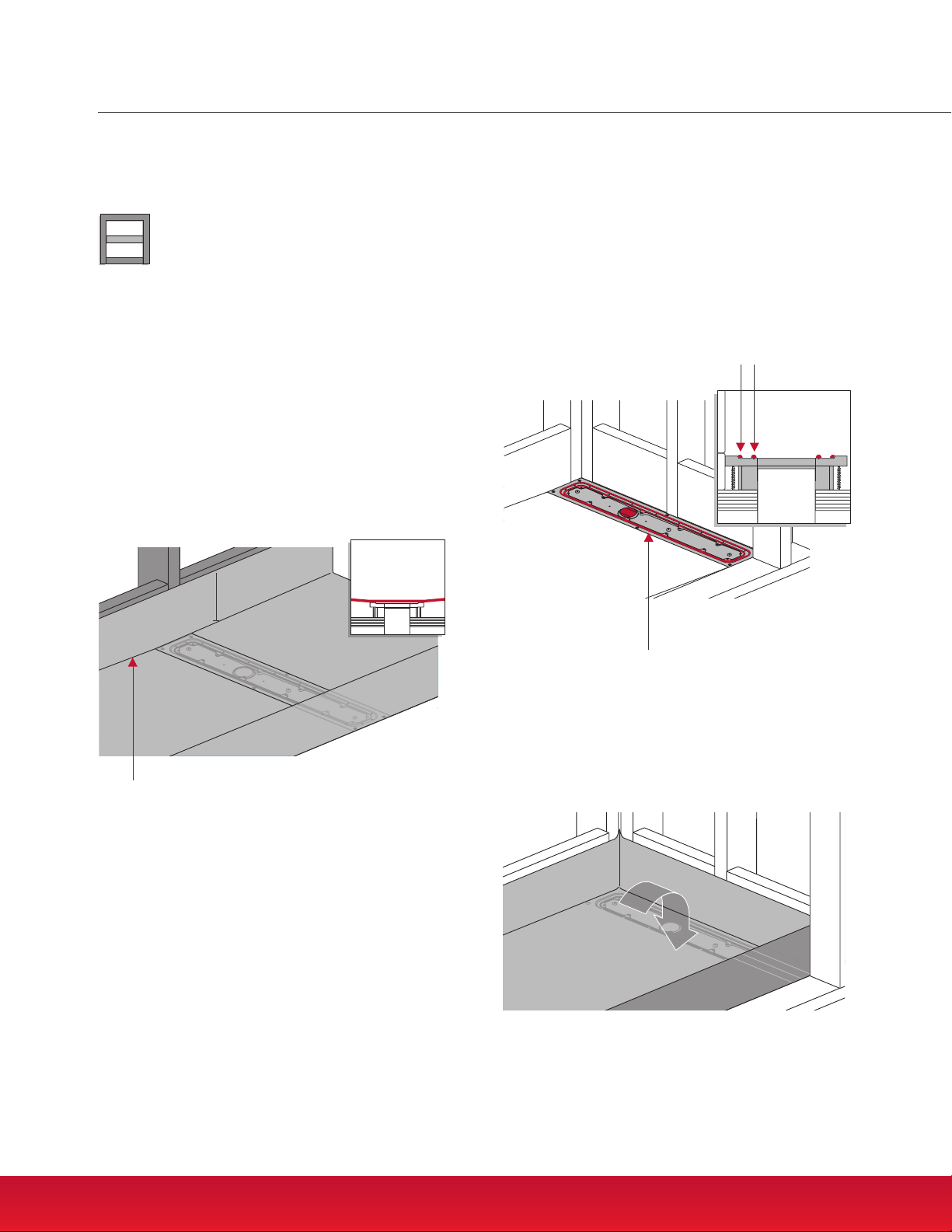

A. Seal Drain Base
Lift out Shower Pan Liner. Remove tape, leaving tape
over drain hole only.
Apply a 1/8" continuous bead of NobleSealant 150
around chamfer on base ange and another bead in
groove on drain base.
B. Pre-Formed Corners
Apply NobleSealant 150 to any pre-formed corners.
C. Press Shower Pan Liner Into Sealant
Align Shower Pan Liner, t or re-tuck corners and rmly press
Liner into sealant on drain base and any pre-formed corners.
7. Prepare Shower Pan Liner (cont.)
Option 4:
For Drain in Center of Floor
Shower Pan Liner must turn up the walls a minimum
of 3" above nished shower curb and 6" above oor in
showers without curbs.
Measure width of shower oor across drain base.
Lay Shower Pan Liner at. Measure and mark Shower
Pan Liner.
Fold and crease for upturns.
Note: Do not secure Shower Pan Liner at this time. Preformed curbs
may also be used. See manufacturer’s instructions.
2 Beads
NobleSealant 150
Chamfer Groove
Fold
6" min.
9 www.siouxchief.com
Installation Guide

10. Install Clamping Collar
Align collar with drain base under Shower Pan Liner.
Press rmly. Starting at one end, insert 5/8" screw
through collar, punch through Shower Pan Liner and screw
into base. Repeat for all screws. DO NOT OVER-TIGHTEN.
11. Cut Out Flashing
With a razor knife, carefully trim out Shower Pan Liner
from center of collar. Remove tape from drain hole.
Caution: Do not puncture Shower Pan Liner outside of collar.
12. Flood Test
Flood test as required by local codes.
13. Drain
Drain and dry after successful ood test.
9. Fasten Shower Pan Liner
Nail through top 1" of Shower Pan Liner to studs
and/or blocking.
Nail Cut Out Flashing
Clamping Collar
www.siouxchief.com 10
Installation Guide

17. Install Mortar Bed
Follow industry standards to install mortar bed ush to
top of Mortar Guard 1-1/4" thick. Pack mortar into top
and bottom of T-Channels to lock Mortar Guard in place.
Be certain to maintain uniform thickness within entire
bed. Allow to dry before proceeding.
16. Install Mortar Guard
Install Mortar Guard over Foam Block and Brackets.
Center end to end over Clamping Collar. Fully seat
Mortar Guard to Clamping Collar on Drain Base.
14. Install Brackets
Align holes in Bracket with second set of holes in from
end of drain base. Attach using two 1/2" screws.
Repeat for opposite end of drain base. DO NOT
OVER-TIGHTEN SCREWS.
15. Install Foam Block
Lay Foam Block in brackets and align ends of foam with
inside edge of Clamping Collar.
Bracket 1/2" Screws Mortar Guard
Foam Block
Foam Block
Clamping Collar
Align Full Mortar
Bed
T-Channel
1-1/4" thick
11 www.siouxchief.com
Installation Guide

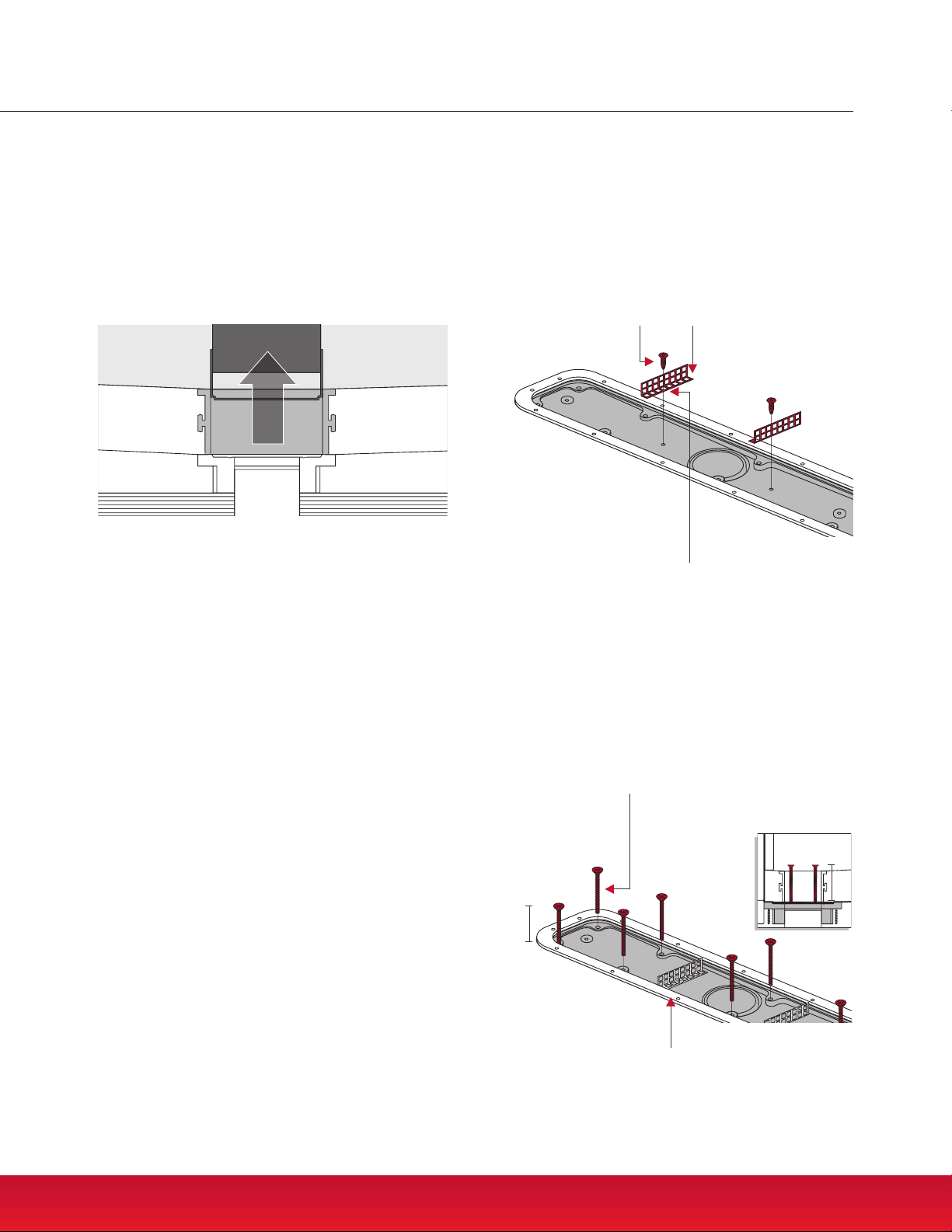

20. Install Pre-Strainers
Place short leg of Pre-Strainer down, facing drain hole.
Install 1/2" pan head screw, align strainer and tighten
screw. Repeat for opposite strainer.
Note: On 24" drain, place long leg of Pre-Strainer down, facing drain hole.
21. Install Height Adjustment Screws
Screw in all 2-1/2" at head height adjustment screws
to approximately 1-5/8" above the clamping collar.
18. Remove Foam Block and Brackets
Carefully remove Foam Block. Remove Bracket Screws
and Brackets.
19. Install Backer Board and
Wall Waterproong
Note: Plumbing codes and TCNA guidelines state that shower walls
must be sealed with a vapor barrier or waterproong membrane.
Install 1/2" backer board and wall waterproong
according to manufacturer’s instructions.
Caution: Do not puncture Liner.
Short Leg
1/2" Screws Pre-Strainer
Clamping Collar
1-5/8"
2-1/2" Screws
From Full Mortar Bed Adapter Kit
1-5/8"
www.siouxchief.com 12
Installation Guide

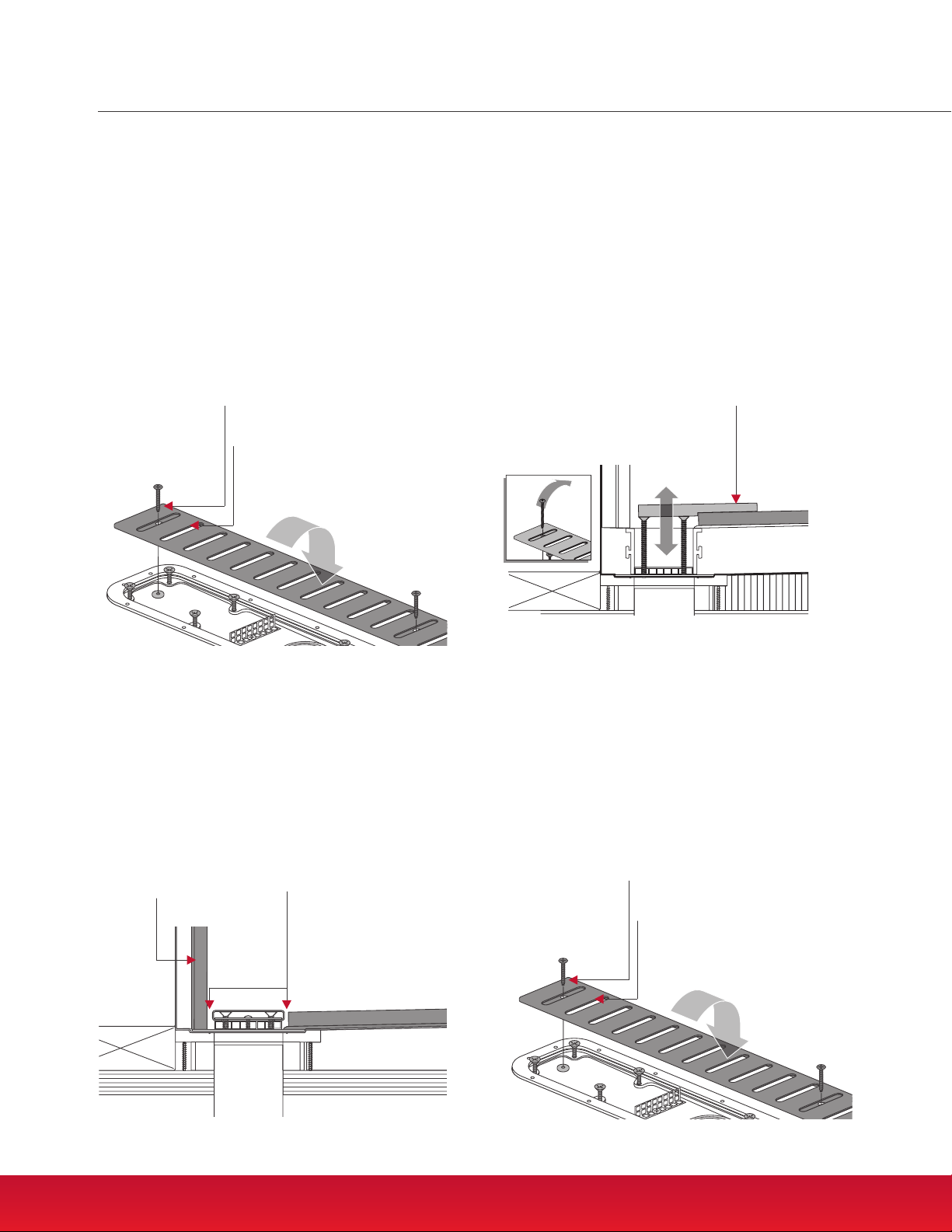

25. Re-Install Strainer
Note: Strainer attachment holes are not symmetrical. If screws do not
align with holes in drain base, turn strainer end-to-end.
Place strainer over height adjustment screws. Conrm
that strainer is ush with all tiles. Fasten with three
2-1/4" pan head screws. DO NOT OVER-TIGHTEN.
24. Adjust Strainer Height
Remove strainer. Remove tape from strainer. If factory
installed lm, start peeling at one end of strainer. Peel
side to side (sawtooth pattern) to other end of strainer.
Remove remaining residue by wiping with a soft cloth
and WD40™ or Goo Gone™.
Place thin end of height adjustment tool on tile and rest
other end on height adjustment screw. Adjust screws
so heads are at against bottom of tool, and tool is at
against tile. Repeat for all height adjustment screws.
22. Temporarily Attach Strainer
Note: Strainer attachment holes are not symmetrical. If screws do not
align with holes in drain base, turn strainer end-to-end.
Place strainer over height adjustment screws.
Temporarily fasten with three 2-1/4" pan head screws.
DO NOT OVER-TIGHTEN.
23. Tile and Grout
Be certain strainer is protected with tape. Allow for
1/16" clearance between strainer and tile.
Caution: Do not grout or seal this space.
Tile and grout all surfaces following manufacturers
instructions and TCNA guidelines.
Strainer
2-1/4" Screws
From Full Mortar Bed Adapter Kit
Height Adjustment Tool
Remove Strainer
Adjust Screws
1/16" Cleanance
Do Not Seal Or Grout
Tile
Strainer
2-1/4" Screws
From Full Mortar Bed Adapter Kit
13 www.siouxchief.com
Installation Guide

Cleaning Drain
To clean drain, remove 3 screws in top of strainer. Clear
any hair or other obstructions from drain.
Remove Strainer
Re-Attach Strainer
Note: Strainer attachment holes are not symmetrical. If screws do not
align with holes in drain base, turn strainer end-to-end.
Place strainer over height adjustment screws.
Replace all three screws. DO NOT OVER-TIGHTEN.
Strainer
2-1/4" Screws
From Full Mortar Bed Adapter Kit
Strainer
2-1/4" Screws
From Full Mortar Bed Adapter Kit
www.siouxchief.com 14
Installation Guide

www.siouxchief.com
File No. 7249PMG 1065
B.2/18 #IS-823FMB STREAMLINE FMB INSTALLATION INSTRUCTIONS
