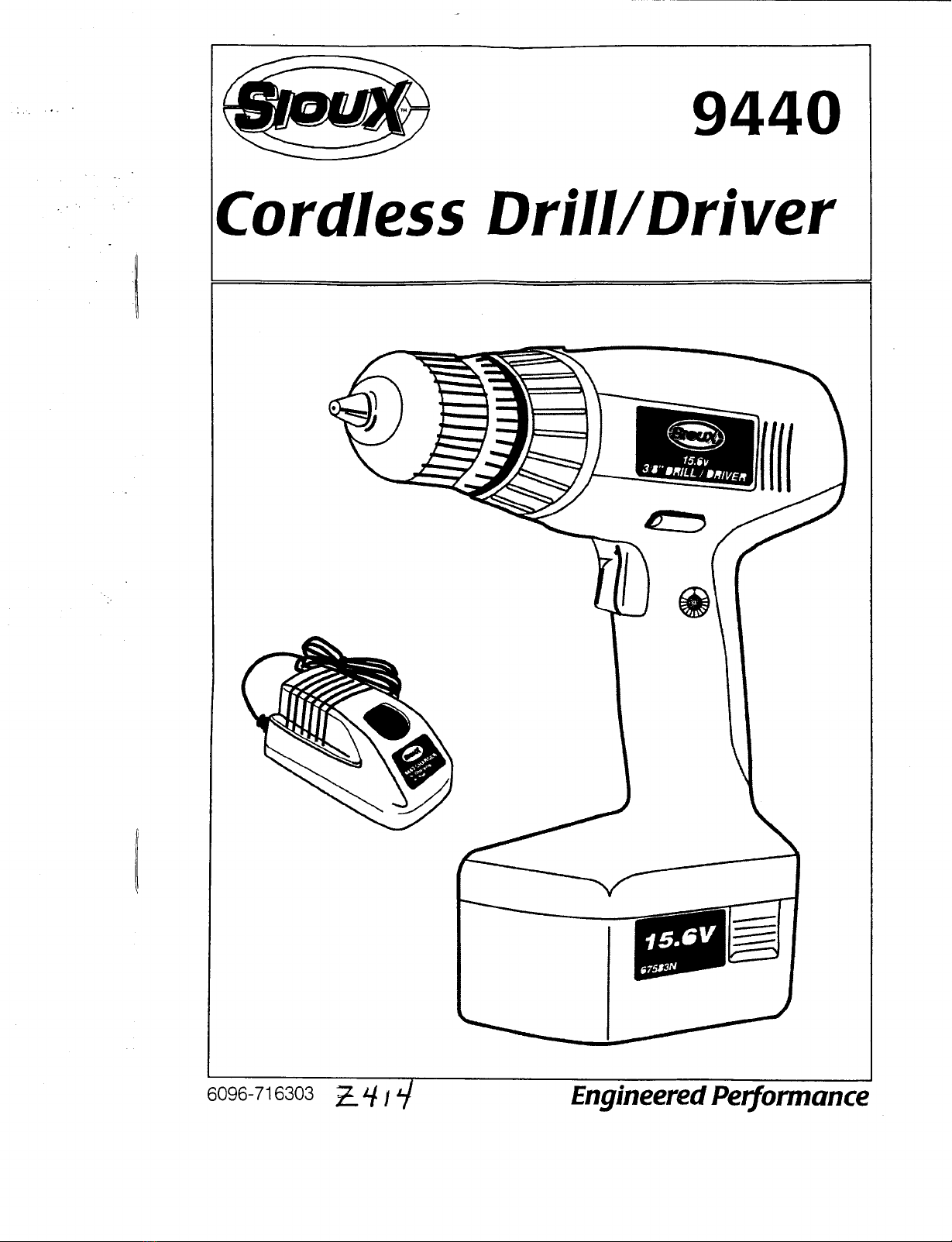

9440
Cordless Drill/Driver
6096-716303 ~ 4 J EngineeredPerformance

8
Safety Information
IMPORTANT SAFETY INSTRUCTIONS
This manual contains important safety and operating
instructions for the
SIOUX 9440 Cordless DriiVDriver.
Refer to the information
in this manual often for safe
operation.
Read All Instructions
Read, understand and follow all safety messages and
instructions in this manual and on the test equipment.
Safety messages in this section
of the manual contain a
signal word, a three-part message, and,
in some
instances, an icon.
General Drill/Driver Cautions
S/OUXTools Inc. cannot anticipate or provide safety
warnings and cautions to cover every situation that may
be encountered when operating, servicing or repairing
this tool. It is the responsibility of operators and servicing
technicians to be knowledgeable about the procedures,
tools and materials used, and to satisfy themselves that
the procedures, tools and materials will not compromise
their safety.
Do not attempt to operate this tool until you have
thoroughly read and completely understood all
instructions, safety rules contained
in this manual.
Failure to comply can result in accidents involving fire,
electric shock or serious personal injury. Save ttlis
manual and review it frequently for continued safe
operation and to instruct others who may use this tool.
To reduce the risk of fire, electric shock and personal
injury while using power tools always follow basic safety
precautions, including the safety messages
in this
section.
Remember that this tool is always in an operating
mode because it does nothave to
be plugged
into an electrical outlet.
i

Safety Information
A WARNING
Power tools can cause flying particles during use.
• Wear safety goggles, user and bystander.
• Secure
work with clamps or a vise whenever
possible.
Flying particles can cause eye injury.
Flammable vapors can cause explosion.
Do not use near flammable liquid, vapors or gases.
Explosion or flames can cause injury.
Power tools generate noise.
Wear hearing protection, user and bystander.
Prolonged exposure to noise can cause hearing loss.
Power tools vibrate during use.
Avoid prolonged exposure to vibration.
Prolonged exposure to vibration can cause injury.
Risk of electric shock.
• Guard against electrical shock by preventing body
contact with grounded surfaces.
• Do
not use near flammable vapors.
• Be sure that there are no concealed power cables
inside walls, ceilings,
or floors before drilling.
• Store tools when not being used in a high, dry and
locked
a'rea that can not be accessed by children.
• Do
not allow bystanders to contact tool or
extension cord.
Electric shock can cause injury.
Improper use of power tools and accessories can cause
broken tools.
Read instructions before operating power tools.
Broken tools can cause injury.
ii

Battery
A WARNING
SafetyInformation
Risk of entanglement.
• Avoid starting tool unintentionally. Do not carry
the
tool with finger on the trigger. Be sure switch
is off when installing battery pack or bits.
• Store
tools when not being used in a high, dry and
locked area that can
not be accessed by children.
• Do
not wear loose clothing and jewelry while
operating tool. Loose clothes and jewelry can be
caught in moving parts.
• Wear protective hair covering to contain long hair.
• Keep
work area clean and well lit.
• Do
not overreach. Keep proper footing and
balance at all times.
• Stay alert and use common sense when operating
tool. Do
not operate tool when tired.
• When operating in heights, be aware
of things
below and around you.
• Do
not allow bystanders to contact tool or
extension cord.
Entanglement in moving parts can cause injury.
Risk of electric shock and fire.
• Cover the battery pack terminals with heavy
adhesive tape after removing the battery pack.
• Do
not attemp.t to destroy or disassemble the
battery pack
or remove any of its components.
• Do
not touch both terminals with metal objects or
body parts, as short-circuit may occur.
Electric shock or fire can cause injury.
Risk of explosion or fire.
• Do not store the tool and battery in locations
where the temperature may reach
or exceed 104°F
(40°C).
• Do
not charge battery when temperature is below
50°F (10°C) or above 104°F (40°C).
• Do
not incinerate the battery, even if severely
damaged or completely exhausted. The battery
may explode in fire.
• Do
not charge using an engine generator or DC
power source.
Explosion or flames can cause injury.
iii

Safety Information
Risk of electric shock.
•
Do not disassemble the battery.
•
Do not short circuit the battery.
• Charge battery pack only with the charger
provided.
• Disconnect battery pack when
not in use, before
servicing and when changing accessories.
•
Do not charge using an engine generator or DC
power source.
Electric shock or fire can cause injury.
Battery Recycling
A. WARNING
Charger
A wARNING
Risk
of burn.
Battery leakage may occur under conditions
of
extreme usage or temperature.
• If liquid comes in contact with skin, wash quickly
with soap and water, then lemon juice
or vinegar.
• If liquid gets in eyes, wash with a boric acid
solution and seek medical attention immediately.
Burns can cause injury.
Risk of electric shock and fire.
• Use only the SIOUX
9442 charger for the 9440
Cordless Drill/ Driver.
• Do
not expose charger to rain or to snow.
• Do
not allow vents of the charger housing to
become covered or clogged during use.
• Use
of an attachment not recommended or sold by
the battery charger manufacturer may result in a
risk of fire, electric shock, or injury to persons.
• Never attempt
to connect two chargers together.
• The charger operates on standard household
electrical power. Do
not use any other voltage.
• Consecutive charging may cause overheating.
Wait 15 minutes for charger to cool when charging
batteries consecutively.
•
Do not insert foreign objects into hole for battery
in charger stand.
• Pull by plug rather than cord when disconnecting
charger.
• Be sure the cord is
not stepped on, tripped over,
damaged
or stressed.
iv

Safety Information
• Do not use an extension cord used unless
absolutely necessary. If an extension cord must
be used, make sure that the:
Pins on the plug of the extension cord are the
same number, size
and shape as those of the
plug on the charger,
Extension
cord is properly wired and in good
electrical conditions, and
Wire size is large enough for AC ampere
rating of charger as follows.
Ampere rating
0-2.0
2.1-3.4
{on face eratel
Cord Length Wire Size {AWGl
25'
18 18
50' 18
18
100' 18
16
Recommended Minimum AWG S1ze for Battery Charger Extens1on Cords
• Do not operate charger with damaged cord or
plug. Replace immediately.
• Do
not operate charger after it is dropped,
received a sharp blow or damaged. Take the
charger
to an Authorized Service Center.
• Do
not disassemble charger. Take the charger to
an Authorized Service Center when service or
repair is required.
• Unplug charger
from outlet before maintenance or
cleaning. Turning off controls is not adequate to
avoid hazard.
• Read all
instructions and safety messages on
battery and battery charger before use.
Electric shock or fire can cause injury.
SAVE THESE INSTRUCTIONS
v

..
9440
Cordless Drill/Driver
Thank you for buying a SIOUXtool. The 9440 Cordless
DrllVOrlver Is rpanufactured to high standards for
dependability
a~d. with proper care, will provide years ot.
trouble-free performance.
Functional Description
G
F
Figure 1: 9440 Cordless OriiVOriver
A - Chuck
B -Torque Control
C -Trigger
0 -Forward/Reverse Switch
E -Battery Clip
F -Battery Pack
G -Battery Charger
1
E

9440 Cordless Dri/VDrlver
Specifications
Voltage 15.6V
Chuck Capacity
3/a· {10 mm)
Drilling Capacities
Steel
SoftWood
3/8" (10 mm)
1" (25 mm)
Weight
Motor
4.25 lbs (1.92 kg)
15.6V DC
No Load Speed (RPM)
Low
High 0-300
Q-1100
Torque Setting Clutch
Positions
10, (1 position fully locking)
Noise Level
Sound Level 70 dB
or less
Vibration Level
Charger
Battery
2.5 meters/sec2
Model Number 9442
Charging Voltage 15.6V
Input (AC) 50-60 Hz
Model Number
9441
Type Nickel cadmium
2

9440 Cordless Dri/VDrlver
Battery Chargingt
The battery for this tool Is shipped In a low charge
condition and must be charged prior to use.
1. Remove the battery from the drill by grasping both
sides
of the battery and depressing the battery clips.
'.
' . .
2. Gentty pull the battery from the housing.
3. Insert the battery Into the charger, aligning the plus
and minus terminals with the respective Identification
on the charger.
t/' Insert the battery fully Into the port so the
cartridge rests
on the charger port floor ....
4. Verify that the charging light is red.
5. Remove the battery when the charging light turns
green. A green charging light indicates that the
battery
Is fully charged.
t/' Recycle or dispose of exhausted battery properly
for safety and to preserve natural resources.
This product contains a nickel-cadmium battery
that must be disposed of according to local, state
or federal taws. Consult your waste disposal
authority for information regarding recycling or
disposal directions.
Determining Battery Charge Level
Use the battery charge level indicator to determine the
charge level of the battery. Press the Indicator button to
determine the battery charge level from full to empty.

9440 Cordless Dr/IUDr/ver
Drilling Tips
0 Pressing down too hard slows drilling performance,
damages the bit and shortens service of the drill.
0 Grasp the drill firmly and use care when the bit begins
to break through a hole. Drill and bit are subject to
tremendous force when breaking through a hole.
0 Use only sharp drill bits. When drilling In:
Wood, use twist drill bits, spade bits, power auger
bits or hole saws,
Metals, use high speed steel twist drill bits, or
Masonry, (brick cement, cinder block, etc.,) use
carbide tipped bits.
0 Always securely clamp
or anchor material being drilled.
0 When drilling thin materials
or materials that are likely
to splinter, back up the work piece with a wood block
to prevent damaging the material.
0 Always apply pressure In a straight line with the
bit
Use enough pressure to keep the bit drilling, but not
hard enough to stall the motor
or deflect the bit.
0 When drilling wood with a twist bit for metal, pull the bit
out frequently to clear chips from the flutes. Let up on
the pressure just before brtJaklng through the material
to get a good, clean
hole:-:
0 When drilling metal, mark the hole location with a
center punch to prevent the drill bit from slipping off
center when starting to drill the hole. Use a cutting
lubricant, like sulfurized cutting oil, when drilling
ferrous metals other than Iron and brass which should
be drilled dry.
o When drilling hard, smooth surfaces, use the lower
speed to start holes without punching. Mark the hole
location with a center punch to prevent the drill bit from
slipping off center when starting to drill the hole.
0 When drilling
In masonry, use carbide tipped masonry
bits. Keep even force on the drill. A smooth, even flow
of dust Indicates the proper drilling rate.
4

9440 Cordless Dr/IVDrlver
Using the 9440.Drill/Driver
I
Installing and Removing Bits
This drill Is fitted with a keyless chuck. No chuck key Is
i' required to SE3cure the drill bits.
To Install a drill bit
1. ~lease~the chuck jaws by grasping the r~ar half of
the chuck with one hand. Use the other hand to turn
the chuck counterclockwise until the chuck opens to
the desired shaft diameter.
2. Insert the bit
or accessory about three-fourths of the
way Into the chuck.
3. Tighten the chuck jaws securely by holding the rear
half of the chuck with one hand. Use the other hand
to tum the chuck clockwise until the chuck Is securely
tightened.
Forward/Reverse Switch
Trigger
The forward/reverse switch determines the rotating
direction of the chuck, either clockwise
or
counterclockwise.
To change the direction of chuck rotation:
1. Be sure the drill Is stopped and not operating.
.
2. Push the lever to the right or tne left. Switch
positions viewed from the handle are:
-Forward (F), the chuck rotates clockwise,
-Reverse (R), the chuck rotates counterclockwise.
fl' The switch must be In either the forward or the
reverse position to operate.
Depress the trigger to rotate the chuck. The lever must
be In a forward or reverse position to operate. The trigger
can be lockedin the OFF position. Locking the trigger In
the OFF position helps to reduce the possibility of
accidental starting the drill when not In use. Place the
.. , · lever In the center position to lock the trigger.
./ Lock the trigger when not In use.

9440 Cordless Dr/IUDr/ver
Torque Control
Drilling
Service
Adjust the amount of torque by turning the torque
adjustment dial. The torque control prevents the heads of
smaller diameter screws from twisting off when correctly
set Fa.Stenlng torque Is greater as the numerals are larger.
The drill has full torque when set
In a drill position.
Overloading and stalling the drill at any time can cause
motor burnout and can also dramatically reduce battery life.
1. Choose the appropriate bit for the task.
2. Secure the material being drilled
In a vise or with
clamps to keep It from turning as the drill bit rotates.
3. Set the appropriate speed for the task.
4. Hold the drill firmly and place the bit at the drilling
point.
5. Depress the switch trigger to start the drill. Move the
drill bit Into the work piece. Apply only enough
pressure to keep the bit cutting.
6. Do not force or apply side pressure to elongate a
hole.
.,' Release the switch trigger Immediately If the bit
jams
In the work piece or the drill stalls. Remove
the bit from the work piece and determine the
reason for jamming.
Service of this tool requires extreme care and knowledge.
Service should
be performed only by a qualified service
technician. For service or-repair contact an Authorized
Service Center. For a list
of Authorized Service Centers
contact S/OUXTools Inc.,
2901 Aoyd Boulevard, Sioux
City, Iowa
511 02-0507, U.S.A.
-Phone:[phone], U.S. and Canada
1-712-252-0525 Fax:[phone]
• Always check tool for damaged parts before use.
• Replace
or repair damaged parts before use. Check
alignment of moving parts, binding, moving parts,
broken parts, mounting, and any other conditions that
may alter operation.
• Have damaged parts properly repaired
or replaced by
- - an Authorized Service Center.
• Do not use tool If switch does not turn It on and off.
• Maintain tools. Keep tools dry, clean and free
of oil
and grease for better and safer performance.
6

9440 Cord/fJss Drill/Driver
Agure2: 9«0 Cordleu OrfiVOrlver, Exploded V!Gw
Ref Part No.
Description
1 67554 Chuck screw
2 67398 Keyless chuck
3 67555 Screw
(3t
4 67556 Torque ring plate
5 67557 Torque ring
6 67558 Torque plate
7
67559•
Spring
8 67560 Steel ring
9
67561
Steel ball (6)•
10 67562 Motor and gear box assembly
(Includes
10-1 thru 10-23)
10-20 67563 Motor assembly (Includes 10-
2Q-1 and 10-20-2)
11
67564 Switch assembly (Includes 11-1
thru 11-11)
12 67565 Housing set (left and right)
(Includes 14)
13 67566 Screw (2)•
14 67565 Housing set (left and right)
(Includes 12)
15
6n45
Push button
-7

9440 Cordless .Dr/IVDr/ver
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
67568
_"67.~69
67570
·'67571
67572
67573
67574
67575
67576
67577
. 67578
67579
67580
67581
67582
9441
Not Shown
9442
9443
67583
67584
67757
Knob
Pin (2)*
Circuit board
$pring·
Press
t;>utton
Voltage Indication plate
Screw (4)*
Screw
Retaining ring
Spring plate (2)*
Axing ring .
Nameplate (9440)
Rating label (9440)
Electronic label
Soft housing
Battery
Cha.tger
Case for 9440K
Battery label
(9441)
Charger label (9442)
Nl-Cd battery label
•order quantity as needed
------------------/-··~, --
8

9440
Cordless Drill/Driver
SIOUX TOOLS INC.
2901
Aoyd Boulevard,
Sioux City, Iowa 51102-0507, U.S.A.
SIOUX Is a registered trademark
of SIOUX TOOLS INC.
...
Z414 Printed
In Taiwan
4/97

This pdf incorporates the following model numbers:
9440
