1. Product Description
This guide describes basic administration and use of the Sipura Technology SPA-2000 phone
adapter – an intelligent low-density Voice over IP (VoIP) gateway. The SPA-2000 enables carrier
class residential and business IP Telephony services delivered over broadband or high-speed
Internet connections. By intelligent we mean the SPA-2000 maintains the states of all the calls it
terminates. It is capable of making proper decisions in reaction to user input events (such as on/off
hook or hook flash or enhanced services codes, i.e. *69) with little or no involvement by a middle-man
server or media gateway controller.
1.1. SPA-2000 Hardware Overview
The SPA-2000 has one of the smallest form factors on the market. It can be installed in minutes as a
table-top or wall mount CPE device. Figures Figure 1, Figure 2, Figure 3 and Figure 5 show the front,
rear, left side and right side of the SPA-2000, respectively.

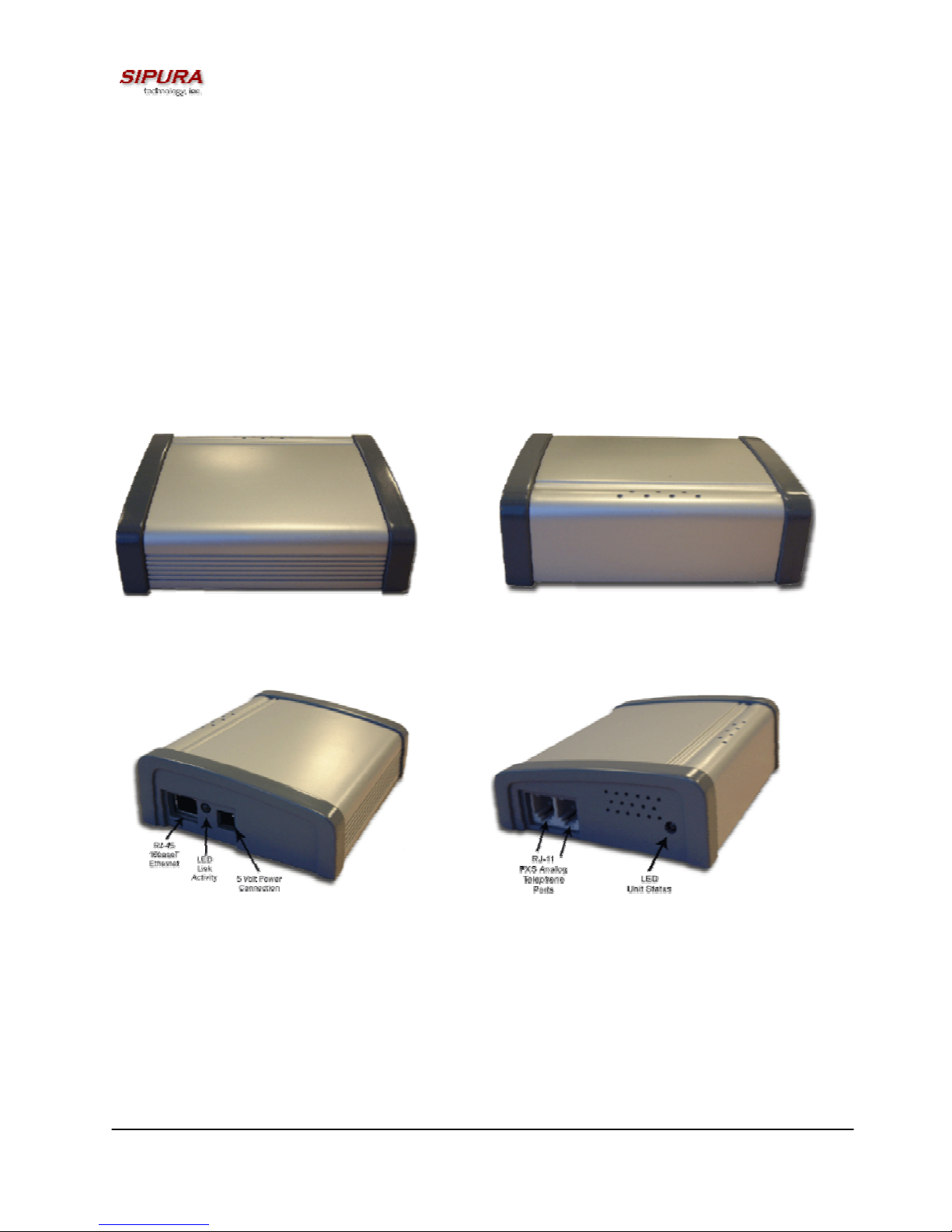

Figure 1 – SPA-2000 Front
Figure 3 – SPA-2000 Left Side
Figure 2 – SPA-2000 Rear
Figure 4 – SPA-2000 Right Side
The SPA-2000 has the following interfaces for networking, power and visual status indication:
1. Two (2) RJ-11 Type Analog Telephone Jack Interfaces (Figure 4, above):
These interfaces accept standard RJ-11 telephone connectors. An Analog touchtone telephone or
fax machine may be connected to either interface. If the service supports only one incoming line, the
analog telephone or fax machine should be connected to port one (1) of the SPA-2000. Port one (1)
is the outermost telephone port on the SPA-2000 and is labeled “Phone 1.”
2. One LED for Unit Status (Figure 4, above):

© 2003 Sipura Technology, Inc Proprietary (See Copyright Notice on Page 2)
5
This LED indicates status via the following behaviors:
ON – LED remains solid on
OFF – LED remains solid off
LONG (Long On) – 3.0s on, 1s off continuously
FAST – 0.125s on, 0.125s off continuously
SLOW – 0.5s on, 0.5s off continuously
VSLO (Very Slow) – 1.0s on, 1.0s off continuously
HB (Heart Beat) – 0.125s on, 0.125s off, 0.125s on, 1s off continuously
3. One Ethernet 10baseT RJ-45 Jack Interface (
Figure , above):
This interface accepts a standard or crossover Ethernet cable with standard RJ-45 connector. For
optimum performance, Sipura Technology recommends that a Category 5 cable or greater be used in
conjunction with the SPA-2000.
4. One LED for Data Link and Activity (
Figure , above):
This LED indicates status via the following behaviors:
ON – LED remains solid on
OFF – LED remains solid off
FAST – 0.125s on, 0.125s off continuously
SLOW – 0.5s on, 0.5s off continuously
Variable Blink – LED blinks according to packet traffic activity
5. One 5 Volt Power Adapter Interface (
Figure , above)
This interface accepts the SPA-2000 power adapter that came with the unit. Sipura Technology does
not support the use of any other power adapters other then the power adapter that was shipped with
the SPA-2000 unit.
1.1.1. Status LED Description:
The SPA-2000 Status LED is used to indicate the current operation status of the SPA unit. The state
is represented by a special blinking pattern of the Status LED (next to the RJ-11 ports on the right
side of the device). The below table describes the various modes and behaviors of the SPA-2000 in
relation to the Status LED and the handset behavior.
Status Description LED
Blink
Rate
Default Handset
Behavior
Normal Operation – Both Lines on hook OFF Normal
Normal Operation – Either line off hook ON Normal
Downloading new firmware SLOW Silent
Writing firmware to flash FAST Silent
Looking for DHCP Server SLOW Silent
No DHCP Server SLOW Silent
IP Address Conflict SLOW Silent

© 2003 Sipura Technology, Inc Proprietary (See Copyright Notice on Page 2)
6
Unknown DHCP Error SLOW Silent
Note: The Link LED will blink on transmit and receive (TX/RX) of packets. The LED will display solid
off if no link is available. The LED will display solid on if link is up but no TX/RX activity is present.
Important Warning: Do not disrupt the power to the SPA-2000 while the Status LED is blinking FAST.
2. Installation Overview
Please check to make sure that you have the following package contents:
1. Sipura Phone Adapter Unit
2. Ethernet Cable
3. SPA-2000 QuickGuide
4. 5 Volt Power Adapter
You will also need:
1. One or Two Analog Touch Tone Telephones (or Fax Machine)
2. Access to an IP Network via an Ethernet Connection
Please observe the following steps to install the SPA-2000.
From the Left Side of the SPA-2000:
1. Insert a standard RJ-45 Ethernet cable (included) into the LAN port.
2. Insert the power adapter cable into the 5V power adapter cable receptacle.
Ensure that the power adapter jack is snugly attached to the SPA.
From the Right Side of the SPA-2000:
1. Insert a standard RJ-11 telephone cable into the Phone 1 port.
2. Connect the other end of the cable to an analog telephone or fax machine.
3. Insert a standard RJ-11 telephone cable into the Phone 2 port (Optional).
4. Connect the other end of the cable to an analog telephone or fax machine.
Note: Do not connect RJ-11 telephone cable from the SPA to the wall jack
to prevent any chance of connection to the circuit switched telco network.
You may now insert the plug end of the power adapter into a live power outlet which will power up the
SPA-2000.
3. Software Configuration
3.1.1.1. Firmware Upgrade
The SPA-2000 is firmware upgradeable via TFTP or via an executable PC program obtained from
Sipura Technology or an authorized distributor/reseller of Sipura Technology products.
Please contact the company from whom you purchased your SPA-2000 for access to Sipura
Technology firmware upgrades.
Firmware Upgrade via TFTP:
Firmware designed for TFTP upgrades are released as single binary files, which contain all the
modules pertaining to any one release version. By convention, the firmware loads are named with the
extension “.bin” (e.g. spa.bin)
The SPA-2000 can be configured to upgrade to a specific version, possibly staging through
intermediate releases, if necessary. This process can be automated for a pool of devices through
configuration profile parameters.

© 2003 Sipura Technology, Inc Proprietary (See Copyright Notice on Page 2)
7
Alternatively, an individual SPA-2000 can be directed to perform an upgrade to a specific firmware
load via its built-in web server interface.
Firmware upgrades are attempted only when the SPA-2000 is idle, since they trigger a software
reboot.
Firmware Upgrade via PC Utility Program:
From time to time, Sipura Technology will make available a PC executable file that will facilitate the
upgrade of a SPA-2000. In order to upgrade a device via this method, the end user must have
administrative permission (via password protected log-in) to perform this upgrade.
Once the user has obtained the proper firmware upgrade executable, the user simply runs the
program from a file location on their local PC. The PC program walks the user through the upgrade
process via a graphical user interface. Generally, the entire upgrade process should take no more
than five minutes to complete.
Please note: Some end-users who have obtained their SPA-2000 directly from a service provider will
never need to manually upgrade their device. Via the remote upgrade process, Sipura Technology
provides capability for the SPA-2000 to be maintained from a remote location (e.g. a service provider
network server), using the Internet connection of the end-user as the conduit through which profile
updates and firmware upgrades are performed.
3.2. IVR Interface
Administrators and/or users can check (read) and set (write) basic network configuration settings via
a touchtone telephone connected to one of the RJ-11 phone ports of the SPA-2000.
Please Note: Service Providers offering service using the SPA-2000 may restrict, protect or turn off
certain aspects of the unit’s IVR and web configuration capabilities.
The Interactive Voice Response (IVR) capabilities of the SPA are designed to give the administrator
and/or user basic read/write capabilities such that the unit can attain basic IP network connectivity
and, if allowed by the service provider, the more advanced browser-based configuration menu may
be accessed.
3.2.1. IVR Conventions:
1. The SPA IVR uses the following conventions: By factory default, there is no password. No
password authentication is required for all the IVR settings. If Administrator password is set,
password authentication will be prompted for certain IVR settings. See 3.3.2 for detailed information
about administrator password.
Please note: The Administrator and User passwords may only be set via the SPA-2000 web
interface.
To input the password using the phone keypad, the following translation convention applies:
oTo input: A, B, C, a, b, c -- press ‘2’
oTo input: D, E, F, d, e, f -- press ‘3’
oTo input: G, H, I, g, h, i -- press ‘4’
oTo input: J, K, L, j, k, l -- press ‘5’
oTo input: M, N, O, m, n, o -- press ‘6’
oTo input: P, Q, R, S, p, q, r, s -- press ‘7’
oTo input: T, U, V, t, u, v -- press ‘8’

© 2003 Sipura Technology, Inc Proprietary (See Copyright Notice on Page 2)
8
oTo input: W, X, Y, Z, w, x, y, z -- press ‘9’
oTo input all other characters in the administrator password, press ‘0’
Note: This translation convention only applies to the password input.
For example: to input password “test#@1234” by phone keypad, you need to press the following
sequence of digits: 8378001234.
2. After entering a value, press the #(pound) key to indicate end of input.
oTo Save value, press ‘1’
oTo Review the value, press ‘2’
oTo Re-enter the value, press ‘3’
oTo Cancel the value entry and return to the main configuration menu, press ‘*’ (star)
Please Note:
oThe final ‘#’ key will not be counted as part of the value.
oSaved settings will take effect when the telephone is hung-up and if necessary, the SPA-
2000 will automatically reboot.
3. After one minute of inactivity, the unit times out. The user will need to re-enter the configuration
menu from the beginning by pressing * * * *.
4. If, while entering a value (like an IP address), you decide to exit without entering any changes, you
may do so by pressing the *(star) key twice within a half second window of time. Otherwise, the
entry of the *(star) key will be treated as a dot (decimal point).
Example:
To enter an IP address, use numbers 0 – 9 on the telephone key pad. Use the * (star) key to enter a
decimal point.
To enter the following IP address value: 192.168.2.215
A. Use the touchtone key pad to enter: 192*168*2*215#
B. When prompted, enter 1to save setting to configuration.
C. Hang-up the phone to cause setting to take effect.
- or -
D. Enter the value of the next setting category to modify . . .
5. Hang-up the phone to cause all settings to take effect.
3.2.2. SPA-2000 Interactive Voice Response (IVR) Menu:
IVR Action IVR Menu Choice Parameter(s) Notes:
Enter IVR Menu
* * * *
None Ignore SIT or other tones
until you hear, “Sipura
configuration menu.
Please enter option
followed by the pound key
or hang-up to exit.”
Check DHCP 100 None IVR will announce if DHCP
in enabled or disabled.

© 2003 Sipura Technology, Inc Proprietary (See Copyright Notice on Page 2)
9
Enable/Disable DHCP 101 Enter 1 to enable
Enter 0 to disable
Check IP Address 110 None IVR will announce the
current IP address of SPA.
Set Static IP Address 111 Enter IP address
using numbers on
the telephone key
pad. Use the *
(star) key when
entering a decimal
point.
DHCP must be “Disabled”
otherwise you will hear,
“Invalid Option,” if you try
to set this value.
Check Network Mask 120 None IVR will announce the
current network mask of
SPA.
Set Network Mask 121 Enter value using
numbers on the
telephone key pad.
Use the * (star) key
when entering a
decimal point.
DHCP must be “Disabled”
otherwise you will hear,
“Invalid Option,” if you try
to set this value.
Check Static Gateway IP
Address
130 None IVR will announce the
current gateway IP
address of SPA.
Set Static Gateway IP
Address
131 Enter IP address
using numbers on
the telephone key
pad. Use the *
(star) key when
entering a decimal
point.
DHCP must be “Disabled”
otherwise you will hear,
“Invalid Option,” if you try
to set this value.
Check MAC Address 140 None IVR will announce the
MAC address of SPA in
hex string format.
Check Firmware Version 150 None IVR will announce the
version of the firmware
running on the SPA.
Enable/Disable Web
Server of SPA
7932 Enter 1 to enable
Enter 0 to disable
Requires Password
Manual Reboot of Unit 732668 None After you hear “Option
Successful,” hang-up. Unit
will reboot automatically.
Factory Reset of Unit
WARNING:
73738 Enter 1 to confirm
Enter * (start) to
cancel operation
SPA will prompt for
confirmation. After
confirming, you will hear
“Option Successful.” Hang-

© 2003 Sipura Technology, Inc Proprietary (See Copyright Notice on Page 2)
10
ALL SETTINGS WILL BE LOST! up. Unit will reboot and all
configuration parameters
will be reset to factory
default values.
Note: If the Administrator password is not set, the items marked with “Requires Password” will not
require a password.
3.3. SPA Web Interface
The SPA provides a built-in web server. Convenient configuration and administration can be
performed through an integral web interface.
3.3.1. Web Interface Conventions
The SPA uses the following conventions with the web administration capabilities:
oThe SPA-2000 web administration supports two privilege levels: Administrator and User. To
use the User privilege, simply point a web browser at the IP address of the SPA-2000; to use
the administrator privilege, use URL http://IP_Address_Of_SPA/admin/. See 3.3.2 for more
information about administration privileges.
oVersion 1.0 of the SPA supports Internet Explorer 5.5 and above and Netscape 7.0 and
above.
oThe web configuration pages can be password protected. See 3.3.2 for more information
about password protect.
oThe user name of web Administrator is : admin
oThe user name of web User is : user
oNote: The user names for both administrator and User are fixed and cannot be
changed.
oAfter making changes to SPA-2000 configuration parameters, pressing “Submit All
Changes” button will apply all the changes and if necessary, automatically reboot the device.
Multiple changes may be made on multiple page tabs of the web interface at the same time.
Pressing “Submit All Changes” will apply all the modifications.
Important Note: switching between page tabs won’t apply the changes to SPA-2000, The
only way to apply the changes is to press the “Submit All Changes” button.
oIf the “Undo All Changes” button is clicked, any modifications to profile parameters on any and
all pages will be reset back to their original values before modification.
NOTE: Pressing the “Undo All Changes” has no effect on the SPA-2000; it will only reset the
values on the web page.
3.3.2. Administration Privileges
The SPA-2000 supports two levels of administration privileges: Administrator and User, both
privileges can be password protected.
Important note: by factory default, there are no passwords assigned for both Administrator and User.
The Administrator has the privilege to modify all web profile parameters and can also modify the
passwords of both Administrator and User. A User only has the privilege to access part of the web

© 2003 Sipura Technology, Inc Proprietary (See Copyright Notice on Page 2)
11
profile parameters. The parameter group that the User can access is specified by the Administrator,
which can only be done through provisioning the SPA-2000 via the TFTP process.
To access the Administrator level privilege, use the following URL: http://IP_Address_Of_SPA/admin/.
If the password has been set for Administrator, the browser will prompt for Administrator
authentication. The username for Administrator is “admin” and cannot be changed.
To access the User level privilege, use URL: http://IP_Address_Of_SPA/. If the password has been
set for User, the browser will prompt for User authentication. The username for User is “user” and
cannot be changed.
When browsing Administrator pages, one can switch to User privileges by clicking the link “User
Login”. (Note: if User password was set, the browser will prompt for User authentication when you
click the “User Login” link). Conversely, from the User pages you can switch to Administrator privilege
by clicking the link “Admin Login.” Authentication is needed if the Administrator password has been
previously set.
Warning: Switching between the User and Administrator will discard the uncommitted changes that
have already been made on the web pages.
3.3.3. Basic and Advanced Views
The web configuration interface provides a Basic and an Advanced view from which the various
configuration parameters can be accessed. The SPA Provisioning tab is only visible from the
Advanced Administrator view of the web interface.
Warning: Switching between the basic and advanced view will discard the uncommitted changes that
have already been made on the web pages.

© 2003 Sipura Technology, Inc Proprietary (See Copyright Notice on Page 2)
12
3.3.4. SPA-2000 Web Page Configuration Default Values
The following figures depict the default values and web page locations of the SPA-2000 web
administration and configuration pages. The SPA-2000 Administrator Log-in, Advanced screen
settings are shown below.

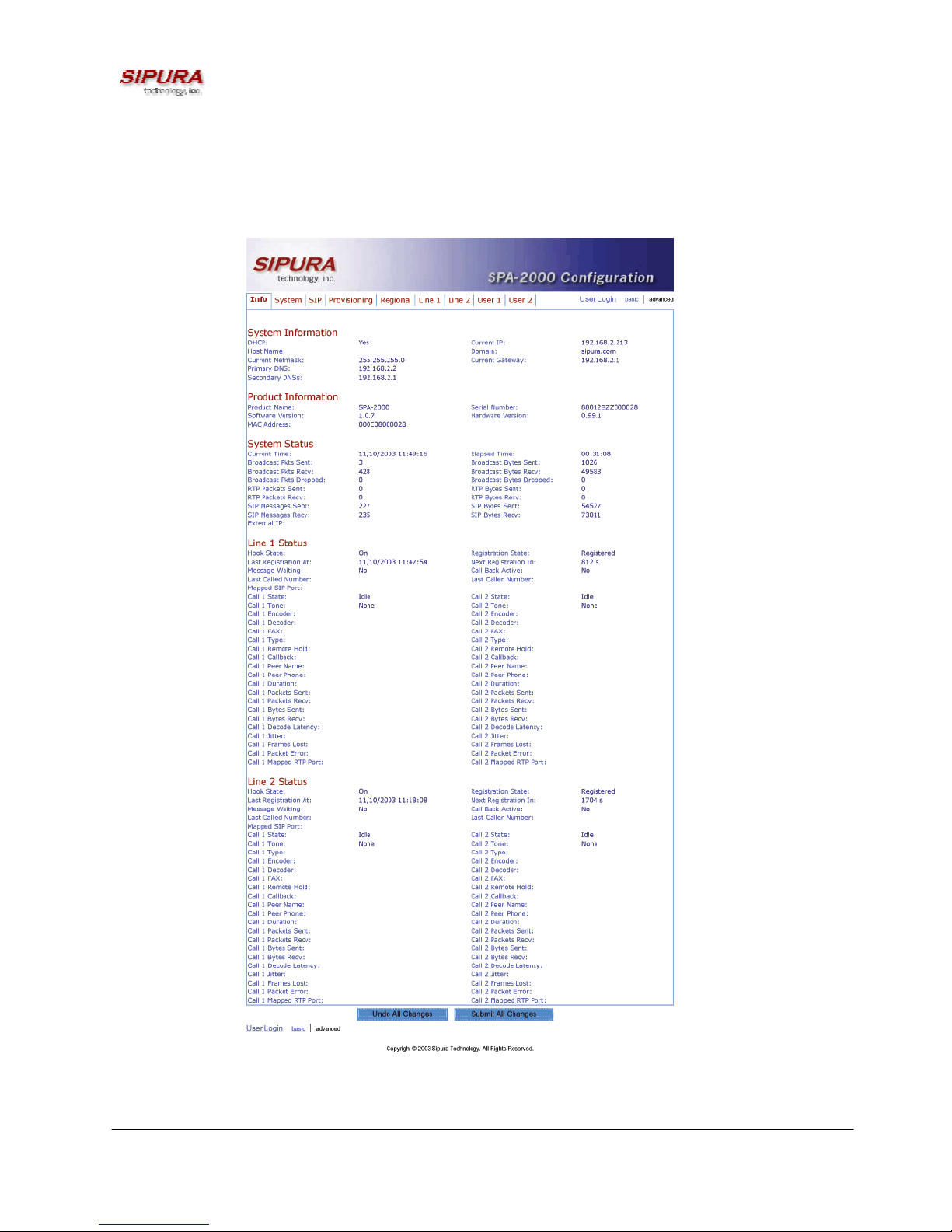

Figure 1 – SPA-2000 Information Web Page (Advanced Admin View)

© 2003 Sipura Technology, Inc Proprietary (See Copyright Notice on Page 2)
13
Figure 2 – SPA-2000 System Configuration Web Page (Advanced Admin View)

© 2003 Sipura Technology, Inc Proprietary (See Copyright Notice on Page 2)
14

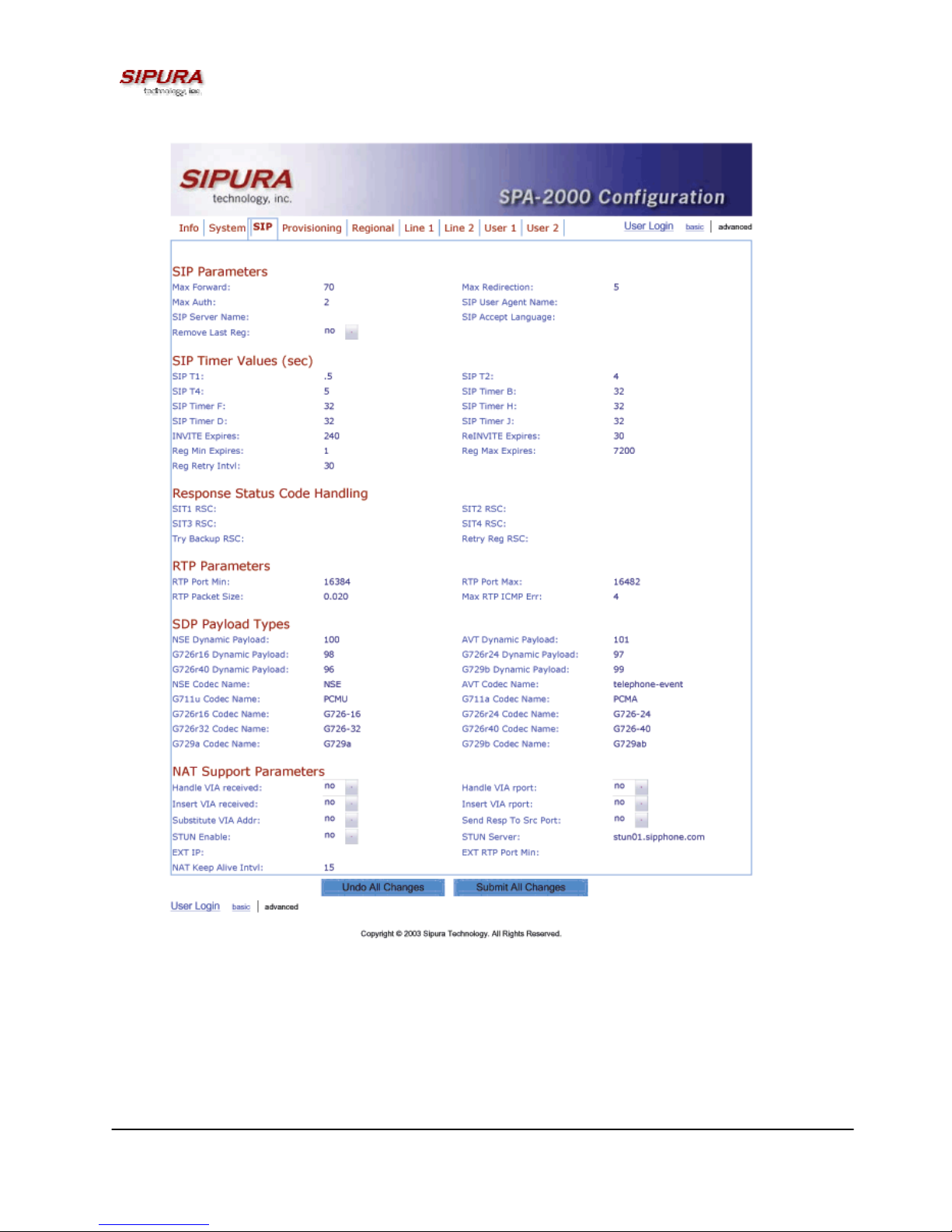

Figure 3 – SPA-2000 SIP Configuration Web Page (Advanced Admin View)

© 2003 Sipura Technology, Inc Proprietary (See Copyright Notice on Page 2)
15
Figure 4 – SPA-2000 Provisioning Configuration Web Page (Advanced Admin View)

© 2003 Sipura Technology, Inc Proprietary (See Copyright Notice on Page 2)
16
Figure 5 – SPA-2000 Regional Configuration Web Page (Advanced Admin View)

© 2003 Sipura Technology, Inc Proprietary (See Copyright Notice on Page 2)
17
Figure 6 – SPA-2000 Line 1 Configuration Web Page (Line 2 Is Identical)

© 2003 Sipura Technology, Inc Proprietary (See Copyright Notice on Page 2)
18
Figure 7 – SPA-2000 User 1 Configuration Web Page (User 2 Is Identical)

© 2003 Sipura Technology, Inc Proprietary (See Copyright Notice on Page 2)
19
3.4. Configuration Parameters
3.4.1. System Parameters
System Configuration
Parameter Name Description Default
Admin Password The password for administrator
User Password The password for User
Enable Web Server Enable/disable web server of SPA
This feature should only be used on firmware version 1.0.9 or later.
Yes
Network Configuration
Parameter Name Description Default
DHCP Enable/Disable DHCP Yes
Host Name Host Name of SPA
Domain Name The network domain of SPA
Static IP Static IP address of SPA, which will take effect if DHCP is
disabled
0.0.0.0
NetMask The NetMask used by SPA when DHCP is disabled 255.255.255.
0
Gateway The default gateway used by SPA when DHCP is disabled 0.0.0.0
Primary DNS DNS server used by SPA in addition to DHCP supplied DNS
servers if DHCP is enabled; when DHCP is disabled, this will
be the primary DNS server.
0.0.0.0
Secondary DNS DNS server used by SPA in addition to DHCP supplied DNS
servers if DHCP is enabled; when DHCP is disabled, this will
be the secondary DNS server.
0.0.0.0
DNS Query Mode Do parallel or sequential DNS Query Parallel
Syslog Server Specify the syslog server name and port. This feature
specifies the server for logging SPA system information and
critical events.
Debug Server The debug server name and port. This feature specifies the
server for logging SPA debug information. The level of
detailed output depends on the debug level parameter
setting.
Debug Level The higher the debug level, the more debug information will
be generated. Zero (0) means no debug information will be
generated.
0
Notes:
-Parallel DNS query mode: SPA-2000 will send the same request to all the DNS servers at the
same time when doing a DNS lookup, the first incoming reply will be accepted by SPA-2000.
-To log SIP messages, Debug Level must be set to at least 2.
-If both Debug Server and Syslog Server are specified, syslog messages are also logged to the
Debug Server.
3.4.2. Provisioning Parameters
Provisioning operations are gated by the Provision_Enable parameter.
Parameter Name Description Default
Provision Enable Master enable for configuration profile resync operations Yes

© 2003 Sipura Technology, Inc Proprietary (See Copyright Notice on Page 2)
20
Resync On Reset Resyncs configuration profile from configuration server
whenever the SPA-2000 resets.
Yes
Resync Random
Delay
Spread interval for resync requests 2
Resync Periodic Resyncs configuration profile periodically after reset. 3600
Resync Error
Retry Delay
Retry interval following resync failure 3600
Resync From SIP Enables resync of configuration profile from a SIP command. Yes
Profile Rule Configuration profile URL script. /spa.cfg
Log Resync
Request Msg
Syslog message generated when attempting a resync
Log Resync
Success Msg
Syslog message generated after a successful resync
Log Resync
Failure Msg
Syslog message generated after a failed resync
GPP A General purpose parameter empty
GPP B General purpose parameter empty
GPP C General purpose parameter empty
GPP D General purpose parameter empty
Note: In a customized SPA-2000, the profile rule would point to a service provider’s server.
3.4.3. Upgrade Parameters
Parameter Name Description Default
Upgrade Enable Master enable for firmware upgrade operations Yes
Upgrade Error
Retry Delay
Retry interval following upgrade failure 3600
Upgrade Rule Upgrade script. empty
Log Upgrade
Request Msg
Syslog message generated when attempting an upgrade
Log Upgrade
Success Msg
Syslog message generated after a successful upgrade
Log Upgrade
Failure Msg
Syslog message generated after a failed upgrade
Note: In a customized SPA-2000, the upgrade rule would point to a service provider’s server.
3.4.4.
Protocol Parameters
Parameter Name Description Default
Max Forward SIP Max-Forward value. Range: 1 – 255 70
Max Redirection Number of times to allow an INVITE to be redirected by a 3xx
response to avoid an infinite loop.
Note: This parameter currently has no effect: there is no limit on number of
redirection.
5
Max Auth Maximum number of times a request may be challenged (0-255) 2
SIP User Agent
Name
User-Agent Header to be used by the unit in outbound requests.
If empty, the header is not included.
Sipura/
$version
SIP Server Name Server Header to used by the unit in responses to inbound
responses. If empty, the header is not included.
Sipura/
$version
