Siqura XSNet 4000 SW User manual

Industrial Ethernet Switch
Quick Start Guide
This quick start guide describes how to install and use the
Industrial Ethernet Switch. Capable of operating at
temperature extremes of -10°C to +60°C, this is the Switch of
choice for harsh environments constrained by space.
Physical Description
The Terminal Block and Power input

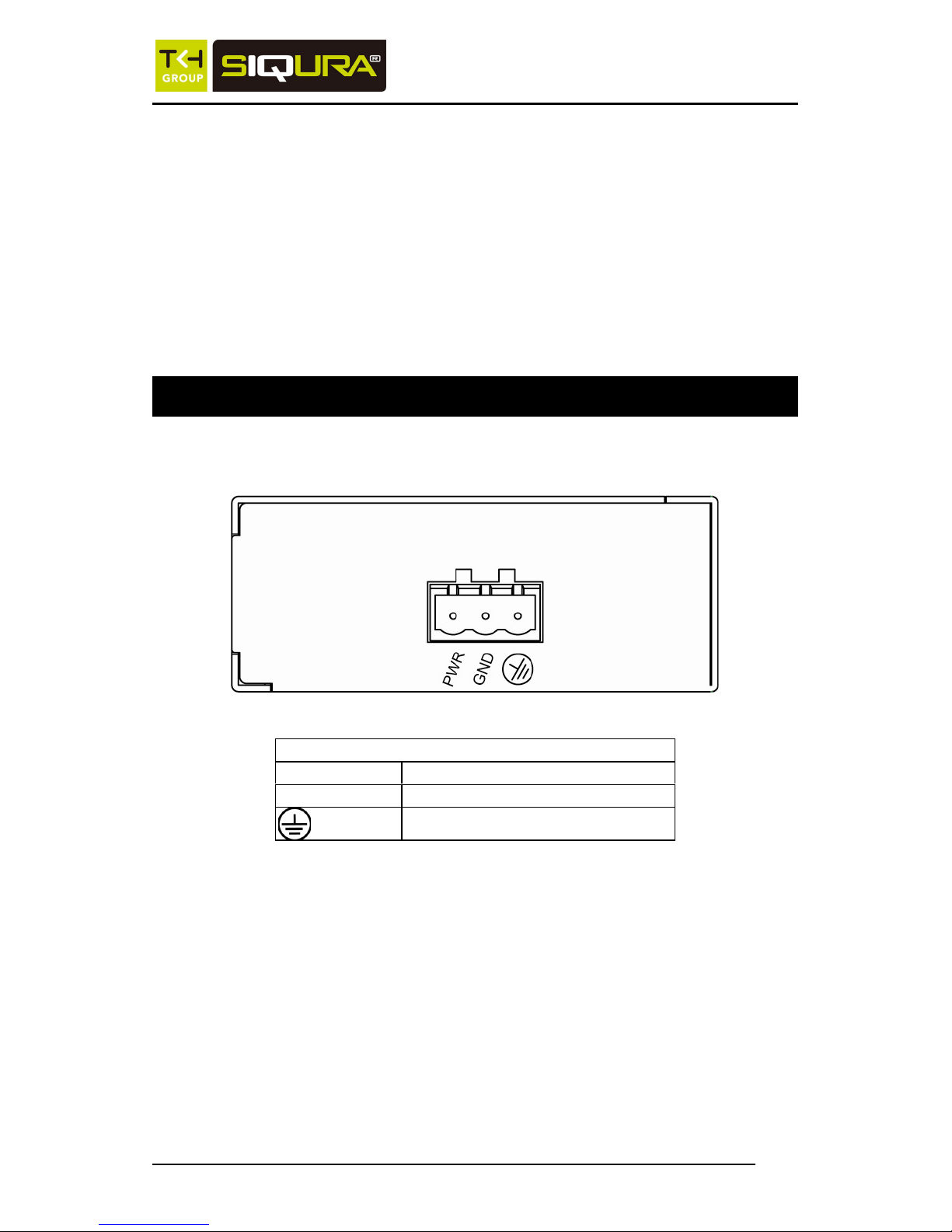

The Terminal Block
PWR Power Input
GND Power Ground
Earth Ground
DC Terminal Block Power Input: The DC Terminal Block
power input can be used to power up this Switch.
The 10/100Base-TX and 100Base-FX/BX Connectors
1. The 10/100Base-TX Connections

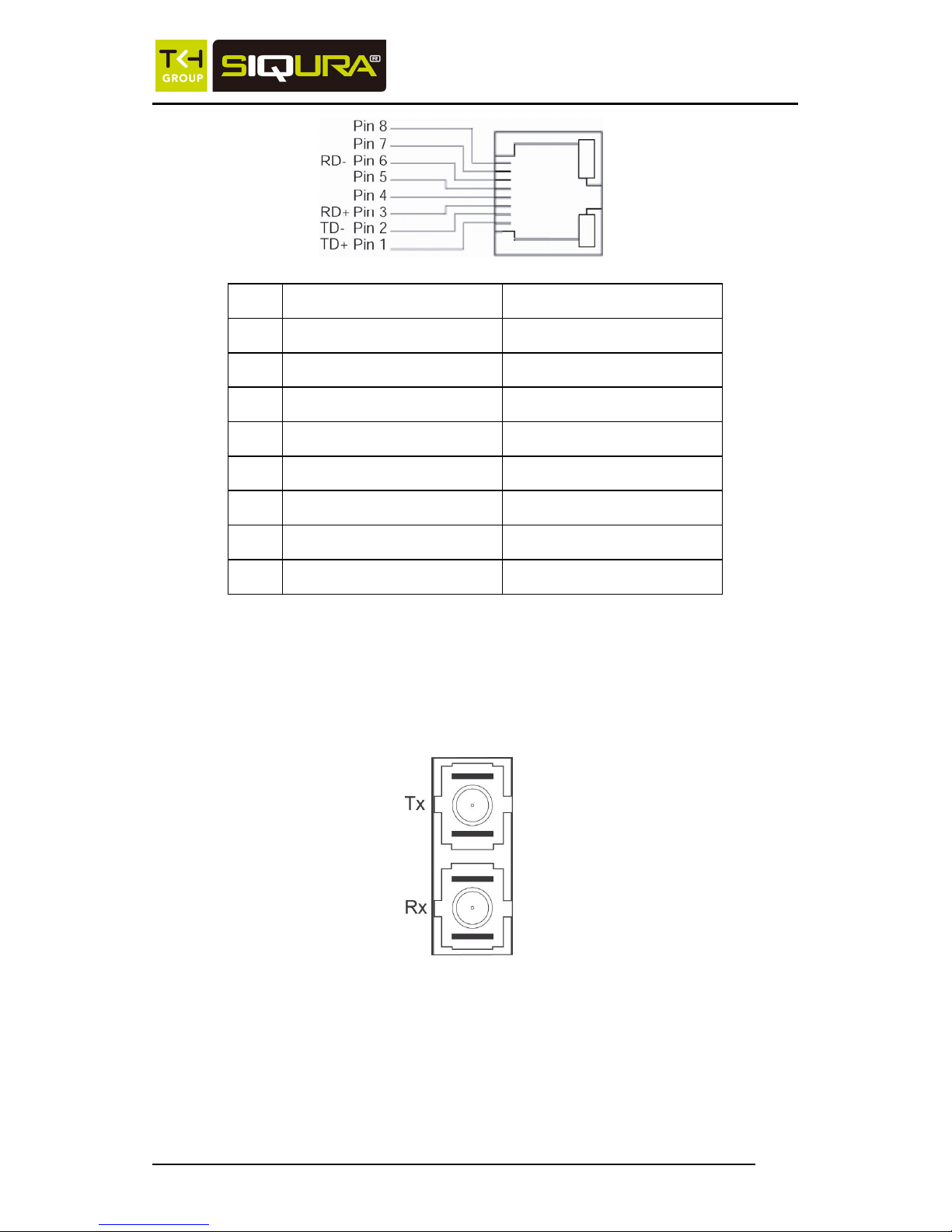

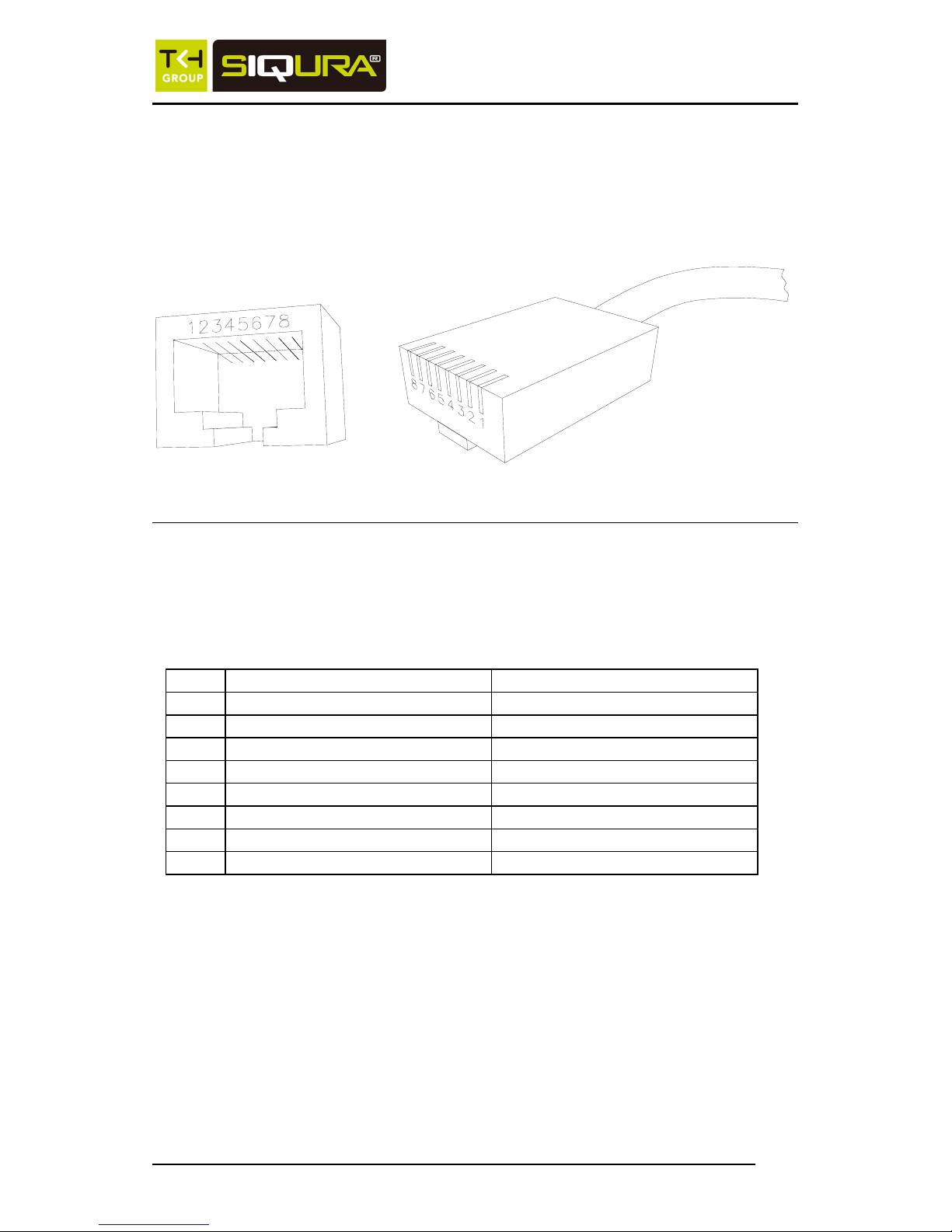

The following lists the pinouts of 10/100Base-TX ports.
1

Industrial Ethernet Switch
Pin Regular Ports Uplink Port
1 Output Transmit Data + Input Receive Data +
2 Output Transmit Data - Input Receive Data -
3 Input Receive Data + Output Transmit Data +
4 NC NC
5 NC NC
6 Input Receive Data - Output Transmit Data -
7 NC NC
8 NC NC
2. The 100Base-FX Connections
The fiber port pinouts: The Tx (transmit) port of device I is
connected to the Rx (receive) port of device II, and the Rx
(receive) port of device I to the Tx (transmit) port of device II.
3. The WDM 100Base-BX Connections
The fiber port pinouts: Only one Single mode or Multi mode
optical fiber is required to transmit and receive data.
2

Industrial Ethernet Switch

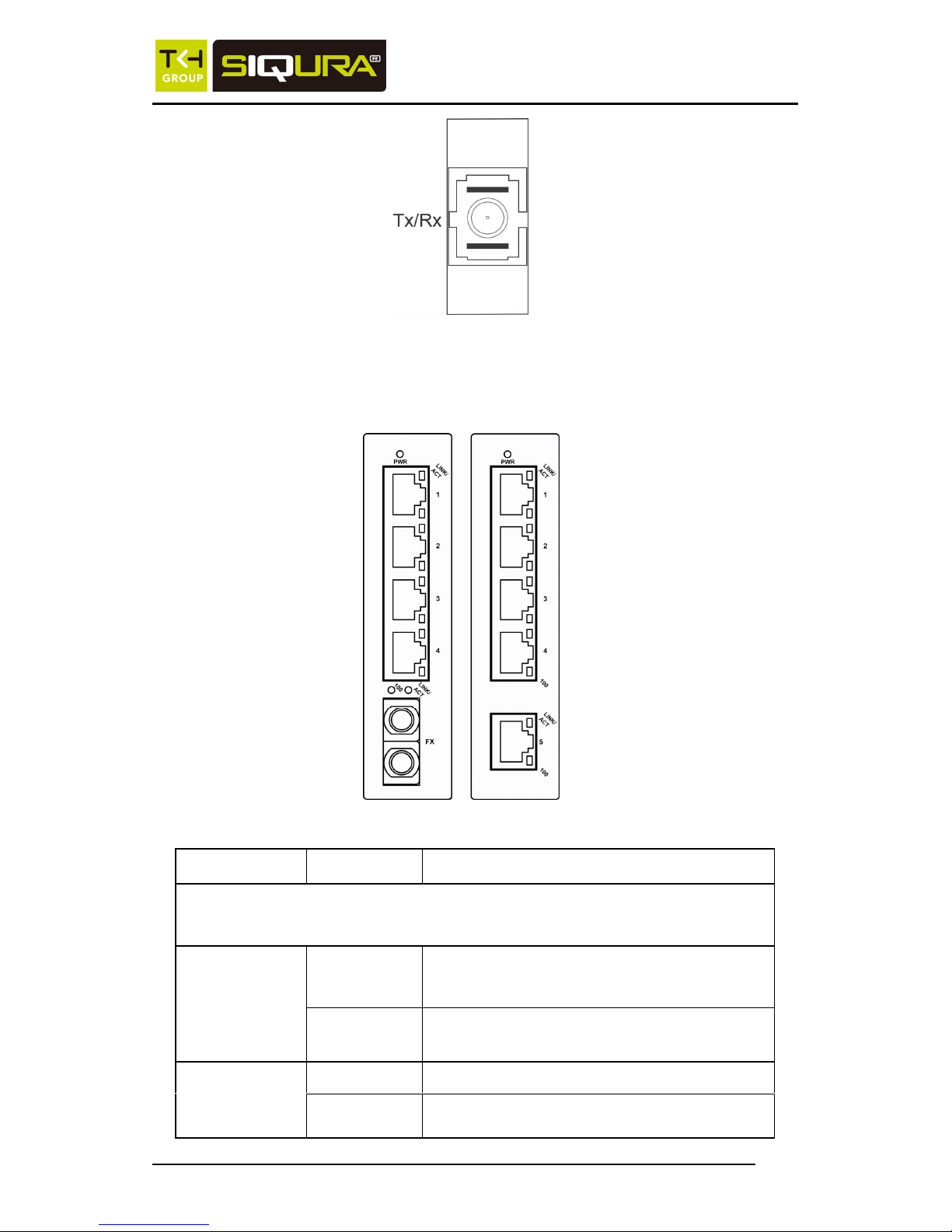

The Port Status LEDs
LED State Indication
10/100TX or 100FX/BX
Steady A valid network connection established.
LINK stands for LINK.
LINK/ACT
Flashing Transmitting or receiving data.
ACT stands for ACTIVITY.
Steady The port is transferring at 100Mbps.
100 Off The port is transferring at 10Mbps If this
LED is dark.
3

Industrial Ethernet Switch
4
Functional Description
yComplies with EN61000-6-2 & EN61000-6-3 EMC
Generic standard immunity for industrial environment.
ySupports 802.3/802.3u/802.3x. Auto-negotiation:
10/100Mbps, Full/Half-duplex. Auto MDI/MDIX.
y100Base-FX: Multi mode/Single mode SC or ST type.
100Base-BX: WDM Multi mode/Single mode SC type.
ySupports 2048 MAC addresses, 384K bits buffer
memory.
yStore-and-forward mechanism.
yFull wire-speed forwarding rate and non-blocking
mechanism.
yBroadcast storm filtering.
yOperating voltage and Max. current consumption: 0.2A
@ 12VDC, 0.1A @ 24VDC, 0.05A @ 48VDC. Power
consumption: 2.4W Max.
yPower Supply: DC Terminal Block power input,
12-48VDC.
yOperating temperature ranges from -10°C to 60°C.
yCompact DIN-Rail industrial case design.
Assembly, Startup, and Dismantling
yAssembly: Place the Switch on the DIN rail from above
using the slot. Push the front of the Switch toward the
mounting surface until it audibly snaps into place.
yStartup: Connect the supply voltage to start up the
Switch via the terminal block.
yDismantling: Pull out the lower edge and then remove
the Switch from the DIN rail.

Industrial Ethernet Switch
5

Industrial Ethernet Switch
6
Preface
A member of the growing family of rugged switches, this
switch addresses a need for a smaller switch. This switch
provides an affordable solution for rugged and outdoor
environment, transportation road-side cabinet, industrial
floor shop, multitenant dwellings or Fiber To The Home
(FTTH) applications. Capable of operating at temperature
extremes of -10°C to +60°C, this is the switch of choice for
harsh environments constrained by space.
Plug-and-Play Solution:
The switch is a plug-and-play Fast Ethernet Switch in
compact size. It doesn't have any complicated software to
set up.
This manual describes how to install and use the hardened
compact Ethernet Switch. This switch integrates full wire
speed switching technology. This switch brings the answer
to complicated hardened networking environments.
To get the most out of this manual, you should have an
understanding of Ethernet networking concepts.
In this manual, you will find:
yFeatures on the switch
yIllustrative LED functions
yInstallation instructions
ySpecifications

Industrial Ethernet Switch
7
Table of Contents
QUICK START GUIDE 1
PHYSICAL DESCRIPTION 1
The Terminal Block and Power input 1
The 10/100Base-TX and 100Base-FX/BX Connectors 1
The Port Status LEDs 3
FUNCTIONAL DESCRIPTION 4
ASSEMBLY,STARTUP,AND DISMANTLING 4
PREFACE 6
TABLE OF CONTENTS 7
PRODUCT OVERVIEW 8
HARDENED ETHERNET SWITCH 8
PACKAGE CONTENTS 8
PRODUCT HIGHLIGHTS 9
Basic Features 9
FRONT PANEL DISPLAY 10
PHYSICAL PORTS 11
INSTALLATION 12
SELECTING A SITE FOR THE SWITCH 12
DIN RAIL MOUNTING 13
CONNECTING TO POWER 14
DC Terminal Block Power Inputs 14
CONNECTING TO YOUR NETWORK 15
Cable Type & Length 15
Cabling 16
SPECIFICATIONS 17
APPENDIX A–CONNECTOR PINOUTS 19

Industrial Ethernet Switch
Product Overview
Hardened Ethernet Switch
Package Contents
When you unpack the product package, you shall find the
items listed below. Please inspect the contents, and report
any apparent damage or missing items immediately to your
authorized reseller.
3This Switch
3User’s Manual
8

Industrial Ethernet Switch
9
Product Highlights
Basic Features
yComplies with EN61000-6-2 & EN61000-6-3 EMC
Generic standard immunity for industrial environment.
ySupports 802.3/802.3u/802.3x. Auto-negotiation:
10/100Mbps, Full/Half-duplex. Auto MDI/MDIX.
y100Base-FX: Multi mode/Single mode SC or ST type.
100Base-BX: WDM Multi mode/Single mode SC type.
ySupports 2048 MAC addresses, 384K bits buffer
memory.
yStore-and-forward mechanism.
yFull wire-speed forwarding rate and non-blocking
mechanism.
yBroadcast storm filtering.
yOperating voltage and Max. current consumption: 0.2A
@ 12VDC, 0.1A @ 24VDC, 0.05A @ 48VDC. Power
consumption: 2.4W Max.
yPower Supply: DC Terminal Block power input,
12-48VDC.
yOperating temperature ranges from -10°C to 60°C.
yCompact DIN-Rail industrial case design.

Industrial Ethernet Switch

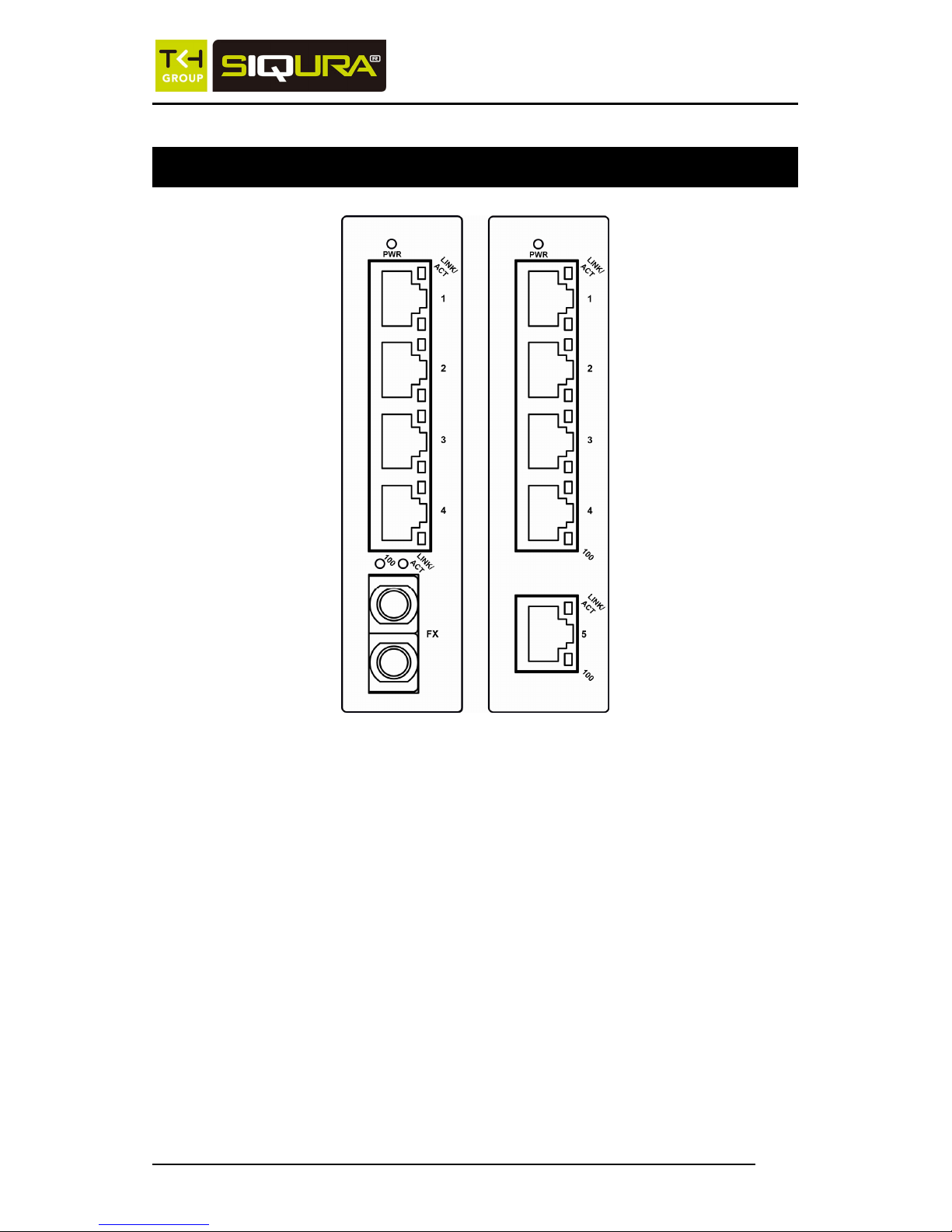

Front Panel Display
cPower Status (PWR)
This LED comes on when the switch is properly connected to power and
turned on.
dPort Status LEDs
The LEDs display status for each respective port.
10

Industrial Ethernet Switch
11
LED State Indication
10/100TX or 100FX/BX
Steady A valid network connection established.
LINK stands for LINK.
LINK/ACT
(Green) Flashing Transmitting or receiving data.
ACT stands for ACTIVITY.
Steady Light solid yellow for a port transferring
at 100Mbps.
100
(Yellow) Off The port is transferring at 10Mbps If this
LED is dark.
Physical Ports
This switch provides:
•Five 10/100Base-TX ports
•Four 10/100Base-TX ports + one 100Base-FX/BX port
Connectivity
yRJ-45 connectors
ySC or ST connector on 100Base-FX fiber port
ySC connector on 100Base-BX fiber port

Industrial Ethernet Switch
12
Installation
This chapter gives step-by-step instructions about how to
install the switch.
Selecting a Site for the Switch
As with any electric device, you should place the switch
where it will not be subjected to extreme temperatures,
humidity, or electromagnetic interference. Specifically, the
site you select should meet the following requirements:
- The ambient temperature should be between -10 to 60
degrees Celsius.
- The relative humidity should be less than 95 percent,
non-condensing.
- Surrounding electrical devices should not exceed the
electromagnetic field (RFC) standards.
- Make sure that the switch receives adequate ventilation.
Do not block the ventilation holes on each side of the
switch
- The power outlet should be within 1.8 meters of the
switch.

Industrial Ethernet Switch

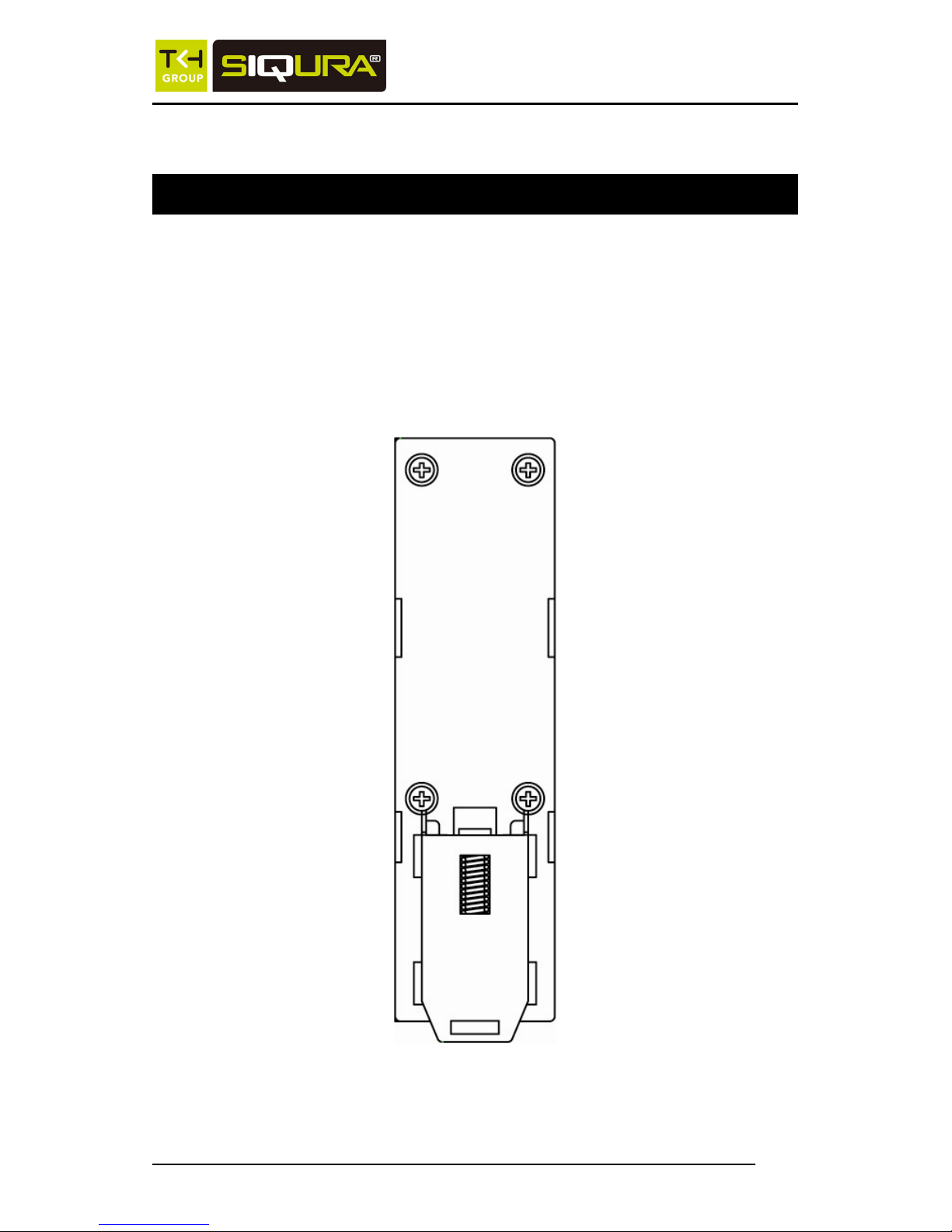

DIN Rail Mounting

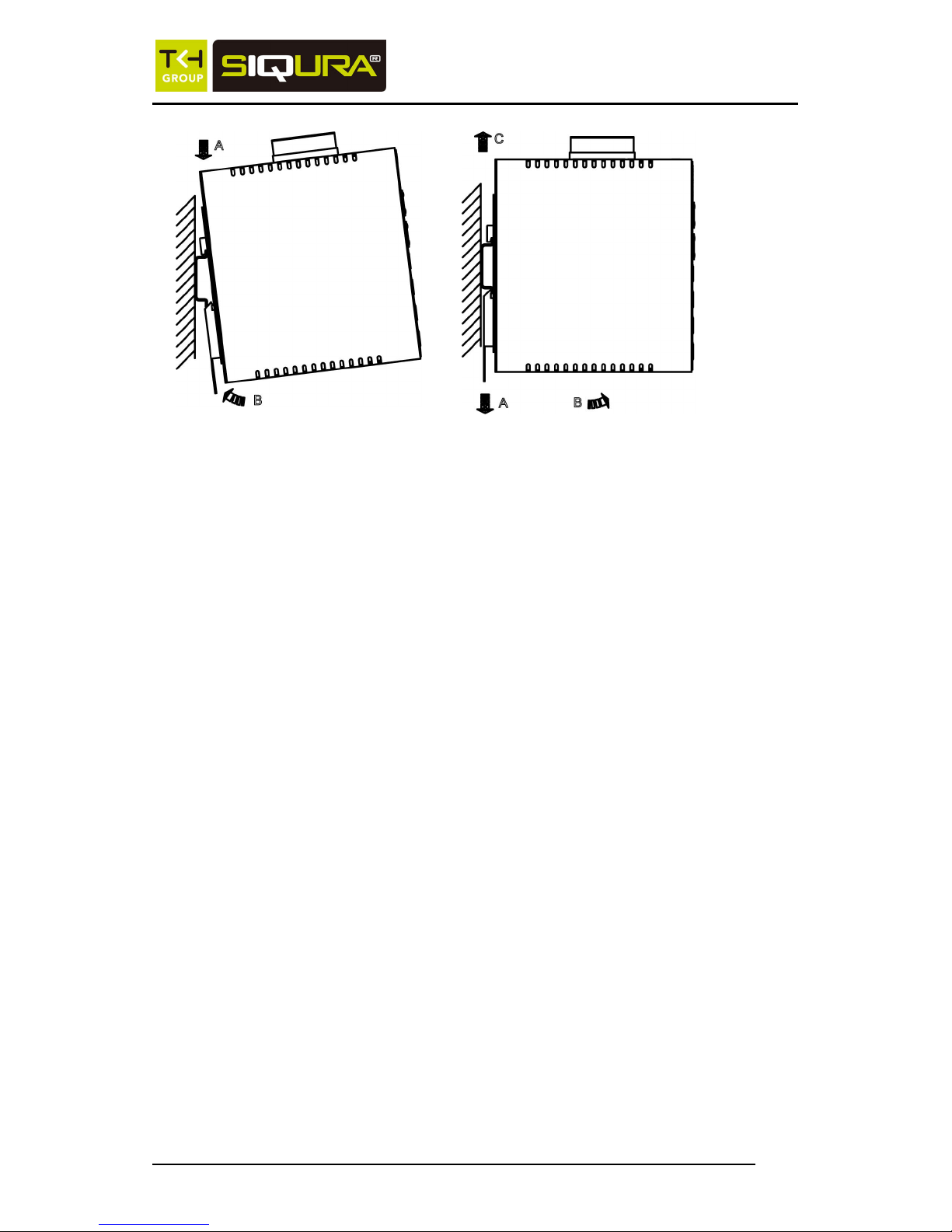

Installation: Place the switch on the DIN rail from above using
the slot. Push the front of the switch toward the mounting
surface until it audibly snaps into place.
Removal: Pull out the lower edge and then remove the switch
from the DIN rail.
13

Industrial Ethernet Switch
Connecting to Power
DC Terminal Block Power Inputs
Step 1: Connect the DC power cord to the plug-able terminal block on the
switch, and then plug it into a standard DC outlet.
Step 2: Disconnect the power cord if you want to shut down the switch.
The Terminal Block
PWR Power Input
GND Power Ground
Earth Ground
14

Industrial Ethernet Switch
15
Connecting to Your Network
Cable Type & Length
It is necessary to follow the cable specifications below
when connecting the switch to your network. Use
appropriate cables that meet your speed and cabling
requirements.
Cable S ecificationsp
Speed Connector Port Speed
Half/Full
Duplex
Cable Max.
Distance
10Base-T RJ-45 10/20 Mbps 2-pair
UTP/STP
Cat. 3, 4, 5
100 m
100Base-TX RJ-45 100/200 Mbps 2-pair
UTP/STP
Cat. 5
100 m
100Base-FX SC, ST 100/200 Mbps MMF (50 or
62.5μm)
2 km
100Base-FX SC, ST 100/200 Mbps SMF (9 or
10μm)
15, 40, or 75
km
100Base-BX SC 100/200 Mbps MMF (50 or
62.5μm)
2 or 5 km
100Base-BX SC 100/200 Mbps SMF (9 or
10μm)
20 or 40 km

Industrial Ethernet Switch
16
Cabling
Step 1: First, ensure the power of the switch and end devices are turned off.
<Note> Always ensure that the power is off before any installation.
Step 2: Prepare cable with corresponding connectors for each type of port
in use.
<Note> To connect two regular RJ-45 ports between switches or hubs, you need a
straight or cross-over cable.
Step 3: Consult the previous section for cabling requirements based on
connectors and speed.
Step 4: Connect one end of the cable to the switch and the other end to a
desired device.
Step 5: Once the connections between two end devices are made
successfully, turn on the power and the switch is operational.

Industrial Ethernet Switch
17
Specifications
Hardened Compact
Switch
10/100Base-TX auto-negotiating ports with
RJ-45 connectors, 100Base-FX/BX fiber ports
Applicable
Standards
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX/FX
Switching Method Store-and-Forward
Forwarding Rate
10Base-T:
100Base-TX/FX/BX:
10 / 20Mbps half / full-duplex
100 / 200Mbps half / full-duplex
Performance 14,880pps for 10Mbps
148,810pps for 100Mbps
Cable
10Base-T:
100Base-TX:
100Base-FX/BX:
2-pair UTP/STP Cat. 3, 4, 5
2-pair UTP/STP Cat. 5
Up to 100m (328ft)
MMF (50 or 62.5μm), SMF (9 or10μm)
LED Indicators Per unit – Power status (PWR)
Per port – 10/100TX or 100FX -
LINK/ACT (Green), 100 (Yellow)
Dimensions 30mm (W) × 75mm (D) × 110mm (H)
(1.18” (W) × 2.95” (D) × 4.33” (H))
Net Weight 0.32Kg (0.7lb.)
Power Terminal Block: 12-48VDC
Operating Voltage &
Max. Current
Consumption
0.2A @ 12VDC, 0.1A @ 24VDC, 0.05A @
48VDC
Power Consumption 2.4W Max.
Operating
Temperature -10°C to 60°C (14°F to 140°F)
Storage Temperature -25°C to 85°C (-13°F to 185°F)
Humidity 5%-95% non-condensing
Safety UL60950-1, EN60950-1, IEC60950-1
EMI FCC Part 15, Class A
EN61000-6-3:
EN55022, EN61000-3-2, EN61000-3-3

Industrial Ethernet Switch
18
EMS EN61000-6-2:
EN61000-4-2 (ESD Standard)
EN61000-4-3 (Radiated RFI Standards)
EN61000-4-4 (Burst Standards)
EN61000-4-5 (Surge Standards)
EN61000-4-6 (Induced RFI Standards)
EN61000-4-8 (Magnetic Field Standards)
Environmental Test
Compliance IEC60068-2-6 Fc (Vibration Resistance) IEC60068-2-27 Ea (Shock)
IEC60068-2-32 Ed (Free Fall)

Industrial Ethernet Switch
Appendix A – Connector Pinouts
Pin arrangement of RJ-45 connectors:
RJ-45 Connector and Cable Pins
The following table lists the pinout of 10/100Base-TX ports.
Pin Regular Ports Uplink port
1 Output Transmit Data + Input Receive Data +
2 Output Transmit Data - Input Receive Data -
3 Input Receive Data + Output Transmit Data +
4 NC NC
5 NC NC
6 Input Receive Data - Output Transmit Data -
7 NC NC
8 NC NC
19
