Using a Siretta GNSS Modem to test the performance of a
GPS Antenna
This Application Note is designed for customers who are looking to test their GPS antenna
performance using a Siretta GNSS Modem.
Requirements
Siretta GNSS Modem such as the ZETA-G-UMTS or ZETA-G-GPRS (For this guide the
ZETA-G-GPRS was used - ZETA-G-UMTS)
ZETA Quick Start Guide (QSG) - ZETA quick Start Guide
PC with Tera Term Version 4.96 (Tera Term can be downloaded from the following link -
Teraterm Link). Teraterm is freeware.
PC with VisualGPSView (VisualGPSView is a free software application, it can be
downloaded from the following Visual GPS Link for Windows 7 to Window 10)
RS232 to USB cable (it comes with the ZETA starter kit - Siretta Part Number: 60793).
GPS antenna to be tested (For this Guide the Mike 3A with SMA Male connector was
used - Mike 3A Link)
Procedure for testing GPS antenna performance
1. Connect ZETA-G-GPRS (or any other Siretta GNSS modem) Modem to the PC using USB to
RS232 cable supplied by Siretta.
2. Power on the Modem (refer to the modem Quick start guide)
3. Open TeraTerm window from the PC connected to the modem
4. Select Serial and you should see “Prolific-to-Serial com port” as shown below.
5. Open setup tab on the tera term then select serial port, you will be presented with the
screenshot below.
6. Enter the following parameters:
Bits per second: 115200
Data bits: 8
Parity: None
Stop bits: 1
Flow control: none
Siretta Limited - Enabling Industrial IoT https://www.siretta.com | [phone] | [email protected]

7. Click OK, the Tera Term window will open where you can type AT command.
8. Send the commands shown below:
//Check Modem is responding to AT commands
AT (You will receive OK)
//Turn on GNSS engine inside the modem
AT$GPSP=1 (You will receive OK)
//Turn on NMEA data stream
AT$GPSNMUN=3,1,1,1,1,1,1 (You will receive CONNECT)
After this command the NMEA GPS data strings will appear as shown below.
Siretta Limited - Enabling Industrial IoT https://www.siretta.com | [phone] | [email protected]

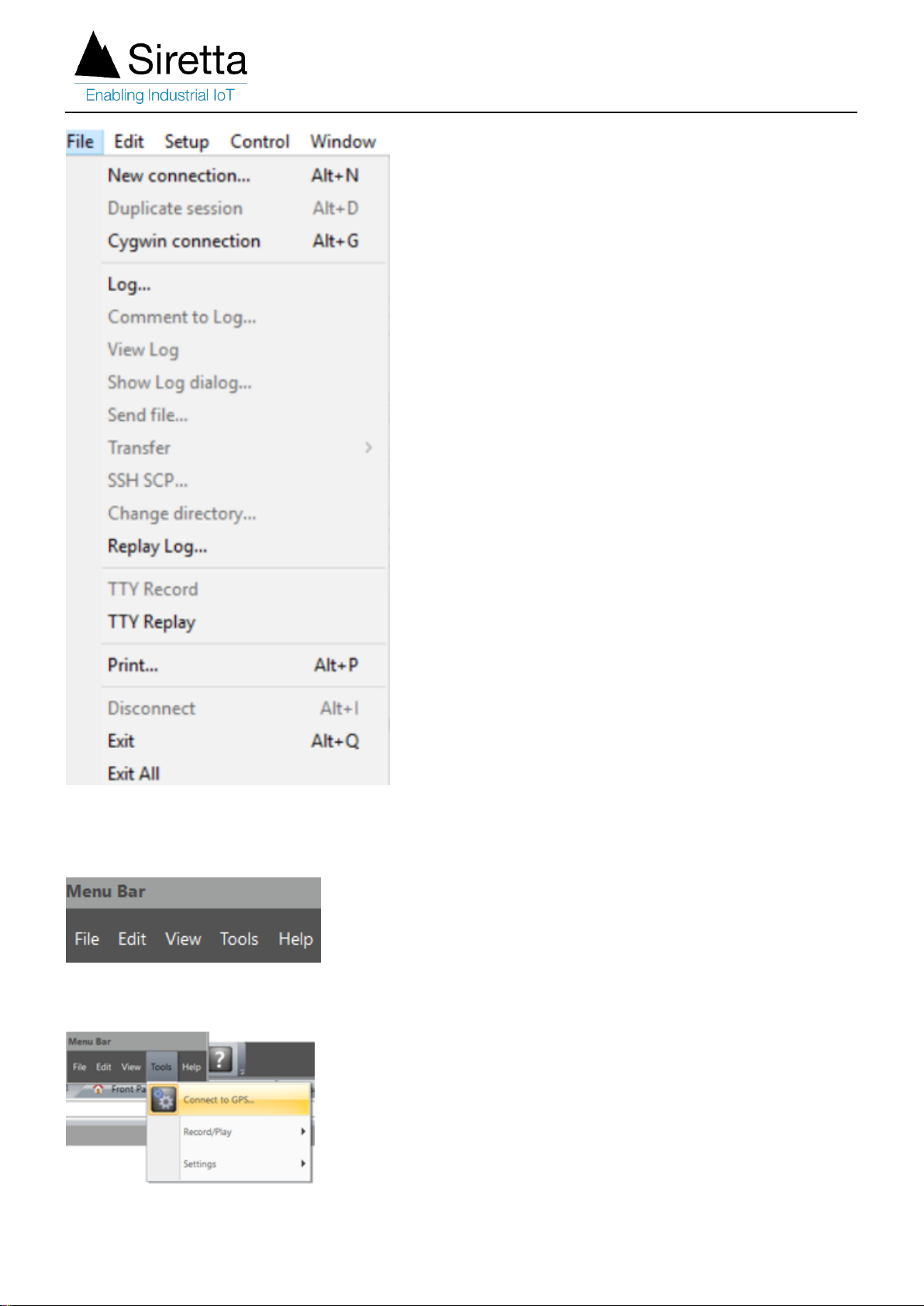

9. Click file tab on the Tera Term window, select disconnect as seen below.
Siretta Limited - Enabling Industrial IoT https://www.siretta.com | [phone] | [email protected]

10. Once disconnected from the Tera Term, Open Visual GPS View from the same PC
connected with the modem and you will find Menu Bar as seen below.
11. Navigate to the tool then select “Connect to GPS“ option as shown below.

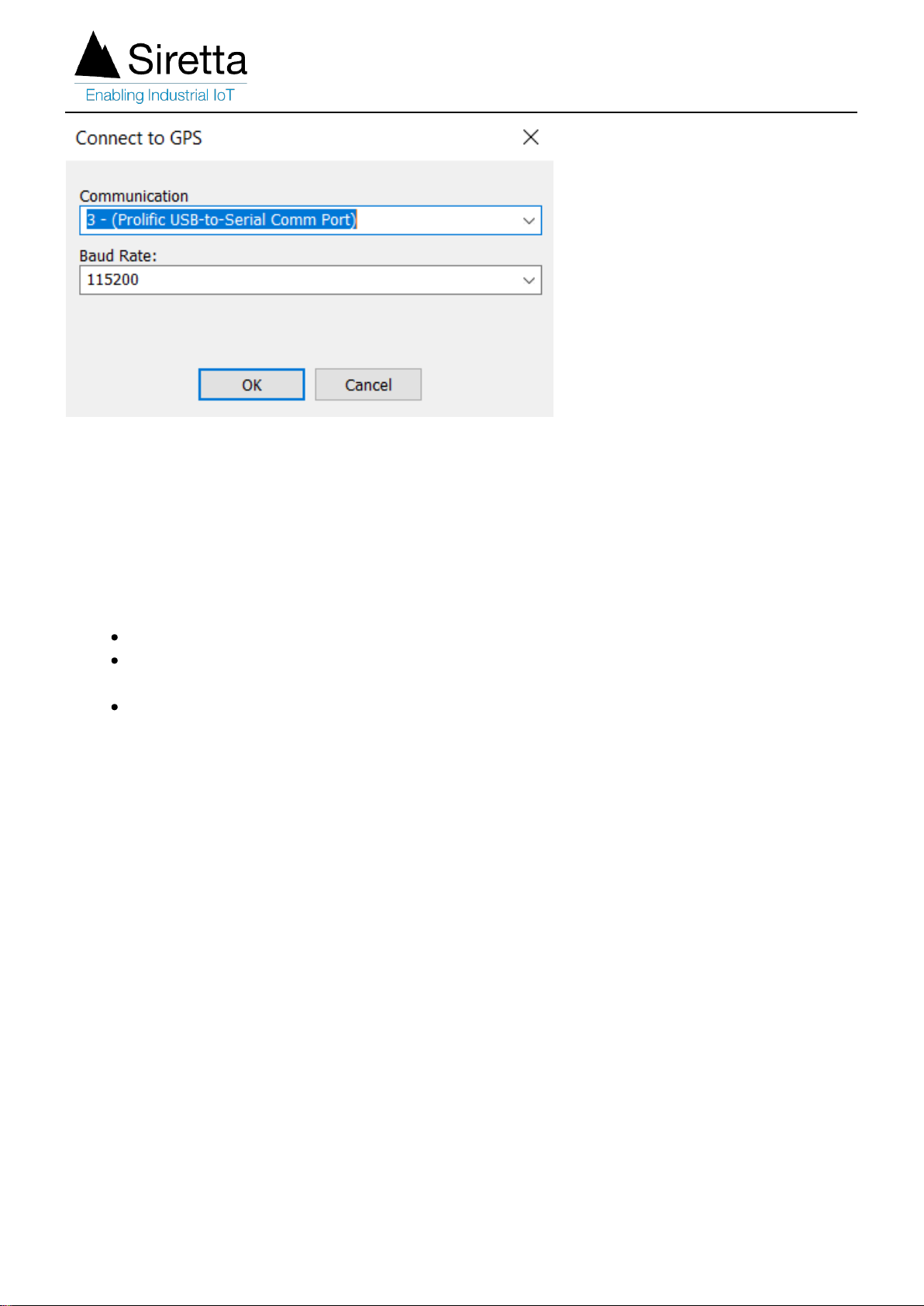

12. Pop up screen below will appear, select com port 3 and enter the baud rate of 115200 then
click OK.
Siretta Limited - Enabling Industrial IoT https://www.siretta.com | [phone] | [email protected]

The setting now is complete.
13. Connect the GPS antenna (for this guide Mike 3a) to be tested to the modem GPS
connector then click “Front Panel Status” from the VisualGPSView where you will be presented
with results shown below.
NOTE:
GPS reception is affected by line of sight to the satellite
You should adjust the GPS antenna position to find best reception which will ideally be
outside or close to a window
If comparing antennas, you should therefore always place the antennas under test in
exactly the same location every time to ensure a fair comparison

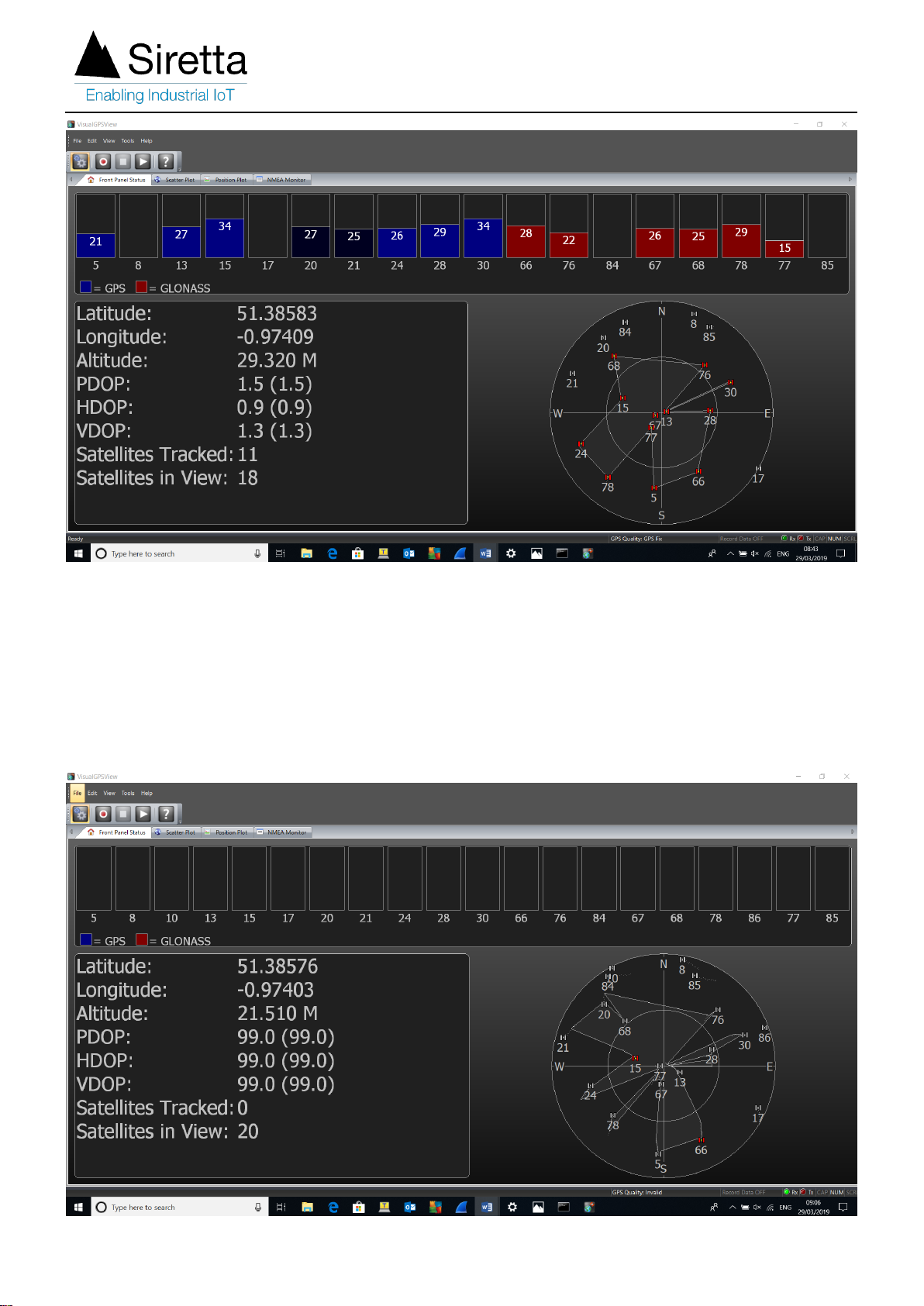

Excellent Performance
Figure 1
Siretta Limited - Enabling Industrial IoT https://www.siretta.com | [phone] | [email protected]

Disconnect the GPS antenna (for this guide Mike 3A) from the modem GPS connector then click
“Front Panel Status” from the VisualGPSView where you will be presented with below results
which show poor performance.
Poor Performance
Figure 2
Siretta Limited - Enabling Industrial IoT https://www.siretta.com | [phone] | [email protected]

14. Results from VisualGPSview can be analysed by observing the GPS Quality entry as below:
GPS Quality: Invalid meaning that Poor GPS antenna performance or GPS antenna is
not connected to the Modem or GPS antenna Faulty (see figure 2 above)
GPS Quality: GPS Fix meaning that Good GPS antenna Performance (GPS fix is the
locational information that the GPS system provides for a specific point see figure 1)
NOTE:
OP (Dilution Of Precision) is an indicator of how accurate the GPS signal results are
A low DOP value (0.9 – 99) means an accurate GPS signal result (see Figure 1),
whereas a high value of DOP means an inaccurate GPS result (see figure 2)
If two antennas give the same GPS results, the antenna with a lower DOP value is more
accurate than an antenna with a higher DOP value
Definition of terms used in VisualGPSview
GPS - Global Positioning System.
GLONASS - GLObal NAvigation Satellite System.
LATITUDE - is a geographic coordinate that specifies the north to south position of a point on
the Earth's surface.
LONGITUDE - is a geographic coordinate that specifies the east to west position of a point on
the Earth's surface
DOP- Dilution of Precision or GDOP Geometric Dilution of Precision is a term used in GPS and
geomatics engineering to specify the error propagation as a mathematical effect of navigation
satellite topology on positional measurement precision.
PDOP - Position (3D) dilution of precision
HDOP - Horizontal dilution of precision.
VDOP - Vertical dilution of precision
Satellites Tracked - Satellites Tracked by receiver
Satellites in View – Total satellite in View
GPS Quality – GPS Fix (Good antenna performance) / Invalid (Poor antenna performance/
antenna not connected / Faulty antenna).
Scatter Plot - The scatter plot shows individual position samples referenced to several type of
reference types, next sample, average or user defined
Signal Quality/SNR Window - Monitor satellite signal to noise ratios and see them graphically on
the screen. The signal quality window will grow or shrink to accommodate number of satellites in
view
More information about modems can be found from https://www.siretta.com/products/industrial-
modems/
More information about GPS and GNSS antennas can be found from
https://www.siretta.com/products/antennas/antenna-selector/
Any queries please contact [email protected]
