Sirius Satellite Radio Starmate 3 Operation manual

S
tarmate
Installation & User Guide
Satellite Radio Plug & Play

Congratulations on the Purchase of your new SIRIUS Starmate 3
Plug-n-Play Radio
Your new SIRIUS Starmate 3 Plug-n-Play Radio lets you enjoy SIRIUS®Satellite Radio’s
digital entertainment anywhere you’ve installed the SUPH1 SIRIUS Universal Plug and Play
Home Kit, SUPV1 SIRIUS Universal Plug and Play Vehicle Kit, or the SUBX1 SIRIUS Plug and
Play Universal Boombox (each sold separately). Use this manual to familiarize yourself with all
of SIRIUS Starmate 3 features and capabilities. For the latest information about this and other
SIRIUS Starmate products and accessories, visit http://www.sirius.com.

[Table of Contents ]
2
Table of Contents
TABLE OF CONTENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
WARNING AND SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . 4
FCC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Canadian Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
General Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
COPYRIGHTS & TRADEMARKS . . . . . . . . . . . . . . . . . . . . . . . . . 8
PACKAGE CONTENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Installing the Vehicle Dock . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Installing the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Connecting the Cigarette Lighter Adapter . . . . . . . . . . . . . . . . . . . . . 21
Docking the SIRIUS Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Maximizing Audio Quality From Your SIRIUS Radio. . . . . . . . . . . . . . . . . . 23
Wireless Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Direct Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Subscribing to the SIRIUS Service . . . . . . . . . . . . . . . . . . . . . . . . 38
CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
SIRIUS Starmate 3 Reference Guide . . . . . . . . . . . . . . . . . . . . . . . 40
Remote Control Reference Guide. . . . . . . . . . . . . . . . . . . . . . . . . 42
Vehicle Dock Reference Guide . . . . . . . . . . . . . . . . . . . . . . . . . . 44
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Display Screen Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Changing Channels and Categories. . . . . . . . . . . . . . . . . . . . . . . . 46
Display Button (DISP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Selecting Channels Directly . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Channel Presets (BAND) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Memory (MEMO) and Song Seek (S-Seek) Functions. . . . . . . . . . . . . . . . . 52
Jump Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Game Alert. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
FM Preset Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

[Table of Contents ] 3
MENU OPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Sirius ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
FM Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Game Alert. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Jump Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Display Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Memory Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Audio Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Confirmation Tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Parental Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Time Based Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Signal Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Factory Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
OPTIONAL ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
SIRIUS ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

[Warning and Safety Information ]
4
Warning and Safety Information
FCC Information
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
This device may not cause harmful interference, and
This device must accept any interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the limits for
a CLASS B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful inter-
ference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
1.
2.
3.
4.
WARNING
Changes or modifications not expressly approved by the manufacturer could void the user’s
authority to operate the equipment.
1.
2.

[Warning and Safety Information ] 5
Canadian Compliance
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
General Precautions
Liquid Crystal Precautions
If the LCD screen on the radio is damaged, do not to touch the liquid crystal fluid. If any of the
following situations happen, take the action indicated:
If the liquid crystal fluid comes in contact with your skin, wipe the skin area with a cloth
and then wash the skin thoroughly with soap and running water.
If the liquid crystal fluid gets into your eye, flush the eye with clean water for at least 15
minutes. Seek medical care.
If the liquid crystal fluid is ingested, flush your mouth thoroughly with water. Drink large
quantities of water and induce vomiting. Seek medical care.
Safety Precautions
Be sure to observe the following warnings. Failure to follow these safety instructions and
warnings may result in a serious accident.
Do not operate the radio in a way that might divert your attention from driving safely. As a
driver, you alone are responsible for safely operating your vehicle in accordance with traf-
fic safety laws at all times.
Do not install the radio where it may obstruct your view through the windshield, or of your
vehicle’s indicator displays.
Do not install the radio where it may hinder the function of safety devices such as an
airbag. Doing so may prevent the airbag from functioning properly in the event of an ac-
cident.
Be sure the radio and accessories are installed as described in the installation instructions
which accompany each accessory kit. SIRIUS Satellite Radio is not responsible for issues
arising from installations which were not installed according to the instructions.
1.
2.
3.
•
•
•
•

[Warning and Safety Information ]
6
To avoid short circuits, do not open the radio or accessories, and never put or leave any
metallic objects (coins, tools, etc.) inside the radio.
If the radio or accessories emits smoke or unusual odors, turn the power off immediately,
and disconnect the radio from any power source.
Do not drop the radio or subject it to strong shocks.
If the radio doesn’t seem to be working properly, turn the radio off, wait 10 seconds,
replace the battery and then turn it on again.
The installation and use suggestions contained in this manual are subject to any restric-
tions or limitations that may be imposed by applicable law. The purchaser should check
applicable law for any restrictions or limitations before installing and/or operating this unit.
Do not install the FM Extender Antenna where it will hinder or block your view. In some
states it may be illegal to mount it on the windshield of your vehicle. Check applicable
law for any restrictions or limitations before installing the FM Extender Antenna on your
windshield.
Do not install the FM Extender Antenna where it may hinder the function of safety devices
such as an airbag. Doing so may prevent the airbag from functioning properly in the event
of an accident.
Warnings
Notice To Drivers In California and Minnesota
State law prohibits drivers in California and Minnesota from using suction mounts on their
windshields while operating motor vehicles. Other dashboard or friction mounting options
should be used. SIRIUS does not take any responsibility for any fines, penalties, or damages
that may be incurred as a result of disregarding this notice. (See California Vehicle Code Sec-
tion 26708(a); Minnesota Statutes 2005, Section 169.71)
Operating Temperature
The radio is designed to operate between -20° to +85° C (-4° to +185° F). Avoid leaving the
radio in a vehicle or elsewhere where the temperature may fall outside this range. Extreme
temperatures or extreme temperature fluctuations can degrade the performance of the LCD
display screen, and possibly damage it.
•
•
•
•
•
•
•

[Warning and Safety Information ] 7
Cleaning and Maintenance
If the radio or accessories become dirty, turn the power off and wipe it clean with a soft cloth.
Do not use hard cloths, strong cleaning fluids, paint thinner, alcohol, or other volatile solvents
to clean. These may cause damage to the radio.
Cigarette Lighter Adapter
The SUPV1 vehicle dock cannot be powered directly from a vehicle’s 12 VDC power system.
It must be powered using the included Cigarette Lighter Adapter only. Connecting the SUPV1
directly to the vehicle’s 12 VDC power system may result in damage to the vehicle dock or
SIRIUS radio, or both.

[Copyrights & Trademarks ]
8
Copyrights & Trademarks
© 2007 SIRIUS Satellite Radio Inc. All Rights Reserved.
® “SIRIUS”, the SIRIUS dog logo, channel names and logos are trademarks of SIRIUS
Satellite Radio Inc. “NFL” and the NFL Shield logo, and the NFL Sunday Drive name and logo
are registered trademarks of the National Football League. “NHL” and the NHL Shield are
registered trademarks of the National Hockey League. “NBA” and the NBA silhouette logo are
registered trademarks of NBA Properties Inc. All other trademarks, service marks, sports team
names, album art, and logos are the property of their respective owners. All Rights Reserved.
™“Starmate” is a trademark of SIRIUS Satellite Radio.
Portions of the software on this radio are licensed under the eCos License. Distribution of
eCos requires that the eCos source code be made available to Sirius Satellite Radio custom-
ers. The eCos License and eCos source code are available to the public at http://www.sirius.
com/ecoslicense.
Sirius Satellite Radio reserves all rights to all radio software not covered under the eCos
license. This includes all portions of radio software that were not distributed to Sirius as part
of the eCos operating system.
Hardware, subscription and activation fee required. For full Terms & Conditions, visit
http://sirius.com. Prices and programming are subject to change. Not available in HI and AK.
Equipment and subscription sold separately. Installation required with some equipment.

[Package Contents ] 9

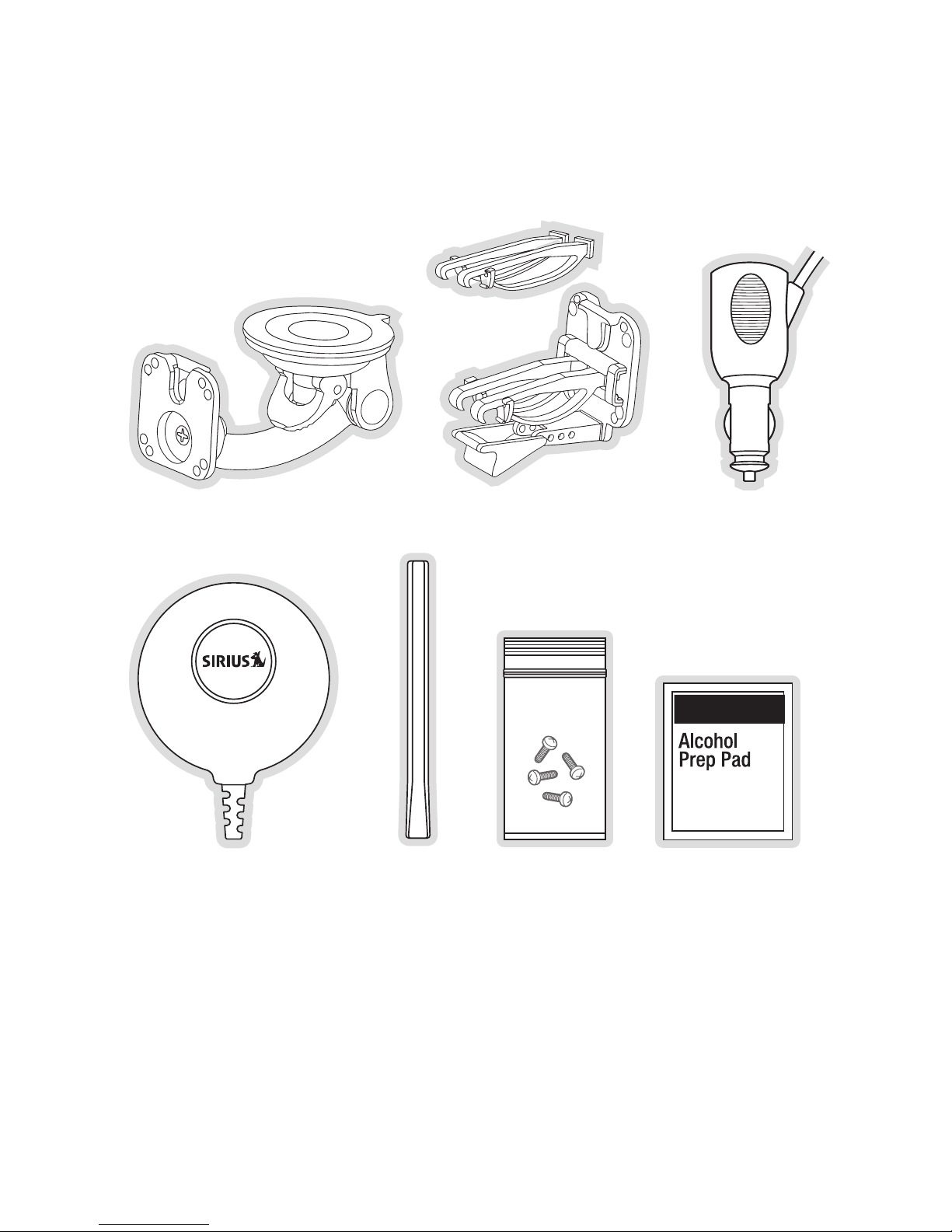

Package Contents
The following items are included with your purchase of the SIRIUS Starmate 3 radio:
MUTE
CATEGORY
MENU
BAND MEMO
+
1 2 3
4 5 6
7 8
0
9
DISP
1
MENU
2 3 4 5 6 7 8 9 0
147147 RoadDog TruckingRoadDog Trucking
Charlie DanielsCharlie Daniels
Road DogsRoad Dogs
Entrtain 12:00P Entrtain 12:00P A2A2
DISP MEMO
BAND
Starmate 3 RadioStarmate 3 Radio Remote
Control
Remote
Control
Vehicle DockVehicle Dock Vehicle Dock AdapterVehicle Dock Adapter

[Package Contents ]
10
Suction Cup MountSuction Cup Mount Vent Mount &
Extended Vent Hooks
Vent Mount &
Extended Vent Hooks
Cigarette Lighter
Adapter
Cigarette Lighter
Adapter
Magnetic AntennaMagnetic Antenna Antenna
Cover/Tail
Antenna
Cover/Tail
Mounting ScrewsMounting Screws Alcohol SwabAlcohol Swab

[Package Contents ] 11
Unpack your SIRIUS Starmate 3 radio carefully and make sure that everything shown is pres-
ent. If anything is missing or damaged, or if your SIRIUS Starmate 3 radio fails to operate,
notify your dealer immediately. It is recommended that you retain the original carton and pack-
ing materials in case you need to ship your radio in the future.
Suction Cups (2)Suction Cups (2)FM Extender AntennaFM Extender Antenna Self Adhesive
Cable Guides (3)
Self Adhesive
Cable Guides (3)

[Installation ]
12
Installation
SIRIUS suggests professional installation of this product in your vehicle. Professional instal-
lation provides an experienced technician to install this product in your vehicle, advice for se-
lecting a suitable mounting location, installation of the antenna, and routing all the necessary
wires and cables. If the FM reception within your vehicle proves to be poor, an installer will
have the necessary accessories to install an optional FM Direct Adapter, or an audio cable, to
connect the audio output of the vehicle dock directly to your vehicle’s audio system. Ask your
SIRIUS retailer if they provide professional installation services, or can recommend a profes-
sional installation service.
Installing the Vehicle Dock
When installing the vehicle dock in your vehicle, choose a location in your vehicle where it
will not block your vision, interfere with the vehicle controls, or obstruct the air bag. The loca-
tion should be easily accessible and provide good visibility of the display, and should not be
located where it will be in direct sunlight which will affect the visibility of the display screen.
The mounting accessories necessary to install the vehicle dock in a vehicle are provided.
Figure 1 shows two examples of the SIRIUS radio mounted in a vehicle: Ais the suction cup
mount method, and Bis the vent mount method using the vent mount clip.

[Installation ] 13
A.
B.
Depending upon the mounting location you select in your vehicle, the mount should be at-
tached to the vehicle dock and installed as described in the following sections.
Figure 1Figure 1

[Installation ]
14
Suction Cup Mount Method (A)
The suction cup mount may be attached to any smooth surface. Before attaching the suction
cup mount to your windshield, you should check your state and local laws for regulations
regarding mounting this device on your windshield.
To mount the vehicle dock using the suction cup mount, assemble the mount as follows:

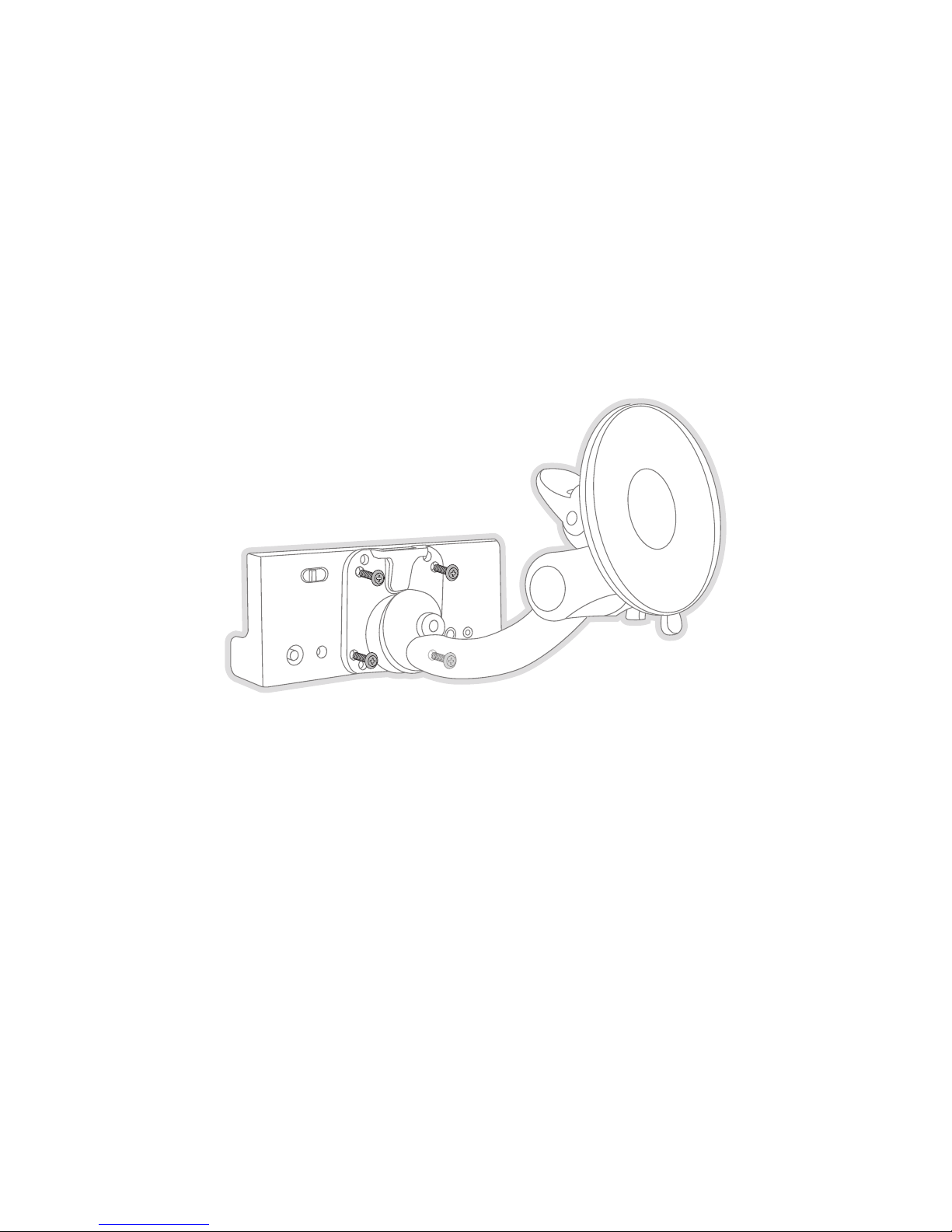

Attach the vehicle dock to the suction cup mount using the provided screws. (Figure 2)
Clean the area where you are attaching the suction cup with an alcohol wipe.
1.
2.
Figure 2Figure 2

[Installation ] 15

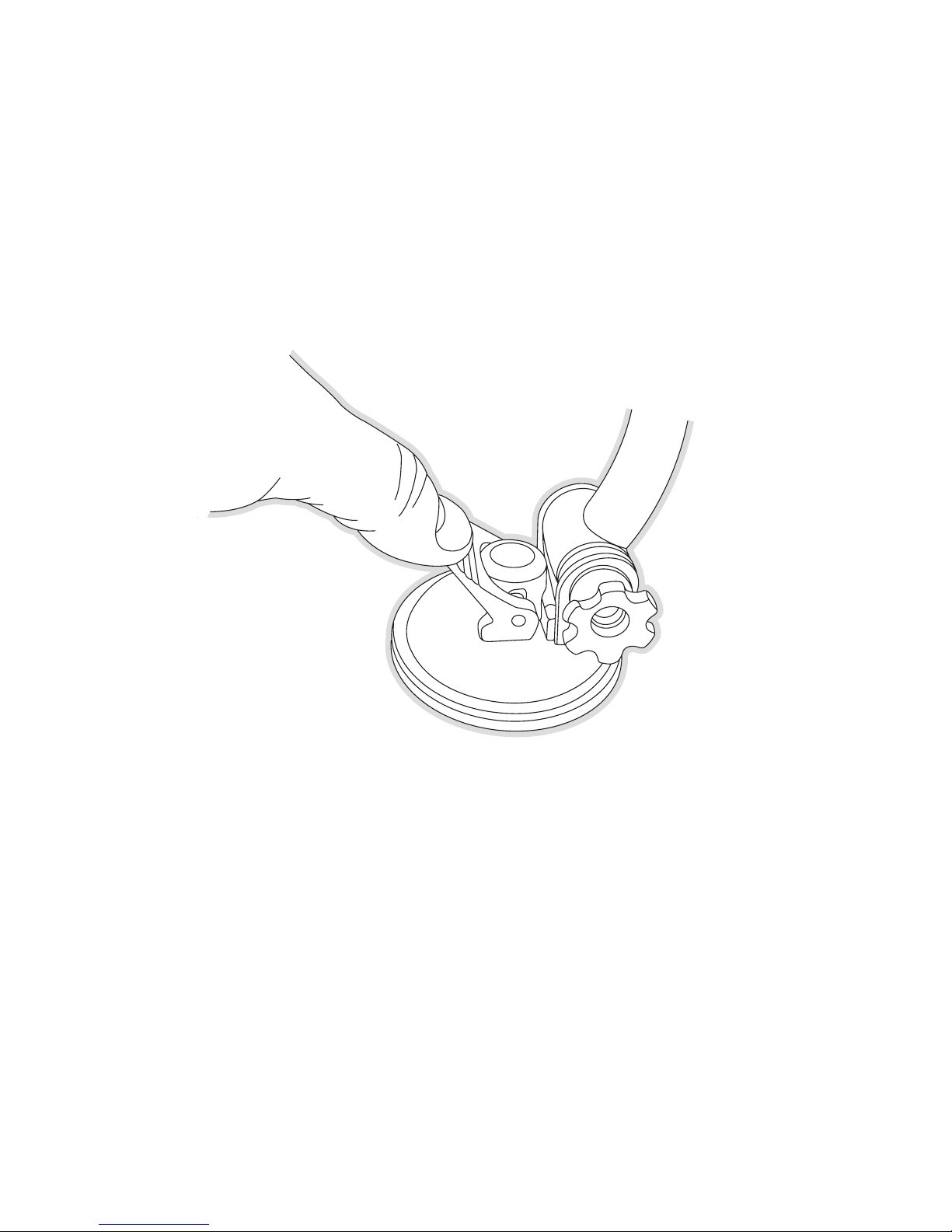

Be sure the cam lever is up (as shown in Figure 3) and position the suction cup mount
on the windshield or other location you which have chosen. Press the cam lever all the
way down towards the base of the mount until it locks to adhere the suction cup. (To
unlock the suction cup, lift the lever up.)
3.
Figure 3Figure 3

[Installation ]
16
Vent Mount Method (B)
To mount the vehicle dock using the vent mount method, install the vent mount as follows:

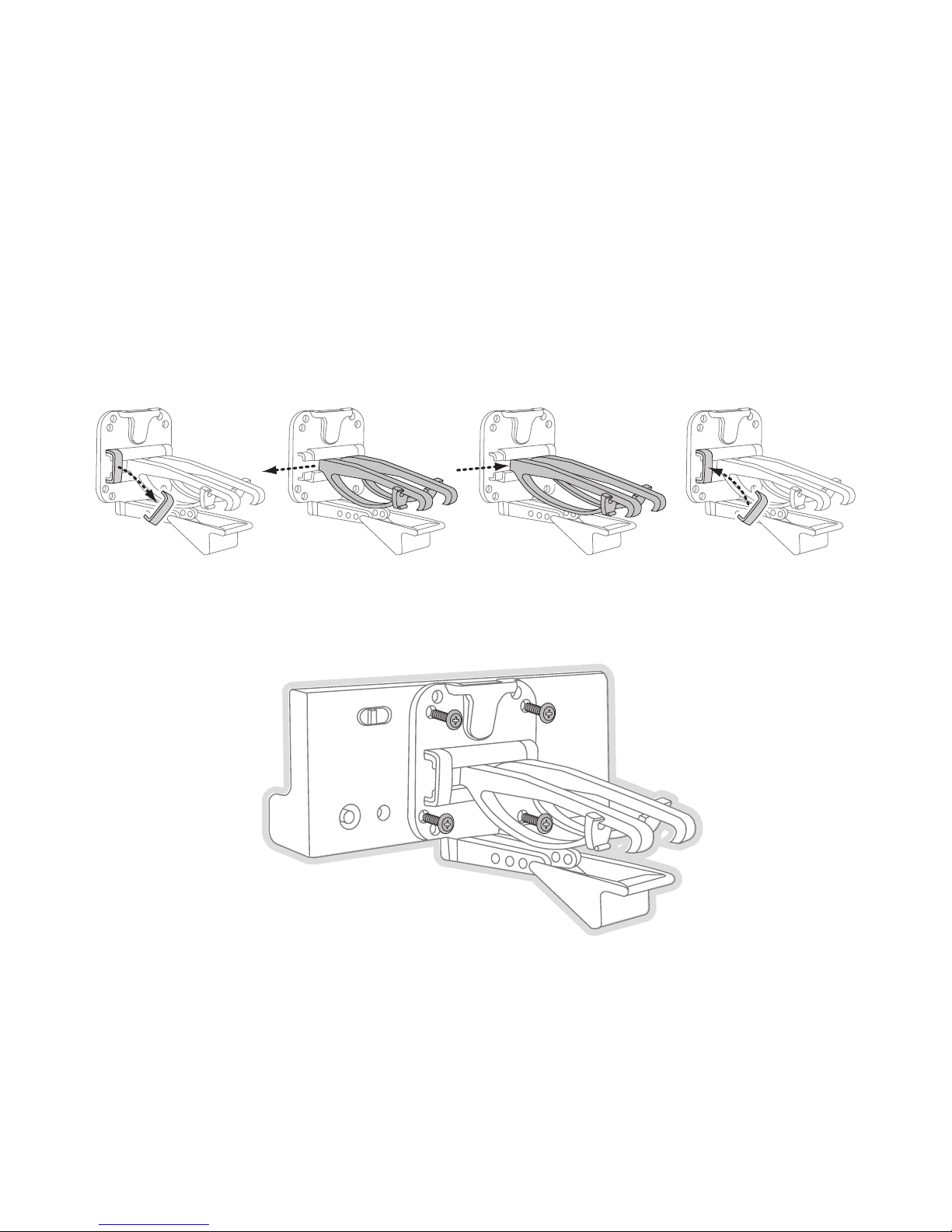

If the vent louvers in your vehicle are recessed, you may need to use the longer vent
hooks with the vent mount. Refer to Figure 4 and install the longer vent hooks into the
vent mount. Be sure to observe the orientation of the vent hooks as shown.
Slide Short
Vent Hooks Out
Remove
End Cap
Slide Extended
Vent Hooks In
Replace
End Cap
Attach the vent mount to the vehicle dock using the provided screws. (Figure 5)
1.
2.
Figure 4Figure 4
Figure 5Figure 5

[Installation ] 17
Refer to Figure 6 and attach the vent mount to a heating/air conditioning vent in your
vehicle. Position the two tension springs Aagainst a vent louver B. Then push the vent
mount into the vent, far enough so that the hooks Cdrop down and hook the rear of the
vent louver (Figure 7). Once you are sure that the hooks have grasped a vent louver, the
tension springs Awill keep the vent mount hooked to the louver.
C
B
A
D
PUSH
HOOKED
3.
Figure 6Figure 6
Figure 7Figure 7

[Installation ]
18

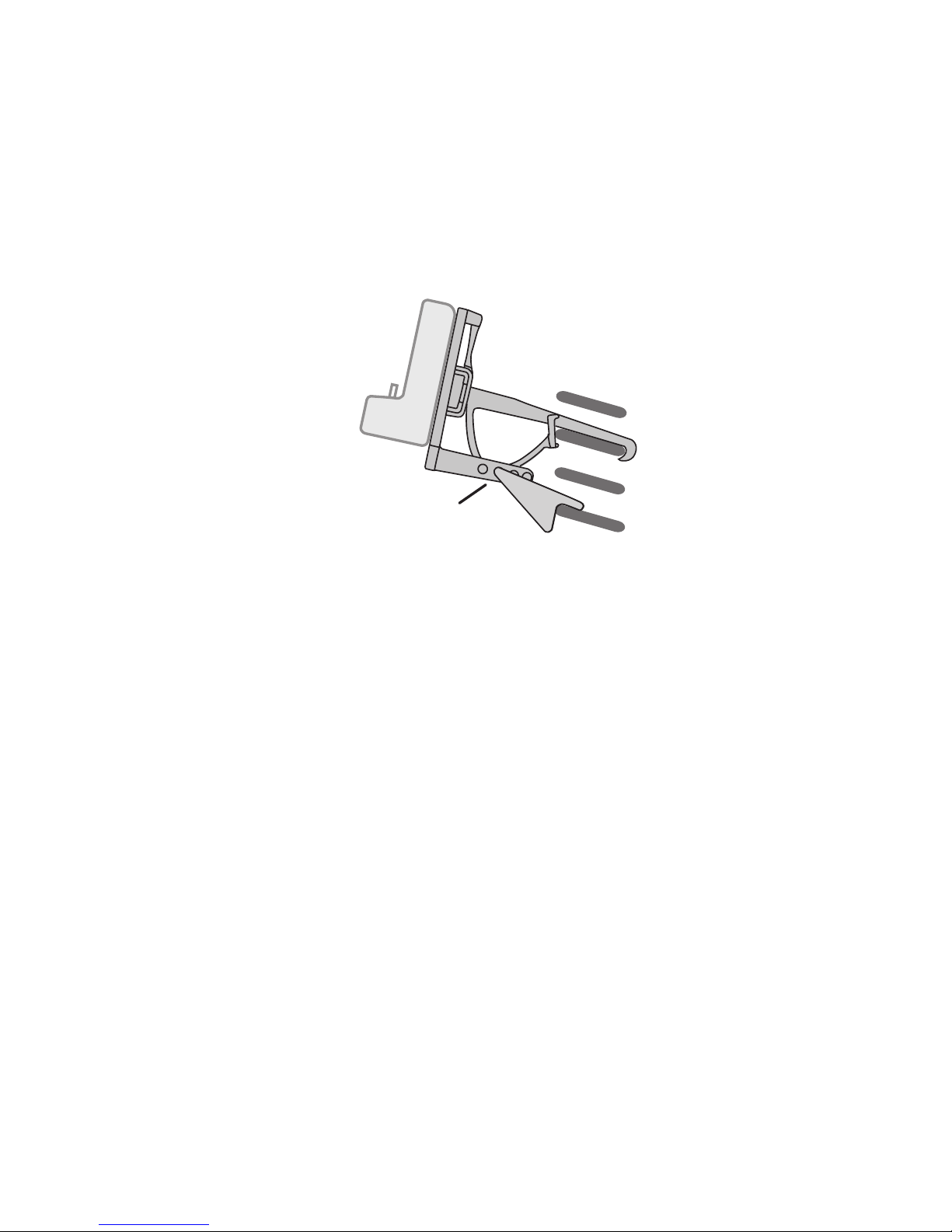

The angle of the vehicle dock may be changed by changing the position of foot Don the
vent mount (Figure 6) to a different adjustment hole. (Figure 8)
A
DJUSTMENT HOLES
Installing the Antenna
The optimum mounting location for the magnetic antenna is on the roof of the vehicle, with a
minimum unobstructed area of 12 inches by 12 inches, and exactly 6½ inches from the rear
roof edge of the vehicle (the length of the rubber antenna cable cover/tail). It is important to
avoid any obstructions that will block the SIRIUS signal, obstructions such as a roof rack,
a sunroof, roof mounted cargo containers, or other antennas. For convertible vehicles, the
antenna should be installed on the trunk lid.
For best performance, it is recommended that the antenna be installed with the rubber
antenna cable cover/tail. This rubber antenna cable cover/tail provides two benefits: first, it
positions the antenna the recommended distance from the rear window, rear door/hatch, or
trunk edge to give the antenna the best view of the sky. Secondly, it conceals and protects
the exposed antenna cable. The rubber antenna cable cover/tail has adhesive strips that hold
it securely in place.
The following illustrations show the recommended mounting locations of the antenna for
several types of vehicles. (Figure 9) Follow these recommendations for best performance from
the antenna.
4.
Figure 8Figure 8
