Sirius Satellite Radio SiriusConnect SIR-PAN1 User manual

Installation Guide
SIR-PAN1
PANASONIC COMPATIBLE
SIRIUS SATELLITE RADIO TUNER

2SIR-PAN1 Installation Guide
Congratulations on your purchase of the SIR-PAN1
Panasonic-Compatible SIRIUS Satellite Radio Tuner!
Your new SIRIUSTuner is designed to work with 2006 models of Panasonic
headunits that are designated as “SATRADIO READY”. Contact Panasonic or
SIRIUS for model compatibility, or see page 11 for a list of compatible models.
With SIRIUS, the emphasis is on the
music and entertainment you want.
The music is hosted by SIRIUS
Jockeys, who are true experts. They
back-up the music with compelling
information about the song being
played, and they understand that
sometimesit’s bestto justlet themusic
speak for itself.
Rely on SIRIUS rocket science for
superior coverage.
Only SIRIUS has three powerful
satellites that fly directly over the U.S.
ensuringcoast-to-coast coveragewith
highelevation angles.This gives the
satellites a “clear line of sight” to your
car or home, with much less concern
for buildings, trees or other objects that
mightblockconventional satellite
signals.
Onceyou experiencemore than125
channelsof digitalentertainment, you’ll
never want to leave your car. For more
information,visit www.sirius.com.
What is SIRIUS Satellite Radio?
Over 125 channels of the best
entertainment and completely
commercial-free music for your car,
home or office.
Only SIRIUS has more than 65 original
music channels, from today’s hits to
R&B oldies to classical masterpieces.
From authentic Country and real
Bluegrass to cool Jazz, hot Latin,
Reggae, Rock and many more. Best of
all, it’s all completely commercial-free.
SIRIUS also has more than 55
channelsof world-class sports, news
and entertainment. Included as part of
your subscription, you get up to 16
NFL games a week, up to 40 NBA
games a week and up to 40 NHL
games a week. (Games are
broadcasted during their respective
seasons.)Coupled withgreat sports
news from ESPN, the SIRIUS sports
offering is unrivaled.And don’t forget a
host of other great news and
entertainment,like NPR,CNBC, Fox
News, Radio Disney and
E!Entertainment Radio.

3
SIR-PAN1 Operation and Installation Guide 3 SIR-PAN1 Installation Guide
Table of Contents
PackageContents ................................................................................................3
Warnings and Cautions ........................................................................................4
Installation.............................................................................................................6
MountingtheTuner ...............................................................................................6
InstallingtheAntenna............................................................................................6
OptimumAntennaMounting Locations..................................................................7
Wiring and Cable Connections.............................................................................8

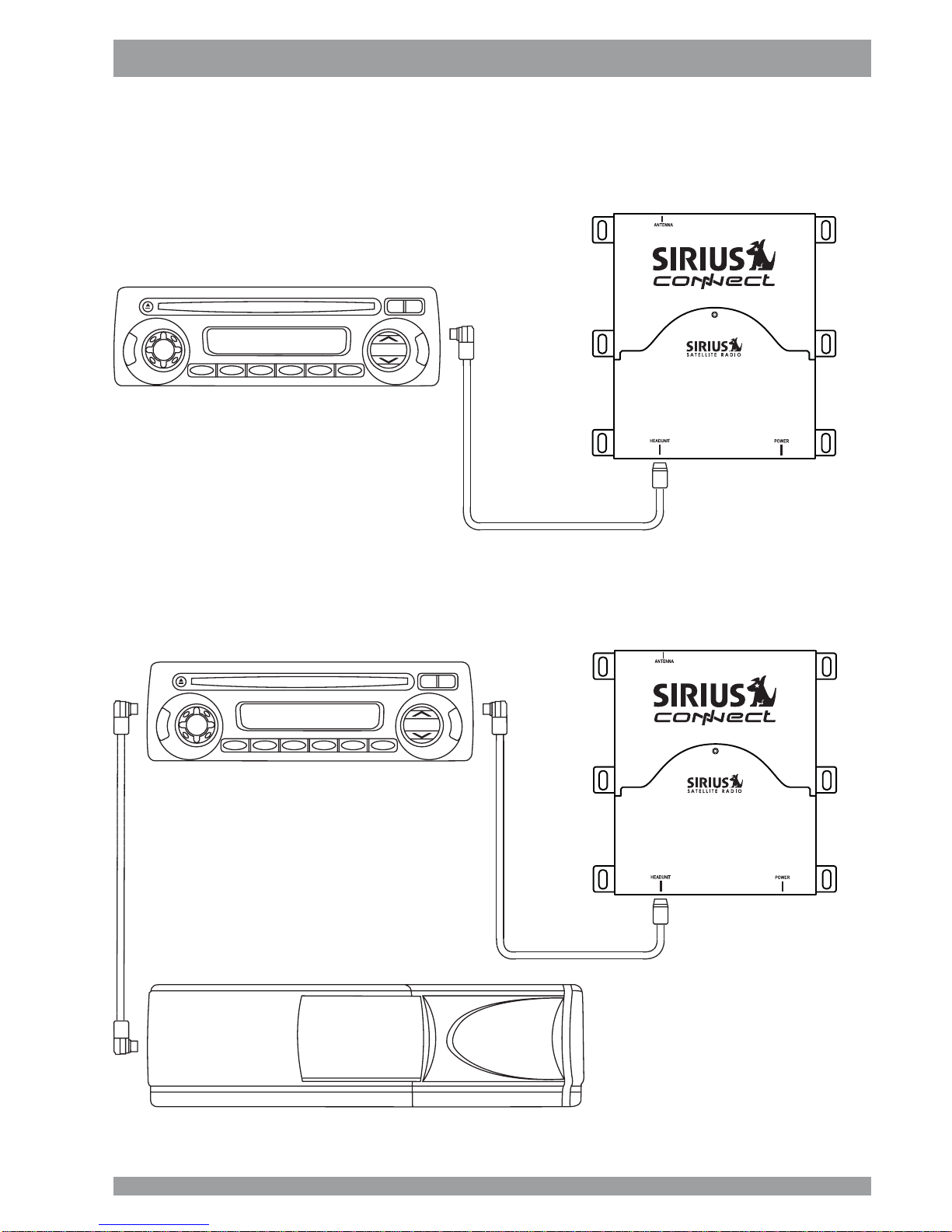

SystemConnectionExamples ............................................................................ 10
ActivatingYour SIRIUS Subscription................................................................... 11
Specifications ..................................................................................................... 12
Warranty ............................................................................................................. 13
Package Contents
AB
C
SIR-PAN1 Tuner
Mini Magnetic Antenna
Antenna Cable Cover/Tail
AlcoholSwab
Power Harness With In-Line Filter
2.5-Meter Panasonic Bus Cable
6 Mounting Screws
D
F
A
B
C
D
E
F
G
E
G
ALCOHOL
SWAB
PANASONIC COMPATIBLE
SIRIUS SATELLITE RADIO TUNER
SIR-PAN1

4SIR-PAN1 Installation Guide
WARNING
This symbol means important
instructions. Failure to heed them
can result in serious injury or death.
DO NOT OPERATE ANY FUNCTION
THAT TAKES YOURATTENTION
AWAY FROM SAFELYDRIVING
YOUR VEHICLE.
Any function that requires your
prolongedattention shouldonly be
performed after coming to a complete
stop.Always stop the vehicle in a safe
location before performing these
functions. Failure to do so may result in
an accident.
DONOT OPEN,DISASSEMBLE OR
ALTER THE UNIT INANY WAY. Doing
so may result in fire, electric shock or
productdamage.
DONOTINSERTANYOBJECTS INTO
THE UNIT. Doing so may result in fire,
electric shock or product damage.
USETHECORRECTAMPERE RATING
WHEN REPLACING FUSE. Failure to
do so may result in fire, electric shock
or product damage.
MAKETHECORRECT
CONNECTIONS. Failureto make
proper connections may result in fire
or product damage.
DONOTSPLICE INTOAELECTRICAL
CABLES. Never cut away cable
insulation to supply power to other
equipment.Doing so will exceed the
current carrying capacity of the wire
and result in fire or electric shock.
DONOTINSTALLIN LOCATIONS
THATMIGHTHINDERVEHICLE
OPERATION. Doing so mayobstruct
vision or hamper movement which can
result in a serious accident.
DONOTINSTALLTHEUNITTOHIGH
LEVELSOFHUMIDITY,MOISTURE
OR DUST. Doing so can result in
electric shock or product failure.
FCC Warning: This equipment may
generate or use radio frequency
energy. Changes or modifications to
this equipment may cause harmful
interference unless the modifications
are expressly approved in this User
Guide. The user could lose the
authority to operate this equipment if
an unauthorized change or
modification is made.
Note: Thisequipment hasbeen tested
and found to comply with Part 15 of the
FCC Rules. These rules are designed
toprovide reasonableprotection
against harmful interference. This
equipmentmay causeharmful
interference to radio communications if
it is not installed and used in
accordance with these instructions.
However, there is no guarantee that
interference will not occur in a
particularinstallation. Ifthis equipment
does cause harmful interference to
radio or television reception, which can
be determined by turning the
equipment off and on, the user is
encouraged to try to correct the
interference by one of more of the
followingmeasures:
• Relocate the receiving antenna.
• Consult the dealer or an
experienced technician for help.

5
SIR-PAN1 Operation and Installation Guide 5 SIR-PAN1 Installation Guide
CAUTION
This symbol means important
instructions. Failure to heed them
can result in injury or material
property damage.
HALTUSE IMMEDIATELYIFA
PROBLEMAPPEARS. Failure to do so
may cause personal injury or damage
to the product. Return the unit to your
authorized retailer or nearest service
center for repairing.
INSTALLTHE WIRING SOTHAT IT IS
NOTCRIMPED OR PINCHEDBY
SCREWSOR SHARPMETALEDGES.
Routethe cables away from moving
parts or sharp pointed edges. This will
prevent crimping and damage to the
wiring. If the wiring must pass through
a metal hole, be sure to use a rubber
grommetto preventthe wire’s insulation
from being cut by the metal edge of the
hole.
USETHE SPECIFIEDACCESSORY
PARTSAND INSTALLTHEPRODUCT
SECURELY. Be sure to use only the
specified accessory parts. Use of non-
specified parts may damage this unit
internally or may not securely install the
unit in place. This may cause parts to
become loose, resulting in hazards or
product failure.
USECAUTION IF YOUNEEDTO
DISCONNECTTHEBATTERY
TERMINAL.Pleaseconsult the
vehicle’s owner’s manual or a service
technician prior to removing the battery
positive or ground connection, as it
may cause damage to the vehicle’s
electrical system or require
reprogrammingof thevehicle’s
computer-controlleddevices.

6SIR-PAN1 Installation Guide
Installation
It is recommended that prior to starting
the installation, you thoroughly read
thismanual andfollow the guidelines
listedbelow:
Considerthe mountinglocation
carefully. You should make sure that
youavoid thefollowing:
• Any location where the tuner is
exposedto moisture.
• Any location where the unit is
exposedtoextreme heat.
• Any location that would interfere
with moving parts on the vehicle or
hamperdriving.
Mounting the SIR-PAN1 Tuner
Be sure that you find a location that is
flat and has clearance above the unit to
preventany damageas well as allow
forventilation.
Do not install the tuner under the
carpet or in a small enclosed area
withoutproper ventilation.Doing so
can result in damage to the tuner or
thevehicle.
Use the supplied screws to securely
fasten the unit.
Caution:
If you are attaching the unit directly to
the vehicle’s chassis, be sure that you
check to make sure the area behind the
unitis freefrom movingparts, fuelor
break lines, wire harnesses or any
other items which may get damaged by
drilling a mounting hole or using the
suppliedscrews.
Installing theAntenna
The antenna includes a 6-1/2” cable
cover/tailwhich coversthe exposed
antenna cable and keeps it attached
securely to vehicle roof. The tail also
helps position the antenna the proper
distance from the window, sunroof or
rear hatch.
To attach the cover/tail:
1. Onceyou have determined the
propermounting location (see next
section), clean the area with the
suppliedalcohol swab.
2. Connect the cover/tail to the
antenna cable, making sure that the
strain-relief on the antenna seats
intothe cover/tailgroove. Routethe
cable through the wire channel in
thecover/tail.
PANASONIC COMPA
TIBLE
SIRIUS SATELLITE RADIO TUNER
SIR-PAN1
Antenna
(Underside)
Cable Cover/Tail
Connect the cable cover/
tail to the antenna cable,
insert the cable through
the grove. Peel off the
adhesive tape
3. Removetheremainingprotective
tapefrom the adhesive,carefully
positionthe antennawith cover/tail
and apply pressure to secure to the
vehicle.
Adhesive Strips

7
SIR-PAN1 Operation and Installation Guide 7 SIR-PAN1 Installation Guide
Optimum Antenna Mounting Locations
The optimum location to mount the
included antenna is on the roof of the
vehicle. It is important to avoid any
obstructionthat willblock satellite signal
– like a roof rack. For convertible
vehicles,installtheantennaonthetrunk
lid.
• Place the antenna on a metal
surface of your vehicle at least 12"
x 12", and at least 6" from a
window.(Use theantennacover/tail
as a guide for the proper distance).
• Theantenna’s powerful magnet will
secure it to the metal surface. The
adhesive that is attached to the
antennacover/tail willsecure the
cableto thevehicle. Before routing
the antenna cable, confirm that the
antenna is mounted in a good
location.
• Route the cable from the antenna to
the vehicle’s interior by tucking it
underneaththerubbermolding
around the rear window (if
possible).
• Routethe cable from the lowest
pointoftherearwindowintothe
trunk.Takeadvantageofanyexisting
cablechannelsorwiringconduits.
Cable Cover/Tail
• For SUVs, minivans and five-door
vehicles, bring the cable into the
vehicle under the rubber molding
forthe tailgate,and continue under
the interior trim.
• From the trunk, carefully route the
cable to the location of the
SIR-PAN1 and plug the SMB
connector onto the unit.
Sedan/Coupe
SUV/Mini-Van
Truck
Convertible (only)
Caution:
• Do not pull the wire across sharp
edges that could damage it.
• Keep the wire away from areas
where it could become tangled in
thedriver’s and passenger’sfeet.
• Keepthe antenna wireaway from
extreme heat – like exhaust
systems.
• Avoid placing the cable near any
movingparts.
Vehicle Body

8SIR-PAN1 Installation Guide
Wiring and Cable Connections
Antenna Input
Connectthe right-angleSMB
connector from the antenna. Push
firmly to attach.
Panasonic Headunit Connector
Usethe suppliedPanasonic bus
cable to connect to the Panasonic
headunit – See “System Connection
Examples” for more specific details.
Power Harness Connector
After the wiring connections are
complete, plug the wiring harness
into the connector. Make sure to
insert firmly to lock the connector in
place.
SIR-PAN1
PANASONIC COMPATIBLE
SIRIUS SATELLITE RADIO TUNER
A
B C
12
34
AntennaInput(SMB)
HeadunitConnector
Power Connector
A
B
C
Battery (+)
2
1ACC (Ignition Switched)
Ground (-)
3
4No Connection

9
SIR-PAN1 Operation and Installation Guide 9 SIR-PAN1 Installation Guide
FI LTE R &
FUSE BOX
OUT
IN
2.5-meter Panasonic Bus Cable
(Connect to Panasonic SAT-Ready
Headunit)
Antenna (21’ cable)
Mount on Roof of Vehicle
Black (Pin 3) – Connect to
Chassis Ground (–)
Yellow (Pin 2) – Connect
to Battery Positive (+)
Right-angle
SMB Connector
Ignition
Switch
Red (Pin 1) – ACC, Connect to
Ignition Switched Circuit

10 SIR-PAN1 Installation Guide
SIR-PAN1
PANASONIC COMPATIBLE
SIRIUS SATELLITE RADIO TUNER
SIR-PAN1
PANASONIC COMPATIBLE
SIRIUS SATELLITE RADIO TUNER
System Connection Examples
System 1: Panasonic Headunit and SIR-PAN1
Panasonic CD Changer
System 2: Panasonic Headunit, CD Changer, and SIR-PAN1
Panasonic SAT Radio Ready Headunit
Panasonic SAT Radio Ready Headunit

11
SIR-PAN1 Operation and Installation Guide 11 SIR-PAN1 Installation Guide
You mustactivate theSIR-PAN1 before
you can start to receive the SIRIUS
SatelliteRadio broadcast.
1. Make sure that the SIR-PAN1 is
properly connected and that the
antenna is oriented to receive the
SIRIUSsatellite signal.
2. Turn on the Panasonic headunit.
3. Press and release the SOURCE
button on the headunit to select
SIRIUS as the source. (Each press
ofthe SOURCEbutton willchange
to a different audio source.)
4. Thedisplay willread “UPDATING”
untilthe SIR-PAN1 channel update
is completed. This is where the
latest channel line up is updated on
theSIRIUS tuner.
NOTE: Don’t push any buttons
or perform any operations until
updating has been completed.
Onceupdated and the SIRIUS
channelsare received,the display
willchangeto“Call1-888-539-SIRIUS
to Subscribe” and will place you in
SIRIUSSatelliteRadio’s Preview
Channel(Channel184).You Should
beable to hearthe SIRIUS Preview
channel’sAudio.
5. Use the / buttons to select to
Channel “000” on the display to
bring up the SIRIUS ID (SID).
6. The unit will display “CH000”,
followed by “ESN
XXXXXXXXXXXX”. The SID will
be displayed in each of the Artist,
Song Title, and Composer Fields of
theDisplay –Example “ESN
123456789123.” Write down the 12
digit SID in the location provided on
thenext page forfuturereference.
(See the Panasonic Owners
Manual for more information.)
7. ContactSIRIUS on theInternet:
https://activate.siriusradio.com
Followthe promptsto activateyour
subscription.
You can also call SIRIUS toll-free at
1-888-539-SIRIUS (1-888-539-
7474).
8. You will not be able to tune to any
other channels until you activate
your SIRIUS subscription. After
your SIR-PAN1 is activated, you
will be able to change channels and
hear the audio playing.
Note: The SID can also be found on
the sticker that is on the bottom of the
SIR-PAN1 and on the packaging that
the unit was packed in.
Basic Operation
TheSIR-PAN1 SIRIUSSatellite Radio
Tuner iscompatiblewith 2006 models
of Panasonic headunits that are
designated as “SAT RADIO READY”.
Thefollowing models arecompatible:
Activating Your SIRIUS Subscription
CQ-C3303U
CQ-C3333U
CQ-C3403U
CQ-C3433U
CQ-C5303U
CQ-C5403U
CQ-C7103U
CQ-C7203U
CQ-C7303U
CQ-C7403U
CQ-C7413U
CQ-C8303U
CQ-C8403U
CQ-C8413U
CQ-C8803U
CQ-VD6503U
CQ-VD7003U
Consult the Panasonic or SIRIUS
Customer Support Departments for more
information about compatibility.
Pleaseconsult your Panasonic owner’s
manualfor proper operationinstructions
forusing satellite radio products.

12 SIR-PAN1 Installation Guide
Specifications
OperationalFrequencies
Satellite .............................................................................2322.293/2330.207MHz
Terrestrial .......................................................................................... 2326.250MHz
PowerRequirements......................................................................... 8-16 Volts DC
FuseType ......................................................................................... 1-AMP(AGC)
ChassisSize(without MountingTabs) ........................ 4-1/8” x 5” x 1-3/8” (WxHxD)
105mm x126mmx 35mm (WxHxD)
ChassisSize (with MountingTabs)............................. 4-7/8” x 5” x 1-3/8” (WxHxD)
127mm x126mmx 35mm (WxHxD)
Weight .................................................................................... 0.528 kg. (1.16 lbs.)
AntennaType....................................................................................Mini-Magnetic
AntennaCableLength........................................................ 21’ (single micro-cable)
ConnectorType ......................................................................... SMB(Right-angle)
AudioOutput .......................................................................................... 1V (Fixed)
IncludedCable............................................. 2.5 Meter PanasonicBus (Male/Male)
SIRIUS ID:
SIRIUS Customer Service: 1-888-539-7474
Please write down your SIRIUS ID in the space provided below:

13
SIR-PAN1 Operation and Installation Guide 13 SIR-PAN1 Installation Guide
12 MONTH LIMITED WARRANTY
SiriusSatellite Radio warrants totheoriginalretailpurchaserofthisproduct that should
thisproductoranypartthereof,undernormaluseandconditions,beprovendefectivein
material or workmanship within 12 months from the date of original purchase, such
defect(s)willberepairedorreplacedwithneworreconditionedproduct(attheCompany’s
option)withoutchargeforpartsandrepairlabor.Toobtain repairor replacement within
thetermsofthisWarranty,the productistobedeliveredwithproof ofwarrantycoverage
(e.g.datedbillofsale),specificationofdefect(s),transportationprepaid,tothelocation
shownbelowunderWARRANTYRETURN.
ThisWarrantydoes notextendtotheeliminationof externally generatedstaticornoise,
to correction of antenna problems, to costs incurred for installation, removal or
reinstallationoftheproduct,ortodamagetotapes,compactdiscs,speakers,accessories,
orvehicle electrical systems.
ThisWarrantydoes not apply to anyproduct or partthereof which, in the opinion ofthe
Company, has suffered or been damaged through alteration, improper installation,
mishandling,misuse,neglect,accident,orbyremovalordefacementofthefactoryserial
number/barcodelabel(s).THEEXTENTOFTHECOMPANY’SLIABILITYUNDERTHIS
WARRANTYIS LIMITEDTOTHEREPAIROR REPLACEMENTPROVIDEDABOVE
AND,INNOEVENT,SHALLTHECOMPANY’SLIABILITYEXCEEDTHEPURCHASE
PRICEPAIDBYPURCHASER FORTHEPRODUCT.
This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED
WARRANTIES, INCLUDINGANY IMPLIED WARRANTY OF MERCHANTABILITY,
SHALLBELIMITEDTOTHEDURATIONOFTHISWRITTENWARRANTY. ANYACTION
FOR BREACH OF ANY WARRANTY HEREUNDER INCLUDING ANY IMPLIED
WARRANTYOFMERCHANTABILITYMUSTBEBROUGHTWITHINAPERIODOF48
MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE
COMPANYBELIABLEFORANYCONSEQUENTIALORINCIDENTALDAMAGESFOR
BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED,
WHATSOEVER.Noperson orrepresentativeisauthorizedtoassume fortheCompany
anyliabilityotherthanexpressedhereininconnectionwiththesaleofthisproduct.Some
statesdonotallowlimitationsonhowlonganimpliedwarrantylastsortheexclusionor
limitationofincidentalor consequential damage so theabove limitations orexclusions
may not apply to you. This Warranty gives you specific legal rights and you may also
haveother rights whichvaryfromstatetostate.
WARRANTY RETURN: ToobtainrepairorreplacementwithinthetermsofthisWarranty,
pleasereturnproducttoanauthorizedDirectedElectronicsDealerorcall(800)869-5590;
proofofpurchaseanddescription of defect are required.Products to bereturned to an
approvedwarrantystationmustbeshippedfreightprepaid.

© 2006 SIRIUS Satellite Radio Inc. “SIRIUS” and the SIRIUS dog logo
are registered trademarks of SIRIUS Satellite Radio Inc.
SIRIUS Satellite Radio
1221 Avenue of the Americas
New York, NY 10020
[phone]
www.sirius.com
Panasonic-SIR-PAN1-Install-Manual-(03232006a)
