4
Features
Congratulations, on your purchase of Stratus 7!
Stratus 7 has these exciting features to enhance your overall experience:
•Easy to read blue display: View artist name, song title, and channel
information on an easy to read display.
•Channel guide: View your individual channel lineup by category.
•Improved audio connection options: Use either the included Aux In
Cable, or the new PowerConnect FM Transmitter to listen to the audio
through your vehicle’s stereo system.
•Favorite channel presets: Save and enjoy fast access to up to 10 of your
favorite channels.
•FM preset button: Store and quickly access FM channels that give you
the best audio reception when using PowerConnect.
•One-Touch Jump™: Directly access traffic and weather of the 20 most
congested cities.
•Parental controls: Easily lock and unlock channels with mature content.
Please read the entire User Guide before using your Stratus 7!
Introduction

5
Safety and Care Information
IMPORTANT! Self installation instructions and tips are provided for your
convenience. It is your responsibility to determine if you have the knowledge,
skills, and physical ability required to properly perform an installation.
SiriusXM shall have no liability for damage or injury resulting from the
installation or use of any SiriusXM or third party products. It is your
responsibility to ensure that all products are installed in adherence with local
laws and regulations and in such a manner as to allow a vehicle to be
operated safely and without distraction. SiriusXM product warranties do not
cover the installation, removal or reinstallation of any product.
•Do not expose to extreme temperatures (above 140° F or below -4° F, or
above 60° C or below -20° C).
•Do not expose to moisture. Do not use device near or in water. Do not
touch the device with wet hands.
•Do not let any foreign matter spill into device.
•Do not store in dusty areas.
•Do not expose to chemicals such as benzene and thinners. Do not use
liquid or aerosol cleaners. Clean with a soft damp cloth only.
•Do not expose to direct sunlight for a prolonged period of time, and do
not expose to fire, flame, or other heat sources.
•Do not try to disassemble and/or repair device yourself.
•Do not drop your device or subject it to severe impact.
•Do not place heavy objects on device.
•Do not subject device to excessive pressure.
•If the LCD screen is damaged, do not touch the liquid crystal fluid.
Introduction

6
Warning!
•Opening the case may result in electric shock.
•If the liquid crystal fluid comes in contact with your skin, wipe the skin
area with a cloth and then wash the skin thoroughly with soap and
running water. If the liquid crystal fluid comes into contact with your
eyes, flush the eyes with clean water for at least 15 minutes and seek
medical care. If the liquid crystal fluid is ingested, flush your mouth
thoroughly with water. Drink large quantities of water, and induce
vomiting. Seek medical care.
•Make sure that you insert the PowerConnect Power Adapter all the way
into the vehicle’s cigarette lighter or power adapter socket.
•If you are using PowerConnect as your audio connection option, it is
advisable not to insert a multi-outlet adapter into the same vehicle
cigarette lighter or power adapter socket to simultaneously power other
devices. Some multi-outlet adapters can prevent the PowerConnect
feature from working properly.
• When using this product, it is always important to keep your eyes on the
road and hands on the wheel. Not doing so could result in personal injury,
death, and/or damage to your device, accessories, and/or to your vehicle or
other property.
•Vehicle installation and Radio configuration functions should not be
performed while driving. Park your vehicle in a safe location before
beginning installation.
•This product contains chemicals known to the State of California to
cause cancer and birth defects or other reproductive harm.
Your device should be placed in your vehicle where it will not interfere
with the function of safety features, e.g., deployment of airbags. Failure
to correctly place device may result in injury to you or others, if the unit
becomes detached during an accident and/or obstructs the deployment of
an airbag.
Introduction

7

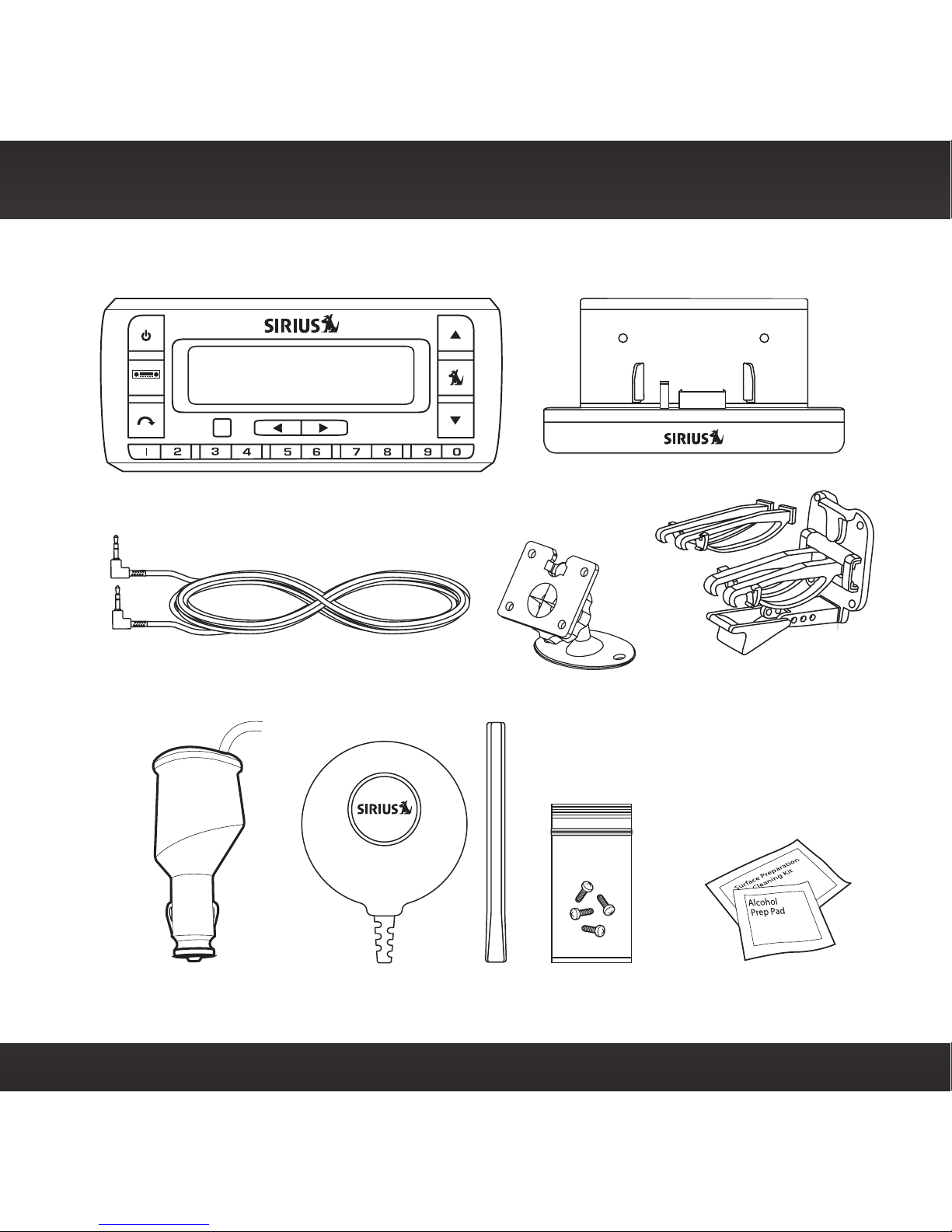

What’s in the Box?
menu
Stratus 7 Radio PowerConnect™Vehicle Dock
Magnetic Mount
Antenna and Tail
Antenna & Dash Mount
Alcohol Preparation Pads
PowerConnect
Power Adapter
Vent Mount and
Extended Vent
Clamps
Screws
Aux In Cable
Dash Mount
Introduction

8
menu
Stratus 7 Functions
Introduction
Power Button
Press to turn
Stratus 7 on and
off.
Left and Right Arrows
Press to search for
channels by category.
Up and Down
Buttons
Press to preview
and tune channels
through the channel
lineup; also press to
scroll through lists
and highlight menu
items.
FM / Menu Button
FM: Press to access and cycle
through FM presets.
Menu: Press and hold to
access advanced features
and configuration options; in
configuration options, press
and hold to return to main
display screen.
Select Button
Press to confirm
selection of
highlighted items in a
menu or list; when not
in a menu or list, press
first before entering
the channel number,
to directly tune to a
channel. Press and
hold to go back to the
previous channel.
Jump Button
Press to directly access
traffic and weather for
the city of your choice;
or press it to go back
to the previous channel
to which you were
listening.
Number Buttons
Press to tune to a stored
favorite channel, press and
hold to store a favorite
channel; also enter a channel
number.

9
PowerConnect Vehicle Dock
Color-Coded Connections
The color-coded PowerConnect Vehicle Dock makes it simple to
connect. Just match the colors on the cable ends to the colors on the
dock to see what goes where.
ANT (Silver)
Connection
for the
Magnetic
Mount
Antenna.
AUDIO (Green)
Connection for
Aux In Cable or
Cassette Adapter
(sold separately).
Front View
PWR (Red)
Connection for
PowerConnect
Power Adapter.
FM (Blue)
Connection for
optional FM
Direct Adapter
(sold separately).
AUDIO
PWR FM ANT
Docking Rails
Fits into slots on
the rear of Stratus
7 to secure the
Radio.
Introduction

10
WARNING! DO NOT attempt to install Stratus 7 while driving. Park your
vehicle in a safe location before beginning installation.
Step 1: Choose a Location for Your Radio
When installing Stratus 7 in your vehicle, choose a location where it will
not block your vision, interfere with the controls, or obstruct any air bags.
The location should be easily accessible and provide good visibility of the
display, and should not be located where it will be in direct sunlight, which
will affect the visibility of the display screen.

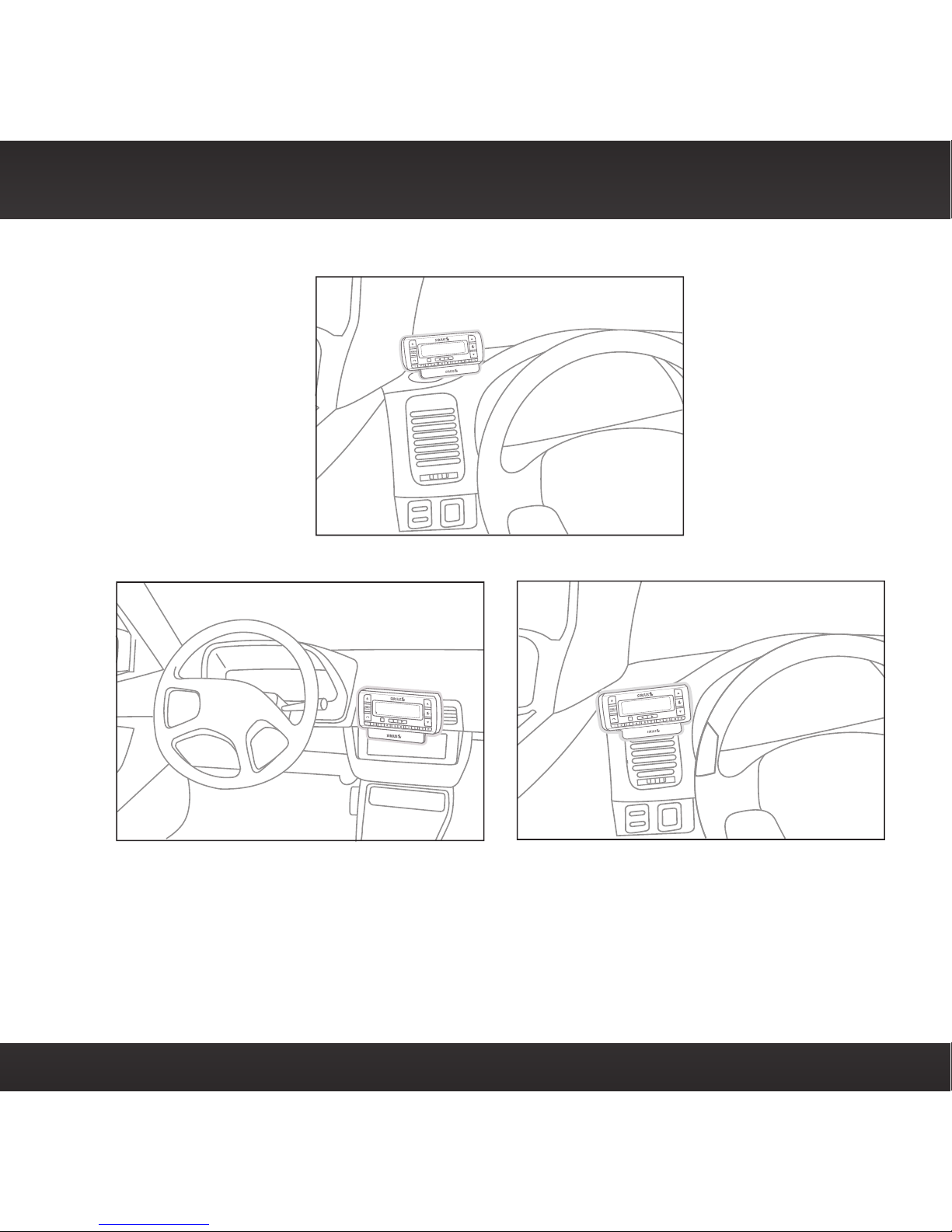

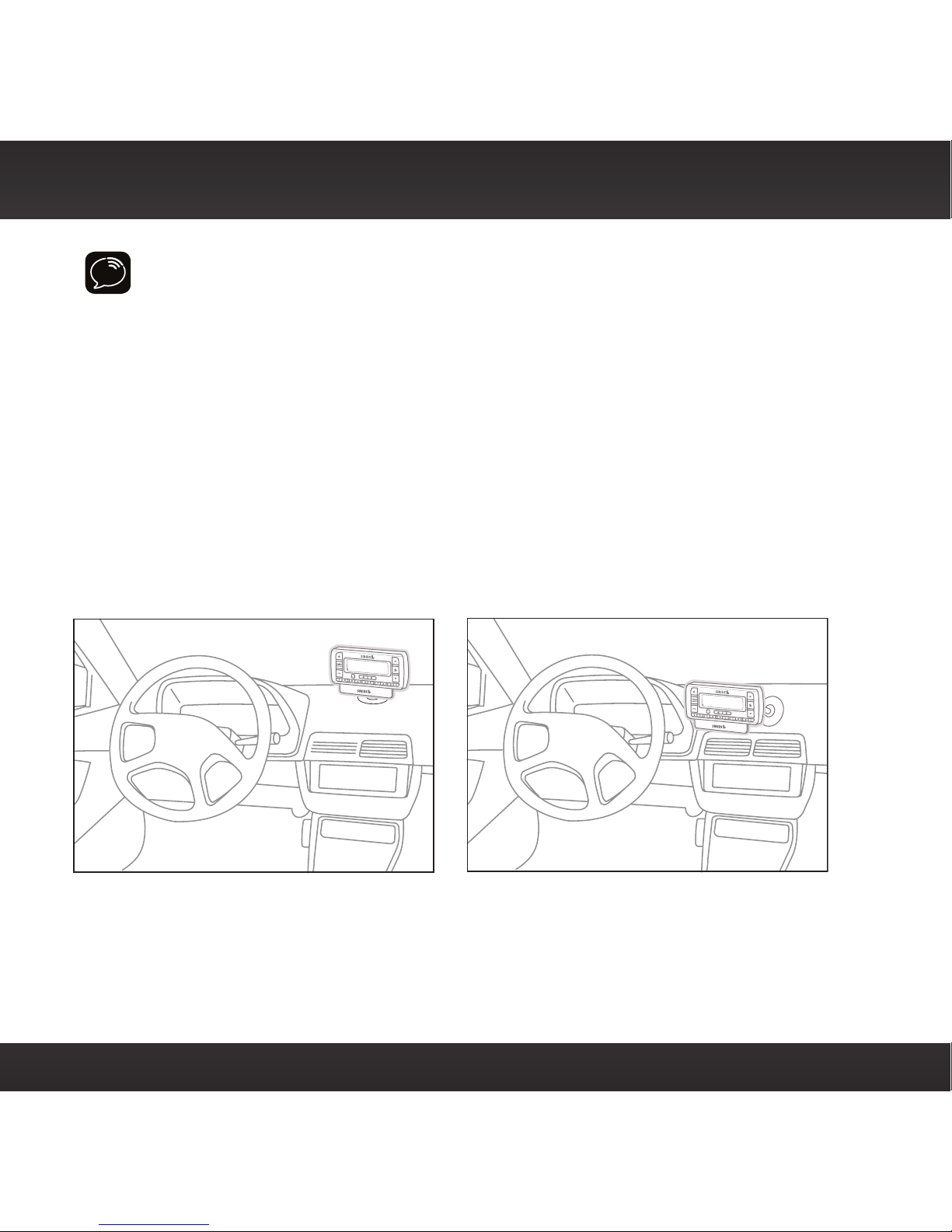

Several examples of Stratus 7 mounted in a vehicle are shown: Ais the on
dash method using the Dash Mount, and Bis the vent clip method using the
Vent Mount.
A.
A.
Option 1Option 2
Vehicle Installation

11
B.
A.
B.
Option 3
Option
4O
ption 5
Vehicle Installation

12
Vehicle Installation
Step 2: Install the Vent or Dash Mount
Follow the instructions on the next several pages for the mounting method
you have selected.
NOTE! The PowerConnect Vehicle Dock included with Stratus 7 is compatible
with the T-slot style Dash and Vent Mounts. If you have an existing Dash Mount
or Vent Mount in your vehicle, you can continue to use it with this dock, and
skip this step.
Installing the Dash Mount:
CAUTION! The adhesive used on the Dash Mount may be
difficult to remove. Do not install this mount on leather surfaces
(contact your automobile dealership if you are unsure about
your dash surface), and make sure the air temperature is at
least 60° F (15° C) during installation. If it’s not at least 60° F,
turn on the heater in your vehicle to bring the temperature up
to 60° F.

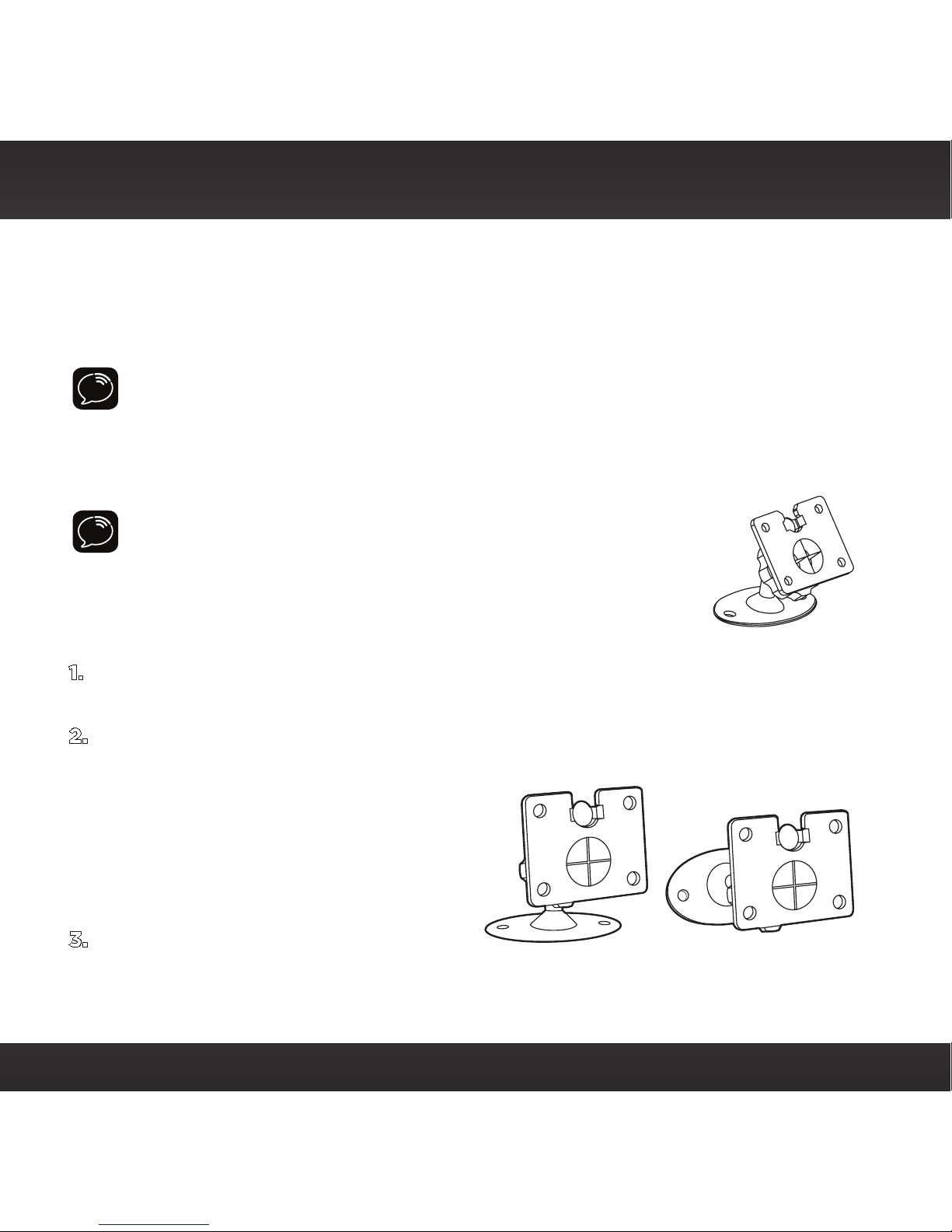

1. Locate a flat surface for the Dash Mount. Make sure there is ample
room for the PowerConnect Vehicle Dock and Stratus 7 when installed.

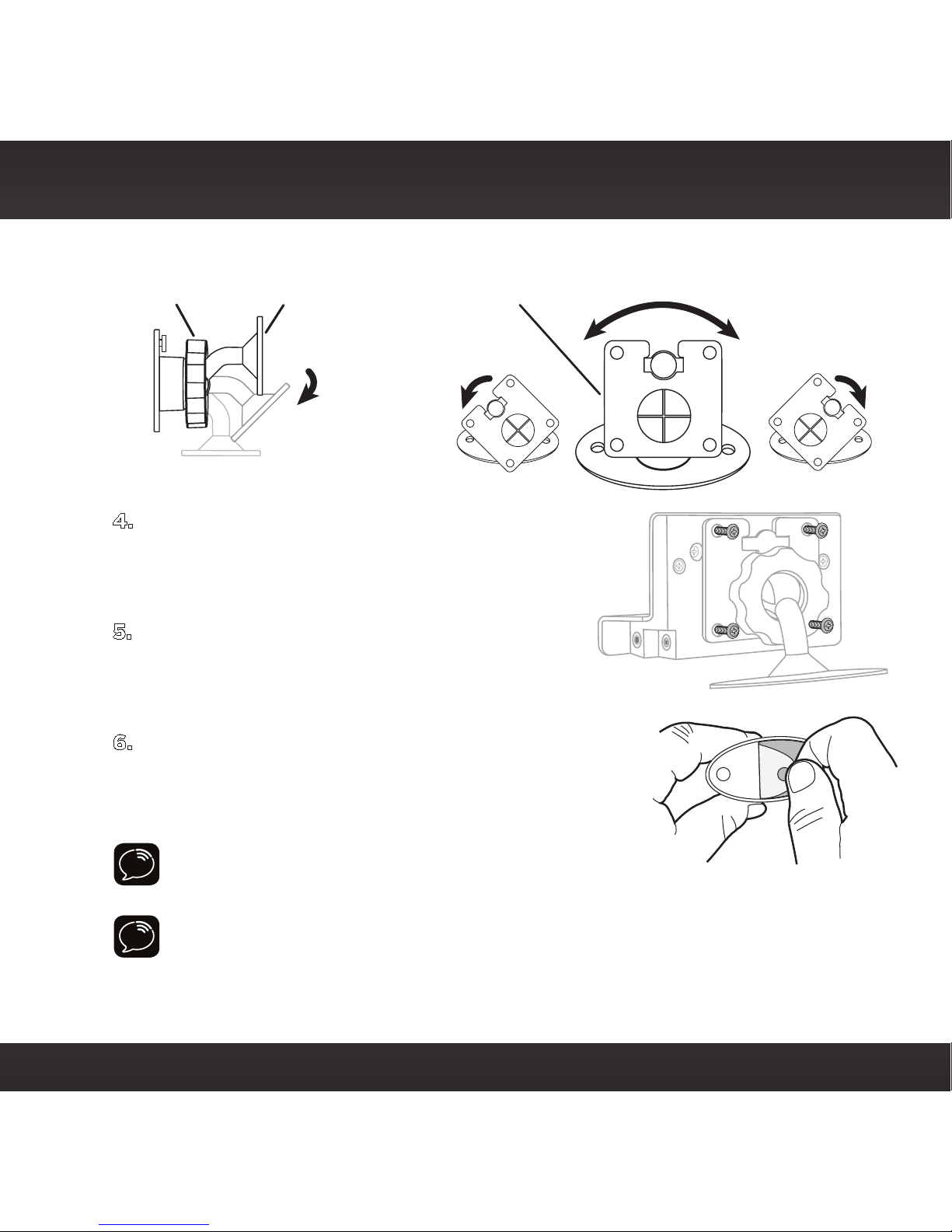

2. Set the orientation of the Dash Mount before adhering it. Loosen the
knob and adjust the adhesive foot for the location you selected in
“Step 1: Choose a Location for Your
Radio” on page 10:
•Option 1 & Option 3 should be
oriented as I.
•Option 2 should be oriented as II.
3. The dock mounting plate can be
tilted in different directions. Adjust
as necessary for your particular
III

13
vehicle. When the orientation is correct, tighten the knob.
4. Attach the Dash Mount to the
PowerConnect Vehicle Dock using the 4
provided screws.
5. Clean the mounting surface in the vehicle
with the alcohol preparation pad and let
it dry thoroughly.
6. Peel off the adhesive liner. Position, press,
and hold the Dash Mount and PowerConnect
Vehicle Dock in place for 30 seconds.
IMPORTANT! Allow the Dash Mount adhesive to
cure (dry) for a minimum of 2-4 hours before
using the mount. The best adhesion occurs after 24 hours.
TIP! To remove, carefully lift the adhesive pad with your fingers or a spoon.
Warming the pad with a hair dryer for several minutes will help soften the
adhesive.
Knob Adhesive Foot Dock Mounting Plate
Vehicle Installation

14
Vehicle Installation

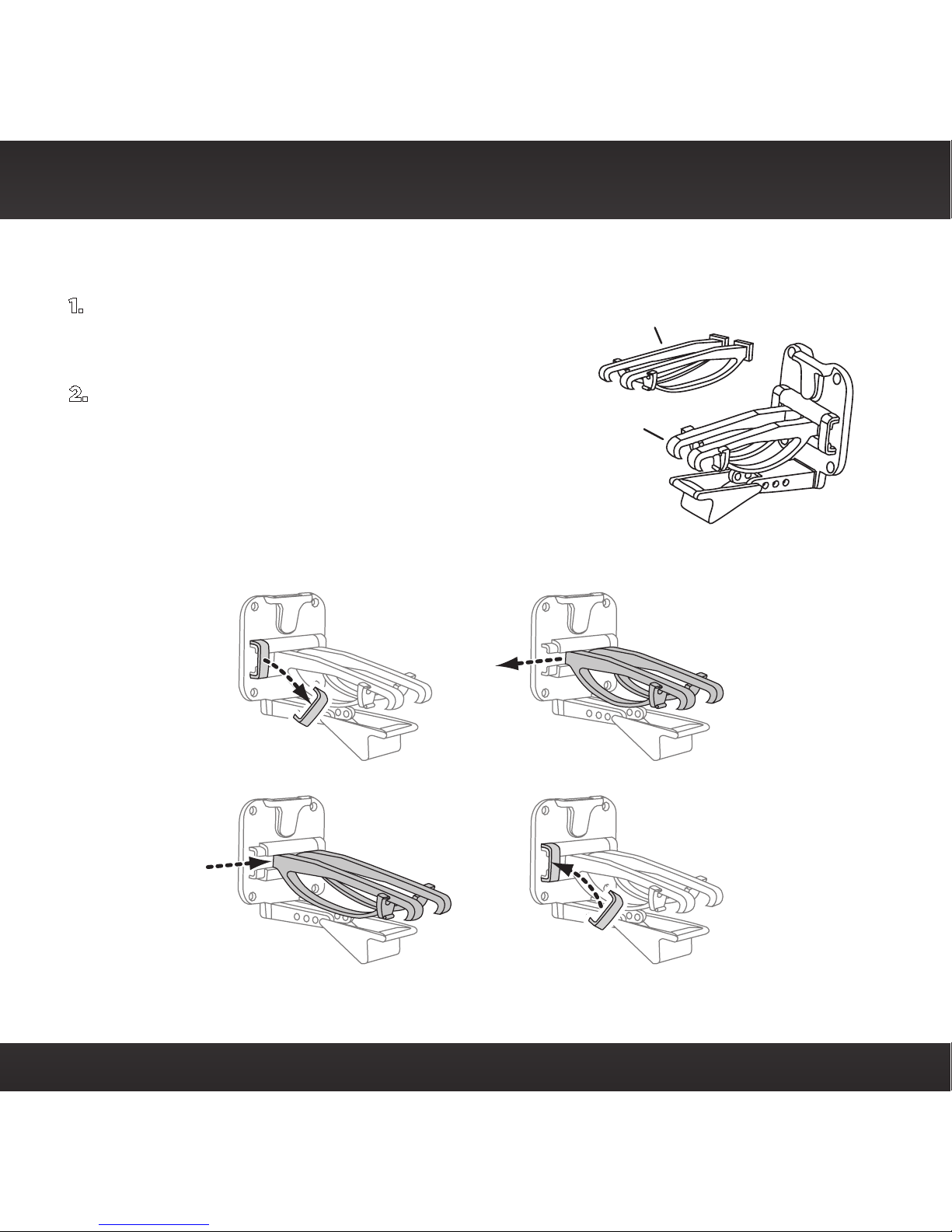

Installing the Vent Mount:

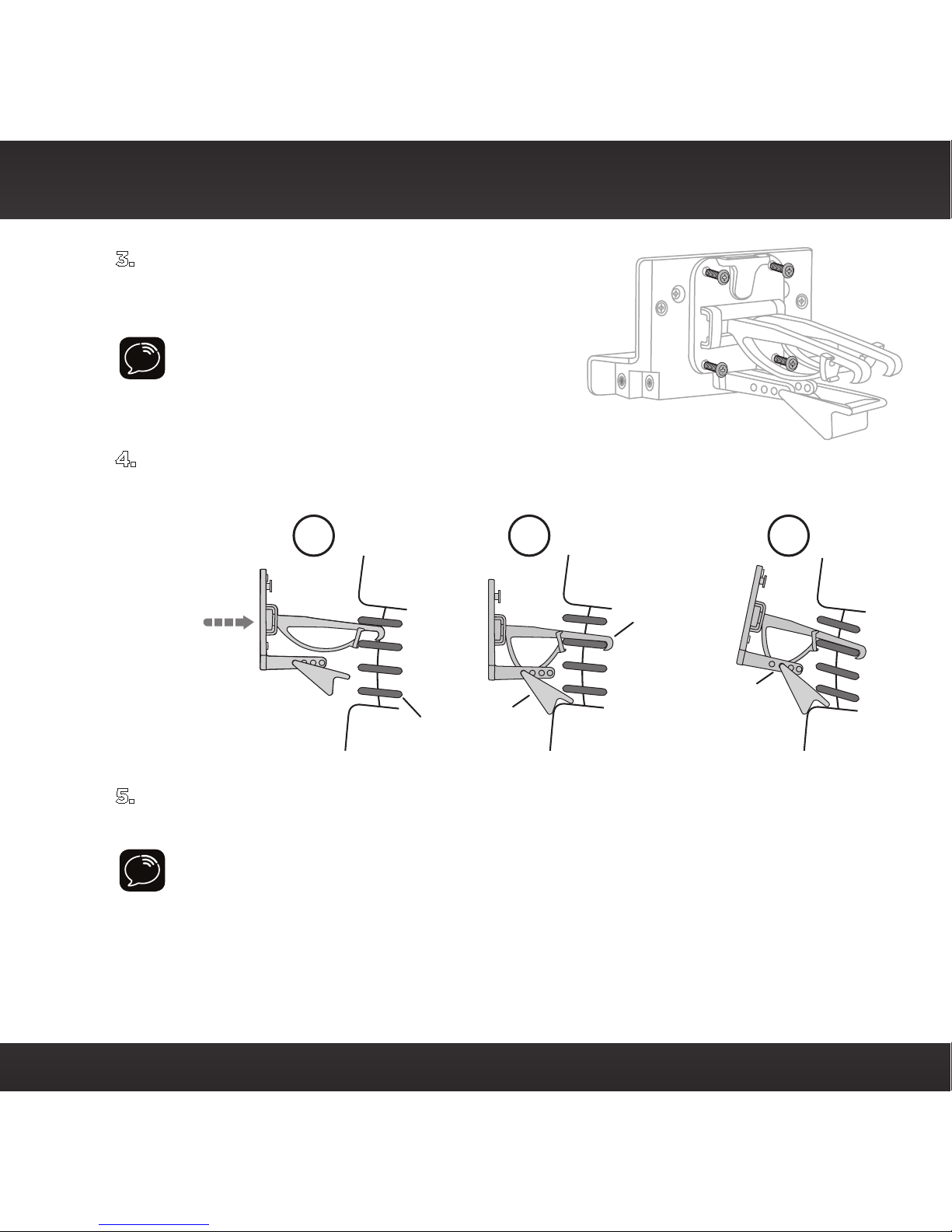

1. Locate a vent with horizontal louvers
sturdy enough to hold your PowerConnect
Vehicle Dock and Stratus 7 Radio.
2. If the vent louvers in your vehicle are
recessed, you may need to use the longer
vent clamps with the Vent Mount. If so,
Remove the shorter vent clamps and install
the longer ones into the Vent Mount. Be
sure to observe the orientation of the vent
clamps as shown.
Extended Vent Clamps
Short Vent
Clamps
Slide Short Vent Clamps OutRemove End Cap
Slide Extended Vent Clamps In Replace End Cap

15
3. Attach the Vent Mount to the
PowerConnect Vehicle Dock using the 4
provided screws.
Note! For greater clarity, the next
illustration does not show the dock
attached to the Vent Mount, however, the
dock should be attached before
continuing.
4. Push the Vent Mount onto the vehicle vent as shown (1) until it hooks
on the rear of the vent louver (2).
5. Rest the foot against the bottom of the vent (2), and adjust the tilt of the
Vent Mount by repositioning the foot to a different adjustment hole (3).
TIP! To remove the Vent Mount, push the mount into the vent. Then lift up
until disengaged from the rear of the vent louver, and remove the Vent
Mount.
PUSH
Dash
Vent
Louver
Vent Vent
Dash Dash
HOOKED
TILT
ADJUSTMENT
HOLES
FOOT
1 2 3
Vehicle Installation

16

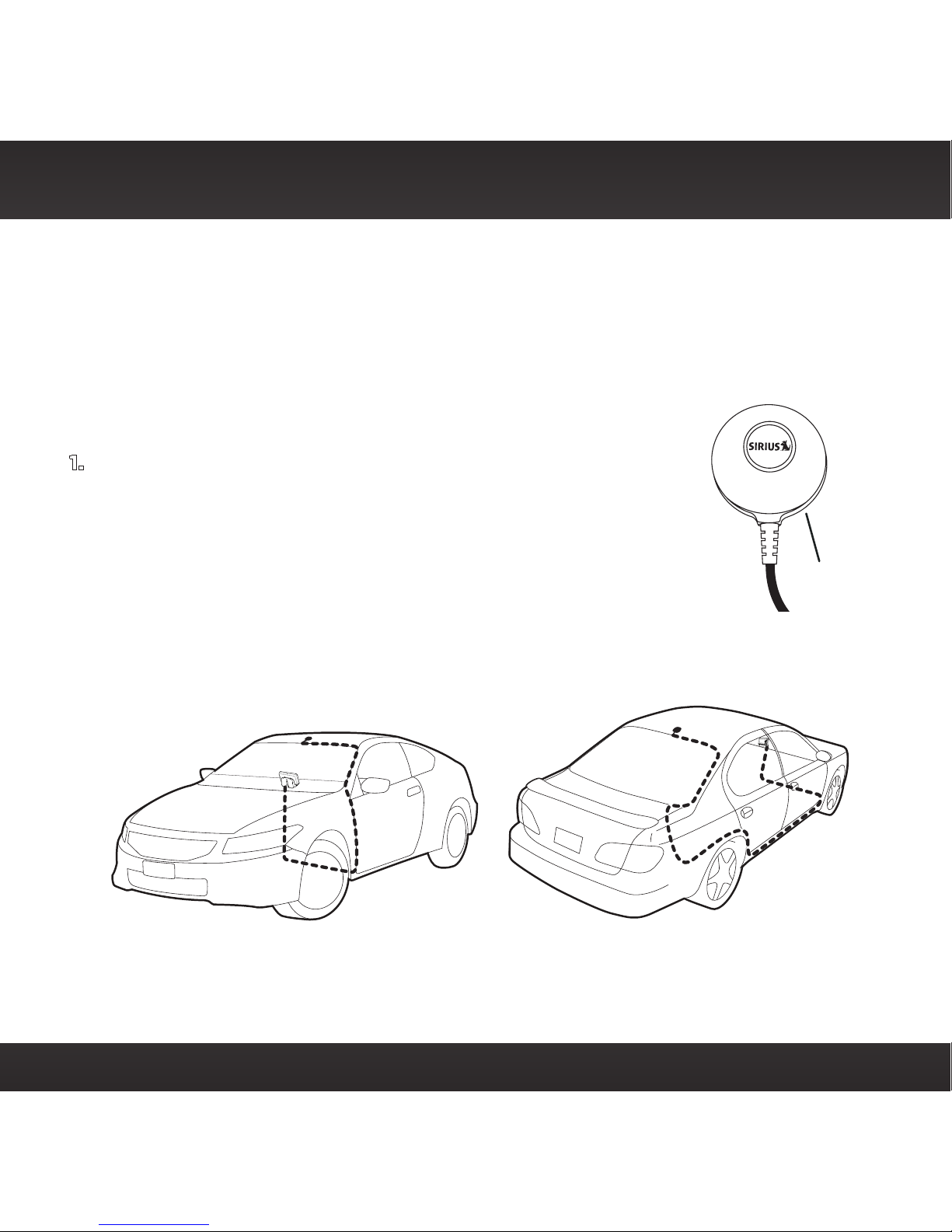

Step 3: Mount the Magnetic Mount Antenna
Mount the Magnetic Mount Antenna on the outside of your vehicle, on a
horizontal surface that will always face the sky. The antenna contains a
strong magnet which will stick to any metal part of your vehicle, but will
not damage the vehicle.
To install the Magnetic Mount Antenna:
1. Choose the best location for your antenna considering
your own personal situation. Pay particular attention to
any accessories that you may have like luggage racks
and how frequently you may use them.

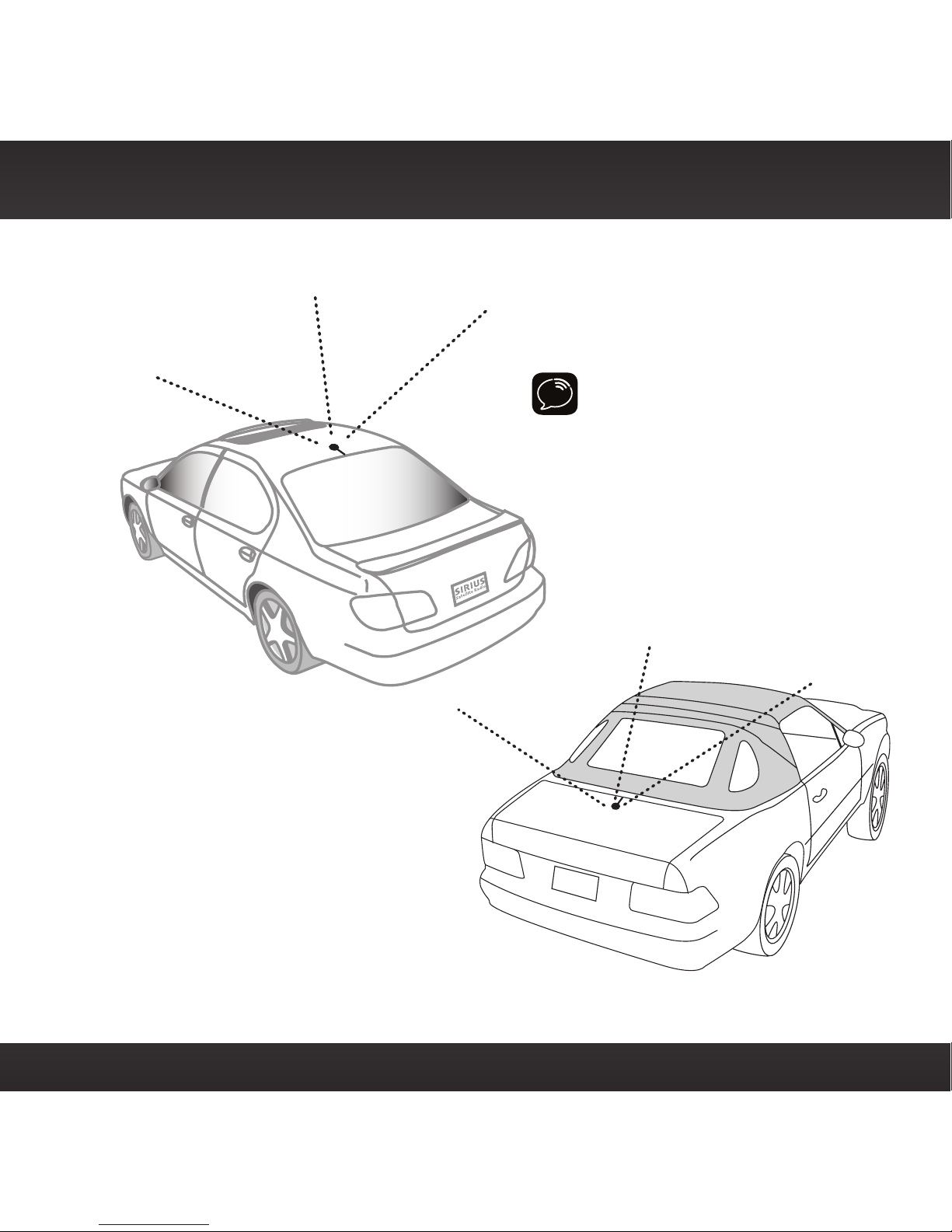

Sedan/Coupe: We recommend mounting the antenna above
either the front windshield or the back window as shown.
Magnet
Vehicle Installation

17

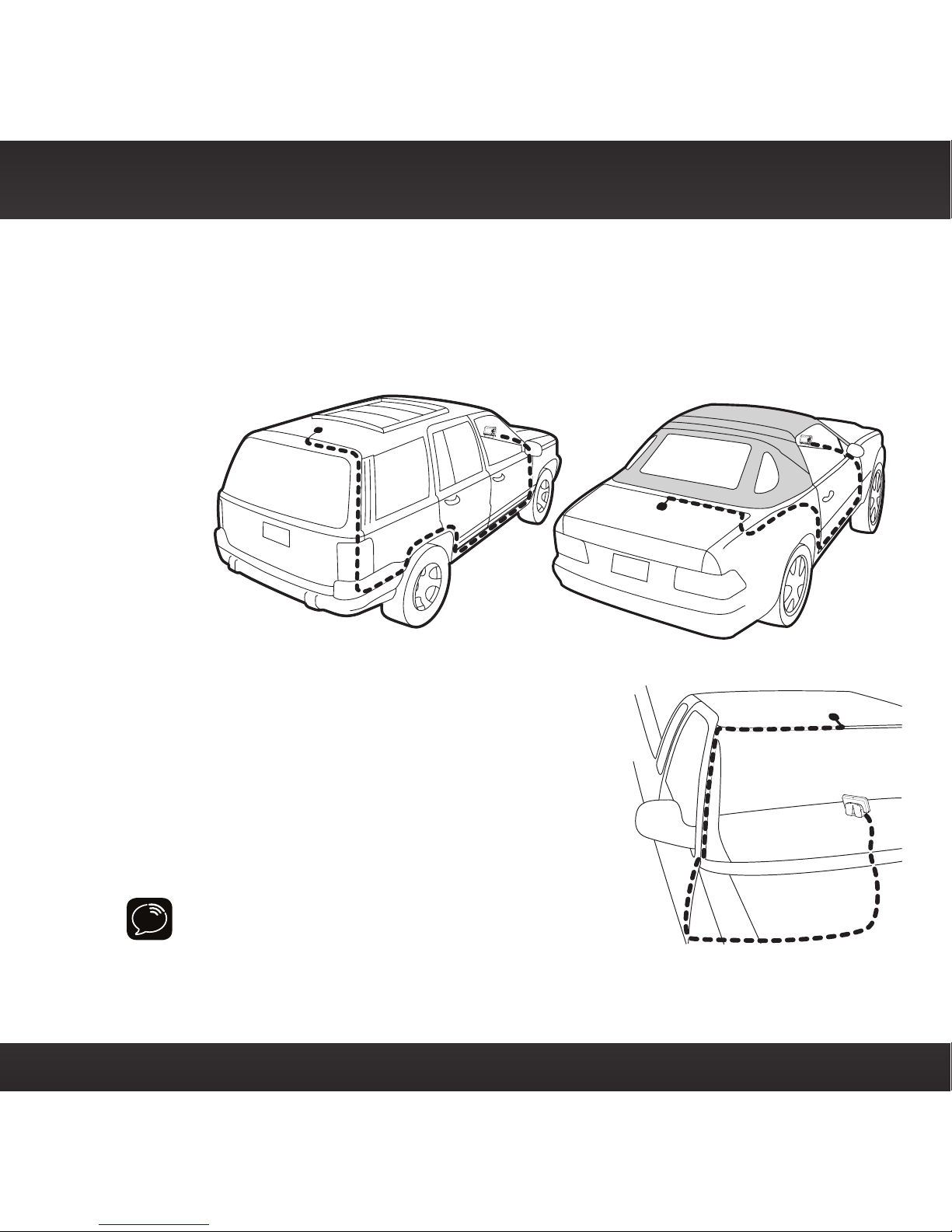

SUV: We recommend mounting the antenna at the rear of the
roof as shown.
Convertible: We recommend mounting the antenna at the
leading edge of the trunk as shown.
Pickup Truck: We recommend
mounting the antenna above the front
windshield as shown.
IMPORTANT! Consult a professional installer if
your vehicle roof or hood is non-metallic (i.e.,
fiberglass), or you have difficulty finding a
location for your antenna.
Vehicle Installation

18
2 Attach the Rubber Tail to the antenna
and press the antenna cable into the
Rubber Tail. The Rubber Tail will help
to position the antenna the correct
distance from the edge of the roof or
trunk lid.
3 Clean the surface of the selected
mounting location using the alcohol
preparation pad and let it dry
thoroughly.
4 Follow the Tips and Cautions shown on
the next several pages, and place the
antenna in the location you selected.
Peel the protective material from the adhesive strips and press the
Rubber Tail firmly into place on the vehicle.
5 Continue to press firmly down on the Rubber Tail for another 30
seconds. At room temperature (68°F), maximum adhesion usually
occurs within 72 hours. During this period, avoid car washes and other
contact with the antenna and the Rubber Tail.
Vehicle Installation
Rubber
Antenna
Ta il
Protective
Material Strain
Relief
Antenna Cable
Magnetic Mount Antenna
(Upside-Down)

19

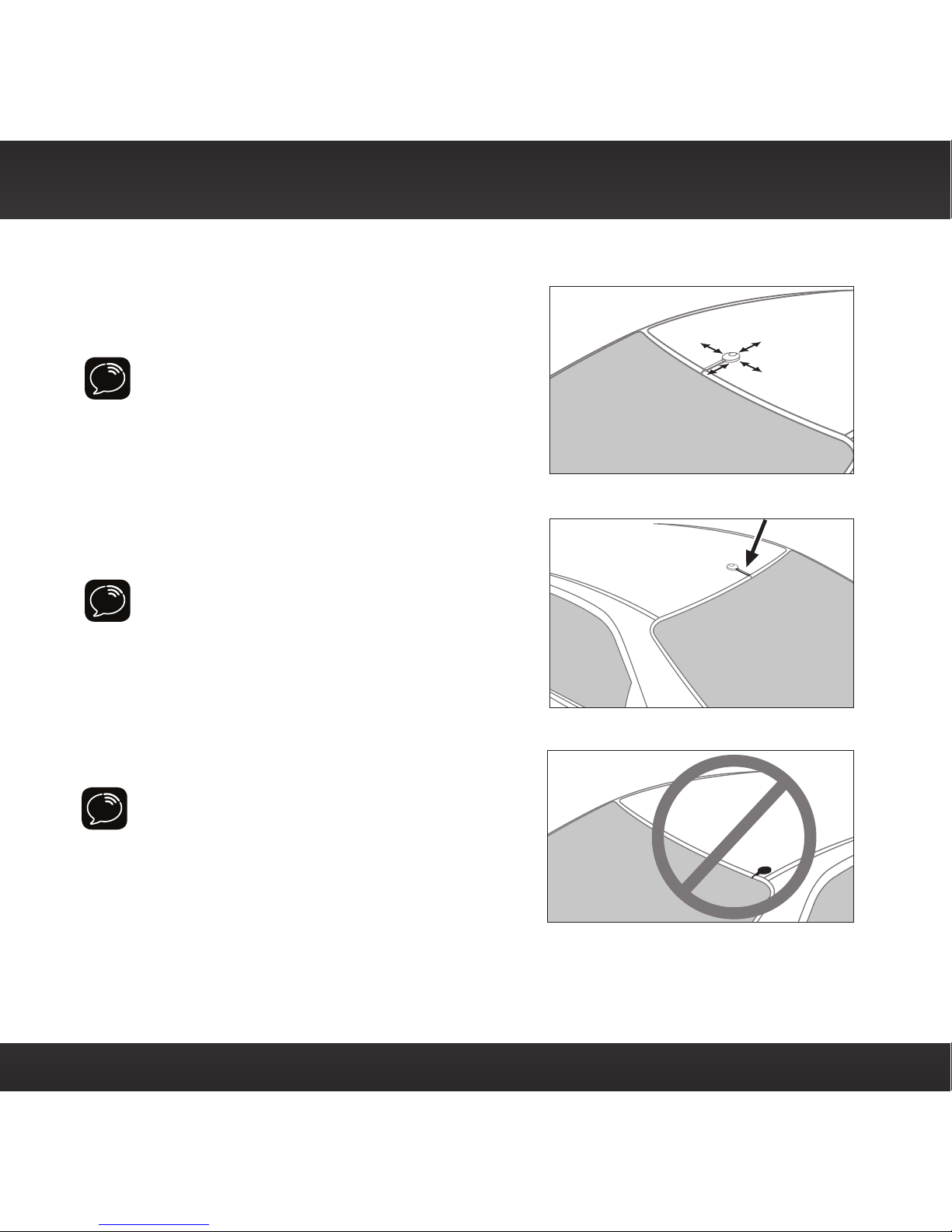

TIP! Mount the antenna on the
roof (for most vehicles) or trunk
(for convertibles) where it has a
clear view of the sky in all
directions.
Vehicle Installation

20
TIP! Mount the antenna on the roof where
it has at least 3 inches of clear space
around it.
3”
TIP! Use the supplied Rubber Tail to cover
and protect the antenna cable.
CAUTION! Don’t mount the antenna
closer than 3 inches from the edge of the
roof. Use the supplied Rubber Tail as a
guide for judging proper length and
correct positioning.
Vehicle Installation
