MyGica ATV520E User manual

Android TV Box
ENJOY TV DUAL CORE
ATV520E
User Manual
Thank you for purchasing this MyGica product.
.Before using it, be sure to read the precautions contained in this User’s Guide.
.Keep the User’s Guide in a safe place for future reference.
.For the most up-to-date information about this product, visit official website at
http://www.mygica.com

2
1. Safety Information
Read and understand all instructions before using this product. If damage is caused by
failure to follow the instructions, the warranty does not apply.
1.1 Warning
To reduce the risk of electric shock, DO NOT remove the cover (or back).
DO NOT attempt to repair the product, this could lead to the risk of injury, damage to the
product .
To reduce the risk of fire or electric shock, keep this product away from exposed direct
sunlight, naked flames or heat, large amounts of moisture, dust, and sand.
FCC Note (for U.S.A)
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on.
The user is encouraged to try to correct the interference by one or more of the following
measures.
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Consult the dealer or an experienced radio/TV technician for help.
- This class B digital product meets all requirements of the Canadian Interference - Causing
Equipment Regulations.
1.2 Precautions
Important Safety Instructions
Read these operating instructions carefully before using the unit. Follow all the safety
instructions listed below.
Keep these operating instructions handy for future reference.
1.2.1 Read these instructions.
1.2.2 Keep these instructions.
1.2.3 Heed all warnings.
1.2.4 Follow all instructions.
1.2.5 DO NOT use this apparatus near water.
1.2.6 DO NOT clean with any chemical detergent. Clean only with a dry cloth.
1.2.7 DO NOT block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
1.2.8 DO NOT install near any heat sources such as radiators, heat registers, stoves, or
other apparatus that produce heat.

3
1.2.9 Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where it exits the apparatus.
1.2.10 Only use attachments/accessories specified by the manufacturer.
1.2.11 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer,
or sold with the apparatus. When a cart is used , use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
1.2.12 Unplug this apparatus during lightning storms or when unused for long period of
time.
1.2.13 Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as when the power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
1.3 Handling Cautions
1.3.1 DO NOT expose this apparatus to dripping or splashing. Do not put objects filled with
liquids, such as vases on the apparatus.
1.3.2 To turn this apparatus off completely, you must pull the power plug out of the wall
socket. Consequently, the power plug must be easily and readily accessible at all times.
1.3.3 DO NOT plug multiple electric devices into the same wall socket. Overloading a socket
can cause it to overheat, resulting in a fire.
1.3.4 Before connecting other components to this player, be sure to turn them off.
1.3.5 If the product makes an abnormal noise or produces a burning smell or smoke, turn
off the power switch immediately and disconnect the power plug from the wall outlet. Then,
contact the nearest customer service center for technical assistance. Do not use the
product. Using the product as it is may cause a fire or an electric shock.

4
2. Introduction
2.1 Package Contents
Enjoy TV Dual Core - ATV520E
HDMI Cable
Quick installation Guide
Power Adapter, Input: AC100 ~ 240V, 50/60Hz, Output: 5V/2A
IR Remote Controller (IR RC)
2.2 Product Features
•Dual Core ARM Cortex A9, 1.5GHz, RAM 1G, built in 2G-32G flash memory
•Powered by Android 4.1 OS
•Built in 802.11b/g/n WIFI module, wireless Internet access
•
2
USB interface, support mobile HDD, wired/wireless mouse and keyboard operation
•RJ45 10/100M Ethernet interface
•Support 1080P video playback
•HDMI video output, connect to HDTV for HD video playback
•Support weather, calendar, and desktop clock gadgets
•Support 2.4G wireless motion Remote Controller
•Support Flash Player 10.
2
for hardware decoding, Flash 11.1 for software
decoding ,playback online video
•Support music player, picture player and more family entertainment
•Support Micro SD card and Google Chrome browser and virtual private network access
•App Installer for application installation from USB/Micro SD card

5

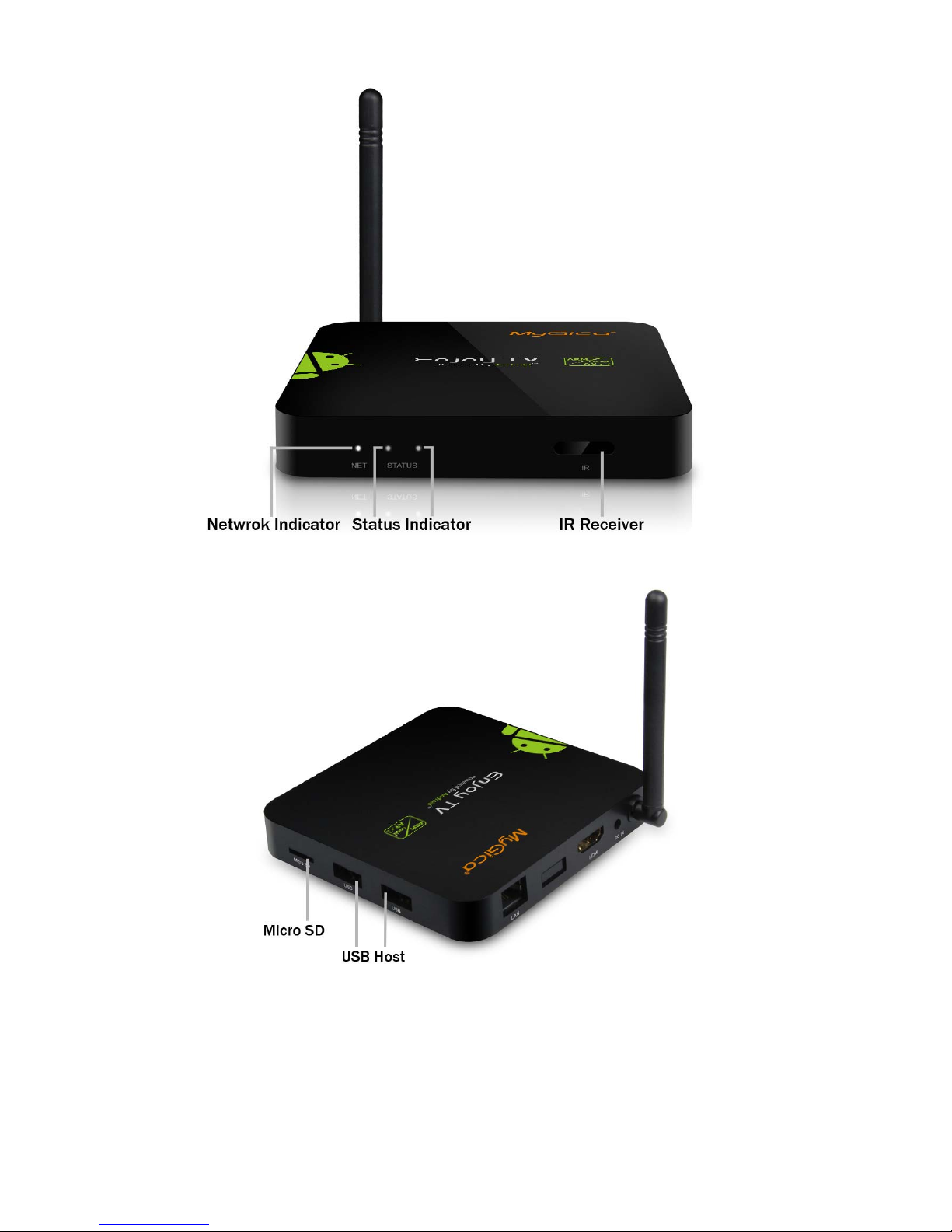

  2.3 Panel Introduction

6
2.4 Remote Controller
Remote control KR34
[01] Power [10] Home
[02] Mouse [11] Switch
[03] Mute [12] Menu
[04] Up [13] Volume +
[05] Left [14] Notifications
[06] Right [15] Page up
[07] Down [16] Volume -
[08] Enter [17] Page down
[09] Exit
Note: Click “Mouse”button once.. Push up/down/left/right to shift the cursor of the mouse .
Theremotechangetoamouse
Click “Mouse”again.. The remote change back to normal IR remote

7

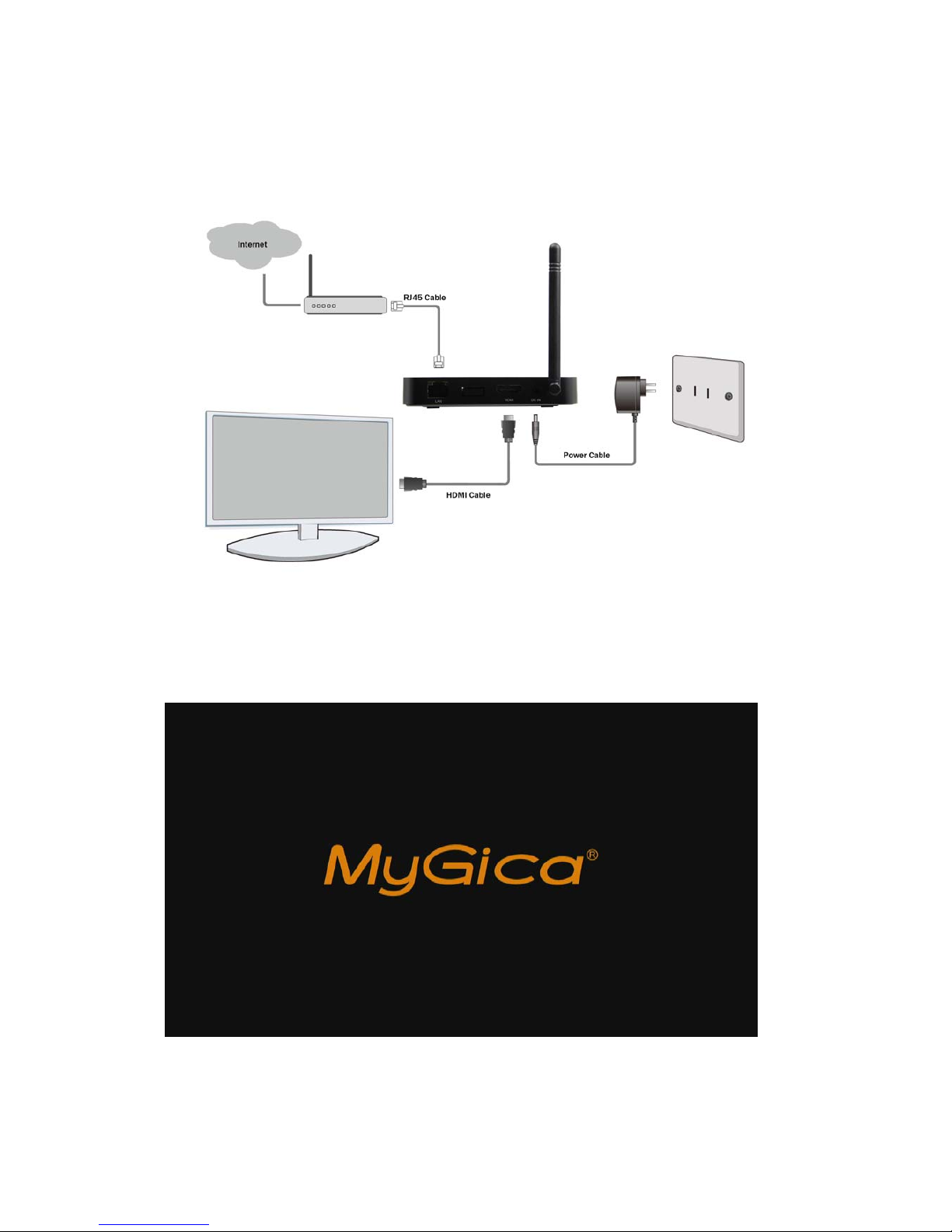

2.5 Setup Connection
Place ATV520E on a flat platform near the TV, and make sure nothing block the
remote control signal.
2.6 Display when Power Up
2.6.1 After power up, the TV will first show “MyGica” logo during loading. When
loading is finished, it will go to Home screen.

8

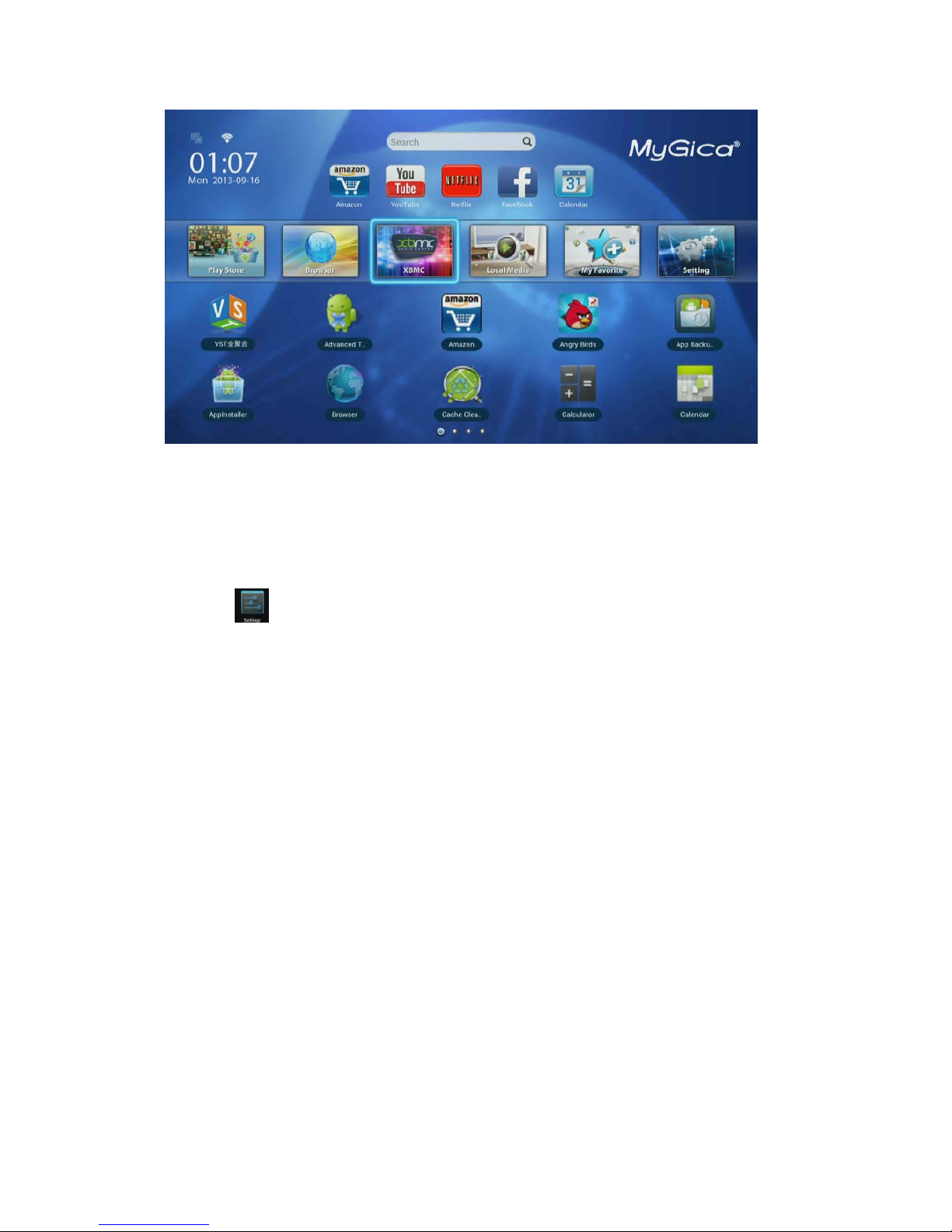

2.6.2 Home Screen display.
3. Settings
Using Navigation (4 directions), OK, EXIT, and Menu keys of Remote Controller to
select the options, the option selected will be highlighted and confirmed by
pressing OK key. Same operation for text input if needed.
Select icon then press OK key.

9
3.1 WiFi

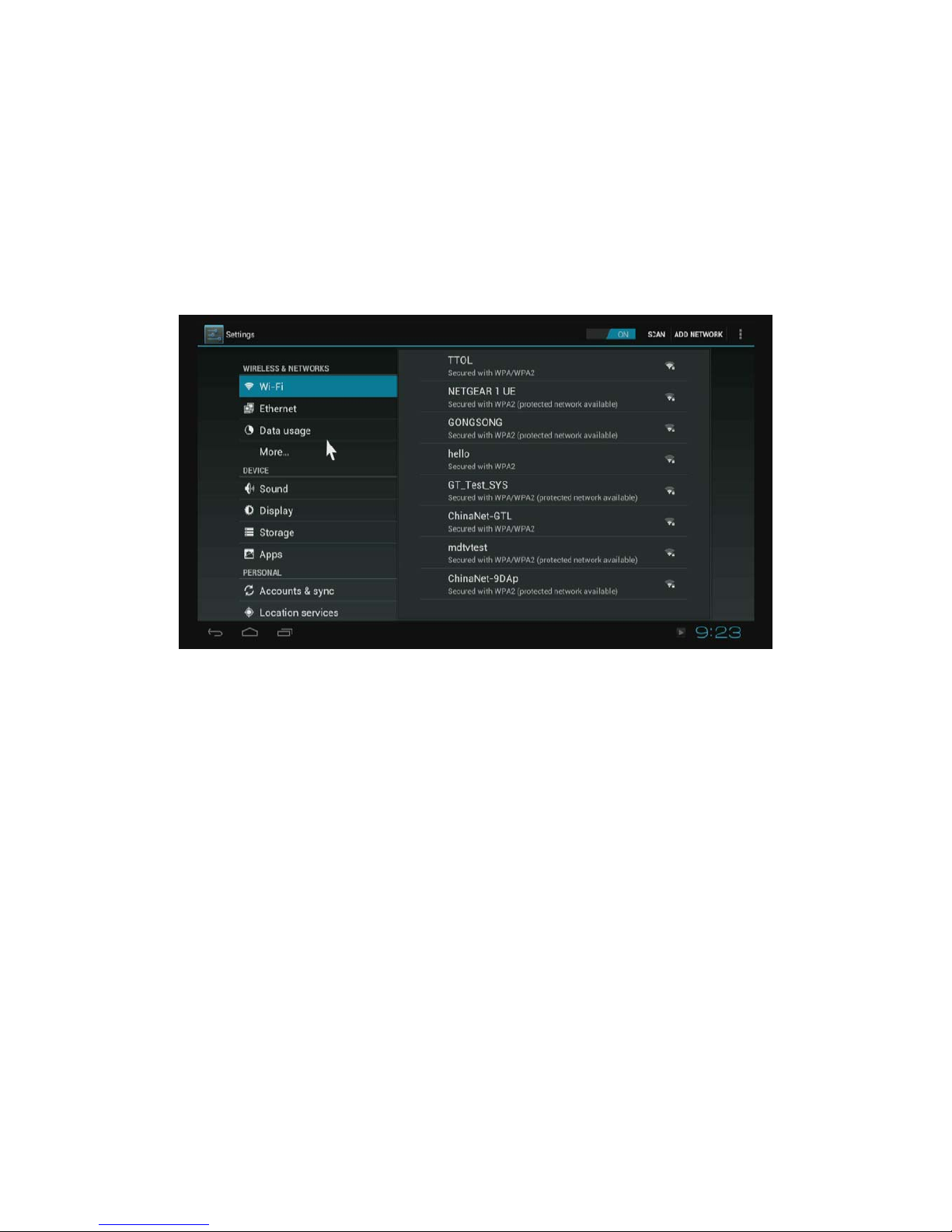

3.1.1 It will automatically scan ambient WiFi networks when select “ON”.
3.1.2 Connect an available WiFi network. If connect a secured WiFi network,
corresponding password will be input firstly. Or fail to connect and need reset
password.
3.1.3 Once build up the connection with a certain WiFi network successfully,
ATV520E will connect this WiFi network automatically when restart.
Note: If factory reset, the password of WiFi network have to be reset.
3.2 Ethernet
Connect Box and Router by RJ45 network cable.
Press “ ON” in Ethernet setting, it will connect to network automatically.

10
3.3 Date usage
Show data usage information.
3.4 More...
3.4.1 VPN
Build and set VPN

11

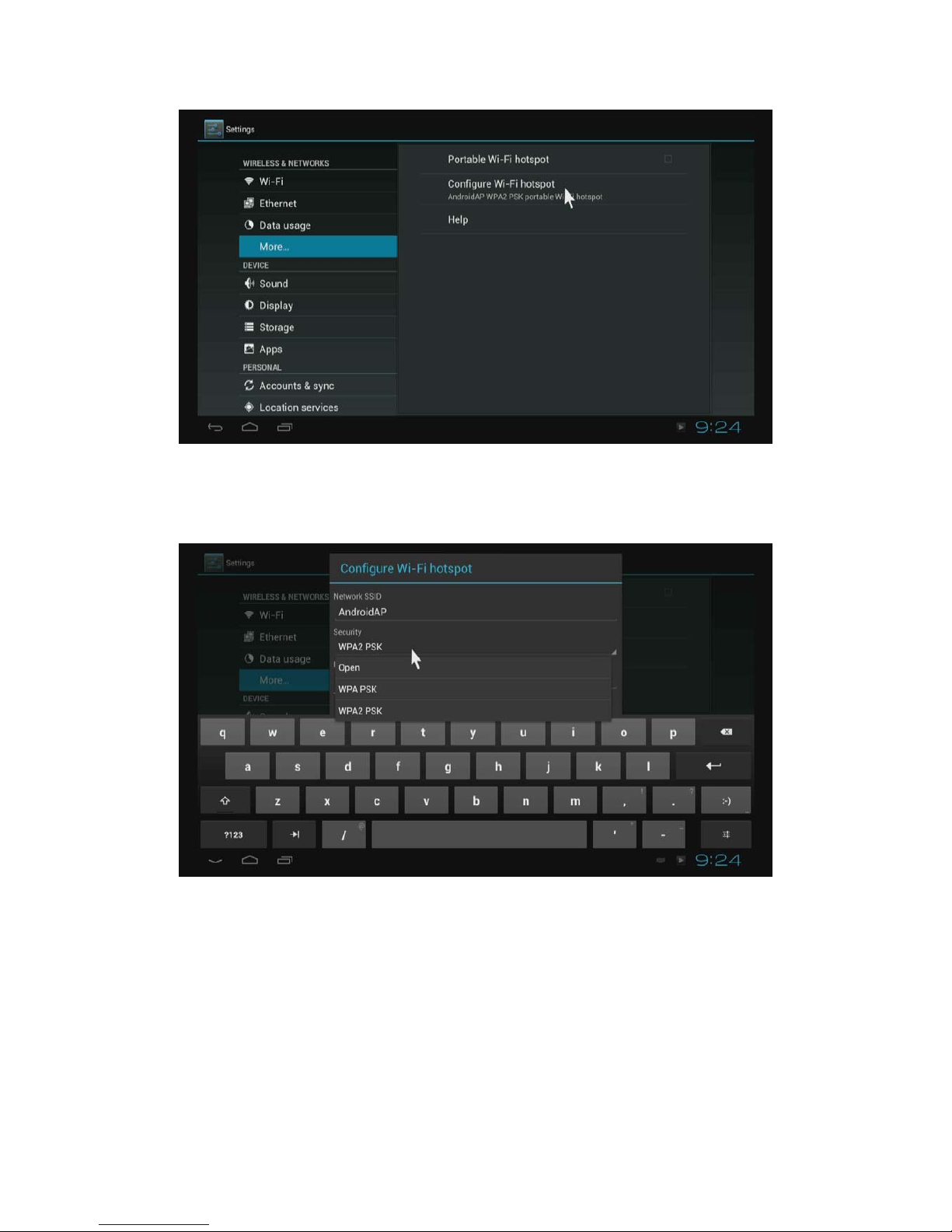

3.4.2 Portable hotspot
3.4.2.1 Enable Portable hotspot
3.4.2.2 Configure WiFi hotspot
3.4.2.3 Choose different security way to share your network.
3.4.2.4 Help for any confusion
Note: WiFi and hotspot connection can not be applied at same time.
Disconnect WiFi and connect Ethernet while using hotspot function.
3.4.3 Proxy settings
Setup proxy server
3.5 Sound
3.5.1 Volumes
Increase or decrease sound volumes
3.5.2 Touch Sounds
If enable Touch sound, sound will be heard while move remote controller.

12
3.6 Display
3.6.1 Wallpaper
Could be customized by User self

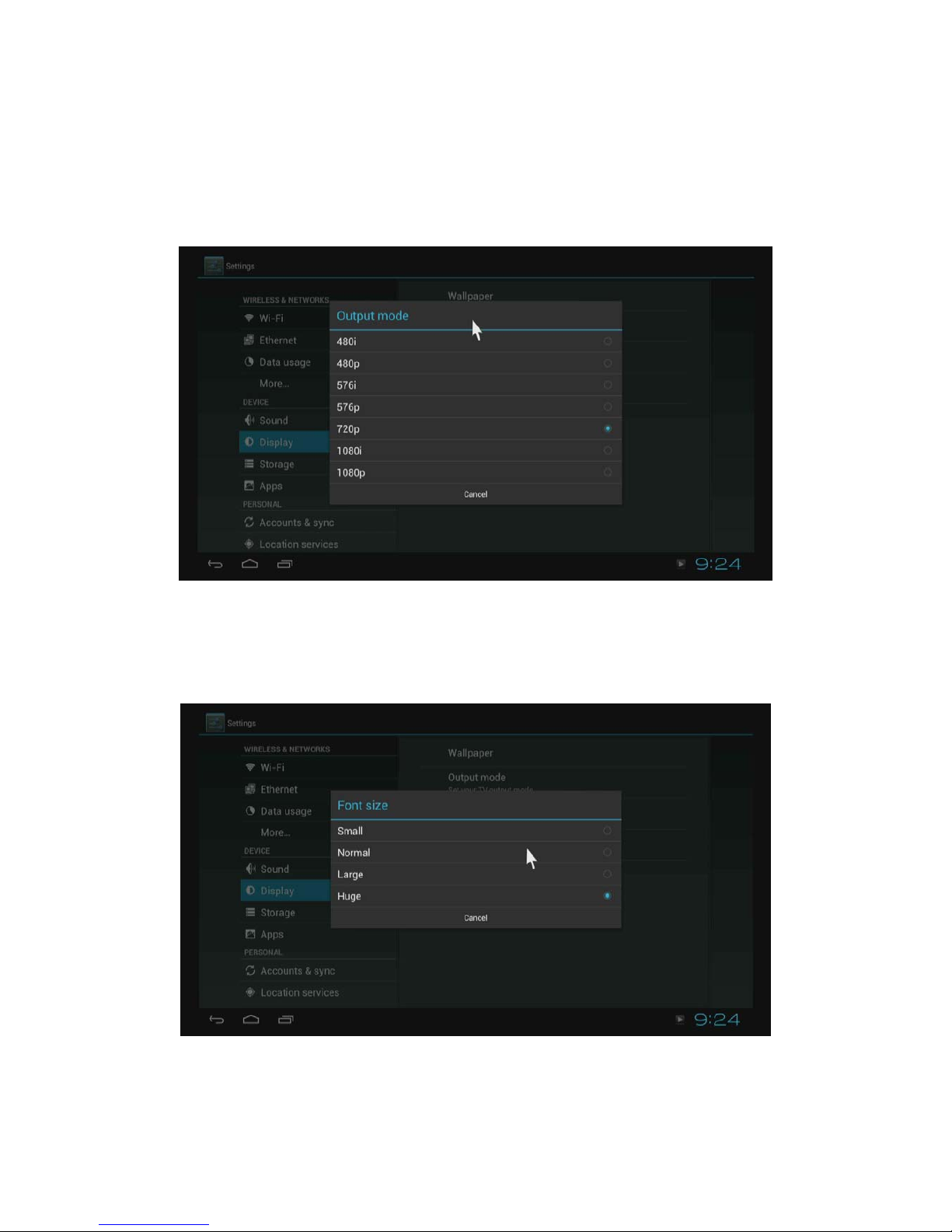

3.6.2 Output mode
Default setting: 720p
3.6.3 Display position
Use navigation keys and OK buttons of remote control to adjust display position
when the screen is not display as full screen on your TV
3.6.4 Font size
Change the font size of OSD

13
3.7 Storage
Shows the storage used of the OS and SD card.
3.8 Apps
List all apps installed.
You can choose an application and force to shut down the app, uninstall the app,
clear user data, move to SD card and clear cache data.
3.9 Accounts & sync
Account setting and synchronization

14
3.10 Security
3.11 Language & input
Change OSD language and input method.
The default input method is android standard keyboard.
If you are using our IR remote control, enter into “Default” option and switch to
remote controller input method.

15

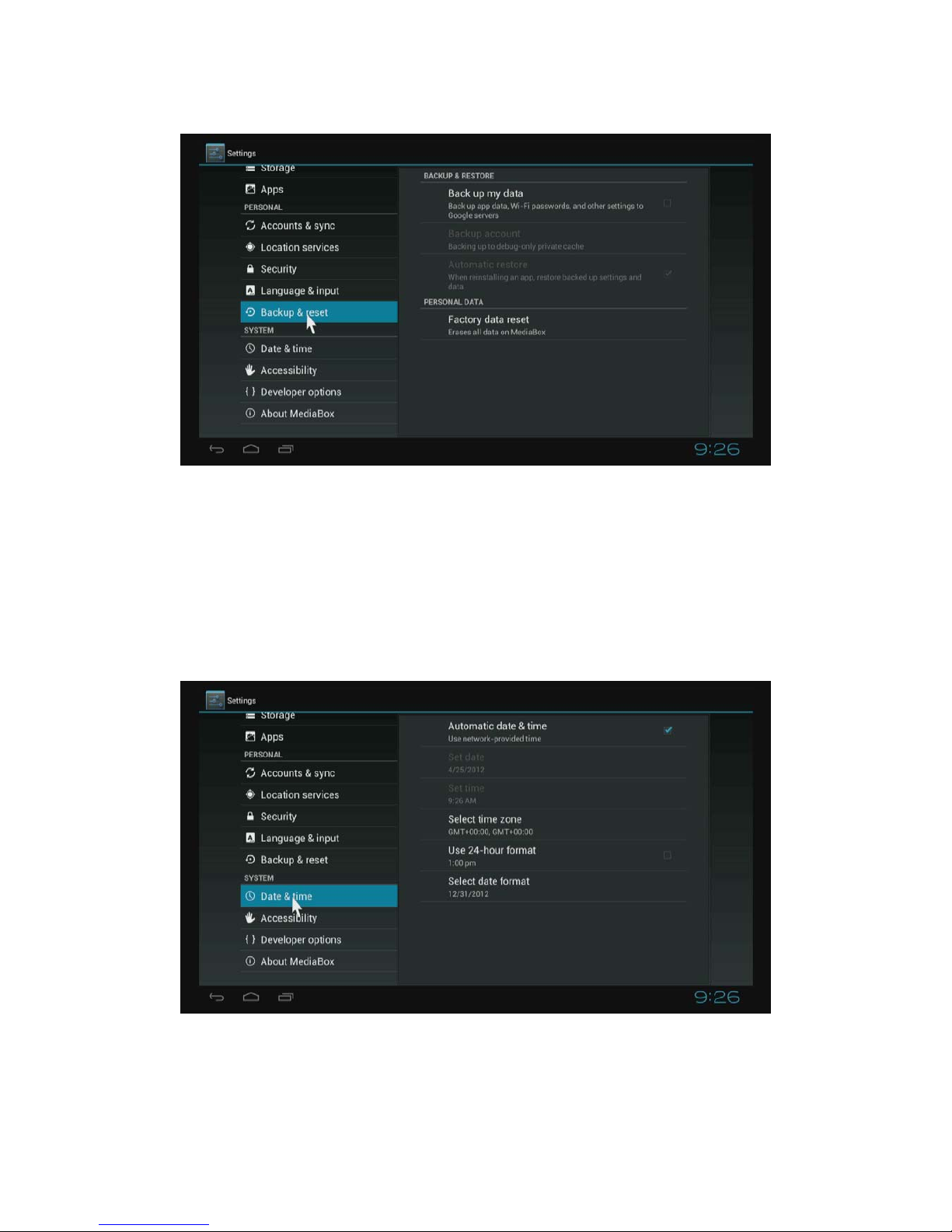

3.12 Backup & reset
Back up my data:
You can backup your application data, WiFi password and other settings.
Factory data rest:
You can reset all the settings and apps to factory default.
Note: You might want to backup important data before resetting the box. Once
you choose to rest to factory default, all data/apps will be deleted.
3.13 Date & Time
Setdate,time,timezoneandtimeformat
3.14 Accessibility
N/A for ATV520E

16

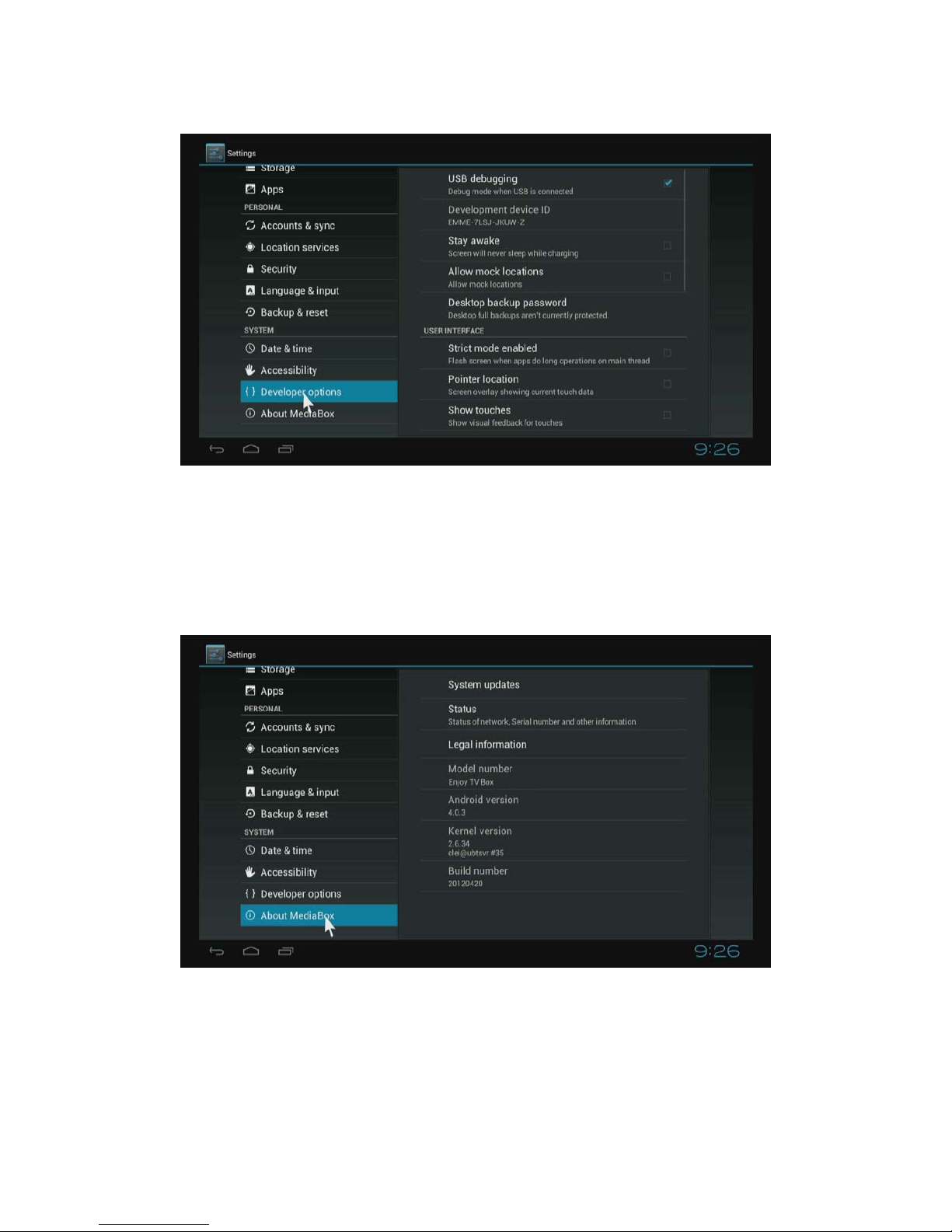

3.15 Developer options
If user want to do some debugging on box by ADB, enable USB debugging, you
will get ADB function by Ethernet or WiFi network.
3.16 About MediaBox.
Firmware version under build number.

17
4. Apps Install & Uninstall
On ATV520E, you can install apps from Android Market over the Internet or other
sources, such as other online sources, the internal storage and the USB storage
device and SD card that you have mounted onto ATV520E.
You also can manage apps on ATV520E and Micro SD card, install/uninstall
apps, stop running apps, or select other options.
5. Application Usage
5.1 XBMC Media Center
XBMC Media Center allows you to play and view most videos, music such as
podcasts from the internet, and all common digital media files from local and
network storage media.

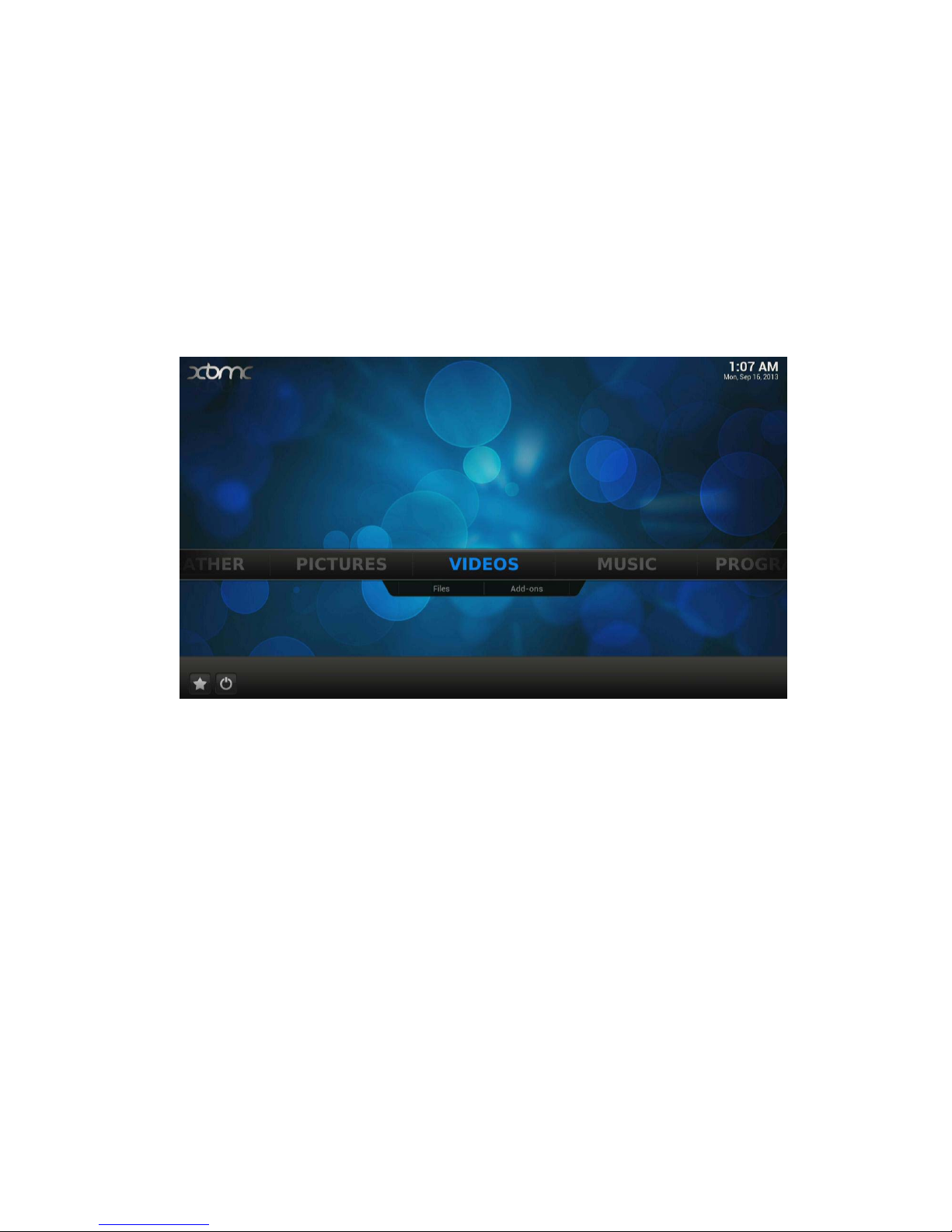

5.1.1 Playback local media files
Under Videos (same as Music and Pictures) there are 2 options, Files & Add-ons.
To playback local media files, select ‘Files’ and enter Files interface, as shown in
the picture:

18
Select ‘Add Videos...’ and a pop up window “Add Video source” will comes out.
Select ‘Browse’ and a list of devices will comes out.
Scroll down to find the ‘Root filesystem’ and select OK, then search for ‘mnt’
folder and once you enter mnt folder, you will see all the devices connected to
the player.

19
If your media files are store in SD Card, select ‘sdcard’ folder, if the files are store
in USB drive, select ‘usbdrive’ folder. Once you select the desire folder, select
‘OK’ and you will find out that folder will be added to the Files list. You can enter
that folder and playback media files you want.
5.1.2 Playback media from internet

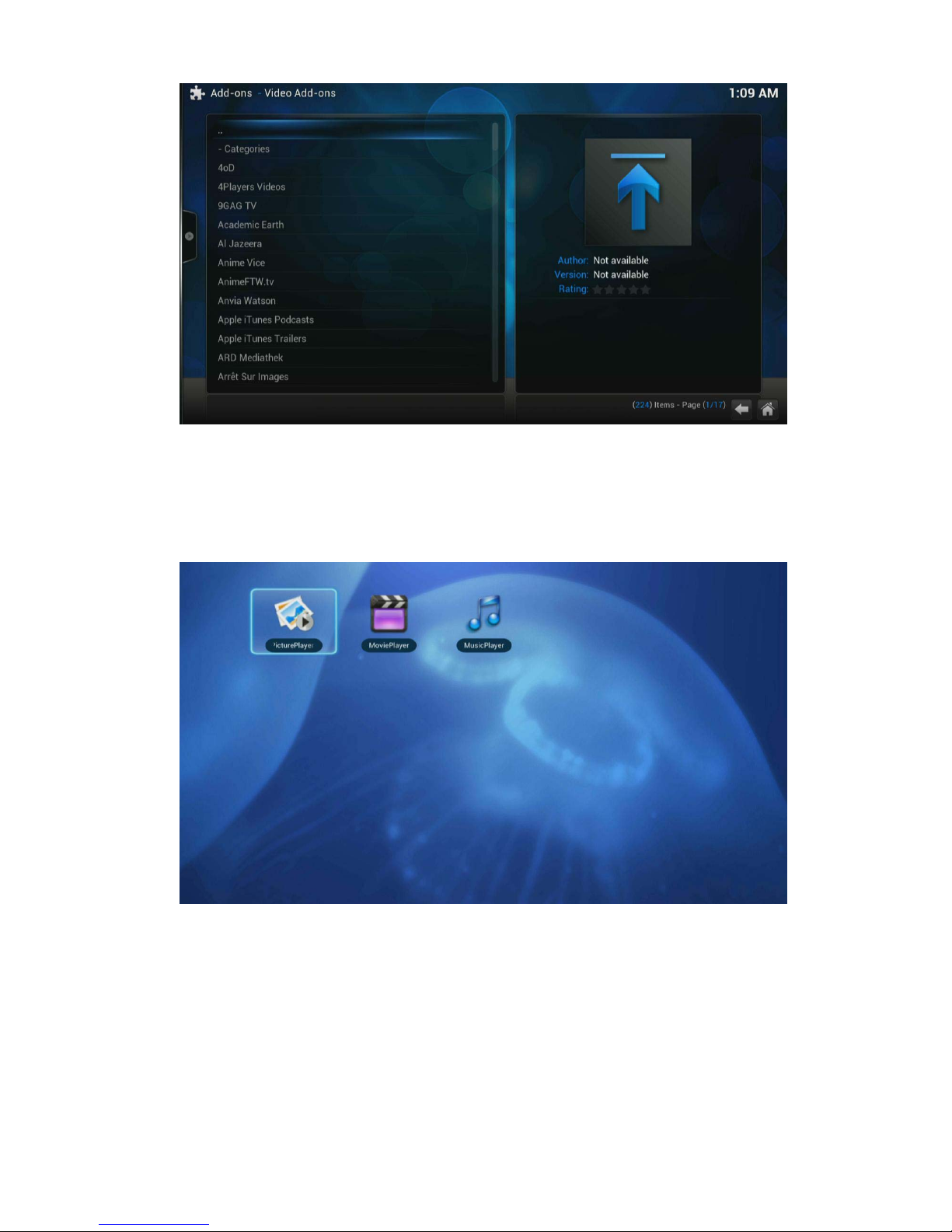

XBMC comes with some free internet podcast channels, to view these channels,
goto Videos (or Music) and select Add-ons.

20
Once you enter Add-ons, you will see a list of different channels. These channels
are in alphabetical order, browse through the list and select the desire channels
and start playback the internet media.
5.2 Local Media
To access media files in your SD card/USB device, simple click on ‘Local Media’
in the Home screen. There are 3 different functions in Local Media.
Picture Player: Playback picture files stored in your SD card/USB devices.
Movie Player: Playback movie files stored in your SD card/USB devices.
Music Player: Playback music files stored in your SD card/USB devices.
You can click ‘...’ button to call up the tool menu to change mode, subtitle, audio
track, get information, etc.
