Sitecom WLX-2100 User manual

N300 Wi-Fi Outdoor Range Extender
User Manual
WLX-2100

WLX-2100 | User Manual
2
Introduction
Congratulations on your purchase of the N300 Wi-Fi Range Extender Outdoor. With this range extemder
you can easily extend the signal of a Wi-Fi hotspot and enjoy a stable Internet connection for all your
devices. Ideal for camping grounds and harbors, you can use a single code or voucher to login to the Wi-Fi
network and share Internet with friends and family. The range extender supports fast Wi-Fi speeds of up to
300 Mbps. Enjoy the things you do at home also while you’re on vacation and listen to your Spotify playlists
or watch the latest episode of your favorite Netflix show without lag or buffering. With two extra powerful
5dBi antennas, you can enjoy ultimate Wi-Fi coverage anywhere.
Weatherproof design
The N300 Wi-Fi Outdoor Range Extender is rated IP65. This means that it is protected against the ingress of
dust and water and can be used in any weather and any climate. Even harsh environments do not impact
the performance.
Easy installation
The N300 Wi-Fi Outdoor Range Extender supports Power over Ethernet (PoE) which means that you can
use the included 5m network cable and the included PoE-injector to power it. This gives you more freedom
to place the range extender further away from a power socket and have it anywhere in and around your
boat, tent or vehicle.
Compatibility and security
The N300 Wi-Fi Outdoor Range Extender is compatible with wireless-n extenders and is also backwards
compatible with older wireless technologies. The range extender also supports all existing security
standards (64/128-bit WEP, WPA, and WPA2).
Extensive 10-year warranty
The N300 Wi-Fi Outdoor Range Extender comes with an extensive 10-year warranty. Simply activate the
long-term warranty by registering your product within 3 weeks of purchase.

WLX-2100 | User Manual
3
Table of Contents
Introduction.................................................................................................................. 2
Table of Contents .......................................................................................................... 3
Get to know your range extender .................................................................................... 5
Features......................................................................................................................................................... 5
Technical Specifications................................................................................................................................. 6
What you get ................................................................................................................................................. 8
What you need .............................................................................................................................................. 9
Safety precautions....................................................................................................................................... 10

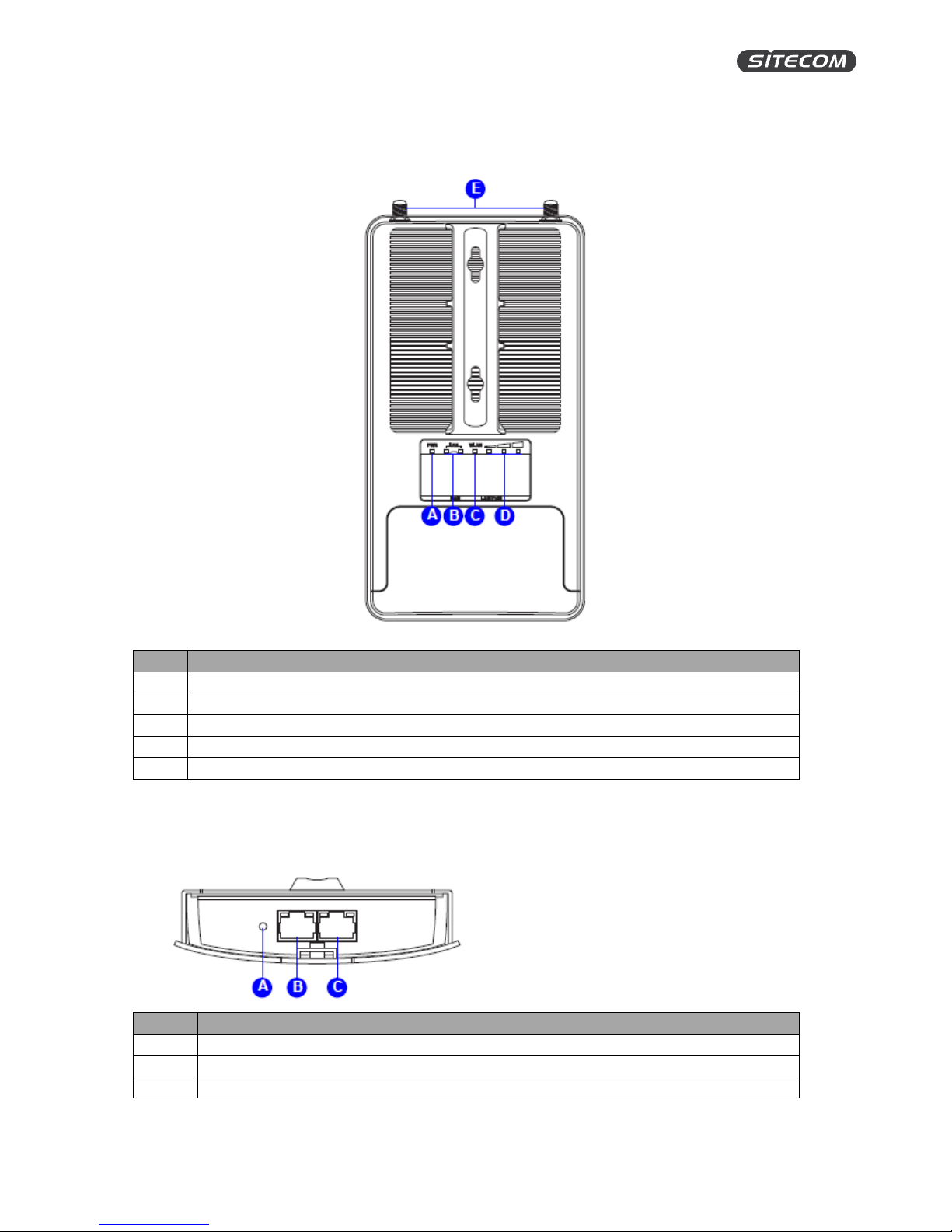

Product layout ............................................................................................................................................. 11

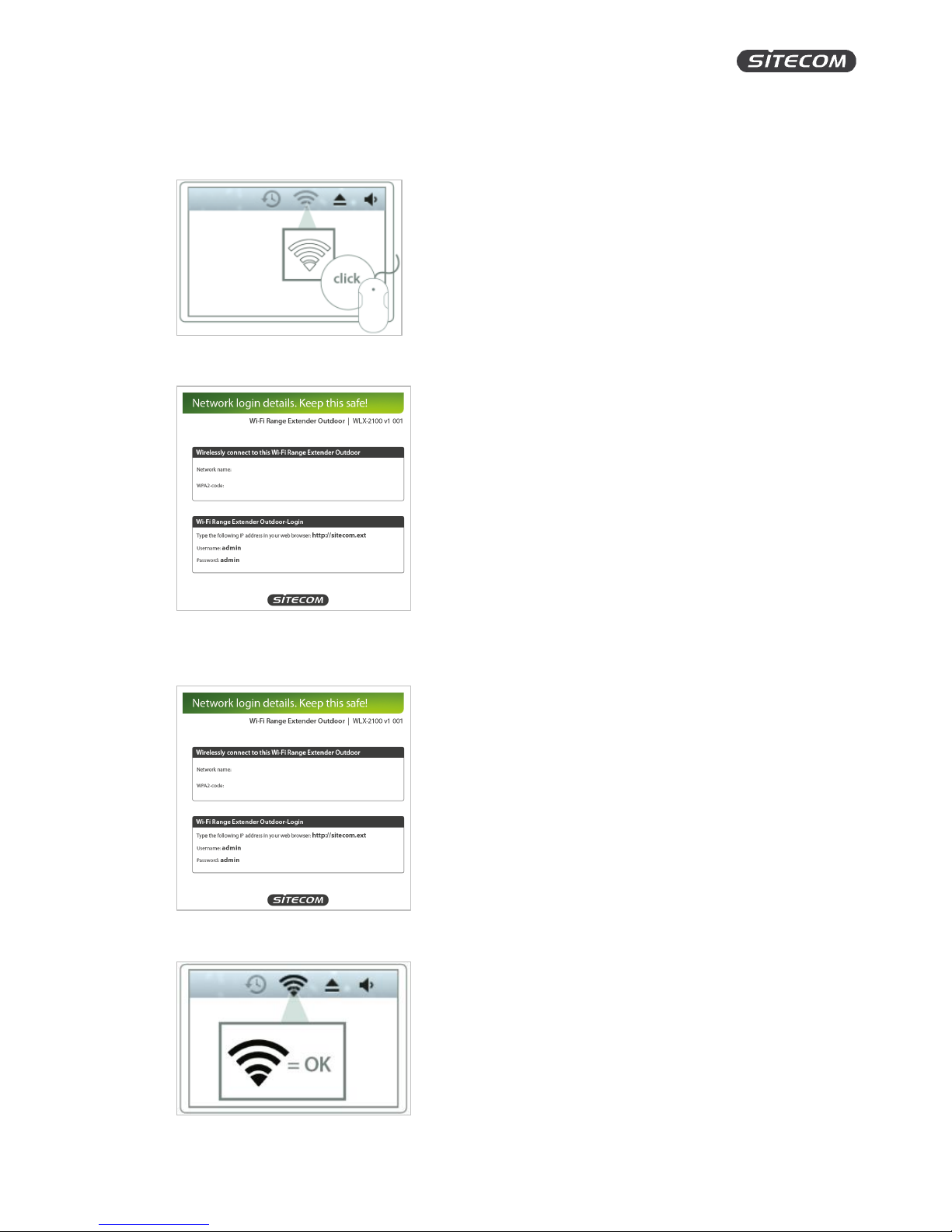

Network Detail Flyer.................................................................................................................................... 12
Install your range extender........................................................................................... 13

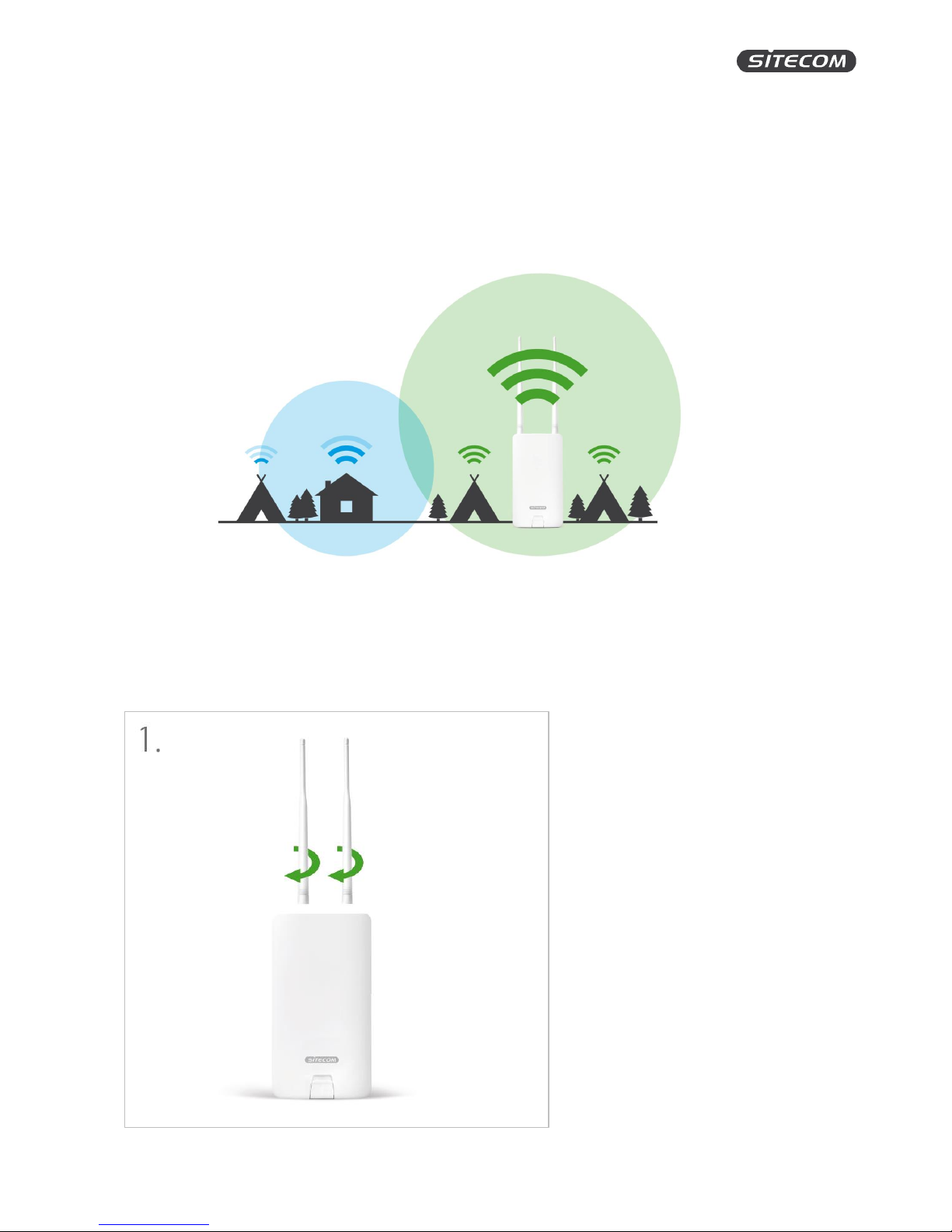

Choose a position for your range extender................................................................................................. 13
Prepare your range extender ...................................................................................................................... 13
Prepare your computer ............................................................................................................................... 16
Prepare your Phone / Tablet ....................................................................................................................... 18
Login to the range extender ........................................................................................................................ 19
Install the range extender with the wizard ................................................................................................. 20
Get to know the range extender’s user interface.............................................................. 22
Status........................................................................................................................................................... 22
Save/Reload............................................................................................................................................. 22
Main......................................................................................................................................................... 22
Wireless Client List................................................................................................................................... 23
DHCP Client Table.................................................................................................................................... 23
Connection Status.................................................................................................................................... 24
System Log............................................................................................................................................... 25
Settings ........................................................................................................................................................ 26
Operation Mode (System properties) ..................................................................................................... 26
Wan settings............................................................................................................................................ 27
LAN settings............................................................................................................................................. 32
VPN Pass-through.................................................................................................................................... 33
Port Forwarding....................................................................................................................................... 34
DMZ ......................................................................................................................................................... 36
Wireless Settings ..................................................................................................................................... 37

WLX-2100 | User Manual
4
Wireless Advanced Settings .................................................................................................................... 40
Administration......................................................................................................................................... 42
SNMP ....................................................................................................................................................... 44
Backup/Restore Settings ......................................................................................................................... 46
Auto Reboot SettingS .............................................................................................................................. 47
Firmware Upgrade................................................................................................................................... 48
Time Settings ........................................................................................................................................... 49
CLI Settings .............................................................................................................................................. 50
Log ........................................................................................................................................................... 51
Diagnostics............................................................................................................................................... 52
Device Discovery...................................................................................................................................... 54
Denial of Service Protection .................................................................................................................... 55
Addendum A: GNU GPL ................................................................................................ 56
Addendum B: Declaration of Conformity ......................................................................... 57
Revision 1.0
© Sitecom Europe BV 2016
Note: All the information contained in this manual was correct at the time of publication.
However, as our engineers are always updating and improving the product, your device’s software may
have a slightly different appearance or modified functionality than presented in this manual.

WLX-2100 | User Manual
5
Get to know your range extender
Features
•Extend the signal of a Wi-Fi hotspot
•Ideal for camping grounds & harbours
•Use a single login account & share internet access
•Wi-Fi speeds: 300 Mbps (2.4 GHz)*
•Two extra powerful 5 dBI antennas
•IP65-rated weatherproof housing
•Powered by PoE (Power over Ethernet)
•Compatible with 802.11b/g/n wireless networks
•Compatible with 64/128-bit WEP, WPA, and WPA2 wireless data encryption
•Supports DHCP server function
•Easy to use web-based GUI (Graphical User Interface)
•Two Fast Ethernet ports with one PoE (Power over Ethernet) input
* Theoretical wireless signal rate based on IEEE standard of 802.11a, b, g, n chipset used. Actual throughput
may vary. Network conditions and environmental factors lower actual throughput rate. All specifications
are subject to change without notice.

WLX-2100 | User Manual
6
Technical Specifications
Hardware Specification
Physical Interface:
•2 x RJ-45 for 10/100 Fast Ethernet; one port is compatible with PoE
•1 x Reset button
•2x detachable 5 dBI antennas with SMA connector
Power Requirements:
•Active ethernet (Power over Ethernet)
•Proprietary PoE design
•Power Adapter 24V / 0.6A
Temperature Range:
•Operating -20°C~70°C
•Storage -30°C to 80°C
Humidity (non-condensing):
•0%~90% typical
Dimensions:
•With antenna: W100 x D37.5 x H205 mm
•Without antenna: W100 x D37.5 x H189 mm
Weight:
•With antenna: 275 g
•Without antenna: 242 g
Software Specification
Operation Mode:
•Client Bridge, Access Point, Client Router, WDS AP, WDS Bridge, WDS Station
Wireless Specifications:
•Wireless standard: 802.11n, backward compatible with 802.11b/g
•Data rate: 300 Mbps
•Frequency Band: 2.4 GHz
Note: The maximum power of the radio frequency band may be different depending on local regulations.
Wireless / Network Features:
•Auto Channel Selection (Setting varies by Regular Domains)
•Obey Regulatory Power
•Distance Control (802.1x ACK (acknowledgement)
•timeout)

WLX-2100 | User Manual
7
•CLI Supported
•802.1x Supplicant (CB Mode)
•4 SSIDs
•WDS AP / WDS Bridge / WDS Station
•Multicast Supported
•RADIUS Accounting
•VLAN Tag / VLAN Pass-through
•Auto Reboot
•Wi-Fi Scheduling
Wireless Security:
•WEP Encryption-64/128/152 bit
•WPA/WPA2 Personal (WPA-PSK using TKIP or AES)
•WPA/WPA2 Enterprise (WPA-EAP using TKIP)
•Hide SSID in beacons
•MAC address filtering, up to 50 field
•Wireless STA (Client) connected list
QoS:
•WMM

WLX-2100 | User Manual
8
What you get
Open the package carefully, and make sure that none of the items listed below are missing. Do not discard
the packing materials, in case of return; the unit must be shipped back in its original package.
•WLX-2100 N300 Wi-Fi Range Extender Outdoor
•5m network cable
•PoE Injector (24 V)
•2x 2.4 GHz 5dBi antenna
•Power adapter 24 V / 0.6 A
•Car charger 12 V
•Wall mounting kit (screw set & adhesive label)
•Pole mounting kit (2x cable tie + 2x hose clamp)
•Installation guide
•Network detail flyer

WLX-2100 | User Manual
9
What you need
To use this range extender, you will need the following things:
•A Wi-Fi network or a wired Internet connection
•A device with a web browser (Internet Explorer, Safari, Firefox, Opera)

WLX-2100 | User Manual
10
Safety precautions
The range extender is designed and manufactured with your safety in mind. In order to safely and
effectively use the range extender, please read the following before usage.
Usage Cautions
•The range extender can operate in temperatures ranging from -20°C to 70°C. It can be stored in
temperatures ranging from -30°C to 80°C.
•Do not disassemble, repair or change the range extender; any damage done will not be included in
the warranty / repair policy.
•The range extender is IP65 rated. This mean it can remain outdoors where it will be subject to rain.
However, do not submerge it into water.
•Make sure to follow the installation guide correctly so that water cannot get into the range
extender.
•Do not shake or hit the range extender, do not press the buttons too hard and stay away from
magnetic fields.
•If during electrostatic discharge or a strong electromagnetic field the product will malfunction,
unplug the power cable. The product will return to normal performance the next time it is powered
on.
Power
The range extender’s power voltage is DC 24 V 0.6 A. To use the range extender, please connect the
supplied AC adapter or car charger to the range extender’s PoE connector.
•When placing the cable, make sure it can’t get damaged or be subject to pressure.
•To reduce the risk of electric shock, unplug the adapter first before cleaning it.
•Never connect the adapter to the range extender in a humid or dusty area.
•Do not replace the adapter or cable’s wire or connector.
Repair
If you experience any problems with your range extender, please take it to the shop where you bought it or
a qualified repair centre. Never repair the range extender yourself, you might damage the range extender
or endanger yourself.
Disposing of the Wi-Fi Home Cam
When you dispose the range extender, be sure to dispose it appropriately. Some countries may regulate
disposal of an electrical device, please consult with your local authority.
