SKF CMSS6165 User manual

Strobe Light
CMSS6165
Supports the AX, GX, MX and CMVA Series
Micrologs
Part No. 32177800
Revision A
WARNING! Not certified for use in hazardous locations.
Read this manual before using this product. Failure to follow the
instructions and safety precautions in this manual can result in serious
injury. Keep this manual in a safe location for future reference.
User Manual
Copyright ©2009 by SKF Reliability Systems
All rights reserved.
5271 Viewridge Court, San Diego, CA 92123-1841 USA
Telephone: [phone], Fax: [phone]
Customer Service: 1-800-523-7514

SKF Reliability Systems
For additional information on SKF Reliability Systems
products, contact:
SKF Reliability Systems
5271 Viewridge Court • San Diego, California 92123
USA
Telephone: [phone] • FAX: [phone]-
3531
Web Site: www.skf.com/cm
For technical support, contact:
[e-mail] (North America, South America,
and Asia)
or
[email protected] for customers in EMEA region
(Europe, Middle East, and Africa)
® SKF is a registered trademark of the SKF Group
All other trademarks are the property of their respective
owners.
© SKF 2009
The contents of this publication are the copyright of the
publisher and may not be reproduced (even extracts)
unless prior written permission is granted. Every care
has been taken to ensure the accuracy of the information
contained in this publication but no liability can be
accepted for any loss or damage whether direct, indirect
or consequential arising out of the use of the information
contained herein. SKF reserves the right to alter any
part of this publication without prior notice.

SKF Patents include: #US04768380 • #US05679900
• #US05845230 • #US05854553 • #US05992237 •
#US06006164 • #US06199422 • #US06202491 •
#US06275781 • #US06489884 • #US06513386 •
#US06633822 • #US6,789,025 • #US6,792,360 • US
5,633,811 • US 5,870,699 • #WO_03_048714A1
Please take a moment to register your product at
www.skf.com/cm/register to receive exclusive benefits
offered only to our registered customers, including
receiving technical support, tracking your proof of
ownership, and staying informed about upgrades and
special offers. (Please visit our website for more details
on these benefits.)
Tell us how we’re doing!
It’s important that you’re satisfied with the quality of our
product user manuals. We appreciate your feedback; if
you have comments or suggestions for improvement,
please tell us how we’re doing! (SKF CM User Manual
[email protected])
071609jj

SKF Reliability Systems
Limited Warranty
WARRANTY
Subject to the terms and
conditions contained herein, SKF
warrants to the Buyer that for
the warranty period indicated
below the products sold by SKF
that are listed below (the
“Products”), when properly
installed, maintained and
operated, will be free from
defects in material and
workmanship and shall be fit for
the ordinary purposes for which
the Products are designed.
BUYER’S LIMITED REMEDIES
This limited warranty defines
SKF’s sole and exclusive liability
and Buyer’s sole and exclusive
remedy for any claim arising out
of, or related to, any alleged
deficiency in any Product sold by
SKF, even if such claim is based
on tort (including negligence or
strict liability), breach of
contract, or any other legal
theory.
If the Product does not conform
to this limited warranty, Buyer
must notify SKF or SKF’s
authorized service
representative within thirty (30)
days of discovery of the
nonconformity; provided,
however, that SKF shall not be
liable for any claim for which
notice is received by SKF more
than thirty (30) days following
the expiration of the applicable
warranty period for the Product.
Upon receipt of timely
notification from Buyer, SKF
may, at its sole option, modify,
repair, replace the Product, or
reimburse Buyer for any
payment made by Buyer to SKF
for the purchase price of the
Product, with such
reimbursement being pro rated
over the warranty period.
WARRANTY PERIOD
Except as expressly provided
below, the warranty period for
each Product shall commence on
the date the Product is shipped
by SKF to Buyer.
90-DAY WARRANTY
Products warranted for ninety
(90) days by SKF are as follows:
cable assemblies, MARLIN

QuickConnect (MQC), magnetic
temperature probes, and all
refurbished equipment.
ONE-YEAR WARRANTY
Products warranted for one (1)
year by SKF are as follows: all
Microlog products and
accessories, all MARLIN data
managers (MDM), all MARLIN
Condition Detectors (MCD), all
Wireless Machine Condition
Detectors (WMCD), all Multilog
Condition Monitoring Units
(CMU, TMU), Multilog Local
Monitoring Units (LMU), all
Wireless Monitoring Systems
V/T, all Vibration PenPlus, all
transmitters, all SKF software,
all Monitor Interface Modules
(MIM), all Machine Condition
Transmitters (MCT), MicroVibe P
and Custom Products with the
prefix of CMCP (with the
exception of any consumable or
expendable items).
TWO-YEAR WARRANTY
Products warranted for two (2)
years by SKF are as follows: all
standard Eddy Probes, Eddy
Probe Drivers, and Eddy Probe
Extension Cables, Multilog On-
Line Monitoring system (DMx),
and all M800A and VM600
Machinery Monitoring Systems.
For all On-Line Systems that
have satisfied Criteria 1 and 2
below, the warranty period shall
be either thirty (30) months
from the date the On-Line
System is shipped by SKF to
Buyer, two (2) years from the
date the On-Line System is
installed and commissioned by
SKF, or two (2) years from the
date on which the installation of
the On-Line System has been
audited and commissioned by
SKF or its authorized service
representative, whichever period
ends first.
Criteria 1. Devices used
with a Multilog Condition
Monitoring Unit (CMU), Multilog
Local Monitoring Unit (LMU),
including, but not limited to, the
sensing device, the interconnect
cabling, junction boxes, if any,
and the communications
interface, must consist only of
SKF-supplied or SKF-approved
devices and/or components. The
computer provided by Buyer
must meet the requirements
stipulated by SKF.

Criteria 2. SKF or its
authorized service
representative has installed the
On-Line System or has audited
the installation and
commissioned the On-Line
System.
“On-Line Systems” are defined
as systems consisting of Multilog
Condition Monitoring Unit(s)
(CMU), Multilog Local Monitoring
Unit(s) (LMU), and any sensing
or input devices, the
interconnect cabling between
the sensing or input devices and
the Multilog Condition
Monitoring Unit(s) (CMU),
Multilog Local Monitoring Unit(s)
(LMU), and the cabling between
the Multilog Condition
Monitoring Unit (CMU), Multilog
Local Monitoring Unit (LMU) and
the proprietary SKF
communications interface with
the host computer.
FIVE-YEAR WARRANTY
Products warranted for five (5)
years by SKF are as follows: all
standard seismic sensors
(accelerometers and velocity
transducers).
OTHER SKF PRODUCTS
Any SKF product supplied
hereunder but not covered by
this limited warranty shall be
either covered by the applicable
SKF limited warranty then in
place for such product or, if no
such warranty exists, shall be
covered by the 90-day warranty
stated above.
THIRD PARTY PRODUCT
WARRANTIES
For any third party products sold
to Buyer by SKF, SKF will
transfer to Buyer any warranties
made by the applicable third
party product vendor to the
extent such warranties are
transferable.
CONDITIONS
As a condition to SKF’s warranty
obligations hereunder and if
requested or authorized in
writing by SKF, Buyer shall
forward to SKF any Product
claimed by Buyer as being
defective. Buyer shall prepay all
transportation charges to SKF’s
factory or authorized service
center. SKF will bear the cost of
shipping any replacement
Products to Buyer. Buyer
agrees to pay SKF’s invoice for
the then-current price of any

replacement Product furnished
to Buyer by SKF, if the Product
that was replaced is later
determined by SKF to conform
to this limited warranty.
SKF shall not be obligated under
this limited warranty or
otherwise for normal wear and
tear or for any Product which,
following shipment and any
installation by SKF (if required by
the contract with the Buyer),
has, in SKF’s sole judgment,
been subjected to accident,
abuse, misapplication, improper
mounting or remounting,
improper lubrication, improper
repair or alteration, or
maintenance, neglect, excessive
operating conditions or for
defects caused by or attributable
to the Buyer, including without
limitation Buyer’s failure to
comply with any written
instructions provided to Buyer
by SKF.
SKF shall be free to conduct
such tests, investigations and
analysis of the Products
returned to SKF, as it deems
reasonable and proper in the
exercise of its sole judgment. As
a further condition to SKF’s
obligations hereunder, Buyer
shall offer its reasonable
cooperation to SKF in the course
of SKF’s review of any warranty
claim, including, by way of
example only, Buyer’s providing
to SKF any and all information
as to service, operating history,
mounting, wiring, or re-
lubrication of the Product which
is the subject of the Buyer’s
warranty claim.
EXCEPT WARRANTY OF TITLE
AND FOR THE WARRANTIES
EXPRESSLY SET FORTH IN
HEREIN, IT IS UNDERSTOOD
AND AGREED THAT: (a) SKF
MAKES NO OTHER WARRANTY,
REPRESENTATION OR
INDEMNIFICATION, EITHER
EXPRESS OR IMPLIED,
INCLUDING WITHOUT
LIMITATION ANY IMPLIED
WARRANTY OF
MERCHANTABILITY, FITNESS
FOR A PARTICULAR PURPOSE,
OR NON-INFRINGEMENT; (b) IN
NO EVENT SHALL SKF BE
LIABLE OR OBLIGATED FOR
SPECIAL, EXEMPLARY,
PUNITIVE, INCIDENTAL, DIRECT,
INDIRECT, GENERAL OR
CONSEQUENTIAL DAMAGES
(INCLUDING, BY WAY OF
EXAMPLE ONLY, LOST PROFITS
OR SAVINGS, LOSS OF

BUSINESS OR LOSS OF USE)
OR ANY OTHER LOSS, COST OR
EXPENSE IN CONNECTION
WITH THE PRODUCTS AND
RELATED SERVICES, IF ANY,
PROVIDED BY SKF, AND THIS
DISCLAIMER SHALL EXTEND AS
WELL TO ANY LIABILITY FOR
NONPERFORMANCE CAUSED
BY SKF’S GROSS OR ORDINARY
NEGLIGENCE, AND IN ALL
CASES REGARDLESS OF
WHETHER OR NOT ANY OF THE
FOREGOING WERE
FORESEEABLE OR THAT SKF
WAS ADVISED AS TO THE
POSSIBILITY OF SUCH
DAMAGES, LOSS, COST, OR
EXPENSE; AND (c) NO PERSON
HAS BEEN AUTHORIZED BY SKF
TO MAKE ANY FURTHER OR
CONTRARY INDEMNITIES,
REPRESENTATIONS OR
WARRANTIES ON BEHALF OF
SKF. THE FOREGOING
LIMITATIONS AND
DISCLAIMERS OF LIABILITY
SHALL BE MADE APPLICABLE
TO THE SALE OF ANY PRODUCT
BY SKF TO THE FURTHEST
EXTENT PERMITTED BY
APPLICABLE LAW.
The exclusive remedies provided
in this limited warranty shall not
be deemed to have failed of their
essential purpose so long as SKF
is willing and able to perform to
the extent and in the manner
prescribed in this limited
warranty.
SKF, MARLIN, Microlog and
Multilog are registered
trademarks of the SKF Group.

Strobe Light TOC - 1
User Manual
Table of Contents
Introduction to the SKF Strobe Light 1
Safeguards and Precautions 1-1
Overview 1-3
Display Panel / Definition of Buttons 1-4
Preparation for Use 2
Power 2-1
Input / Output Connections 2-1
Menu 3
How to Operate the Strobe Light 4
Powering on the Strobe Light 4-1
Operating Modes 4-1
Internal Mode - Standard Strobe Operation 4-2
Internal Mode - TACH Frequency Generator 4-5
External Input Mode 4-5
Tachometer Mode - External Input Required4-6
External Delay Modes (Phase Shifting) 4-6
Lock Modes – Accelerometer Input Required4-8
Power Up Features 4-10
Applications 5
Using the Stroboscope to Measure RPM 5-1
Balancing and Phase Measurement 5-3

TOC - 2 Strobe Light
User Manual
Phase Analysis 5-7
Motion Studies 5-9
Limitations of Remote Optical Sensors 6
Lamp and Fuse Replacement 7
Lamp Replacement 7-1
Fuse 7-3
Battery and Power Supply Specifics 8
Low Battery Indication 8-1
Charging the Batteries 8-2
External Power Supply / Charger 8-3
Battery Disposal 8-3
Specifications 9
Internal Mode 9-1
External Modes 9-1
Tracking (Accelerometer) Mode 9-2
General 9-3

Strobe Light 1 - 1
User Manual
1
Introduction to the SKF Strobe Light
Safeguards and Precautions
•Read and follow all instructions in this manual
carefully, and retain this manual for future
reference.
•Do not use this instrument in any manner
inconsistent with these operating instructions or
under any conditions that exceed the
environmental specifications stated.
•Use of this product may induce an epileptic
seizure in persons prone to this type of attack.
•Objects viewed with this product may appear to
be stationary when in fact they are moving at
high speeds. Always keep a safe distance from
moving machinery and do no touch the target.
•Lethal voltages are present inside this product.
Refer to the Lamp Replacement section before
attempting to open this product.
•Do not allow liquids or metallic objects to enter
the ventilation holes on the stroboscope, as this
may cause permanent damage and void the
warranty.
•Do not allow cables extending from unit to come
into contact with rotating machinery, as serious
damage to the equipment, or severe personal
injury or death may occur as a result.

Introduction to the SKF Strobe Light
Safeguards and Precautions
1 - 2 Strobe Light
User Manual
•This instrument may not be safe for use in
certain hazardous environments, and serious
personal injury or death could occur as a result
of improper use. Please refer to your facility’s
safety program for proper precautions.
•This product contains Nickel Metal Hydride
batteries which must be disposed of in
accordance with Federal, State, and Local
Regulations. Do not incinerate. Batteries
should be shipped to a reclamation facility for
recovery of the metal and plastic components as
the proper method of waste management.
Contact distributor for appropriate product
return procedures.
•This instrument is not user serviceable. For
technical assistance, contact your SKF
representative.
In order to comply with EU Directive 2002/96/EC on
Waste Electrical and Electronic Equipment (WEEE):
This product may contain material which could be
hazardous to human health and the environment. Do
not dispose of this product as unsorted municipal
waste. This product needs to be recycled in
accordance with local regulations; contact your local
authorities for more information. This product may
be returnable to your distributor for recycling; contact
the distributor for details.

Introduction to the SKF Strobe Light
Overview
Strobe Light 1 - 3
User Manual
Overview
The Strobe Light is a truly portable, battery-operated
stroboscope suited for a wide range of industrial,
institutional, and educational applications, and is able
to interface with the SKF Microlog. Several interface
cables are available. Sturdy and compact, the strobe
can be operated anywhere in the plant or field to
permit visual inspection (freeze motion), phase shift
studies, and digital measurement of rotary,
reciprocating, or linear motions of various equipment
while it is in operation.
The Strobe Light has a special “tuning” circuit that
allows it to track vibration transducer (accelerometer)
signals. This capability makes it different from
general-purpose strobe lights. It also has a Narrow
and Wide Bandwidth filter selection to discriminate
fundamentals from harmonics. The Narrow
Bandwidth filter limits the influence of harmonics
around the selected frequency, providing a more
stable phase reading.
The Strobe Light requires an input signal to
synchronize the flash rate with an external source,
typically a vibration transducer in the tracking mode
or optical pickup in the external mode. This signal is
applied, using a special cable, to the Input (
pointing into socket) jack connector on the side of the
strobe light. The Strobe Light generates a tachometer
signal that is on the Output (pointing away from
socket) jack. Information about the use of these
signals is given in other sections of this manual.
Special adapter cables are available to work with your
Microlog.

Introduction to the SKF Strobe Light
Display Panel / Definition of Buttons
1 - 4 Strobe Light
User Manual
The Strobe Light is ideally suited for:
Balancing
Inspection of High Speed Rotating Parts
Motion Analyses, or Phase Shift Measurement
Over speed Trip Tests
Online coupling Inspections
RPM / RPS Measurements
All applications suited to a general purpose,
phase shifting stroboscope
The Strobe Light can also be used as a highly
accurate, remote electronic digital tachometer for
direct measurement of RPM / RPS (speed) without
special reflective tape or markings. RPM results are
updated and displayed approximately every half
second on the LCD display.
Display Panel / Definition of Buttons
Display Panel
The display panel consists of a backlit liquid crystal
display with six numeric digits on top and five
alphanumeric digits on the bottom, which indicate
modes, flash rates, etc.

Introduction to the SKF Strobe Light
Display Panel / Definition of Buttons
Strobe Light 1 - 5
User Manual

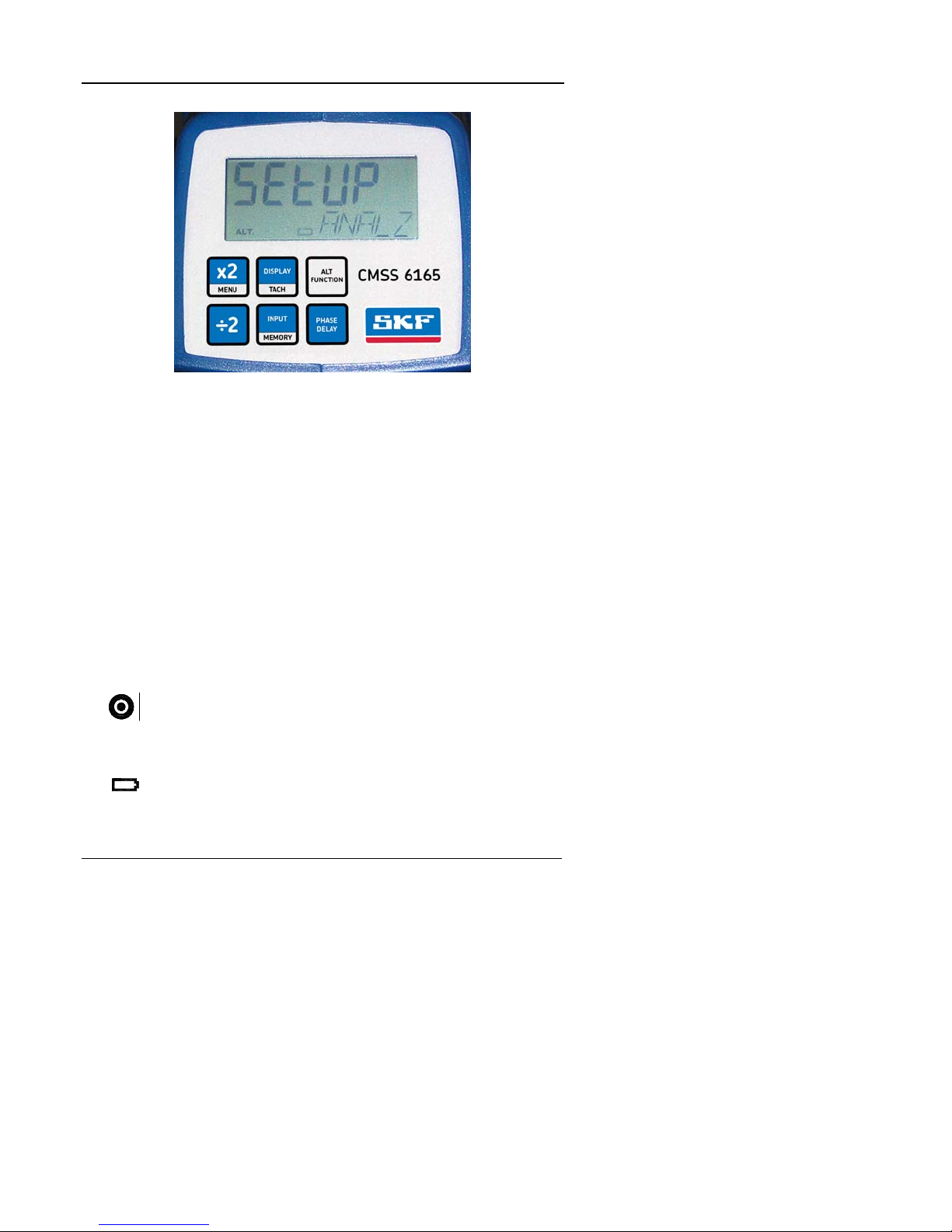

Figure 1. The Display Panel.
Additional information displayed includes:
PHASE - Indicates Phase Delay Mode is active
TIME - Indicates Time Delay Mode is active
AUTO - Indicates Auto Phase Shifting Mode (virtual
RPM) is active
ALT. - Indicates alternate function of each button
(lower section) and knob will be used
TACH - Tachometer Mode active (strobe won’t flash)
LOCK - Lock onto the accelerometer signal for input
EXT - External Input Mode active
On Target Indicator for Tachometer Mode and
Remote Sensor in External Mode
- - - - - Indicates input frequency exceeds the limit of the
stroboscope
Battery charge indication, not shown if fully charged

Introduction to the SKF Strobe Light
Display Panel / Definition of Buttons
1 - 6 Strobe Light
User Manual
Definition of Buttons
Below the display are six buttons which control the
operation of the StroboLite. They are as follows:
Multiplies flash rate by 2 times
ALT Function - Starts Menu
Hold when powering up to show all segments, then
Rev # and display test
Divides flash rate by 2
Hold when powering up to reset factory defaults
In Internal/External Mode - Toggles display between
RPM and RPS. In External Phase or Time Delay Mode
- Cycles display through RPM, RPS, Phase and Time.
In Auto Mode - Cycles display through RPM, RPS,
VRPM and VRPS.
ALT Function - Toggles Tach Mode (flashing) on/off
Manually cycle through Internal, External, Wide Lock,
and Narrow Lock Modes
ALT Function - Memory - Reads and Stores 9 preset
flash rates
Activates Alternate Function for buttons (lower
section) and knob
The ALT FUNCTION button toggles ALT. in the
display. When ALT. is displayed, the buttons will
perform their secondary function listed in the lower
section of each button. It also changes how the tuning
knob works.
In Internal Mode, toggles between normal flash rate
adjust and “phase” delay adjust
In External and Lock Modes, cycles through External
only (no delay), Phase, Time and Auto (VRPM)
ALT Function – In Lock Mode, toggles Filter tracking

Introduction to the SKF Strobe Light
Display Panel / Definition of Buttons
Strobe Light 1 - 7
User Manual
