Skil 1790 User manual

HAMMER
1790 (F0151790..)
SKIL Europe BV - Konijnenberg 60 01/13 2610Z01892
4825 BD Breda - The Netherlands
www.skilmasters.com
 ORIGINAL INSTRUCTIONS 6
NOTICE ORIGINALE 9
ORIGINALBETRIEBSANLEITUNG 13
 ORIGINELE GEBRUIKSAANWIJZING 16
BRUKSANVISNING I ORIGINtAL 20
 ORIGINAL BRUGSANVISNING 23
ORIGINAL BRUKSANVISNING 26
 ALKUPERÄISET OHJEET 30
MANUAL ORIGINAL 33
MANUAL ORIGINAL 36
ISTRUZIONI ORIGINALI 40
EREDETI HASZNÁLATI UTASÍTÁS 44
 PŮVODNÍM NÁVODEM K POUŽÍVÁNÍ 47
 ORİJİNAL İŞLETME TALİMATI 51
 INSTRUKCJA ORYGINALNA 54
 ПОДЛИННИК РУКОВОДСТВА
ПО ЭКСПЛУАТАЦИИ 58
 ОРИГІНАЛЬНА ІНСТРУКЦІЯ
З ЕКСПЛУАТАЦІЇ 62
 ΠΡΩΤΟΤΥΠΟ Ο∆ΗΓΙΩΝ ΧΡΗΣΗΣ 66
 INSTRUCŢIUNI DE FOLOSIRE
ORIGINALE 70
 ОРИГИНАЛНО РЪКОВОДСТВО
ЗА ЕКСПЛОАТАЦИЯ 74
 PÔVODNÝ NÁVOD NA POUŽITIE 78
 ORIGINALNE UPUTE ZA RAD 82
 ORIGINALNO UPUTSTVO ZA RAD 85
 IZVIRNA NAVODILA 88
 ALGUPÄRANE KASUTUSJUHEND 91
 ORIĢINĀLĀ LIETOŠANAS PAMĀCĪBA 94
 ORIGINALI INSTRUKCIJA 98
 ИЗВОРНО УПАТСТВО ЗА РАБОТА 101
 UDHËZIMET ORIGJINALE 105
 115
 113

2
11790
3 4
˂Ɠ˄ÿ
ʽʾƯʿʽʽˀ
ʽƘ˅ʽʽƯÅÁÆ
ʾˀ ÅÅ
0-3000 p/min
F
JC
DH
A
E
B
G
2
ˀʽ ÅÅ
¹ÌÌ
ʾʾʽʽ
ʿʿʽ
Ƙ
ʿˁʽ
4.0 J power
✱

3
B
5C
D
6
E
7
PLASTICS
8

4
9
F
0 !

5
@ #
30 gr.
$
%

6

Hammer 1790
INTRODUCTION
• This tool is intended for impact drilling in concrete, brick
and stone as well as for light chiseling work; for drilling in
wood, metal and plastic as well as for screwdriving
specic accessories should be used
• The hammering system in this tool outperforms any
traditional ratcheting drill when drilling in concrete
• This tool is designed for use in combination with all
standard SDS+ accessories
• Read and save this instruction manual 3
TECHNICAL SPECIFICATIONS 1
✱) Impact energy per stroke according to EPTA-Procedure
05/2009 (value not available yet)

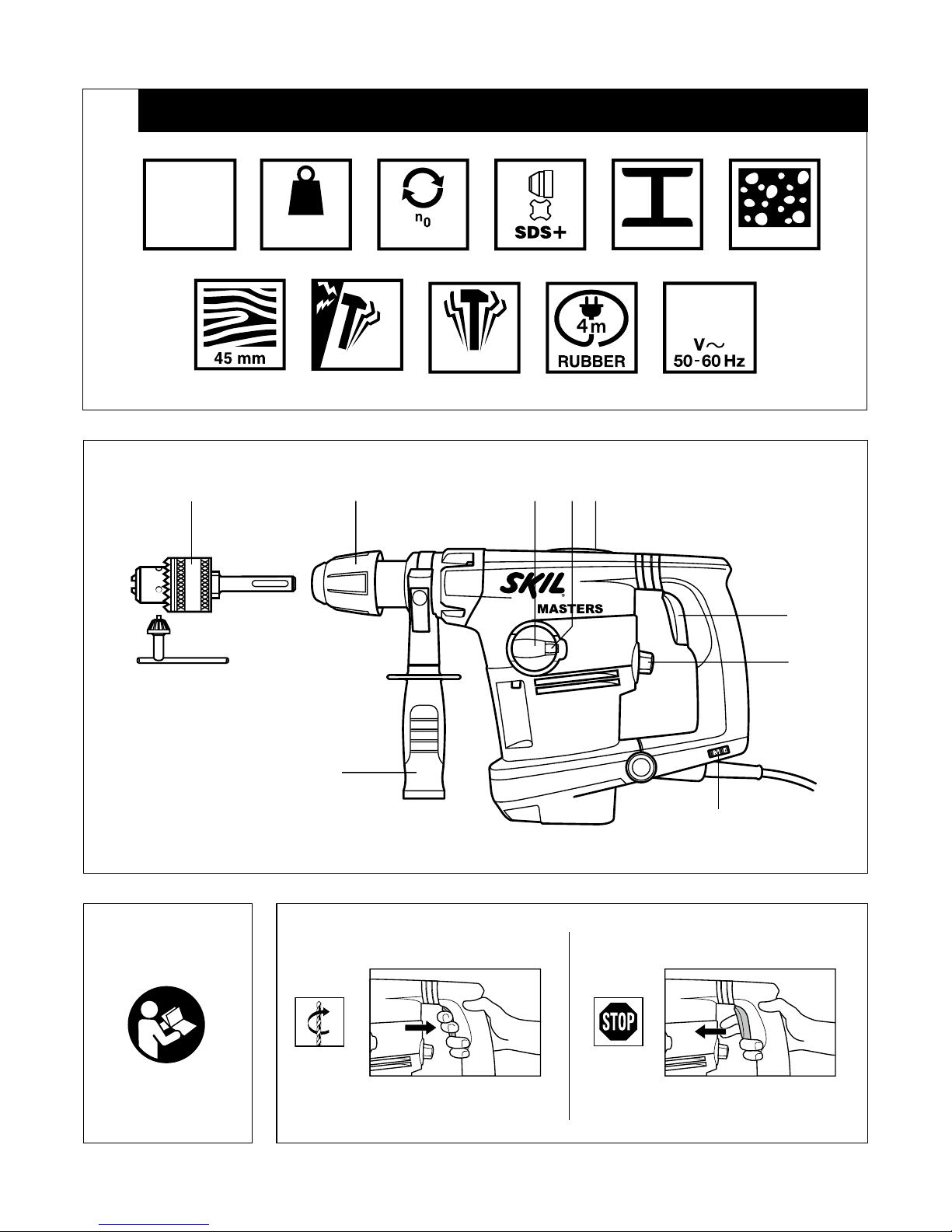

TOOL ELEMENTS 2
A Switch for on/o
B Wheel for maximum speed control
CRotation switch
DUnlocking button
EHammer switch
F Locking sleeve
G Auxiliary handle
HGrease storage
JAdapter + 13 mm chuck
SAFETY
GENERAL SAFETY INSTRUCTIONS
WARNING! Read all safety warnings and all
instructions. Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious injury. Save
all warnings and instructions for future reference. The
term “power tool” in the warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless)
power tool.
1) WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which
may ignite the dust or fumes.
c) Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools.
Unmodied plugs and matching outlets will reduce risk of
electric shock.
b) Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk of
electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of
electric shock.
f) If operating a power tool in a damp location is
unavoidable, use an earth leakage circuit breaker.
Use of an earth leakage circuit breaker reduces the risk
of electric shock.
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do not
use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in
serious personal injury.
b) Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injuries.
c) Prevent unintentional starting. Ensure the switch is
in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your nger on the
switch or energising power tools that have the switch on
invites accidents.
d) Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in
personal injury.
e) Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power tool
in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair
can be caught in moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power
tool for your application. The correct power tool will do
the job better and safer at the rate for which it
was designed.
b) Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.

7
c) Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of
untrained users.
e) Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in
accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations dierent
from those intended could result in a hazardous situation.
5) SERVICE
a) Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
SAFETY INSTRUCTIONS FOR HAMMERS
• Wear ear protectors (exposure to noise can cause
hearing loss)
• Use auxiliary handle(s), if supplied with the tool
(loss of control can cause personal injury)
• Avoid damage that can be caused by screws, nails and
other elements in your workpiece; remove them before
you start working
• Always keep the cord away from moving parts of the tool
• Secure the workpiece (a workpiece clamped with
clamping devices or in a vice is held more securely than
by hand)
• When you put away the tool, switch o the motor and
ensure that all moving parts have come to a
complete standstill
• Use completely unrolled and safe extension cords with a
capacity of 16 Amps (U.K. 13 Amps)
• In case of electrical or mechanical malfunction,
immediately switch o the tool and disconnect the plug
• SKIL can assure awless functioning of the tool only
when the correct accessories are used which can be
obtained from your SKIL dealer
• Use only accessories with an allowable speed matching
at least the highest no-load speed of the tool
• This tool should not be used by people under the age of
16 years
• If the drill bit becomes unexpectedly jammed (causing a
sudden, dangerous reaction), immediately switch o
the tool
• Use suitable detectors to find hidden utility lines or
call the local utility company for assistance (contact
with electric lines can lead to re or electrical shock;
damaging a gas line can result in an explosion;
penetrating a water pipe will cause property damage or
an electrical shock)
• Hold power tool by insulated gripping surfaces,
when performing an operation where the cutting
accessory may contact hidden wiring or its own
cord (a cutting accessory contacting a “live” wire may
make exposed metal parts of the power tool “live” and
could give the operator an electric shock)
• Dust from material such as paint containing lead, some
wood species, minerals and metal may be harmful
(contact with or inhalation of the dust may cause allergic
reactions and/or respiratory diseases to the operator or
bystanders); wear a dust mask and work with a dust
extraction device when connectable
• Certain kinds of dust are classied as carcinogenic (such
as oak and beech dust) especially in conjunction with
additives for wood conditioning; wear a dust mask
and work with a dust extraction device
when connectable
• Follow the dust-related national requirements for the
materials you want to work with
• Do not work materials containing asbestos (asbestos
is considered carcinogenic)
• If the cord is damaged or cut through while working, do
not touch the cord, but immediately disconnect the plug
• Never use the tool when cord is damaged; have it
replaced by a qualied person
• Always check that the supply voltage is the same as the
voltage indicated on the nameplate of the tool (tools with
a rating of 230V or 240V can also be connected to a
220V supply)
• Be aware of the forces that occur as a result of jamming
(especially when drilling metals); always use auxiliary
handle G 2and take a secure stance
• Alwaysdisconnectplugfrompowersourcebefore
making any adjustment or changing any accessory
WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):
• Do not connect the blue (= neutral) or brown (= live) wire
in the cord of this tool to the earth terminal of the plug
• If for any reason the old plug is cut o the cord of this tool,
it must be disposed of safely and not left unattended
USE
• On/o 4
• Maximum speed control 5
With wheel B the maximum speed can be adjusted from
low to high (1-6)
• Activating rotation switch C 6
- press button D to unlock switch C
- turn switch C along the bottom side to position “1” until
it snap-locks
! do not turn switch C along the upper side
! start working only when switch C is locked
• Activating hammer switch E 7
- turn switch E along the upper side to position “1”
! do not turn switch E along the bottom side

8
• Operating the tool 8
! select operating mode only when tool is switched
off and plug is disconnected
- for chiseling see relevant paragraph
- for impact drilling set switch C in position “1” and
switch E in position “1”
- for normal drilling as well as for screwdriving set switch
C in position “1” and switch E in position “0” and use
adapter J 2
- the hammer mechanism is activated by applying a
slight pressure on the tool when the drill bit is in
contact with the workpiece
- best impact drilling results can be obtained by only a
slight pressure on the tool needed to keep the
automatic clutch engaged; drilling performance will not
improve by applying more pressure on the tool
• Chiseling 9
! select operating mode only when tool is switched
off and plug is disconnected
- rst set switch E as well as switch C in position “1”
- rotate chisel into desired position
- then maintain switch E in position “1”, but set switch C
in position “0”
• Mounting adapter J 0
! clean and lightly lubricate the SDS+ adapter
before insertion
- pull back locking sleeve F 2and insert adapter in
SDS+ chuck while turning and pushing it until it
engages; the adapter locks in position automatically
- pull adapter to check whether is it locked correctly
• Changing bits !
! clean and lightly lubricate the SDS+ accessory
before insertion
- pull back locking sleeve F 2 and insert accessory in
SDS+ chuck while turning and pushing it until it
engages; the accessory locks in position automatically
- pull accessory to check that it is locked correctly
- remove accessory by pulling back locking sleeve F
! the SDS+ accessory requires freedom of
movement which causes eccentricity when tool is
off-load; however, the accessory automatically
centres itself during operation without affecting
drilling precision
! only use sharp bits/chisels
! do not use bits/chisels with a damaged shank
• Safety clutch
If the accessory gets jammed, the drive to the spindle is
interrupted (causing a rattling noise)
- immediately switch o tool
- remove the jammed accessory
- switch on tool again
• Adjusting drilling depth @
• AUTO-STOP Carbon brushes
- this tool is equipped with carbon brushes which pop
up automatically when worn, thus preventing the motor
from being damaged
- when the tool stops unexpectedly, send it to your
dealer or the nearest SKIL service-station for having
the brushes replaced
• Holding and guiding the tool #
! while working, always hold the tool at the
grey-coloured grip area(s)
- always use auxiliary handle G 2(can be adjusted
as illustrated)
- keep the ventilation slots uncovered
- do not apply too much pressure on the tool; let the tool
do the work for you
APPLICATION ADVICE
• When drilling ferrous metals
- pre-drill a smaller hole, when a large hole is required
- lubricate drill bit occasionally with oil
• When turning in a screw at/near the cross cut end or an
edge of wood, pre-drill a hole in order to avoid cracking of
the wood
MAINTENANCE / SERVICE
• After approximately 30 working hours rell grease
storage H with 30 grams of grease $
• Always keep tool and cord clean (especially the
ventilation slots)
! disconnect the plug before cleaning
• If the tool should fail despite the care taken in
manufacturing and testing procedures, repair should be
carried out by an after-sales service centre for SKIL
power tools
- send the tool undismantled together with proof of
purchase to your dealer or the nearest SKIL service
station (addresses as well as the service diagram of
the tool are listed on www.skilmasters.com)
ENVIRONMENT
• Do not dispose of electric tools, accessories and
packaging together with household waste material
(only for EU countries)
- in observance of European Directive 2002/96/EC on
waste of electric and electronic equipment and its
implementation in accordance with national law,
electric tools that have reached the end of their life
must be collected separately and returned to an
environmentally compatible recycling facility
- symbol % will remind you of this when the need for
disposing occurs
DECLARATION OF CONFORMITY
• We declare under our sole responsibility that this product
is in conformity with the following standards or
standardized documents: EN 60745, EN 61000,
EN 55014, in accordance with the provisions of the
directives 2004/108/EC, 2006/42/EC, 2011/65/EU
• Technical file at: SKIL Europe BV (PT-SEU/ENG1),
4825 BD Breda, NL
¹ÊÁÂÆιÆ¼½ÊÇǾ¼½Æ
ȽʹÌÁÇÆËŵÆ¿Áƽ½ÊÁÆ¿
ÍÊÇȽƓˁ˅ʿ˂ʽ¼¹Ɠ
Ĺ¾ÁÂÿʹ¹¾
ÈÈÊÇιÄ¹Æ¹¿½Ê
22.01.2013

9
NOISE/VIBRATION
• Measured in accordance with EN 60745 the sound
pressure level of this tool is 95 dB(A) and the sound
power level 106 dB(A) (standard deviation: 3 dB), and the
vibration ✱(hand-arm method; uncertainty K = 1.5 m/s²)
✱when impact drilling in concrete 21.8 m/s²
✱when chiseling 16.0 m/s²
• The vibration emission level has been measured in
accordance with a standardised test given in EN 60745; it
may be used to compare one tool with another and as a
preliminary assessment of exposure to vibration when
using the tool for the applications mentioned
- using the tool for dierent applications, or with dierent
or poorly maintainted accessories, may signicantly
increase the exposure level
- the times when the tool is switched o or when it is
running but not actually doing the job, may signicantly
reduce the exposure level
! protect yourself against the effects of vibration
by maintaining the tool and its accessories,
keeping your hands warm, and organizing your
work patterns

Perforateur 1790
INTRODUCTION
• L’outil est conçu pour le perçage de percussion dans le
béton, la brique et dans la pierre naturelle ainsi que pour
d’autres travaux de burinage légers; pour le perçage
dans le bois, le métal et les matières plastiques ainsi que
pour le vissage il est nécessaire d’utiliser des
accessoires spéciques
• Le système de percussion de cet outil surpasse
largement la performance des perceuses à percussion
traditionelles lorsqu’il est utilisé dans le béton
• Cet outil convient parfaitement pour une utilisation avec
tous les accessoires SDS+ standards
• Lisez et conservez ce manuel d’instruction 3
SPECIFICATIONS TECHNIQUES 1
✱) Puissance de frappe individuelle suivant EPTA-
Procedure 05/2009 (valeur non disponible encore)
ELEMENTS DE L’OUTIL 2
AInterrupteur pour mise en marche/arrêt
B Molette de réglage de la vitesse maximum
CCommutateur de la rotation
DBouton de déblocage
ECommutateur du marteau
F Douille de verrouillage
G Poignée auxiliaire
H Compartiment à graisse
JAdaptateur + mandrin de 13 mm
SECURITE
INSTRUCTIONS GENERALES DE SECURITE
ATTENTION! Lisez tous les avertissements de
sécurité et toutes les instructions. Ne pas suivre les
avertissements et instructions peut entraîner un choc
électrique, un incendie et/ou de graves blessures sur les
personnes. Conservez tous les avertissements et
toutes les instructions pour pouvoir s’y reporter
ultérieurement. La notion d’”outil électroportatif” dans les
avertissements se rapporte à des outils électriques
raccordés au secteur (avec câble de raccordement) et à
des outils électriques à batterie (sans câble
de raccordement).
1) SECURITE DE LA ZONE DE TRAVAIL
a) Maintenez l’endroit de travail propre et bien éclairé.
Un lieu de travail en désordre ou mal éclairé augmente le
risque d’accidents.
b) N’utilisez pas l’appareil dans un environnement
présentant des risques d’explosion et où se
trouvent des liquides, des gaz ou poussières
inflammables. Les outils électroportatifs génèrent des
étincelles risquant d’enammer les poussières ou
les vapeurs.
c) Tenez les enfants et autres personnes éloignés
durant l’utilisation de l’outil électroportatif. En cas
d’inattention vous risquez de perdre le contrôle
sur l’appareil.
2) SECURITE RELATIVE AU SYSTEME ELECTRIQUE
a) La fiche de secteur de l’outil électroportatif doit être
appropriée à la prise de courant. Ne modifiez en
aucun cas la fiche. N’utilisez pas de fiches
d’adaptateur avec des appareils avec mise à la
terre. Les ches non modiées et les prises de courant
appropriées réduisent le risque de choc électrique.
b) Evitez le contact physique avec des surfaces mises
à la terre telles que tuyaux, radiateurs, fours et
réfrigérateurs. Il y a un risque élevé de choc électrique
au cas où votre corps serait relié à la terre.
c) N’exposez pas l’outil électroportatif à la pluie ou à
l’humidité. La pénétration d’eau dans un outil
électroportatif augmente le risque d’un choc électrique.
d) N’utilisez pas le câble à d’autres fins que celles
prévues, n’utilisez pas le câble pour porter l’appareil
ou pour l’accrocher ou encore pour le débrancher
de la prise de courant. Maintenez le câble éloigné
des sources de chaleur, des parties grasses, des
bords tranchants ou des parties de l’appareil en
rotation. Un câble endommagé ou torsadé augmente le
risque d’un choc électrique.
e) Au cas où vous utiliseriez l’outil électroportatif à
l’extérieur, utilisez une rallonge autorisée
homologuée pour les applications extérieures.
L’utilisation d’une rallonge électrique homologuée pour
les applications extérieures réduit le risque
d’un choc électrique.
f) Si l’usage d’un outil dans un emplacement humide
est inévitable, utilisez un disjoncteur de fuite à la
terre. L’utilisation d’un disjoncteur de fuite à la terre réduit
le risque de choc électrique.
