Skil PWRCORE 20 LH5523E-00 User manual

WARNING: To reduce the risk of injury, the user must read and understand the
Owner’s Manual before using this product. Save these instructions for future reference.
For Customer Service 1300-017-545 OR www.skil.com.au
Cordless Spot Light
Model: LH5523E-00
TM

2
2SPECIFICATIONS
Rated Voltage 18V d.c. (20V max)
Head pivot range 0-104°
4 5 63
1

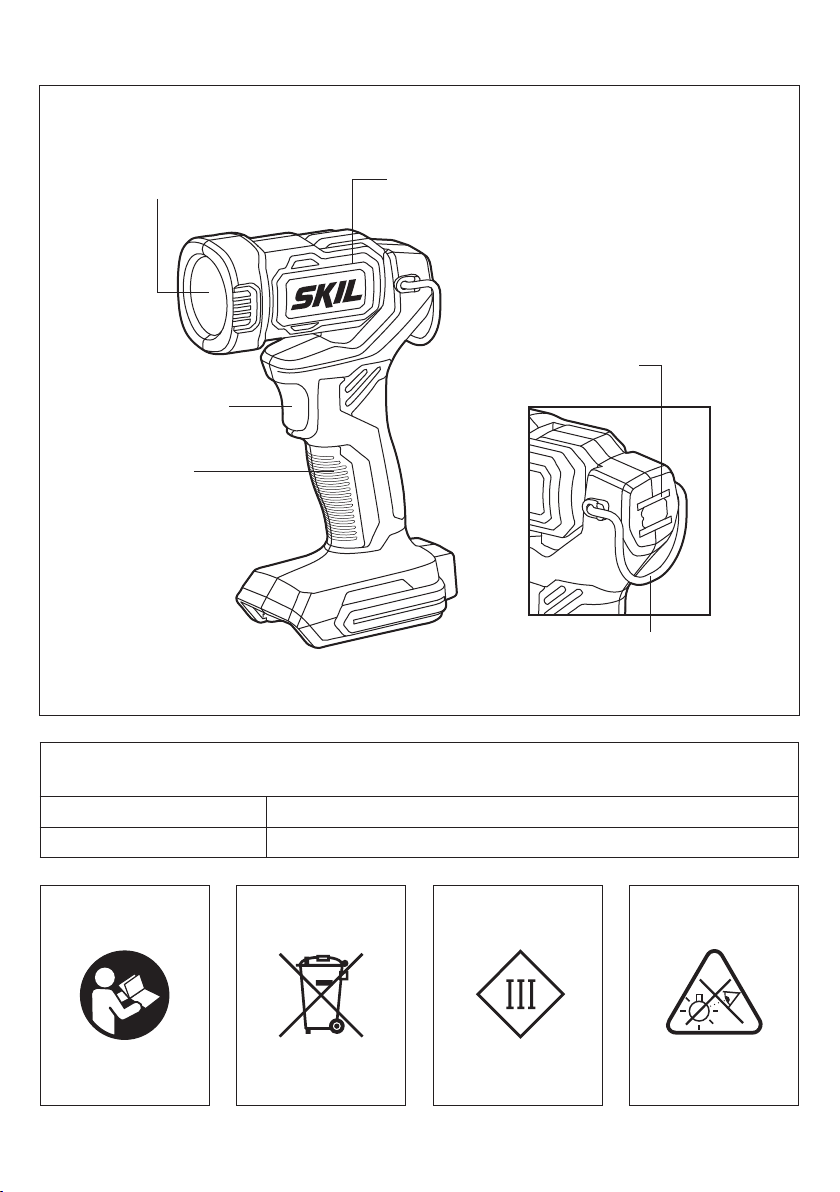

Lens (Transparent Cover)
ON/OFF Switch
Soft Grip
Magnets
Hanging Loop
Pivoting Head

3
7
9
8
q
Attach
Battery-Release
Button
Detach
MAX: 104°

4
MAINTENANCE / SERVICE
• This tool is not intended for professional use.
• Always keep tool clean.
! !remove battery from tool before cleaning
ENVIRONMENT
• Do not dispose of electric tools, batteries,
accessories and packaging together with household
waste material. The electric tools, accessories and
packaging should be sorted for environmental-
friendly recycling
! prior to disposal protect battery terminals with
heavy tape to prevent short-circuit
INTRODUCTION
• The spot light is intended for illumination in dry indoor
areas
• This tool is not intended for professional use
• Read this instruction manual carefully before use and
save it for future reference3
SAFETY
GENERAL SAFETY INSTRUCTION FOR SPOT LIGHT
• Handle the spot with care
• Do not direct the light beam at persons or animals and
do not stare into the light beam yourself (not even from a
distance)
• Do not cover o the lamp head while operating the spot
light (the lamp head heats up during operation and can
cause burns when the heat accumulates)
• Only use the following batteries and chargers with
this tool
-SKIL battery: BY5197E-03 BY5196E-03
-SKIL charger: SC5358E-01 QC5360E-01
• Do not use battery when damaged; it should be replaced
immediately
• Do not disassemble the battery.
• Do not expose tool/battery to rain.
• Permitted ambient temperature (tool/charger/battery):
-when charging 4...40°C
-during operation –20...+50°C
-during storage –20...+50°C
EXPLANATION OF SYMBOLS ON TOOL
• 3Read the instruction manual before use
• 4 Do not dispose of electric tools and batteries together
with household waste material
• 5 Insulation class III
• 6Do not stare into the light beam
USE
• Removing/installing the battery7
• Two-Stage Brightness Adjustment Controlled by ON/OFF
Switch
• Your tool is equipped with a two-stage brightness
adjustment, providing dierent light intensities for your
operation.
-Depress the ON/OFF switch to turn on the light: the
light is in the high light mode.
-Depress the ON/OFF switch again to change to the low
light mode.
-Depress a third time to turn the light o
• Adjusting the pivoting head8
• The light head pivots 104° for maximum exibility.
Manually move the head to any position within the pivot
range. Do not force the head beyond that range.
• Loop and magnets
• Using the hanging loop and magnets, the light can be
placed in multiple locations for ideal lighting.
-Loop9
• Your tool is equipped with a loop. It can be carried or
hung to an object with the loop.
-Magnetsq
Attach the spot light to ferromagnetic area with the
integrated magnets.

5
WARRANTY
SKIL WARRANTY POLICY
For all SKIL warranty & enquiries, please contact 1300 01
SKIL (1300 01 7545) Monday to Friday 9:00am to 5:00pm
EST
Chervon Australia Pty Ltd ABN 36 165 077 501 (“Chervon”)
warrants to the original domestic purchaser that this product
will be free from defects in materials and workmanship for
5 years from date of purchase, and any battery or charger
will be free from defects in materials and workmanship for
3 years from date of purchase. Please note SKIL products
are intended for DIY (Do It Yourself) use only. SKIL Products
are not designed or intended for commercial or trade use
and if the products are used in any commercial or trade
applications, the warranty will not apply. Consumables will be
covered by a 3-month warranty and a complete list can be
found inside the manual.This SKIL product warranty is only
applicable to purchases from authorised SKIL retailers. This
warranty will not apply to SKIL products that are purchased
from Amazon, eBay and any other non-authorised online
retailer.This SKIL product warranty does not apply to any
parallel imported product and does not apply to any SKIL
products that are not purchased from an authorised SKIL
retailer.To make a claim, return the faulty item together with
proof of purchase directly to your closest service agent or
to the place of purchase. Any handling and transportation
costs (and other expenses incurred in claiming this warranty)
are not covered by this warranty and will not be borne by
Chervon. The replacement product or part or repaired
product will be made available for your collection at an
address nominated by Chervon. Where a valid warranty
claim is made, Chervon will replace the defective product
or repair the fault.Where the product is repaired, Chervon
may use refurbished parts. This warranty does not cover
normal wear and tear, misuse or abuse. This warranty may
also be further limited or voided as specically detailed in
the product Manual. Chervon has no other liability under
this warranty. The benets to you given by this warranty are
in addition to other rights and remedies imposed by State
and Federal legislation that cannot be excluded. Our goods
come with guarantees that cannot be excluded under the
Australian Consumer Law.You are entitled to a replacement
or refund for a major failure and compensation for any other
reasonably foreseeable loss or damage.You are also entitled
to have the goods repaired or replaced if the goods fail to
be of acceptable quality and the failure does not amount to
a major failure. Chervon Australia Pty Ltd, Unit 14, 5 Kelletts
Road, Rowville, VIC. 3178. Ph; 1300 01 SKIL (1300 01 7545).
Email: [email protected]
The following consumables have a 3-month warranty period:
Brushes Collets
Dust canisters Angle grinder anges
Allen keys Chucks
