Skydroid MX450 User manual

《User Manual》

免责声明
说明
Flying environment requirements
Before using this product, any user should carefully read the relevant operating
instructions and this statement. Once the product is used, it shall be deemed to
have recognized and accepted the entire content of this statement. This product
is not suitable for minors under 14 years of age. In the process of using this
product, the user promises to be responsible for his actions and all consequences
arising therefrom. The user promises to use this product only for legitimate
purposes, and agrees to abide by these terms and any related policies or
guidelines that Skydroid may formulate. Some details of this document may
change with the upgrade of the product software version. Please read the
upgrade details carefully before upgrading the software version. This manual will
not be notified especially.
This product restricts some flying functions in special areas. Once you use this
product, you are deemed to have carefully read the relevant regulations of the
International Civil Aviation Organization and local airspace control regulations and
drone management regulations. You shall bear the relevant legal responsibilities
caused by non-compliance with the above regulations, and promise to be
responsible for your actions and all indirect or direct responsibilities arising from
your failure to use the flying restriction function in accordance with the user
manual.
According to the "Regulations on the Administration of Real-Name Registration of
Civil UAV", please log in to the Civil Aviation Administration of China to complete
the real-name registration within 3 working days after receiving the drone.
Civil drone real-name registration system website hps://uas.caac.gov.cn
If you want to inquire about the relevant parameters of the product, Please visit
our oicial website www.skydroid.xin
1 Try to choose an open place with no tall buildings around as the flying field.
2 Do not use in bad weather, such as strong wind (wind speed of grade 4 and
above, heavy snow, rainy and foggy days).
3 Fly in an environment of 0-40°C and good weather (not rainy, windy or extreme
weather).
4 When flying, please stay away from obstacles, crowds, high-voltage lines, trees,
water, etc.
5 Please do not fly in places with complicated electromagnetic environment
(such as base stations or transmission towers around) to avoid interference of
remote control signals.
6 Cannot be used in the Arctic and Antarctica Circles.
7 Please do not fly in no-fly areas restricted by relevant laws or regulations.
8 Do not fly the drone near high-voltage lines, airports or magnetic fields.
Disclaimer Declaration
Explanation

Before using the aircraft, please read the "Disclaimer Declaration and
Safety Operation Guidelines"
Reading tips (symbol description):
Prohibited operation
Operation and usage tips
Important notice
Vocabulary explanation, reference information
重要安全信息
Operation:
Please operate the drone carefully. This product contains sensitive electronic
components. If the aircraft is crashed, damaged or exposed to water, it may be
damaged. Do not use damaged aircraft, such as damaged propellers, to avoid
possible injury.
Maintenance:
Do not disassemble or try to repair the drone by yourself. This may cause damage
to the drone or personal injury. If the drone was damaged, malfunctions or comes
into contact with liquids, please contact Skydroid or Skydroid authorized dealers.
You can get more information about after-sales service at the following oicial
website: www.skydroid.xin
Baery:
Baery: Do not disassemble, crush, hit, burn, drop or step on the baery.
Do not short-circuit or allow metal objects to touch the baery terminals.
Do not expose the baery to high temperatures exceeding 60 degrees.
Be sure to use the original Skydroid charger to charge the drone baery.
Keep the baery out of reach of children and keep it dry.
Flying:
• Remember that you are responsible for your safety and the safety of others.
• Please do not fly in bad weather.
• Do not try to catch the drone during flying.
• It is not recommended for people under the age of 14 and beginners to use this
product.
• After landing, you must lock it, disconnect the power to the drone, and then turn
o the remote controller.
Important safety information

Skydroid drone equips with smart baeries
1. DO NOT disassemble or reassemble the baery!
2. DO NOT short-circuit the baery!
3. DO NOT use it next to the heat sources!
4. DO NOTput the baery in water or make it wet!
5. DO NOT charge near fire or under sunlight!
6. DO NOT insert nails into the baery, hit or step on it with your feet!
7. DO NOT impact or throwing!
8. DO NOT use it under severe damage or deformation!
9. DO NOTsolder directly on the baery!
10. Reverse charging or over-discharge is prohibited!
11. Reverse charging or reverse connection is prohibited!
12. DO NOT connect the baery to an ordinary charging socket or car cigaree
lighter!
13. DO NOT use on non-designated equipment!
14. DO NOTmix use with disposable baeries and this baery!
15. DO NOT exceed the specified charging time!
16. DO NOT put the baery in the microwave or high-pressure container!
17. DO NOT use or put the baery in the sun!
18. DO NOT use it in places with strong interference (high-voltage lines, power
stations, along the railway, base stations, signal transmission towers, etc.)!
19. DO NOTuse in the environment below 0°C and above 45°C!
20. DO NOT use it and send it back to the seller when the baery is in use and
comes out an unpleasant smell or abnormal situation!
21. Keep away from the reach of children!
22. Use the oicial charger and follow the charging requirements!
• If you do not plan to use the product for a long time, please charge the baery
above 12v. If the voltage is higher than 13v, the baery will automatically start to
discharge to 11.55V after two days. Keeping around 11.55V can increase the baery
life.
• Please use the professional charger provided by Skydroid to charge the baery.
• Use a current below 5C for discharging, and the discharging time should not be
too long to avoid damage to the baery due to over-discharge.
• Do not charge in a flammable and explosive environment to prevent fire.
• The baery needs to be charged after being stored for more than three months
to maintain the voltage and ensure its expected life.

FAQ
Exemptions
Suggest
Disclaimer Declaration
Important safety information
Precautions for baery use
Contents
1Drone
1.1Names of parts of the drone
1.2Drone baery
1.3Smart baery function
1.4Aentions
1.5Propeller
2Remote control
2.1Remote control (American mode)
2.2 Overview of the remote control functions
2.3 Remote control charging
2.4 Remote control antenna angle
3Flying
3.1 Download Skydroid Fly App
3.2 App main interface
3.3Basic flying
4Drone functions
4.1 Flying mode
4.2 Home return automatically
4.3 Gimbal pitch adjustment
4.4 RGB three-color status light
---------------------------------------------------------- 1
--------------------------------------------------------------------------- 2
--------------------------------------------------------------- 2
----------------------------------------------------------------------------- 3
-------------------------------------------------------------------------------- 3
--------------------------------------------------- 3
---------------------------------------- 4
----------------------------------------------------------- 4
---------------------------------------------------- 4
---------------------------------------------------------- 6
------------------------------------------------------------------ 6
---------------------------------------------------------------------------- 7
---------------------------------------------------------------------------- 8
---------------------------------------------------------- 9
----------------------------------------------------------- 10
------------------------------------------------------- 10

1
1.1 Names of parts of the drone
1.飞行器
1
2
15
16
3
4
5
9
8
11
12
10
13
14
6
7
1
1.The Drone
1
2
15
16
3
4
5
9
8
11
12
10
13
14
6
7

2
1.2 Drone baery
1.2.1 Drone baery charging
2 axis gimbal
SD card slot
Pairing key
Pairing indicator
Propeller
Megaphone
RGB status light
GPS
Brushless motor
Baery
Power supply port
Balance charging port
Thrower
Searching light
Assistant port (Micro-USB
Laser obstacle avoidance (optional)
No. Annotation AnnotationNo.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1.3 Smart baery functions
Automatic discharge protection for baery storage: After being fully charged and
left without any operation for 2 days, the baery will discharge to 11.5V (a slight
heat during this period is a normal phenomenon) to protect the baery.
The drone uses a 3S smart lithium baery with a capacity of 4200mAh and a
nominal voltage of 11.1V. Standard equipped with a smart charger. The charging
time is about 1.5 hours.
①Insert the baery charging plug into the connector.
②Connect the power adapter to the AC power supply.
③The current voltage will be displayed in the charger.
④Please make sure to charge the baery at an ambient temperature between
0-40°C.
⑤The charger displays FUL and 13.0V alternately, which means the baery is fully
charged.
电池充电插头
电压显示界面
220V交流电源
Baery charging plug
Voltage display interface
220v AC power supply

3

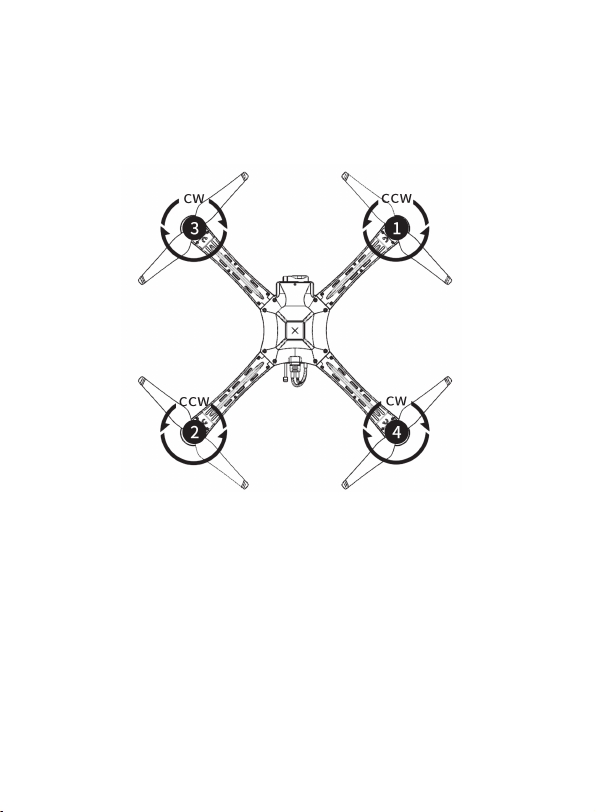

1.5 Propeller
1.4 Aentions
When installing the propeller, please carefully check the white dots on the drone
motors and the orange dots on the propeller blades, and tighten them.
1 If the baery is used in a low temperature environment (-10°C to 5°C), please
fully charge it and warm the baery to above 10°C before use.
2 Using the baery in an environment below -10°C will cause unpredictable
consequences.
3 In a low temperature environment, the actual discharge capacity of the baery
will be significantly smaller than the theoretical discharge capacity. Please stop
flying immediately when the APP recommended "low baery alarm".
4 In a low temperature environment, due to the limitation of baery output
power, the wind resistance of the drone will be reduced. Please operate with care.
5 The temperature of the intelligent baery is relatively high after flying, please
recharge after it drops to room temperature.
6 The allowable charging temperature range of the intelligent baery is 5°C to
40°C, and the best charging temperature range is 25±3°C. Charging within this
temperature range can extend the baery life.
2.1 Remote control (American mode)
2.Remote controller
3

4
2.4G 3dB antenna
Toggle three-position switch/ flying mode
Thumb wheel G (no function)
Buon C (no function)
Left joystick X1. Y1
Display
Megaphone MIC
Buon A (No function)
On/O buon
Buon B (No function)
Right joystick X2. Y2
Buon D (No function)
Gimbal pitch scale control
Toggle three-position switch (no function)
Dustfree plug
SIM card slot
Type-C charging port
PPM output/serial port cable interface
No. Annotation AnnotationNo.
2.3 Remote controller charging
The remote control is charged with a Type-C USB data cable, please see the No. 17
mark
The charging time of the remote control is about 2-4 hours. The power-on icon of
the remote control flashes when charging, and the icon goes out when it is fully
charged. The use time is around 5-8 hours after being fully charged.
2.2 Overview of the remote control functions
4
No. Buons Functions description
Throle
/steering control lever
(American mode)
-Push the joystick up and the drone rises
-Pull down the control stick and descend the drone
-Turn the control stick to the left, and the drone
rotates to the left
-Push the joystick up and the drone will move forward
-Pull down the control stick and make the drone back
-Press the control stick to the left, and the drone
flies to the left side
-Fixed height mode
-GPS mode
-Return home mode
-Control the pitch angle of the drone gimbal
Forward/backward
/side fly control lever
(American mode)
Flying mode control
Gimbal pitch control wheel
2
5
11
13
2
5
11
13
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

5
2.4 Remote control antenna angle
1 Adjust the antenna angle of the remote control, and try to face the flying
direction of the drone as much as possible;
2 Do not block or cross the antennas.
Correct operation
Wrong operation
The antenna is unfolded and 45° upward
Antennas cannot cross The antenna cannot be parallel
to the remote control
5

6
3.1 Please use Skydroid Fly APP, you can download by scanning the
QR code from the card in the package or from our oicial website:
www.skydroid.xin
3.2 App main interface
3.飞行
Parameter
seings
Photographing
Video
Megaphone
Searching lights
Toss/Thrower
Power display
Video/image display
One key to unlock
Pilot’s positioni Flying duration
Aitude
Airspeed
Ground speed
Climb and
descent speed
Drone position
Hided sidebar
Flying mode
Signal strength
Distance from home
Flying height
Numbers of GPS satellites
6
3.Flying

7
3.3 Basix flying
1. Fully charge the baery before flying.
2. Put the drone on a flat and open ground with the user facing the tail of the drone
(the baery tail plug is the tail of the drone).
3. Install the propeller correctly.
4. Turn on the remote control (long press the power buon), and insert the baery
plug into the power supply port of the drone.
5. Wait for the drone motor to make a long beep before the self-check succeeds.
6. Open the Skydroid Ground Station APP and click on the connection icon to
connect to the video/image transmission. The GPS mode is recommended for
take-o. It will search for satellites automatically, when the numbers of satellites
more than 12 pieces, it can unlock and take-o.
7. Move the joystick upside-down “V” mode to unlock the drone, and slowly push
the throle joystick upward to let the drone take o smoothly.
8. Pull down the throle stick to land the drone.
9. After landing, pull the throle stick to the lowest position and hold it for more
than 3 seconds until the motor stops.
10. Plug out the drone baery from the drone tail and the power of the remote
controller in turn after stopping.
7

8
* The flying speed can be changed in “Gear Seings” in the APP.
* The flying mode is set by the three-position switch of the serial number 2 of the
remote control.
4.1 Flying mode
4.飞行器功能
Flying
speed
Flying mode
(the flight
controller will
judge the GPS
signal, please
switch the
correspond-
ing mode)
Altitude
fixed mode
When the GPS signal is poor or the compass is interfered, the
drone will enter “Altitude Fixed Mode”, which only supports
manual flying. In the fixed altitude mode, if the fixed point of the
drone is abnormal, please land as soon as possible.
Use GPS to achieve precise hovering and stable flying mode of
the drone.
When the drone is switched to the return position or loses
control, the drone will climb to the return altitude and return
automatically.
GPS mode
Return
Mode
Low
speed
Maximum speed 2m/s, ascending speed: 1.2m/s, descending
speed 0.4m/s
Maximum speed 12m/s, ascending speed: 4.2m/s, descending
speed 2.0m/s
The maximum speed is 17m/s, the ascending speed: 5.1m/s, the
descending speed is 4.9m/s
Medium
speed
High
speed
8
4.Drone functions

9
4.2 Home return automatically
The return methods of the drone are RTLreturn, smart low baery return, and lost
connection return. When taking o, GPS>12 pieces, the drone will successfully
record the home point. If it is forced to take o without GPS signal, the latest
GPS>12 piece position will be recorded as the home point.
Return
process
One key
return home
Return home
with low
baery
Lost
connection
return
1.Record the home point
2.Trigger the return home condition
3.Adjust the direction of the nose
4.Return home based with the seing in the App
1 Ignore the current altitude of the drone, if the drone is within 5
meters of the horizontal distance, it will land directly.
2 If the drone is 5 meters away and within 20 meters, it will return at
the current altitude, and the minimum return altitude is 5 meters.
3 At a distance of 20 meters, the drone will return directly above the
return altitude. If the return altitude is less than the set return altitude,
the drone will firstly ascending the return altitude and then, return
home.
1. The drone will automatically return to home on low baery or
according to its distance to the Home point.
2. If there is no GPS signal or weak signal when returning home with low
baery, it will land automatically.
3. When taking o, if it is forced to take o when the GPS signal is not
good, the drone will automatically return to the place where it got a
good GPS signal for the first time.
4. If the power is less than 10% or the voltage is less than 11.1V, it will
enter the landing mode.
When the drone loses connection with the remote control for more than
2 seconds, it will return home automatically.
Performance requirements:
1 After the drone loses control for 2 seconds, it will trigger automatic
return home;
2 In the process of losing connection and returning to home, if the
drone is connected again, the drone will continue to perform the
returning procedure;
3 Land directly when there is no GPS signal or the signal is not strong.
APP one key return home / remote control buon one key return home
9

10
4.3 Gimbal pitch adjustment
The H12 remote control uses the right-hand thumb wheel to control the tilt of the
gimbal.
4.4 RGB three-color status light
Red and blue lights flashing alternately: Initialize the sensor, please keep the
flight control board balanced.
Blue light blinking: GPS lock is required, the flight control board is in the mode
that requires GPS signals, but the GPS has not been successfully positioned by 3D
FIX.
Blue light steady: Armed has been unlocked, but there is no GPS lock.
Green light flashing: locked state (and meet the unlocking conditions), GPS is
also 3D FIX locked.
Green light fast flashing: GPS satellites with high-precision SBAS are found. The
flight control is locked (and can be unlocked), GPS is also 3D FIX.
Green light steady: The drone has been unlocked and is ready to take o.
Yellow light double flashing: Unlock failure (check Pre-Arm error message).
Yellow light single flashing: The remote control fail-safe is activated.
Yellow and blue lights flashing: GPS failure or GPS failure protection activated.
Red and yellow lights flashing: Kalman filter or inertial navigation fails (error).
Purple and yellow lights flashing: The barometer has an error.
Red light steady: Hardware error. Ordinary need check MTD device or IMU sensor.
You can check the root directory of the TF card named as “BOOT.txt” to see the
startup information analysis.
Does not light up after power-on: unbuilt-in firmware/firmware is missing; SD
card is missing or SD card format is wrong.z
10

常见问题回答
1.The remote control cannot be connected.
①Check whether the APP type is correct
②Whether the background occupies the Skydroid Fly APP or not
2.The image is stuck and disconnected
①Adjust the angle of the antenna to aim at the drone, and there should be no
obstruction in the middle
②Change the flying field, do not fly near tall buildings or signal towers
3.Unsteady hovering of the drone
①Change the flying field, do not fly near tall buildings or signal towers
②Carry out drone compass calibration and level calibration
③check whether the wind is too strong to aect the flight
4.The GPS accuracy of the drone is inaccurate or cannot pass the GPS accuracy
test
①Search for at least 11 GPS in an open outdoor place
5.The baery cannot be charged
Re-plug the charger and baery
6.Short flying time
Overcharge or overdischarge of the baery or high temperature environment can
easily lead to reduced baery life. It is recommended to save the remaining baery
at about 60%, and then fully charge it before use.
7.Unclear shooting
①Check if the protective film of the lens is removed
②whether use in a good light environment
③Set the shooting parameters in the APP of camera seings
8.The lens is hazy and foggy
①The humid climate causes the lens to fog, change the storage location of the
drone
②Place desiccant when storing
9.Lost pictures or videos taken
When finish recording, please remember to click the “recording” icon to stop
recording, otherwise the video may be damaged or lost.
FAQ

免责免除
When using this product, Skydroid shall not be liable for compensation and legal
responsibility for direct or indirect damage caused by the following reasons.
1. The user has caused damage when drinking, taking drugs, drug anesthesia,
dizziness, fatigue, nausea and other poor physical or mental conditions.
2. Personal injury, property damage and legal liability caused by the user’s
subjective intention or misjudgment.
3. Compensation for any mental damage caused by the accident.
4. Damage caused by the user flying in a flight area prohibited by laws and
regulations such as nature reserves.
5. Other damages caused by self-modification or replacement of accessories or
parts not produced by Skydroid, resulting in poor operation of the drone.
6. The drone’s natural wear and tear (flying time of 100 hours or more), decay, and
aging of the wiring have caused the aircraft itself to operate poorly.
7. The drone issued a low-voltage alarm and did not land, causing the drone to fall
or crash.
8. Knowing that the drone is in an abnormal state (such as water, oil, soil, sand and
other unidentified substances, incomplete assembly, obvious failure of main
components, obvious defects or missing parts), damage caused by forced flying.
9. The drone is in a magnetic field interference zone, a radio interference zone
(such as near high-voltage power lines, large power equipment, radio and
television transmission towers, mobile phone base stations, etc.), a no-fly zone
specified by the government, or the user’s field of view is in backlight, blocked by
obstacles, caused by flying under conditions that are not suitable for control,
such as blur, poor eyesight, and other conditions that are not suitable for control.
10. Flying in bad weather, such as rainy or windy (more than level 4, snow, hail and
other bad weather.
11. The drone has encountered collisions, overturns, fires, explosions, lightning
strikes, storms, tornadoes, rainstorms, floods, tsunamis, subsidence, ice sinks,
clis, avalanches, hailstorms, mudslides, landslides, earthquakes, etc.
12. Any data, audio or image data obtained by the user using the drone is damaged
due to infringement.
13. Regarding the baery, such as damage caused by the matching or improper
use of the protection circuit, baery pack, and charger. 14. Any indirect losses and
legal liabilities caused by problems with equipment or accessories (including
memory cards), such as images or videos that cannot be saved.
15. The loss and legal liability caused by the user recklessly flying unsafe without
completing suicient flying training.
16. The user fails to comply with the use methods and various precautions
mentioned in the user manual or user quick start guide of Skydroid oicial website
and the loss and legal responsibility caused by various precautions.
17. Other damages that are not within the scope of Skydroid liability.
Exemptions

建议
1.This product is compatible with the external environment and meets the FCC’s
limited requirements for wireless video.
This product complies with FCC Part 15 regulations, which contains two aspects:
1 The work of the product will not cause harmful interference to others;
2 At the same time, the product can withstand harmful interference that may
cause the product to work abnormally.
Aentions: The manufacturer is not responsible for any wireless and other
interference caused by illegal modifications and changes to the equipment.
Because these modifications and changes have exceeded the user’s operating
authority.
Aentions: This product has passed tests and has been proven to comply with
the FCC Part 15 requirements for Class B digital products.
These regulations are to ensure that the product will not cause harmful eects on
the residential environment when it is installed and used. This product will radiate
radio frequency energy when it is working. If the product is not installed and used
in accordance with the instructions, it may cause interference to public wireless
communication. However, in some specific installation and use occasions, there is
no guarantee that interference will not occur. The user can check whether some
interference is caused by this product by turning on and o the product. If this
product has indeed caused interference to wireless and video receiving
equipment, users can try to take the following corrective measures:
√Properly adjust the position of the antenna.
√Increase the distance between the product and the receiving device.
√Asking for help from dealers or experienced wireless/video technicians.
2. When using this product, make sure that the product antenna is not less than
20cm away from people. The USB interface inside the remote controller and the
USB interface of the drone can only be connected with the communication
interface USB2.0 or above. It is forbidden to connect to the USB power interface.
Please choose the correct type of baery. Using other types of baeries may
cause explosion. At the same time, please follow the instructions to properly
dispose of the used baery.
Therefore, we Skydroid promises that this product meets the basic requirements
specified in 19991/EC and some other related directive requirements.
3.This product is for personal use only, and it is strictly forbidden to use this
product for any behavior that violates international and local laws and regulations.
Do not use this product for the following activities (only examples, not limited to
this):
1 Defame, abuse, harass, stalk, threaten or other violate the legal rights of others
(such as the right of privacy and publicity);
2 Taking pictures of others or private areas without permission;
Suggestions

3 Use this product for illegal or inappropriate purposes other than general
commercial purposes (such as spying, military activities, or unauthorized
inspections and investigations, etc.);
4 Violate any laws, administrative regulations and related social customs in the
area where this product is used.
Aentions:
1 In some cases, shooting or recording performances, exhibitions or other
commercial buildings for private purposes may also cause infringement of the
intellectual property rights of others;
2 In some regions and countries, small aerial models are also prohibited from
participating in any commercial activities.
If you encounter an unsolvable problem during the installation process, please
contact Skydroid oicially authorized agents or Skydroid technical support. The
intellectual property rights of this product and manual are owned by Skydroid Co.,
Ltd. Without wrien permission, no organization or individual may reproduce, copy
and publish in any form. If quoted or published, the source should be indicated as
Skydroid Co., Ltd., and the manual should not be quoted contrary to the original
intent.

Skydroid National Service Hotline
400-6996-520
Product name: MX450
Manufacturer: Skydroid Co., Ltd
Address: 2nd Floor, Building A, Haixi Yucheng Base, High-tech Industrial Park,
Quanzhou City, Fujian China.
Email: [email protected]
Oicial Website: www.skydroid.xin
Reminder: Please read the user manual carefully before use!
• Always be supervised while charging
• Please unplug the charging cable immediately after charging
• Propeller components may cause injury
• This product is not a toy
• Not suitable for children under 14 years
WeChat public account
