SAFETY GUIDELINES
CHECK BEFORE USE
DISCLAIMER & WARNING
1. Please read this Disclaimer & Warning and Safety Guidelines carefully
before using our product. This product is not recommended for people
under the age of 14. By using this product, you hereby agree to this
disclaimer and signify that you have read it fully. You agree that you are
responsible for your own conduct and any damage caused while
using this product, and any consequence. You agree to only use this
product for it's designed purposes and in accordance with the local
laws, regulations and all applicable policies and guidelines that DEERC
may provide.
2. When using this product, please be sure to strictly abide by the
specification requirements and safety guidelines stated in this
document. Any personal injury, property damage, legal disputes and all
other adverse events caused by the violation of any of the safety
instructions or due to any other factor, WILL NOT be DEERC’s responsi-
bility.
① This product is a high precision drone that integrates various
electronic stability and control mechanisms. Please be sure to configure
this drone carefully and correctly to ensure safe, accident-free
operation.
② Ensure that the batteries of the drone and transmitter are clean,
undamaged, and fully charged before every use.
③ Ensure that all the propellers are undamaged and are installed in the
correct orientation.
-2-
FLIGHT ENVIRONMENT
Fly in Open Areas Maintain Line
of Sight
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Fly Below
131 ft (40 m)

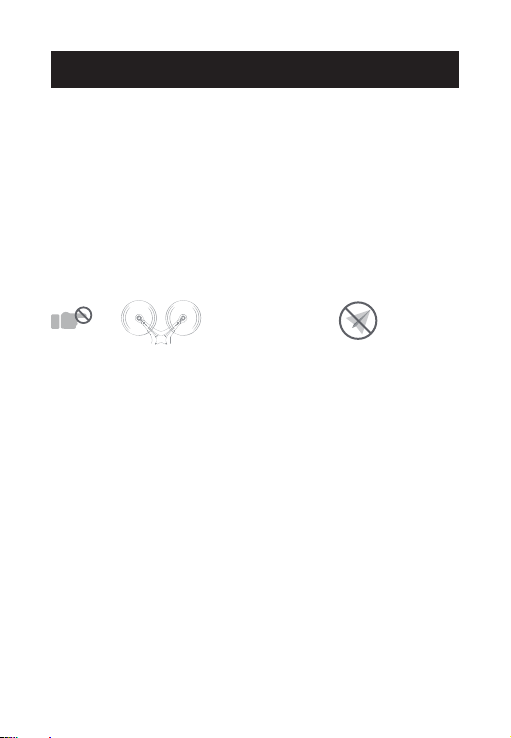

④Please perform a thorough check of the product before each use.
Inspect the integrity of the parts, any signs of cracks and wear off on the
propellers, battery power and effectiveness of the indicator, etc. If there
is any problem found after checking the drone, please refrain from
using it until the problem is resolved.
Avoid flying over or near obstacles, crowds, high voltage power lines,
trees, airports or bodies of water.
DO NOT fly near strong electromagnetic sources such as power lines
and base stations as it may affect the onboard compass.
DO NOT use this drone in adverse weather conditions such as rain,
snow, fog, and wind.
SAFETY GUIDELINES
-3-
OPERATION REQUIREMENTS
USE OF BATTERY
⑥ Stay away from the rotating
propellers and motors.
⑦ DO NOT fly in any spaces
where drones are prohibited.
Please respect people's right to
privacy by not flying your drone
close to others.
①DO NOT use this product to follow any moving vehicles.
②During the flight, turn off the motors only in case of an emergency.
③When the battery runs low, return the drone back to your starting
point.
④DO NOT use this product if you feel tired, take medicine or feel
unwell and drink alcohol.
⑤Be aware of the volume of noise that the drone produces. Please
ensure to keep your distance to avoid ear damage.
①Please ensure batteries are fitted in the correct orientation as shown
in the instruction manual.
②Avoid short circuits by fitting the batteries correctly, and do not crush
or squeeze the batteries as this could cause the risk of a fire or explosion.
③DO NOT mix new and old batteries as this can lead to a poor
performance of the product.
④Please dispose of used batteries carefully, do not litter and recycle
where ever possible.
⑤DO NOT expose dead batteries to heat or fire or they may explode.
⑥If the device is not going to be used for an extended period of time,
please remove batteries to prevent potential damage to the drone from
battery leakage.
SAFETY GUIDELINES
-4-
⑦Only use the USB charging cable that comes with the drone to
charge the battery.
⑧DO NOT connect the battery directly to wall outlets or car cigarette
-lighter sockets as this will damage your battery since they have
different voltages.
⑨DO NOT attempt to disassemble or modify the battery in any way
⑩DO NOT use the battery if it gives off an odor, generates heat,
becomes discolored, deformed or appears abnormal in any way. If any
of these situations occur while the battery is in use or being charged,
remove it from the device or charger immediately and discontinue use.
DO NOT pierce the battery casing with a nail or any other sharp
object, break it open with a hammer, or step on it! Dispose or recycle
this battery as it may cause personal injury or damage to your drone.
Always charge the batteries on a fireproof surface and away from
combustible materials. DO NOT charge on surfaces that can catch fire,
which includes: wood, cloth, and carpet.
DO NOT immerse the battery in water or get it wet.
DO NOT solder the battery terminal in any way.
Keep batteries out of reach of children or pets.
DO NOT short-circuit the battery by connecting wires or any other
metal object to the positive(+) and negative(-) terminals.
12
13
14
15
16
11
Li-Po Battery Disposal & Recycling
SAFETY GUIDELINES
Waste Lithium-polymer batteries must not be placed with household trash. To
dispose of waste batteries, please contact the local environmental or waste
agencies, the supplier of your model, or your nearest Li-Po battery recycling center.
-5-
①Clean the drone after each use with a clean, soft cloth.
②Avoid prolonged exposure to direct sunlight and avoid buildup of
heat on the drone or batteries.
③This device is not waterproof and must not be submerged or
subjected to water under any circumstance. Failure to keep the device
completely dry may likely damage the unit permanently. Be aware that
although it might be dry where you are, droplets of rain or mist from a
river or waterfall could damage your drone where it is flying.
④Frequently check the charging plug and other accessories for signs
of damage. If any part of the device or cables are damaged, avoid using
or charging until the damaged parts are replaced.
MAINTENANCE
Drone Transmitter Drone Battery
USB Charging
Cable Propeller Screwdriver
Instructions For
Use
-6-
Phone Holder
Dust Cover
(For transmitter)
D70
Instructions For Use
Gebrauchsanweisungen
+1(855)777-8866
V 1.0
PACKAGE CONTENTS
Propeller B
Propeller A
Propeller A
Propeller B
-7-

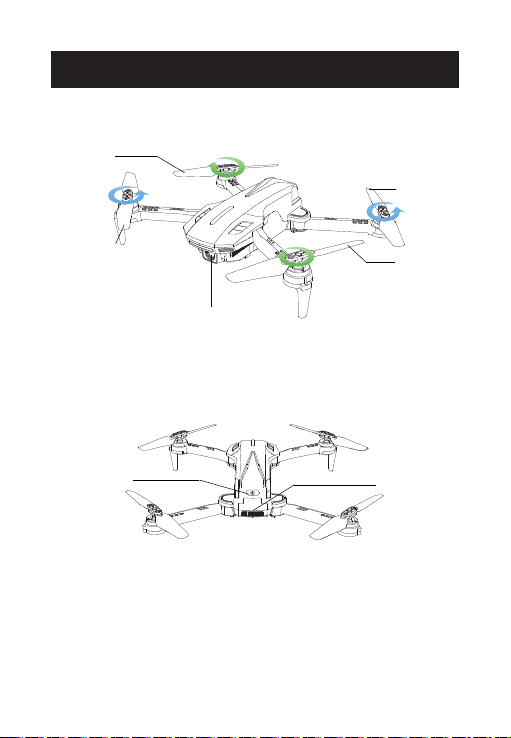

Camera
Power Switch Drone Battery
DRONE DETAILS
-8-
One Key Takeoff
& Landing
(Short press)/
Gyro Calibration
(Long press)
Power Indicator
Right Joystick/
360° Flip
Left Joystick/
Headless Mode
Speed Switch
(Short press)/
Trimmer
(Long press)
Power Switch
High-Speed Rotation
(Short press)/
Circle Fly
(Long press)
Take Photo
(Short press)/
Record Video
(Long press)
TRANSMITTER FUNCTIONS
3*AAA Batteries
(NOT included)
Open the battery cover on the back of the transmitter, insert the three
AAA batteries (Not included) into the battery compartment. Then
close the battery cover to complete the installation.
- Install batteries carefully.
- Do not mix old and new batteries.
- Do not mix different types of batteries.
Battery
Compartment
Battery Cover
* Low Battery Signal: The power indicator on the transmitter will
flash and the transmitter will beep continuously.

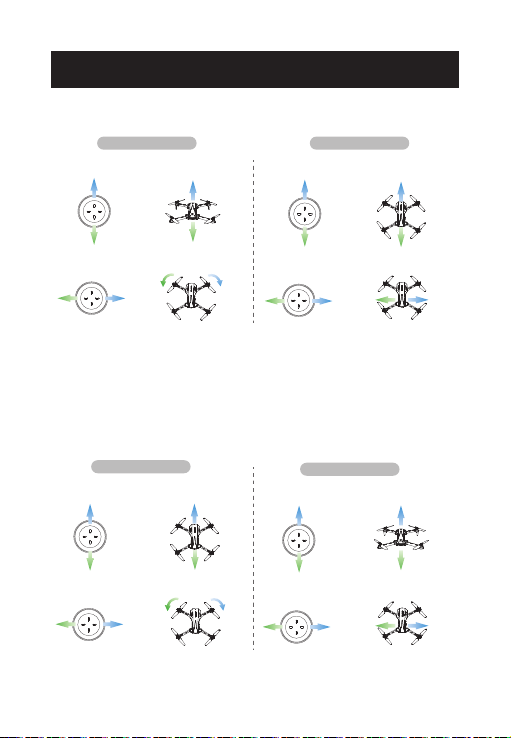

MODE 2 (Left hand throttle MODE 2 will be the default setting.)
Left Joystick Right Joystick
Ascend
Descend
Rotate
Left Rotate
Right
Forward
Backward
Up
Left
Up
DownDown
Left Right Fly to
Right
Right
MODE 1
To enter MODE 1, turn on the transmitter while holding the “Speed
Switch/Trimmer” button. (Please do not release the “Speed
Switch/Trimmer” button until the transmitter is powered on.)
Left Joystick Right Joystick
Ascend
Descend
Forward
Backward
Up
Left
Up
Down
Down
Left Right Fly to
Right
Fly to
Left
Right
-9-
Rotate
Left Rotate
Right
JOYSTICK MODE
Fly to
Left
-10-
PREPARATION BEFORE FLIGHT
USB Adapter
(5V/1A)
Power Bank
① Connect the the drone's battery with the USB Charging Cable.
② Plug the USB Charging Cable into a USB charging port on the
power bank or USB adapter (5V/1A).
③ Charging time: about 70 minutes.
④ a. When the battery is charging, the indicator light on the USB
Charging Cable is Red.
b. When the battery is fully charged, the indicator light on the USB
Charging Cable will turn Green.
- Before charging, please read the instructions in the “Use of
Battery” section of the “Safety Guidelines” carefully!
- Please use the original charging cable to charge the battery.
- DO NOT charge the drone battery immediately after a flight as
the temperature of the battery may be too high. Please wait until it
cools down to room temperature before charging again.
* Low Battery Signal: The indicator lights on the drone will flash
continuously and the transmitter will beep during the flight.
CHARGING
-11-

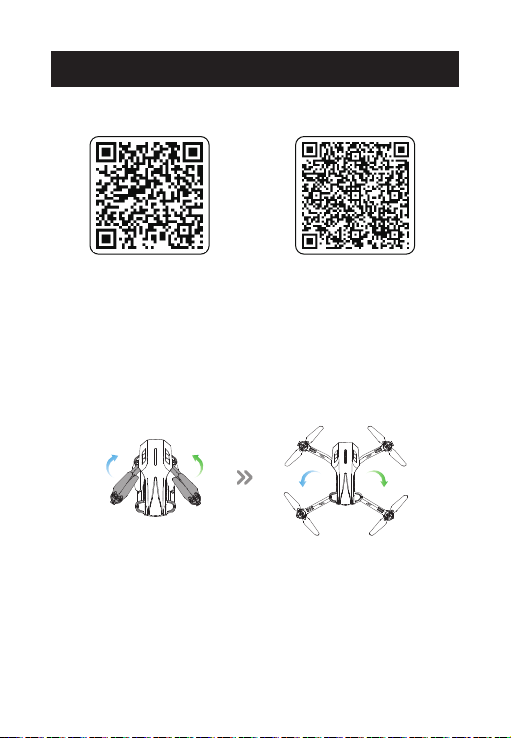

Scan the corresponding QR code and download the Deerc FPV app for
free.
Required Operating Systems: iOS 12.0 or later/Android 4.4 or later.
iOS Android APP on Google Play
PREPARATION BEFORE FLIGHT
All arms of the drone are folded before the drone is packaged at the
factory. First, unfold the front arms, then unfold the rear arms.
ARMS
DOWNLOAD APP
-12-
PREPARATION BEFORE FLIGHT

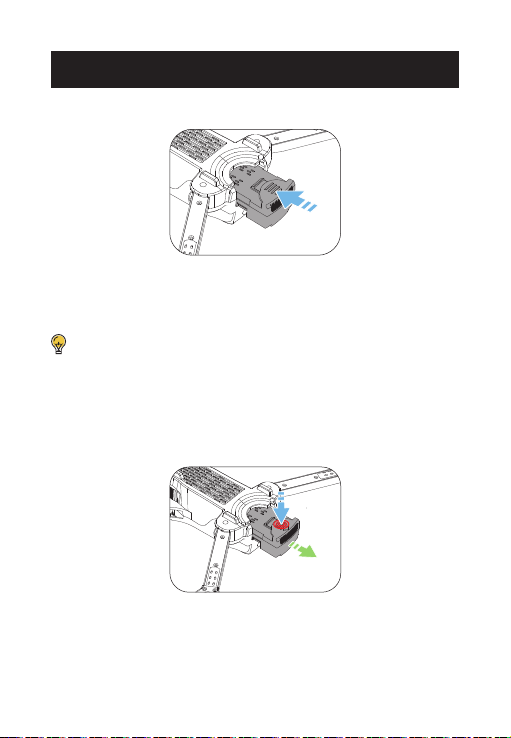

Removal: Press the lock button on the battery, and pull the battery out
from the fuselage.
Installation: Push the battery into the battery compartment at the rear
of the drone. Make sure that you hear a click sound, which indicates
that the battery is firmly installed.
The battery should be installed firmly. Otherwise, the flight safety
of your drone may be affected. The drone may crash due to a
power cut during the flight.
DRONE BATTERY
-13-
A B
HEAD
A
B
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Removal: For propeller removal, use a screwdriver (provided) to rotate
counter-clockwise and remove the propellers.
Installation:
① An “A” or “B” is printed on the back of each propeller.
② Lock the propellers to the corresponding motor shafts (the motor
shafts are also marked) with a screw.
③ Rotate each screw clockwise.
-The propeller is installed before the drone is packaged at the
factory.
-The drone will not fly unless the correct propeller is installed
on the correct motor shaft.
PREPARATION BEFORE FLIGHT
PROPELLERS
-14-
PREPARATION BEFORE FLIGHT

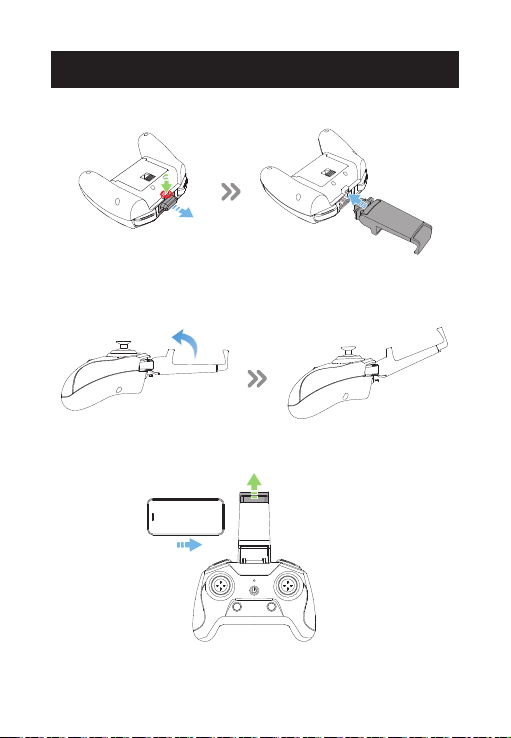

①Remove the dust cover.
②Insert the phone holder into a slot on the top of the transmitter.
④Open the phone holder and put your phone in.
③The phone holder can be adjusted to an angle you like.
PHONE HOLDER
-15-
①Long press the Power Switch
Button to turn on the drone. The
drone indicators start flashing.
②Place the drone on a flat and
level surface, with its head facing
forward and its tail pointing
towards the pilot.
③Short press the Power Switch to
turn on the transmitter. Once the
transmitter sends out a long beep
and the Power Indicator changes
from blinking to solid, the drone will
be paired with the transmitter.
HEAD
All of the following operations in this manual use MODE 2.
FLIGHT
* If you use the transmitter to control the drone first, the APP will
not be able to control it. Conversely, if you use the APP to control
the drone first, the transmitter and the drone will not be paired.
PAIRING
-16-
Connect your phone to the Wi-Fi network created by the drone. You
can check the drone’s status on the Deerc FPV App.
①Make sure to turn off Bluetooth, Mobile Data, and VPN. Enter your
phone’s Wi-Fi settings and click Wi-Fi to search for the Wi-Fi of the
drone. (Make sure to turn on the drone before going to the Wi-Fi
settings on your phone)
②Select the Wi-Fi network: DeercFPV-******.
③Wait for a couple of seconds for your phone to connect to the
drone’s Wi-Fi.
④Enter the Deerc FPV application.
> The connection between your phone and the drone is established
automatically.
FLIGHT
Because the Wi-Fi network created by the drone cannot access the
Internet, your phone may inform you in various ways, like saying
the connection isn't secure, or there is no internet connection, etc.
Please ignore these messages. Or, in the case of getting Pop-ups,
choose the option that allows you to stay with the current Wi-Fi.
CONNECT TO WI-FI
Table of contents
Other Deerc Drone manuals
