Included in the tilt mount kit:
Tools Required for Installation:
2- Mounting Arms
1- Mounting Plate
2- Locking Bars
4- 5/16”x 2 ½” Lag Screws
4- 5/16” Lag Shields
4- 5/16” Flat Washers
Ratchet with 1/2” Socket Drill with 1/2” Masonry Bit or
3/16” Wood Bit
1/2”
Masonry Wood
1/2”
3/16”

3All Rights Reserved. 2017 SkyVue®
Installation Manual - Tilt Mounts
Warning: Do not plug speaker bar into A/C outlet until connections to the tele-
vision have been plugged in. This will severely damage the speaker bar if not
followed completely.
Lay television down, viewing side down on blanket.
Lay blanket down on at
sturdy surface. Run hand
over surface to make sure
there are no sharp object
or protrusions, when the
television is laying down.

4
InstallatIon ManualnXG 55 |
The following instructions apply to NXG 55” Television
1: Remove the hex head screws and
washers. Set the screws and washers in a
secure location.

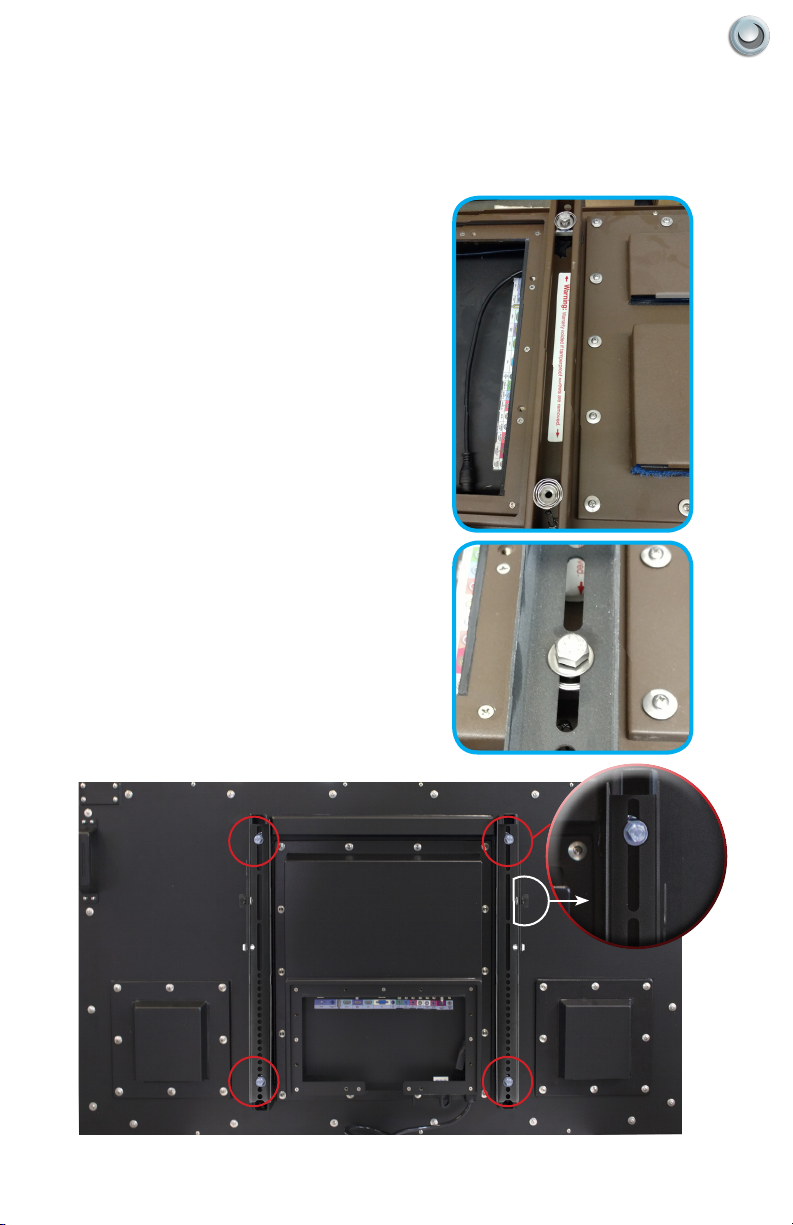

2: Insert spring nuts as shown in
picture (2 per power strut). Spring should
be touching both sides of the power strut
as shown.
Gather the 4clamping nuts with springs. These will be in a separate
bag shipped with the User Manual Packet.
3: Align holes of the mounting arms
with the holes of the clamp nut springs.
The arms should be level with each
other. Insert the hex head screws and
washers from the rst step and secure
tightly as shown in the example to the
right and below.
Note:
KNobs should
beFaciNg sides oF
televisioN.

5All Rights Reserved. 2017 SkyVue®
Installation Manual - Tilt Mounts
For Masonry:
Set height, level, and mark drill locations on wall. With masonry bit, drill
1/2” pilot holes and hammer in lag bolt shields. Hold the plate to the wall.
Make sure the plate is level. Using the 4 supplied lag bolts and washers
secure plate to the wall.
For Wood:
Set height, level, and mark drill locations on wall.
IMPORTANT: Make sure that drill marks are located where bolts will get secured
in a stud or a substantial wood structure.
With wood bit, drill 3/16” pilot hole. Hold the plate to the wall. Make sure
the plate is level. Using the 4 supplied lag bolts and washers secure plate
to the wall.
For Anchoring Into
WoodMasonry

6
InstallatIon ManualnXG 55 |
With the help from a friend, lift the television and attach the hooks
on the mounting arms to the plate on the tilt mount. Tighten knobs
on arms once the tilt is set correctly for the television.
Insert locking bars and secure by fastening with a pad lock for
added security.
HOOK
MOUNTED
TO
WALL
SECURE BY INSERTING LOCKING BARS AND
FASTENING PAD LOCKS
SET & TIGHTEN
KNOBS
Congratulations you have successfully installed your tilt mount. If you have
any questions feel free to contact our technical support team
[phone] option 2
Mounting Arm
Mount Plate
Locking Bar
