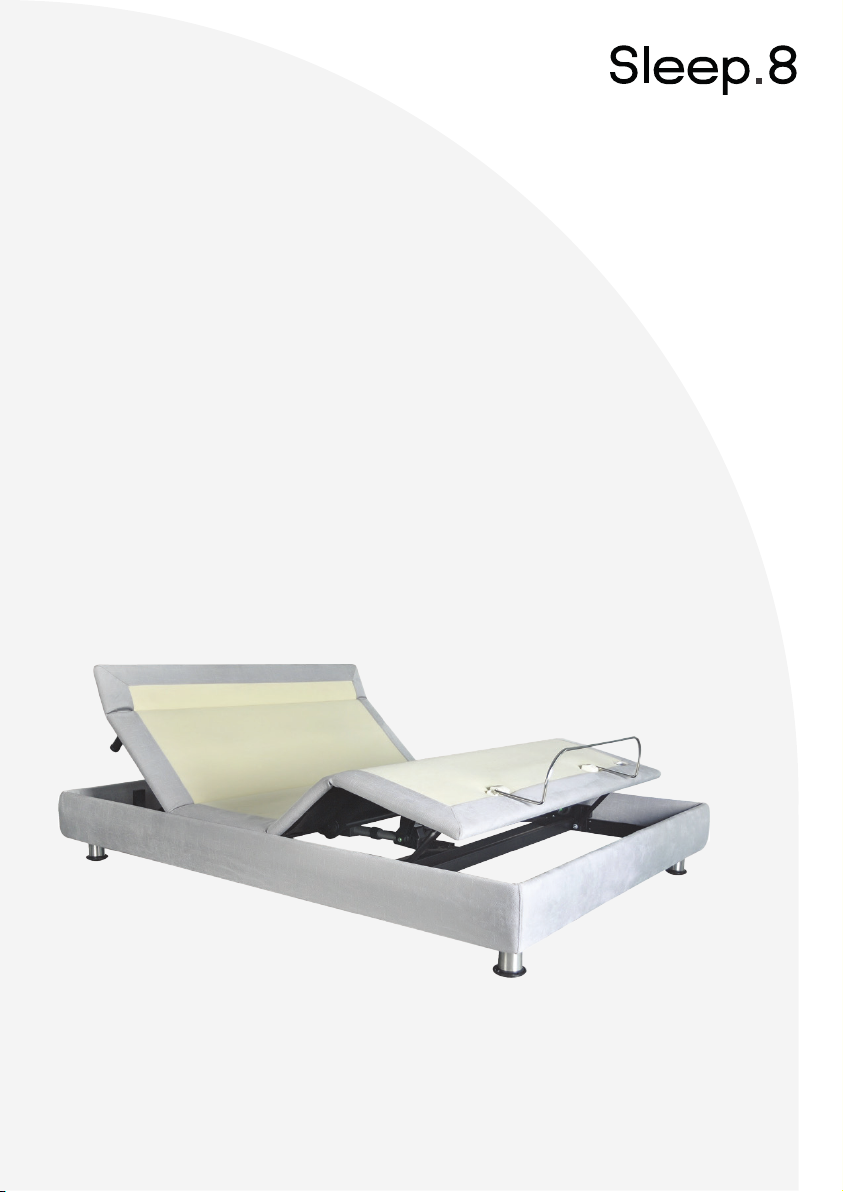

sleep8 633 User manual

OWNER’S MANUAL
Good sleep changes everything
ErgoBed 633
Actual product appearance and functionality may vary from photographs, illustrations and descriptions
included in this manual.

Safety Precautions and Usage Statements
Parts List
Base and Remote Overview
Quick Reference Guide
Installation Guide
Remote Control
Remote Control Pairing
Bluetooth App Guide
Power Down Box
Syncing Two Bases (Optional)
Connecting Strap (Optional)
Troubleshooting
2
7
8
10
10
13
14
16
19
20
21
23
Table of Contents
EN PT ES LV EL
ET RO FR HE DE
MANUALS

Safety Precautions and Usage Statements
Attention: Important Safety Disclaimers
Read all instructions before using your adjustable base. Save these
instructions.
TO REDUCE THE RISK OF SHOCK, BURNS, FIRE OR INJURY:
For optimal safety and operation, plug bed base into a surge protector (not included). The
bed base should only be plugged directly into a wall outlet or surge protector (strongly
recommended). Always unplug the base from the electrical outlet before servicing any
part of the base. To reduce risk of electric shock, unplug the base before cleaning. To
safely disconnect, ensure the base is in a flat position with all motors off, and unplug from
power source. Keep the power cord away from heated surfaces. Never operate the base
when the air openings are blocked. Keep air openings free of lint, hair and the like. Do not
drop or insert any object into any opening. Discontinue use of the bed base and contact a
qualified service center if: it has a damaged cord or plug, if it is not working properly, or it
has been dropped into water. Only use this bed base for its intended use as described in
this manual. Do not use accessories/attachments that are not recommended by the
manufacturer. Close supervision is required when the bed base is used by or near
children, convalescents, disabled persons or pets. Improper connection of the equipment
can result in the risk of electrical shock, electrical fire or faulty operation of this bed bas .
If the plug does not fit your outlet, contact a qualified electrician to install a suitable
outlet Unauthorized modification or failure to use a wall outlet or surge protector could
void the electrical portion of your warranty.
PETS AND CHILDREN:
Immediately dispose of all packing materials as it may pose a smothering risk to small
children and pets. To avoid injury, it is not advised to allow children and small pets to play
on or under the bed. Children should not operate the bed base without adult supervision.
PACEMAKERS:
Some products contain Neodymium MAGNETS which may interfere with devices such as
pacemakers, ICD’s and any other device sensitive to magnetic fields. It is STRONGLY
recommended that owners of such medical devices consult their physician prior to using
products that contain Neodymium MAGNETS. It is also possible that some pacemakers
may falsely interpret the optional massage feature vibrations as movement/exercise. This
is a common occurrence with any products that creats a vibrating movement and may
not affect the pacemaker. Please consult your physician before using the massage
feature.
2

IN-HOME USE AND HOSPITAL STANDARDS:
Ergomotion adjustable bed bases are designed solely for in-home use. This base was not
designed as a hospital bed and is not designed to meet hospital standards. Do not use
this base with TENT TYPE oxygen therapy equipment or near explosive gases.
ADDITIONAL SAFETY FEATURES
Casters (optional leg accessory) are equipped with locking wheels to prevent unwanted
movement. Even when locked and unable to roll, it is possible for the casters to slide. Free
release head and foot motors are designed to lower the mattress by retracting only with
gravity, never pulling downwards, which minimizes pinch points.
LIFTING/LOWERING MECHANISMS
The lift/lower feature will emit a minimal humming sound during operation. This is
normal. During operation, the lift arm wheels make contact with the platform support of
the base. This contact may result in metal on metal or metal on plastic contact. This
applies slight tension on the moving components and resonance is reduced to a
minimum level. If excessive noise or vibration is experienced, reverse the movement
action (up or down) of the base with the remote control. This should realign the base’s
activating mechanisms to the proper operational position. In normal base operation, the
wheels, which allow the bed to maintain its distance from the wall, will make contact with
the steel platform supports of the base creating a contact noise. When entering, exiting
or shifting weight on the base, this contact noise may be audible as the wheels make
contact. This is normal.
MATERIALS
Ergomotion adjustable bases are constructed from various materials including woods,
metals, plastics and fabrics. Tension, pressure or movement applied to the frame,
platform or shroud through general use may create an audible sound.
MASSAGE OPERATION AND LOCATION ENVIRONMENT
The massage feature will emit a tone during operation. This is normal. As the massage
intensity level is increased, the tone will intensify. The volume of this tone is directly
related to the location environment. For example, when demonstrated in a show room,
the surrounding environmental noise will cover some of the massage noise. However,
when installed in a home setting with wooden floors, carpeted or not, the massage
volume will be more noticeable. To minimize this resonance, place a piece of carpet, or
rubber caster cups, under each leg or caster of the base. It is possible to experience
vibration or noise from the exterior bed frame, headboard brackets, headboards or
footboards if mounting bolts are not firmly tightened.
Levels 1-6 of massage intensity represent the revolutions of the motor per minute. Level 6
provides the maximum number of RPMs. However, this does not mean that the feeling of
vibration is the strongest. Depending on the mattress material, thickness, and positioning
3

of the user, the feeling of vibrations will differ. We encourage the user to find the
massage intensity setting that suits them best. It is important to understand the physics
of vibrations. Just as an engine may run rough during idle, as the RPMs increase, the
vibrations change concurrently.
TOLERANCE
All Ergomotion adjustable foundations, depending on make and model, are designed and
manufactured to perform and function within designated quality control parameters.
Bases are subject to meticulous and rigorous inspections during the quality control
process to ensure bases will operate within these standards during normal operating use.
Normal operating use is defined as the following: Adjustable foundation is to be operated
with a mattress and load. Testing procedures require lifetime cycle tests with up to 120kg
distributed load. The angle (designated “α” in figure 1) between the back section and the
flat section for various configurations of the mattress support platform shall be ± 3°,
which translates to a tolerance of up to 1 ½”.
The angle (designated “β” in figure 1) between the flat section and foot section for various
configurations of the mattress support platform shall be ± 3°, which translates to a
tolerance of up to ¾”.
Any adjustable foundation deemed to be within these allocated tolerances is considered
to have met the manufacturer’s quality control standards.
THAT “NEW PRODUCT” SMELL:
Some people notice a slight odor to their new adjustable base—this can come from our
material manufacturing process. This smell is normal and usually disappears before the
product reaches you. Sometimes, however, this smell may still be noticeable. It usually
disappears after a few weeks, providing adequate ventilation of the product and the
environment.
BREAK IN PERIOD:
You can speed up the break-in period by simply spending time in the adjustable bed
through activities such as reading, watching TV or playing with the kids or grandkids. The
extra movement will help the adjustable base respond to weight and temperature
4

changes. Some of the materials in our adjustable bases such as the woods, metals and
plastics used in the platform, frame and components are sensitive to moisture content
and temperature and may make sounds in colder environments.
PAIRED OPERATION:
When operating a “paired” split base setup there may be a time latency up to 1.5 seconds
between each bases articulation.
WEAR AND TEAR:
Wear and tear is damage that naturally and inevitably occurs as a result of normal use or
aging.
FABRIC CARE:
To prolong the life of your fabric, protect from direct sunlight whenever possible. For spot
cleaning, wipe area with a light damp sponge or vacuum with a soft brush attachment to
remove particles. Keep at a minimum of 30cm (12 inches) away from direct heat sources.
For a deeper cleaning, blot liquid spills with a clean dry cloth. Wipe with a clean cloth
dampened with warm water. Do not wet excessively. A soft bristle brush may be used to
remove ingrained soil. Avoid scratching by gentle brushing. Wipe with a clean cloth
dampened with warm water to remove residues. Dry in shade away from direct heat. If
persistent marks remain visible after cleaning, seek professional advice.
PRODUCT RATINGS:
The lift motors are not designed to operate continuously for more than [2] minutes in an
[18] minute time period or approximately 10% duty cycle. Attempting to circumvent or
exceed this rating will shorten the life expectancy of the product and may void the
warranty. The massage motors are not designed to operate continuously for more than
30 minutes at a time. Please allow the massaging system to rest for 30 minutes after
automatic massage shut off before restarting.
WEIGHT LIMITS:
This product is not rated to support weights in excess of 340 kg inclusive of the mattress
and bedding. The base will structurally support this weight, provided it is evenly
distributed across the bed base. The adjustable base is not designed to support or lift
this amount in the head or foot sections alone. Exceeding this weight restriction could
damage the bed and/or cause injury and will void the warranty.
IMPORTANT DO’S AND DON’TS
DO:
• Plug your adjustable base into a power surge protector.
• Evenly distribute weight when sleeping in a split setup. Uneven distribution of weight
can cause the base to raise unevenly.
5

FCC Compliance:
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different ffrom that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• Call Customer Service for any technical issues. Do not try to force the base down, this
can damage the motors or frame.
• Use mild soap and water to clean your adjustable base if staining occurs.
• Keep in mind that adjustable bases are recommended to be used with adjustable
friendly mattresses.
• Lower to the flat (horizontal) position after use and in between presets.
• Register your warranty as soon as your adjustable base has been delivered.
DON’T:
• Sit on corners/edges of base, this may warp the frame, struts or foam.
• Tilt the base on its side. This can damage the legs and/or leg screws.
• Stand or jump on the adjustable base at any time, this can damage the frame and
motors.
• Drag the base to move it. Dragging the base could damage the frame, strip the
nut/bolts or break the legs. Purchase castors if you plan on moving your base routinely.
• Enter and exit the adjustable base with the head and/or foot in the articulated position.
Enter or exit your adjustable in the flat (horizontal) position.
• Tinker with or modify base. This will void the warranty.
• Press down on the head or foot while actuated can damage frame and motors.
6
SAVE THESE INSTRUCTIONS

Parts List
Before discarding the packing materials, ensure all the parts are
accounted for.
All electronics and components that need to be installed are
located in boxes under the base or attached to the frame.
Misc Parts (not included):
A. Wireless Remote Control and AAA Batteries (3)
B. Mattress Retainer Bar*
C. Legs (4)
D. Power Cord
E. Power Supply
F. Power Down Box (9 volt alkaline batteries not included)
G. Connecting Strap‡*
H. Sync Cord‡
I. Surge Protector
J. 9 Volt Alkaline Batteries (2)
* These items are attached to the base for shipping purposes. Carefully remove from
base and set aside.
7
A B *C
D E
G‡*H‡
F

Base and Remote Overview
‡ Only included in the width of the bases ≤ 1000mm.
8
IJ
MISC Parts (NOT INCLUDED)
Control Box
Bluetooth
Underbed
Lighting
Power Down Box
Head Motor
Massage Motor
Massage Motor
Massage Motor
Massage Motor
Underbed
Lighting
Underbed Lighting
Foot Motor

9
Select Settings

Quick Reference Guide
Installation Guide
Not to scale. For illustration purposes only. Read all instructions
before beginning installation.
Always use two people when setting up the base
If installing a split unit, see page 20.
STEP 1
Place the bed base box in a desired location with the top of the box facing up. Remove
the binding straps and packing materials, making sure not to puncture the box with any
sharp objects.
STEP 2
Remove the bed base from the box keeping the bottom of the base facing upwards.
10
Head Vibration
Foot Vibration
Massage Motor
Splitter Cable
Foot
Motor
Head
Motor
Power Supply
Power Cord
Input Cord
Power Down Box
Control Box
Y-Cable
Underbed Lighting
Bluetooth

To sync two bases see detailed installation
instructions on page 20.
STEP 3
To install the legs, thread the washer over the bolt of the leg with the recessed side
facing the leg, and tighten by hand.
Do not over tighten.
STEP 4
STEP 5
Locate the Power Down Box and install (2) 9 Volt Alkaline Batteries (not included).
Uncoil input Power Cord (connected to Control Box’s power port) and plug into Power
Supply.
11

Setup is now complete! Test all functions on remote.

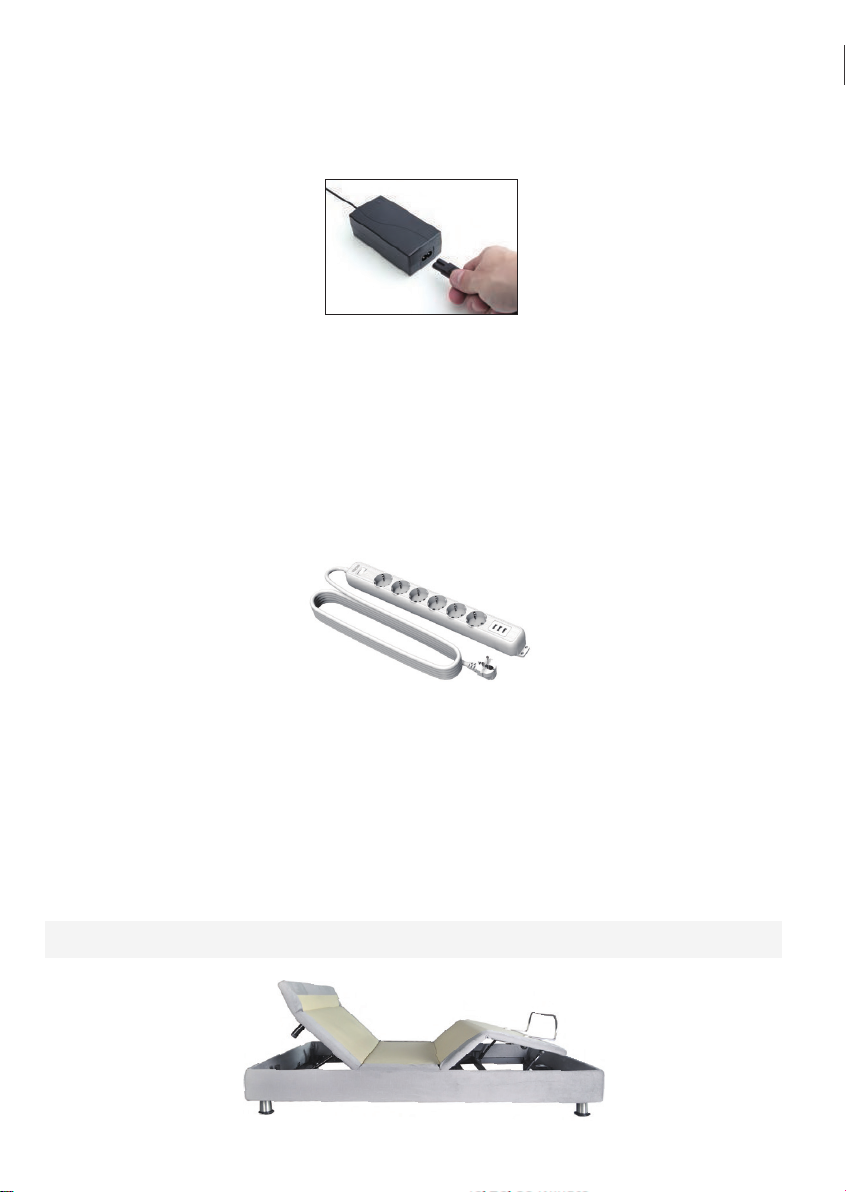

STEP 6
Uncoil the Power Cord and connect to the Power Supply. Place Power Supply on the
ground and extend from the base. Ensure that the Power Supply and all attached cords
are directed toward the desired surge protector.
STEP 7
STEP 8
Carefully flip the base over on to its legs. Important: Two people are required to move the
bed base. Do not drag across the floor. Do not rest frame on its side, excessive pressure
may damage the legs.
STEP 9
Quickly test remote functions to verify proper setup before placing mattress on base.
Return the base to a flat position before placing the mattress on top.
STEP 10
Slide the left side of the mattress retainer bar into the bracket. Pull the retainer bar to the
opposite bracket and secure the right side.
Plug the power cord into a power source.
A surge protector is recommended.
12

Remote Control
Remote Control arrives paired to the adjustable base. Three (3) AAA
batteries are required to operate the remote.
SAVE UP TO FAVORITE POSITION
To program:
Press and hold one of the buttons( and ) for at least 5 seconds. Position is
now saved.
To restore the preset buttons back to their original factory settings: Hold FLAT and
ZERO-G simultaneously for at least 5 seconds. The original presets will be restored.
13
MASSAGE FEATURE
The HEAD + and - buttons adjust
the head massage intensities.
Levels 1-6.
The FOOT + and - buttons adjust
the foot massage intensities.
Levels 1-6.
10 MIN 20 MIN 30 MIN
M A S S A G E
TIMER/
ALL OFF
HEAD FOOT
HEAD FOOT

Remote Control Pairing
Remote Pairing
ADJUST
ONE TOUCH BUTTONS
STEP 1
The HEAD ▲▼arrows lift and
lower the head section of the base.
The FOOT ▲▼arrows lift and lower
the foot section of the base.
The original remote that comes in the box is already paired to the adjustable base. No
further action is required. In the event that the remote is not paired with the base, follow
the steps below.
Locate the Power Down Box and press the button TWICE. A light on the Power Down Box
will illuminate.
14
The MASSAGE button activates head and foot massage at levels 1, 3, 6 and
then turns head and foot massage off.
One touch ZERO G preset
position. Zero-G adjusts your legs
to a higher level than your heart
helping to relieve pressure off the
lower back and promote
circulation.
One touch TOUCH button activates
and turns off the safety lighting
feature.
One touch RELAX preset position. One touch TV preset position.
One touch FLAT preset position.
The TIMER/ALL OFF button Starts massage at level 3. Select a 10, 20 or 30
minute massage interval. Pressing a fourth time will turn off massage.
The light on the top of theremote indicates a 10, 20 or 30 minute timer setting.
Massage automaticallyshut off after 10 minutes if the massage timer isn’t set.
Power Down
Button

*ALTERNATE REMOTE PAIRING PROCESS!
Locate the Control Box (see base overview and quick reference guide for
corresponding base) and press the Reset/Pairing button twice. A pairing LED light
will illuminate gre en on the Control Box. On the back of the remote, press and hold
the PAIR button. The PAIR button will illuminate blue and start fashing. When the
PAIR button stops fashing, the green LED light on the Control Box w ill go out.
Release the PAIR button. The remote is now paired to the adjustable base.
15
STEP 2
Remove the back cover of the remote, press and hold down the PAIR button. The PAIR
button will illuminate blue and start flashing. When the PAIR button stops flashing, the
illuminated light on the Power Down Box will go out. Release the PAIR button. The remote
is now paired to the adjustable base.
STEP 3
Test all remote functions. If the remote buttons do not impact the adjustable base
movements, please repeat the process again.
PAIR
Button
Pairing
LED Light
Reset/Pairing
Button

Bluetooth App Guide
For iOS and Android devices.
Bluetooth® Setup
Once in Settings, please select V4.0 in “Bluetooth version” item.
16
Download and open the
“Ergomotion” remote app
from the App store.
Select SettingsOpen the menu by
hitting the
button in the top left
hand corner.

Bluetooth® V4.0 Pairing Instructions
Remote Style
BEFORE YOU BEGIN THE PAIRING PROCESS, please make sure the blue indicator light
on your Bluetooth® dongle is blinking, indicating that it is discoverable. If the blue
indicator light is not blinking, please unplug your base from its power source (a surge
protector is recommended) for 10 seconds and plug it back in.
STEP 1
Tap Select device.
STEP 1
To choose the Remote style that most reflects the options on your physical handset,
please cycle through options A-D.
STEP 3
Once you are successfully connected, you will be brought back to the remote page and
may now operate your adjustable base.
STEP 2
Select the device that begins with BASE-i4########.
17

Optional Settings
Selecting each option will prompt a pop up showing you an example of each remote
style option and will give you the option to accept that style or not.
STEP 2
Once you have chosen the correct remote style please select the back button “ ” to go
back to the remote screen.
You can opt to have Bluetooth auto-connect by turning Bluetooth auto connect to the
ON or OFF position.
You can choose to turn haptic feedback on or off by turning Vibrate to the ON or OFF
position.
18

Power Down Box
Store the Power Down Box in a convenient location for emergency
use. Two (2) 9 volt alkaline batteries are required to operate the
power down feature and are NOT included.
OVERVIEW
For emergency use only, in case of a power outage. In the event that the base is stuck in
an articulated position during a power outage, the Power Down Box will return the base
to a FLAT position. Batteries are not to be used for normal operation of the base.
STEP 1
Install the 9 volt alkaline batteries into the provided Power Down Box. Do not mix brand
name batteries.
STEP 2
Press the button on the Power Down Box to lower the base to FLAT position.
Control Box
Power Down
Box
19
