The radio remote control can control a single bow thruster or a bow and stern thruster combined.
The receiver can receive the signals of up to four transmitters.
Remote control kit RCS-20E consists of:
- Receiver: Part no. RCRS-2E
- Transmitter (incl. battery): Part no. RCT-20E
- Holding bracket for transmitter unit: Part no. RC-HOLDER
Additional transmitters can be ordered separately; Part no. RCT-20E
Model range................................................................................................................................ 2
Technical specications .............................................................................................................. 3
Important precautions................................................................................................................. 3
Receiver installation ................................................................................................................... 4
User precautions ........................................................................................................................ 6
How to use RC20E...................................................................................................................... 7
Transmitter LED operation and alarm indication ......................................................................... 8
Electric diagram........................................................................................................................... 9
Programming additional transmitters......................................................................................... 10
Replacing transmitter battery.................................................................................................... 11
Dimensions .............................................................................................................................. 12
Model range
Contents

Installation & User Manual, S-link Radio Remote rev 1_0_0 Page 3
•With the boat on land, only run the thruster for a fraction of a second, as without resistance it
will accelerate very fast to a damaging rpm.
•This manual is intended to support educated / experienced staff.
• When installed in boats approved or classied according to international or special national
rules, the installer is responsible for following the demands in accordance with these regula-
tions / classication rules. The instructions in this guide can not be guaranteed to comply with
all different regulations / classication rules.
•The transmitter and the receiver have the same factory preset code so no programming is nec-
essary. When additional transmitters are to be used, follow the instructions in the programming
section.
Technical specications
Important precautions
Transmitter Receiver
Power feed 1x3V battery (type: CR2032) 12V or 24V power source
Frequency (MHz) 868MHz 868MHz
Operation temp. -10°C / +55°C -15°C / +55°C
HxWxD (mm) 107x47x21 110x35x35
Weight (g) 60 170
Voltage 8-30V
Operating range 15m under normal operating conditions

Installation & User Manual, S-link Radio Remote rev 1_0_0 Page 4
Prior to installation, it is important that the responsible installer reads this guide to ensure
necessary acquaintance with this product.
WARNING!
• Install the receiver minimum 1 meter (3ft) from high power cables and data communication
cables or other sources of electrical interference, i.e. navigation instruments, radio communica-
tion devices, electric motors and generators.
• Install the receiver minimum 1 meter (3ft) above sea level.
• Install the receiver outside of shielded areas for radio signals, i.e. boxes made of metals or
other material with shielding properties.
• Install the receiver in a dry environment, where no condensation can enter the unit. (The
receiver assembly is not waterproof.)
• The receiver is powered by the S-link cable.
• Mount the receiver using the four holes (please see picture on page 5).
Note! Faulty installation will render all warranty given by Sleipner Motor AS void.
Receiver installation
Mount the receiver by using
the 4 holes.
Antenna
LINK/ACT
Remote Control Receiver S-link
S-link status
Pair

Installation & User Manual, S-link Radio Remote rev 1_0_0 Page 5
• Ensure that you know the location of the main battery switch that disonnects the thruster from
all power sources (batteries) so that the thruster/windlass can be turned off in case of a mal-
function.
• The maximum continues usage time of the electrical thruster is approx. 3 minutes. The electro
motor has a built in thermal cut-off switch that will shut it off when overheating and re-engage it
when it has cooled down some. This should be considered when planning your manouvering.
• Never use a thruster close to somebody in the water, as the thruster will draw objects close by
into the tunnel and contact with the rotating propellers will cause serious injuries.
• Never use a windlass close to somebody in the water, an unexpectedly drop of the anchor can
cuse serious injuries.
• If the thruster stops giving thrust while the electric motor is running, chances are that there is a
problem in the drive-system. You must then immediately stop trying to run it, and turn it off, as
running the electricmotor for more than a few seconds without resistance from the propeller,
can cause serious damage to the electricmotor.
• When leaving the boat always turn off the main power switch for the thruster/windlass and turn
off the power to the receiver.
• We advice to always keep the main engine(s) running while using a thruster/windlass. This
will keep the batteries in a good charge condition. This will also give better performance to the
thruster.
• It is the owner/captain/other responsible party full responsibility to assess the risk of any
unexpected incidents on the vessel. If the thruster stops giving thrust for some reason while
maneuvering you must have considered a plan on how to avoid damage to persons or other
objects.
User precautions

Installation & User Manual, S-link Radio Remote rev 1_0_0 Page 6
How to use a bow/stern thruster
1. Turn the main power switch for the bow/stern thruster on. Turn on the power to the receiver.
2. Turn on the transmitter by pushing the transmitter’s two “ON” buttons. The remote system is
now activated and then turns off automatically appr. 4 min. after the last usage.
3. Please take some time to exercise thruster usage in open water to avoid damages to your boat.
4. Turn the bow/stern in the desired directiony by pushing the red button for port movement or the
green button for starboard movement.
How to use a bow & stern thruster combined
The combination of a bow and stern thruster offers total manouverability to the boat and the
opportunity to move the bow and the stern separately of each other. The remote middle buttons
gives you the opportunity to operate both thrusters in the same direction with one keypress,
making sidewards movement easier.
Remote Control Deactivation
Push the transmitter’s “OFF” button for 2 seconds (the remote control deactivates automati-
cally after approx. 4 minutes after the last usage).
• If in doubt, try in open water rst!
Remote control “ON” Turn boat to Port Bow + Stern thruster
Remote control “OFF” Turn boat to Starboard
Auto-OFF
appr. 4 min.
Hold for
2 seconds
RC-20E

Installation & User Manual, S-link Radio Remote rev 1_0_0 Page 7
Transmitter LED operation and alarm indication
State LED status Alarm status
Transmitter ON The yellow LED’s
blink each second
No sound
Buttons activated The yellow LED’s
blink fast
No sound
Pairing mode All LED’s on No sound
Connection lost Red LED is blink-
ing once each
second
3 beeps from the
buzzer each second
Low battery Red LED blink One beep
Receiver LED indicator
S-link status LED Status
OFF No power to receiver
Continous green OK, S-Link Bus active
Blinking green No activity on S-link Bus
LINK/ACT LED Status
OFF Remote off
ON At least one transmitter connected.
Blinking Device in pairing mode.

Installation & User Manual, S-link Radio Remote rev 1_0_0 Page 8

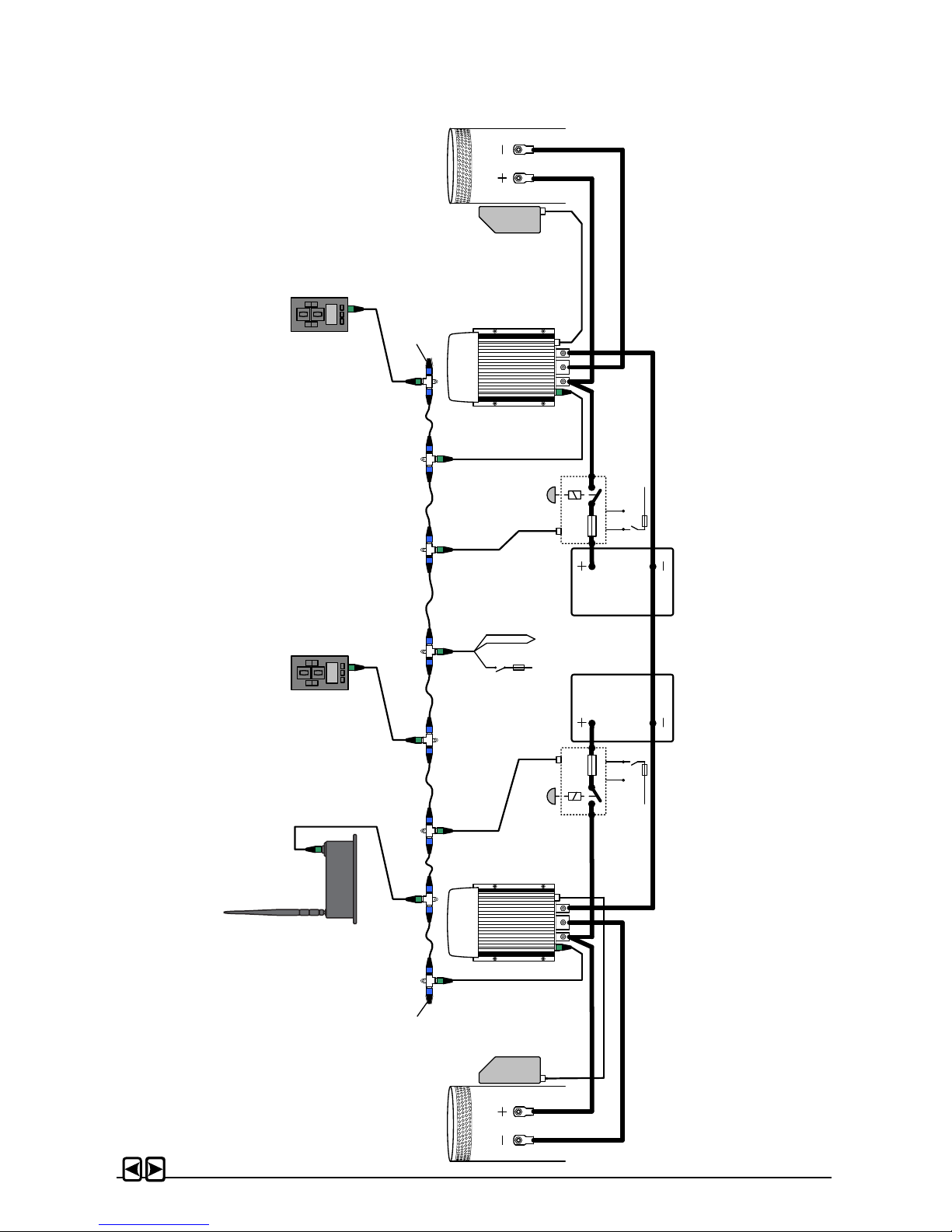

Electric diagram
+12/24V -
5A
S-link on/off
switch
red
yellow
black
12/24V12/24V
Stern thruster
battery
Bow thruster
battery
Bow thruster
(SEP model)
Stern thruster
(SEP model)
-
black
+
red
B+
-
black +
red
B+ Fixed multicable 5m
Fixed multicable 5m
5A
+12/24 5A +12/24
PPC
PPC
Proportional
Power Controller
Proportional
Power Controller
PJC212
Proportional
Joystick
Controlpanel
Station 1
Automatic Main Switch
8977 12 / 8977 24
or
Manual main switch
w/ANL fuse
Automatic Main Switch
8977 12 / 8977 24
or
Manual main switch
w/ANL fuse
S-link control system End terminator
End terminator
Proportional
Joystick
Controlpanel
Station 2
PJC212
Observe PPC battery
terminal polarity !
S-link supply
S-link remote receiver
RCRS-1E

Installation & User Manual, S-link Radio Remote rev 1_0_0 Page 9
Programming additional receivers
Pair Button
Antenna
LINK/ACT
Remote Control Receiver S-link
S-link status
Pair
The original transmitter and receiver have the same factory preset code so that no programming
is necessary. When additional transmitters are to be used, the additional transmitters has to be
paired with the receiver.
1. Be sure there is power on the receiver (S-link status LED is blinking green or continous
green ) and the transmitter that should be paired is off.
2. Push the Pair Button on the receiver to put the receiver in pairing mode (as shown above).
The LINK/ACT LED should start to blinking.
3. Within 10s after the receiver pair button is pushed, set the transmitter in pairing mode by
holding the off button and pressing both “ON” buttons at the same time, all the transmitter
LED’s turn on indicating that it is set in pairing mode. When a pairing signal is received from
the receiver the transmitter LED’s while turn off and the system is ready to be used. If no
pairing signal received within 10s the transmitter will leave the pairing mode.
4. Additional transmitters must be programmed according to step 2-3. You can pair up to 4
transmitters.
5. To clear all transmitters paired with the receiver hold the pair button on the receiver for ap-
proximately 10s until the LINK/ACT LED stops blinking. When the LED stops blinking release
the pair button. The receiver is then ready to pair with up to four transmitters.

Installation & User Manual, S-link Radio Remote rev 1_0_0 Page 10
WARNING:
Before working on the transmitter, deactivate the transmitter and the receiver (push “OFF” on the
transmitter(s)) and turn off the power to the receiver as well as the thruster mainswitch.

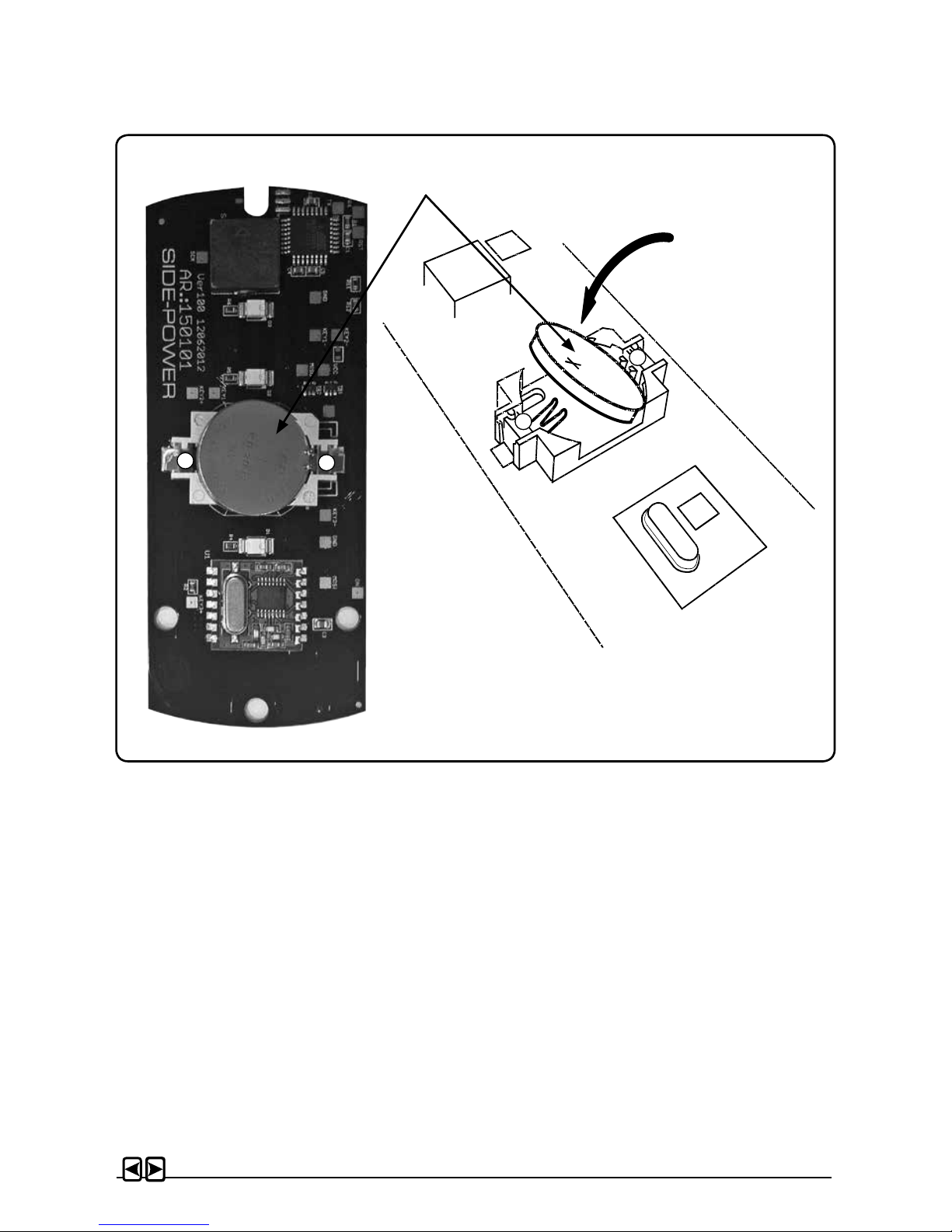

1. Open the transmitter case by removing the 3 torque screws.
