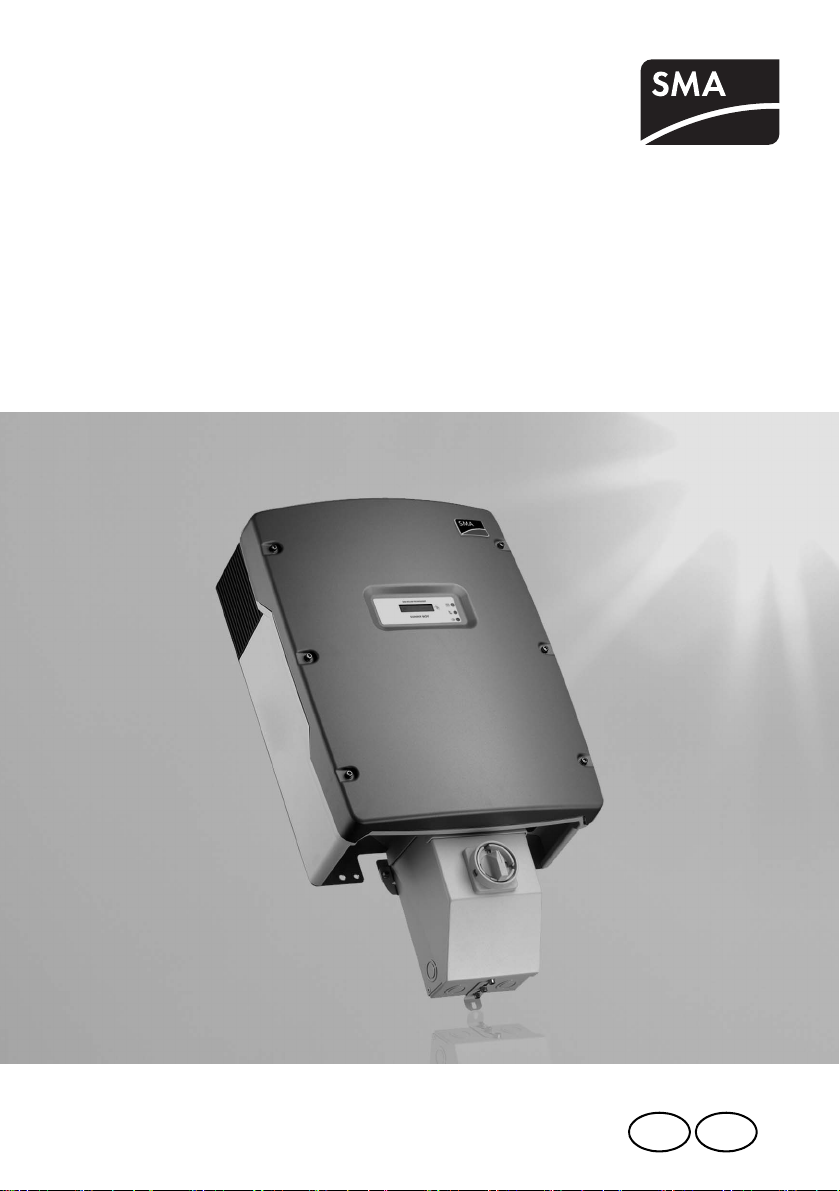

SMA SUNNY BOY 6000TL?US User manual

SB6-11TL-US-IA-en-13 | IMUS-SB8-10TLUS | Version 1.3
CA
US
PV Inverter
Sunny Boy 6000TL‑US/7000TL‑US/8000TL‑US/
9000TL‑US/10000TL‑US/11000TL‑US
Installation Manual

SMA America, LLC Legal Restrictions
Installation Manual SB6-11TL-US-IA-en-13 3
Copyright © 2012 SMA America,LLC. All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form
or by any means, electronic, mechanical, photographic, magnetic or otherwise, without the prior
written permission of SMA America,LLC.
Neither SMA America,LLC nor SMA Solar Technology Canada Inc. makes representations, express
or implied, with respect to this documentation or any of the equipment and/or software it may
describe, including (with no limitation) any implied warranties of utility, merchantability, or fitness for
any particular purpose. All such warranties are expressly disclaimed. Neither SMA America,LLC nor
its distributors or dealers nor SMA Solar Technology Canada Inc. nor its distributors or dealers shall
be liable for any indirect, incidental, or consequential damages under any circumstances.
(The exclusion of implied warranties may not apply in all cases under some statutes, and thus the
above exclusion may not apply.)
Specifications are subject to change without notice. Every attempt has been made to make this
document complete, accurate and up-to-date. Readers are cautioned, however, that
SMAAmerica,LLC and SMA Solar Technology Canada Inc. reserve the right to make changes
without notice and shall not be responsible for any damages, including indirect, incidental or
consequential damages, caused by reliance on the material presented, including, but not limited to,
omissions, typographical errors, arithmetical errors or listing errors in the content material.
All trademarks are recognized even if these are not marked separately. Missing designations do not
mean that a product or brand is not a registered trademark.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and
any use of such marks by SMA America,LLC and SMA Solar Technology Canada Inc. is under
license.
SMA America, LLC
3801 N. Havana Street
Denver, CO 80239 U.S.A.
SMA Solar Technology Canada Inc.
2425 Matheson Blvd. E
8th Floor
Mississauga, ON L4W 5K5
Canada

Important Safety Instructions SMA America, LLC
4 SB6-11TL-US-IA-en-13 Installation Manual
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
This manual contains important instructions for the following products:
•Sunny Boy
This manual must be followed during installation and maintenance.
The product is designed and tested according to international safety requirements, but as with all
electrical and electronic equipment, certain precautions must be observed when installing and/or
operating the product. To reduce the risk of personal injury and to ensure the safe installation and
operation of the product, you must carefully read and follow all instructions, cautions and warnings
in this manual.
Warnings in this document
A warning describes a hazard to equipment or personnel. It calls attention to a procedure or practice,
which, if not correctly performed or adhered to, could result in damage to or destruction of part or all
of the SMA equipment and/or other equipment connected to the SMA equipment or personal injury.
Symbol Description
DANGER indicates a hazardous situation which, if not avoided, will result in
death or serious injury.
WARNING indicates a hazardous situation which, if not avoided, could result
in death or serious injury.
CAUTION indicates a hazardous situation which, if not avoided, could result
in minor or moderate injury.
NOTICE is used to address practices not related to personal injury.

SMA America, LLC Important Safety Instructions
Installation Manual SB6-11TL-US-IA-en-13 5
Other Symbols in this document
In addition to the safety and hazard symbols described on the previous pages, the following symbol
is also used in this manual:
Warnings on this product
The following symbols are used as product markings with the following meanings.
Symbole Description
Indicates information that is important for a specific topic or objective, but is not
safety-relevant.
☐ Indicates a requirement for meeting a specific goal.
☑ Desired result
✖ A problem that could occur
Symbol Description
Warning regarding dangerous voltage
The product works with high voltages. All work on the product must only be
performed as described in the documentation of the product.
Beware of hot surface
The product can become hot during operation. Do not touch the product during
operation.
Observe the operating instructions
Read the documentation of the product before working on it. Follow all safety
precautions and instructions as described in the documentation.
Transformerless
UL1741 is the standard applied by Underwriters Laboratories to the product to
certify that it meets the requirements of the NationalElectricalCode®, the
Canadian Electrical Code® CSA C22.1 and IEEE‑929‑2000. IEEE 929-2000
provides recommendations regarding the proper equipment and functionality
necessary to ensure compatible operation when power generation is connected
to the utility grid.
Earth Ground

General Warnings SMA America, LLC
6 SB6-11TL-US-IA-en-13 Installation Manual
General Warnings
General Warnings
All electrical installations must be made in accordance with the local and NationalElectrical Code®
ANSI/NFPA 70 or the Canadian Electrical Code® CSAC22.1. This document does not and is not
intended to replace any local, state, provincial, federal or national laws, regulation or codes
applicable to the installation and use of the product, including without limitation applicable
electrical safety codes. All installations must conform with the laws, regulations, codes and
standards applicable in the jurisdiction of installation. SMA assumes no responsibility for the
compliance or noncompliance with such laws or codes in connection with the installation of the
product.
The product contains no user-serviceable parts.
For all repair and maintenance, always return the unit to an authorized SMA Service Center.
Before installing or using the product, read all of the instructions, cautions, and warnings in this
manual.
Before connecting the product to the electrical utility grid, contact the local utility company. This
connection must be made only by qualified personnel.
Wiring of the product must be made by qualified personnel only.

SMA America, LLC Table of Contents
Installation Manual SB6-11TL-US-IA-en-13 7
Table of Contents
1 Information on this Manual. . . . . . . . . . . . . . . . . . . . . . . . 11
1.1 Validity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.2 Target Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.3 Storing the Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.4 Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.5 Nomenclature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.1 Intended Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.2 Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3 Unpacking and Inspection. . . . . . . . . . . . . . . . . . . . . . . . . 16
3.1 Scope of Delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.2 Component Parts of the Sunny Boy . . . . . . . . . . . . . . . . . . . . . 17
3.3 Position of the Stickers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.4 Identifying the Sunny Boy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4 Mounting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.1 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.2 Requirements for the Mounting Location. . . . . . . . . . . . . . . . . . 20
4.2.1 Possibilities for Mounting the Wall Mounting Bracket. . . . . . . . . . . . . . . . . . 23
4.2.2 Mounting the Wall Mounting Bracket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4.3 Mounting the DC Disconnect . . . . . . . . . . . . . . . . . . . . . . . . . . 25
4.3.1 Mounting the Sunny Boy on a Wall Mounting Bracket . . . . . . . . . . . . . . . . 27
5 Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
5.1 Circuit Diagram with SMA DC Disconnect and Combiner Box 30
5.2 Inserting the Cables in the DC Disconnect . . . . . . . . . . . . . . . . 31
5.3 Connection Area of the Sunny Boy. . . . . . . . . . . . . . . . . . . . . . 32
5.4 AC Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Table of Contents SMA America, LLC
8 SB6-11TL-US-IA-en-13 Installation Manual
5.4.1 Connecting the AC Cables in the DC Disconnect . . . . . . . . . . . . . . . . . . . . . 35
5.4.2 Connecting the AC Cables in the Sunny Boy . . . . . . . . . . . . . . . . . . . . . . . . 37
5.5 DC Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
5.5.1 DC Cable Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
5.5.2 Connecting the DC Cables in the DC Disconnect . . . . . . . . . . . . . . . . . . . . . 40
5.5.3 Connecting the DC cable in the Sunny Boy . . . . . . . . . . . . . . . . . . . . . . . . . 41
5.6 Communication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
6 Commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
6.1 Switching On the Sunny Boy . . . . . . . . . . . . . . . . . . . . . . . . . . 43
6.2 The Sunny Boy Does Not Resume Operation. . . . . . . . . . . . . . 45
7 Displays and Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . 47
7.1 Setting the Display Language . . . . . . . . . . . . . . . . . . . . . . . . . . 48
7.2 Display Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
7.3 LED Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
8 Opening and Closing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
8.1 Opening the Sunny Boy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
8.2 Closing the Sunny Boy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
8.3 Opening the DC Disconnect. . . . . . . . . . . . . . . . . . . . . . . . . . . 58
8.4 Closing the DC Disconnect . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
9 Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
9.1 Cleaning the Fans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
9.2 Cleaning the Handle Covers . . . . . . . . . . . . . . . . . . . . . . . . . . 62
9.3 Checking the DC Disconnect . . . . . . . . . . . . . . . . . . . . . . . . . . 62
9.4 Checking the Fans. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
9.5 Testing and Replacing the Varistors . . . . . . . . . . . . . . . . . . . . . 65
9.5.1 DC Varistors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
9.5.2 AC Varistors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

SMA America, LLC Table of Contents
Installation Manual SB6-11TL-US-IA-en-13 9
10 Decommissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
10.1 Dismantling the Sunny Boy and the DC Disconnect . . . . . . . . . 68
10.2 Packaging the Sunny Boy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
10.3 Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
10.4 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
11 Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
11.1 Sunny Boy 6000TL-US . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
11.2 Sunny Boy 7000TL-US . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
11.3 Sunny Boy 8000TL-US . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
11.4 Sunny Boy 9000TL-US . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
11.5 Sunny Boy 10000TL-US . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
11.6 Sunny Boy 11000TL-US . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
11.7 DC Disconnect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
11.8 Tripping Limits and Tripping Times . . . . . . . . . . . . . . . . . . . . . . 86
11.9 Torque Values and Cable Sizes . . . . . . . . . . . . . . . . . . . . . . . . 87
12 Spare Parts and Accessories. . . . . . . . . . . . . . . . . . . . . . . 88
13 Compliance Information . . . . . . . . . . . . . . . . . . . . . . . . . . 89
14 Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

 SMA America, LLC
10 SB6-11TL-US-IA-en-13 Installation Manual

SMA America, LLC 1 Information on this Manual
Installation Manual SB6-11TL-US-IA-en-13 11
1 Information on this Manual
1.1 Validity
This manual describes the mounting, installation, commissioning and maintenance of the following
SMA inverters:
• Sunny Boy 6000TL-US
• Sunny Boy 7000TL-US
• Sunny Boy 8000TL-US
• Sunny Boy 9000TL-US
• Sunny Boy 10000TL-US
• Sunny Boy 11000TL-US
This manual does not contain any information on the devices that are connected to the Sunny Boy.
Information concerning the connected equipment is available from the manufacturer of the equipment.
1.2 Target Audience
This manual is for electrically qualified persons. Electrically qualified persons have received training
and have demonstrated skills and knowledge in the construction and operation of this device.
Electrically qualified persons are trained to deal with the dangers and hazards involved in installing
electrical installations.
1.3 Storing the Documentation
Store all manuals for the Sunny Boy in such way that they may be accessed at any time.
1.4 Additional Information
Additional information on specific topics can be found in the download area at
www.SMA‑America.com.
1.5 Nomenclature
In this document, SMA America Production, LLC and SMA Solar Technology Canada Inc. will be
referred to as SMA.

2 Safety SMA America, LLC
12 SB6-11TL-US-IA-en-13 Installation Manual
2Safety
2.1 Intended Use
The Sunny Boy is a PV inverter which converts the DC current of the PV array to AC current and feeds
it into the power distribution grid. The Sunny Boy is suitable for use with fuel cells, small wind turbine
systems, and other DC current sources. You can use the AC electricity generated as follows:
Interconnection Code Compliance
The Sunny Boy has been checked by the certification body and certified according to the guidelines
in UL 1741 Static Inverters and Charge Controllers for use in Photovoltaic Power Systems, IEEE 929-
2000 Recommended Practice for Utility Interface of Photovoltaic Systems, and IEEE 1547 Standard
for Interconnecting Distributed Resources with Electric Power Systems.
UL 1741 is the standard used for the Sunny Boy by the certification body in order to
certify that it complies with the regulations of the National Electrical Code® and
IEEE 929-2000. IEEE 929-2000 states recommendations regarding the appropriate
equipment and functionality that is required to guarantee fault-free operation when the
power generation is connected to the power distribution grid.
The Sunny Boy is also certified in accordance with Canadian Electrical Code® CSA
C22.2 N0. 107.1-01 (General Use Power Supplies).
Household grid: Energy flows into the household grid. The loads connected, for example
household devices or lighting, consume the energy. The energy left over is
fed into the power distribution grid. When the Sunny Boy is not generating
any energy, e.g. at night, the loads that are connected are supplied by the
power distribution grid.
The Sunny Boy does not have its own energy meter. When energy is being
fed into the power distribution grid, the energy meter runs in reverse.
Power distribution grid: Energy is fed directly into the power distribution grid. The Sunny Boy is
connected to a separate energy meter. Depending on the electric utility
company, you will be remunerated accordingly for the energy generated.
Stand-alone grid: The Sunny Boy is connected to a stand-alone grid. A stand-alone grid is a
grid that is not connected to a power distribution grid. The Sunny Boy needs
a grid-forming generator, for example, a Sunny Island, in order to function.
The energy generated is consumed directly on site, surplus energy can be
stored in batteries.
Prior to designing and installing your PV plant, contact the local grid operator or the
responsible authority.

SMA America, LLC 2 Safety
Installation Manual SB6-11TL-US-IA-en-13 13
Principle of a PV Plant with a Sunny Boy
The Sunny Boy may only be operated with PV arrays (modules and cabling) that have protective
insulation. Do not connect any energy sources other than PV modules to the Sunny Boy.
PV plant design
When designing the PV plant, ensure that the values comply with the permitted operating range of all
component parts at all times. Use the free of charge "Sunny Design" at www.SMA-America.com to
design your PV plant.
Position Description
APV modules
B Sunny Boy Combiner Box
C Sunny Boy with SMA DC Disconnect
D AC load circuit breaker
E Loads
F Energy meter
G Power distribution grid
Leading Leakage Currents
PV modules with large capacities relative to ground, such as thin-film PV modules, may only be
used if their coupling capacity does not exceed 2 µF.
During feed-in to the grid, a leakage current flows from the cells to ground. The amount of
current depends on how the modules are installed and on the weather. This leakage current
may not exceed 50 mA since otherwise the inverter will automatically disconnect from the grid.
The Sunny Boy 6000TL-US, 7000TL-US, 8000TL-US, 9000TL-US, 10000TL-US and
11000TL-US is a transformerless inverter.
It has no galvanic isolation.
The PV modules must be rated for at least the maximum PV plant voltage.

2 Safety SMA America, LLC
14 SB6-11TL-US-IA-en-13 Installation Manual
Grounding the PV modules
This Sunny Boy is a transformerless inverter. That is why it has no galvanic isolation. Do not ground
the DC electric circuits of the PV modules connected to the Sunny Boy. Only ground the mounting
frame of the PV modules.
If you connect grounded modules to the Sunny Boy, the error message F-Riso is displayed.
The DC electric circuit is connected to the AC grid during operation.
Fuses
The Sunny Boy and the DC-Disconnect do not contain string fuses.
According to the National Electrical Code® of 2008, Section 690.35, string fuses are necessary in
order to protect the PV plant against reverse currents.
Arc-Fault Circuit Interrupter AFCI
Only the following Sunny Boy types are equipped with an automatic arc-fault circuit interrupter
(AFCI):
• SB 6000TLUS-12
• SB 7000TLUS-12
• SB 8000TLUS-12
• SB 9000TLUS-12
• SB 10000TLUS-12
• SB 11000TLUS-12
The 2011 edition of the National Electrical Code®, Section 690.11, stipulates that newly installed
PV plants attached to a building must be fitted with a means of detecting and disconnection of serial
electric arcs (AFCI) on the PV side.
An electric arc with a power of 300 W or greater must be interrupted by the AFCI in the time specified
by UL 1699B. A tripped AFCI may only be reset manually.
The arc-fault circuit interrupter (AFCI) can be deactivated in the "Installer" mode via the
communication device if this function is not desired.

SMA America, LLC 2 Safety
Installation Manual SB6-11TL-US-IA-en-13 15
2.2 Safety Precautions
High voltages in the inverter
Electric shock when touching live components.
• Prior to performing any work on the inverter, disconnect the inverter from any voltage sources.
• Only connect the inverters as described in this manual.
• Only electrically qualified persons may work on the inverter.
The inverter can become hot during operation
• Burn injuries may be possible when touching the enclosure.
• During operation, touch the enclosure lid only.
The Sunny Boy may down over due to inappropriate transport
Contusions or bone fractures due to the heavy weight of the Sunny Boy.
• Prior to transporting the Sunny Boy, take its weight of 77 lb. (35 kg) into consideration.
• Use suitable lifting techniques for the transport.

3 Unpacking and Inspection SMA America, LLC
16 SB6-11TL-US-IA-en-13 Installation Manual
3 Unpacking and Inspection
Check the delivery for completeness and any visible external damage. Contact your SMA specialty
retailer or SMA if the delivery is incomplete or you find any damage.
Contact information is provided in the "Contact" Section, page 14"Contact",page90.
If it is necessary to send the Sunny Boy back, use the original packaging.
3.1 Scope of Delivery
* only SB 6000TLUS-12/SB 7000TLUS-12/SB 8000TLUS-12/SB 9000TLUS-12/SB 10000TLUS-12/SB 11000TLUS-12
Position Quantity Description
A 1 Sunny Boy
B 1 Wall-mounting bracket
C 1 Spare screw and spare conical spring washers for closing the Sunny Boy lid
2 Screws and washers for fastening the Sunny Boy to the wall-mounting bracket
D 2 Spare jumpers for fan test
E 2 Handle covers (left and right)
F3 DC varistors*
G 1 Insertion tool for DC varistors*
H1 DC Disconnect
I 1 Screw and washer for closing the DC Disconnect lid
2 Screws and washers for fastening the DC Disconnect to the wall-mounting
bracket
If not ordered differently, the SMA Sunny Boy Combiner Box is included in the scope
of delivery as a standard feature.

SMA America, LLC 3 Unpacking and Inspection
Installation Manual SB6-11TL-US-IA-en-13 17
3.2 Component Parts of the Sunny Boy
3.3 Position of the Stickers
Position Description
A Ergonomic handle
BDisplay
C Fan
Position Description
AType label
B General warning sticker
C Warning sticker for the DC connection

3 Unpacking and Inspection SMA America, LLC
18 SB6-11TL-US-IA-en-13 Installation Manual
3.4 Identifying the Sunny Boy
You can identify the Sunny Boy by the type label. It is on the right side of the enclosure.
The type label shows:
• The serial number (Serial No.).
• The product type (Type/Model).
• The device-specific characteristics.

SMA America, LLC 4 Mounting
Installation Manual SB6-11TL-US-IA-en-13 19
4Mounting
4.1 Safety
Danger to life due to fire or explosions
With electrical devices, there is always a certain danger that a fire may break out.
• Do not install the inverter in the vicinity of combustible materials.
• Do not install the inverter in potentially explosive atmospheres.
The Sunny Boy may fall down due to inappropriate mounting
Contusions or bone fractures due to the heavy weight of the Sunny Boy.
• When mounting the Sunny Boy, take its weight of 77 lb. (35 kg) into consideration.
• Use appropriate mounting material for the mounting location of the inverter:
– For mounting on plasterboard, do not use hollow wall anchors or toggle bolts.
– Wooden supporting posts must be present behind the installation points on plasterboard.
• Use suitable lifting technique when mounting.
The inverter can become hot during operation
Burn injuries may be possible when touching the enclosure.
• Install the inverter in such a way that it cannot be touched accidentally.

4 Mounting SMA America, LLC
20 SB6-11TL-US-IA-en-13 Installation Manual
4.2 Requirements for the Mounting Location
Requirements
☐ The installation method and mounting location must be suitable for the weight and dimensions
of the Sunny Boy (see Section 11"Technical Data",page70).
☐ Note the dimensions of the DC Disconnect (4.3"Mounting the DC Disconnect",page25).
☐ Mount the inverter on a stable surface.
☐ The mounting location must be accessible at all times.
☐ Mount vertically or tilted backward at max. 15°.
☐ The connection area must point downward.
☐ Do not install the inverter tilting forward.
☐ Do not install the inverter horizontally.
☐ Install the inverter at eye level in order to be able to read out the operating state at any time.
☐ The ambient temperature must be in a permissable range ("Technical Data" on page 70).
☐ Do not expose the inverter to direct sunlight.
☐ In the living area, do not mount inverters on a
plasterboard wall or similar wall.
The Sunny Boy may emit noises when in use which
can be regarded as a nuisance.
