1 Information on this Document
SMA Solar Technology AG
System Manual SBSUL9540-SH-en-10 3
1 Information on this Document
1.1 Validity
This document is valid for:
• SMA-ESS-SBS3.8-RESU10H
• SMA-ESS-SBS5.0-RESU10H
• SMA-ESS-SBS6.0-RESU10H
• SMA-ESS-SBS3.8-BYDH5.0
• SMA-ESS-SBS5.0-BYDH5.0
• SMA-ESS-SBS6.0-BYDH5.0
• SMA-ESS-SBS3.8-BYDH7.5
• SMA-ESS-SBS5.0-BYDH7.5
• SMA-ESS-SBS6.0-BYDH7.5
• SMA-ESS-SBS3.8-BYDH10.0
• SMA-ESS-SBS5.0-BYDH10.0
• SMA-ESS-SBS6.0-BYDH10.0
1.2 Target Group
The tasks described in this document must only be performed by qualified persons. Qualified
persons must have the following skills:
• Knowledge of how an inverter works and is operated
• Knowledge of how batteries work and are operated
• Training in how to deal with the dangers and risks associated with installing, repairing and
using electrical devices, batteries and installations
• Training in the installation and commissioning of electrical devices and installations
• Knowledge of all applicable laws, standards and directives
• Knowledge of and compliance with this document and all safety information
• Knowledge of and compliance with the documents of the battery manufacturer with all safety
information
1.3 Content and Structure of this Document
This document summarizes the specific information for the system and describes the procedure for
installation and commissioning.
Circuitry overviews provide the basic principle of how a system must be set up and connected.
The latest version of this document and the comprehensive manual for installation, commissioning,
configuration and decommissioning of each SMA product can be found in PDF format or as
eManual at www.SMA-Solar.com.
The latest version of the battery documentation can be found on the website of the battery
manufacturer.

1 Information on this Document SMA Solar Technology AG
System ManualSBSUL9540-SH-en-104
The latest version of the documentation of the WattNode Modbus energy meter can be found at
www.ctlsys.com.
This document supplements the documents that are enclosed with each product and does not
replace any locally applicable codes or standards. Read and observe all documents supplied with
the product.
Illustrations in this document are reduced to the essential information and may deviate from the real
product.
1.4 Levels of Warning Messages
The following levels of warning messages may occur when handling the product.
DANGER
Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING
Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION
Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
NOTICE
Indicates a situation which, if not avoided, can result in property damage.
1.5 Symbols in the Document
Symbol Explanation
Information that is important for a specific topic or goal, but is not safety-rele-
vant
☐
Indicates a requirement for meeting a specific goal
☑
Desired result
✖
A problem that might occur
Example

1 Information on this Document
SMA Solar Technology AG
System Manual SBSUL9540-SH-en-10 5
1.6 Typographies in the Document
Typography Use Example
bold • Messages
• Terminals
• Elements on a user interface
• Elements to be selected
• Elements to be entered
• Connect the insulated
conductors to the terminals
X703:1 to X703:6.
• Enter 10 in the field
Minutes.
>• Connects several elements to be
selected
• Select Settings > Date.
[Button]
[Key]
• Button or key to be selected or
pressed
• Select [Enter].
# • Placeholder for variable
components (e.g., parameter
names)
• Parameter WCtlHz.Hz#
1.7 Additional Information
For more information, please go to www.SMA-Solar.com.
Title and information content Type of information Hyperlink and QR-Code
SUNNY BOY STORAGE 3.8-US / 5.0-
US / 6.0-US
Installation manual
SBSxx-US-10-IA-xx-12.pdf

1 Information on this Document SMA Solar Technology AG
System ManualSBSUL9540-SH-en-106
Title and information content Type of information Hyperlink and QR-Code
SUNNY BOY STORAGE 3.8-US / 5.0-
US / 6.0-US
User Manual
https://manuals.sma.de/SB-
Sxx-US-10/en-US/in-
dex.html
"Approved batteries and battery commu-
nication connection"
Overview of approved batteries and cir-
cuitry overview of the battery communi-
cation connection
Technical Information SBS-Batterys-TI-de-11.pdf
Please refer to the website of the battery manufacturer or to the website of the official partner of the
battery manufacturer for further information on the batteries:

1 Information on this Document
SMA Solar Technology AG
System Manual SBSUL9540-SH-en-10 7
LG Chem RESU10H www.lgchem.com
BYD BYD B-Box H http://www.eft-systems.de/us

2 Safety SMA Solar Technology AG
System ManualSBSUL9540-SH-en-108
2 Safety
2.1 Intended Use
The SMAEnergySystem is a storage system and optimizes self-consumption of PV energy and
lowers the energy obtained from the utility grid by the following measures:
• Intermediate storage of PV energy in the battery
• Data logging at the grid-connection point with the energy meter (Modbus RTU)
• Visualization of the consumption and generation data from your system in SunnyPortal
Impairment of system communication
The use of external, unapproved components can affect the system communication.
• Only use approved components in the system.
Grid feed-in and purchased energy (from the utility grid) are only recorded with the energy meter
(Modbus RTU). The energy meter (Modbus RTU) does not replace the energy meter of the electric
utility company.
Use SMA products only in accordance with the information provided in the enclosed
documentation and with the locally applicable laws, regulations, standards and directives. Any
other application may cause personal injury or property damage.
2.2 IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
This section contains safety information that must be observed at all times when working.
DANGER
Danger of fatal electric shock due to non-compliance with the safety
instructions in the documents that are enclosed with each product.
This document supplements the documents that are enclosed with each product and does not
replace any locally applicable codes or standards.
• Read and observe all documents enclosed with the products.
If the AC connection of the inverter is disconnected and the battery is
switched off, there is no risk of electric arcs during installation or servicing.
If the AC circuit breakers of the inverters are switched off and secured against reconnection
and the battery or the load-break switch of the battery is turned off and secured against
reconnection, there is no danger of an electric arc during installation or servicing. Be aware
that, when using batteries from BYD, the individual battery modules do not have their own
disconnects. With BYD batteries, all modules are disconnected by means of the BCU's main
switch. The AC circuit breaker of the inverter must be installed in the distribution board.

3 System Components
SMA Solar Technology AG
System Manual SBSUL9540-SH-en-10 9
3 System Components
Check the system scope of delivery for completeness and any apparent external damage. Contact
your distributor if the delivery is incomplete or damaged.

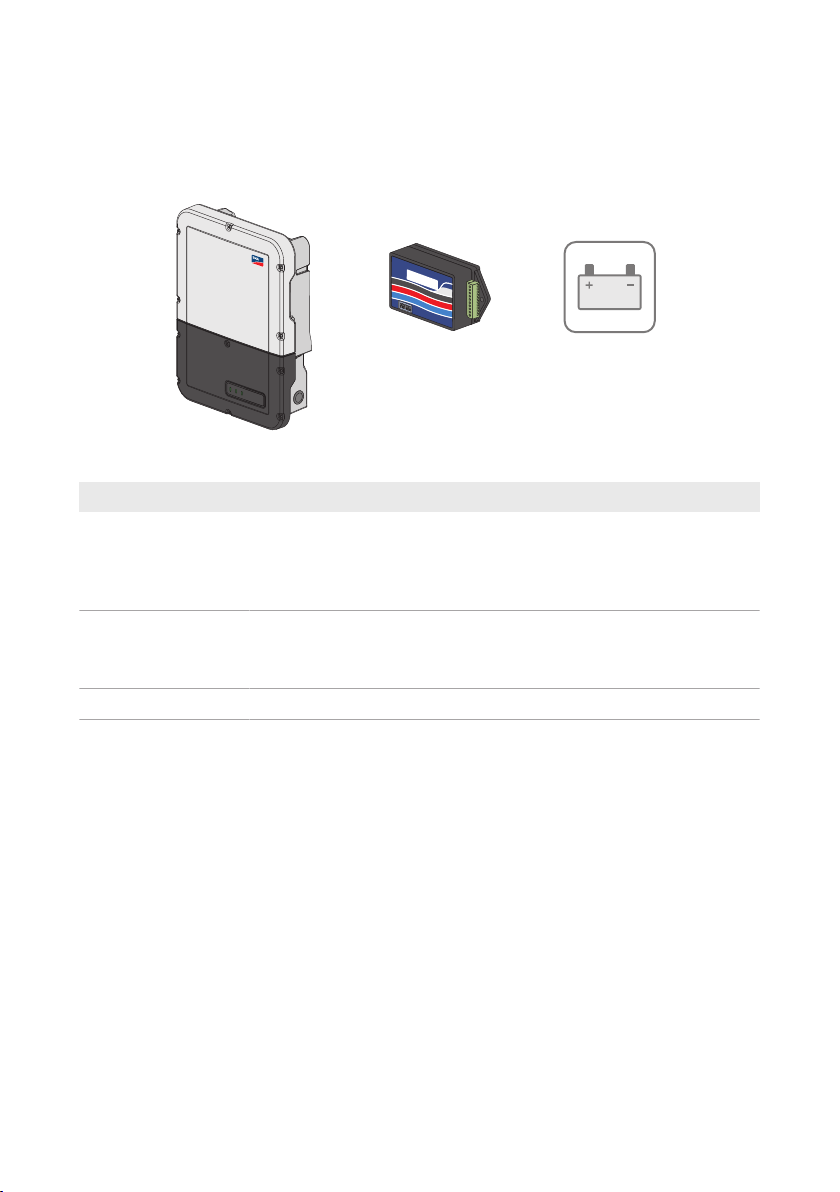

B C
A
Figure 1: Main system components
Position Designation
A SunnyBoyStorage
The SunnyBoyStorage converts the direct current supplied by the battery
into grid-compliant alternating current and controls the charging and dis-
charging of the battery.
B Energy meter (Modbus RTU)
The energy meter determines electric measured values at the grid-connec-
tion point and transmits the measured data to the SunnyBoyStorage.
C Battery

4 System Overview SMA Solar Technology AG
System ManualSBSUL9540-SH-en-1010
4 System Overview
SMA ENERGY SYSTEM
SUNNY PORTAL
CUSTOMER SYSTEM
SMA STORAGE SYSTEM
UTILITY
GRID
Alternating current
SMA PV SYSTEM
Solar energy
Communication
LOADS
ENERGY METER
(Modbus RTU)
Figure 2: Design of the system

4 System Overview
SMA Solar Technology AG
System Manual SBSUL9540-SH-en-10 11

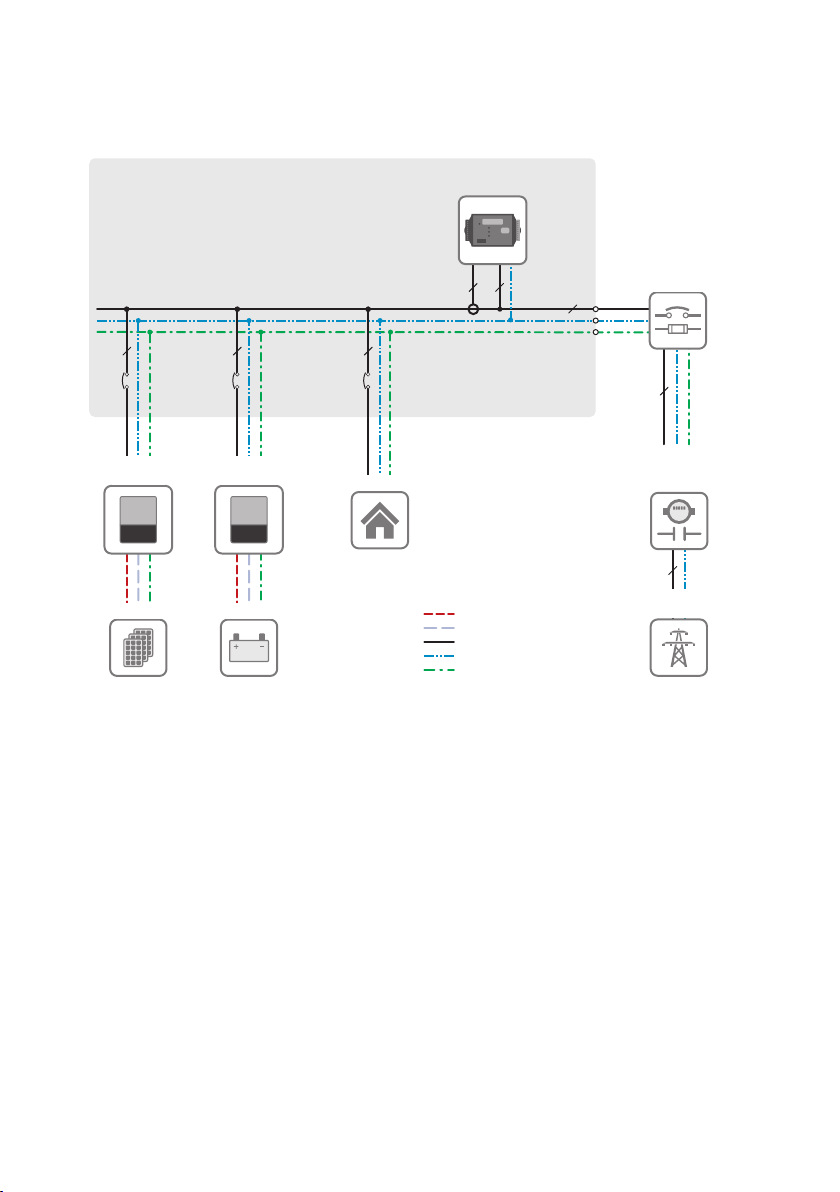

4.1 Circuitry Overview Overall System
SUNNY BOY
STORAGE
max.
200 A
SCHUTZEINRICHTUNG
2x2 2x1
2 22
2
2
2
ENERGY METER
(Modbus RTU)
Grounding conductor
line conductor L1 and L2
Neutral conductor
cabel DC+ 600 V
cabel DC– 600 V
LOADS
PV MODULES
DISTRIBUTION BOARD
GRID-CONNECTION POINT
with energy meter of the
electric utility company
UTILITY
GRID
BATTERY
PV
INVERTER
Figure 3: Circuitry overview of the overall system

4 System Overview SMA Solar Technology AG
System ManualSBSUL9540-SH-en-1012

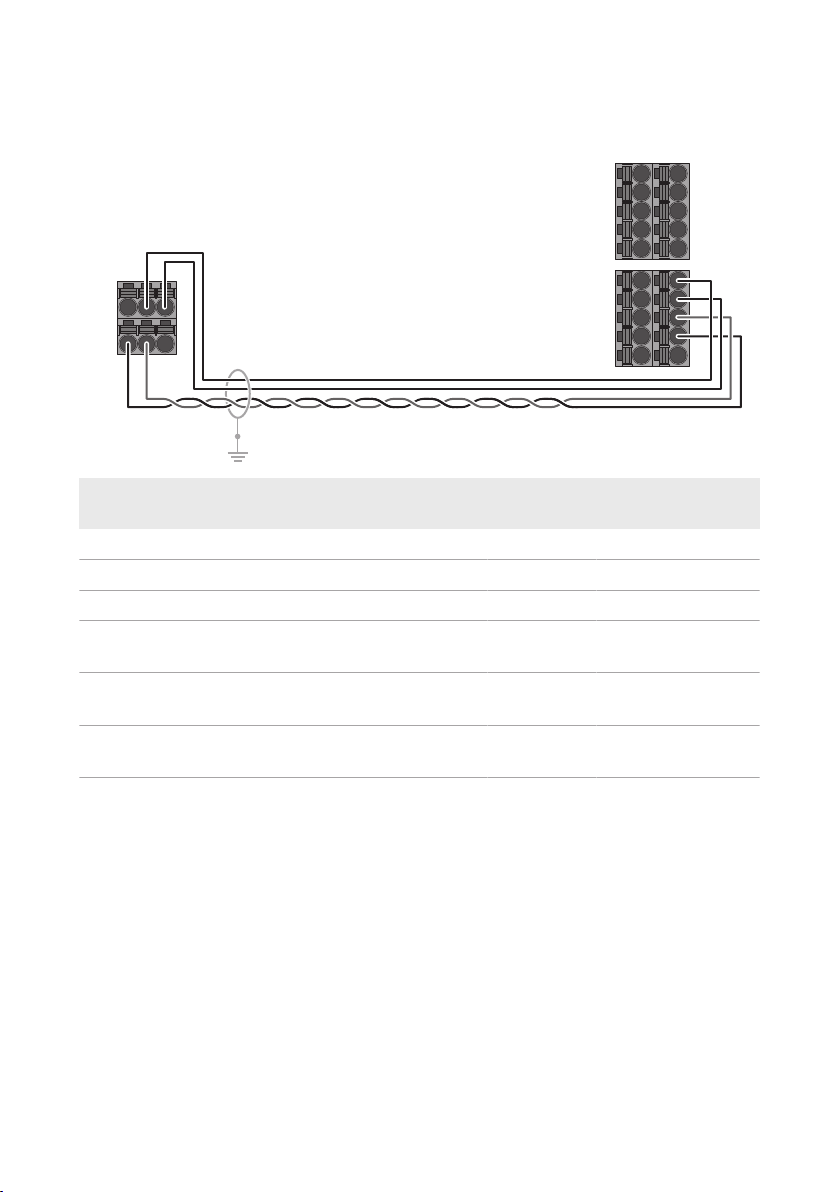

4.2 Circuitry Overview Battery Communication Connection
SUNNYBOYSTORAGE with LG Chem RESUxxH
1
SUNNY BOY
STORAGE
6
5
4
3
2
AB C
D E F
LG Chem RESUxxH
Clamping
position
Assignment Clamping
position
Assignment
A Not assigned ‒ ‒
B Enable 3 BAT EN
C GND 2 GND - AUX
D CAN L (twisted pair conductors, at
least CAT5e)
5 CAN - L
E CAN L (twisted pair conductors, at
least CAT5e)
4 CAN - H
F +12V supply for automatic trans-
fer switching device
‒ ‒

4 System Overview
SMA Solar Technology AG
System Manual SBSUL9540-SH-en-10 13
SUNNYBOYSTORAGE with BYD BATTERY-BOX H
1
3
5
7
9
SUNNY BOY
STORAGE
AB C
D E F
2
4
6
8
10
BYD Battery-Box H
1
3
5
7
9
2
4
6
8
10
Clamping
position
Assignment Clamping
position
Assignment
A Not assigned ‒ ‒
B Enable 2 EN 11V +
C GND 4 EN 11V -
D CAN L (twisted pair conductors, at
least CAT5e)
8 CANL
E CAN L (twisted pair conductors, at
least CAT5e)
6 CANH
F +12V supply for automatic trans-
fer switching device
‒ ‒

4 System Overview SMA Solar Technology AG
System ManualSBSUL9540-SH-en-1014
4.3 Communication Overview
SUNNY PORTAL
SUNNY BOY SUNNY BOY
STORAGE
Modbus
SWITCH
INTERNET
ROUTER
Ethernet LAN
Public Internet
CAN
BATTERY
ENERGY METER
(Modbus RTU)
Figure 4: Design of system communication

5 Installation
SMA Solar Technology AG
System Manual SBSUL9540-SH-en-10 15
5 Installation
5.1 Requirements for the Installation
Requirements for the Mounting Location:
WARNING
Danger to life due to fire or explosion
Despite careful construction, electrical devices can cause fires.
• Do not mount the product in areas containing highly flammable materials or gases.
• Do not mount the product in potentially explosive atmospheres.
Requirements in the documents enclosed with each product must be
observed.
This document supplements the documents that are enclosed with each product and does not
replace any locally applicable codes or standards.
• Read and observe the requirements in the documents enclosed with the products in
addition to the requirements stated below.
☐ The system may be installed outdoors. The system components must not be exposed to direct
solar irradiation and must be protected from rain water. When becoming too hot, the system
reduces its power output to avoid overheating.
☐ The system must not be installed in earthquake-prone areas.
☐ The system must not be installed in coastal areas where salt spray is possible.
☐ A solid support surface must be available (e.g. concrete, masonry or wood). When mounted
on support surfaces that are not solid, the product can emit audible vibrations during
operation which could be perceived as annoying.
☐ The mounting location must be suitable for the weight and dimensions of the system
components (see technical data in the enclosed manuals of the individual components)
☐ The mounting location should be freely and safely accessible at all times without the need for
any auxiliary equipment (such as scaffolding or lifting platforms). Non-fulfillment of these
criteria may restrict servicing.
☐ To ensure optimal operation of the system, the ambient temperature must be between -10°C
and +45°C (-14°F to 113°F).

5 Installation SMA Solar Technology AG
System ManualSBSUL9540-SH-en-1016
Additionally required material (not included in the scope of delivery):
☐ Distribution board with required electric equipment
☐ Two electrical current strength transducers (mechanical and electrical characteristics of the
selected electrical current strength transducers must be in accordance with the installation on
site)
☐ One router for the connection to the Internet. SMA Solar Technology AG recommends using
an Internet flat rate.
☐ One switch
☐ Network cable
☐ Data cable of battery
Switch requirements:
☐ At least 5 Ethernet connections must be available
☐ The switch must be permeable for broad and multicasts
☐ Do not use an IGMP Snooping Switch as per RFC 4541
Router requirements:
☐ DHCP should be supported (if possible with MAC address binding). If DHCP is not supported,
an IP from the address range of the router must be assigned manually to each device.
☐ TCP ports 123, 443 and 9524 must be authorized for outgoing connections.
☐ Fast Ethernet with 100 Mbit/s data transfer rate
☐ IGMP protocol version2 or version 3 (IGMPv2 or IGMPv3) must be supported.
☐ The IPv4 protocol must be used at least in the internal network. The IPv6 protocol may be
active in parallel.
Network cable requirements:
The cable length and quality affect the quality of the signal. Observe the following cable
requirements.
☐ Cable type: 100BaseTx
☐ Cable category: minimum CAT5e
☐ Plug type: RJ45 of Cat5, Cat5e or higher
☐ Shielding: SF/UTP, S/UTP, SF/FTP or S/FTP
☐ Number of insulated conductor pairs and insulated conductor cross-section: at least 2 x 2 x
0.22 mm²
☐ Maximum cable length between two nodes when using patch cables: 50m (164ft)
☐ Maximum cable length between two nodes when using installation cables: 100m (328ft)
☐ UV-resistant for outdoor use.

5 Installation
SMA Solar Technology AG
System Manual SBSUL9540-SH-en-10 17
Requirements for data cable of battery:
☐ Twisted pair conductors
☐ Cable category: minimum CAT5e
☐ Shielding: yes
☐ Conductor cross-section: 0.25mm² to 0.34mm² (24AWG to 16AWG)
☐ Recommended number of conductor pairs: 4
☐ External diameter: 6mm to 8.5mm (0.24in to 0.33in)
☐ Maximum cable length between a battery and the inverter: 10m (33ft)
☐ If the cables are routed together with the DC conductors in a conduit, each cable has to be
insulated for 600V.
☐ UV-resistant for outdoor use.
☐ Comply with the requirements of the battery manufacturer.
Requirements for energy meter communication cable:
☐ Cross-section: at least 2 x 2 x 0.22 mm² (2 x 2 x 24 AWG)
☐ Shielding: yes
☐ Twisted pair conductors
☐ UV-resistant for outdoor use.
☐ Maximum cable length: 10m (33ft)
Requirements:
☐ The distribution board is installed.
☐ The router is installed.
☐ The switch is installed.
5.2 Installation Procedure
This section describes the procedure for the installation and gives an overview of the steps, which
must always be performed in the prescribed sequence.
Procedure See
1. Install the energy meter. Section5.3, page17
2. Install the battery. Section5.4, page18
3. Install the battery inverter. Section5.5, page18
5.3 Installing the Energy Meter
1. Install the energy meter at a suitable location protected from the weather in front of the grid-
connection point as specified by the manufacturer.
2. Connect the electrical current strength transducer as specified by the manufacturer.
3. Connect the voltage supply as specified by the manufacturer.

5 Installation SMA Solar Technology AG
System ManualSBSUL9540-SH-en-1018
5.4 Installing the Battery
Only use approved batteries.
The product must only be operated in connection with an intrinsically safe lithium-ion battery
approved by SMA Solar Technology AG. An updated list of batteries approved by SMA
Solar Technology AG is available at www.SMA-Solar.com.
1. Install the battery as specified by the manufacturer.
2. Connect the DC conductors, the grounding conductor and the communication cable as
specified by the manufacturer.
3. Connect the battery to the switch. In doing so, comply with the specifications of the
manufacturer.
5.5 Installing the Battery Inverter
1. Mount the SunnyBoyStorage and make the electrical connections.
2. Connect the SunnyBoyStorage with a network cable to the switch.

6 Commissioning
SMA Solar Technology AG
System Manual SBSUL9540-SH-en-10 19
6 Commissioning
6.1 Commissioning Procedure
This section describes the commissioning procedure and gives an overview of the steps you must
always perform in the prescribed order.
Procedure See
1. Commission the battery. Section6.2, page19
2. Commission and configure the battery inverter. Section6.3, page19
3. Set the time-of-use (optional). Section6.3.4, page21
4. Set the Peak Load Shaving function (optional). Section6.3.5, page22
5. Register system in Sunny Portal. Section6.4, page23
6.2 Commissioning the Battery
• Switch on the battery.
6.3 Commissioning and Configuring the Battery Inverter
6.3.1 Commissioning the Battery Inverter
• Switch on the AC circuit breaker.
☑ All three LEDs light up. The start-up phase begins. All three LEDs go out again after
approximately 90seconds.
☑ Depending on the available power, the green LED pulses or is continuously illuminated. The
inverter is feeding in.
6.3.2 Establishing a Connection to the User Interface of the
Battery Inverter
SSID, IP address and necessary passwords
• SSID in WLAN: SMA[serial number] (e.g. SMA0123456789)
• Standard WLAN password (usable until completion of the configuration by means of the
installation assistant or prior to the end of the first tenfeed-in hours): SMA12345
• Device-specific WLAN password (usable after initial configuration and completion of the
first tenfeed-in hours): see WPA2-PSK on the type label of the inverter or on the back of
the manual included in the delivery
• Standard IP address for a direct connection via WLAN outside of a local network:
192.168.12.3

6 Commissioning SMA Solar Technology AG
System ManualSBSUL9540-SH-en-1020
Requirements:
☐ An end device (e.g. computer, tablet PC or smartphone) must be available.
☐ The respective latest version of one of the following web browsers must be installed: Chrome,
Edge, Firefox, Internet Explorer or Safari.
☐ JavaScript must be enabled in the web browser of the end device.
☐ The SMA Grid Guard code of the Installer must be available for the changing of grid-relevant
settings after completion of the first ten feed-in hours or installation assistant (see "Application
for SMAGridGuard Code" at www.SMA-Solar.com).
Procedure:
1. If your end device has a WPS function:
• Activate the WPS function on the inverter. To do this, tap twice on the enclosure lid of the
Connection Unit.
☑ The blue LED flashes quickly for two minutes.
• Activate the WPS on your end device.
☑ The connection with your end device will be established automatically. It can take
up to 20seconds for this connection to be established.
2. If your end device does not have a WPS function:
• Search for WLAN networks with your end device.
• Select the SSID of the inverter SMA[serial number] in the list with the found WLAN
networks.
• Enter the inverter WLAN password. Within the first tenfeed-in hours and prior to
completing the configuration by means of the installation assistant, you must use the
standard WLAN password SMA12345. After the first tenfeed-in hours or after
completing the configuration by means of the installation assistant, you must use the
device-specific WLAN password (WPA2-PSK) of the inverter. You find the WLAN
password (WPA2-PSK) on the type label.
3. Enter the IP address 192.168.12.3 or, if your device supports mDNS services, SMA[serial
number].local or https://SMA[serial number] in the address bar of the web browser and
press the enter key.
4. Web browser signals a security vulnerability
After the IP address has been confirmed by pressing the enter key, a message might
appear indicating that the connection to the user interface of the inverter is not secure.
SMA Solar Technology AG guarantees that calling up the user interface is secure.
• Continue loading the user interface.
☑ The login page of the user interface opens.
6.3.3 Configuring the Battery Inverter Using the Installation
Assistant
1. Log into the user interface as an Installer. Assign a new password. Assign the password that
you also assigned for the PV inverter. For the registration in SunnyPortal, it is essential that the
PV inverter and the battery inverter have the same password.
