SMARC SC105 User manual

SC105 Core Gait
Service Manual

Content
CH1 Serial Number Location 1
CH2 Safety Instruction 2
CH3 Preventive Maintenance 4
CH4 Specification and Assembly Guide 8
CH5 Console and Program Description 10
CH6 Engineer Mode 23
CH7 Troubleshooting 28
CH8 Parts Replacement 36

CH1 Serial Number Location
1

Thank you for choosing SMARC products!
It is the owner’s responsibility to ensure that all users are fully informed of all warnings and precautions.
Please read this manual thoroughly before operating SMARC products. If you have any question
after reading this manual, please contact customer tech support at the local authorized dealers or
visit www.twpmhc.com for more details.
SAFETY
GENERAL SAFETY
1. Be cautious when getting on and off equipment seats to avoid falling.
2. Always set up all safety devices and pull the armrests down before exercising. For users with poor
control of trunk and limbs, make sure the seat is in locked position.
3. To prevent injuries, follow the instructions below:
•Never place hands close to the seat base when rotating the seat.
•Never place hands between the narrow spaces of the equipment or reach into the range of
motion limiters (eg. SC101, SC103, SC105, SC107 and SC108).
•Keep clear of the range of motion handles when the equipment is occupied.
•Be careful when operating the equipment to avoid tripping over equipment frames
(Stretching Tube of SC103 ).
•Do not sit on or lean against the armrests.
•If unusual situation has been observed (noises, no console display, loosen parts, and etc),
stop operation and contact local distributors immediately.
•Do not place the equipment outdoors or in area with high humidity.
4. Products are for continuous operation, and are not intended to be used in oxygen rich environment
nor to be sterilized. Do not perform servicing and maintenance while ME equipment is in
use.
ELECTRONIC SAFETY
1. This equipment must be grounded. If the equipment should malfunction or breakdown, grounding
provides a path to reduce the risk of electrical shock.
2. Please unplug the power cord wire to shut down the power.
3. Improper connection of the grounding conductor can result in risks of electric shock. Do NOT modify
the plug provided with the equipment. If it does not fit the outlet, have a proper outlet installed by a
qualified electrician.
4. Pulling on the cord can cause damage to the power cord. You should always pull on the actual plug.
5. With energy conservation in mind, the console will automatically go dark when SMARC product has
not been used for 30 minutes. Main Page will reappear when the equipment is used again.
6. WARNING: To avoid the risk of electric shock, the equipment must only be connected to supply
mains with protective earth.
7. SMARC products forms a ME SYSTEM when connected to a power supply, and can be operated at a
voltage of 115V or 230 V.
8. Do not position the ME Equipment that makes it difficult to disconnect the device (eg. to unplug).
9. The USB socket on SMARC console should ONLY be connected with USB flash drive provided by
PMHC and authorized dealer. It should ONLY be used with the purpose of exercise data download
and prescription upload. SMARC products are not suitable for connecting with any other electrical
equipment. Connecting with other devices might cause potential electromagnetic interference.
CH2 Safety Instruction
2

PRECAUTION
FOR GENERAL CONSUMERS
1. If users experience any kind of discomfort, including chest pain, nausea, dizziness, shortness of
breath, severe joint pain or muscle pain, stop training immediately and consult physician or physical
therapist before continuing.
2. Warm up prior to exercise. Start exercise with light, repetitive, dynamic, site-specific movement.
3. Avoid over-stretching to prevent strain of soft tissues and joint instability.
FOR PATIENTS WITH MEDICAL NEEDS
Patients may operate SMARC products under supervision of physicians or physical therapists.
Users with following medical and therapeutic needs (especially over 40 years old) should consult
physician or physical therapist before operating.
1. Inflammation: Patients with inflammatory neuromuscular disease such as Guillain-Barre disease,
Polymyositis, and Dermatomyositis should use low Resistance training.
2. Severe cardiopulmonary disease: Patients with acute symptoms such as but not restricted to the
following should not attempt Resistance training.
•Coronary artery disease (unstable angina, myocardial infarction)
•Carditis
•Cardiomyopathy
•Aortic stenosis and Aortic dissection
•Decompensated congestive heart failure
•Severe pulmonary embolism
•Unstable hypertension
•Ventricular arrhythmia
3. When a hematoma or other indication of tissue trauma is observed.
4. Musculoskeletal Disorder: Patients who recently had a fracture, and bony union is not completed. A
bony block limits joint motion.
5. Neurological Disorder Patient: Only patients with good static sitting balance or Brunnstrom stage
above III are recommended using SMARC products.
6. Do not set high Resistance for children, elderlies, and patients with osteoporosis.
7. Be aware of medications a patient is using that can alter acute and chronic responses to exercise.
8. The equipment might emit low intensity electromagnetic pulse. Patients with concern should
consult physician or physical therapist before operating.
3

1. General Maintenance
1) SMARC products require only the most basic general maintenance, performed on an as-
needed basis every 6~8 months.
2) Minimum qualifications of SERVICE PERSONNEL: Only technicians trained by PMHC and
associated distributors are supposed to do maintenance. Please contact PMHC factory or
local authorized dealer for maintenance.
The MANUFACTURER will make available on request circuit diagrams, component part lists, descriptions,
calibration instructions, or other information that will assist SERVICE PERSONNEL to repair those parts
of ME EQUIPMENT that are designated by the MANUFACTURER as repairable by SERVICE PERSONNEL.
2. Recommended Cleaning (optional)
1) With the system turned OFF, wipe down all surfaces with a damp cloth. Neutral detergent
and water can be used to remove stains and scuff marks. Inspect all locking and adjustment
mechanisms for signs of damage.
2) NOTE: DO NOT use cleaning solutions containing ammonia or alcohol to clean. Neutral
detergent and water should be sufficient. Allow the system to dry thoroughly before
resuming operation.
CH3 Preventive Maintenance
4

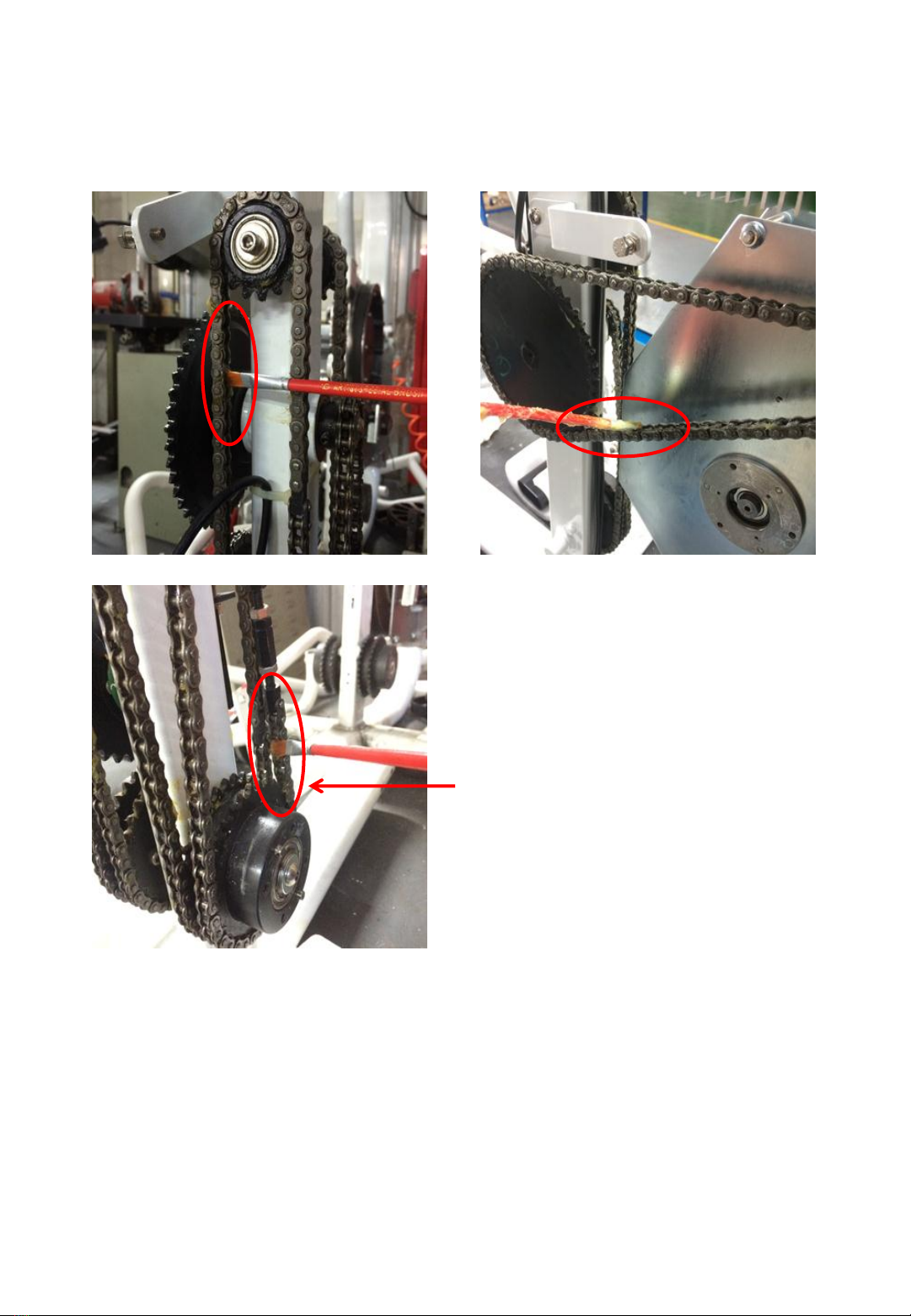

1) Applying grease
Chain Maintenance and Tightness Adjustment
Chain maintenance must be held at least once
ever 6 months, depending on the frequency of
use.
Please apply grease to chain links and sprocket
area as indicated on the left.
5

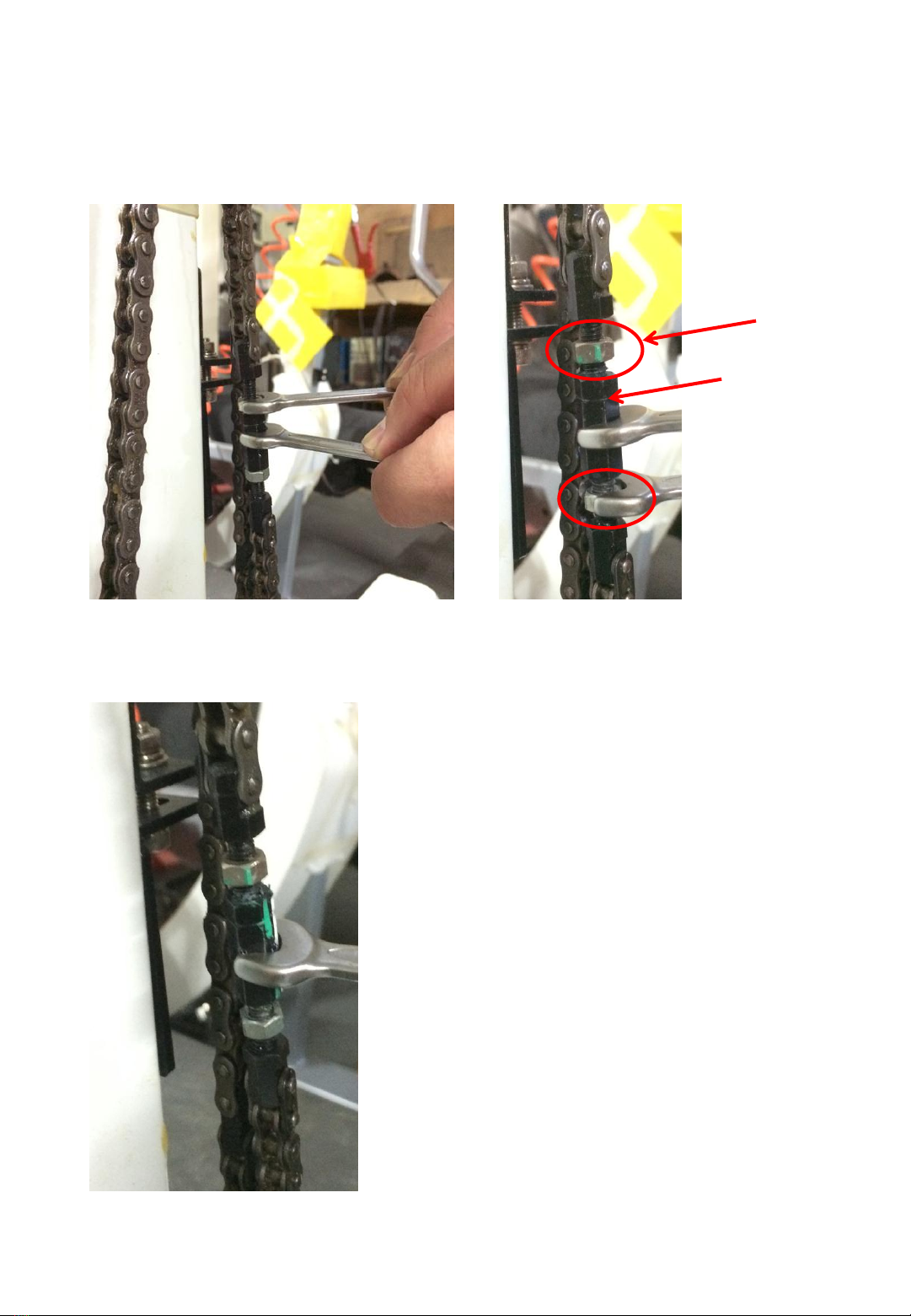

2) Tightness (tension) adjustment
Step1：Loosen the nuts above and beneath the “Turn Buckle”
Step2：Adjust the tightness (tension) of chain via turning the “Turn Buckle”
Chain Maintenance and Tightness Adjustment
Nut
Turn Buckle
6

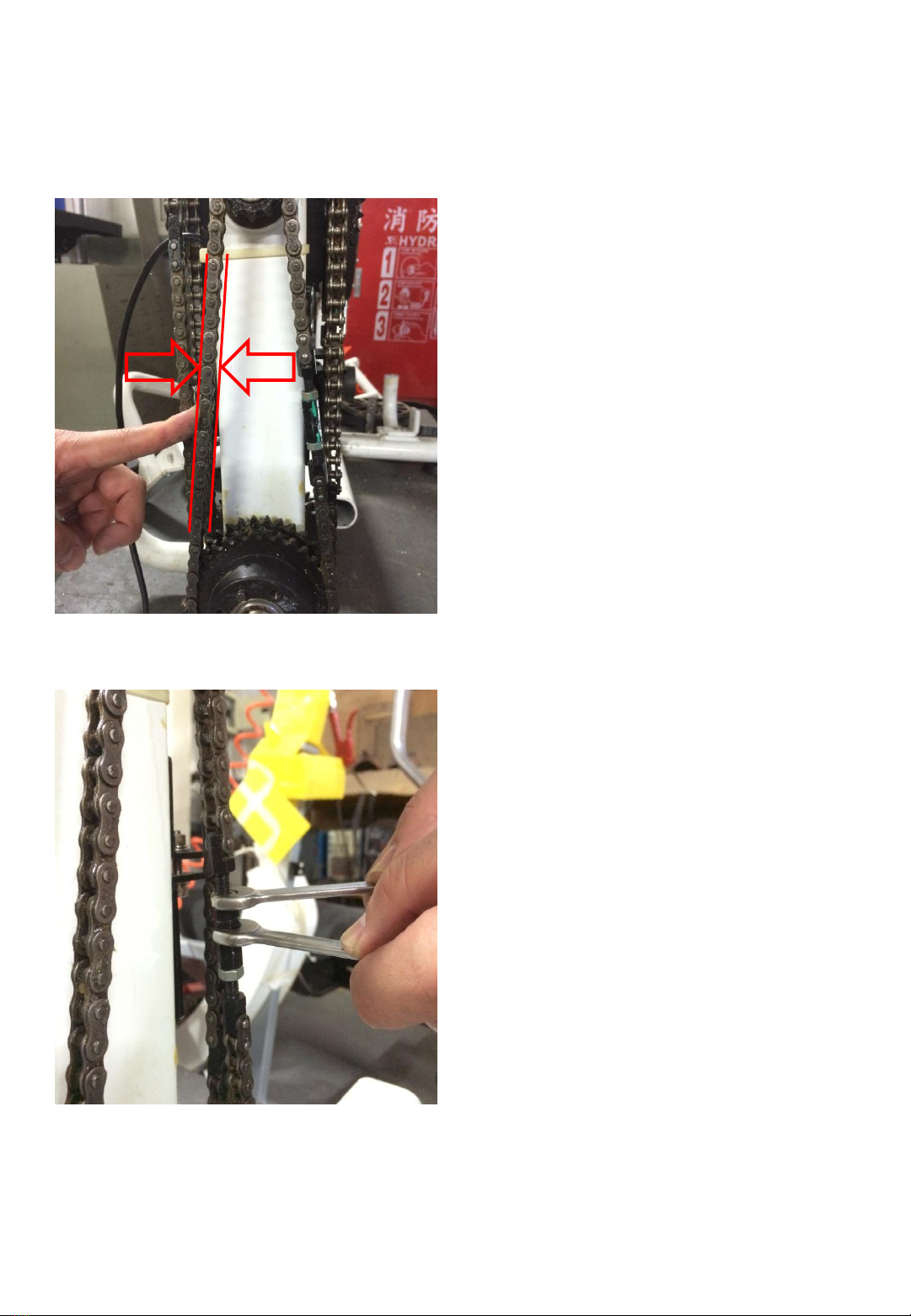

Step3：Check the tightness (tension) by pressing the chain. The standard tightness (tension) is
5~10 mm flexibility when pressed.
Step4：Tighten the nuts
Chain Maintenance and Tightness Adjustment
7

CH4 Specification and Assembly Guide
8

9

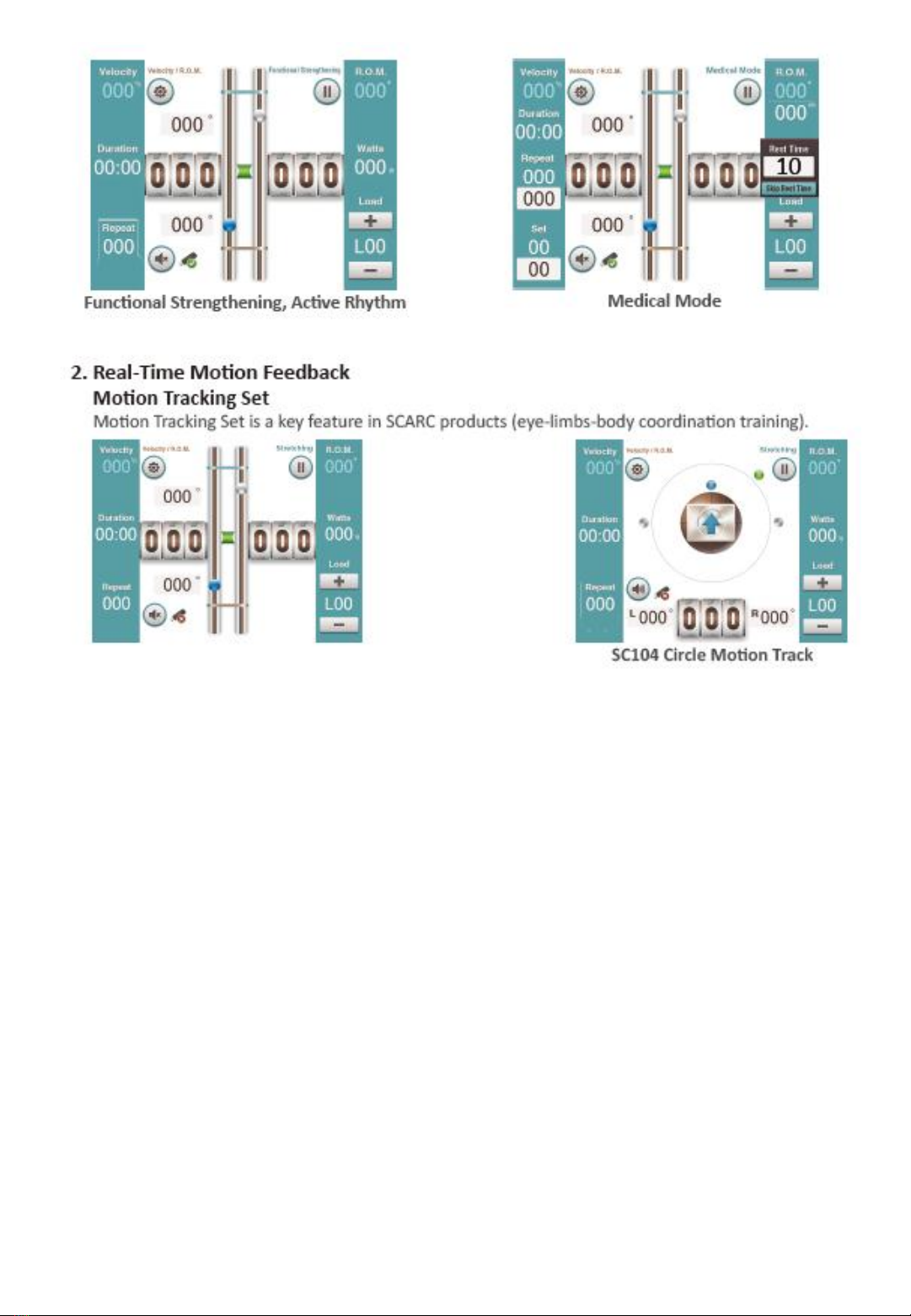

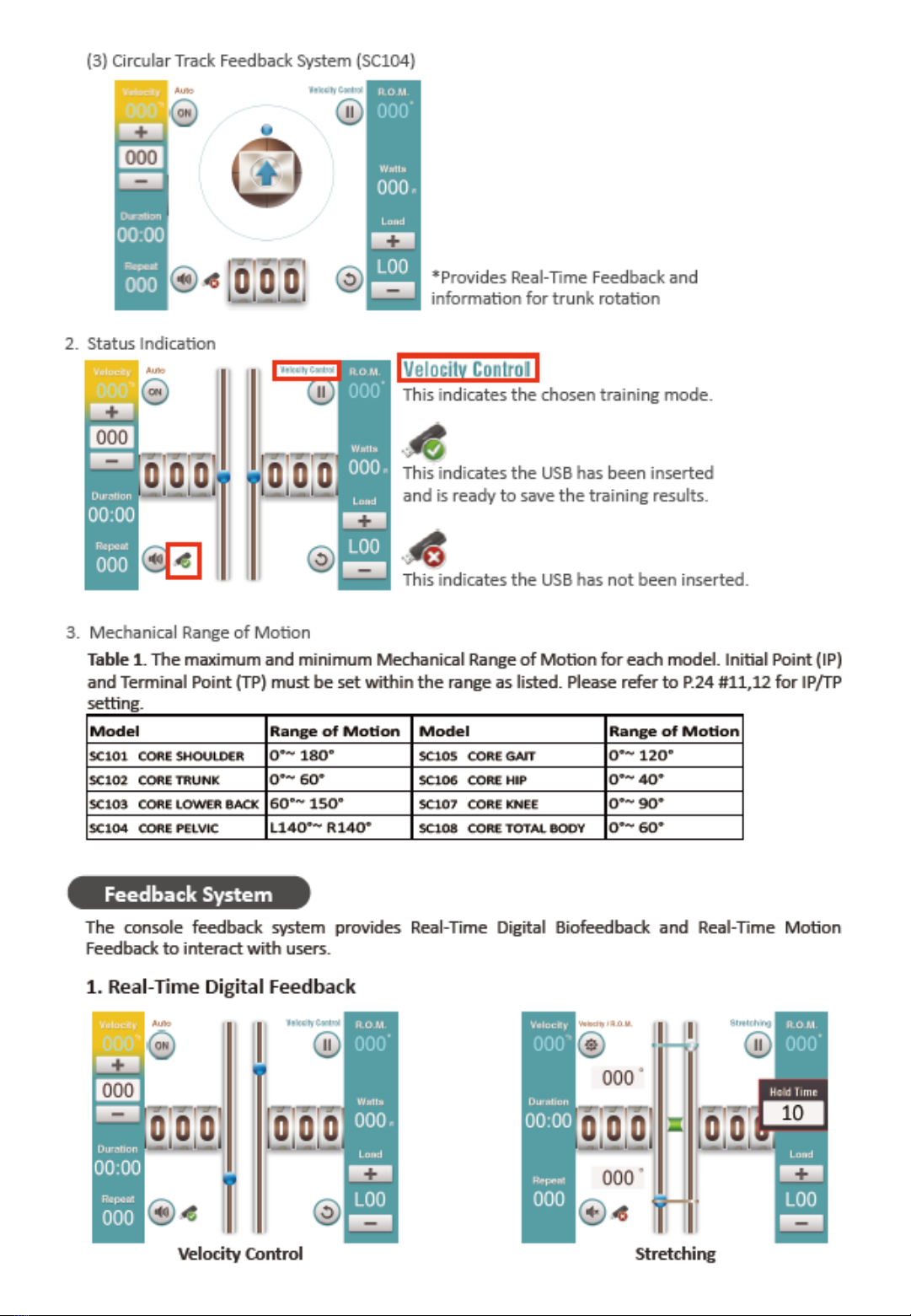

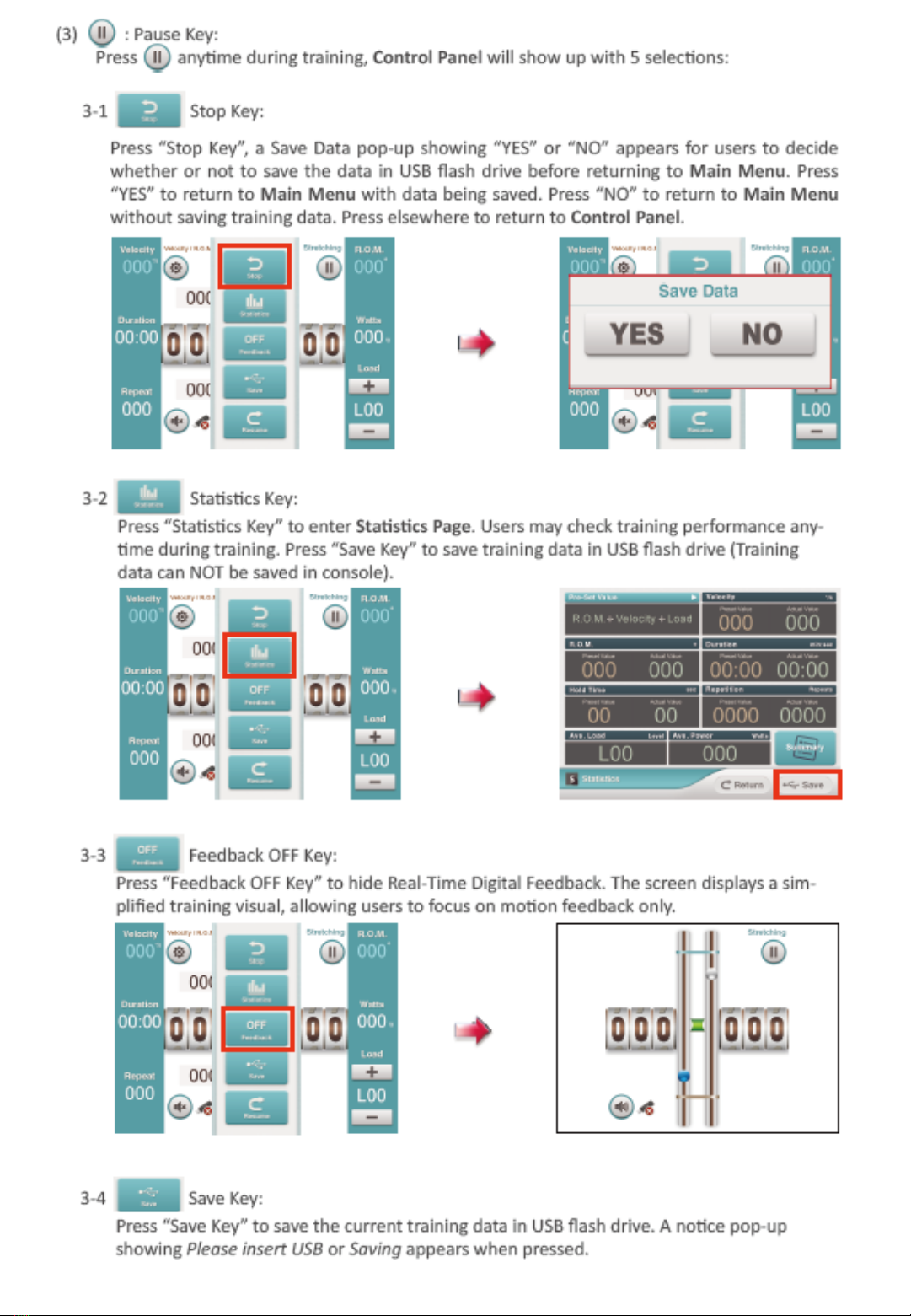

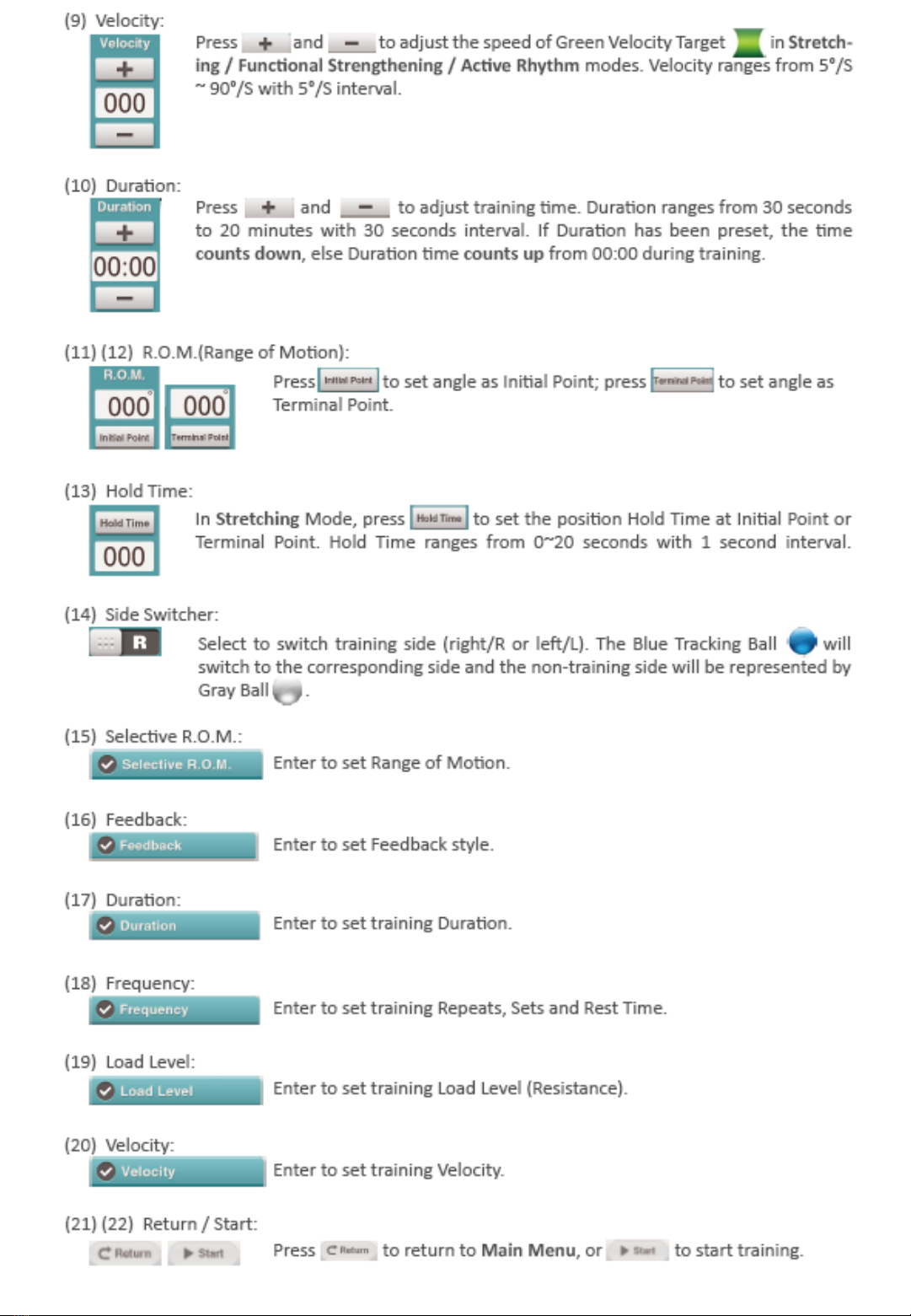

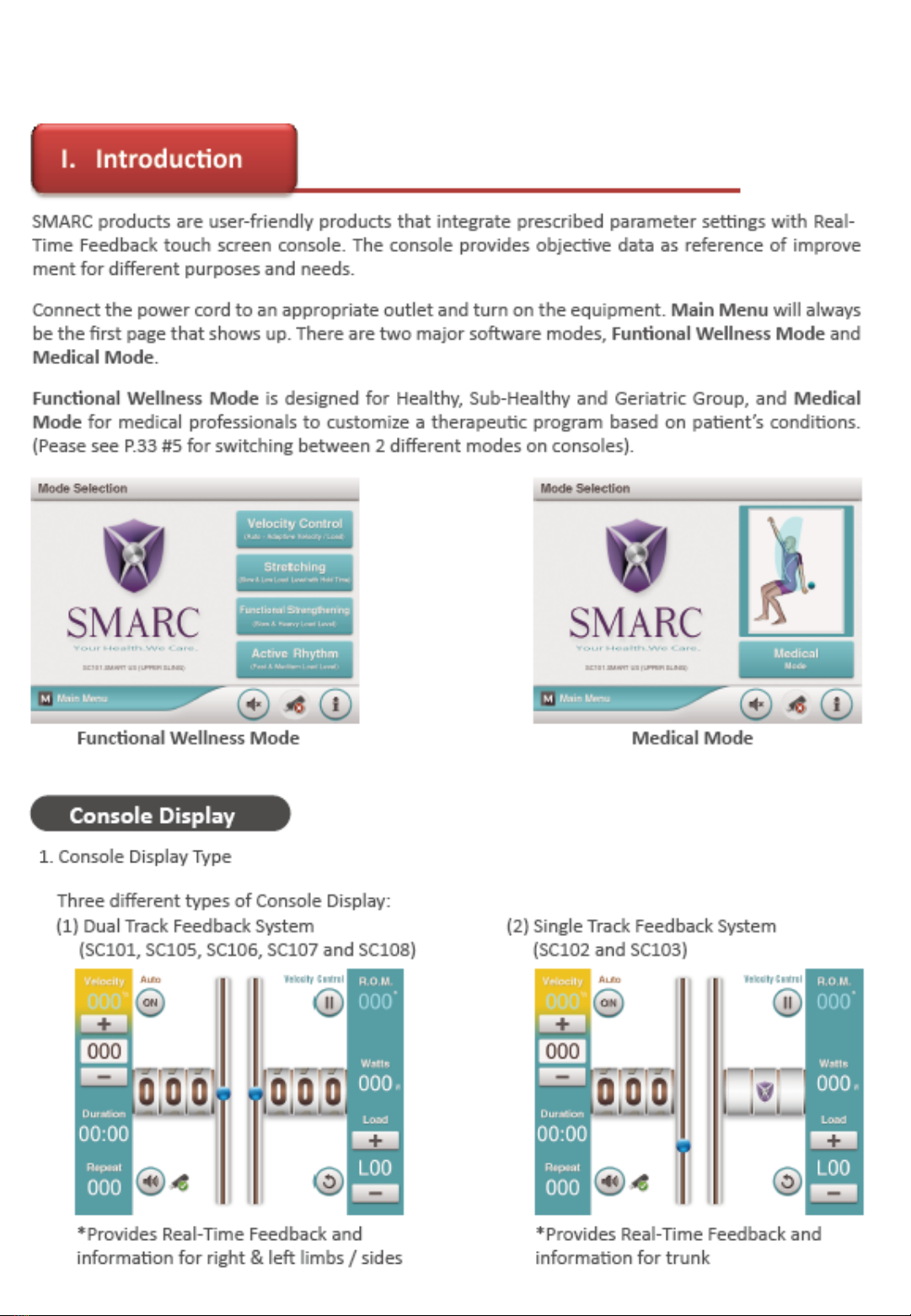

CH5 Console and Program Description
10

11

12

13

14

15

16

17

18
