SMARSECUR ES-K1A User manual

www.smarsecur.com

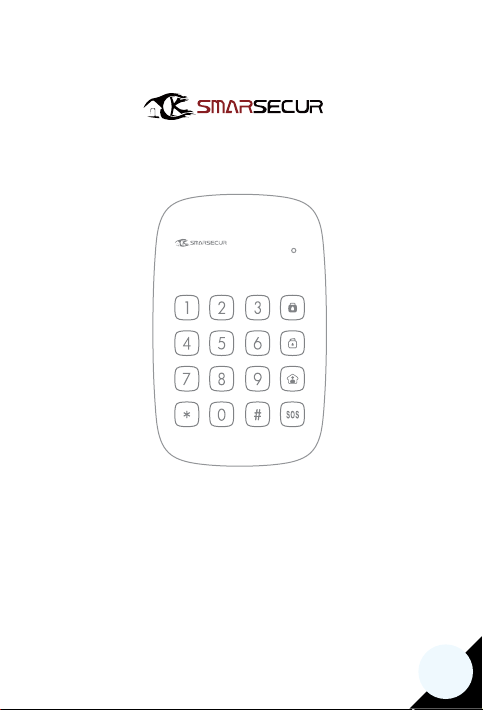

ES-K1A
Wireless Keypad
EN

2
Foreword
Thank you for purchasing the ES-K1A. The ES-K1A is a keypad that enables you to arm
and disarm your alarm system, or arm it inHome Mode.
Before entering your home, all you need to do is to type your passcode and press the
Disarm button [ ], or swipe the RFID tag (sold separately) in front of the RFID reader
to disarm the system.
Box Content
Keypad x 1
AAA 1.5V batteries x 3
Screws x 4
Documentation

3

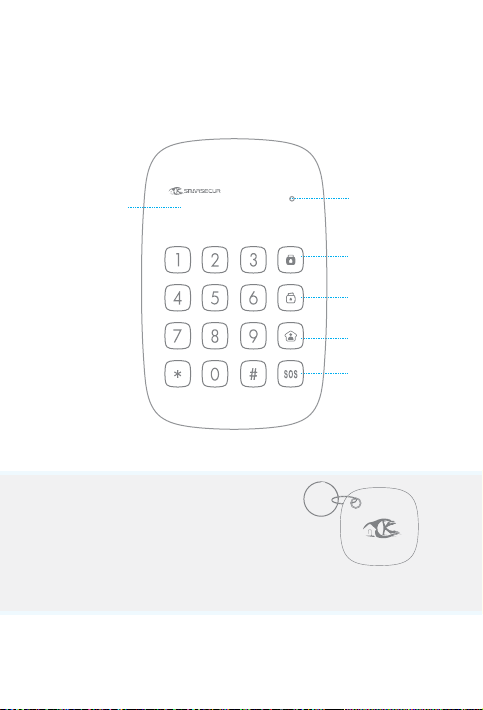

Appearance
RFID reader1LED indicator
Arm / Unlock
Disarm
Home Mode /
Unlock
SOSKey
1RFID tag (125 KHz) sold separately.
The keypad supports up to 50 RFID tags.
Refer to the instructions on page 9 of this
manual to learn how to register an RFID tag
in the keypad. RFID Tag

4
Rear cover
Battery compartment
Tamper switch

5
Preparation Before Use
How to turn the ES-K1A on
strip.

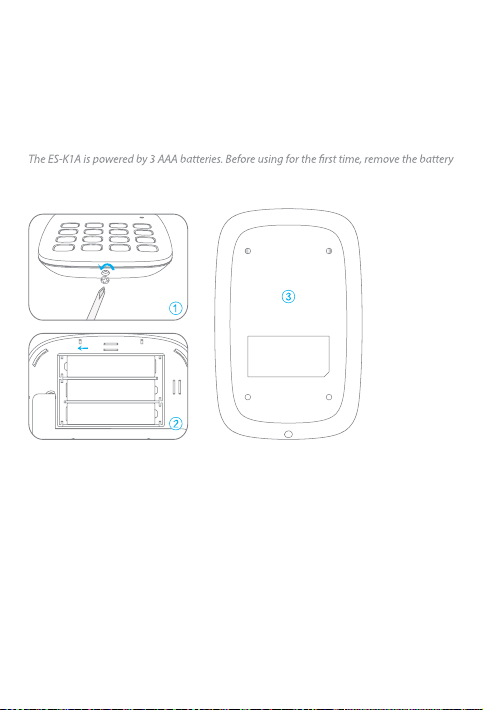

1. Unscrew and open the case.
2. Insert the batteries according to the positive and negative signs.
3. Close the case and screw it back.
Remark
Because of the tamper switch, opening the rear cover of the keypad when the latter
is on triggers the alarm. In such case, stop the alarm by disarming the system, as
explained in page 10 of this manual.

6

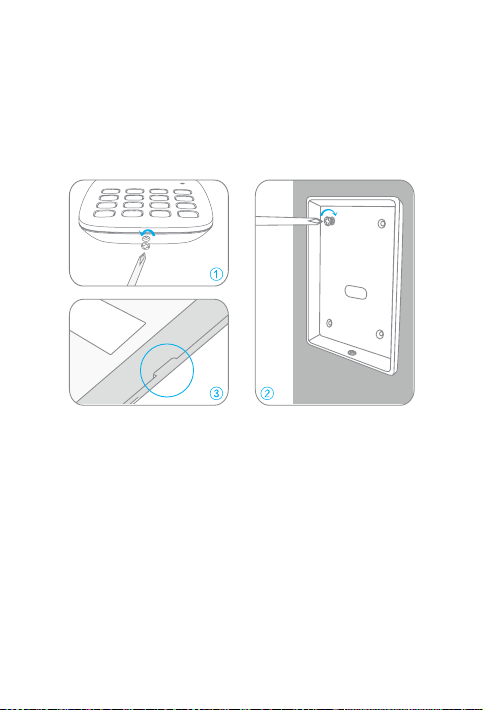

Installation
1. Unscrew the case and openit.
2. Screw the rear cover to a door frame or to a wall.
3. Fasten the front cover of the keypad to the rear cover and screw them together.
Remark
Because of the tamper switch, opening the rear cover of the keypad when the latter
is on triggers the alarm. In such case, stop the alarm by disarming the system, as
explained in page 10 of this manual.

7
Setup

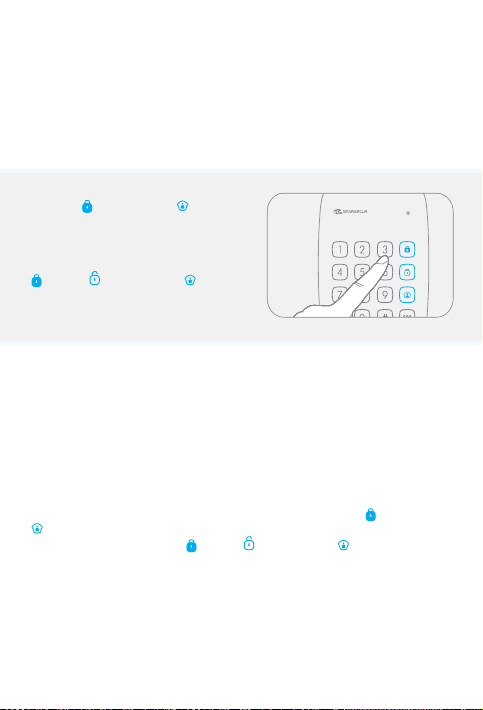

The ES-K1A operates under 4 modes.
Normal mode
The LED indicator blinks once every 5 seconds.
Sleep mode
Under Normal mode, the keypad switches to Sleep mode if no operation is made for
35 seconds. Press the Arm [ ] or Home Mode [ ] keys to exit Sleep mode. When the
RFID Reader mode
Under Normal mode, press [*] on the keypad to activate the RFID reader for 10
Setup mode
To enter Setup mode, switch to Normal mode and then enter [your admin code + #]
on the keypad. The LED indicator blinks once every second. Press [*] to exit the Setup
mode and switch to the Normal mode.
After 30 seconds without operation, the keypad goes back to the Normal mode.
Default admin code :123456
Remark
Correct operation: 1 beep and the LED light blinks once.
Wrong operation: 2 beeps and LED light blinks twice.

8
Register the ES-K1A in the control panel
Make sure the control panel is in Connectionmode (refer to the user manual of your eTIGER
alarmsystem).
Press Arm [ ] orHome Mode [ ] on the
keypad to unlock it.
Type your user code or admin code on the
keypad, and then pressany of the Arm
[], Disarm [ ] orHome Mode [ ] keys.
Your hearshort beeps: the registrationhas
succeeded.
Default admin code :123456. Default user code : 1234
The control panel of your alarm system can be controlled from distance on the keypad
once the latter has been registered in the control panel.
Connect the ES-K1A to an eTIGER siren
The ES-K1A can be connected to an eTIGER indoor or outdoor siren, which enables you
to trigger the siren by pressing the [SOS] key on your keypad.
To connect the keypad to an eTIGER siren, set the wireless siren to Connection Mode
(refer to the manual of your eTIGER siren if necessary). Press the Arm[ ] or Home Mode
[] key on the keypad to switch to Normal Mode. Then type [your admin code or user
code] and press any of the Arm [ ], Disarm [ ] or Home Mode [ ] keys on the keypad.
For more information on sirens and accessories compatible with eTIGER security
systems, visit our website etiger.com

9

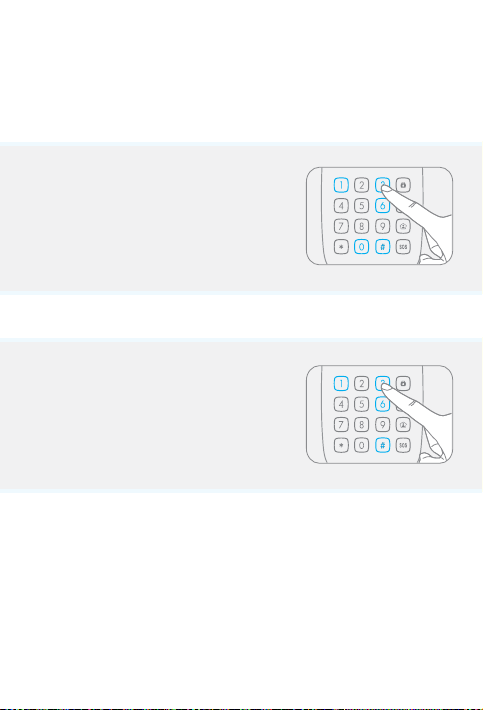

Register an RFID tag in the ES-K1A
1. Press Arm [ ] or Home Mode [ ] on the keypad
to unlockit.
Then type [admin code + #] to enter Setup mode.
Default admin code: 123456
If you hear2 beeps, the code you have typed is wrong.
2. Type [41#]. You hearone beep and the LED
indicator lights up: the keypad switches to
Connection mode.
3. Swipe the RFID tag infront of the RFID reader. You
hear one beep: the connection is successful.
If you hear two beeps, the RFID tag has already been
connected.
Press [*] to exit Setup Mode.
To clear all registered RFID tags, press any of the Arm [ ] or Home Mode [ ] keys on the
keypad to unlock it, and then type [admin code+#42#]. You hear one beep: the RFID tags
have been deleted from the keypad.

10
Usage
The keypad can be used as a remote control. Your user code or your admin code will be
required before arming or disarming the system, or switching to Home Mode or Mute
Mode.

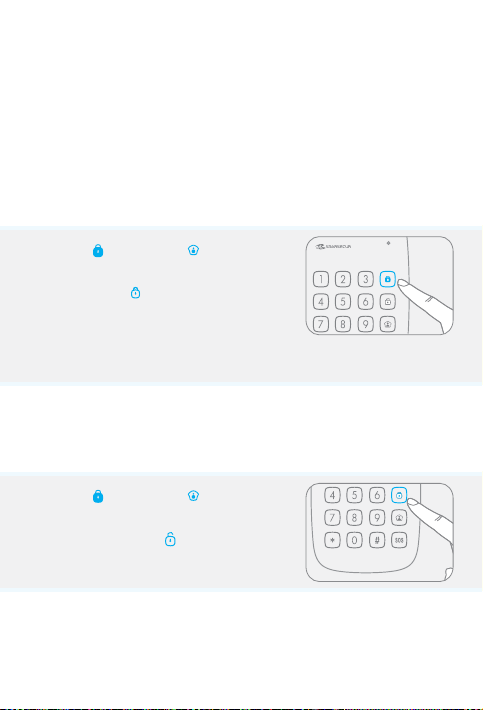

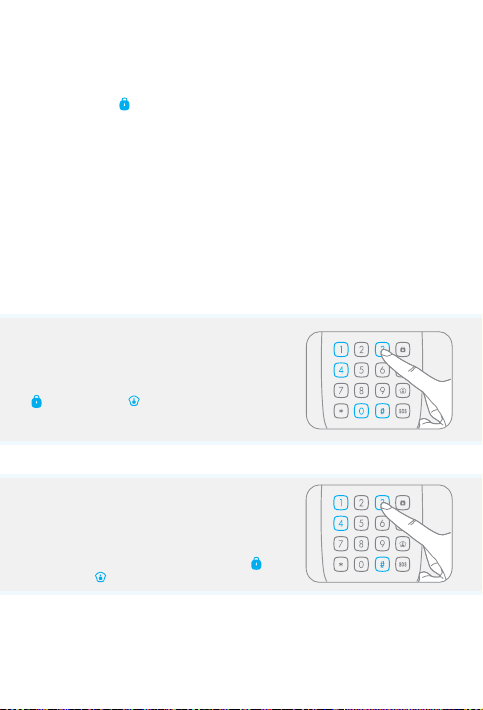

Arm the system
1. Press Arm [ ] or Home Mode [ ] on the keypad
to unlockit.
2. Type your user code or admin code.
3. Press the Arm key []. The LED indicator blinks
once, the keypad beeps once and sends to the
control panel the signal to arm the system.
When the alarm panel receives the signal, the siren beeps once and the Arm indicator on
the control panel lights up. The alarm system is now armed.
Default admin code :123456, default user code :1234
Disarming the system with the keypad
1. Press Arm [ ] or Home Mode [ ] on the keypad
to unlockit.
2. Type your user code or admin code.
3. Press the Disarm button [ ]: the LED indicator
blinks once, the keypad beeps once and sends to
the control panel the signal to disarm the system.
When the control panel receives the signal, the siren beeps twice and the Disarm
indicator lights up: the alarm system is now disarmed.

11
Disarming by RFIDtag
1. Press Arm [ ] orHome Mode [ ] on the keypad
to unlockit.
2. Press [*] to activate the RFID reader for 10 seconds.
3. Within the next 10 seconds, swipe the RFID tag in
front of the reader to disarm the system.
*] is pressed
again on the keypad, orafter 10 seconds without operation.
Home Mode
1. Press Arm [ ] or Home Mode [ ] on the keypad
to unlock it.
2. Type your user code or admin code.
3. Press the [ ] key: the LED indicator blinks once,
the keypad beeps once and sends the signal to the
control panel to switch to Home Mode.
When the alarm panel receives the signal, the siren beeps once and the Home Mode
indicator lights up: the alarm system is now in Home Mode.
All the sensors in regular zones are armed except those in the Home Mode zone. The
sensors in the Home Mode zone are disarmed so that users can move inside their home.
For more information on the setup of zones, please refer to the user manualof your
eTIGER alarm system.

12
Emergency call
Refer to the instructions page 14 of this manual for more information onhow to lock/
unlock the SOS button.
WithSOSbutton unlocked
1. Press Arm [] or Home Mode [ ] on the keypad
to unlockit.
2. Press [SOS].
3. The LED indicator blinks once, the keypad beeps
once, and the alarm is triggered immediately.
WithSOSbutton locked
1. Press Arm [] or Home Mode [ ] on the keypad to unlock it.
2. Type your user code or admin code.
3. Press [SOS] to trigger the alarm immediately.
Low battery indication
When the battery level is low, the LED indicator blinks 3 times every 5 seconds. In such
case, please change the batteries.

13
Settings
Enter Setup mode
Press Arm [ ] orHome Mode [ ] on the keypad
to unlockit.
Type [admin code+#] to enter Setup mode.
Default admin code :123456
Under setup mode, if no operation is made for 30 seconds the keypad will exit the setup mode
automatically. The setup mode can also be exited by pressing [*].
Exit delay
Detectors start detecting potential intrusions immediately after the system has been
armed. To prevent alarms when you leave your house, an exit delay can be set up. If
you have set up an exit delay, the control panel will receive the signal to arm the system
when you press the Arm key [ ]onthe keypad after the time set.
1. Enter Setup mode.
2. Type [33+delaytime in seconds+#].
3. You hearone beep: the setup is successful.
To deactivate the Exit delay, set 0 as delay time.
Remark
The time is set in seconds, it can be set from 0 to 255. Default setting: 0.

14
If the exit delay has been set, the control panel will beep once every second after having
pressed the Arm [ ] key. The rhythm of the beeps will speed up during the last 15
seconds. After the exitdelay time has elapsed, the control panel is armed.
If an exit delay has been set up for both the control panel and the keypad, the actual
delay time will be the combination of both exit delays.
This setting does not apply to the Home Mode.
Remark
Only the Exit delay can be set on the keypad. The Entry delay can be set on the control
panel (refer to the user manual of your eTIGER alarm system).
Lock /Unlock the SOS button
Lock the SOS button
1. Enter Setup mode.
2. Type [3410#].
3. You hear one beep: the setup is successful.
If the SOS button is locked, you will need to press Arm
[] (or Home Mode [ ]) to unlock the keypad, to type
your admin or user code, then to press [SOS] to trigger
the alarm.
Unlock the SOS button
1. Enter Setup mode.
2. Type [3411#].
3. You hear one beep: the setup is successful.
If the SOS button is unlocked, the control panel will
ring out immediately when you press Arm [ ] (or
Home Mode []) and then [SOS].
Remark
Default setting: SOS button is locked.

15
Keyboard clicks
Turn keyboard clicks on
1. Enter Setup mode.
2. Type [3510#].
3. You hear one beep: the setup is successful.
1. Enter Setup mode.
2. Type [3511#].
Remark
Default setting: keyboard clicks are on.

16
Enable / Disable deactivation by RFID tag
Enable deactivation of the system by RFID tag
1. Enter Setup mode.
2. Type [3610#].
3. You hear one beep: the setup is successful.
Disable deactivation of the system by RFID tag
1. Enter Setup mode.
2. Type [3611#].
3. You hear one beep: the setup is successful.
Remark
Default setting: deactivation of the system by RFID tag is enabled.

17
Change user code
The user code may be required to interact with the control panel (arm or disarm the
system, or switch to Home Mode). We recommend you to change the user code before
1. Enter Setup mode.
2. Type [38+new user code+#].
3. You hearone beep: the setup is successful.
Remark
The user code must consist of 4 digits. Default user code is “1234”.
Change admin code
The admin code may be required to change the settings and interact with the control
panel (arm or disarm the system or switch to Home Mode). We recommend you to
1. Enter Setup mode.
2. Type [39+new user code+#].
3. You hearone beep: the setup is successful.
Remark
The admin code must consist of 6 digits. Default admin code is“123456”.

18
Reset
After having reset the keypad, the user code, the admin code, and other settings will be
restored to default settings. The RFID tags that have been registered will not be deleted
from the keypad.
1. Enter Setup mode.
2. Type [987654321#].
3. You hear one beep: the setup is successful.
FAQ
Problem Cause Solution
No response from
the keypad
Low battery Change the battery.
The batteries’positive
and negative terminals
are reversed.
Remove and insert the batteries
again according to the instructions
in this manual.
The keypad is locked Press Arm or Home Mode on the
keypad to unlock it.
The keypad cannot
be registered to the
control panel
No response from the
alarm panel
Make sure the alarm panel is on.
Make sure the alarm panel is in
Connection mode.

19
Problem Cause Solution
No response from
the control panel
when operating on
the keypad.
The keypad is not
registered in the control
panel.
Register the keypad in the
control panel by following the
instructions in this manual.
The keypad is installed
too far from the control
panel.
Install the keypad and the
control panel closer to each
other.
It is recommended to buy
a repeater to extendthe
transmission distance.
Cannot disarm the
system by RFID tag.
The RFID tags have not
been registered in the
keypad.
Register the RFID tag in the
control panel according to the
instructions in this manual.
The RFID reader is
disabled.
Enter Setup mode and activate
the function “Enable / Disable
deactivation by RFID tag”.
The keypad is locked. Press Arm or Home Mode, then
[*] before disarming.
The keypad cannot
be set up.
The keypad is not
unlocked.
Refer to instructions in this
manual.
The keypad does not
switch to Setup mode.
Refer to instructions in this
manual.
The keypad cannot
arm, disarm or
switch to Home
Mode.
Your user code or admin
code has not been typed
before each operation.
Type your user code or admin
code before the operation.

20
Care and Maintenance
For a safer use and a longer lifetime of the ES-K1A, we recommend you to follow the
instructions listed below.
Usage notices
General instructions
-This keypad must be registered in the control panel of your eTIGER alarm system before
-The power supply of this keypad may impact the transmission distance of the wireless
signal.
-This keypad is powered by 3 x AAA batteries.
-This keypad is compatible with eTIGER Secual alarm systems.
-
-To avoid disturbing your neighborhood, do not press the [SOS] key unless necessary.
-Check your keypad on a regular basis to make sure the system works properly in case of
emergency.
-This keypad is neither waterproof nor moisture-proof. Install it in a shady, cool and dry
place.
-The case of this keypad is made of ABS plastic. Please keep it away from strong light to
ensure longer lifetime.
Limitations
-
-
heaters, air conditioners, microwave ovens, etc.
Recycling instructions
-Dispose of the keypad according to local regulations.
-Do not dismantle the product if you are not a professional technician.
