Dorma AC-225 User manual

INSTALLATION INSTRUCTIONS
AC-225 KEYPAD
08105683 2/03

GENREAL
480 entry codes, from 1 to 6 digits in length, can be pro-
grammed. They can activate either, or both of the relay
outputs. Relay #1 has a 5 Amp capacity. Relay #2 has a
1 Amp capacity.
Two LED indicators show the status of the entry system.
The left LED lights red to indicate power, then turns
green when access is granted. The right LED lights yel-
low when the keypad is in "lockout" condition (from too
many incorrect code entries). The keypad's courtesy light
illuminates the keys for two minutes after any key is
pressed. An internal sounder beeps when each key is
pressed.
The DOOR SENSE/INHIBIT RELAY #1 input can be
used two ways. If used for "door position switch", the
switch on the door detects forced entry or door ajar situa-
tions. If used for "inhibit/disable", the input can be wired
to a "service" switch or automatic timer that will disable
the Relay #1 when required.
REQUEST-TO-ENTER/EXIT input can be wired to a
pushbutton or fire access keyswitch to provide codeless
entry for authorized personnel. In a door control applica-
tion, this input is also known as a request-to-exit. The
"anti-passback" feature prevents using the same code
twice before the programmed time elapses.
The ALARM SHUNT output activates when access is
granted. This output can be wired to shunt alarm con-
tacts on the access door/gate to prevent triggering of an
alarm when authorized access occurs.
Two solid state outputs, capable of switching 100 mA to
common, are programmable to signal forced entry, door
ajar, lockout, alarm circuit shunting, request-to-enter/exit
and keypad active conditions.
The AC-225 is powered from a 12-24 Volt AC or DC
source. Power can be obtained from the access device
or a separate power supply. The EEPROM memory
retains all entry codes and programming, even without
power.
SPECIFICATIONS
ELECTRICAL MECHANICAL
Voltage:12-24 Volts AC or DC Case dimensions:4.0" W x 5.5" H x 3.0" D
(AC supply must be transformer isolated)
Current:10 mA typical, 150 mA maximum ENVIRONMENTAL
Outputs:Relay #1 Temperature:-20°F to 130°F (-29°C to 54°C)
Form "C" 5 Amps @ 24 Volts maximum Humidity:5% to 95% non-condensing
Relay #2
Solid state outputs (Outputs #3 & #4)
Short-to-common 100 Ma
@ 30 VDC maximum
TACTILE
KEYPAD
YELLOW
"LOCKOUT"
INDICATOR
RED/GREEN
POWER/ACCESS
INDICATOR
NIGHT
LIGHT
T
ERMINAL BLOCK J4
P
OWER AND INPUTS
I
KEYLOCK
TERMINAL
BLOCK J3
OUTPUTS
JUMPER JP1
REMOVE TO
REDUCE
BEEPER SOUND
JUMPER JP2
RESETS
MASTER CODE
2

INSTALLATION
To avoid damage to the unit from static discharges, con-
nect the EARTH GROUND terminal to a good earth-
grounding point. Suggested wiring size is 18 AWG for
earth ground and for power, up to 500ft. (use larger wire
for longer runs). Use22 AWG or larger (depending on the
load) for all other connections.
CAUTION: Do not ground either side of the power
inputs when using AC power.
Select a location for the keypad. For door access control
installations, mount the keypad near the controlled door.
For gate control installations, mount the keypad in clear
view of the gate, but far enough from the gate so the user
cannot touch the gate from the keypad.
WARNING: TO AVOID SERIOUS INJURY OR DEATH,
MAKE SURE THAT THE UNIT IS FAR ENOUGH FROM
THE GATE SO THAT THE USER CANNOT TOUCH
THE GATE WHILE OPERATING THE KEYPAD. HOW-
EVER, THE GATE MUST BE FULLY VISIBLE FROM
THE KEYPAD.
MOUNTING
The AC-225 keypad can be mounted directly to a wall or
flat surface. Use the appropriate fasteners to secure the
keypad's backplate to the mounting surface. When
mounting the keypad to a concrete wall, use concrete
wedge anchors or molly anchors.
EXPOSED MOUNTING
The AC-225 keypad can be mounted on a standard
pedestal or exterior frame assembly. Use four security
bolts and locking nuts to secure the keypad’s backplate to
the pedestal or exterior frame assembly.
Mounting Keypad Backplate
MOUNT BACKPLATE WITH
SECURITY BOLTS AND LOCKNUTS
PEDESTAL OR EXTERIOR
FRAME ASSEMBLY
USE CONCRETE
WEDGE ANCHORS
OR MOLLY ANCHORS
WALL MOUNTING
3

AC-225
KEYPAD
FIRE
ACCESS
KEYSWITCH
2 WIRES FROM OPERATOR
FOR AC-225 POWER
GATE
OPERATOR
(BEHIND GATE)
2 WIRES FROM AC-225
TO TRIGGER GATE OPEN
2 WIRES FOR
REQUEST-TO-ENTER/EXIT
Gate Installation
J4
1
2
3
4
5
6
J3
1
2
3
4
5
6
7
8
9
POWER
DISABLE/INHIBIT
COMMON
REQUEST-TO-ENTER
EARTH GROUND
N.O.
COMMON
N.C.
OUTPUT #3
OUTPUT #4
N.O.
COMMON
N.C.
COMMON
GROUND
AC-225
GATE OPERATOR
AUXILIARY
POWER
OPEN
FIRE
ACCESS
OPTIONAL WIRING
REQUIRED WIRING
RELAY #1
RELAY #2

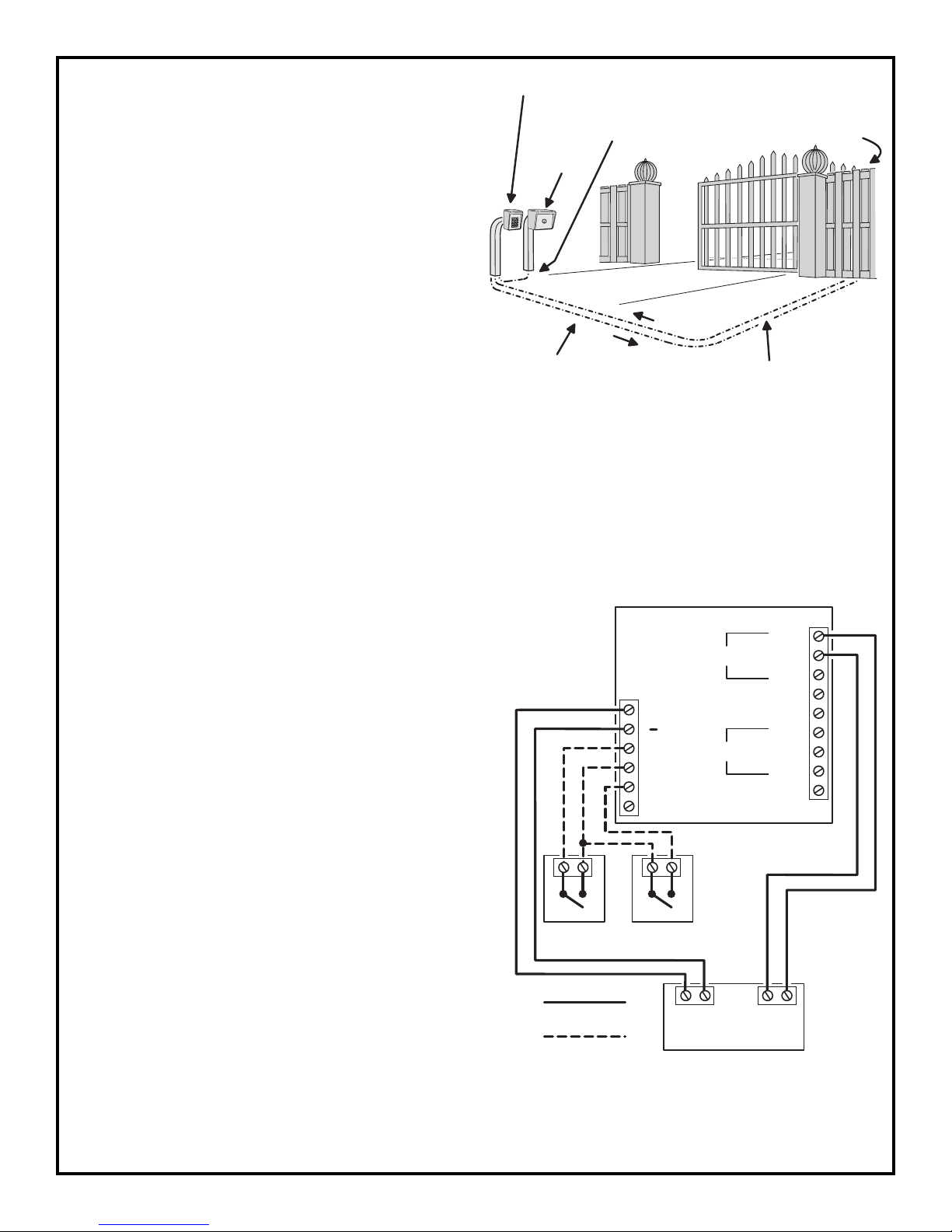

TYPICAL GATE INSTALLATION WIRING
Wiring Diagram
INHIBIT/DISABLE
TIMER
+
Gate Control
1. Route four wires between the gate and the keypad
(two for power, two for control).
2. Connect the gate operator's auxiliary or radio power
output terminals to the keypads POWER input
terminals (observe wiring polarity if using DC power).
3. Connect the gate operator's OPEN terminals to the
keypad's Relay #1 COMMON & N.O. terminals.
NOTE: For operator wiring specifics, refer to the gate
operator's installation instructions.
4. When a REQUEST-TO-ENTER pushbutton or fire
access keyswitch is going to be used, route two wires
from the keypad to the normally open switch. Connect
the wires to the normally open switch and to the
keypad's REQUEST-TO-ENTER and COMMON
terminals.
5. If an inhibit switch or timer is going to be used, route
two wires from the keypad to the INHIBIT/DISABLE
switch or timer relay. Connect the INHIBIT/DISABLE
switch/timer terminals to the keypad's DOOR
SENSE/INHIBIT and COMMON terminals.
NOTE: If the DOOR SENSE/INHIBIT input is going to be
used, it must be programmed to select that input type.
See the Programming Options section of this instruction
manual.
4

FROM
POWER
SUPPLY
DOOR
SENSE
SWITCH
ELECTRIC
DOOR
STRIKE
AC-225
KEYPAD
2 WIRES
FOR DOOR
STRIKE
2 WIRES
FOR DOOR
SENSE
2 WIRES
FOR
POWER
Door Installation
J4
1
2
3
4
5
6
J3
1
2
3
4
5
6
7
8
9
DOOR SENSE
COMMON
REQUEST-TO-ENTER/EXIT
EARTH GROUND
N.O.
COMMON
N.C.
OUTPUT #3
OUTPUT #4
N.O.
COMMON
N.C.
COMMON
GROUND
AC-225
ELECTRIC
DOOR
STRIKE
OPEN
DOOR SW ITCH
POW ER
SUPPLY
TO ALARM
SYSTEM
TO ALARM
SYSTEM
POWER
RELAY #1
RELAY #2

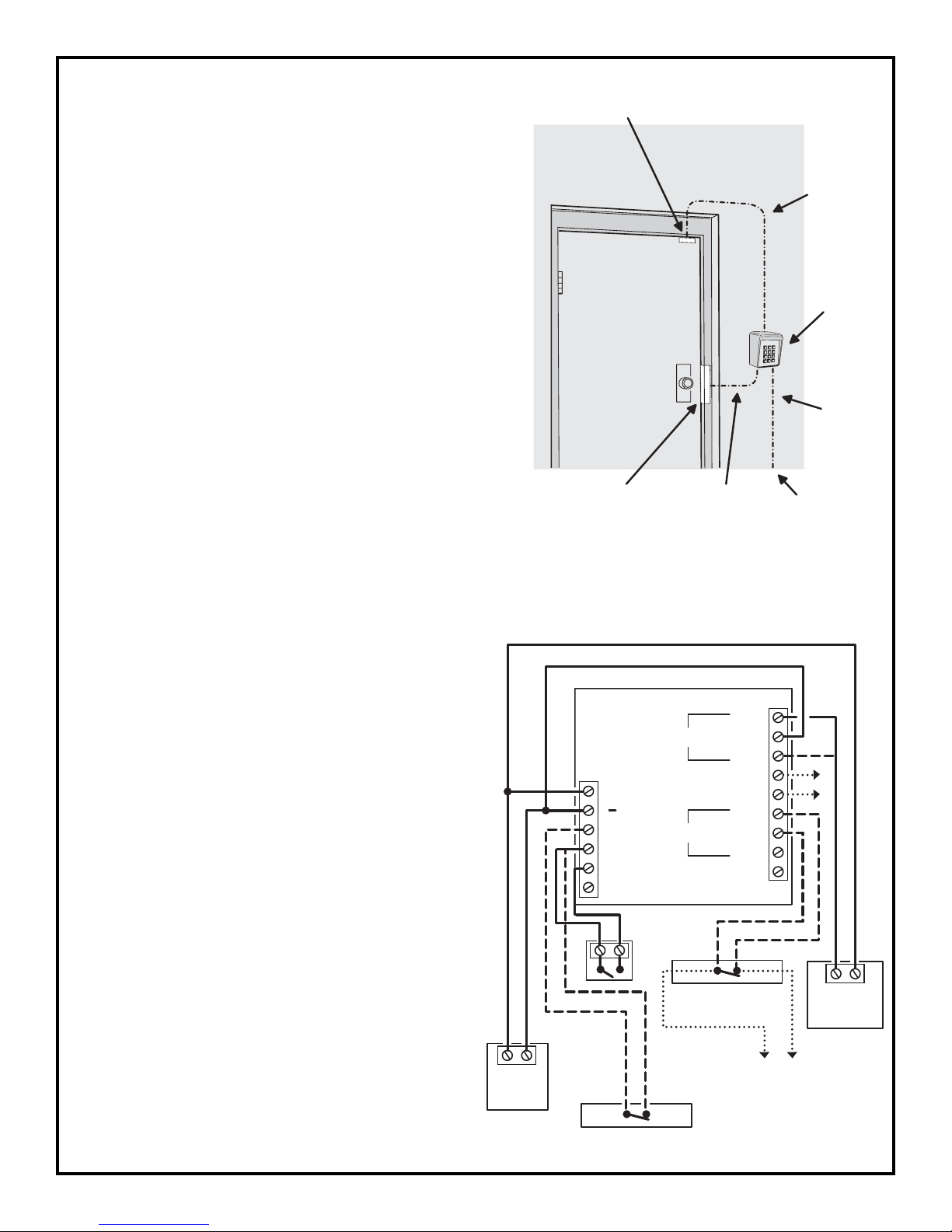

TYPICAL DOOR INSTALLATION WIRING
ALARM CONTACT
+
NOTE: WIRING SHOWN FOR FAIL
SECURE LOCK. FOR FAIL SAFE
LOCK, MOVE WIRE FROM POS. #1
TO POS. #3.
REQUEST-
TO-EXIT
FAIL
SECURE
FAIL
SAFE
Door Control
1. Install a low voltage electric door strike for unlocking
the door.
2. Choose a location for the power supply or transformer.
3. Route two wires between the power supply and the
keypad. Connect the power supply's output terminals
to the keypads POWER input terminals (observe wiring
polarity if using DC power).
4. Route two wires between the door strike and the
keypad. Connect one of the door strike wires to the
keypad's Relay #1 N.O. terminal. Connect the other
door strike wire to the keypad's POWER + terminal.
Connect a wire between the keypad's POWER -
terminal and the Relay #1 COMMON terminal.
5. When a request-to-enter pushbutton or fire access
keyswitch is going to be used, route two wires from the
keypad to the normally open switch. Connect the wires
to the normally open switch and to the keypad's
REQUEST-TO-ENTER and COMMON terminals.
6. To use the DOOR SENSE/INHIBIT (Door Position
Switch) feature to detect forced entry or door ajar
conditions, install a normally closed door switch on the
door and route two wires from the switch to the
keypad. Connect the door switch to the keypad's
DOOR SENSE/INHIBIT and COMMON terminals.
7. When an inhibit/disable switch or timer is going to be
used, route two wires from the switch or timer to the
keypad. Connect the inhibit/disable switch/timer
terminals to the keypad's DOOR SENSE/INHIBIT and
COMMON terminals.
NOTE: Either door sense or inhibit/disable can be
used. Both features cannot be used at the same time.
5

FACTORY DEFAULTS
MASTER PROGRAMMING CODE. . . . . . . . . . . ..123456
ENTRY CODE LENGTH. . . . . . . . . . . . . . . . .. .4 DIGITS
REQUEST-TO-ENTER OUTPUT. . . . . . . . . . . .RELAY #1
ALARM SHUNT OUTPUT. . . . . . . . . . . . . . . . .RELAY #2
FORCED ENTRY OUTPUT. . . . . . . . . . . . . .OUTPUT #3
DOOR AJAR OUTPUT. . . . . . . . . . . . . . . . . OUTPUT #4
RELAY #1 ON TIME. . . . . . . . . . . . . . . . . . .2 SECONDS
RELAY #2 ON TIME. . . . . . . . . . . . . . . . . . .2 SECONDS
SOLID STATE OUTPUT #3 ON TIME. . . . . 2 SECONDS
SOLID STATE OUTPUT #4 ON TIME. . . . . .2 SECONDS
DOOR SENSE/INHIBIT INPUT. . . . . . . . . DOOR SENSE
KEYPAD LOCKOUT OUTPUT. . . . . . . . . .. . . DISABLED
KEYPAD ACTIVE OUTPUT. . . . . . . . . . . . . . .DISABLED
BEEPER SOUNDS WHEN KEY PRESSED. . .. . . . . YES
BEEPER SOUNDS DURING RELAY #1. . . . .. . . . . . .NO
BEEPER SOUNDS DURING RELAY #2. . . . .. . . . . . .NO
BEEPER SOUNDS DURING OUTPUT #3. .. . . . . . . . NO
BEEPER SOUNDS DURING OUTPUT #4. . . . . . . . . .NO
KEYPAD LOCKOUT COUNT . . . . . . . . . . . . . . . 3 TRIES
BEFORE LOCKOUT
ANTI-PASSBACK TIME. . . . .. . . . . .. . . . . .3 MIN. UNTIL
CODE CAN BE USED AGAIN
BASIC PROGRAMMING
When the AC-225 is in programming mode, both LEDs
will turn off until programming begins. After a program-
ming option number is entered the yellow LED will blink.
This indicates that the AC-225 is ready to accept the new
programming data. After the new data entry is complete,
the green LED will light while the data is being stored.
The red LED will light if any programming data is entered
incorrectly, and the command will have to be fully re-
entered. In the following programming instructions, the
characters "X" or "Y" represent the programming data to
be entered while the unit is in programming mode. The
possible values for "X" or "Y" along with the factory
default for the value is listed with each programming
option.
Entering Programming Mode
The Master Programming Code (default = 123456) is
used to enter Programming Mode.
Press: # 9 # X
X= the current 6-digit Master Programming Code
Exiting Programming Mode
Press: * * #
The red LED will light when Programming Mode is exited.
NOTE: The AC-225 will automatically exit Programming
Mode after two minutes of inactivity.
Re-entering a Command After a Mistake
If the red LED lights, indicating an incorrect entry, or a
wrong key is pressed during programming, to clear the
keypad and re-enter the command:
Press: * 9 #
Setting Entry Code Length Default: 4 digits
Press: 0 3 # X #
X = 1 - 6 for entry code length
NOTE: If the Entry Code Length is going to be changed
from the factory default of four digits, make this change
first, before programming any entry codes.
Adding a New Entry Code
Press: 0 1 # X # X # Y #
X = The new entry code:
1-999999, depending on code length
Y = Relay output entry code will activate:
1 = Relay #1 2 = Relay #2
3 = Both Relays 0 = No Relays
The yellow LED will flash quickly while the AC-225
searches its memory for available space and duplicate
entries. The green LED will light when the new code is
stored.
If the new entry code chosen is already being used for
another entry code, the red LED will light. A new unique
code needs to be entered.
NOTE: Leading zeros (zeros before the code number, i.e.
0001) do not need to be entered when programming a
new entry code. The Entry Check will internally add any
zeros to fill all digits determined by the entry code length
setting. Leading zeros will have to be entered by the user
when entering their code to gain access.
Erasing a Single Entry Code
Press: 0 2 # X # X #
X = The entry code to delete.
The yellow LED will flash quickly while the AC-225
searches its memory for the code to erase. The green
LED will light when the code is erased.
Erasing All Entry Codes
WARNING: Performing this command will remove all
entry codes from the memory.
Press: 9 7 # 0 0 0 0 0 0 # 0 0 0 0 0 0 #
NOTE: The green LED will light while the memory is
being erased. This may take up to 15 seconds.
Changing the Master Programming Code
Press: 9 8 # X # X #
X = The new 6-digit Master Programming Code
New master code:
6

PROGRAMMING OPTIONS
There are several AC-225 programming options. For
most installations, the factory set default options are
sufficient. The keypad must be in programming
mode to make these change.
Door Sense/Inhibit Input Default: Door Sense
The input on terminal block J4, terminal #3 can be pro-
grammed for DOOR SENSE/INHIBIT.
Press: 1 0 # X #
X = 0 for Door Sense, 1 for Inhibit
When programmed for DOOR SENSE (door position), if
an open condition on the input occurs before access is
granted (with an entry code or with the request-to-enter
input) a FORCED ENTRY output will occur. If an open
condition remains 60 seconds after a relay activation for
access, a DOOR AJAR output will occur.
When programmed for INHIBIT(disable), a closed con-
dition on the input will prevent relay #1 from activating
when access is requested (with an entry code). This
mode is typically used with an external timer to disable
the access device at certain times.
Select Forced Entry Output Default: Output #3
Sets which output activates if the Door Sense input
opens before access is granted.
Press: 1 1 # X #
X = Output number
1 = Relay #1 2 = Relay #2 3 = Output #3
4 = Output #4 0 = No Output
Select Door Ajar Output Default: Output #4
Sets which output activates if the Door Sense input
stays open after access is granted.
Press: 1 2 # X #
X = Output number
1 = Relay #1 2 = Relay #2 3 = Output #3
4 = Output #4 0 = No Output
Select Keypad Lockout Output Default: No Output
Sets which output activates when the keypad is "locked
out" after too many incorrect entry code attempts.
Press: 1 3 # X #
X = Output number
1 = Relay #1 2 = Relay #2 3 = Output #3
4 = Output #4 0 = No Output
Select Keypad Active Output Default: No Output
Sets which output activates when any keys are
pressed.
Press: 1 4 # X #
X = Output number
1 = Relay #1 2 = Relay #2 3 = Output #3
4 = Output #4 0 = No Output
Select Alarm Shunt Output Default: Relay #2
Sets which output activates during the time access is grant-
ed. (Use this output to shunt alarm contacts attached to the
access door.)
Press: 1 5 # X #
X = Output number
1 = Relay #1 2 = Relay #2 3 = Output #3,
4 = Output #4 0 = No Output
Select Request-to-Enter Output Default: Relay #1
Sets which output activates when the Request-to-Enter/Exit
input is grounded.
Press: 1 6 # X #
X = Output number
1 = Relay #1 2 = Relay #2 3 = Output #3
4 = Output #4 0 = No Output
Relay #1 On-time Default: 2 Seconds
Sets the length of time Relay #1 activates when triggered.
Press: 2 1 # X #
X = Output time in seconds (0-60)
Relay #2 On-time Default: 2 Seconds
Sets the length of time Relay #2 activates when triggered.
Press: 2 2 # X #
X = Output time in seconds (0-60)
Solid-state Output #3 On-time Default: 2 Seconds
Sets the length of time Output #3 activates when triggered.
Press: 2 3 # X #
X = Output time in seconds (0-60)
Solid-state Output #4 On-time Default: 2 Seconds
Sets the length of time Output #4 activates when triggered.
Press: 2 4 # X #
X = Output time in seconds (0-60)
Beep Sounds on Keystrokes Default: Yes
Selects whether or not the keypad beeps as each key is
pressed.
Press: 4 0 # X #
X = 1 for Yes, 0 for No
Beep Sounds During Relay #1 Default: No
Selects whether or not the keypad beeps during Relay #1
activation.
Press: 4 1 # X #
X = 1 for Yes, 0 for No
7

Beep Sounds During Relay #2 Default: No
Selects whether or not the keypad beeps during Relay #2
activation.
Press: 4 2 # X #
X = 1 for Yes, 0 for No
Beep Sounds During Output #3 Default: No
Selects whether or not the keypad beeps during Output
#3 activation.
Press: 4 3 # X #
X = 1 for Yes, 0 for No
Beep Sounds During Output #4 Default: No
Selects whether or not the keypad beeps during Output
#4 activation.
Press: 4 4 # X #
X = 1 for Yes, 0 for No
Keypad Lockout Count Default: 3 Tries
Sets the number of incorrect entry code attempts allowed
before the keypad "locks out".
Press: 5 0 # X #
X = Number of attempts before lockout (2-7)
Anti-passback Time Default: 3 Minutes
Sets the length of time an entry code will not function
after it is used.
Press: 5 1 # X #
X = Time in Minutes (1-4, 0 = No Anti-passback)
MASTER RESET
CAUTION: Performing a master reset will clear the entire
memory of the AC-225 and return all programmable
options to the factory default values.
ALL ENTRY CODES WILL BE ERASED.
STEP 1 Disconnect power from the keypad.
STEP 2 Press and hold down the * and # keys.
STEP 3 Apply power to the keypad, continue holding the
keys down until the red LED starts flashing.
STEP 4 Release the keys. The red and yellow LEDs will
remain lit until the process is complete, then the
yellow LED will go out.
RESETTING THE MASTER CODE
STEP 1 Open the AC-225 case.
STEP 2 Locate jumper JP2. This jumper is used to reset
the master code.
STEP 3 With power applied to the keypad, remove
jumper JP2. The keypad will begin to beep,
signaling that the code has been reset.
STEP 4 Replace jumper JP2.
THE MASTER PROGRAMMING CODE IS NOW 123456.
Solid State Outputs
The two solid state outputs (Output #3 & Output #4) can
be programmed to activate during various conditions.
These outputs can be used to activate indicators or
sounders. See below for wiring examples using the solid
state outputs.
OUTPUT #3
OUTPUT #4
COMMON
GROUND
ENTRY CHECK
POWER
1K Ω
LED
1K Ω
LED
ELECTRONIC
BEEPER
EXAMPLE 1: OUTPUT #3 LIGHTS AN LED,
OUTPUT #4 LIGHTS AN LED AND SOUNDS A BEEPER
EXAMPLE 2: OUTPUT #3 LIGHTS A LAMP POWERED FROM AN EXTERNAL
SOURCE, OUTPUT #4 TRIGGERS A NORMALLY OPEN ALARM PANEL ZONE
OUTPUT #3
OUTPUT #4
EACH
OUTPUT
100mA
MAXIMUM
ALARM PANEL
N.O. ZONE
COMMON
END-OF-LINE
RESISTOR
POWER
SOURCE
LOW VOLTAGE
LAMP
EACH
OUTPUT
100mA
MAXIMUM
Using the Solid State Outputs
Removing Beeper Jumper
REMOVE JUMPER JP1 TO REDUCE
THE SOUND LEVEL OF THE BEEPER
Beeper Sound Level
The keypad's beeper can be set to low or high level by
removing jumper JP1.
8

Locking Keypad
After the installation is complete. Lock the keypad using
the keylock.
HOOK KEYPAD
ONTO BACKPLATE
USE KEY TO
LOCK KEYPAD
Locking the Keypad Case
ENTRY CHECK OPERATION
1 Users of the AC-225 have up to 40 seconds to key
in their entry code.
2 Up to eight seconds are allowed between each
keystroke.
3 All digits of the entry code must be entered.
Example: If the code is 0042, the user must enter
"0 0 4 2".
4 If the wrong key is pressed, pressing the * key will
reset the keypad. The correct code can then be
re-entered.
5 After a correct code is entered, the red LED will turn
green and the programmed relay will activate for the
programmed time.
6 If the number of incorrect codes entered exceeds the
keypad lockout count, the yellow LED will light,
indicating that the keypad is locked out. The lockout
will remain for one minute.
7 After a valid code has been entered, it will be unusable
until the anti-passback time expires.
USERS HAVE UP TO
40 SECONDS TO ENTER
THEIR COMPLETE CODE
PRESS STAR KEY TO
RESET KEYPAD IF THE
WRONG KEY IS PRESSED
RED LED TURNS
GREEN WHEN
ACCESS IS GRANTED
YELLOW LED WILL LIGHT
DURING KEYPAD LOCKOUT IF
TOO MANY INCORRECT CODES
ARE ENTERED
FCC NOTICE
Changes or modifications not expressly described in this
instruction manual or approved by the manufacturer could
void the user's authority to operate the equipment.
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television recep-
tion, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help.
9

MANAGER’S ENTRY CODE LOG
NAME ADDRESS OR APARTMENT NUMBER ENTRY CODE RELAY NUMBER
◊
1
◊
2
◊
1
◊
2
◊
1
◊
2
◊
1
◊
2
◊
1
◊
2
◊
1
◊
2
◊
1
◊
2
◊
1
◊
2
◊
1
◊
2
◊
1
◊
2
◊
1
◊
2
◊
1
◊
2
◊
1
◊
2
◊
1
◊
2
◊
1
◊
2
◊
1
◊
2
◊
1
◊
2
◊
1
◊
2
◊
1
◊
2
◊
1
◊
2
◊
1
◊
2
◊
1
◊
2
◊
1
◊
2
◊
1
◊
2
◊
1
◊
2
◊
1
◊
2
◊
1
◊
2
◊
1
◊
2
◊
1
◊
2
◊
1
◊
2
◊
1
◊
2
◊
1
◊
2
◊
1
◊
2
◊
1
◊
2
◊
1
◊
2
10
