smart home SH-D3 User manual

USER GUIDE
SMART LIGHTING DEVICE
Model: SH - D3
Bkav SmartHome technology company limited
by Bkav

Copyright © 2014 Bkav SmartHome Co., Ltd. All rights reserved. UGD3/V1.0/1014
www.smarthome.bkav.com
Mfr Code: 893604393UGD3

USER GUIDE
SMART LIGHTING DEVICE
Model: SH - D3

Warning
User Guide SH - D3
Thank you for choosing smart lighting device SH - D3 of Bkav SmartHome. For
selecting Bkav SmartHome’s products, you will get the best warranty service and
installation support from our technicians.
This document gives useful information during installation and usage time. You
should read and keep the manual carefully in case of need.
Electric shock may cause injuries or threats to life. Before installing,
repairing or cleaning the device, you should check whether the
device’s power is disconnected.
This work should be done by technicians or Customer Contact
Center to avoid electric related accidents.
Environmental regulations must be complied when discarding or
recycling the device or its wrapping.

User Guide SH - D3
The smart lighting device SH - D3 is the product of Bkav SmartHome and has
been registered regarding design, utility solutions and quality certification. All
violations such as copies of design and product idea are subject to the current
copyright law of the Socialist Republic of Vietnam.
Copyright © 2014 Bkav SmartHome Co., Ltd. All rights reserved.

Warning
User Guide

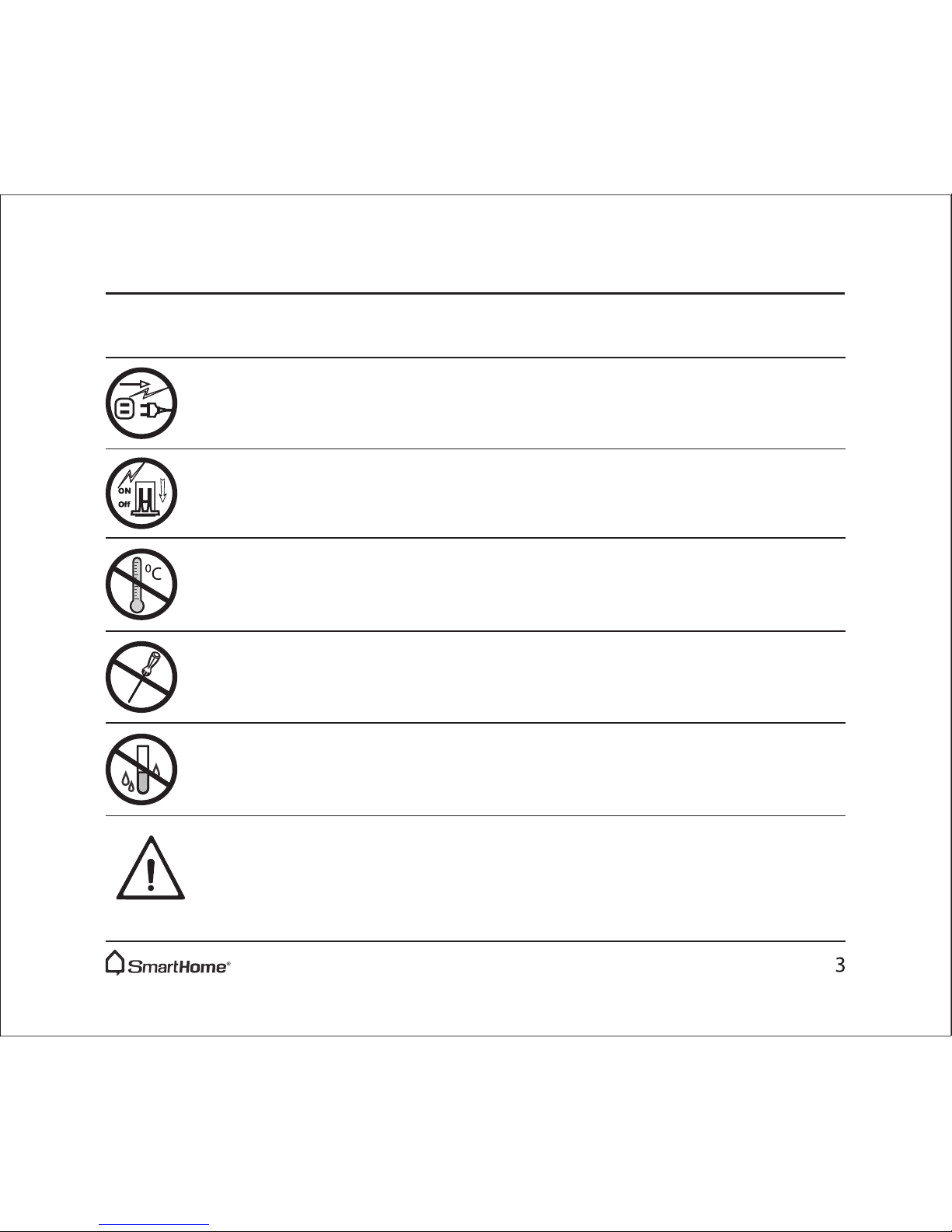

Safety instruction
SH - D3
Do not use voltage which is different from the one stated in the
device’s specifications.
Safety instruction should be complied during the device usage.
Disconnect the device’s power prior to any installation, disassembly
or repair.
Do not leave the device in high-temperature environment.
Do not disassemble the device if not necessary.
Do not clean the device with corrosive chemicals.

Contents
Introduction
1. General introduction
2. Product package
3. Sensor area
4. Specifications
Features
1. Auto lighting
2. Forcible lighting
3. Use remote control SH - RM6
4. Light sensor
5. Preferred light level settings
6. Indicator light
Settings
1. Default mode
2. Switch mode settings (switch S203)
3. Time settings
Installation
1. Wiring diagram
2. Installation steps
Problems during usage
Contact
05
05
06
07
08
09
10
10
11
12
13
13
15
15
15
16
19
20
21
23
28
SH - D3

Introduction
1. General introduction
Introduction
SH - D3
The smart lighting device uses pyroelectric infrared radial sensor technology.
When users are in the sensor area, the light will automatically turn on. The
device is integrated with light sensor and has ability to flexibly adjust the pending
time to turn off the light when users leave the sensor area. The product’s smart
feature brings comfort, power saving and absolute safety to its users.
Remote control device SH - RM6 supports turning on/off remotely and sched-
ules turn-off time.
The device is suitable for:
Office, smart house.
Living room, bedroom, kitchen, dining room.
Restroom, stairs, corridor, courtyard, garage, warehouse, etc.

Introduction
User guide (book)
SH - D3 and remote control SH - RM6

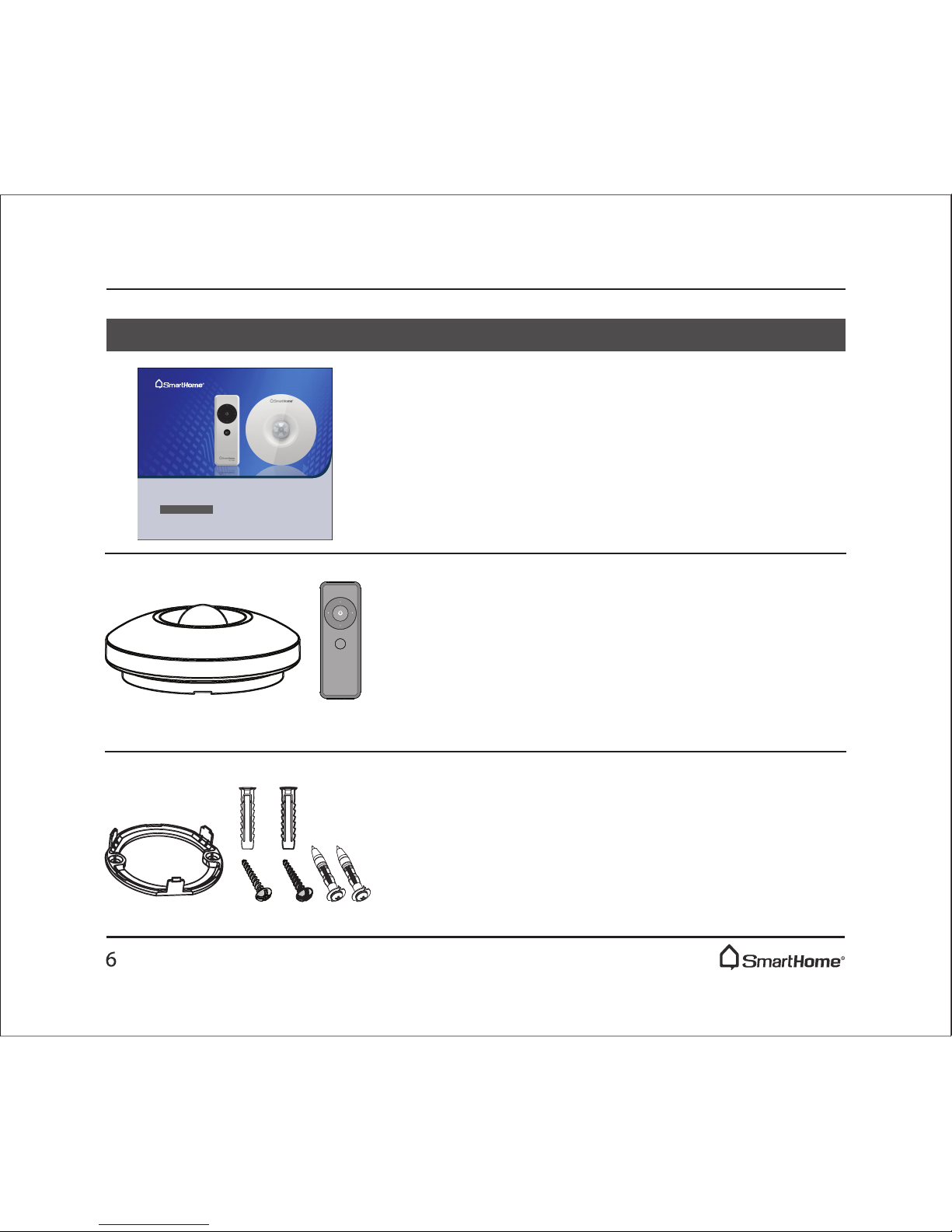

2. Product package
SH - D3
SET
Set of hook, screws, anchors and molly bolts
for plaster ceiling
USER GUIDE
SMART LIGHT DEVICE
Model: SH - D3
Bkav SmartHome technology company limited
by Bkav

Notice
Introduction
Above the ceiling
Below the ceiling

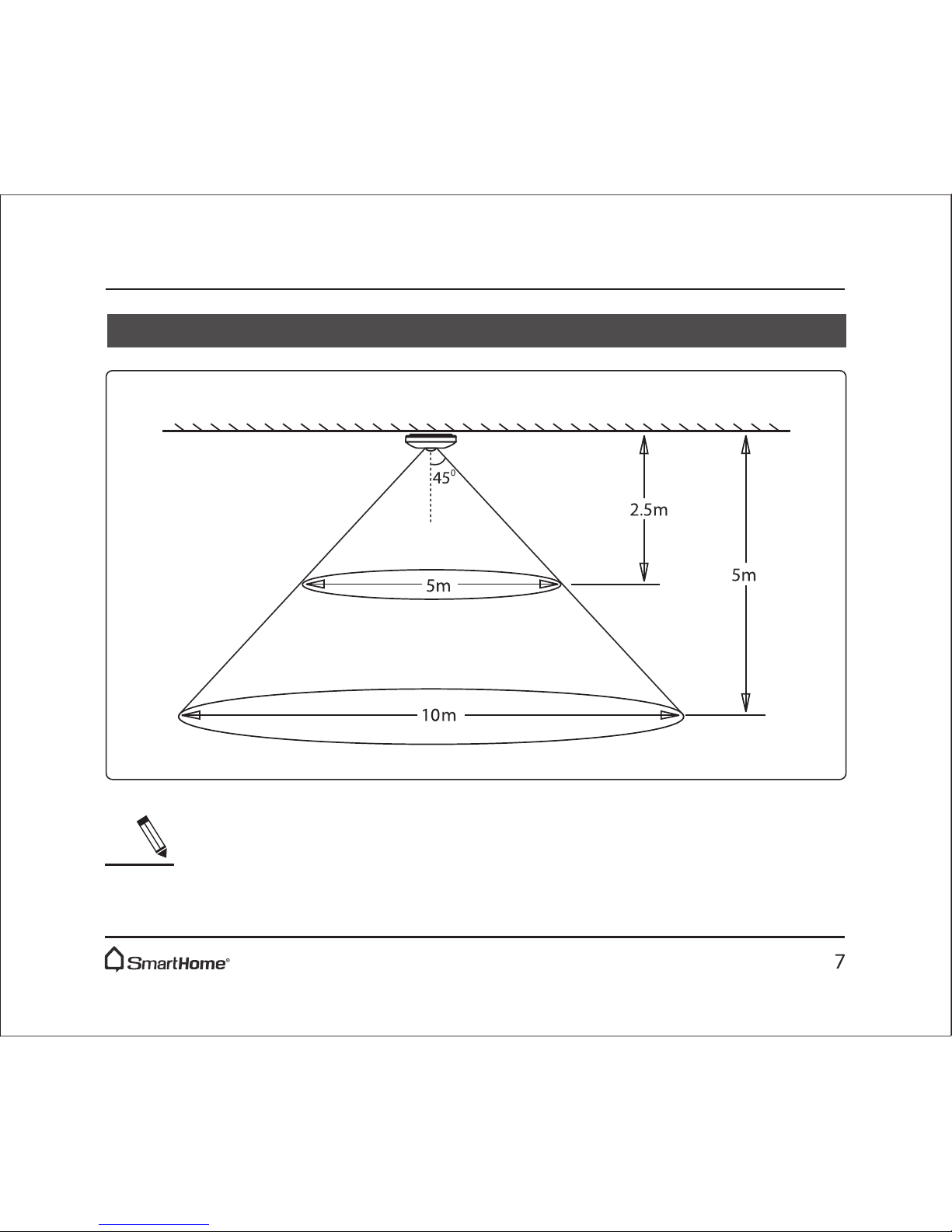

3. Sensor area
SH - D3
Within the above distances, it is the best operation condition for the
device. In case the device fails to detect users, please contact
Customer Contact Center.

Introduction
Voltage 100-240V 50/60Hz
Load power Incandescent lamp - maximum 1000W
Sensing range Maximum 5 m
Fluorescent lamp - maximum 350W
Applicable sensor area Maximum 20 m²
Light sensing mode Adjustable day - night mode
Operating temperature 60ºC max
Dimensions (L x H) 90 x 38 mm
Weight 90 gram
SH - D3
4. Specifications

Features

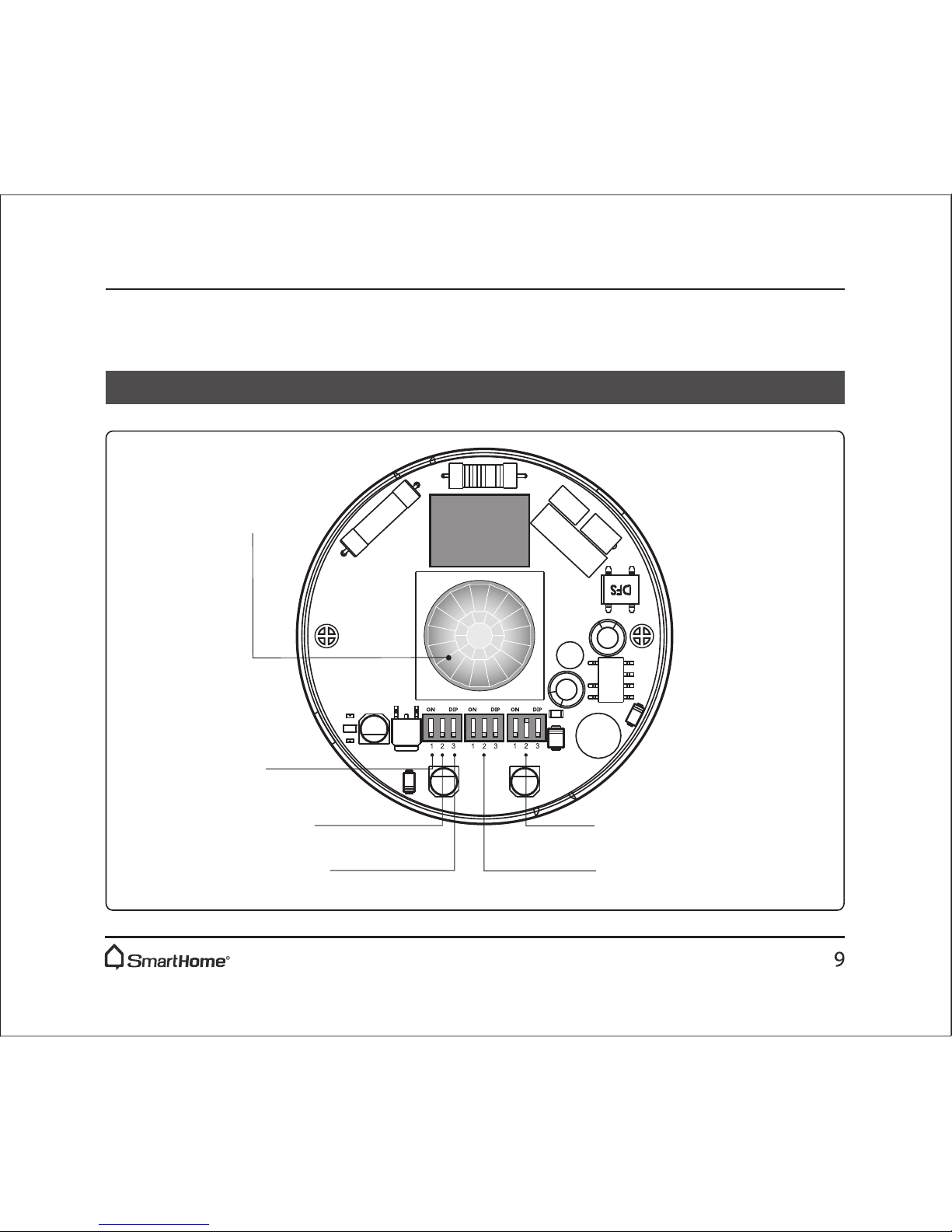

Components
Features
SH - D3
Sensor
Turn on/off
light sensor
Select switch type
Test mode
(for technicians only)
Adjust the pending time to
turn off the light when
there is no motion
Adjust the pending time to
turn off the light by switch

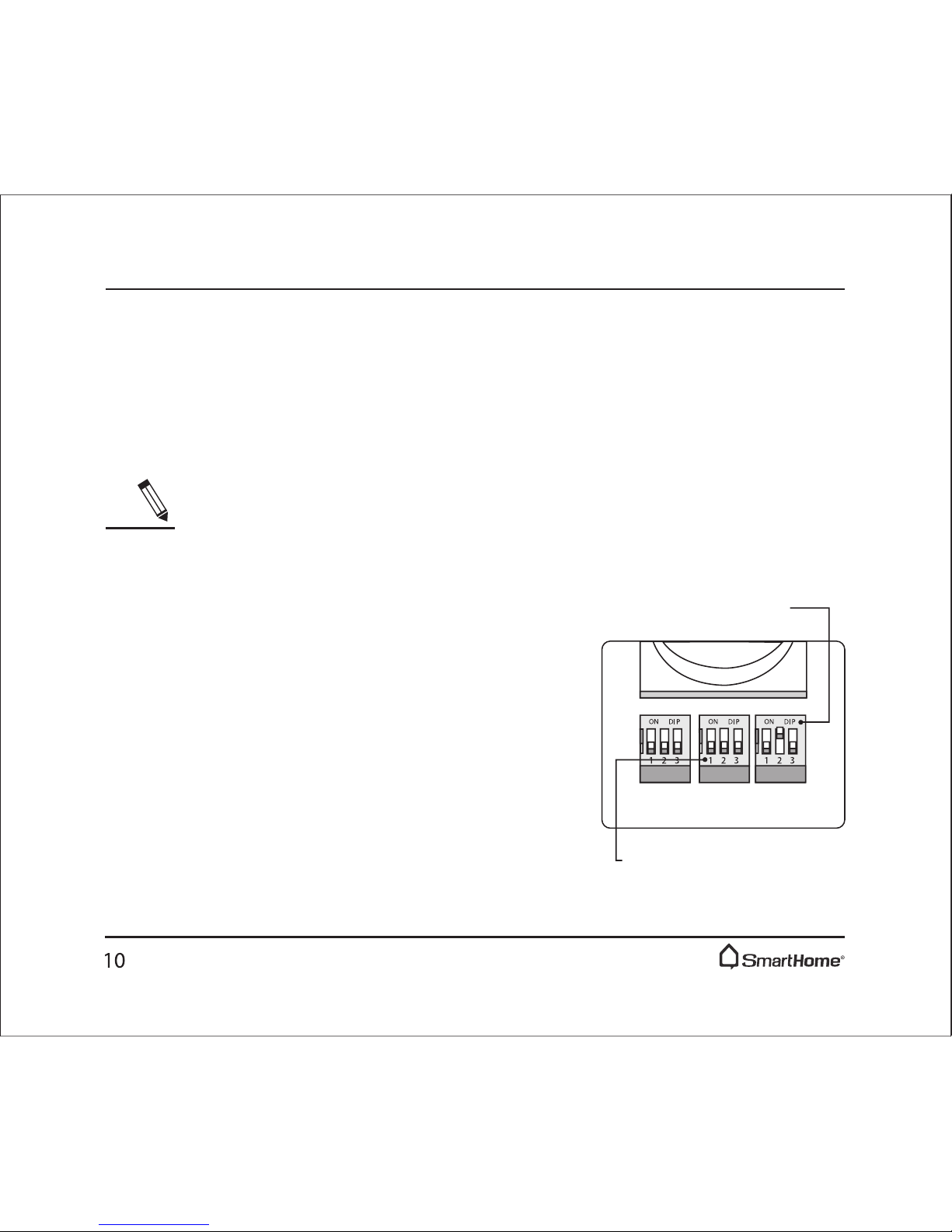

Features
Switch S201 for
adjusting sensor time
Switch S202 for adjusting
the forcible turn-off time
S203 S202 S201
SH - D3
1. Auto lighting
The smart lighting device automatically turns on when detecting people in sensor
area. When users leave the sensor area, the device will turn off after a preset
time. The preset time for turning off can be set from 10 seconds to 60 minutes
by switch S201 (refer to page 16 & 17).
If preset time is too short, the lifespan of lamps and compacts will be
shortened by high switching frequency.
2. Forcible lighting
The device can connect to a switch to adjust
lighting modes according to users’ purposes.
Turn off the light: When the light is on, using a
switch to turn off the light, the light will be off for
a preset amount of time. After the period, upon
detecting a user’s presence, the device will
automatically turn on the light. The turn-off time
is set by S202.
Notice

Features SH - D3

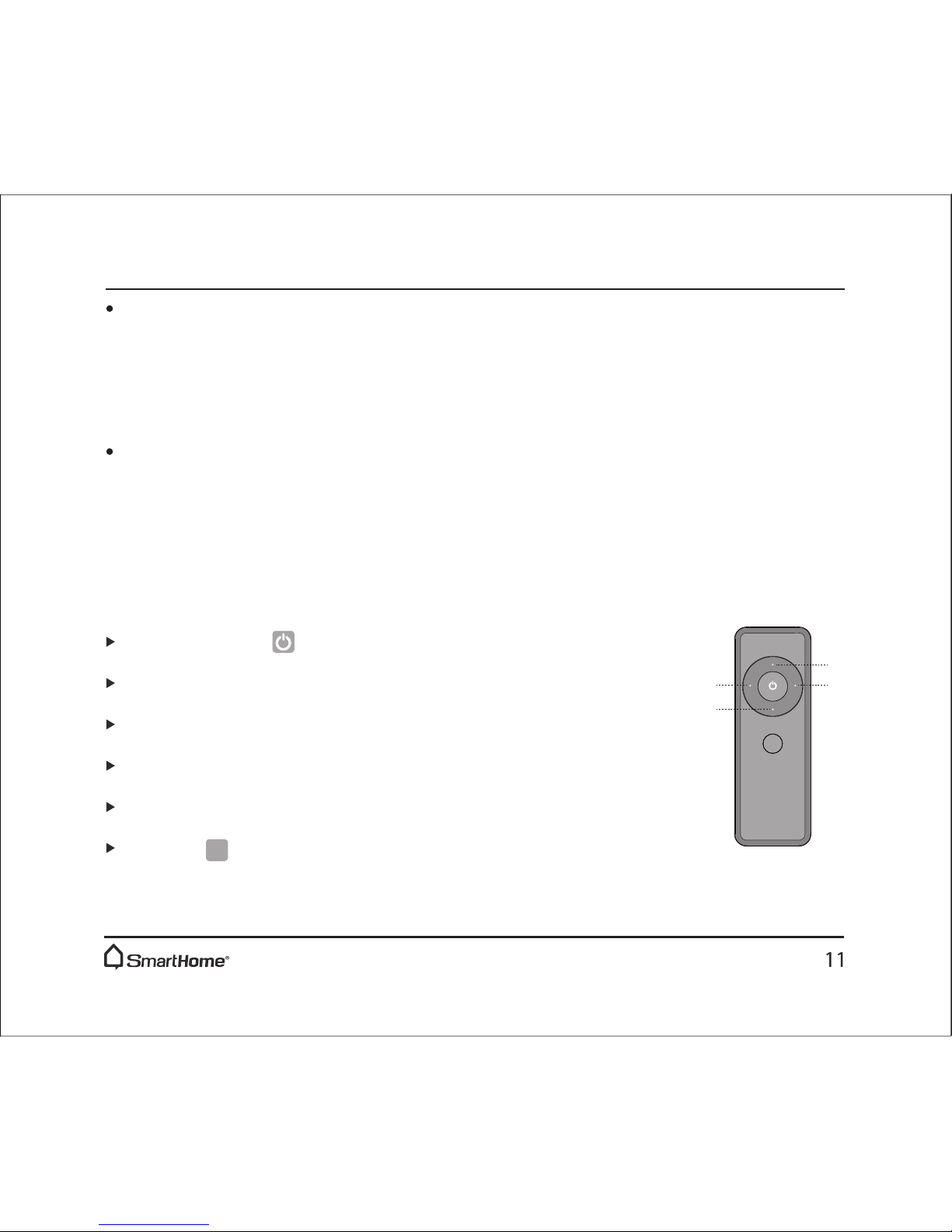

3. Use remote control SH – RM6
Turn on the light: When the light is off, using a switch to turn on the light, the
device will turn on and automatically turn off the light when users get out of
the sensor area after the automatic turn-off time (refer to time settings in
page 16 & 17).
Continuous lighting mode: Switch on and off 3 times consecutively for 2
seconds (or press and hold the button for more than 3 seconds), the light will
be continuously on. If users would like to turn off the light, use the switch to
turn off.
SH - RM6
SET
1
4 2
3
Press button < > to turn on/off the light.
Press <1> to schedule the device to turn off after 15 minutes.
Press <2> to schedule the device to turn off after 30 minutes.
Press <3> to schedule the device to turn off after 45 minutes.
Press <4> to schedule the device to turn off after 60 minutes.
Press < > to cancel the schedule.
SET

Features SH - D3
Using light sensorNot using light sensor

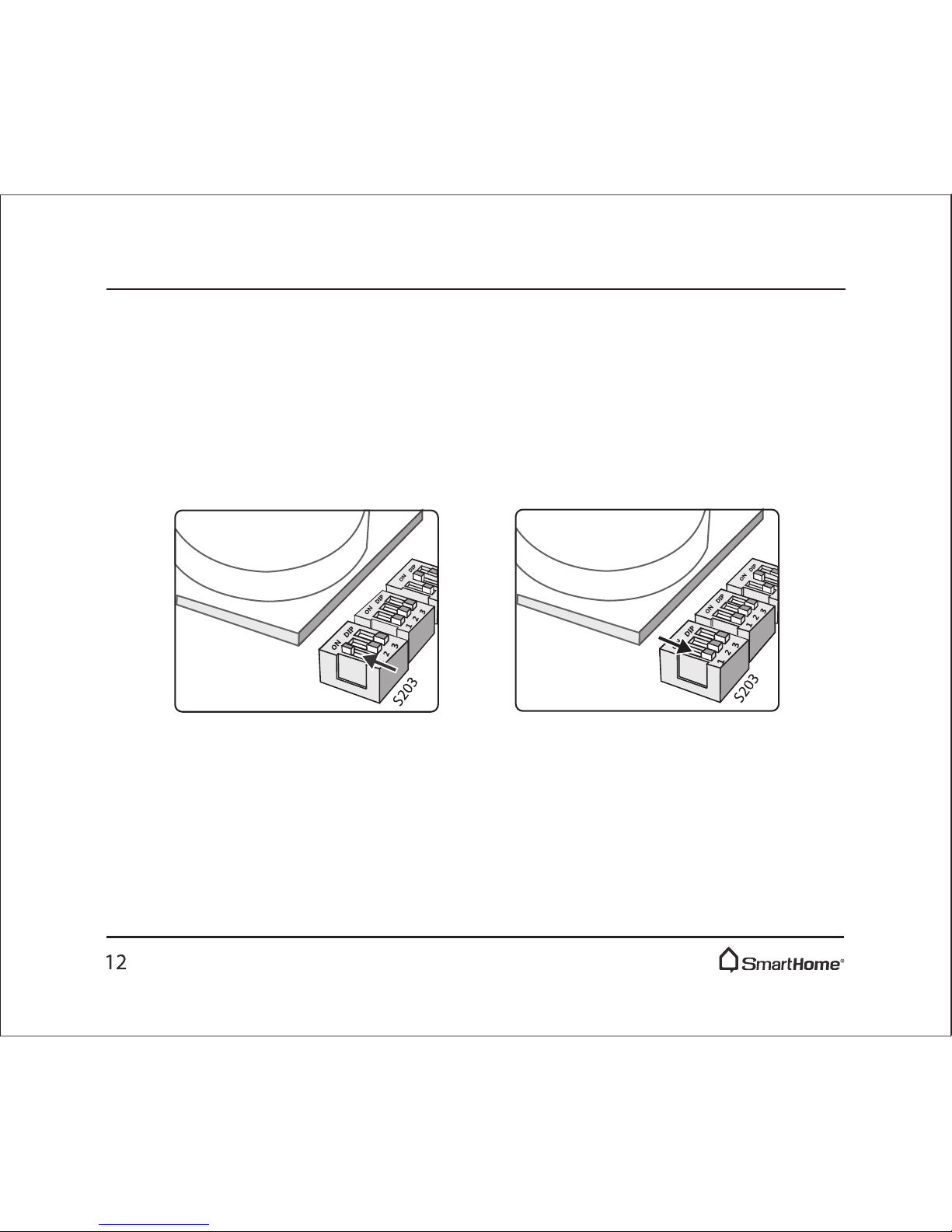

4. Light sensor
Light sensor helps the device’s operation to be smarter and more power-saving.
When using light sensing mode, the device automatically turns on only when
environment light condition is darker than the preset one.
Enable or disable this mode with switch S203 as shown in the figures.

Features SH - D3
5. Adjust light level
For the preferred light level setting, please take the following steps:
The device is set up with default preferred light level. However, users can set up
the parameter again if the default one is not suitable.
6. Indicator light
Indicator light is used to notify the device’s status.
If indicator light flashes every 1 second when users are in sensor area: The
device is operating in automatic lighting mode.
If the indicator light is continuously on: The device is in continuous lighting mode.
If the indicator light is off: The device is turned off by switch or there is no
user in its sensor area.
If the indicator light flashes every 0.5 second: The device is booting. The
booting time is 10 seconds.
Wait for the environment light to reach the preferred level to begin the setting.
Switch on and off 5 times consecutively for 3 seconds (or hold the button for
more than 10 seconds) so that the device records the new reference light
level. The light is off and on after 2 seconds to notify successful light record.
13

Features SH - D3
If the indicator light flashes every 0.5 second and off for 2 seconds in each
cycle, the device is scheduled to turn off after 15 minutes.
If the indicator light flashes twice every 0.5 second and off for 2 seconds in
each cycle, the device is scheduled to turn off after 30 minutes.
If the indicator light flashes 3 times every 0.5 second and off for 2 seconds
in each cycle, the device is scheduled to turn off after 45 minutes.
If the indicator light flashes 4 times every 0.5 second and off for 2 seconds
in each cycle, the device is scheduled to turn off after 60 minutes.
14

S203 S203
Installation
Light sensor Off
Forcible turn-off 10 hours
Automatic turn-off 10 minutes
Switch type
Using push button switch mode Using normal switch (default)
Automatic turn-off
after 10 minutes
Forcible turn-off
10 hours
Ordinary switch
Mode Default value Actual settings

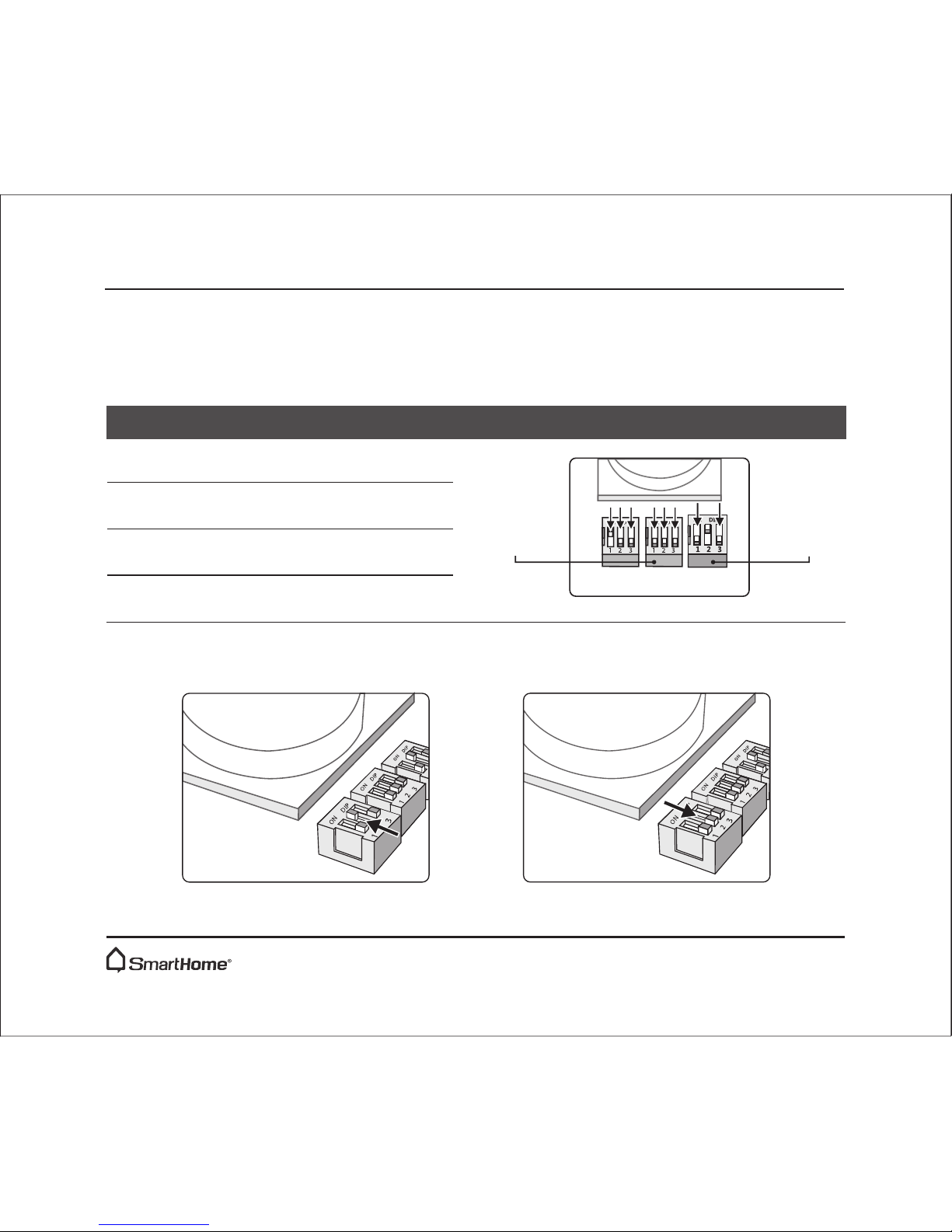

1. Device’s default settings
2. Setting switch mode (switch S203)
Installation
SH - D3
S203 S202 S201
15

Forcible light turn-off
for 30 minutes
Automatic light turn-off
after 10 seconds
S203 S202 S201
Automatic light turn-off
after 2 minutes
Forcible light turn-off
for 60 minutes
S203 S202 S201
Forcible light turn-off
for 45 minutes
Automatic light turn-off
after 60 seconds
S203 S202 S201
Automatic light turn-off
after 3 minutes
Forcible light turn-off
for 90 minutes
S203 S202 S201
Installation

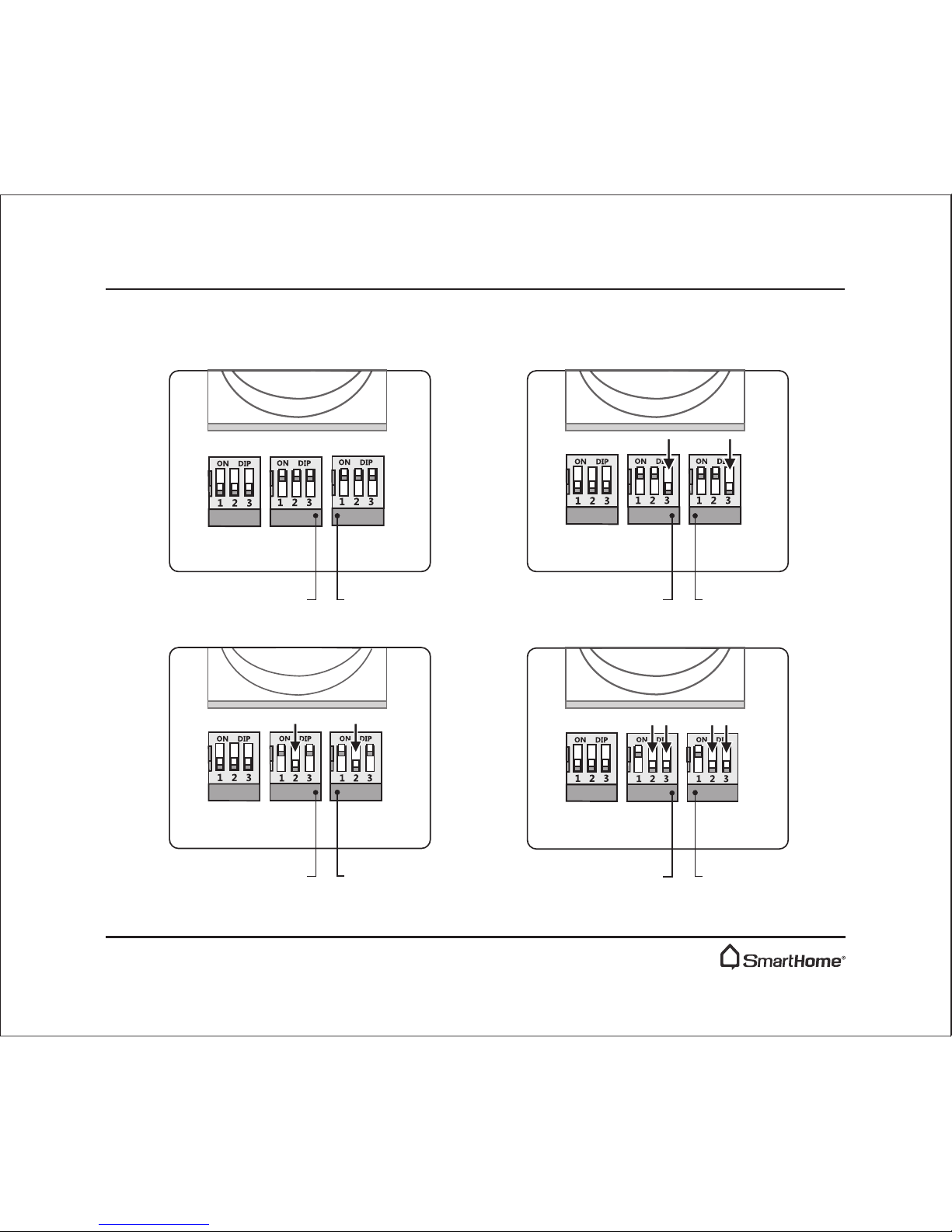

3. Time settings
SH - D3
16

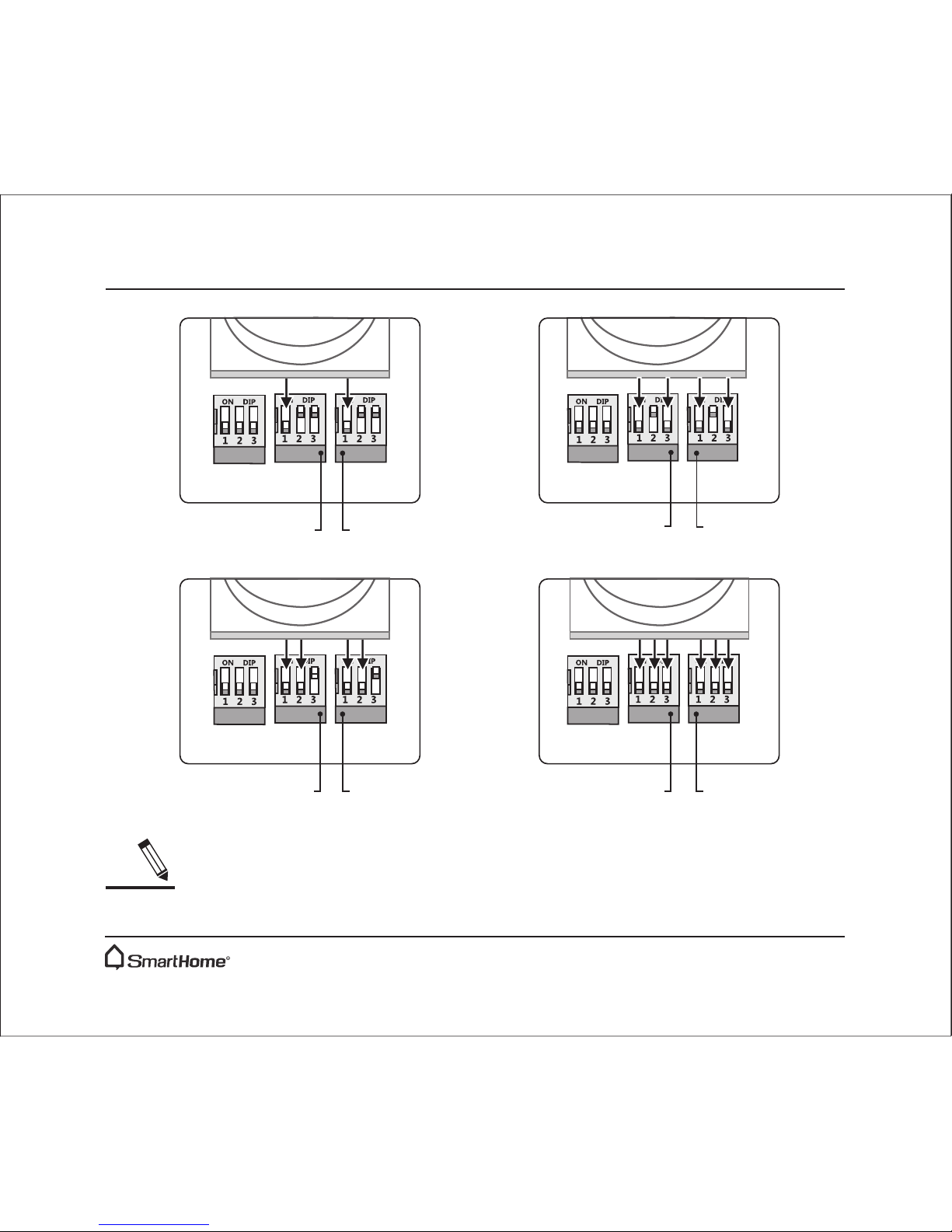

Notice
Automatic light turn-off
after 5 minutes
Forcible light turn-off
for 2 hours
S203 S202 S201
Automatic light turn-off
after 15 minutes
Forcible light turn-off
for 8 hours
S203 S202 S201
Forcible light turn-off
for 10 hours
Automatic light turn-off
after 30 minutes
S203 S202 S201
Automatic light turn-off
after 10 minutes
Forcible light turn-off
for 6 hours
S203 S202 S201
Installation SH - D3
Adjusting the forcible light turn-off time (S202) does not affect the
automatic light turn-on time (S201) and vice versa.
17
