Important Functions
SB-2000.indd 2 2019-02-15 오후 2:07:26

3
IMPORTANT SAFEGUARDS
General cautions
Product structure and designations
(Product components)
Control designations
Installation and cautions
Initial operation
Separation of the unit from toilet bowl
Basic operation
Detailed operation
Maintenance
Draining water
Winter usage
Trouble shooting
Specifications
Warranty
4
6
8
9
2 0
21
60~61
10
12
13
14
15
18
19
19
Preparation
0peration
&
Cleaning
Others
Contents
E
N
G
L
I
S
H
SB-2000.indd 3 2019-02-15 오후 2:07:26

1. Do not place or store product where it can fall or be pulled into a tub or sink.
2. Do not place in or drop into water or other liquid.
3. Do not reach for a product that has fallen into water.
If this happens unplug the unit and then remove item from water immediately.
READ ALL INSTRUCTIONS BEFORE INSTALLATION AND USE
DANGER - To reduce the risk of electrocution:
WARNING - To reduce the risk of burns, electrocution, fire, or injury to persons.
1. Close supervision is necessary when this product is used by, on, or near children or invalids.
2. Use this product only for its intended use as described in this manual.
Do not use attachments not recommended by the manufacturer.
3. Never operate this product if it has a damaged cord or plug or if it is not working properly,
if it has been dropped or damaged, or dropped into water. Return the product to a service center for
examination and repair.
4. Keep the cord away from heated surfaces.
5. Never block the air openings of the product or place it on a soft surface, such as a bed or couch,
where the air openings may be blocked. Keep the air openings free of lint, hair, and the like.
6. Do not use the unit if you are sleeping or tired to the point of being drowsy.
7. Never drop or insert any object into any opening or hose.
8. Do not use outdoors or operate where aerosol (spray) products are being used or when oxidated products
are being administered.
9. Unplug this product before filling. Fill (reservoir) with water. Do not overfill (or specify filling instructions)
SAVE THESE INSTRUCTIONS
THIS PRODUCT MUST BE PLUGGED into a regular voltage Grounded GFCI outlet (North America
120V AC, 60Hz). The rated power consumption is 660W / 600-700W. In locations where only a
standard two-prong outlet is available, it is the responsibility of the user to install a grounded
three-prong outlet. Using higher voltage is dangerous and may result in a fire or other accident.
This product is not responsible for damage resulting from the use of it on other than specified
voltage, or operating it without proper grounding.
4
WIRING REQUIREMENT
2
1
Cautions Before Installation
IMPORTANT SAFEGUARDS
SB-2000.indd 4 2019-02-15 오후 2:07:26

 This product has to be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by
providing an escape wire for the electric current. This product is equipped with a cord having a grounding wire with a
grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.
Danger - Improper use of the grounding plug can result in a risk of electric shock.
If repair or replacement of the cord or plug is necessary, do not connect the grounding wire to either flat blade terminal.
Consult with a licensed electrician if you have concerns about whether the product is properly grounded.
 This product is for use on a normal 120 V circuit, and has a grounding plug that looks like the plug illustrated in sketch A

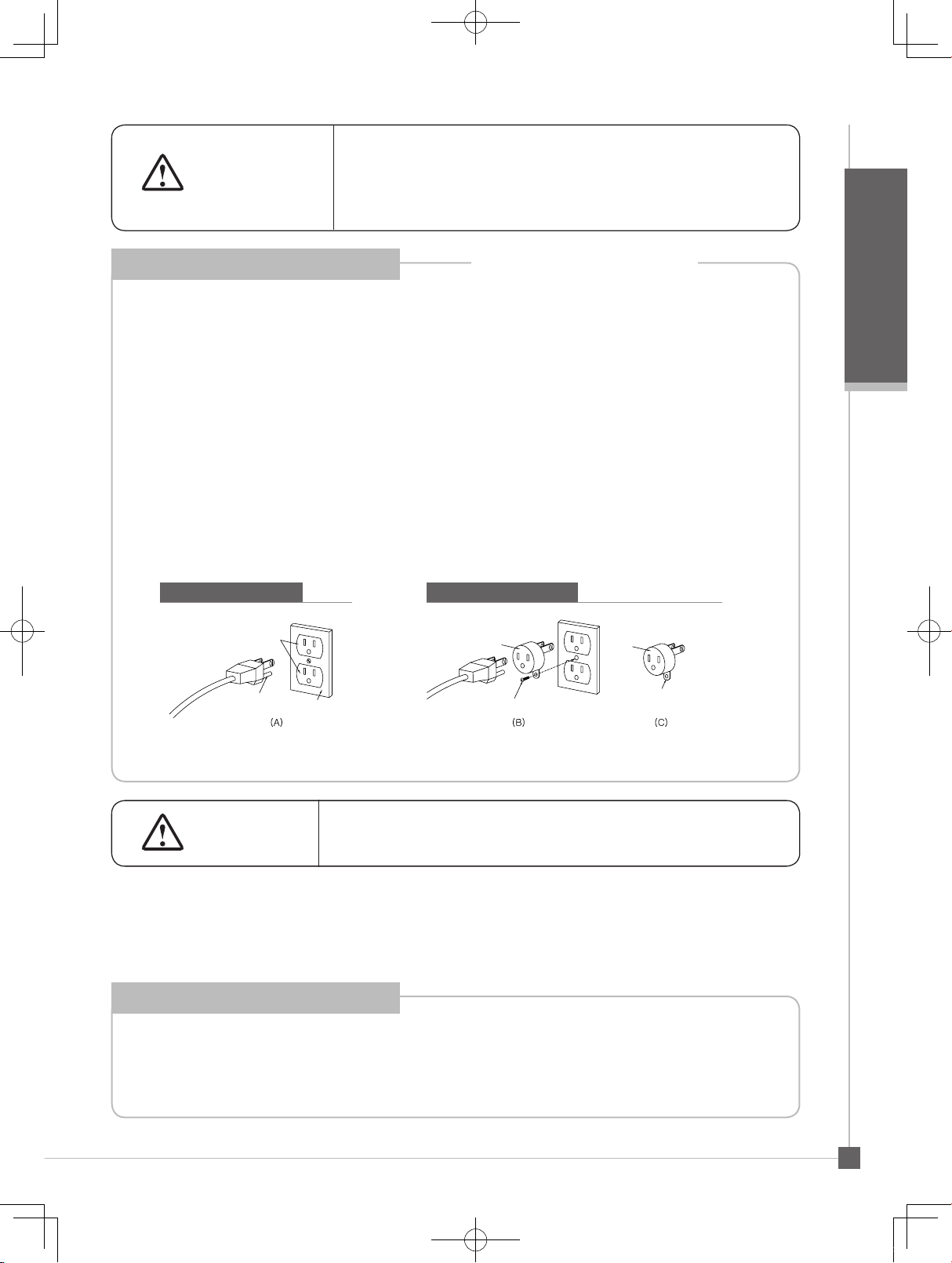

in Figure 1. A temporary adapter, which looks like the adapter illustrated in sketches B and C, may be used to connect this
plug to a 2-pole receptacle as shown in sketch B if a properly grounded outlet is not available. The temporary adapter
should be plugged into a properly grounded outlet (sketch A) and should be installed by a licensed electrician.
The green colored rigid ear, lug, and the ike extending from the adapter must be connected to a permanent ground such
as a properly grounded outlet box cover.
Whenever the adapter is used, it must be held in place by the screw.
This appliance has to be grounded.
GROUND INSTRUCTIONS
GROUNDING PIN
ADAPTER ADAPTER
METAL SCREW TAB for
Grounding Screw
GROUNDED
OUTLET
- Figure 1-
The use of an extension cord is not recommended or advised. If it is necessary to use an extension cord, use only
a three-prong extension cord (one to one), and a three slot built-in GFCI receptacle that will accept the plug on this product. The marked rating
of the extension cord should be equal to or greater than the electrical rating of the unit (10amp). Consult a licensed electrician if you are not sure
whether the unit is properly grounded.
 Instruction and caution statements for cleaning, user maintenance, operations recommended by the manufacturer,
such as lubrication or nonlubrication, and a warning to the user that any other servicing should be performed by
an authorized service representative or that the product has no user serviceable parts.
GROUNDED
OUTLET BOX
5
REMARK
E
N
G
L
I
S
H
IMPROPER GROUNDING CAN RESULT IN A RISK OF ELECTRIC SHOCK.
Electric wiring has to be done in accordance with all local codes,
or in the absence of local codes, with National Electrical Codes.
Preferred Connection Temporary Connection
This Product must be on a separated circuit. No other appliance should share
the circuit with this product.
Sharing a circuit could cause the branch circuit fuse to blow
or the circuit breaker to trip. Continuous usage under these conditions may
result in fire or property damage.
WARNING
DANGER
SB-2000.indd 5 2019-02-15 오후 2:07:26

6

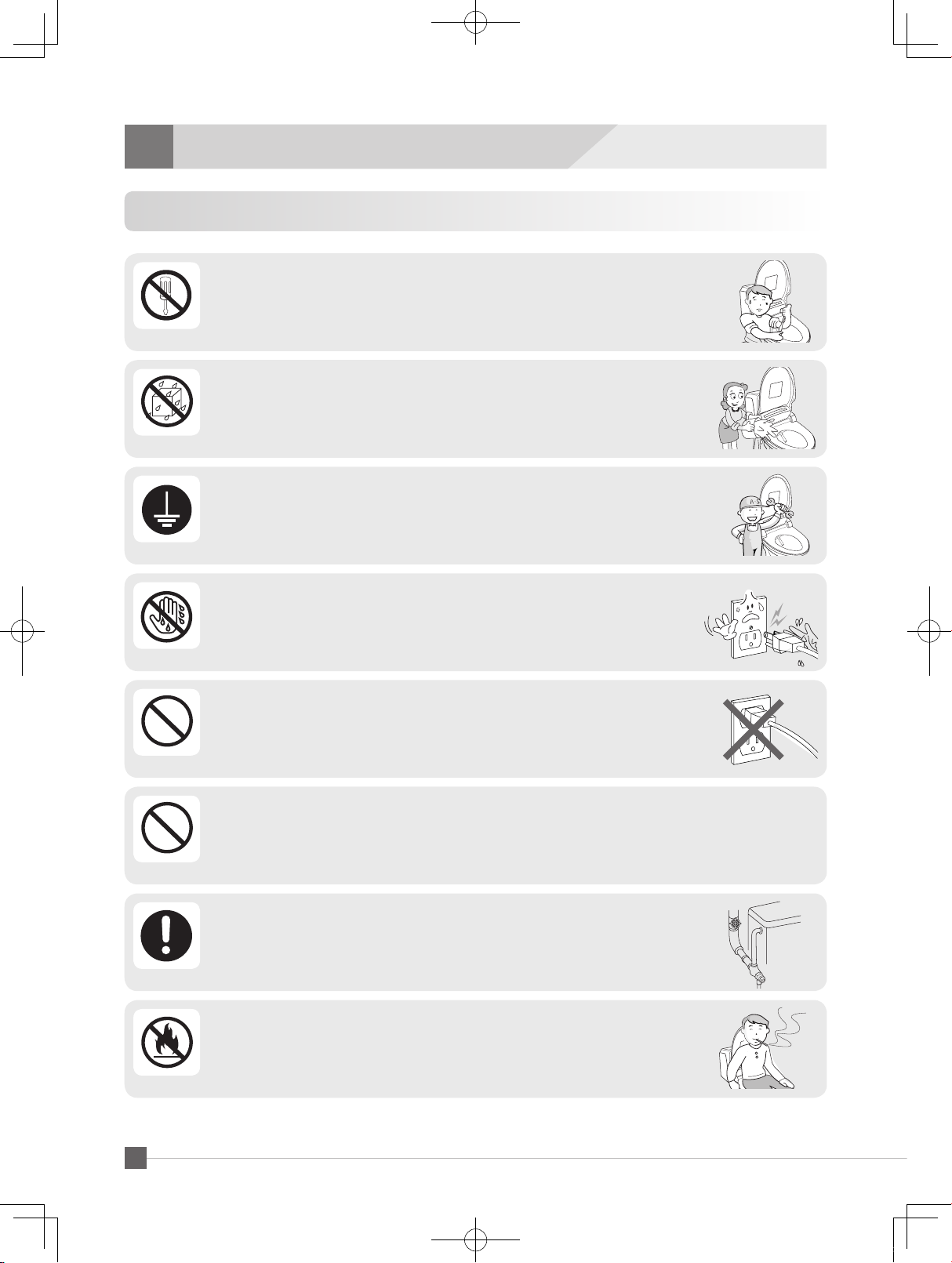

3General Caution

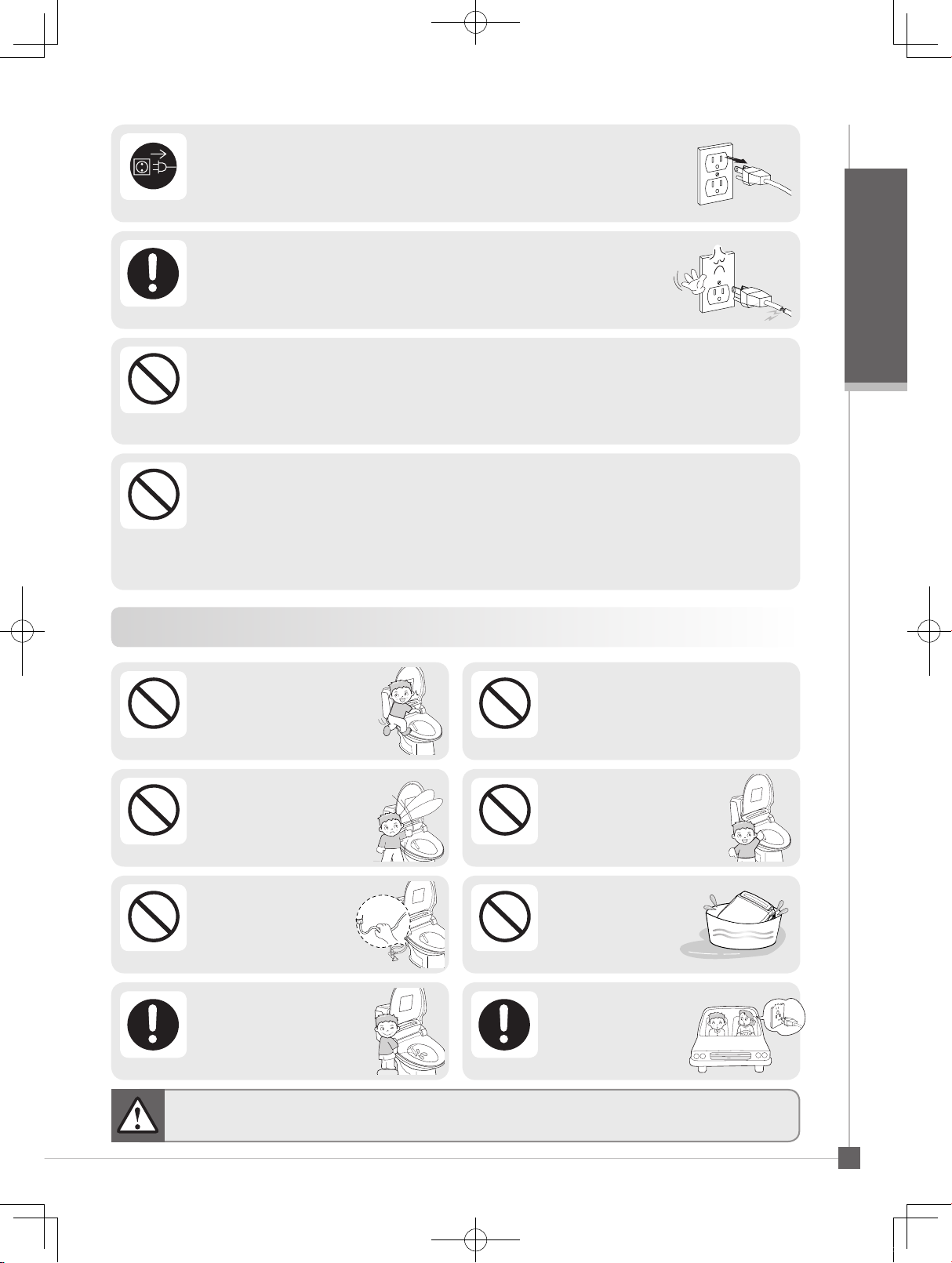

Do not separate, disassemble, repair or remodel the unit,
or allow foreign substances inside the unit.
ᆞThis can cause a fire or electric shock.
ᆞOnly qualified service personnel should repair this product.
Disassembling,
remodeling prohibited
Do not splash water on the main unit or power cord, and do not utilize it in areas of high
levels of humidity.
ᆞThis can cause a fire or electric shock.
Do not spray water
This product must be grounded before usage and
plugged into an AC 120V/60Hz power outlet.
ᆞIf grounding is not done, it can cause fire or electric shock .
Grounding
Do not touch the power cord with wet hands.
ᆞDo not plug or unplug the power cord with wet hands as it can
cause electric shock or bodily injury.
Wet hands prohibited
Do not supply electrical power to the product until it is installed on the toilet and the water
supply hose is properly connected.
ᆞThis can cause a fire or damage the product.
Prohibited
Do not connect several power cords into one outlet.
ᆞThis unit uses 120V power outlet.
ᆞCan cause overheating or fire hazards.
ᆞPlug in the power cord properly into the power outlet.
Prohibited
Please use public water supply.
Please do not connect the unit to industrial water or greywater.
ᆞThis can cause skin infections or urinary tract infections and also damage the unit.
Observe at all times
Keep the cord away from cigarettes or flammable substances.
ᆞThis can cause electric shock or bodily injury.
Use of fire prohibited
Warning
SB-2000.indd 6 2019-02-15 오후 2:07:27

7
Cautions
For safety purposes, unplug the power cord either when cleaning
the product or detaching the unit from the toilet bowl.
ᆞFailure to do so can cause an electric shock.
Unplugging the
power cord
Do not use a damaged power cord or a loosely fitted electric outlet.
ᆞThis can cause an electric shock.
Observe at all times
ᆞChildren, elderly, patients and those who are physically limited should us the low temperature setting for
the seat, water and dryer.
ᆞAfter using the unit at high temperatures, the temperature should be readjusted to ‘low’ for the elderly,
children and for those with sensitive skin.
ᆞThose who cannot adjust the temperature or those who have sensitive skin should take special precautions.
Prohibited
When cleaning, do not use cleaning detergents (oxidized products, sink products,
toilet cleaning products, and any types of stain removers) on the external surface of the electronic toilet seat, and
also do not spray air fresheners or aromatic products onto seat in attempts to eliminate odors.
ᆞUsing cleaning detergents or air fresheners can change the color of the external surface and
can also cause problems with the seats functioning
Prohibited
Do not stand on top of the seat
cover, seat or main body unit. This
can damage or break the unit.
Prohibited
ᆞDo not use a broken product.
ᆞAs the unit is a bathroom appliance,
do not use it for any other purposes.
Prohibited
Do not slam or close the seat or
seat cover forcefully.
Prohibited
Prevent children from putting foreign
substances or inserting their hands
into the dryer outlet or onto the nozzle.
Prohibited
Do not let urine contact the dryer
outlet or nozzle area.
Observe at all times
Never put the product
in water.
Prohibited
Do not pull the connecting
hose forcefully or bend it.
Prohibited
When cleaning or not using
the product over a long period
of time, be sure to unplug the
unit. (refer to page 19)
Observe at all times
When the following people sit down on the seat, a guardian should pay extra attention so that they will not fall when sitting on the toilet seat or standing
up from it.
- Children, elderly, or those who cannot independently sit or stand on the seat.
E
N
G
L
I
S
H
SB-2000.indd 7 2019-02-15 오후 2:07:28

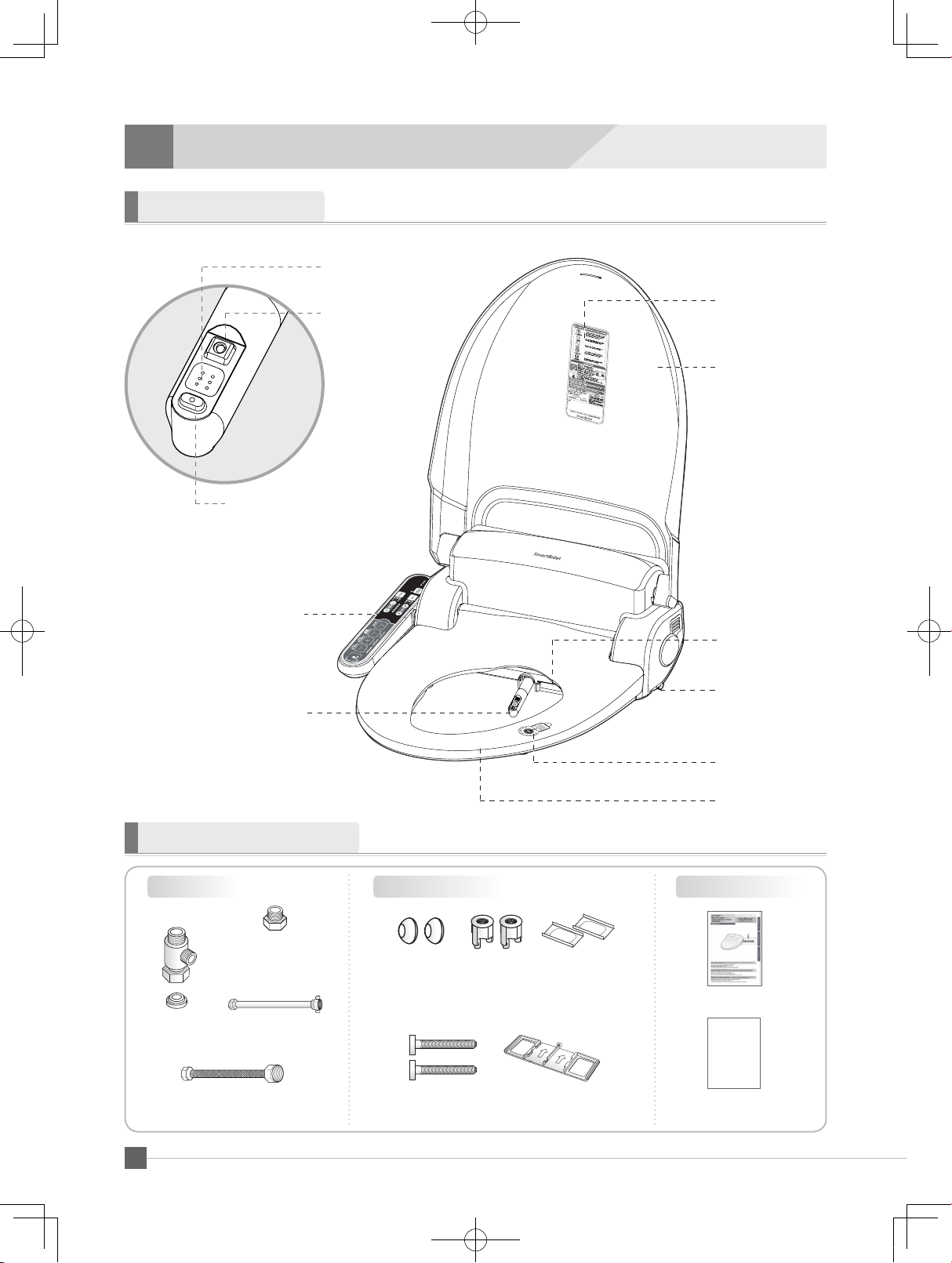

Warm air dryer
Different types
of nozzles
(refer above)
Skin sensor is
imbedded in seat
Drain / Unit Separation
Button
Heated seat
Lid
Caution label
For His Back Wash
For Her Front Wash
For Her Back Wash
8
4Product structure and designations
Cone packing
(2pcs)
Nuts (2pcs) Bolt Case
(2pcs)
Water supply hose
(for electrical toilet seat)
T-Valve &
packing
Water supply hose
(for toilet flush water tank)
User manual
Quick guide
(for installation)
Mounting bolts
(2pcs)
Base Plate
(1pc)
Conversion Nut
1/2” Compression
(With Packing)
Main unit
Product components
Q
For plumbing For product fixation Installation instructions
Control Panel
SB-2000.indd 8 2019-02-15 오후 2:07:29

ᆞAlways sit on the middle of the unit and do not sit on the side of the seat.
(The basic functions will not work if the skin sensor is not active.)
ᆞWhen operating For Her Front Wash / For Her Back Wash / For His Back Wash, if the water temperature is low and
cold water comes out after using it for a period of time, pause and wait for 3 minutes for warm water to be provided.
ᆞDrying will occur quicker if toilet paper is used to wipe away excess water prior to using the dryer function.
Stop
STOP
For Her Back Wash
FOR
HER BACK
FOR
HER FRONT
FOR
HIS BACK
OSCILLATE
ENERGY
SAVER
WATER
DRYER
NOZZLE
POSITION
WATER
SEAT
For Her Front Wash
For His Back Wash
When selected, a light will show on the control
panel which can be controlled by the + or -
buttons.
Pressing Energy Saving on or off activates or
deactivates the Energy Saving mode.
The water pressure and dryer temperature can
be adjusted up to 5 levels.
The oscillating mode and nozzle position can be
adjusted up to 5 levels.

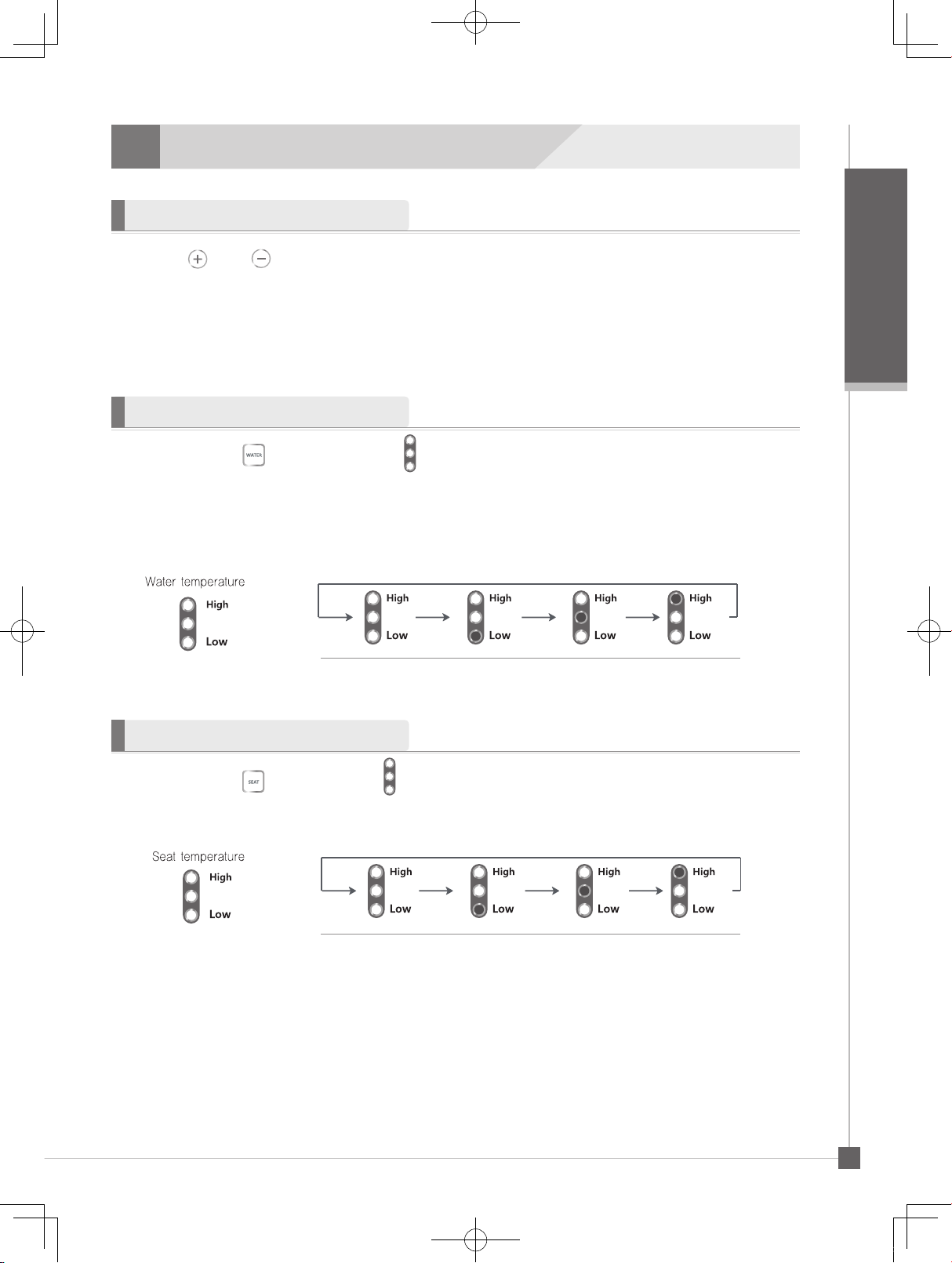

The water temperature can be adjusted up
to 4 levels.
The seat’s temperature can be adjusted up to 4
levels.
9
Control Panel
Sitting on the heated seat or using the dryer for an extended period of time can potentially cause low degree burning.
Special precautions should be taken for children, those who cannot adjust the temperature, and those who have sensitive skin.
E
N
G
L
I
S
H
DRYER
Pressing any of these buttons a second time will
automatically oscillate the nozzle back and forth for a
wider wash. Pressing it once more will stop the
oscillation.
SB-2000.indd 9 2019-02-15 오후 2:07:30

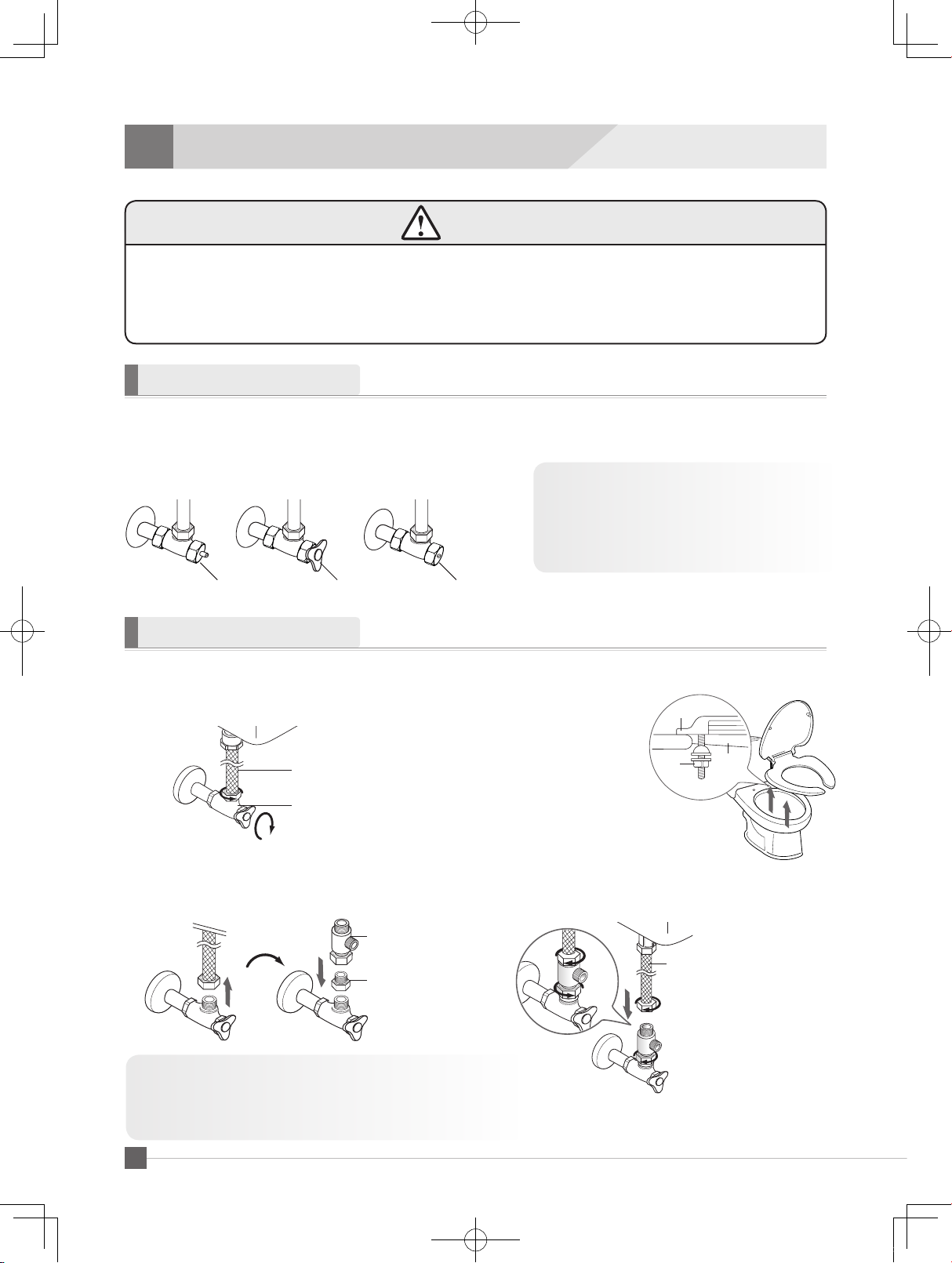

Check the water valve in the bathroom. You may need to consider purchasing additional components.
For the following case, the T-valve alone is sufficient for connection.
Minus home Handle Inner bolt for water valve
■ Water supply valve ■ Inner bolt water valve
ᆞPlease consult with a qualified specialist.
ᆞ Please put the unused water hose in a secure area.
■ Professional engineering is needed for plumbing work
on specialized water pipes and flush valve pipes.
ᆞThis product requires 120V usage.
ᆞPlease do not plug in the electrical cord prior to installation.
ᆞPlease consult with a licensed electrician if electrical work is needed, and in case a grounded outlet is not available,
grounding should be done in order to prevent short circuits or electric shock.
ᆞPlease contact our service center(1-800-515-3430) when you want to reinstall the bidet product(move or replacement).
Caution
Shut water supply by turning it to the right
and disassemble the water hose.
Water supply hose
Water valve
Remove existing seat and lid.
ᆞRelease the bolts on both
sides of the existing toilet
seat to remove the seat
and lid.
ᆞStore the removed seat,
nut and water hose in a
safe area in case you
move or it needs to be
reinstalled.





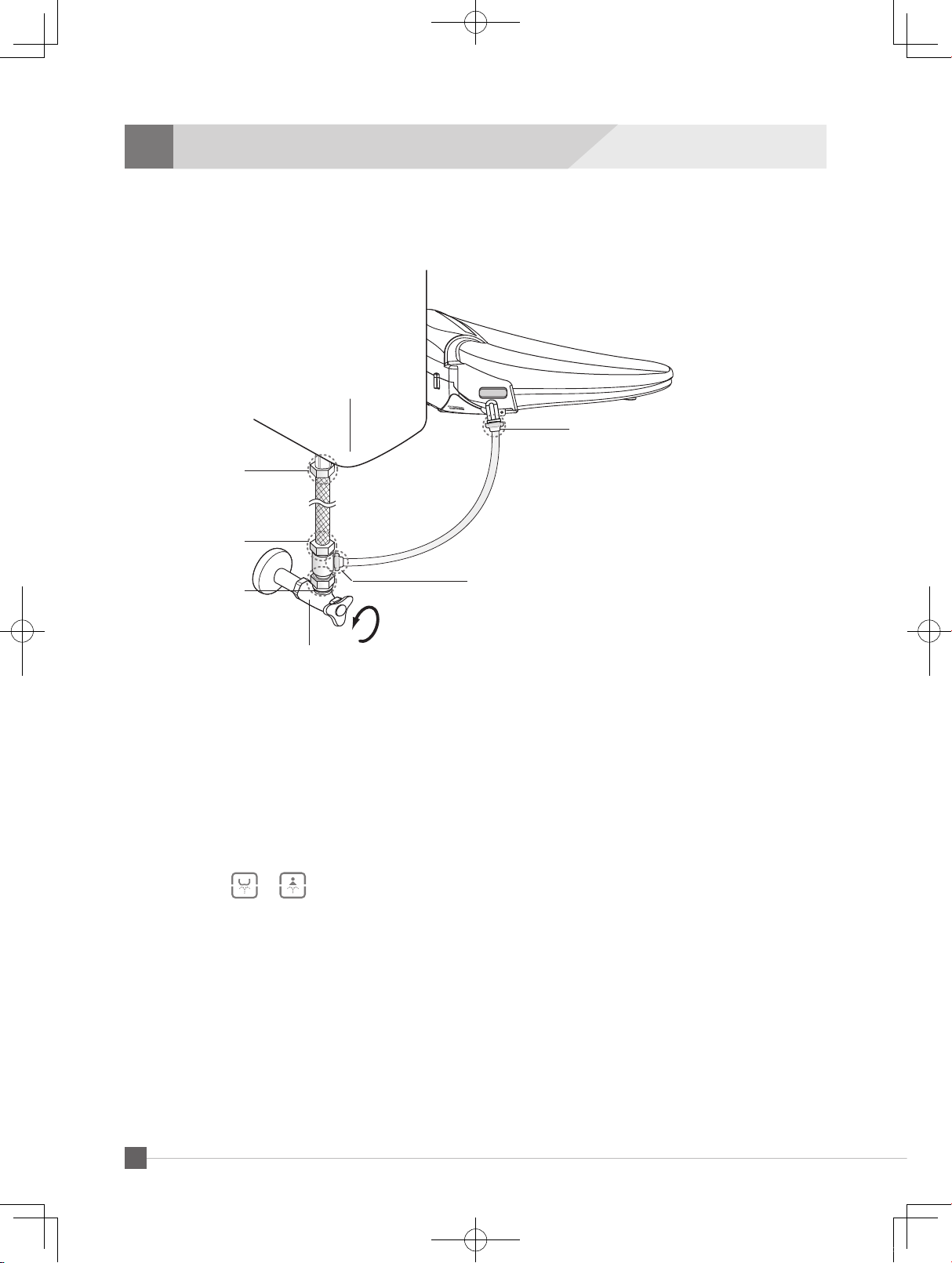

Connect the water supply hose to the
T-valve. Insert the packing in the T-valve.
Connect the water supply hose to the assembled
T-valve.
Conversion Nut
(with packing)
T-valve
(with packing) If the water supply hose is old or
damaged please replace it with the
water supply hose that is included with
the unit.
※ If the water supply valve opening is 1/2 inch please use
a conversion nut to connect it with the T-valve.
※ Included 1/2" conversion nut is OD Compression, not FIP.
※ T-valve packing must be used to prevent water from leaking.
Nut Toilet
body
Exisiting toilet seat
10
5Installation
Check the water valve
Installation steps
SB-2000.indd 10 2019-02-15 오후 2:07:31

Check the water valve in the bathroom. You may need to consider purchasing additional components.
For the following case, the T-valve alone is sufficient for connection.

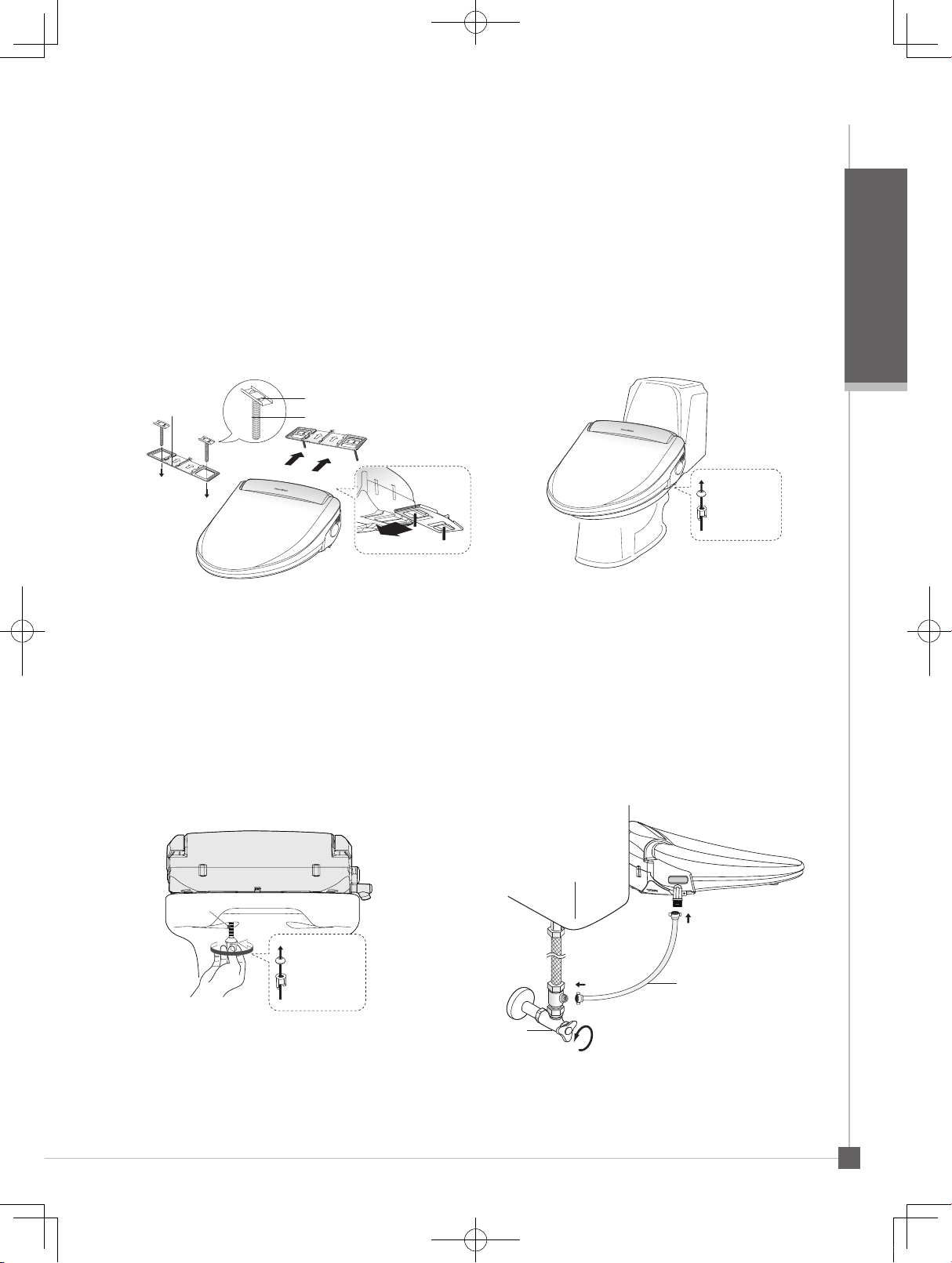

Once the base plate is attached to the unit, align
the unit and toilet fixture facing front, and then
insert the mounting bolts
to the toilet mounting holes.
Put the bolt into the bolt case and align it with the
top of the base plate. Insert bolt with bolt case onto
the base plate. After this is done hold the bolts,
slide it into the bottom of the unit until it snaps in
place.
Install the main unit and insert the mounting
bolts to the toilet mounting holes.
Connect the flexible tube from side of T-valve
to the unit. Turn the water valve to the left to
allow water to flow.
Installed bolt case
Bolt
Bolt
Back
Base plate
Cone Packing
Nut
Water supply valve
※ Customers should use the new hose set provided with the product.
Do not use used set again.
Water supply hose for
electronic toilet seat
11




Cone Packing
Nut
E
N
G
L
I
S
H
SB-2000.indd 11 2019-02-15 오후 2:07:32

Turn the water valve to the left and see if there is any water leaking from the hose.(~)
Connect the power cord to the 120V electric outlet.
ᆞIf the power light does not appear after plugging in the electric cord,
press any button on the remote control.
ᆞIf you hear a ‘beep’ sound, then the lights will appear on the
power lamp.
ᆞIn order to check whether the functions work, you will first need to touch the seat or sit on it to
activate the skin sensor.
ᆞPlease be aware that water will come out. This product can only operate when the user sits on the
electronic toilet seat.
ᆞIf the tank is full, then a low beeping sound will occur which indicates that
preparation is complete.
If you press or button, the water will begin to enter the heated water tank.
Function Check
Water supply valve




12
6Initial Operation




SB-2000.indd 12 2019-02-15 오후 2:07:32

※ Please follow the instructions below when moving or separating the unit from the toilet for cleaning purposes
Unit separation
button
Unit separation button
Disconnect the power plug
Disconnect the T-valve from the water supply. (Refer to page 10~11)
Connect the water hose to the toilet which was disassembled while installing the electronic toilet seat,
and turn the water valve to the left to open it. See if there is any leaking from the water hose connection.
Re-install the toilet seat and lid that was separated when installing the electronic toilet seat.
Shut the water supply valve
Push and hold the button on the right side of the unit to completely
drain the water from the water tank.
Loosen the nut on the hose that is connected to the unit, and
then separate the electronic toilet seat from the toilet in the
following order as illustrated.
ᆞWhile pushing the button (area shown as an arrow) push the electronic toilet seat slightly toward to the front
and then the body unit will begin to slide out.
Next, lightly pull the unit toward the front and it will detach from the toilet.
ᆞAs explained above, steps 1~4 are instructions for separation of the unit for basic cleaning purposes,
and steps 5~7 are instructions for separation when moving, etc.
Do not turn the seat upside-down. This can cause damage to the unit as well as fire hazard.
13
7Separation of unit from the toilet bowl







E
N
G
L
I
S
H
SB-2000.indd 13 2019-02-15 오후 2:07:33

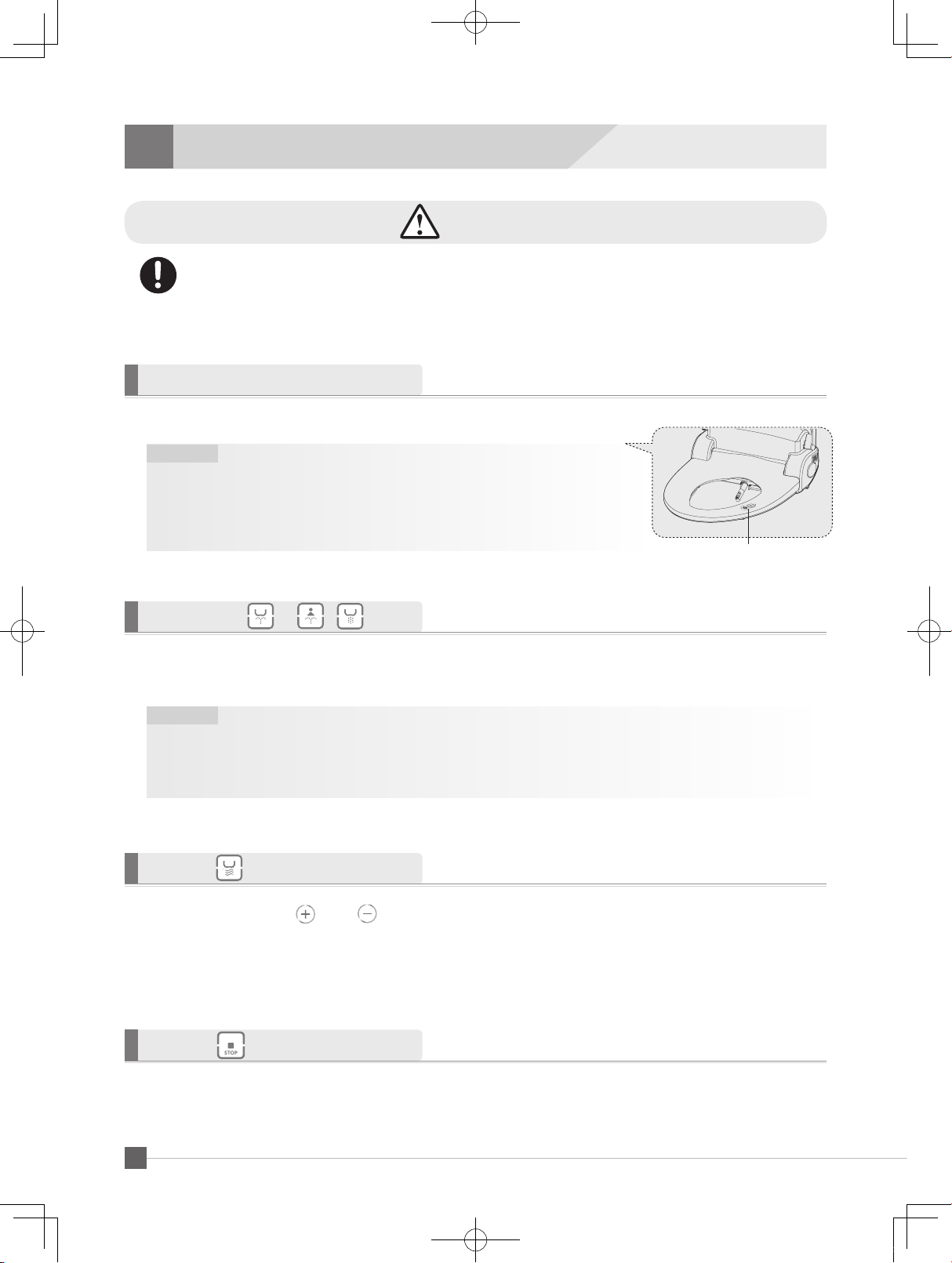

Please press or ,
ᆞSit on the toilet seat so that the skin sensor can fully be activated.
ᆞWash is available For Her Back, For Her Front and For His Back.
ᆞThe selected function can be used for up to 1 minute.
Press
ᆞThe display light for the (high), (low) on the remote will turn on while the
dryer is activated.
ᆞThe selected function can be used up to 3 minutes.
ᆞBefore using the dryer, wiping the wet area with toilet paper will let drying occur more quickly.
Press
ᆞFor Her Front, For Her Back, For His Back wash or drying will all stop.
Please press the ‘off’ or ‘low’ button for seat temperature when the following persons use it.
Special precautions should be taken for children, those who cannot adjust the temperature, and
those who have sensitive skin.
Cautions
Cautions
ᆞDo not press the control buttons harder than needed. This can cause damage.
ᆞThe skin sensor of the seat is only activated with bodily contact,
please be sure to pull down your clothes amply and do not cover the seat
with any clothing items, as it can prevent the seat from activating.
Warning
ᆞThe wash functions will automatically stop after one minute.
If you want to use it continuously press the button again.
Warning
14
8Operation
(Basic)
Sit on the seat.
Skin sensor
SB-2000.indd 14 2019-02-15 오후 2:07:33

ᆞThe display light for the (high), (low) on the remote will turn on while the
dryer is activated.
ᆞThe selected function can be used up to 3 minutes.
ᆞBefore using the dryer, wiping the wet area with toilet paper will let drying occur more quickly.
ᆞPress (high), (low) for the Water/Dryer (Water pressure can be adjusted 1~5 levels.)
ᆞIt is recommended that the water filter (strainer) is cleaned periodically, as water pressure
can be weakened if foreign substances cling onto the water filter (strainer).
(Refer to page 18)
ᆞWhen pressing button the display light( ) will change to allow the adjustment
of the water temperature to the desired level.
ᆞWhen pressing button display light( ) will change.
Temperature can be adjusted to the desired level.
ᆞAverage maintenance time for warm water: This product can maintain the warm water
level for up to 50 seconds during a 1 minute wash session.
15
9Operation
(Instructions to operate each function)
Water pressure
Water temperature adjustment
Seat temperature
E
N
G
L
I
S
H
LowSeat temperature Normal High
LowSeat temperature Normal High
SB-2000.indd 15 2019-02-15 오후 2:07:34

ᆞAfter pressing one of the wash functions: For Her Front / For Her Back / For His Back, pressing it
a second time will activate the oscillating nozzle, covering a wider area of washing.
ᆞPress the button once more to stop the oscillation.
ᆞThe ( ) display lamp for the Water pressure / Dryer will change when using the dryer function.
ᆞAdjust the dryer temperature by pressing (Strong), (Weak).
ᆞThe drying functions can be adjusted up to 5 levels.

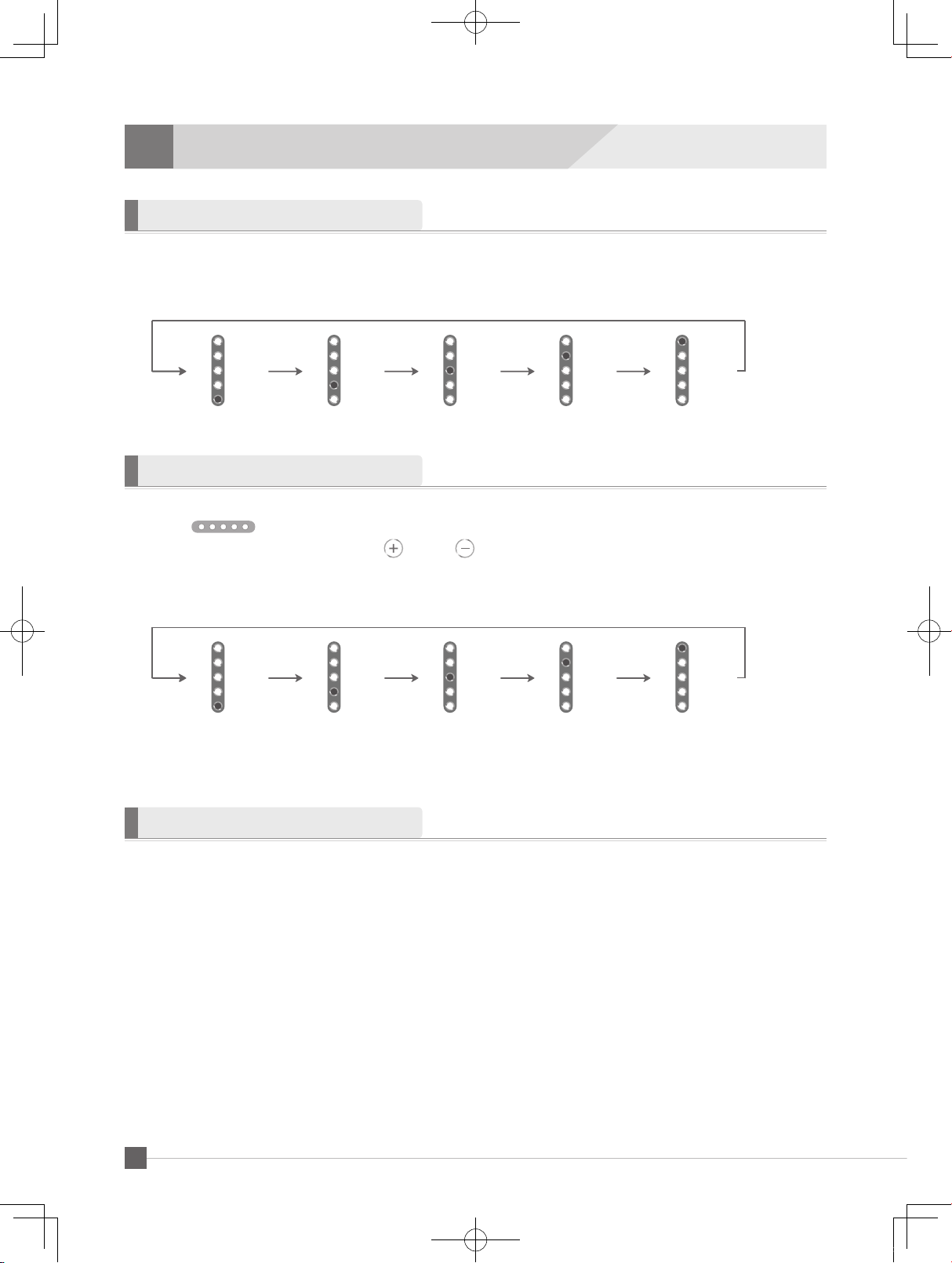

ᆞWhen using the wash functions use ▲(front), ▼(back) buttons to adjust the nozzle to fit to your body.
ᆞLED level
Front
I
Back
Front
I
Back
16
9Operation
(Instructions to operate each function)
Nozzle position adjustment
Warm air dryer adjustment
Oscillate
ᆞLED level
Strong
I
Weak
Strong
I
Weak
SB-2000.indd 16 2019-02-15 오후 2:07:34

ᆞBefore and after using For Her Front Wash /
For Her Back Wash / For His Back Wash,
the nozzle will automatically clean itself.
During a power outage, the water or seat heating temperature could appear to be lower than
the actual temperature setting.
Other energy saving tips
In order to save energy, please abide by the following instructions:
ᆞKeep seat cover closed when not in use to prevent heat from being lost.
ᆞKeep temperature set to low.
ᆞUnplug the power cord if you do not plan to use it for a long period of time.
ᆞWhen pressing the energy saver light on the electronic toilet seat will turn on.
ᆞEnergy saver mode automatically maintains a water and seat temperature of 89.6℉.
ᆞIf you want to turn off the energy saver function,
press the button again and the display light will turn off.
ᆞThe energy saver function will automatically cancel when using the unit during a
power outage, and also after standing up from the seat.
17
Energy saver
Automatic self cleaning nozzle
E
N
G
L
I
S
H
SB-2000.indd 17 2019-02-15 오후 2:07:35

Water supply valve
ᆞBeware to not use any bathroom cleaning detergents such as benzene acid
chemical detergent on the seat exterior.
- Using any type of chemical products or rough scrubbers on the electronic toilet seat surface,
which is made out of plastic material can either damage or change its color.
ᆞDo not spray water directly or use a shower hose on the main body unit.
- Can cause fire or damage to the unit.
ᆞWhen cleaning, the power cord must be unplugged from the power outlet,
and make sure water does not contact the cord and/or outlet.
ᆞAfter cleaning, use a soft cloth to dry the unit.
ᆞPlease perform the actions below without sitting on the toilet seat
- On control panel press and hold the ‘For Her Back’ button for three (3) seconds and the water nozzle will extend.
- To clean use a soft bristled brush(tooth brush) or a soft cloth. Upon completion press and hold the‘For Her Back’
button and the nozzle will retract back to its original position and will perform it’s self-cleaning function.
- Upon completion of these two steps the toilet seat can be used.
Do not use any cleaning products such as Oxy Clean.
Water filter
(Strainer)
18
10 Maintenance
Cleaning the body unit
Cleaning the nozzle
Cleaning the water filter(strainer).
1) Close the water shut off valve.
2) Flush the toilet to empty the water reservoir.
3) Unscrew the water hose nut.
4) Clean the strainer with a small brush or water
5) Re-screw the water hose nut.
6) Open the water shut off valve.
SB-2000.indd 18 2019-02-15 오후 2:07:35

Disconnect the power plug.
Shut the valve by turning it to the right.
When pressing the drain button located on the side of the body unit,
the water in the tank will completely drain into the toilet bowl.
ᆞThis electronic toilet seat has considered the user’s
convenience in that the water can be drained easily
without removing the unit from the toilet seat.
Drain button
Water supply valve
Check if the power cord is plugged in securely.
Adjust the ( ) button to “low” to prevent water from freezing.
If the product is not used for a long period of time,
please disconnect the power cord and
drain the water from the internal unit.
ᆞPlease perform the actions below without sitting on the toilet seat
- On control panel press and hold the ‘For Her Back’ button for three (3) seconds and the water nozzle will extend.
- To clean use a soft bristled brush(tooth brush) or a soft cloth. Upon completion press and hold the‘For Her Back’
button and the nozzle will retract back to its original position and will perform it’s self-cleaning function.
- Upon completion of these two steps the toilet seat can be used.
19
11 Draining water from tank
12 Maintenance for winter season






Please do not keep this product outdoors during the winter
as the cold temperature may damage the product.

E
N
G
L
I
S
H
SB-2000.indd 19 2019-02-15 오후 2:07:36

Troubleshooting Factors to check
The water does not spray
ᆞCheck if the water tank is filled.
ᆞSee if the water valve is closed.
ᆞCheck if the water filter (strainer) is clogged.
The unit is not operating
ᆞCheck if the power cord is connected.
ᆞSee if the power is turned off from the main unit.
ᆞSee if you are correctly sitting on the seat so that
the skin sensor switch will function properly.
(Make sure that the Skin sensor on the seat touches your skin when you sit on the seat.)
Water is leaking
ᆞAfter checking if the plumbing is correctly connected, if water is leaking
from the main unit disconnect and contact service personnel.
Water pressure is weak
ᆞCheck if the water pressure is set at “low”.
ᆞCheck if the water filter (strainer) is clogged.
Seat, water and
dryer is not warm
When the nozzle doesn’t
come out
ᆞSee if the water temperature is set to “low”.
ᆞCheck if the dryer temperature is set to “low”.
ᆞSee if the skin sensor on the seat is touching the skin.
When water is cold or warm
Body unit shakes
Dryer does not work
ᆞAdjust the temperature to (mid, high).
ᆞ If someone has already used the wash function, wait about 3 minutes to use it.
ᆞSit on the seat for approximately 3 minutes and then use it.
ᆞTighten the bolt (do not over-tighten)
ᆞSee if the skin sensor on the seat is touching the skin.
20
13
※ Please be sure to check the following aspects before asking for help.
Trouble shooting
SB-2000.indd 20 2019-02-15 오후 2:07:36
